Smart Color Night Light
Quick Start Guide
Contents
Product Overview
Main Features
Product Details
Set Up with Matter
Set Up with 3R-MATTER APP
Set Up with Apple Home
Set Up with Alexa
Set Up with Google Home
Set Up with Samsung SmartThings
FCC regulatory conformance
RF Exposure
Limited Warranty
01
01
01
02
02
06
08
12
15
19
20
20
Product Overview
Smart Color Night Light - an all-in-one solution with colored lights,
human motion sensor, illuminance sensor.
Main Features
Experience a new level of smart living with the Smart Color Night
Light. Elevate your home with enhanced control, convenience and
efficiency.
Matter-Certified Smart Lighting Effect
Privacy & Security Adapter USB Powered Design
Voice Control and Remote Control
Product Details
Color Light
USB Interface
Motion Sensor
Set Pinhole
Power Adapter
Illumination Sensor
LED Status
Power On Flashes 3 times Ready for setup
Hold on until turn red Factory reset
01
Make sure your Matter controller firmware version and corre-
sponding mobile app version are up to date.
1.
Must check firmware update for your Smart Color Night Light
through 3R-MATTER App(see Set Up with 3R-MATTER APP). Then
add the night light to other Matter controllers through multi-ad-
min, or factory reset the night light and pair it to other Matter con-
trollers.
2.
To factory reset the Smart Color Night Light, use a pin to press
through the pinhole for 5 seconds until it turns red then release,
the LED light flashes yellow 3 times and turns solid white, indicat-
ing it is in pairing mode.
3.
This Matter certified device can be paired to any Matter certified eco-
system.
Note:
Set Up with Matter
02
Set Up with 3R-MATTER APP

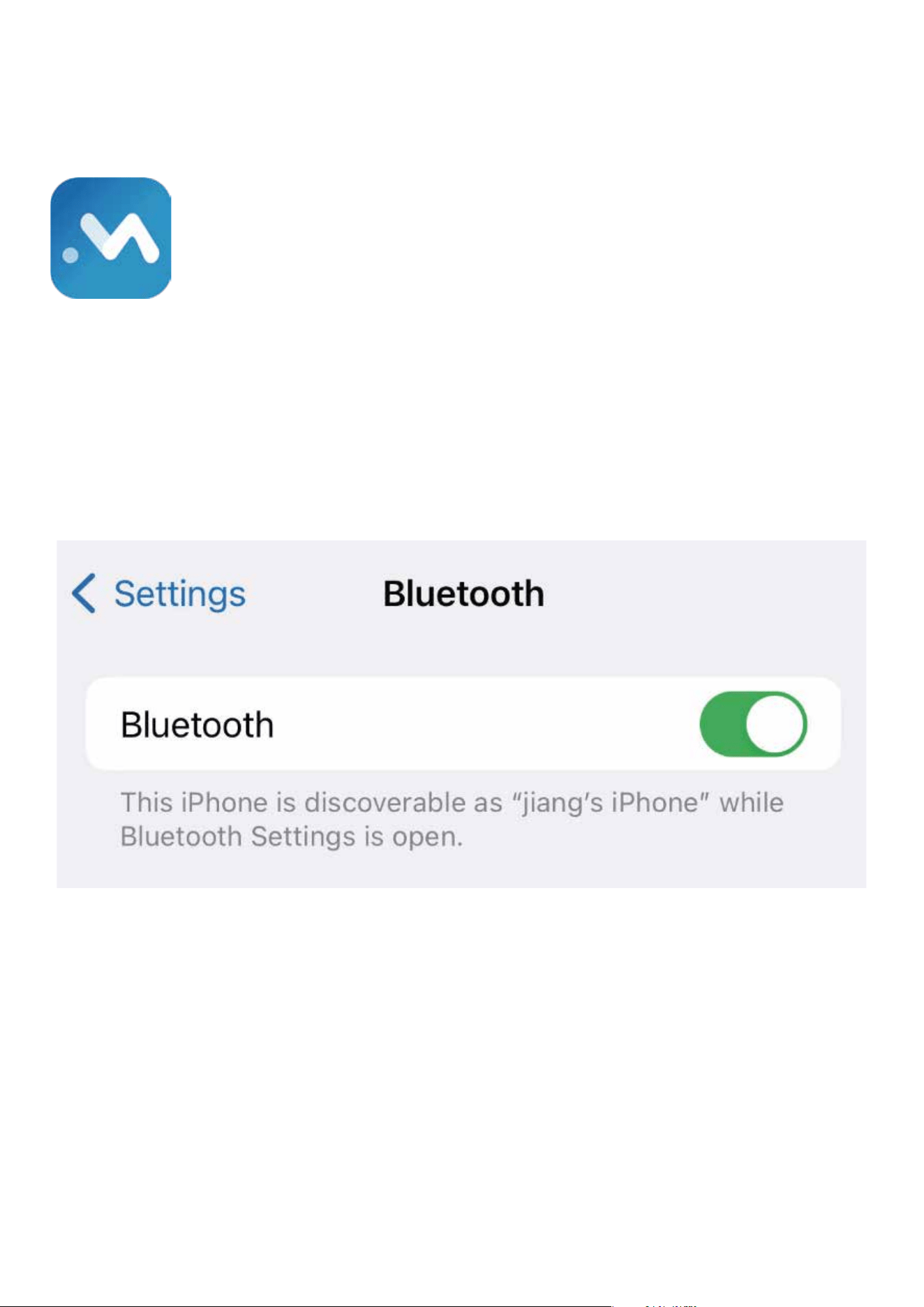

Download and install 3R-MATTER app in App Store/Google Play
Store on your phone. Turn on Bluetooth on your phone, and make
sure it has a stable internet access through a 2.4GHz WiFi net-
work.
1.
Power up the Smart Color Night Light, the LED light flashes
yellow 3 times and turns solid white, indicating it is in pairing
mode. If it is not in pairing mode, use a pin to press through the
pinhole for 5 seconds until it turns red then release.
2.
03

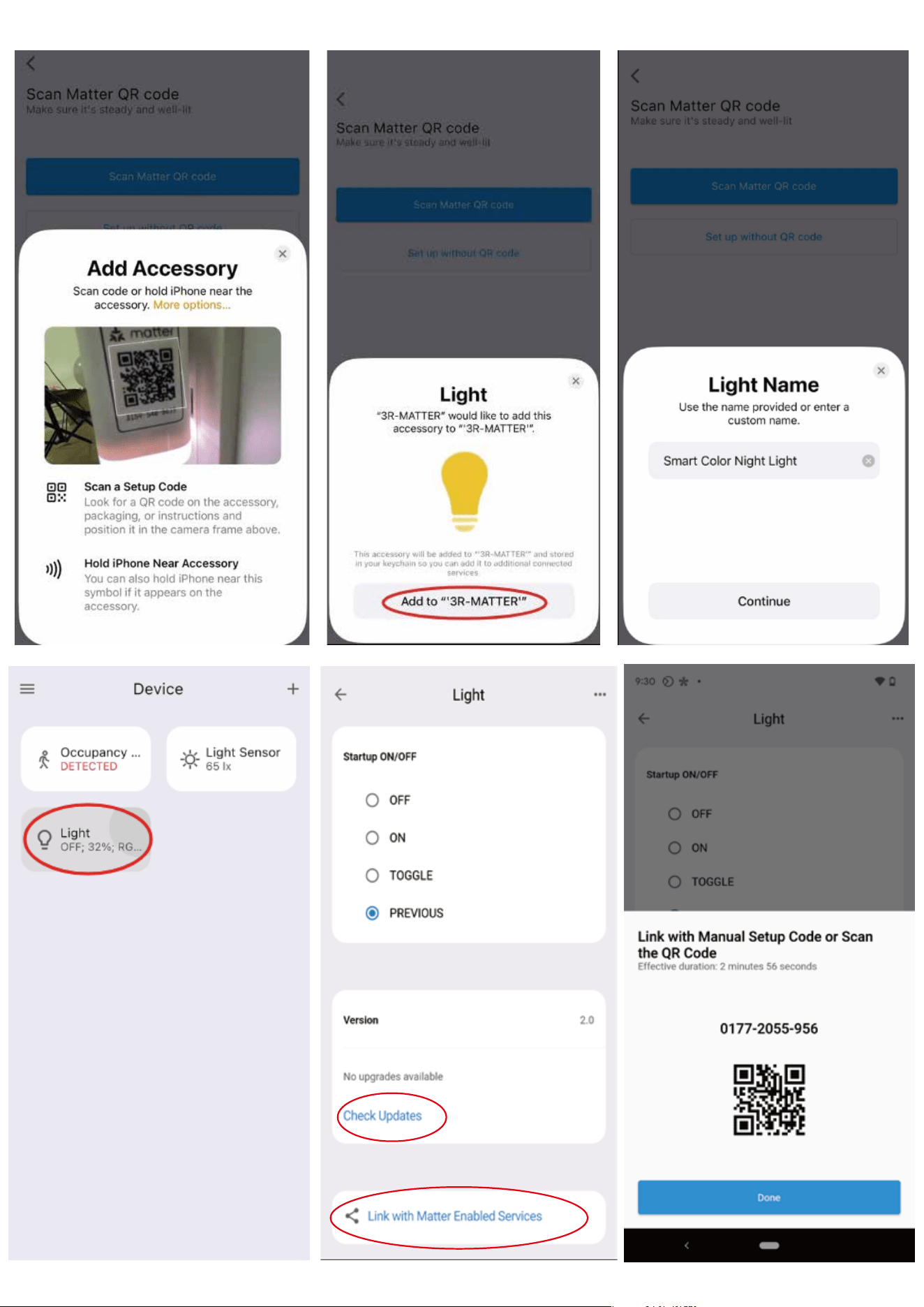

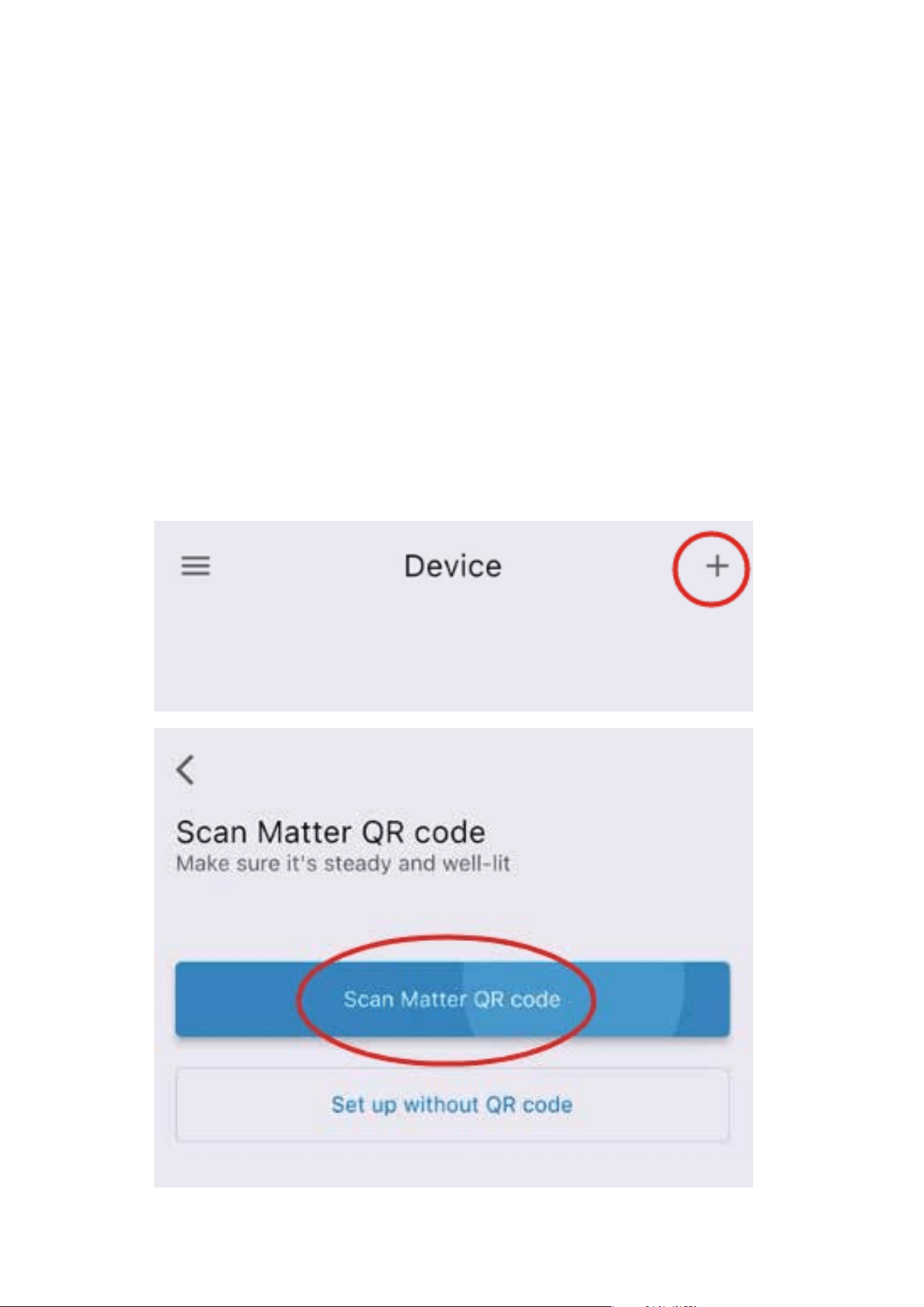

Tab + in the up right in 3R-MATTER app, scan MATTER QR code on
your Smart Color Night Light, follow the instructions in the app to
complete setup.
3.
Long press the light icon to enter the night light device page, tab
Check Updates for firmware OTA.
Important: Stay in this page during OTA. Exiting requires a restart
for OTA.
4.
Tab Link with Matter Enable Services to add the night light to an-
other Matter controller through multi-admin.
5.
04
05
Compatibility:
iOS system: Version 16.6 or later.
Matter-supported Controller: Home Pod, Home Pod mini, or Apple
TV.
Set Up with Apple Home

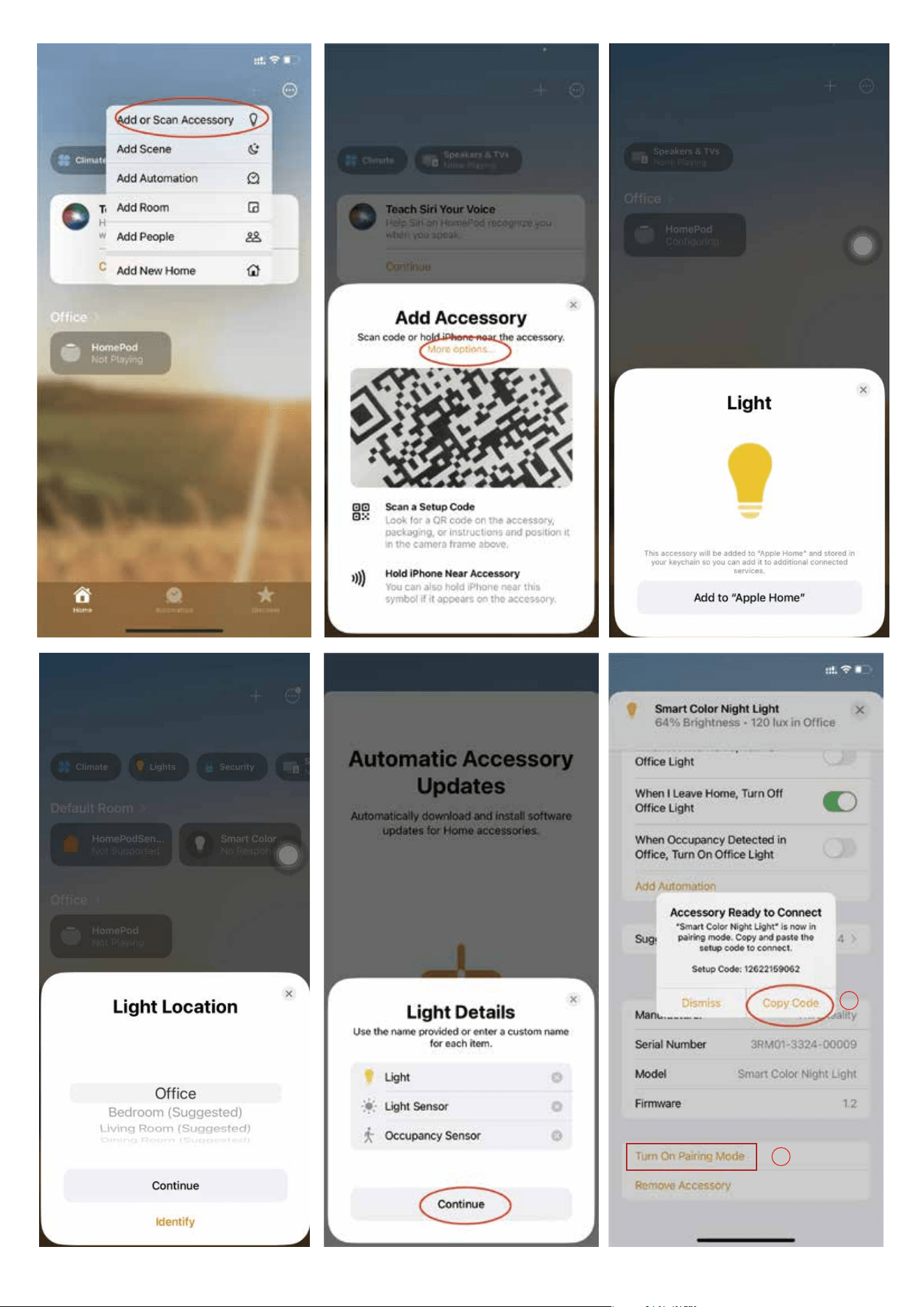

Launch your Home App. Tap + and then tap Add or Scan Accesso-
ry to add a new device.
1.
Scan the MATTER QR code on your device.
2.
Choose a location and set a name for your device.
3.
Now you can check your device on the Device list, turn on/off and
change the color of your device on the Home app, or create auto-
mation with the light sensor, occupancy sensor and color night
light.
4.

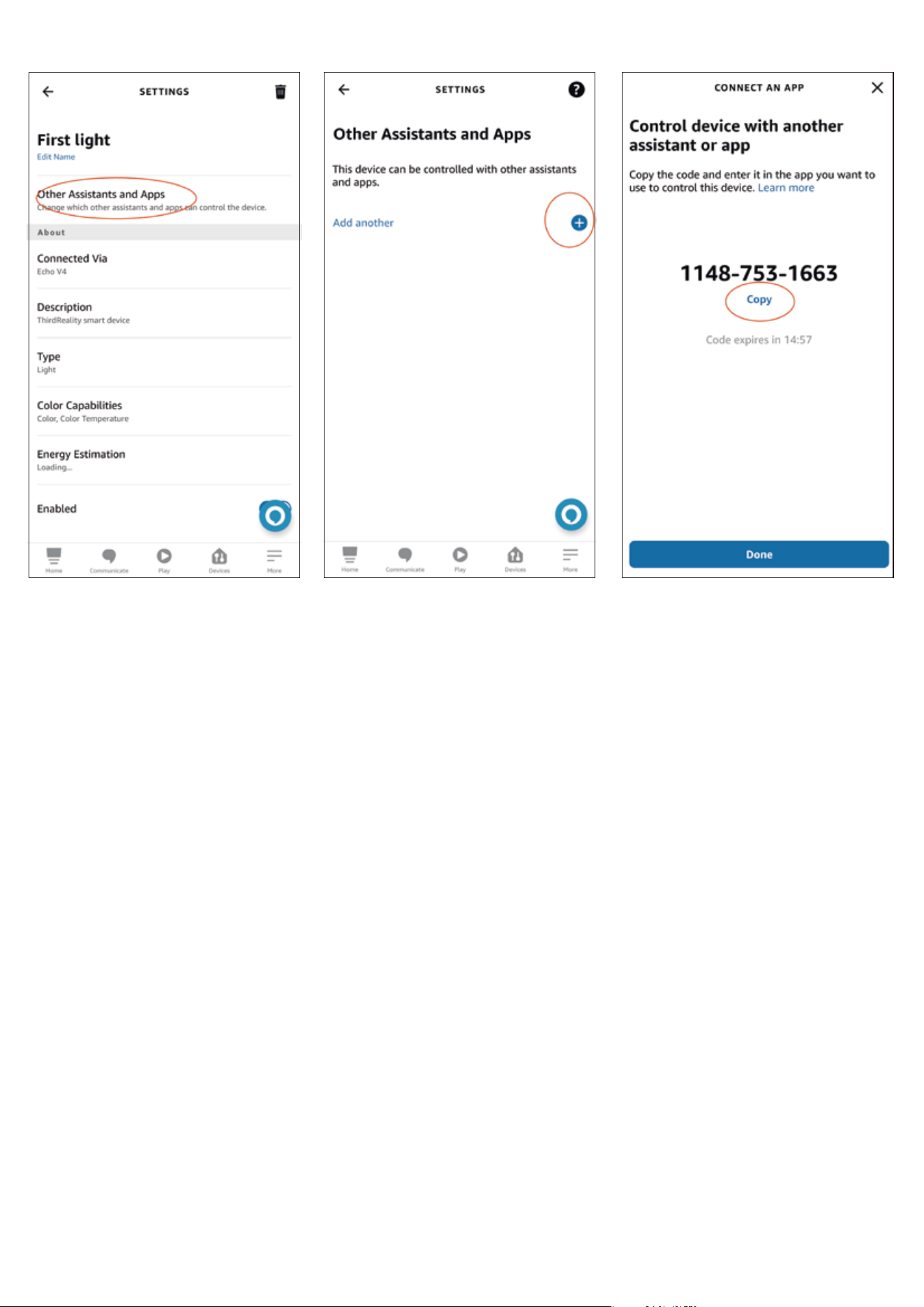

To connect the device to another MATTER certified ecosystem
app, you need to go to the app of the first ecosystem to generate
a new setup code. Go to the Device Settings page, scroll down, tap
Turn On Pairing Mode and then Copy Code. Launch the app of an-
other MATTER certified ecosystem, follow the setup instruction to
enter the setup code and follow the app instructions to complete
the setup.
5.
06
07
1
2
Alexa app version:
Android: 2.2.542657.0 or later
IOS: 2.2.575623.0 or late
Partial functionality is supported on Amazon Echo; complete fea-
tures will be available after a platform update.
Set Up with Alexa
Set up your Amazon Alexa Speaker, connect your phone to your
WiFi router.
1.
Power up the night light, the LED light flashes 3 times rapidly in
yellow and turn white.If it is not in pairing mode, to put the night
light into pairing mode again, use a pin to press into the pinhole
for 5 seconds.
2.

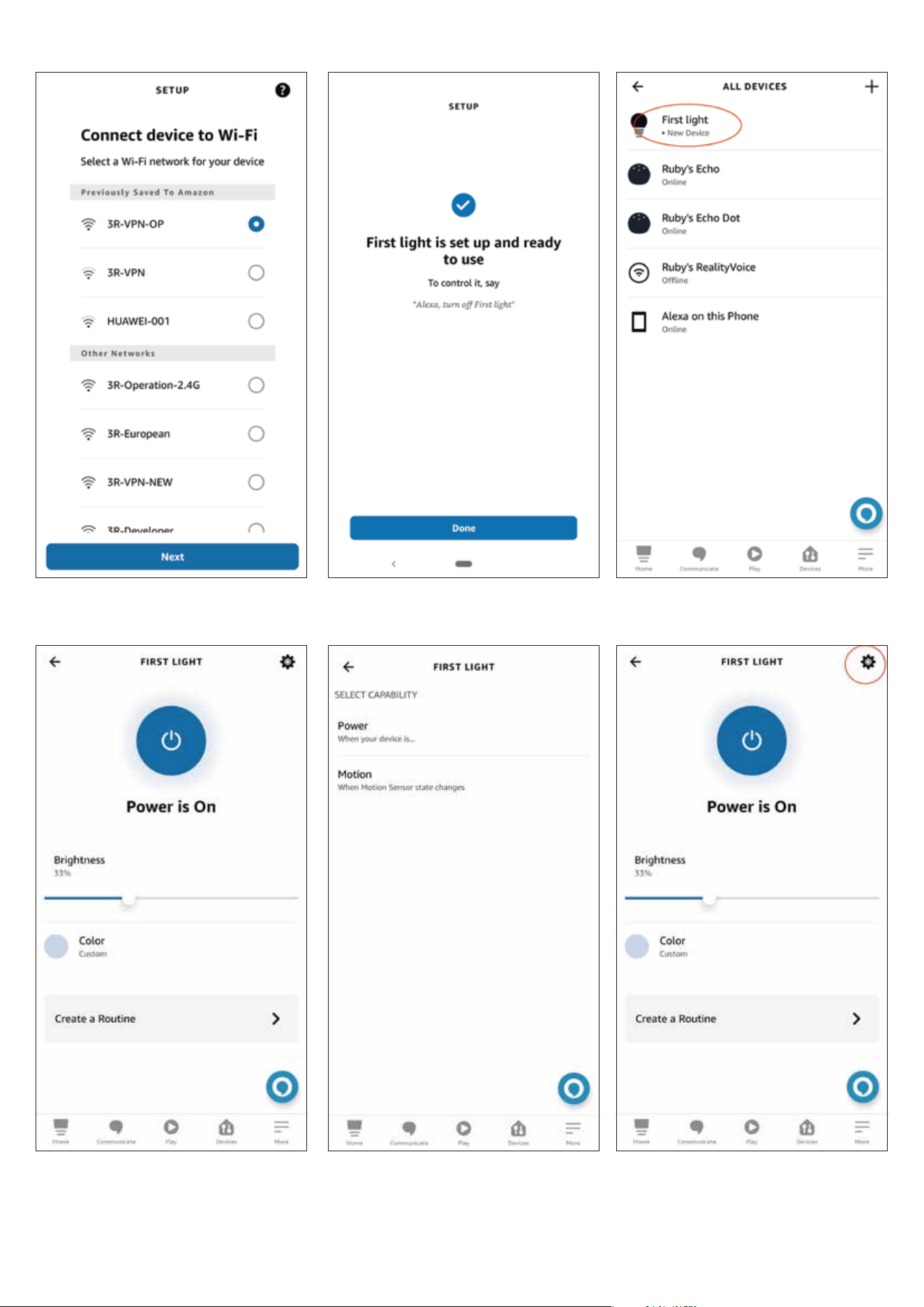

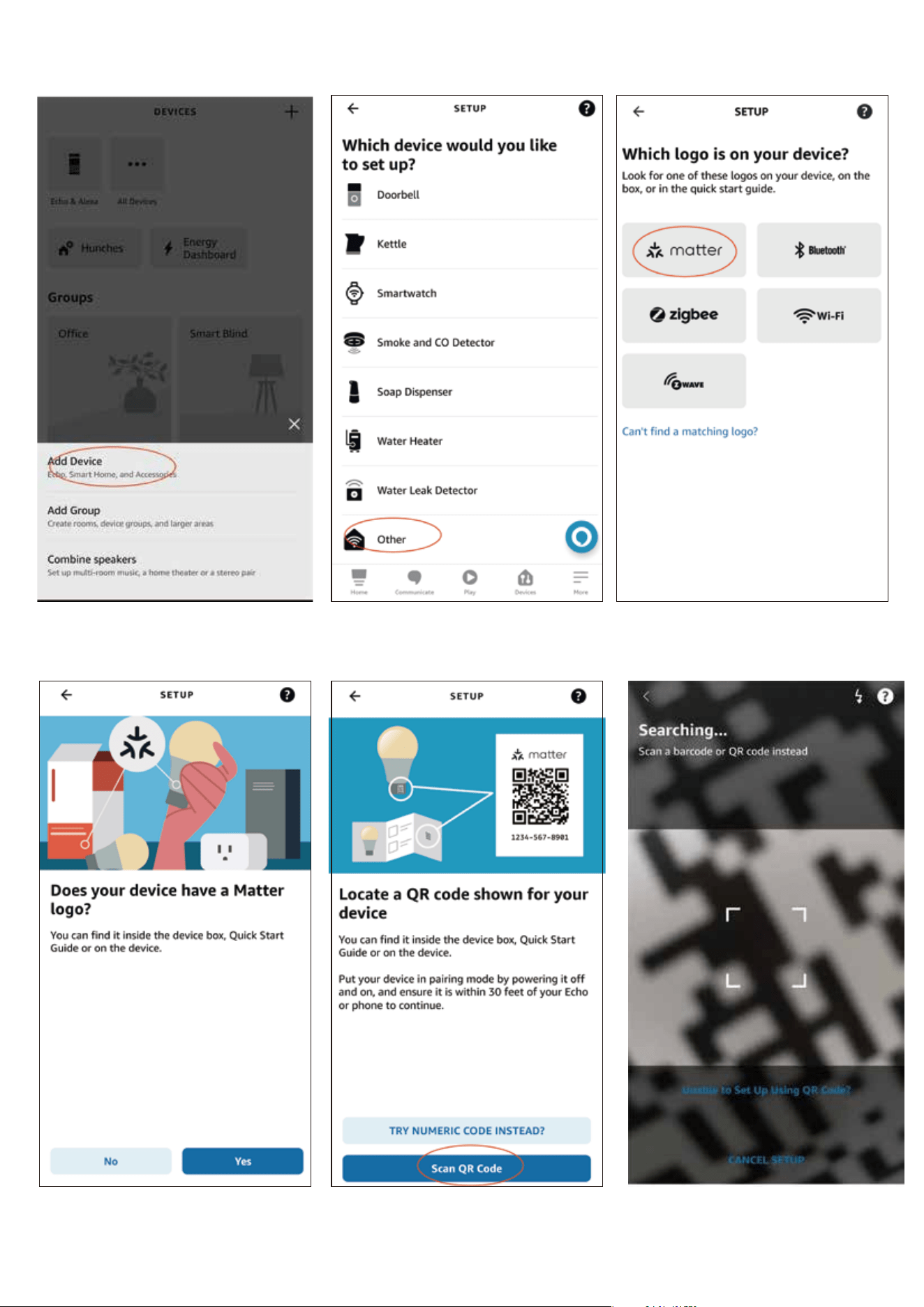

Open your Alexa app and sign in,tab + in the up right and follow
the instructions to add device.Make sure to connect the night
light and the Echo Speaker to the same WiFi router.
3.
You can create routines with the night light and the motion
sensor.
4.
08
09
10
11
Compatibility:
Google Home App version:
Android: 3.9.1.6 or later
IOS: 3.9.104 or later
Set Up with Google Home
Set up your Google Home Speaker in your Google Home app, con-
nect your phone to your WiFi router.
1.
Power up the night light, the LED light flashes 3 times rapidly in
yellow and turn white. If it is not in pairing mode, to put the night
light into pairing mode again, use a pin to press into the pinhole
for 5 seconds.
2.

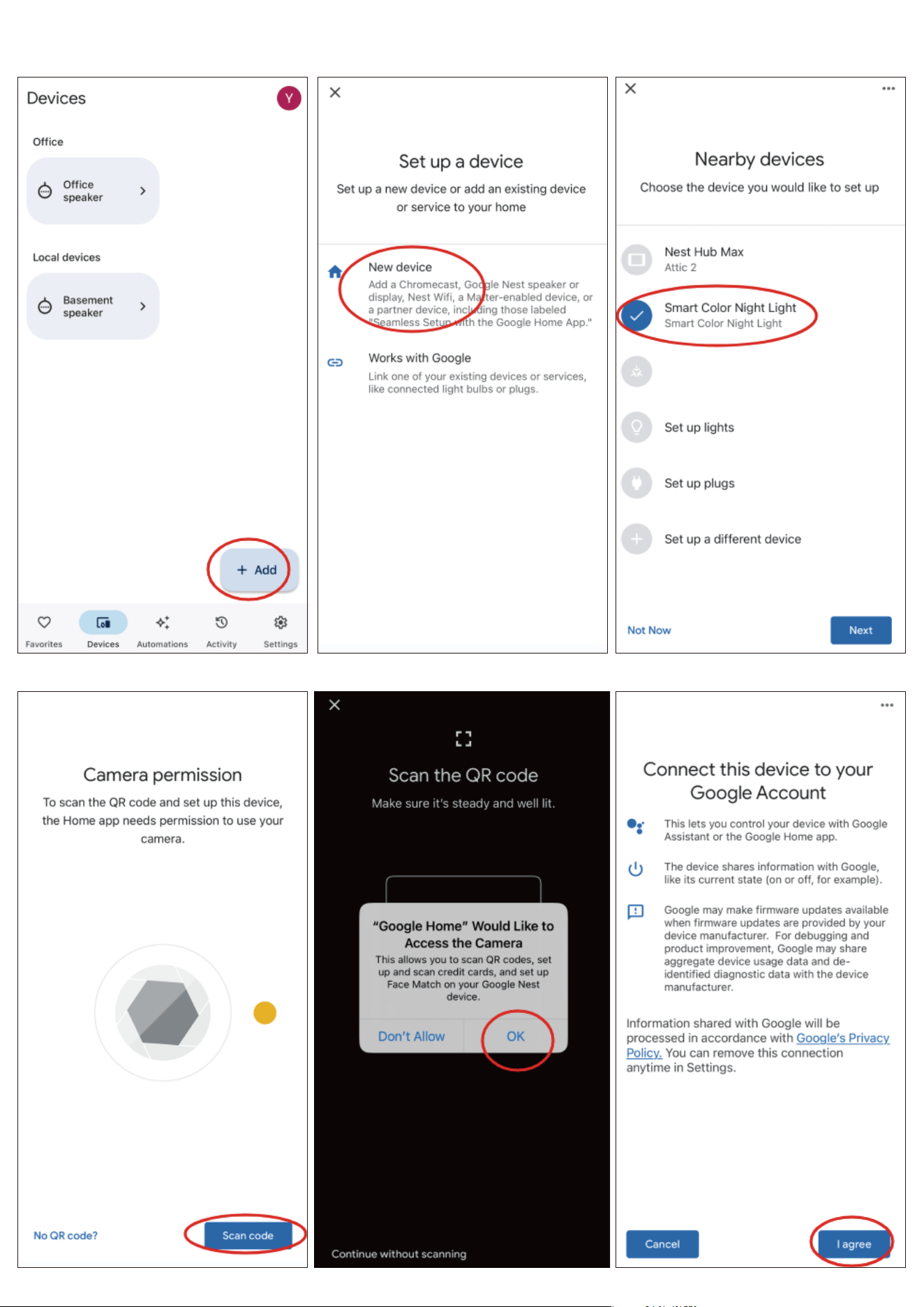

A notification “Set up your device” pops up in your Google Home
app, tab “Scan QR code” and follow the instructions to add the
night light.
3.
You can create automations with the night light.
4.

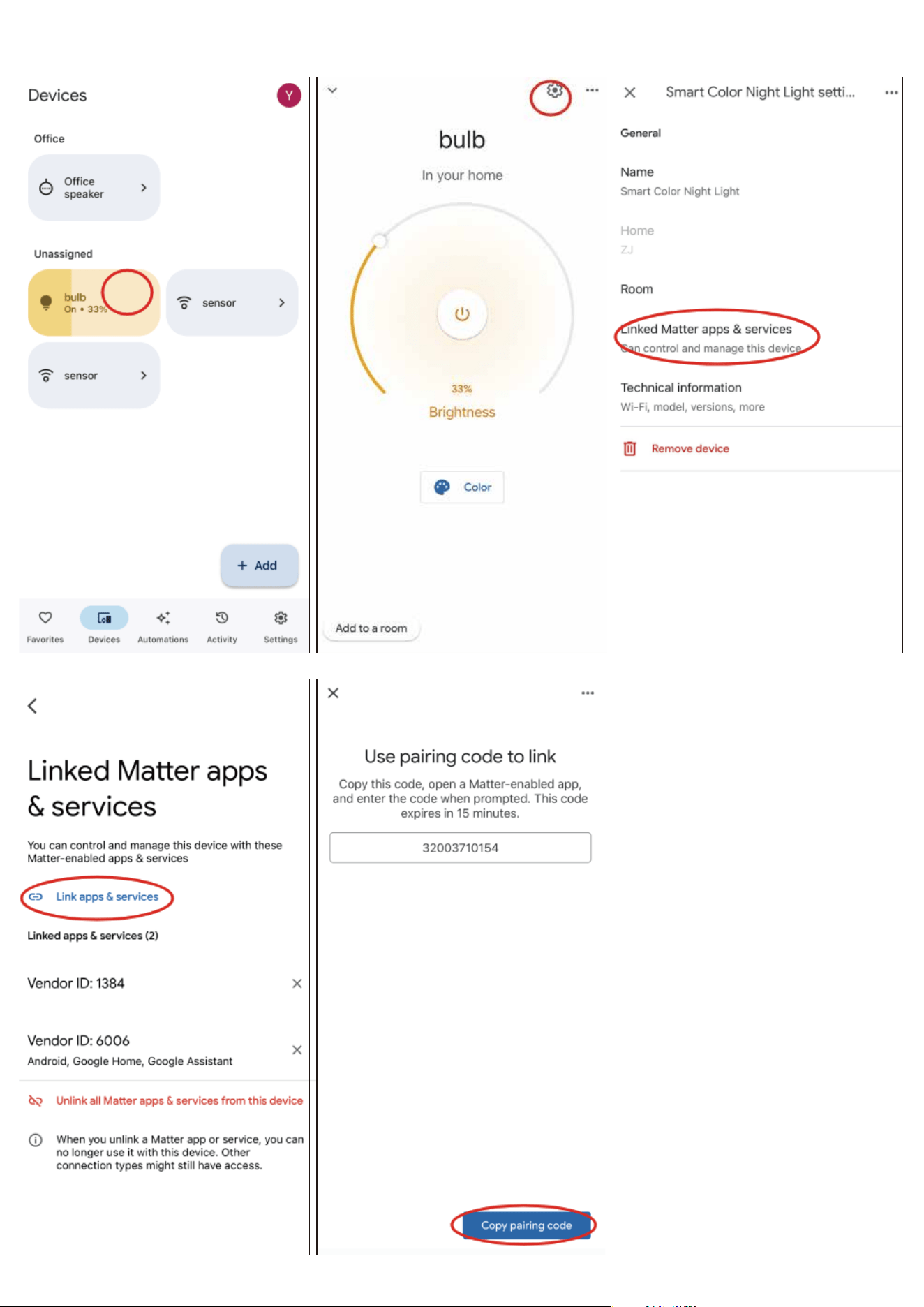

To connect the night light to another Matter ecosystem app, open
the app of the first ecosystem the night light has already been
paired with, open the device page and tab the setting icon on the
up right, then tab “Linked Matter apps & services” , and follow the
app instructions to complete the setup..
5.
12
13
14
Compatibility:
SmartThings App version 1.8.10.21 or later
iOS SmartThings App version 1.7.09 or later
Matter-supported Controller: SmartThings Hub V2& V3, Aeotec
Smart Home Hub
Set Up with Samsung SmartThings

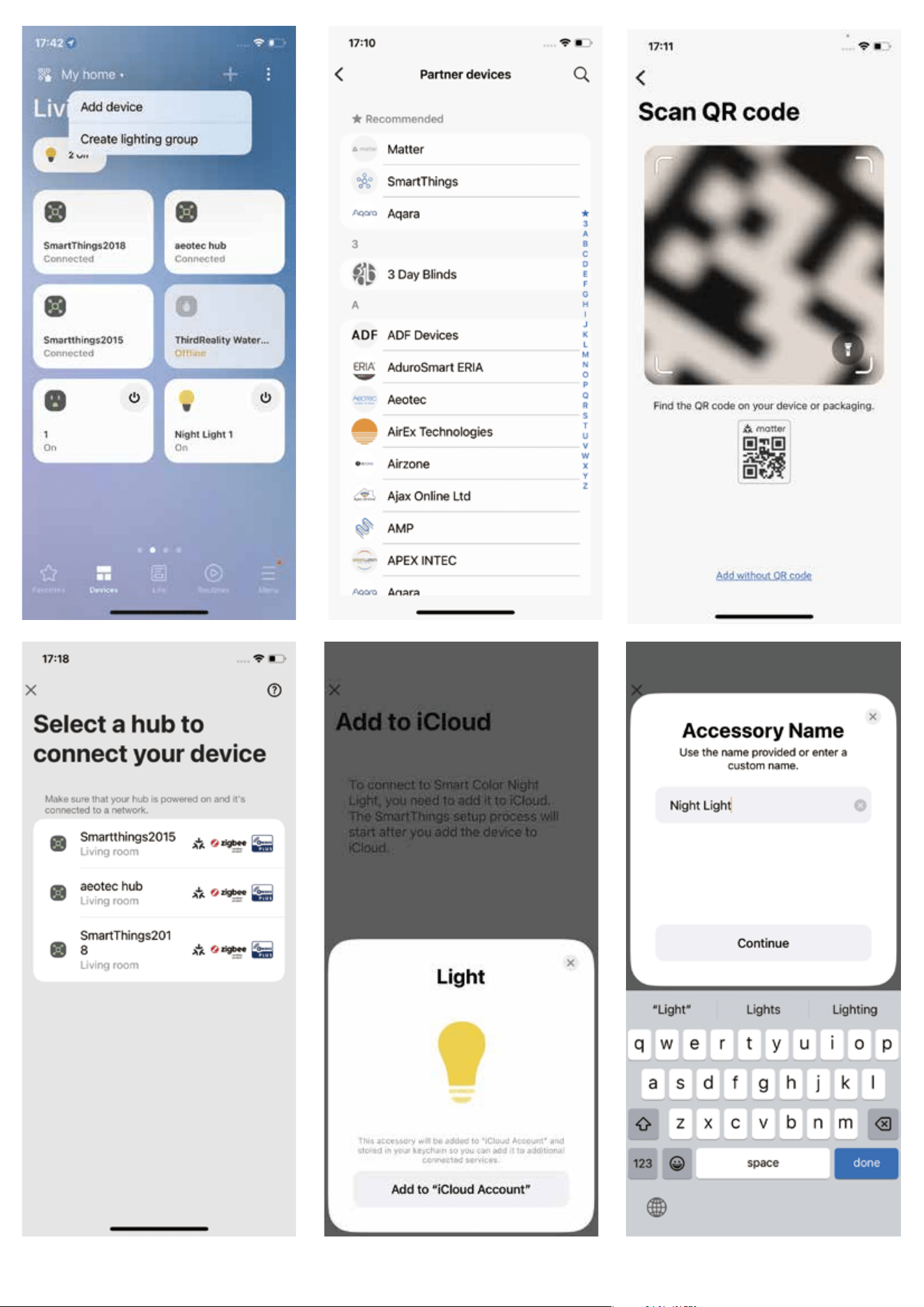

Launch your SmartThings App. Tap + to Add device., Choose
Matter.
1.
Scan QR code on your device.
2.

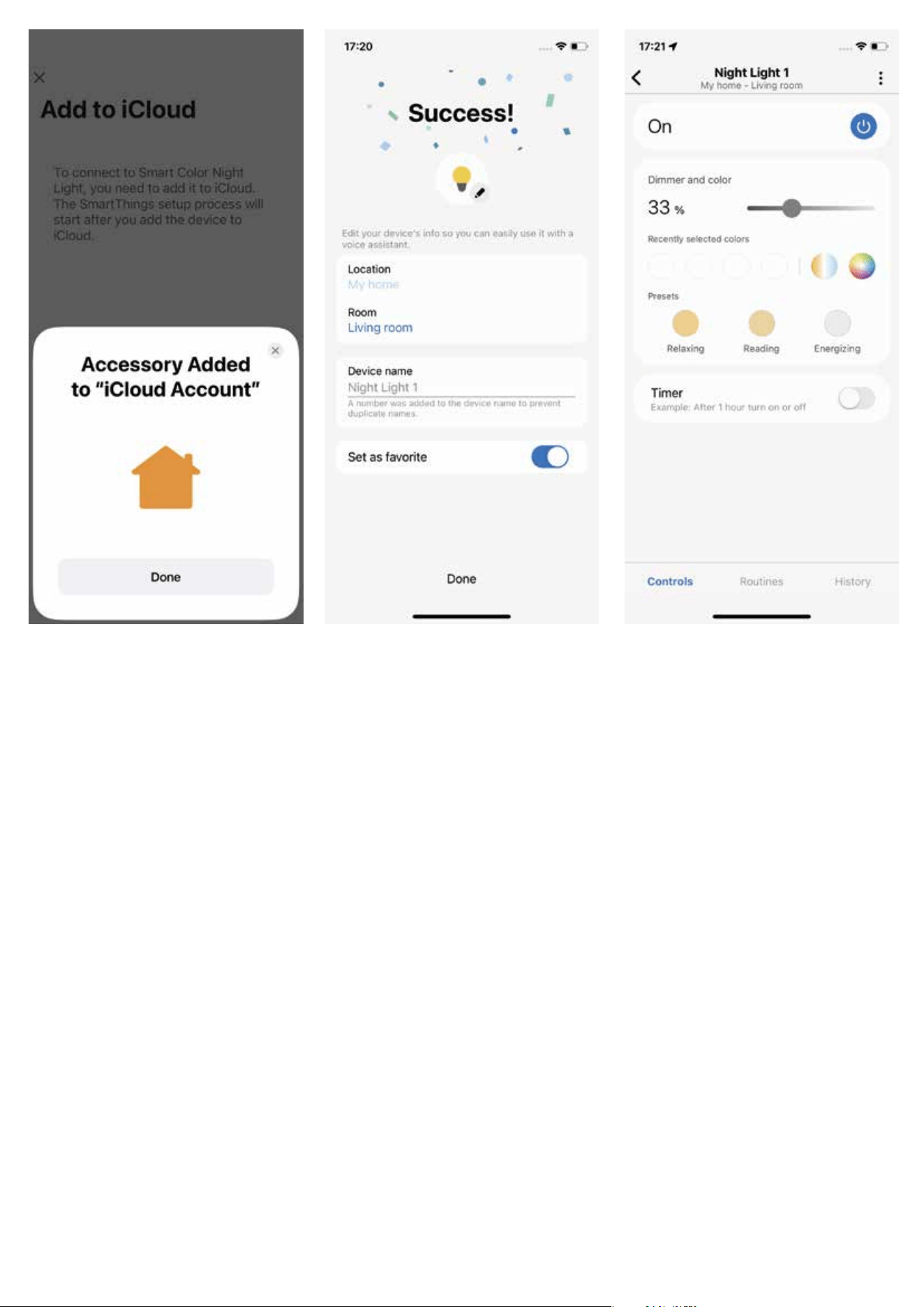

Select a hub to connect your device.(You need to Add to “iCloud
Account” in IOS, then create Accessory Name, then Continue)
3.
Now you can check your device on the Device list, turn on/off and
change the color of your device in the app.
4.
15
16
17

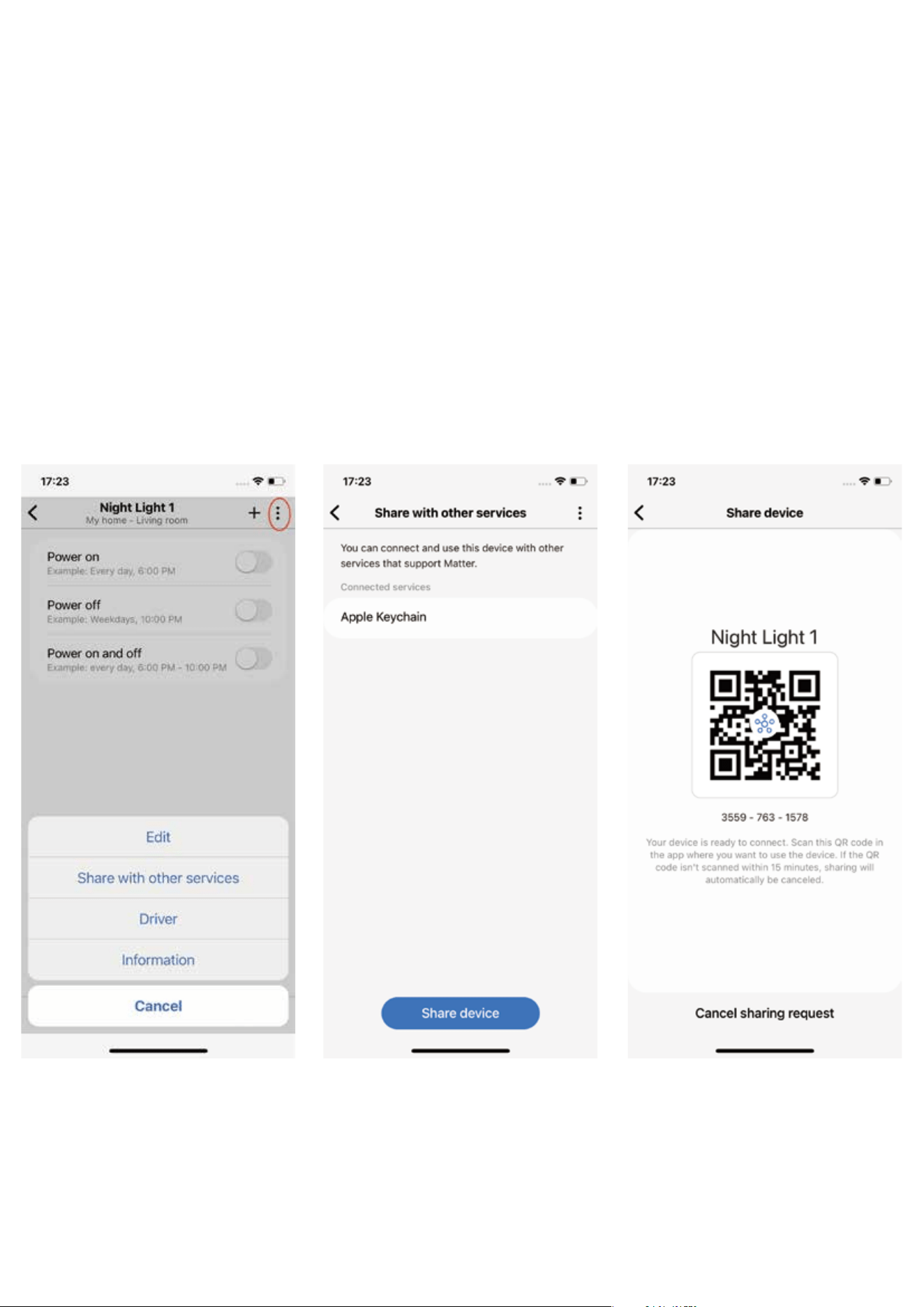

To connect the device to another Matter certified ecosystem app,
you need to go to the app of the first ecosystem to generate a new
setup code. Go to the Device Settings page, tab “Share with other
services” then “Share device”, there will be QR code and a nu-
meric code. Launch the app of another MATTER certified ecosys-
tem, follow the setup instruction to enter the setup code and
follow the app instructions to complete the setup.
5.
18
19
FCC regulatory conformance
This device complies with part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party re-
sponsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
20
RF Exposure
Limited Warranty
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help
important announcement.
NOTE: The manufacturer is not responsible for any radio or TV inter-
ference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction
with any other antenna
or transmitter.
For limited warranty, please visit www.3reality.com/devicesupport
For customer support, please contact us at info@3reality.com or
visit www.3reality.com
For help and troubleshooting related to Amazon Alexa, visit the
Alexa app.
