Quick Start Guide
What's in the Box
Garage Door Tilt Sensor
Garage Door Tilt Sensor
3M adhesive
AAA Battery（included）
User Guide
01
Introduction
Description
Zigbee Garage Door Tilt Sensor: Your Trustworthy Guardian.
Enhance your home's security effortlessly with our easy-to-install, reli-
able garage door tilt sensor. The device complies with Zigbee 3.0 stan-
dard and can be compatible with most Zigbee Home automation sys-
tems. It can also be adapted to more ecosystems through Smart Bridge
MZ1, such as Apple Home, enabling users to monitor their garage door
status at any moment. Moreover, the product offers a sensitivity adjust-
ment feature(Scan the QR-code to view details).
LED Status
Blue light flashes
Red light flashes
Red light double flash
Red light On
Indicate
Pairing mode
Device offline
Low battery
Factory Reset(Press and hold the reset
button for 5 seconds)
02
Install the battery to power the sensor.
Press and hold the reset button for 5 seconds to factory reset the
sensor, the LED light will turn red and flash in blue, indicating en-
tering Zigbee pairing mode. It will exit Zigbee pairing mode after 3
min if not paired.
Add the sensor to your Zigbee hub/smart bridge/Echo speaker with
built-in Zigbee hub according to the corresponding instructions.
Supports Amazon Echo(speaker with built-in Zigbee smart home
hub: Echo Plus2/Echo V4/Echo Studio/Echo Plus1), SmartTings
(2015/2018/Station/ Aeotec smart hub), Home Assistant (ZHA&Z2M
with Zigbee dongle), Hubitat(Elevation with Zigbee hub), ThirdRe-
ality (Smart Hub / Smart Bridge), Homey(bridge/Pro), etc., support
Matter supported ecosystems like Apple Home, Google Home etc.
via ThirdReality Smart Bridge.
Set up the device and hub first, then install it, then install it on the inside
of the top panel of your garage door..
Recommanded
Setup
1.
2.
3.
03
It is recommended to install and fix the sensor on the back panel
(3M adhesive) and indicate the direction of the shell (as shown in
the picture).
1.
Garage door area selection. Select the first area at the top to ensure
it can be detected immediately, and please install it inside the
door. (As shown in the picture)
2.
Installation
Garage Door Tilt Sensor
This Side Up
3M adhesive
04
App: Third Reality App
Device: ThirdReality Smart Hub
Register and sign in your ThirdReality account, set up your ThirdRe-
ality smart hub, make sure both the Third Reality app and the
smart hub's firmware are in the latest version.
Push to open the back cover of the sensor and install the batteries.
Press and hold the reset button for 5 seconds to factory reset the
sensor, the LED light will turn red and flash in blue, indicating en-
tering Zigbee pairing mode. It will exit pairing mode after 3 min if
not paired.
Tab "+" in the up right in the Third Reality App, follow the
on-screen instructions to add device.
Create routines to control other connected devices, like ThirdReali-
ty smart switch etc.
1.
2.
3.
4.
5.
Pairing with ThirdReality
Pairing steps:
05
06
App: 3R-Installer App
Device: Smart Bridge MZ1
Set up your smart bridge, make sure both the 3R-Installer App and
the smart bridge's firmware are in the latest version.
Push to open the back cover of the sensor and install the batteries.
Press and hold the reset button for 5 seconds to factory reset the
sensor, the LED light will turn red and flash in blue, indicating en-
tering Zigbee pairing mode. It will exit pairing mode after 3 min if
not paired.
Tap the smart bridge icon to enter the devices page, tap "+ Bridge
ZIGBEE Devices" to start Zigbee pairing, follow the on-screen
instructions to add device.
Tab Link With Matter Enabled Services, copy the Manual Setup
Code or Scan the QR Code within 3 min, then you can add the
bridge to other Matter supported ecosystems through multi-admin.
1.
2.
3.
4.
5.
Pairing with 3R-Installer
Pairing steps:
07
08
App: Amazon Alexa
Devices: Echo speakers with built-in Zigbee hub, Echo 4th Gen, Echo Plus
1st & 2nd Gen, Echo Studio
Ask Alexa to check for updates before pairing.
Install the batteries. Press and hold the reset button for 5 seconds
to factory reset the sensor, the LED light will turn red and flash,
indicating entering Zigbee pairing mode. It will exit Zigbee pairing
mode after 3 min if not paired.
Tab "+" in the Alexa App, choose "Other" and "Zigbee" to add
device, the Garage Door Tilt Sensor will be added.
You can create routines with the device.
1.
2.
3.
4.
Pairing with Amazon Echo
Pairing steps:
09
10
11
App: SmartThings App
Devices: SmartThings Hub 2nd Gen(2015) and 3rd Gen(2018), Aeotec
Smart Home Hub.
Before pairing, check for updates to make sure the SmartThings
Hub firmware is up to date.
Install the batteries. Press and hold the reset button for 5 seconds
to factory reset the sensor, the LED light will turn red and flash,
indicating entering Zigbee pairing mode. It will exit Zigbee pairing
mode after 3 min if not paired.
Open the SmartThings App, tap "+" on the upper right corner to
"Add device" and then tap "Scan for nearby devices".
1.
2.
3.
Pairing with SmartThings
Pairing steps:
12
The Garage Door Tilt Sensor will be paired with the SmartThings
hub.
Tap Zigbee Thing icon to enter device page, tap the up right corner,
tap Edit device to change its name, tap Driver to select different
driver(install the driver on your PC browser first, see 6).
4.
5.
13
14
Open this link in your PC browser. Log in your SmartThings Ac-
count.
https://bestow-regional.api.smartthings.com/invite/adMKr50EXzj9
Click "Enroll" --"Available Drivers" -- "Install" to install the
device driver.
Add SmartThings drivers for ThirdReality Garage Door Tilt Sensor6.
15
Reboot your SmartThings hub by powering it off and "Scan for
Nearby Devices" in SmartThings App to pair the power it on again.
ThirdReality devices with your SmartThings hub.

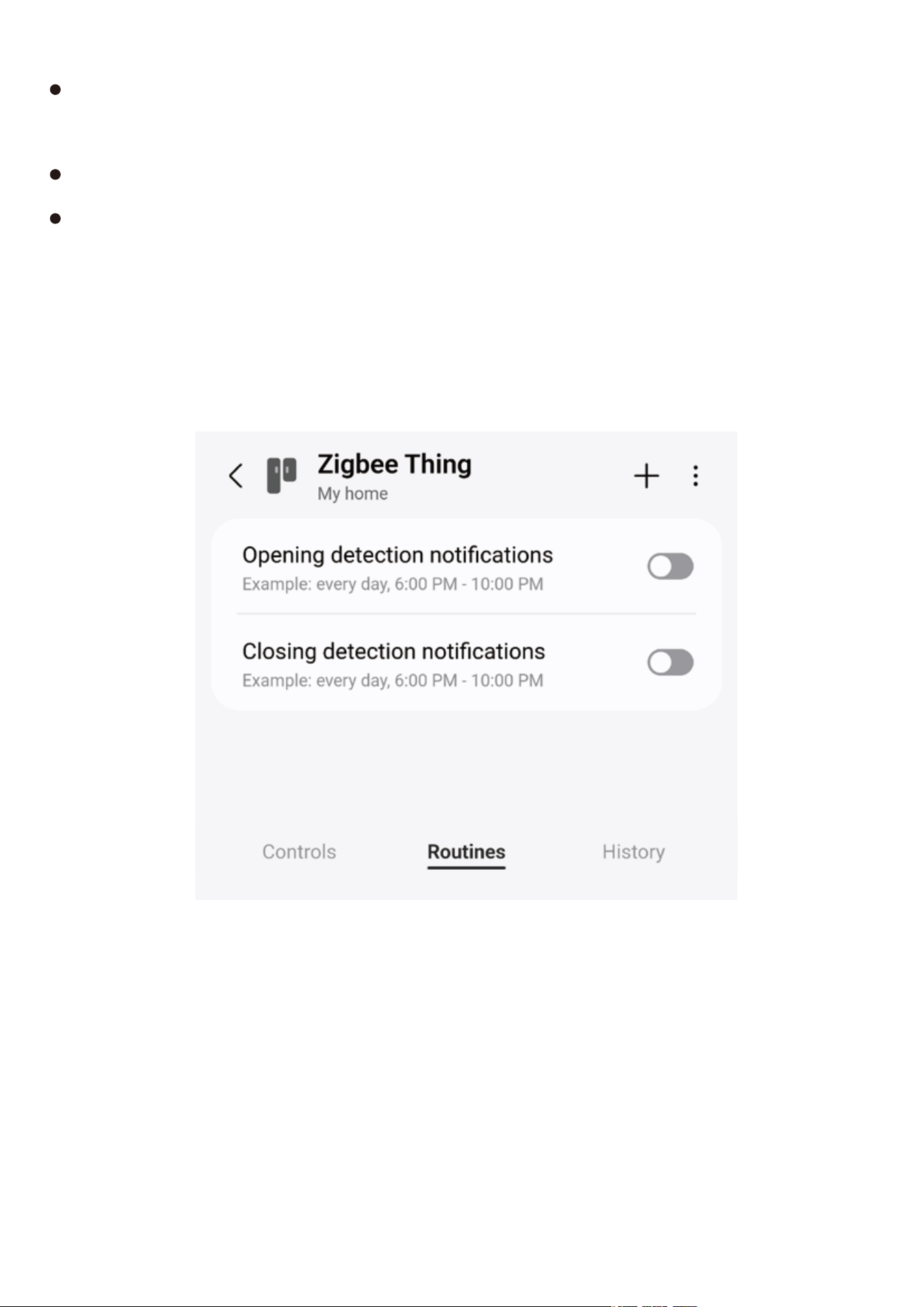

You can change the driver of the sensor in SmartThings App.
Create routines to control connected devices.7.
16
Website: http://find.hubitat.com/
Install the batteries. Press and hold the reset button for 5 seconds
to factory reset the sensor, the LED light will turn red and flash,
indicating entering Zigbee pairing mode. It will exit Zigbee pairing
mode after 3 min if not paired.
Tab "Add Device" in Hubitat Devices page.
Choose "Zigbee", then "Start Zigbee Pairing".
Type in a device and room name and click "Next" to complete pair-
ing.

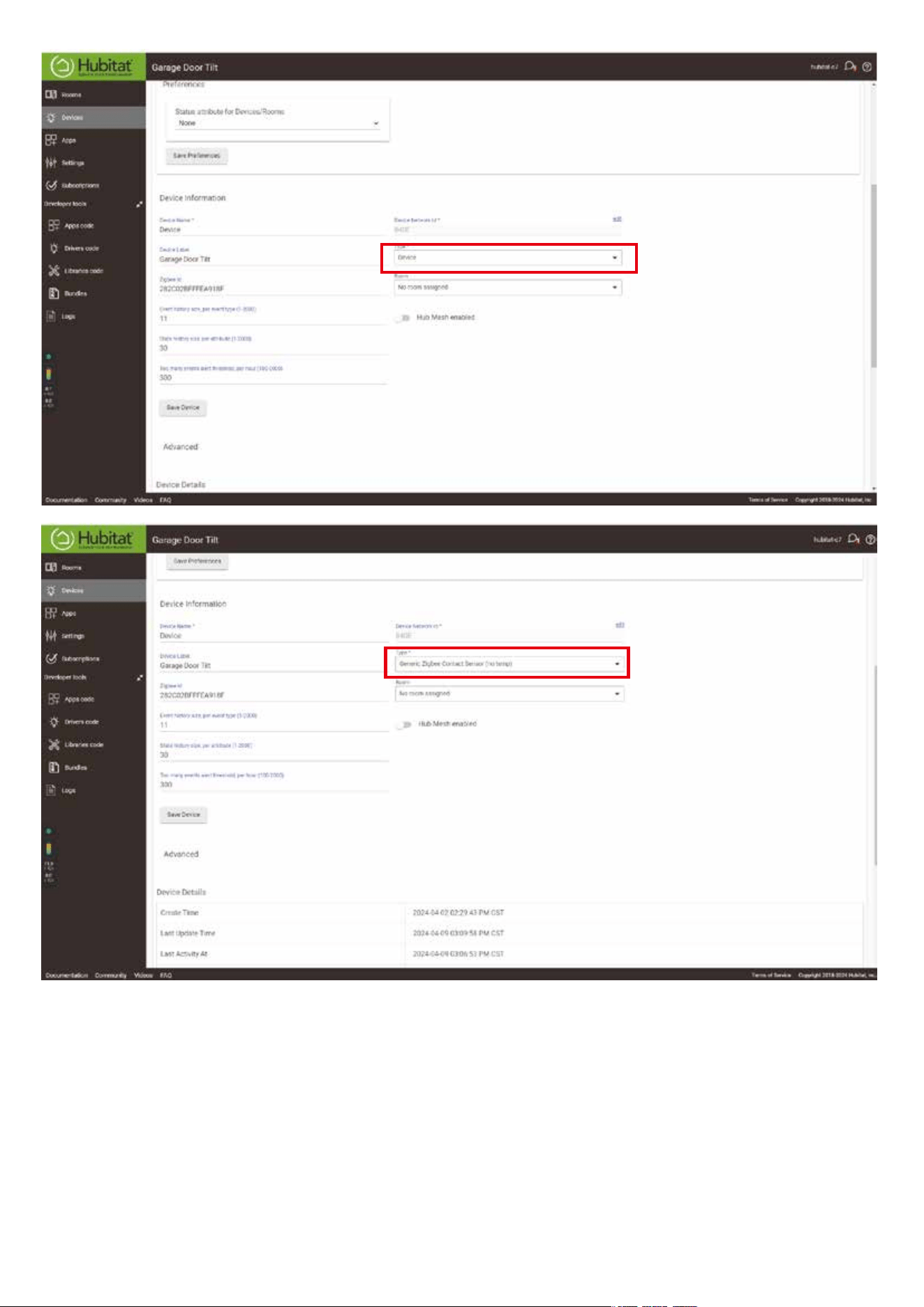

Change device type to Generic Zigbee Contact Sensor(no temp).
1.
2.
3.
4.
5.
Pairing with Hubitat
Pairing steps:
17
18
19
Device: Zigbee dongle
Install the batteries. Press and hold the reset button for 5 seconds
to factory reset the sensor, the LED light will turn red and flash,
indicating entering Zigbee pairing mode. It will exit Zigbee pairing
mode after 3 min if not paired.
Make sure Home Assistant Integrations Zigbee Home Automation
Setup is ready, then go to "Configuration" page, click "integration".
Then click the "Devices" on the Zigbee item, the click "Add Devic-
es".
After the pairing is completed successfully, it will show up in the
page.
Back to "Devices" page, then you can find the device dded.
Click to enter in the control interface to set the device.
Click "+" belongs to Automation and then you can add different
actions.
1.
2.
3.
4.
5.
6.
7.
Pairing With Home Assistant
Zigbee Home Automation
20
21
22
Install the batteries. Press and hold the reset button for 5 seconds
to factory reset the sensor, the LED light will turn red and flash,
indicating entering Zigbee pairing mode. It will exit Zigbee pairing
mode after 3 min if not paired.
Make sure Home Assistant Zigbee2MQTT Setup is ready .
Click "permit join (All)" to add device.
Create automation and then you can add different actions.
1.
2.
3.
4.
Zigbee2MQTT
23
24
FCC Regulatory Conformance
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
25
RF Exposure
Limited Warranty
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help im-
portant announcement.
NOTE: The manufacturer is not responsible for any radio or TV interfer-
ence caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
For limited warranty, please visit www.3reality.com/devicesupport.
For customer support, please contact us at info@3reality.com or visit
www.3reality com.
For help and troubleshooting related to Amazon Alexa, visit the Alexa
app.
