An iOS (version 12.0 or later) or Android (version 8.0 or
later) mobile device.
NOTE: Make sure that Wi-Fi and Bluetooth are enabled
on your mobile device.
A My Leviton cloud account
(set up through the My Leviton app).
A 2.4GHz Wi-Fi network with high-speed internet.
Installation requires electrical knowledge.
If you are unsure of any steps, consult an electrician.
Cat. No. D215R
See the complete line of My Leviton
TM
app compatible
dimmers, switches, plug-ins, and controllers at:
leviton.com/decorasmart
At a glance
Before you install
What you need to make
it work:
Your outlet works with:
Leviton’s second-generation Decora
Smart Wi-Fi Tamper-Resistant
Outlet provides control of a variety
of plug loads, including plug-in
lamps, holiday lighting, electronics,
and small appliances via the top-
controlled outlet.
Use your voice with Amazon Alexa,
Google Assistant, or Apple Siri – or
use your smartphone or tablet
to control the outlet with the My
Leviton app, even when away from
home. Built-in scheduling allows you
to turn devices ON or OFF at specific
times, or at sunrise or sunset. A
convenient push-button provides
manual control. Tamper-resistant
protection provides
additional safety.
The Decora Smart Wi-Fi Tamper-
Resistant Outlet looks right at home
with your other Decora brand
in-wall devices.
• Compatible with general purpose
outlet loads up to 15 Amps. For
specific ratings, see the chart below.
• Requires an available interior wall
box with Line, Neutral, and
Ground wires.
• Installation in metal wall boxes or
with metal wallplates may result in
poor RF performance.
• For indoor use only.
• Additional self-service support
options can be found in the My
Leviton app, or at: leviton.com/decorasmart
RATINGS
General Use 15A, 120VAC, 60Hz
LED / CFL / Electronic Ballast 5A
Incandescent / Halogen 1500W
Magnetic Ballast 15A
Motor 3/4 HP
Operating Temperature 0°C - 40°C (32°F - 104°F)
Operating Humidity 10% - 90% non-condensing
NETWORK
Wi-Fi 802.11 b/g/n networks - 2.4GHz only
Security
WPA, WPA2, or WPA3 security, or open
Bluetooth v5.0

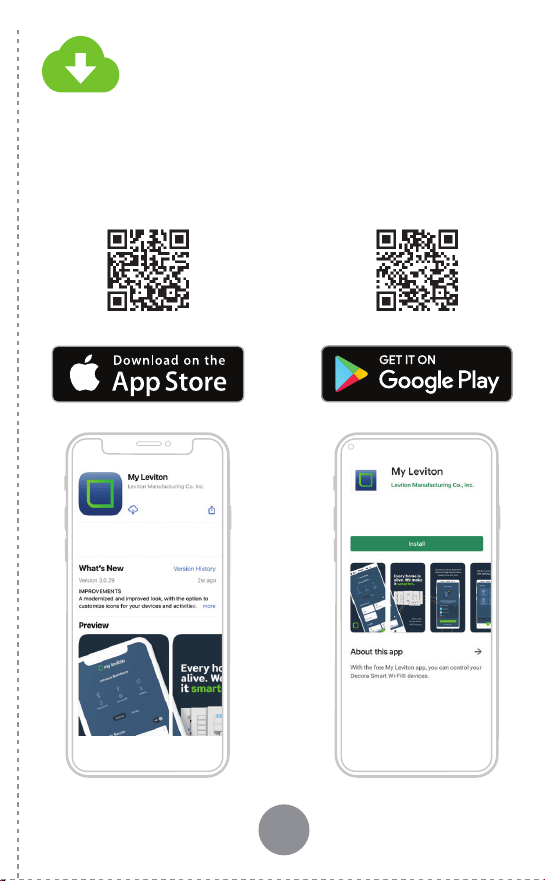

MY LEVITON APP
iOS version 12.0 or later
Andr
oid version 8.0 or later
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, turn off
power at the circuit breaker.

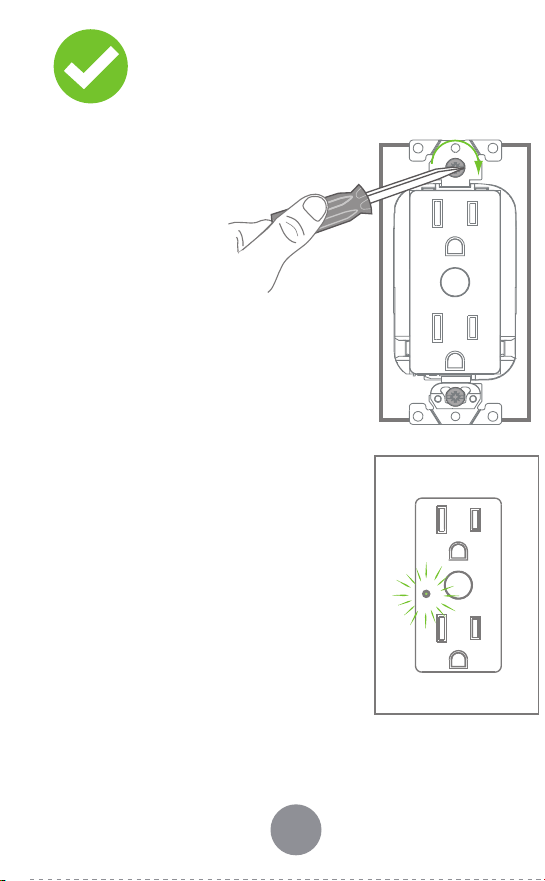

1. Restore power. Status LED should flash GREEN, indicating
that your outlet is ready to be added to a network.
Installation
Test and install
Welcome
Things to consider:
For switched control of the outlet from one or more
locations, you can pair a wireless DAWSC Anywhere Switch
Companion. See Anywhere Switch Companion instructions
for connection directions.
If your back box looks different, consult an electrician.
NOTE: Before you install and wire, check to make sure a
strong Wi-Fi signal is present at the location where you
want to install your outlet.
If you need help...
ONLINE
decorasmartsupport.leviton.com
CHAT
www.leviton.com/support
EMAIL
CALL
1-800-824-3005 (USA)
1-800-405-5320 (Canada)

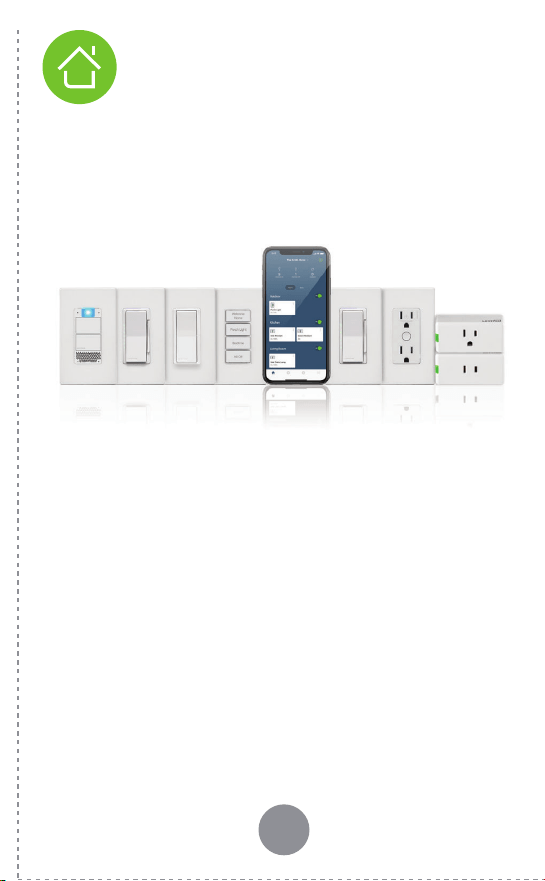

Easy Wi-Fi lighting
control for the
whole home
CHAT
www.leviton.com/support
CALL
1-800-824-3005 (USA)
1-800-405-5320 (Canada)
ONLINE
decorasmartsupport.leviton.com
EMAIL
We are here to help
Leviton Manufacturing Co., Inc.
201 North Service Road, Melville, NY 11747
© 2021 Leviton Manufacturing Co., Inc. All rights reserved.
Specifications subject to change at any time without notice.
DI-000-D215R-02A
Getting Started Guide
TAMPER-RESISTANT OUTLET
2
ND
GEN
From
From
Branch Circuit
Branch Circuit
LINE
LINE
NEUTRAL
GROUND
GROUND
• WARNING: Do not use with
aluminum wire.
• Provides ON/OFF control of a variety of plug loads,
including plug-in lamps, holiday lighting, electronics, and
small appliances.
• Control the top outlet using the My Leviton app,
schedule, voice, or the Apple Home app.
• Works with Alexa, Hey Google, and Apple Siri for voice
control.
• Safe tamper-resistant outlets with built-in shutters
prevent the insertion of unintended foreign objects.
• Provides two 15A, 120VAC NEMA 5-15R grounding outlets
(top-controlled, bottom always ON).
• Add wall mount switch control with Anywhere Switch
Companion compatibility.
• Color change kits (DSRKT) are available in Ivory, Light
Almond, Black, Grey, Brown, and White.
• My Leviton app settings include Automatic Shut-Off
Timer and Status LED Indication.
For more information about features, visit:
leviton.com/decorasmart
Powered Outlet
The bottom outlet is
always ON.
Controlled Outlet
Press the control button or use
an app command to turn the
outlet ON/OFF.
Integrated Control Button
Provides manual control as well
as setup and configuration.
Vanishing feedback light
Illuminates when the
controlled outlet is ON.
Tamper Resistant
Built-in shutters help prevent the
insertion of unintended foreign objects.
Features

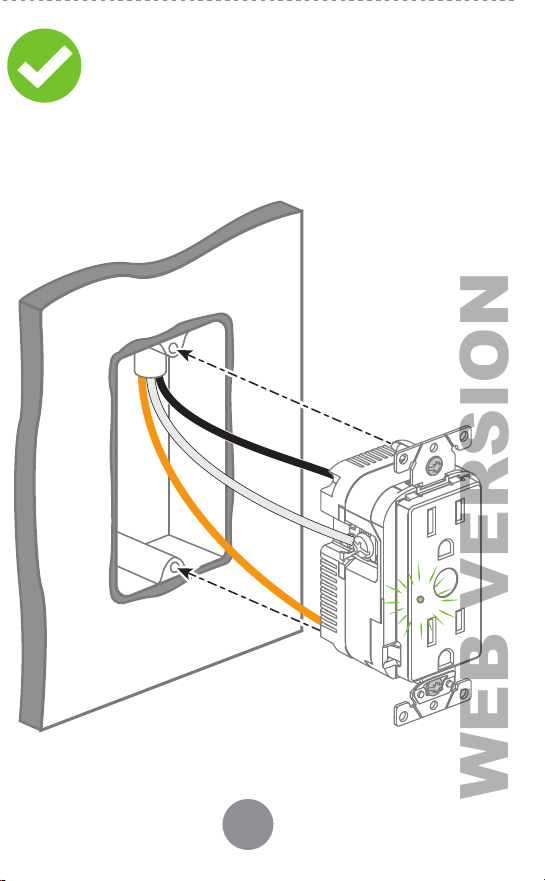

1. Remove the existing outlet.
2. Verify that you have a Line (Black) wire, Neutral (White)
wire, and a Ground (Bare Copper) wire.
3. Work only on one connection at a time, and connect your
new D215R Outlet as shown.
• Line (Black) – Black Screw
• Neutral (White) – White Screw
• Ground (Bare Copper) – Green Screw
NOTE: Wire size #14-12 AWG is needed for Hot and Neutral terminals. Conductor
strip length is marked on the product. Tighten screws to 14 in.-lbs. (1.6 N-m).
NOTE: Terminals are suitable for copper or copper-clad conductors only.
