INSTALLATION INSTRUCTIONS
17001-F3
SPECIFICATIONS
Voltage..................................................................................................................120VAC, 60Hz
Load rating -3 Speed Fan......................................................................................................2.5A
Incandescent/Halogen..................................................................................................360W Max
Dimmable LED/CFL.....................................................................................................150W Max
Operating Temperature..............................................................................................32°F-104°F
• Replace standard switches with 17001-F3 for easy light dimming control and fan speed
without having to reach for the pull string.
• Provides 3 speed control for ceiling fan with slide control that stops at each speed.
• Simple slide control lever to fade lighting up and down smoothly.
• Single Pole only.
• Requires separate wires for fan and light.
• No neutral wire required.
DESCRIPTION
WARNING
3-Speed Fan and
Full Range Dimmer
OPERATION
WARRANTY INFORMATION
This device is warranted to be free of material and workmanship defects for 2 years from the date of purchase.
Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim. ALL
claims must be verified and approved by Enerlites, Inc. Warranties from other Enerlites products may vary. This
warranty is nontransferable and does not cover normal wear and tear or any malfunction, failure, or defect
resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent
permitted by the applicable state law, Enerlites shall not be liable to the purchaser or end user customer of
Enerlites products for direct, indirect, incidental, or consequential damages even if Enerlites has been advised
of the possibility of such damages. Enerlites’ total liability under this or any other warranty, express or implied,
is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies
for breach of warranty or any other legal theory.
© 2021 Enerlites Inc. CA, USA
WWW.ENERLITES.COM
0209190144-04
Fan Light
L
M
Off

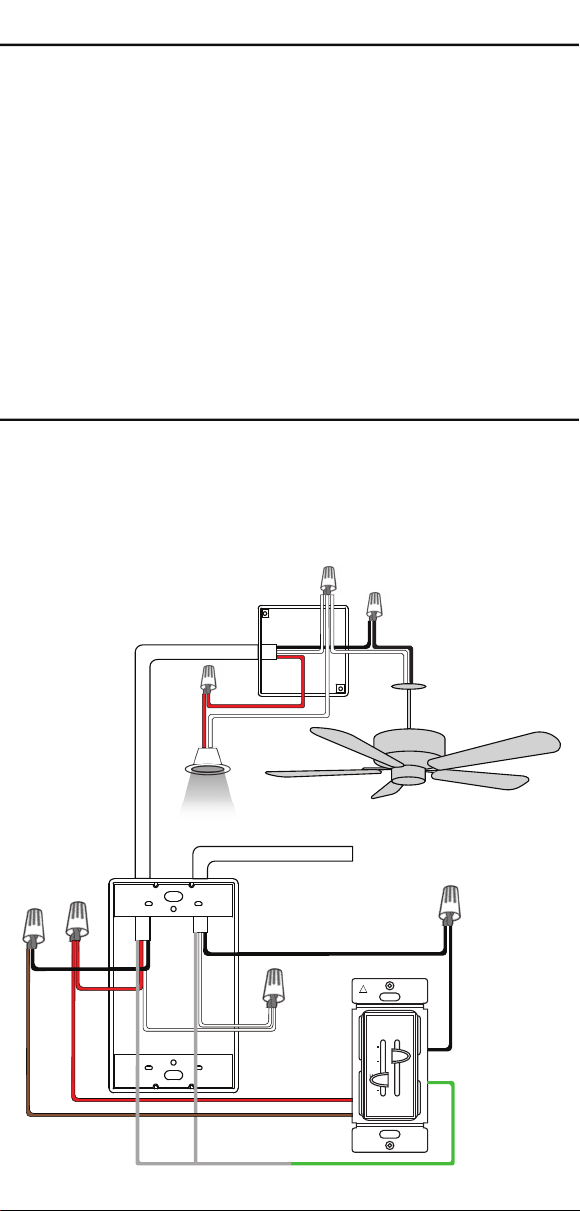

1. Turn Off Circuit Breaker
2. Connect the HOT wire to the BLACK wire on the switch.
3. Connect the FAN wire to the BROWN wire on the switch.
4. Connect the LIGHT wire to the RED wire on the switch.
5. Connect GROUND wire to GREEN wire on the switch.
6. Mount the Fan Speed Control to the box with "UP" indicator pointing up.
7. Turn on Circuit Breaker.
8. Set the speed on the ceiling fan to high.
Red(Light)
Black (Hot)
Brown (Fan)
Power
Fan Light
L
M
Off
Fan Light
L
M
Off
Green Ground
Fan control lever
Slide the lever to any of the 3 speed settings
or “Off” for control of fan only. The lever will
have a noticeable stop at each selection.
Light control lever
Smooth gliding lever will allow you to accurately
select the level of light you desire. To turn off
lights completely, slide the lever downwards until
you feel the click.
The 17001-F3 by Enerlites is a combination of a 3 speed fan control and a fully variable
dimmer in one. The fan control will work with “pull-string” type fans, but is not compatible with
fan types that use remotes or other digital controls. The dimmer is compatible with LED,
CFL, incandescent, and halogen bulbs.
White(Neutral)
WIRING
Turn the POWER OFF at the circuit breaker before installing
Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric Code and local regulations. It is
recommended that a qualified electrician performs this installation. Make sure to turn off
the circuit breaker or fuse(s).
DO NOT CONNECT NEUTRAL WIRES TO THIS DEVICE.
DO NOT USE WITH LOW-VOLTAGE BALLASTS OR DRIVERS.
Use this device with copper or copper clad wire only.
CAUTIONS:
•
•
To Reduce The Risk of Overheating and Possible Damage to Other Equipment, Do
Not Install to Control a Receptacle, a Motor-Operated Appliance a Fluorescent Light
Fixture or a Transformer Supplied Appliance.
When multiple bulbs are used with one dimmer DO NOT mix bulb types. All bulbs
shall be either LED; CFL or incandescent. Using the same make/model of each bulb
will enhance dimmer performance.
FEATURES
Fan
