Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0276094
AERO CEILING FAN
Español p. 20
1
MODEL #E-AER52BRZ5LKRCI
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
E206035
LISTED
Federal regulations require ceiling fans with light kits manufactured or imported after
January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,
this fan is equipped with a wattage limiting device.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
EB13825
Lowes.com/harborbreeze
LOW MED HIGH
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 21.54 lbs.
Safety Information ...............................................................................................................2
Package Contents ...............................................................................................................4
Hardware Contents
..........................................................................................................................
5
Preparation ..........................................................................................................................5
Initial Installation ..................................................................................................................6
Fan Mounting .......................................................................................................................8
Wiring .................................................................................................................................11
Final Installation ...............................................................................................................
..
13
Automated Learning Process/Activating Code ..................................................................14
Operating Instructions.........................................................................................................15
Care and Maintenance ......................................................................................................17
Troubleshooting..................................................................................................................17
Limited Lifetime Warranty ..................................................................................................18
Replacement Parts List .....................................................................................................19
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION
SAFETY INFORMATION
CAUTION
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
3
Lowes.com/harborbreeze
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNING
J
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
B
E
D
F
K
L
I
G

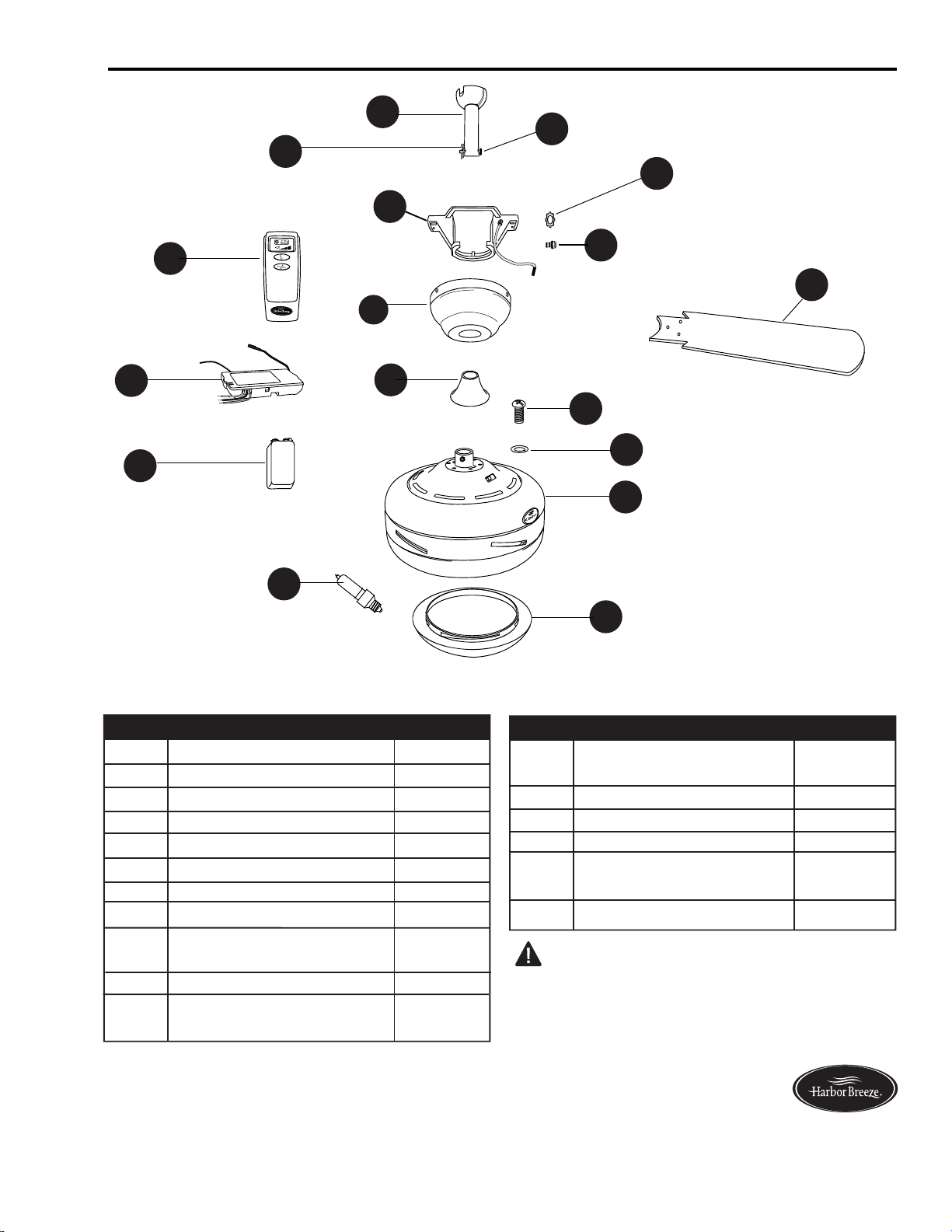

PACKAGE CONTENTS
H
C
4
Lowes.com/harborbreeze
A
Downrod 1
B
Canopy
1
C
Mounting Bracket
1
D
Motor Housing
1
E
Yoke Cover
1
F
Blade
5
G
Remote Control Transmitter
1
H
Remote Control Receiver
1
I
Motor Screw
6
(preassembled)
DESCRIPTIONPART
QUANTITY
J
Bulb 1
K
Lock Washer 6
(preassembled)
DESCRIPTIONPART
QUANTITY
M Pin (preassembled)
1
N Clip (preassembled)
1
O
Glass Shade 1
P
Star Washer 4
(preassembled)
Q
Battery 1
A
N
M
O
L
Canopy Mounting Screw
4
(preassembled)
LOW MED HIGH
P
Q
5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.

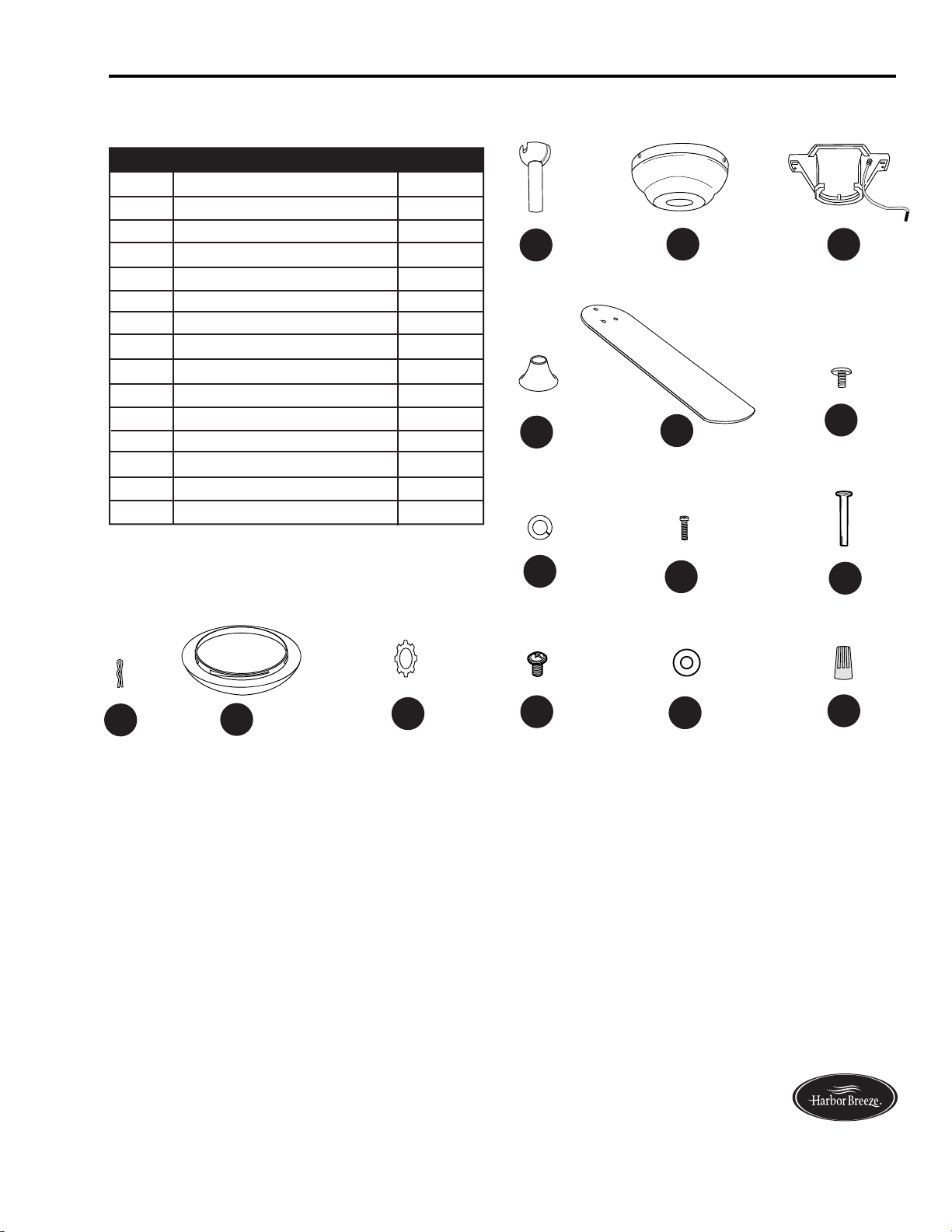

HARDWARE CONTENTS
(shown actual size)
PREPARATION
Lowes.com/harborbreeze
Fiber
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 6
+ 4 extra
AA
BB
CC
6

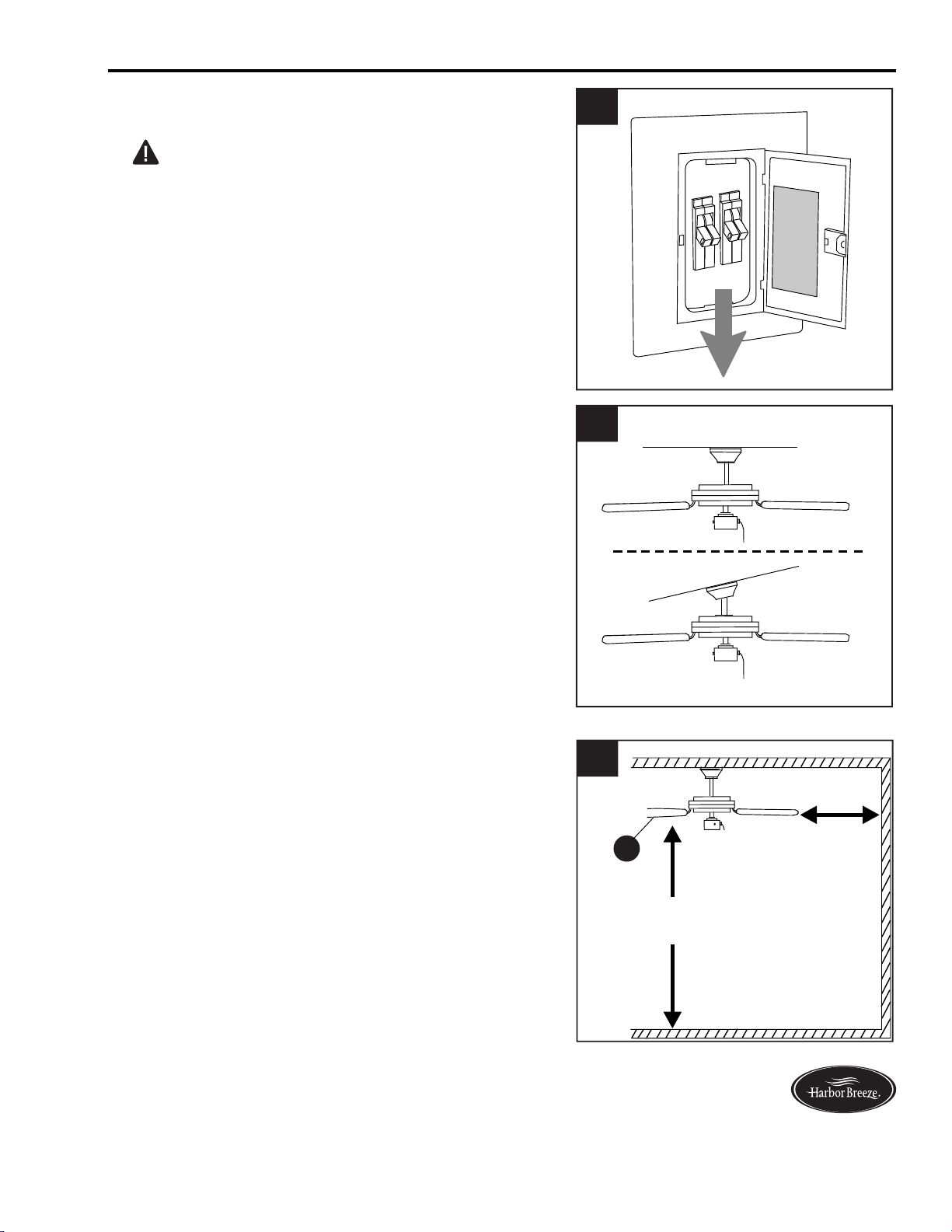

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Lowes.com/harborbreeze
3.
Check to make sure blades (F) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
3
F
7 ft.
min.
30 in.
min.
2.
A
2
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
B
INITIAL INSTALLATION
7
Lowes.com/harborbreeze

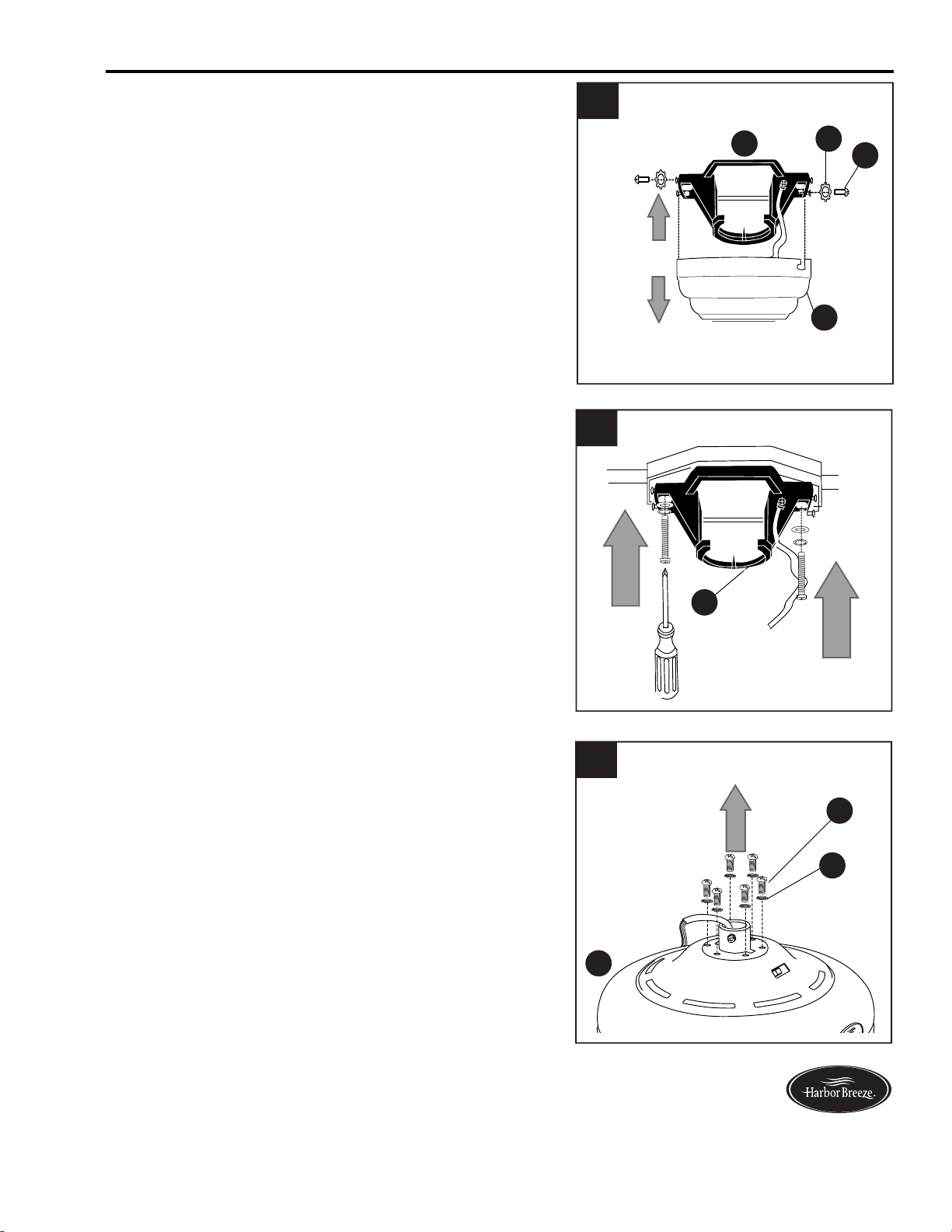

4a.
Loosen canopy mounting screws (L) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (L) and star washers
(P); save canopy mounting screws (L) and star
washers (P) for later use.
Remove mounting bracket (C) from canopy (B).
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling.
4b.
C
4b
4a
C
L
B
P
5.
5
Remove motor screws (I) and lock washers (K)
from top of motor housing (D); save motor screws
(I) and lock washers (K) for later use.
D
I
K
8
Lowes.com/harborbreeze
2.
FAN MOUNTING
Insert the blade (F) through the slot on the band on the
motor housing (D). Align holes in blade (F) with holes
inside motor. Partially insert three blade screws (AA),
along with three fiber blade washers (BB), to attach
blade (F) to motor. Then tighten each blade screw (AA),
starting with the one in the middle. Repeat procedure
for remaining blades (F).
Time Saver: Fiber blade washers (BB) can be set on
each blade screw (AA) prior to installing blades (F).
3
F
2
Slot
E
Center
Band
Hardware Used
Blade Screw
x 15
AA
Fiber Blade Washer
x 15
BB
AA
BB

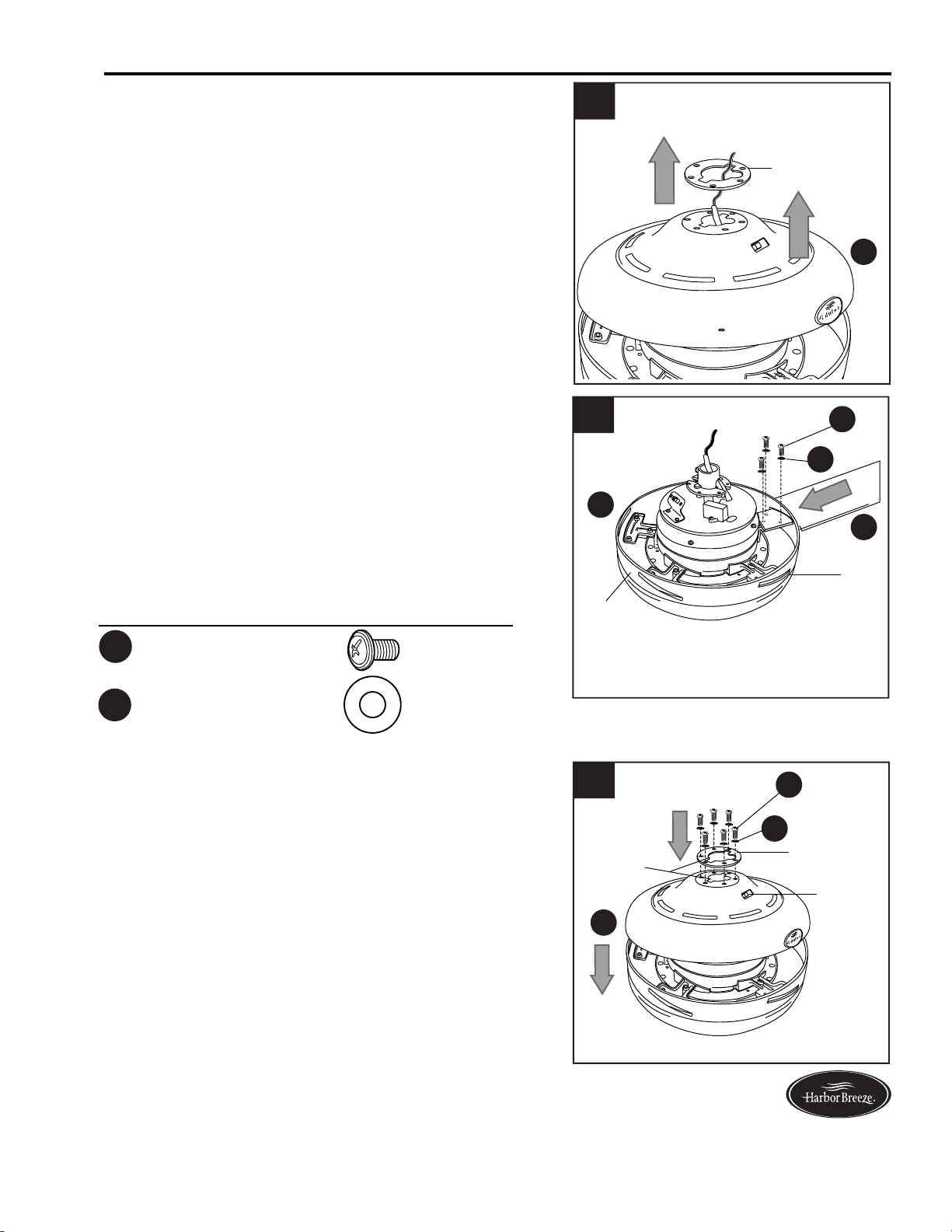

Replace top of motor housing (D) and yoke plate
and secure with motor screws (I) and lock washers
(K) that were previously removed (Step 5, page 7).
IMPORTANT: Circular cutout on motor housing
(D) and yoke plate should line up over electrical
wiring and the opening for the reverse switch
should line up with the reverse switch.
3.
Yoke Plate
Circular
Cutout
1
Yoke Plate
D
Lift the preassembled yoke plate and the top of
motor housing (D) from motor and set aside.
1.
D
Reverse
Switch
D
I
K
FAN MOUNTING
9
Lowes.com/harborbreeze
5

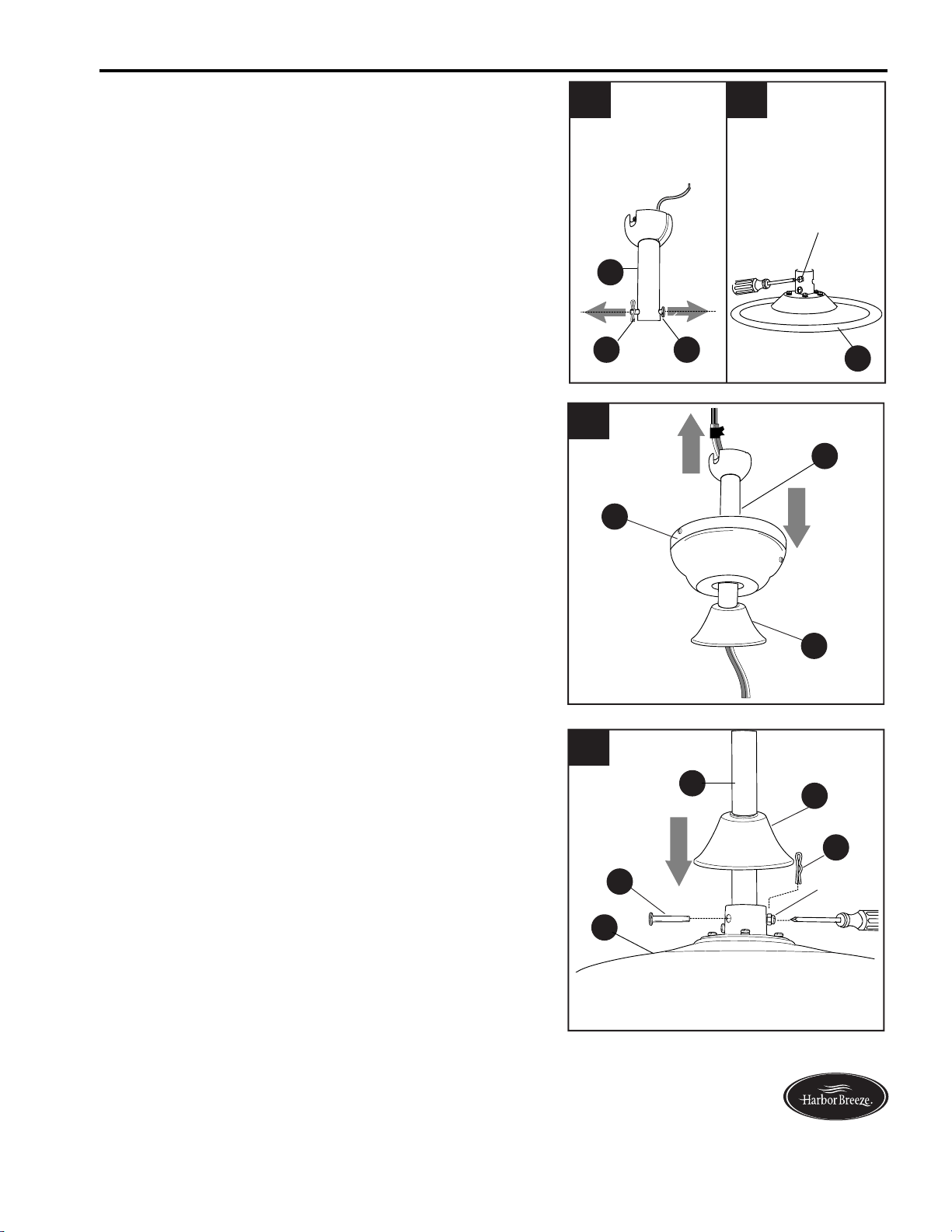

5.
Insert downrod (A) through canopy (B) and yoke
cover (E). Thread wires from motor housing (D)
through downrod (A).
Remove pin (M) and clip (N) from downrod (A).
Partially loosen preassembled set screws in motor
housing yoke on top of motor housing (D).
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
Set
Screw
4a.
N
D
M
4a 4b
A
4b.
A
B
E
6.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (M) and clip (N). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
Slide yoke cover (E) down until it rests on top
of motor housing (D).
6
A
P
E
D
M
N
Set
Screw
FAN MOUNTNG
10
Lowes.com/harborbreeze
Install ball end of downrod (A) into opening of
mounting bracket (C). Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may result in serious injury or death.
9.
Slot
Tab
C
A
9

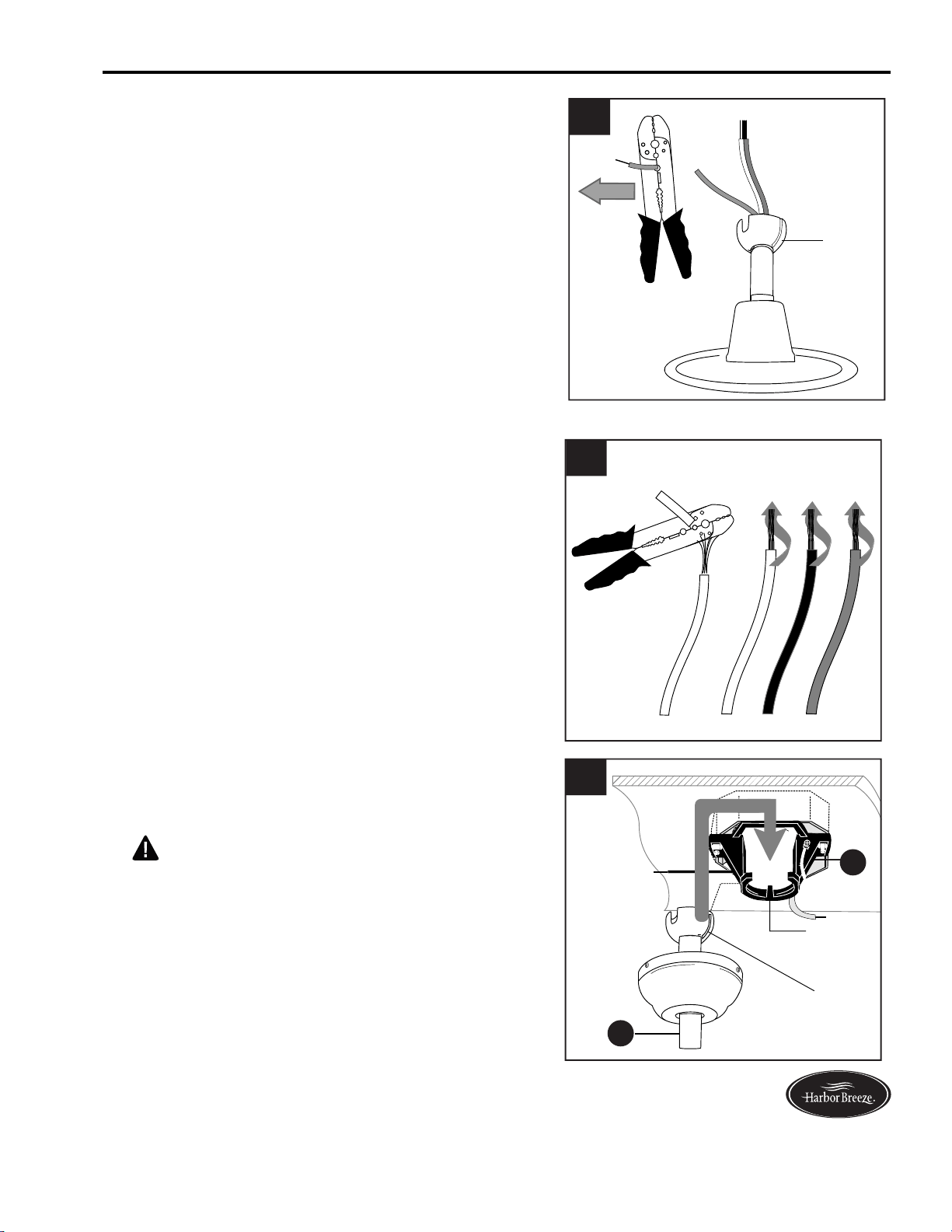

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the ball on the downrod and
measure 8 in. of lead wire, and then cut the excess
wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
7 and 8 are not necessary and you may proceed
to Step 9 instead.
Ball
7.
7
O
If you decided to cut back the lead wires in Step 7,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat
Step 8 for black, blue (if applicable) and green
wires.
8.
8

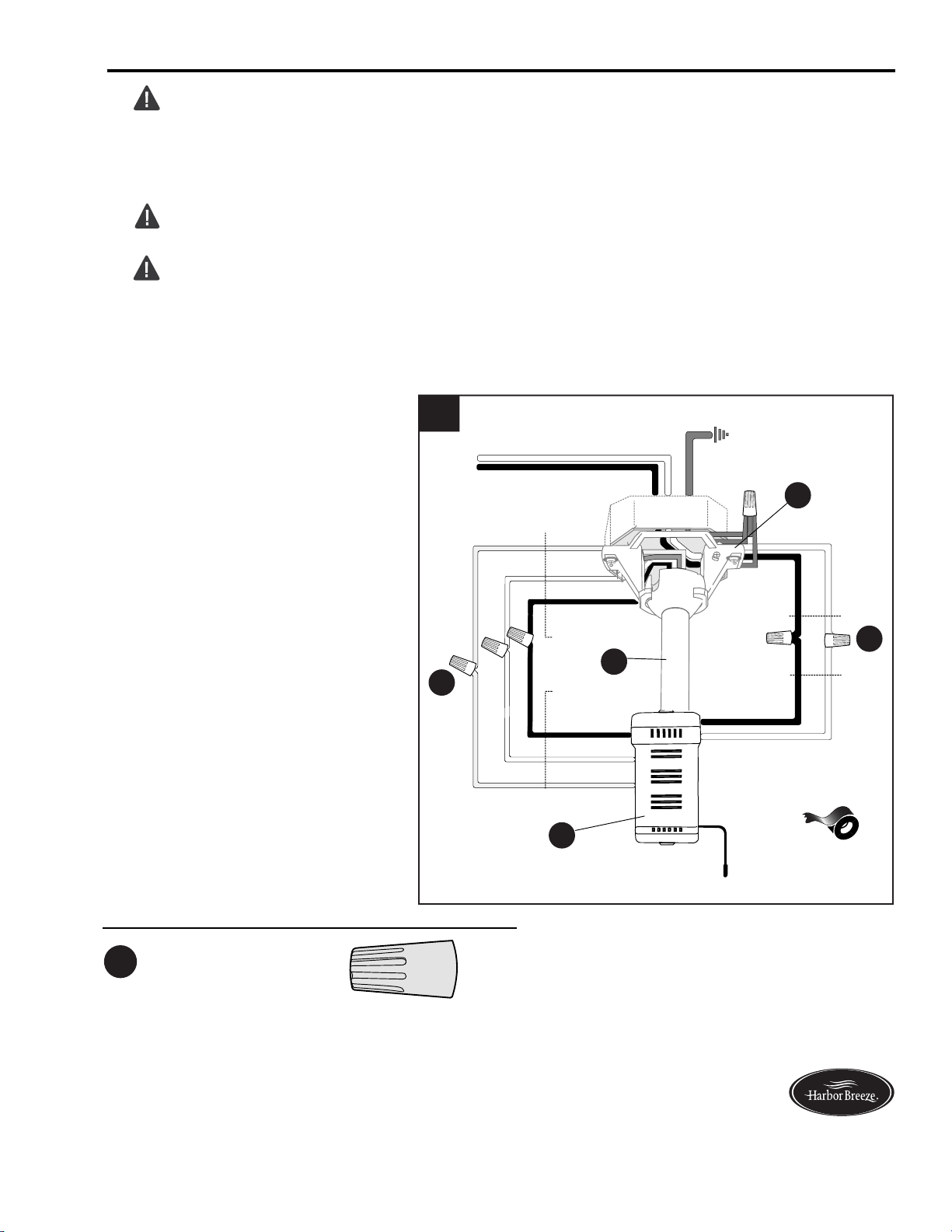

WIRING
11
Lowes.com/harborbreeze
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to
connect to the corresponding fan lead wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
NOTE: Black and blue wires are hot power for fan. White wire is common for fan. Green or
bare wire is ground.
Make the necessary wiring
connections for remote control
operation according to drawing
at right. For each wire connection,
use one of the wire connectors
(CC), making sure to screw wire
connector (CC) on in a clockwise
direction. [Make sure to connect
all GROUND (GREEN) wires
together from fan (on downrod (A)
and mounting bracket (C)) to
BARE/GREEN wire from ceiling.]
NOTE: Assistance from another
person is recommended for this
step.
1.
*
E3 Wire Connector x 6
Hardware Used
CC
1
White Supply Wire
Black Supply Wire
Ground
(Green or Bare)
C
H
CC
CC
A
Black
White
Blue
From Fan
From
Receiver
Black
White
Blue
Antenna
Black
White
From Ceiling
From Receiver
Black
AC IN L
White
AC IN N
12
WIRING
Lowes.com/harborbreeze

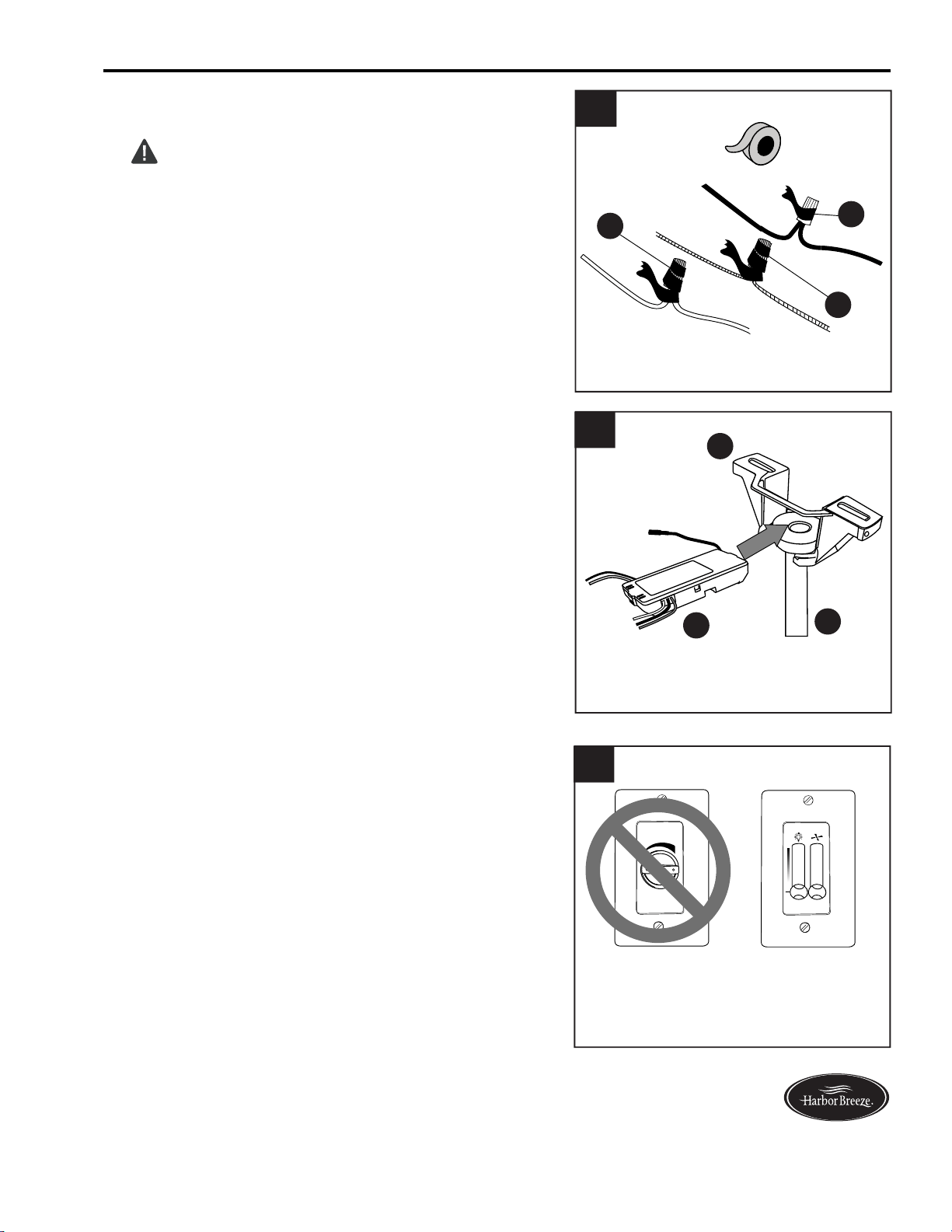

IMPORTANT: Using a full range dimmer
switch (not included) to control fan speed will
cause a loud humming noise from fan. To
reduce the risk of fire or electrical shock, do
NOT use a full range dimmer switch to control
fan speed.
4.
Dimmer
Switch
Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
4
1
2
3
3
Gently slide remote control receiver (H) flat-side up
into mounting bracket (C). Turn spliced/taped wires
upward and gently push wires and wire connectors
(AA) into outlet box. Let antenna from remote control
receiver (H) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.;
light watts: 300
(Incandescent only)
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
A
H
C
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
2.
CC
2
CC
CC
13
Lowes.com/harborbreeze
2.
FINAL INSTALLATION
2
3
Install bulb (J).
Tip: Do not touch glass portion of bulb (J) with
fingers or hands. Oil from skin can cause
bulb (J) to overheat and go out prematurely. Use
cardboard box or foam wrapping bulb (J) was
packed with to layer around glass portion of
bulb (J).
IMPORTANT: When replacing bulb, allow bulb
and glass shade to cool down before touching.
Keep in mind not to touch the bulb itself as
described above.
J
Align openings in grooves of glass shade (O) with
nodules on underside of motor housing (D). Turn
glass shade (O) clockwise until it no longer turns.
Pull down very gently on glass shade (O) to ensure
it is securely attached.
3.
O
D
1.
Lift canopy (B) to mounting bracket (C) and
align slotted holes in canopy (B) with loosened
canopy mounting screws (L) in mounting
bracket (C). Twist canopy (B) to lock, then
insert the two canopy mounting screws (L) and
star washers (P) previously removed (Step 4a,
page 7). Tighten all canopy mounting screws
(L) securely.
B
L
L
1
P
P
14
Lowes.com/harborbreeze
Restore electrical power. Within 30 seconds of
restoring electrical power, press the “LEARN”
button, located on right-hand side at top of battery
compartment, for 3 seconds or until fan switches to
MEDIUM speed. Use the remote control transmitter
(G) to test the light and fan functions (see Operating
Instructions for Remote Control and Fan on page
15) to confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter (G), remove the battery (Q) if not used
for long periods. Store the remote control transmitter
(G) away from excess heat.
2.
Locate dimmer switch on left-hand side at top of
battery compartment. Dimmer switch has been
pre-set to the “ON” position (DIM). [Note: If you
prefer not to have dimming capability, set the
dimmer switch to the “OFF” position (ON/OFF)].
Place battery (Q) in battery compartment and then
replace battery cover on back of remote control
transmitter (G).
3.
AUTOMATED LEARNING PROCESS/ACTIVATING CODE
Remove battery cover from back of remote control
transmitter (G).
Locate battery (Q) in hardware pack, then remove
plastic wrap from battery (Q). Install battery (Q) but
leave battery (Q) outside of battery compartment
until learning process is complete.
1.
CAUTION: The remote control transmitter (G) can
be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other
programmable receiver or fan.
2
3
1
(back)
9V
Battery
Cover
G
Q
9V
DIMMER
SWITCH
ON/OFF
ON/OFF
(back)
Battery Cover
R
G
LEARN
BUTTON
9V
ON/OFF
ON/OFF
G
Q
15
Lowes.com/harborbreeze
Modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.

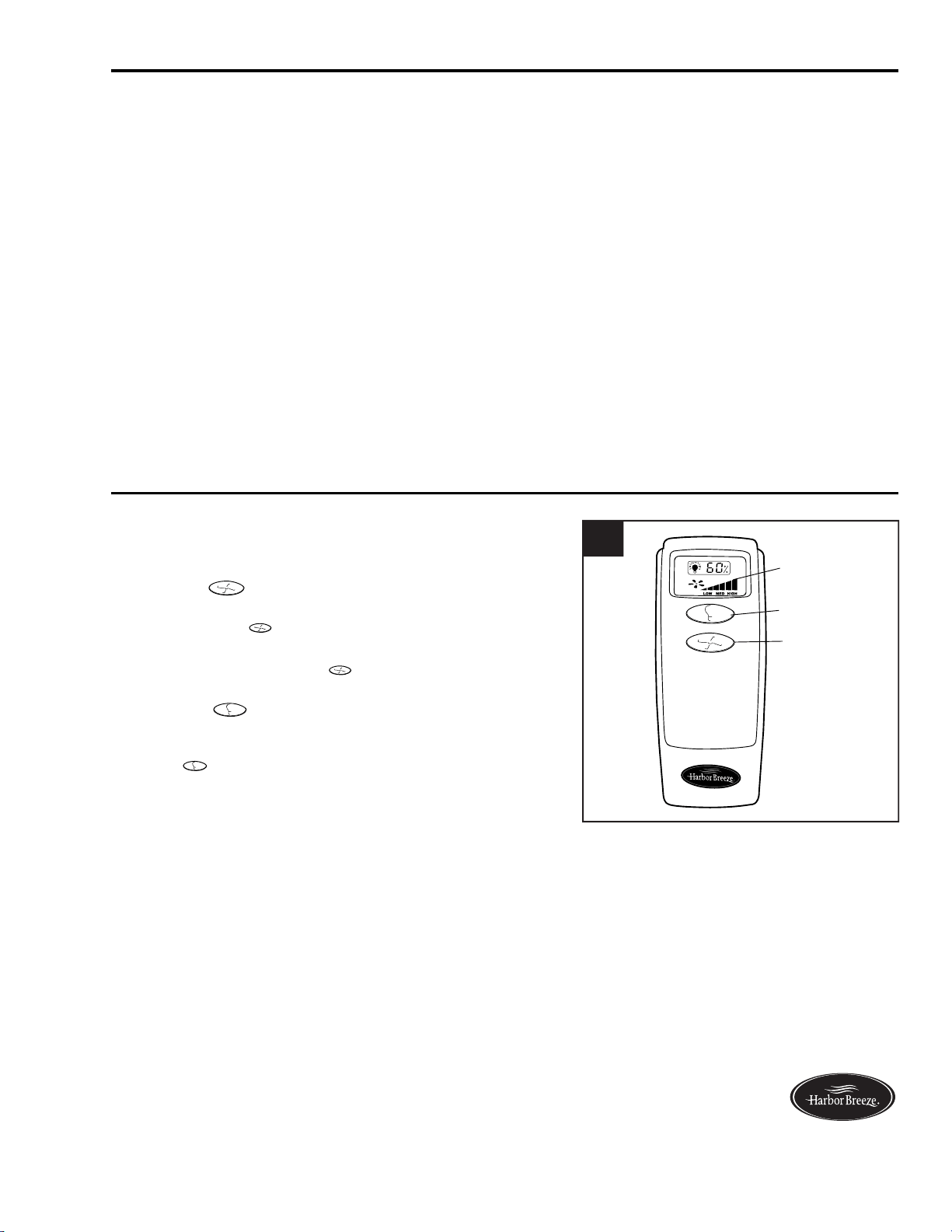

OPERATING INSTRUCTIONS
1.
1
Light Button
Brightness
Readout
Fan Button
Operation buttons on the panel of the remote control
transmitter (G):
FAN For fan SPEED and to turn fan OFF
Pressing the button cycles the fan from HIGH to
MEDIUM to LOW and then OFF. Liquid crystal display
shows each function as button is pressed.
LIGHT
For light BRIGHTNESS and to
turn light OFF
Hold button down to increase or decrease light;
brightness shows as a percentage on display. Tap
button quickly to turn light on or off. If you press and
hold the button in excess of 0.7 seconds, it becomes a
dimmer. (See Step 2 on page 14 regarding dimmer
switch.) The light varies cyclically in 0.8 seconds. The
light button has an auto resume function, which keeps
the light at the same brightness as the last time it was
turned off.
AUTOMATED LEARNING PROCESS/ACTIVATING CODE
16
Lowes.com/harborbreeze

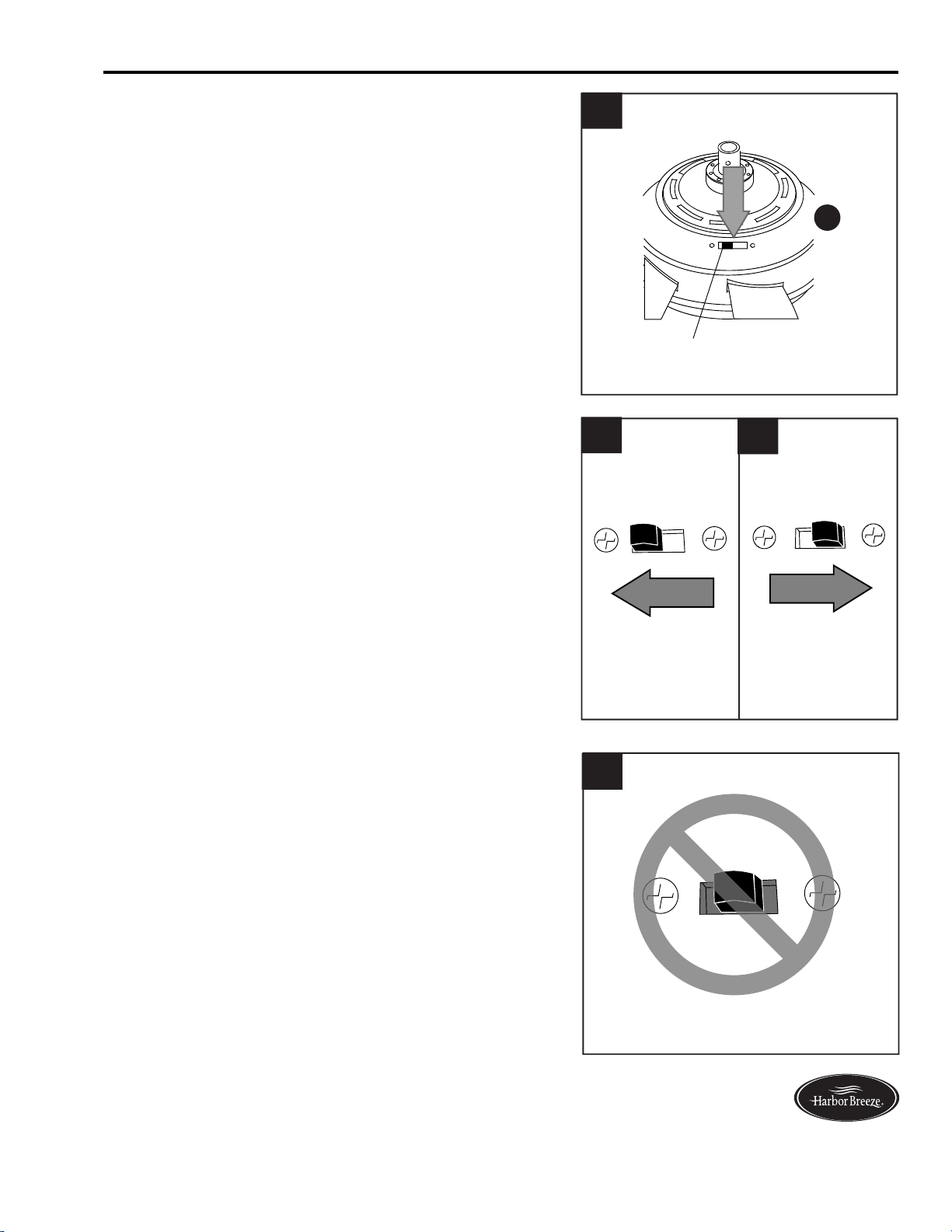

2c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
2c
2a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward
airflow creating a wind chill effect.
2b. In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area.
2a
2b
OPERATING INSTRUCTIONS
2.
Use the fan reverse switch, located on top of the
motor housing (D), to optimize the fan for
seasonal performance. A ceiling fan will allow
you to raise your thermostat setting in summer
and lower your thermostat setting in winter
without feeling a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2
Reverse
Switch
D
17
Lowes.com/harborbreeze
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (F) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use 100-watt max. halogen bulb, type JD E11.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1.Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a
blade from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that
mounting bracket is secure.
4. Use a longer downrod or
move fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy and verify that set
screw on hanging ball is
tightened securely.
CARE AND MAINTENANCE
TROUBLESHOOTING
18
Lowes.com/harborbreeze
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer of
this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067) for return authorization and shipping instructions so that we may repair or replace the
ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
LIMITED LIFETIME WARRANTY
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
4. Light kit is lamped with more than the
allowable 190W, causing the wattage
limiting device to interrupt the flow of
electricity to the light kit.
4. Lamp light kit with bulb that
totals no more than 190W.
Fan operates but
light fails (if
applicable).
1. Bulb not installed correctly.
2. Wires in canopy not wired
properly.
3. Wall switch to fan is off.
1. Re-install bulb.
2. Check wires in canopy and,
if necessary, re-wire according
to instructions on pages 11 and
12.
3. Make sure that wall switch to
fan is on.
19
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PARTS#
A Downrod
B Canopy
C Mounting Bracket
E Yoke Cover
F Blade
I Motor Screw
K Lock Washer
L Canopy Mounting Screw
M Pin
N Clip
O Glass Shade
P Star Washer
AA Blade Screw
BB Fiber Blade Washer
CC E3 Wire Connector
LI1307
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Lowes.com/harborbreeze
E
F
N
B
C
A
I
M
K
L
CC
AA
BB
P
276094-A
276094-B
276094-C
276094-E
276094-F
276094-I
276094-K
276094-L
276094-M
276094-N
276094-O
276094-P
276094-AA
276094-BB
276094-CC
O
