Installation Guide
For Model:
BRC30WW6L
net weight of fan: 9.04 lb (4.1 kg)
E124404
PRINTED IN CHINA
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Preparation for Wiring. pg. 4
Wiring. pg. 4
Fan Assembly. pg. 5
Motor Housing Assembly. pg. 5
Blade Assembly. pg. 6
Light Kit Assembly. pg. 7
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Parts Replacement. pg. 8
Warranty. pg. 8
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
SAFETY TIPS.
page 1
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should
be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or
other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at
least 35 pounds (16 kilograms). The outlet box must be supported directly by the building structure.
Use only UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lb) or less" and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and
may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan
are designed to accept only one 12 gauge house wire and two lead wires from the fan. If your house wire is
larger than 12 gauge or there is more than one house wire to connect to the corresponding fan lead wires,
consult an electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after
installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.
page 2
1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
2. Parts Inventory.
a. hanging bracket. 1 piece
b. motor housing. 1 piece
c. motor assembly. 1 piece
d. blade arm. 6 pieces
e. glass shade. 1 piece
f. blade. 6 pieces
g. hardware packs
c
a
f
g
b
d
e
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
bulb required:
1 x 6.5 watt medium base LED bulb
(included)
4. Hanging Bracket Installation.
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch
is turned to the OFF position.
WARNING: Failure to disconnect power supply prior
to installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be
sure the outlet box is securely attached to the
building structure and can support the full weight
of the fan. Ensure it is clearly marked "Suitable for
Fan Support." If not, it must be replaced with an
approved outlet box. Failure to do so can result in
serious injury.
CAUTION: Be sure oulet box is grounded properly
and that a ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using
original screws, spring washers and flat washers
provided with new or original outlet box.*
Arrange electrical wiring to one side of the
hanging bracket.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as
this will support the fan.
page 3
hanging
bracket
spring washers
ON
OFF
ON
OFF
3. Installation Preparation.
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7 feet (2.13m) from the floor and
30in. (76cm) from any wall or obstruction.
This fan is suitable for room sizes up to
100 square feet (9.3 square meters).
This fan can be mounted as a flushmount only
on a regular ceiling. Downrod installations are
not available for this fan.
Installation requires these tools:
Phillips screwdriver, flathead screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
downrod
installation
flushmount
installation
outlet box screws
8ft. - 10ft.
8ft. - 10ft.
(2.42m - 3.05m)
blade edge
7 feet
(2.13m)
(76cm)
30
inches
flat washers
(2.42m - 3.05m)
CANNOT be
installed on
angled or
vaulted ceilings
page 4
Remove single motor mounting screw
from hook end of motor assembly. Remove
2 motor mounting screws from hanging
bracket.
Lift motor assembly to hanging bracket
and slide hook end (with single screw hole)
into square opening on hanging bracket
(see diagram at right). This will allow the
motor assembly to hang out of the way
while wiring.
Tip: Seek the help of another person to
hold the stepladder in place and to lift the
fan up to you once you are set on the
ladder.
WARNING: Turn off circuit breakers to current
fixture from breaker panel and be sure switch
is turned to the OFF position.
CAUTION: Be sure outlet box is properly
grounded and that a ground wire (GREEN or
Bare) is present.
Make sure all electrical connections comply
with Local Codes or Ordinances and the
National Electrical Code. If you are unfamiliar
with electrical wiring or if the house/building
wires are different colors than those referred
to below, please use a qualified electrician.
When fan is secured in place on the
hanging bracket, electrical wiring can be
made as follows:
Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling with wire
connector provided.
Connect WHITE wire from fan to WHITE
wire from ceiling with wire connector
provided.
Connect all GROUND (GREEN) wires
together from fan to BARE/GREEN wire
from ceiling with wire connector provided.
If you intend to control the fan light with a
separate light switch, connect BLUE wire from
fan to the BLACK (or RED) supply from the
independent switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
5. Preparation for Wiring.
6. Wiring.
hanging
bracket
motor assembly
motor
mounting
screws
wire
connector
hanging
bracket
motor assembly
*
WHITE
WHITE
BLACK
BLACK
BLUE
GROUND (GREEN OR BARE) GREEN
wire
connectors
from ceiling
from fan
hook
end
7. Fan Assembly.
Carefully push wiring and wire
connectors into outlet box. Leave
hook end of motor assembly in
square opening of hanging bracket
and lift the other end of motor
assembly toward hanging bracket.
Align motor assembly screw holes
with hanging bracket screw holes
and, using motor mounting screws,
secure motor assembly with a Phillips
screwdriver.
8. Motor Housing Assembly.
Hold motor housing up to hanging
bracket to determine which 2 screws
align with slotted holes on top rim of
motor housing. Put motor housing
down and partially loosen the 2 screws
in the hanging bracket that correspond
to slotted holes in the motor housing.
Remove the other 2 screws from the
hanging bracket.
Raise motor housing to hanging
bracket, allowing slotted holes in motor
housing to align with loosened screws
in hanging bracket. Twist motor
housing to lock. Re-install the 2 screws
that were removed and then tighten all
4 screws to secure motor housing.
page 5
motor
mounting
screws
motor
mounting
screw
motor
housing
screws
motor
housing
screws
motor
housing
motor assembly
motor assembly
hanging bracket
hanging
bracket
blade arm
blade
page 6
Time Saver: Washers for blade screws can be
set on each blade screw prior to installing
blades.
Locate 18 blade attachment screws and
washers in one of the hardware packs. Hold
blade arm up to blade and align holes. Insert
3 blade attachment screws (along with
washers) with fingers first, and then tighten
screws securely with a Phillips screwdriver.
Repeat procedure for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor
locks are installed with blade arm screws,
discard plastic motor locks (save blade arm
screws and lock washers to secure blade arms).
Align blade arm holes with motor screw
holes and attach blade arm with lock
washers and blade arm screws. Before
securing screws permanently, repeat this
same procedure with the remaining blade
arms. Secure all screws.
NOTE: Tighten blade arm screws twice a
year.
9. Blade Assembly.
motor housing
blade attachment
screws and washers
blade arm screws
lock washers
plastic
motor
lock
page 7
reverse
switch

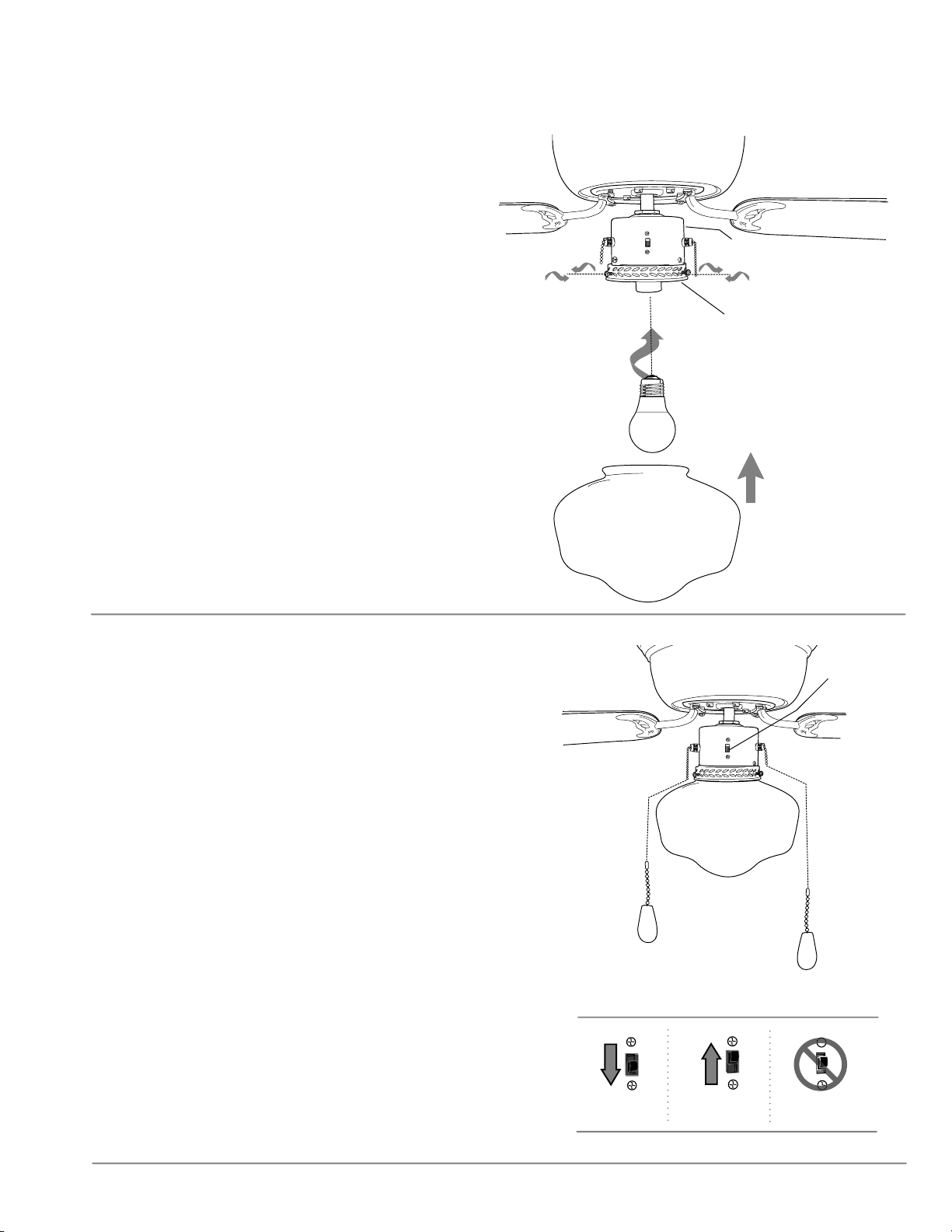

10. Light Kit Assembly.
Install 1 medium base 6.5 watt LED bulb
(included).
Important: When replacing bulb, please
allow bulb and glass shade to cool down
before touching.
Partially loosen the 3 thumbscrews in
the light kit plate. Raise glass shade and
hold it in place in the base of the light kit
plate. Secure glass shade by tightening
the thumbscrews until they touch the
rubber ring on the glass shade. Do NOT
overtighten thumbscrews as glass may
crack or break.
CAUTION: Leave rubber ring on glass
shade intact as this (along with the
thumbscrews) will help hold the glass
shade in place.
switch housing
glass shade
bulb
thumbscrew
light kit plate
11. Testing Your Fan.
thumbscrew
fan
pull chain
extension
light
pull chain
extension
motor housing
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and wall
switch (if applicable). Test fan speeds with the pull chain
to the right of the reverse switch. Start at the OFF
position (no blade movement). First pull will set the fan
to HI. Second pull will set the fan to MEDIUM. Third pull
will set the fan to LOW. Fourth pull will re-set the fan to
OFF setting. Test light with the pull chain to the left of
the reverse switch. (Refer to diagram 1.) If fan and/or
light do (does) not function, please refer to
"Troubleshooting" section to solve any issues before
contacting Customer Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air depending
on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a difference in your comfort.
Important: Reverse switch must be set either completely
UP or completely DOWN for fan to function. If the reverse
switch is set in the middle position (diagram 4), fan will
not operate.
Attach pull chain extensions supplied or custom pull
chain extensions (sold separately) to ends of the pull
chains.
diagram 2 diagram 3 diagram 4
diagram 1
motor
housing
page 8
Warranty.
Troubleshooting.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulb is installed correctly.
3. Verify that wires in outlet box are wired
properly.
Problem: Fan operates but light fails.
Solutions:
1. Check that bulb is installed correctly.
2. Verify that wires in outlet box are wired
properly.
3. Replace defective bulb with same type of
bulb.
Problem: Fan wobbles.
Solutions:
1. Carefully loosen motor housing and verify
that hanging bracket is secure.
2. Check to be sure motor housing is turned
completely and that motor housing screws are
secure.
LITEX 15-YEAR LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6 to 15-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will
repair the fan, at no charge to the original purchaser for
labor only, if the fan motor fails to operate satisfactorily
when failure results from normal use. Parts used in the
repair will be billed to the purchaser at prevailing prices at
time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 2.
Litex Customer Support:
1-800-527-1292
KHLI1708
