Description:
The MPC-50H occupancy sensor is designed for automatic lighting control in high bay applications, such as warehouses,
distribution centers, gymnasiums, and areas with direct access to the lighting fixtures, specifically for indoor locations.
This product contains a passive infrared sensor (PIR).
Features:
• LED indicator of occupancy detection for easy verification of coverage
• Easy front access to time delay, sensitivity range and ambient light level adjustment
• Easy mounting using ½” knockout at end of luminaire fixture
• Hardware choices for side and back mount
• Compatible with all program start ballasts
• Zero crossing circuitry reduces stress on relay and extends sensor life
Specifi
cations:
Voltage .................................................................................................................................................... 120/277VA,50/60Hz
Load Requirements:
@ 120VAC .......................................................................................................................................800W ballast or tungsten
@ 277VAC ........................................................................................................................................................ 1200W ballast
@ 120VAC ....................................................................................................................................................................1/4 hp
Adjustable Light Level ...................................................................................................................................... 10FC—150FC
Sensitivity Adjustable ..................................................................................................................... 50% or 100%(DIP switch)
Operating Temperature ..................................................................................................................... 32°to 131°F (0°to 55°C)
Relative Humidity ............................................................................................................................ 20-90%, non-condensing
Controls ............................................................................................................................ Light Level Knob and Dip Switches
Material ............................................................................................................................................................................. ABS
Warranty ....................................................................................................................................................................... 2 years
Testing and Code Compliance:
• UL/CUL Listed device
• California Title 24

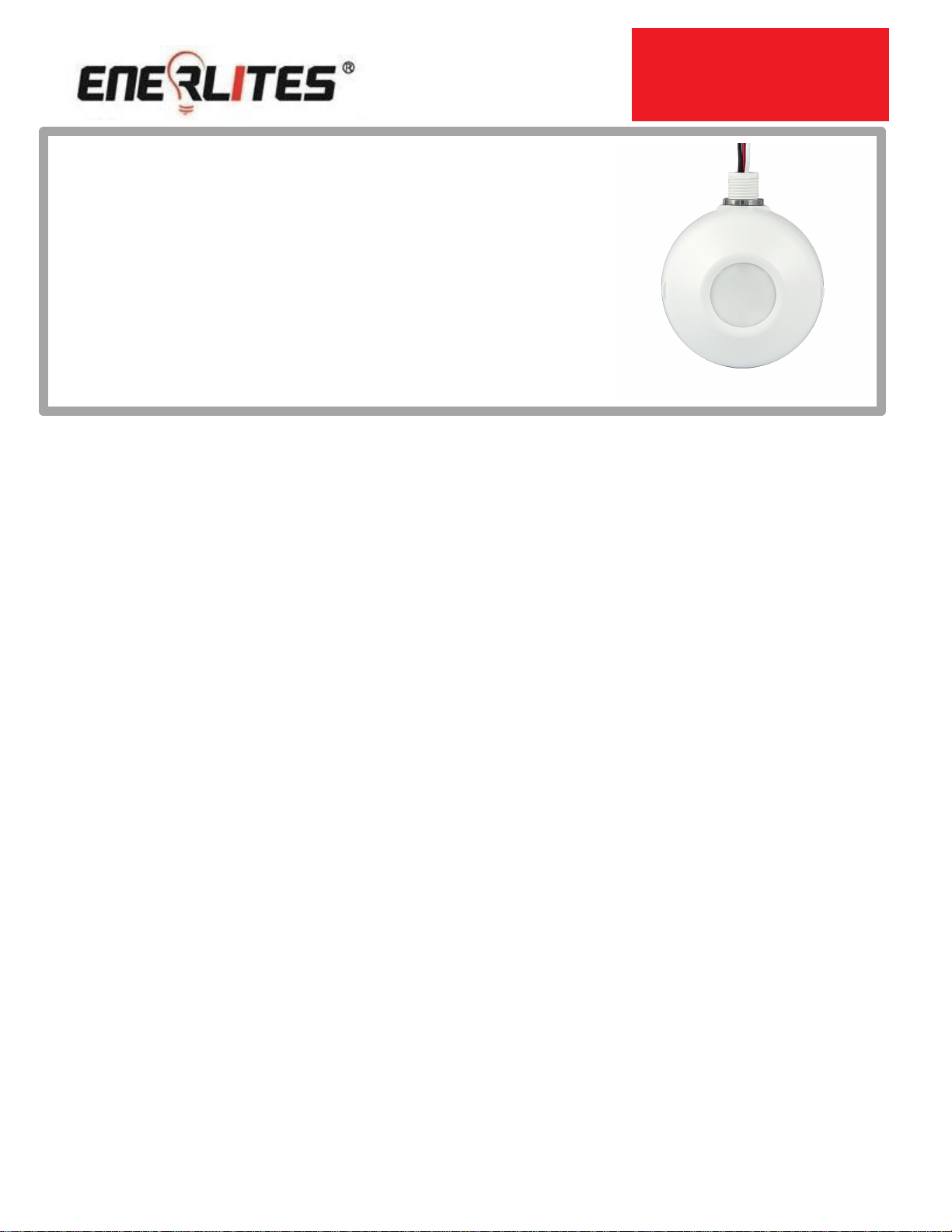

High Bay 360° Passive Infrared
Line Voltage Occupancy Sensor
Model #: MPC-50H
General
Specification

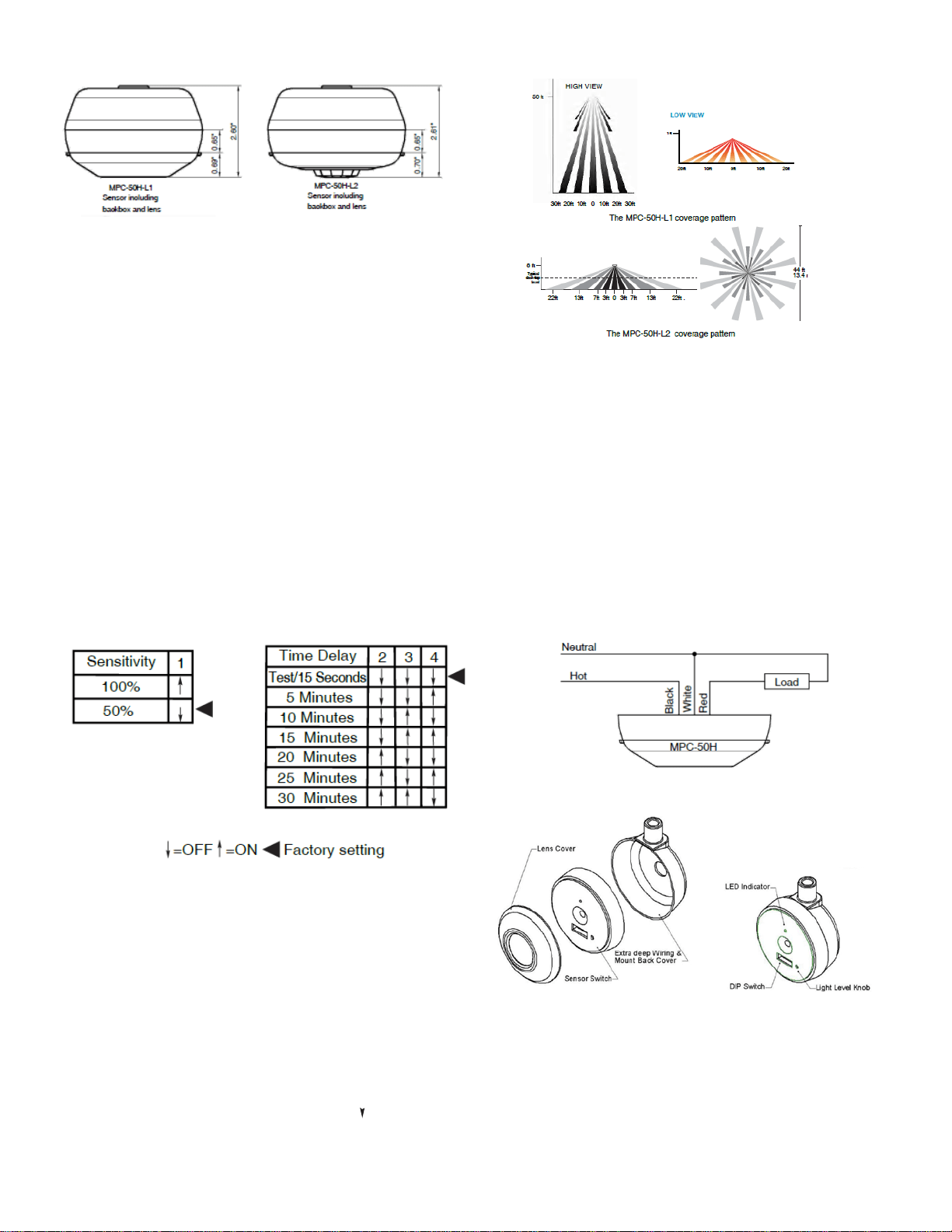

Dimensions: Coverage:
Lens S
pecifications:
MPC-50H-L1:
Mounting height .................................................................................................................................................................. 50ft
Field of view ..................................................................................................................................................................... 360°
Coverage .................................................................................................................................................................. 2800 sq.ft
MPC-50H-L2:
Mounting height .................................................................................................................................................................... 8ft
Field of view ..................................................................................................................................................................... 360°
Coverage .................................................................................................................................................................. 1200 sq.ft
Dip Switch Setting:
The MPC-50H has 4 DIP switches under the cover. They
are used to set sensitivity and time delay feature settings.
First switch: Changes the sensitivity of the sensor,
increasing or decreasing the range and height of
detection.
Second, Third, and Forth: Through a combination of these
switches outlined in the table above, the times at which
the loads will turn off can be changed.
Wiring Diagram:
Components:
