INSTALLATION INSTRUCTION
INFRARED MOTION SENSOR 2 IN 1
TECHNICAL DATA
INPUT VOLTAGE
220-240V/AC
SKU 24109
MODEL VT-81044
POWER FREQUENCY
50/60Hz
AMBIENT LIGHT
<3-2000 LUX (Adjustable)
TIME DELAY
Min. 10sec±3sec
Max. 15min±2min
RATED LOAD
1200W
600W
DETECTION RANGE 360°
DETECTION DISTANCE 8m Max (<24°C)
WORKING TEMPERATURE -20~+40°C
WORKING HUMIDITY <93%RH
INSTALLATION HEIGHT 2.2 - 4m
POWER CONSUMPTION <0.5W
DETECTION MOTION SPEED
0.6-1.5m/s
IP RATING
IP20
DIMESNION
Ø83x48.2x61.3mm
WEEE Number: 80133970
COMPATIBLE WITH
V-TAC LED
RANGE [UPTO 600W]
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
• For indoor use only.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
[Traditional Lighting]
[LED Lighting]
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INFRARED MOTION SENSOR 2 IN 1
INSTALLATION INSTRUCTIONS

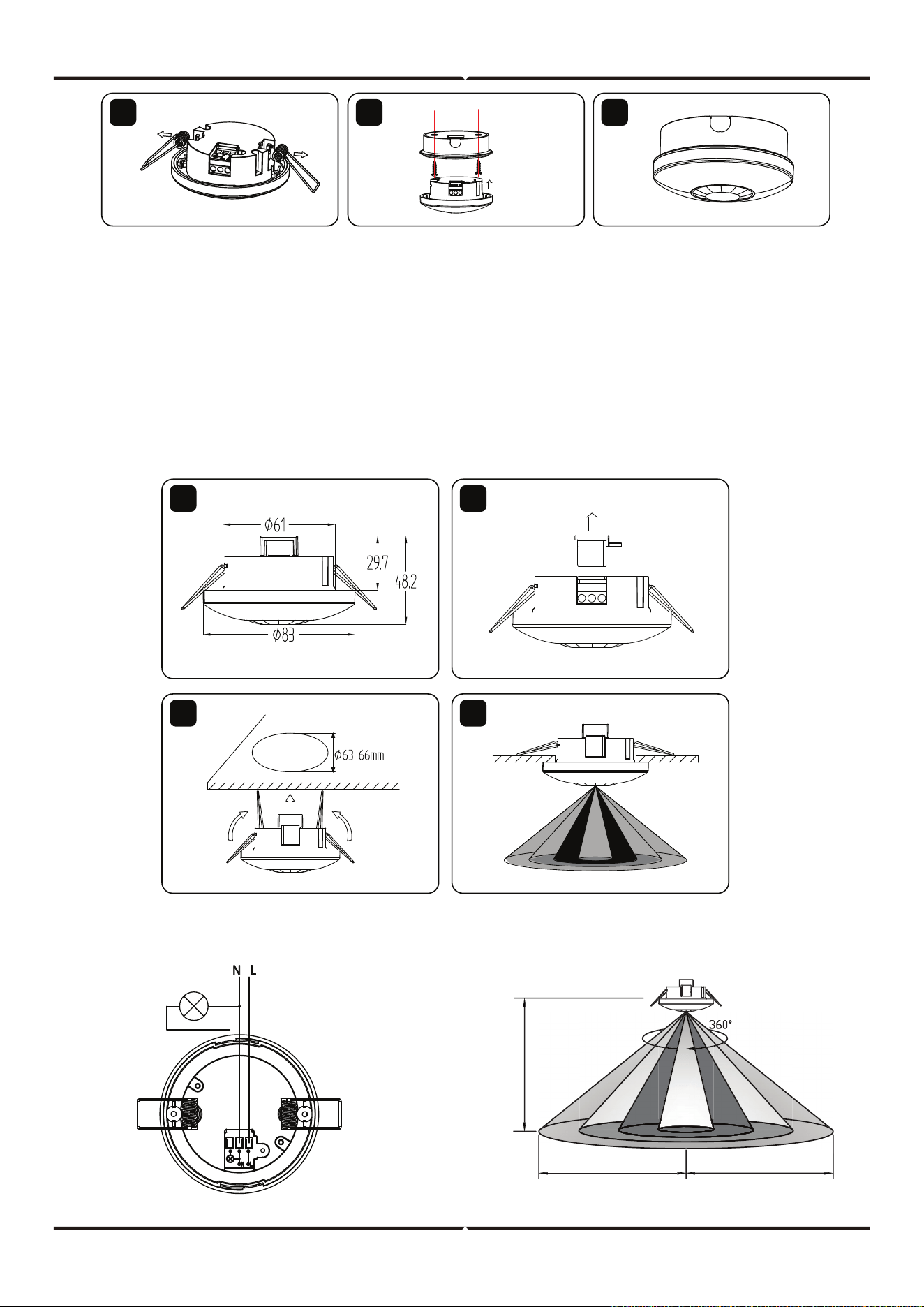

Method One
INSTALLATION ADVICE
• Can identify day and night: The consumer can adjust working state in dierent ambient light. It can work
in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light
less than 3LUX when it is adjusted on the "3" position (min).
As for the adjustment pattern, please refer to the testing pattern.
• Time-Delay is added continually: When it receives the second induction signals within the first induction,
it will restart to time from the moment.
• Turn o the power.
• Please remove the metal spring of the sensor.
• Connect the power and the load according to the connection-wire diagram.
• Fix the bottom on the selected position with the inflated screw.
• Install back the upper cover on the sensor, then you could switch on the power and test it.

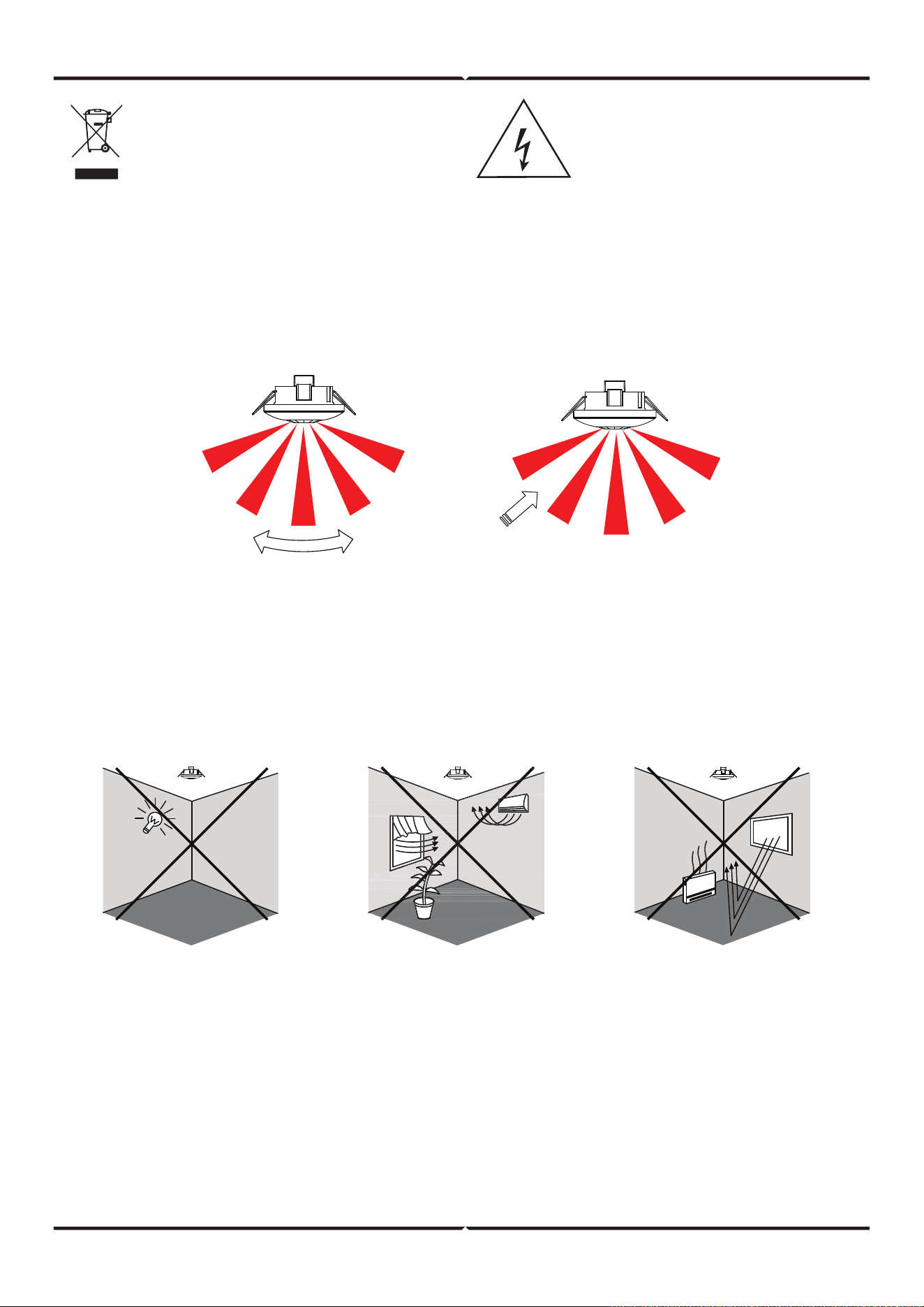

As the detector responds to changes in temperature, avoid the following situations:
• Avoid pointing the detector towards objects with highly reflective surfaces, like mirrors etc.
• Avoid mounting the detector near heat sources as heating vents, air conditioners, light etc.
• Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Good sensitivity Poor sensitivity
FUNCTION
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
Method Two
CONNECTION-WIRE DIAGRAM
SENSOR INFORMATION
• Turn o the power.
• Unload the transparent cover.
• Connect the power to connection terminal of sensor according to connection-wire diagram.
• Install back the transparent cover into the original location.
• Fold the metal spring of the sensor upwards and then put the sensor into the suitable hole or
installation box. Releasing the spring, the sensor will be set in this installation position.
• Aer finishing installing, turn on the power and then test it.
1 2
3 4
21 3
Height of installation: 2.2 - 4m
4m
4m
2.2-4m

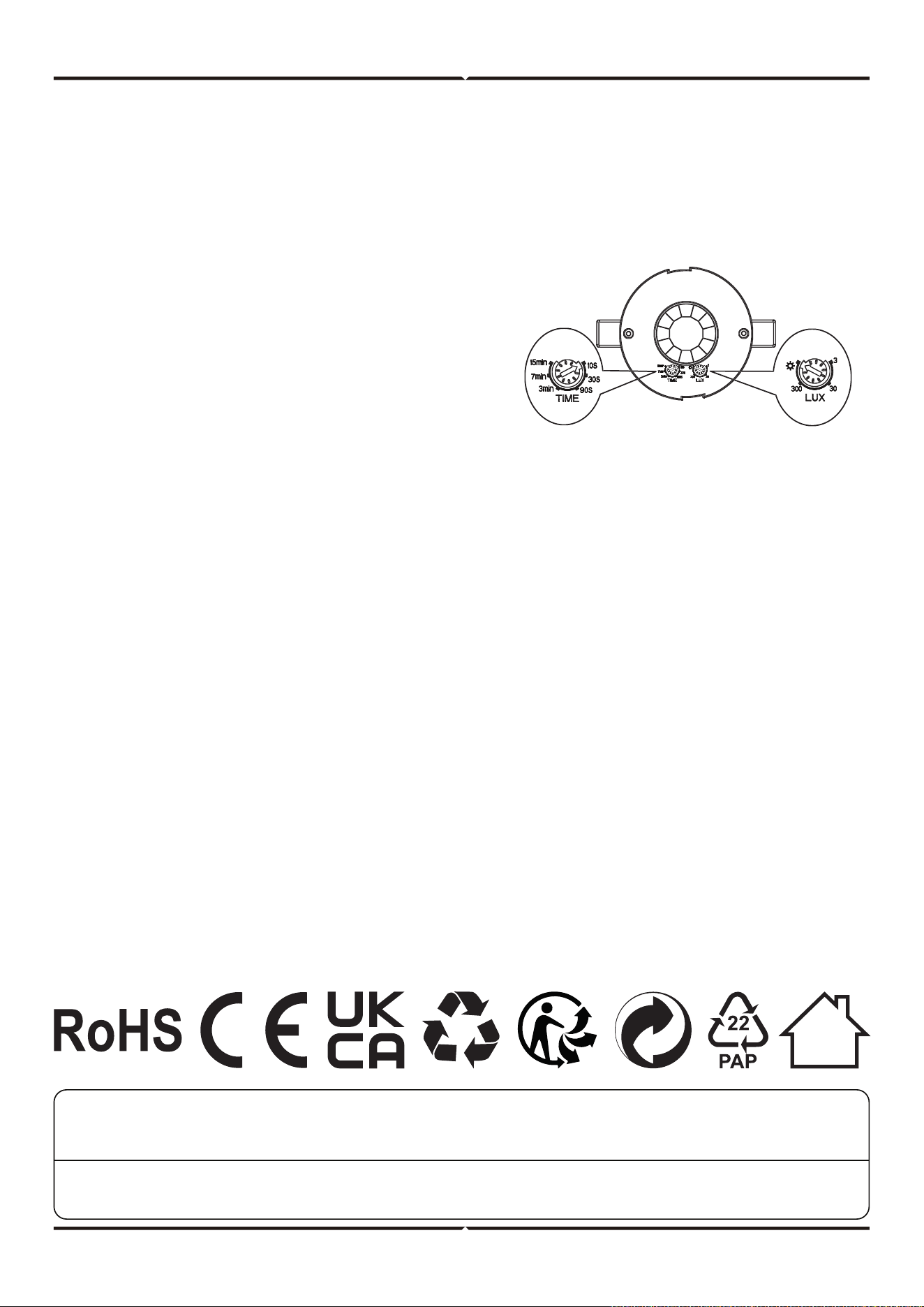

• . Turn the TIME knob anti-clockwise on the minimum (10S). Turn the LUX knob clockwise on the
maximum (sun).
• . Switch on the power; the sensor and its connected lamp will have no signal at the beginning.
Aer Warm-up 30sec, the sensor can start work. If the sensor receives the induction signal, the
lamp will turn on. While there is no another induction signal any more, the load should stop work-
ing within 10sec ±3sec and the lamp would turn o.
TEST
Note: when testing in daylight, please turn LUX knob to ☼ (SUN) position, otherwise
the sensor lamp could not work.
TROUBLESHOOTING
• The load does not work
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
• The sensitivity is poor
a. Please check if there is any hindrance in front of the detector to aect it to receive the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required in the instruction.
e. Please check if the moving orientation is correct.
• The sensor can not shut o the load automatically
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position.
c. Please check if the power corresponds to the instruction.
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
• . Turn LUX knob anti-clockwise on the minimum (3). If the
ambient light is more than 3LUX, the sensor would not
work and the lamp stop working too. If the ambient light is
less than 3LUX (darkness), the sensor would work. Under
no induction signal condition, the sensor should stop
working within 10sec ±3sec.
