SW-1001 I QUICK START GUIDE
ITEM NO.: ALT-268
WHAT’S INCLUDED
1.
SW-1001
Wireless Smart Light Switch
Quick Start Guide
with Warranty Information
SW-1001 I QUICK START GUIDE
A QUICK LOOK
2.
Power Button
Live Wire
(black)
Load Wire
(black)
Neutral Wire
(white)
Ground Wire
(green/bare)
IMPORTANT WARNING
REMOVING YOUR CURRENT LIGHT SWITCH
SETUP
3.
The following tools can be used to help you install your light switch
(not included)
Before installing your light switch, power must be turned OFF. You
can turn off the power by either switching the corresponding circuit
breaker to the OFF position, or removing the corresponding fuse in
your fuse box.
To ensure safety, we recommend using a voltage tester to ensure
that all electrical power is off.
Attempts to install wiring when there is active electrical power can
lead to serious injury or death. If you are not comfortable with
electrical work, contact a qualified electrician for assistance.
Before installing your Wireless Smart Light Switch, you must remove
your currently installed light switch.
First, unscrew and remove the faceplate from the old light switch.
Do not detach the wires yet.
SAFETY RECOMMENDATION: Use a voltage tester to test around the
old light switch, and flip your light switch on and off a few times to
make sure that the power is OFF. The voltage tester should not light
up, and the light should not turn on.
Unscrew and pull out the old light switch, detaching the wires.
CIRCUIT BREAKER FUSE
OR
After removing your old light switch, you can go ahead and install
your Wireless Smart Light Switch.
Loosen screws.
Connect the wires.
(Contact a qualified electrician for assistance if necessary.
Screw the light switch in and then screw on the faceplate.
INSTALLATION
4.
Ground
Load
Live
Neutral
Ground
Load
Live
Neutral
APP INSTALLATION
5.

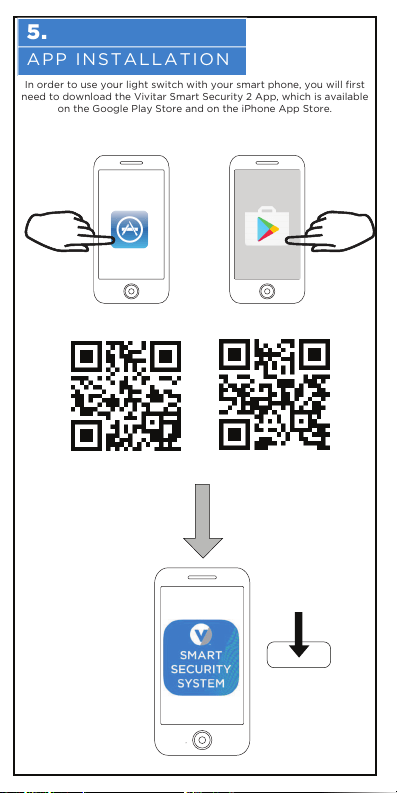

In order to use your light switch with your smart phone, you will first
need to download the Vivitar Smart Security 2 App, which is available
on the Google Play Store and on the iPhone App Store.
OR
iPhone Android
Install
Vivitar
Smart
Security 2
App
APP REGISTRATION
6.

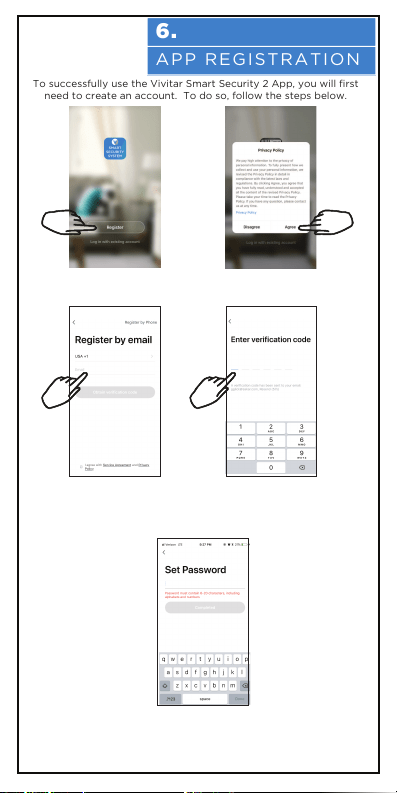

To successfully use the Vivitar Smart Security 2 App, you will first
need to create an account. To do so, follow the steps below.
Open the Vivitar
Smart Security 2 App
and press “Register.”
Enter your e-mail
address or phone
number to create an
account.
You will receive a verification
code over email or text
message. Enter it here.
Setup a password for your
account. Once finished,
you can login to your
account.
Agree to the terms of
the privacy policy.
LIGHT SWITCH SETUP
7.
Press and hold the power button for approximately 20-30 seconds
until the LED Indicator Light begins to flash rapidly. Your light switch
is ready for Wi-Fi connection.
If the LED indicator light flashes slowly, it indicates that you are in AP
Mode. Use AP Mode only if you want to use your light switch with
your phone, but do not have access to a Wi-Fi network. Press and
hold the power button for 20-30 seconds to switch between AP
mode and standard Wi-Fi quick connect mode.
Power
Button
(hold ~ 20-30 seconds)
LED Indicator Light
(rapidly flashing) = Ready for Wi-Fi Connection
Wi-Fi CONNECTION
8.
Go to your phone’s
settings menu, and make
sure that your phone is
connected to a 2.4GHz
Wi-Fi network.
Select “Add Device” in
order to choose a device
to add to your home
network .
In the Add Device screen,
select to add a Switch.
Confirm that the LED
Indicator Light on your
Light Switch is still
blinking rapidly.
Wi-Fi
MyNetwork2.4g
Wi-Fi CONNECTION
9.
Enter your Wi-Fi network
name and password.
Wait as the Wi-Fi
connection is established.
Once the connection is
established, you can use
the App to control your
smart light switch.
MyNetwork2.4g
PASSWORD
SPECIFICATIONS
10.
ELECTRICAL RATING: MAX1200W Resistive,
400W, Incandescent 1/2 HP at 120V AC
WORKING TEMPERATURE: ~20-50˚C
Wi-Fi FREQUENCY: 2.4GHz only
NOTE: Screen shots displayed in this user’s guide of the Smart
Security 2 software application may appear differently than those
currently featured in your app as frequent updates and
improvements are being made to the software.
FCC STATEMENT
11.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Keep manual and all relevant
information for future reference.
WARRANTY CARD
10.
This warranty covers the original consumer purchaser only and is not
transferable.
This warranty covers products that fail to function properly UNDER
NORMAL USAGE, due to defects in material or workmanship. Your
product will be repaired or replaced at no charge for parts or labor for
a period of one year.
What Is Not Covered by Warranty:
Damages or malfunctions not resulting from defects in material or
workmanship and damages or malfunctions from other than normal
use, including but limited to, repair by unauthorized parties,
tampering, modification or accident.
To Obtain Warranty Service and Troubleshooting Information:
Call 1-800-592-9541 or Visit our website at www.vivitar.com.
To receive Warranty service along with the name and address of an
authorized product service center, the original consumer purchaser
must contact us for problem determination and service procedures.
Proof of purchase in the form of a bill of sale or receipted invoice,
evidencing that the Product is within the applicable Warranty
period(s), MUST be presented in order to obtain the requested service.
It is your responsibility to properly package and send any defective
products along with a dated copy of proof of purchase, a written
explanation of the problem, and a valid return address to the
authorized service center at your expense. Do not include any other
items or accessories with the defective product. Any products
received by the authorized service center that are not covered by
warranty will be returned unrepaired.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY
DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL
WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE.
NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON,
FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON
DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL
PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION -ARE THE
EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL
DISTRIBUTOR, ITS MANUFACTURERS, OR SAKAR INT. BE LIABLE FOR ANY
INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF
PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE,
MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN,
NO OTHER WARRANTIES SHALL APPLY. NOTWITHSTANDING THE
FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT
EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR.
THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT
TRANSFERABLE.
Some countries, states or provinces do not allow the exclusion or limitation of
incidental or consequential damages or allow limitations on warranties, so
limitation or exclusions may not apply to you. This warranty gives you specific
legal rights, and you may have other rights that vary from state to state or
province to province. Contact your authorized retailer to determine if another
warranty applies. This product is manufactured, distributed and sold by
SAKAR International, Inc. All other trademarks are the property of the
respective owner, who has not sponsored, endorsed or approved this product.
