1. SAFETY
WARNING! Wear approved eye protection. Wear appropriate Personal Protective Equipment. A full range of Personal Protective
Equipment is available from your Sealey stockist.
WARNING! Ensure that Health & Safety, Local Authority Regulations and general workshop practice Regulations are adhered to when
using tools.
8 DO NOT use tools if damaged.
9 Maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
9 Ensure that a vehicle that has been raised by a jack is adequately supported. Use axle stands.
8 DO NOT attempt to start or move a vehicle whilst in gear and with timing devices fitted.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9 Account for all tools, parts and components being used. DO NOT leave these in or near the engine. Return tools to suitable storage after
use.
9 When not in use, store in a safe, dry childproof place.
9 Keep children and unauthorised persons away from the work area.
IMPORTANT! These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions or
a proprietary manual to establish the correct procedure and data.
WARNING! The warnings, cautions and instructions in this
manual cannot cover all possible conditions and situations. The
operator / user must apply caution and common sense (good
practical sense).
9 When timing an engine, always prevent the engine from being
turned over. Use a notice and / or inhibit the engine.
WARNING! Incorrect or out of phase camshaft timing can result
in contact between the valve head and the piston crown. This will
cause damage to the engine.
2. INTRODUCTION
Setting tools to correctly position the balance shaft in 1.2
Puretech engines. For use in EB2 belt-in-oil engines. Designed
to suit 1.2 Puretech engines tted in a range of PSA vehicles.
Equivalent to 0109-4BZ / EN-52128 and 0109-4H / EN-52589
OEM Tools.
3. SPECIFICATION
4. APPLICATIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
Refer to Instruction
manual
Original Language Version
© Jack Sealey Limited

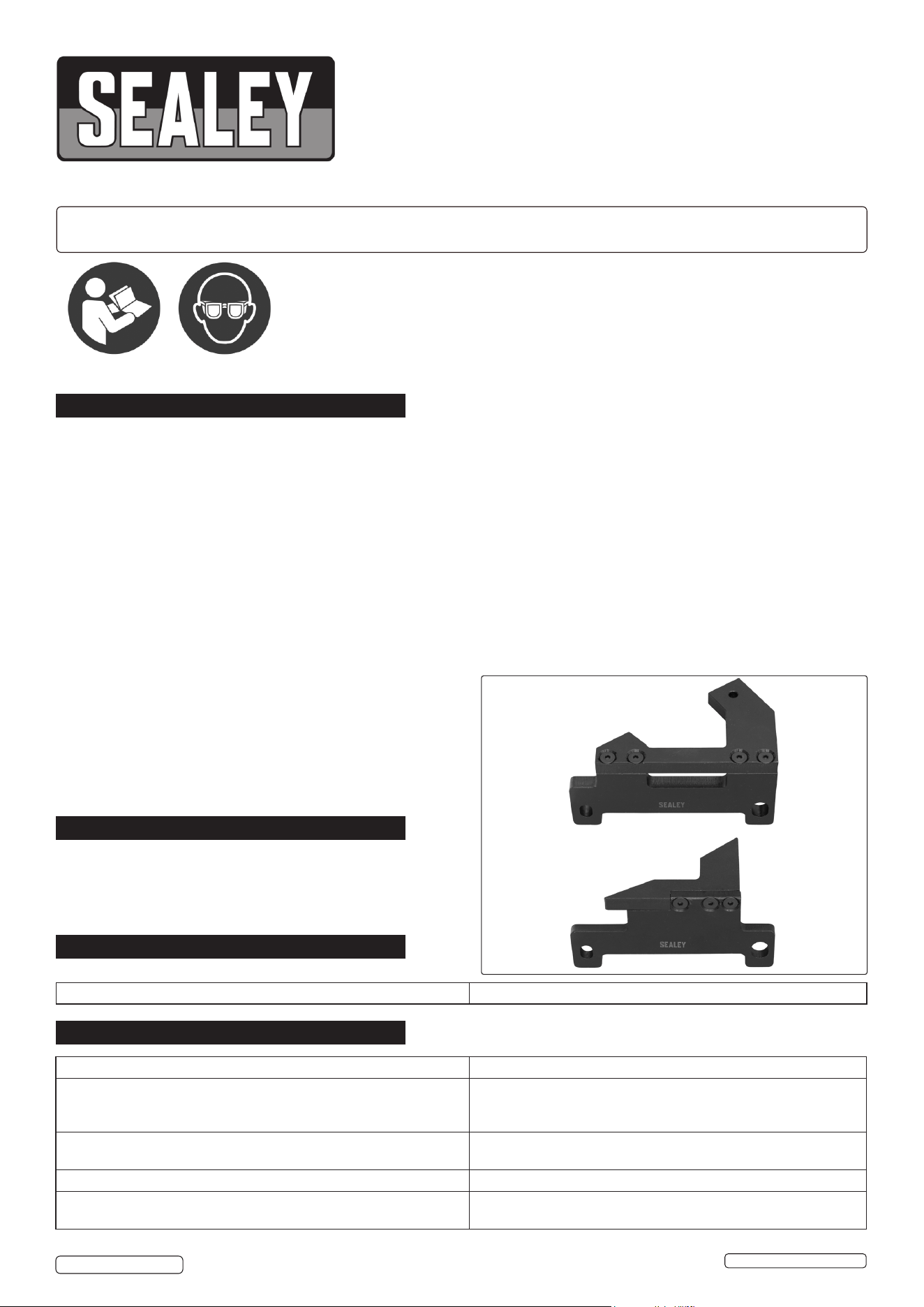

MODEL NO: VS5296
VS5296 Issue1 23/06/25
Wear Eye
protection
BALANCE SHAFT SETTING PLATES FOR PSA/
GM BELT DRIVE
Nett Weight: 0.535kg
Applications:
Citroen: Berlingo IV (18-24), C3 III (16-24), C3 Aircross (17-24)
C4 III (20-24), C4 Cactus (17-21), C4 Space Tourer (17-24), C5
Aircross (19-24)
Peugeot: 2008 (20-23), 208 (14-23), 3008 (16-24), 308 (14-24), 5008 (17-18),
508 (19-24), Partner III (14-18), Partner IV (18-24), Rifter (18-24)
Toyota: ProAce City (19-24), ProAce City Verso (19-24)
Vauxhall: Astra L (19-24), Astra L Sports Tourer (19-24), Combo E (18-24),
Combo E Life (18-24), Crossland X (17-24), Grandland X (17-21)
5. INSTRUCTIONS
5.0.1. The Sealey VS5296 comprises of a pair of balance shaft setting tools designed to suit all 1.2 Puretech EB2 Belt-in-Oil engines that are
tted to many Citroen, Peugeot, Toyota and Vauxhall/ Opel vehicles.

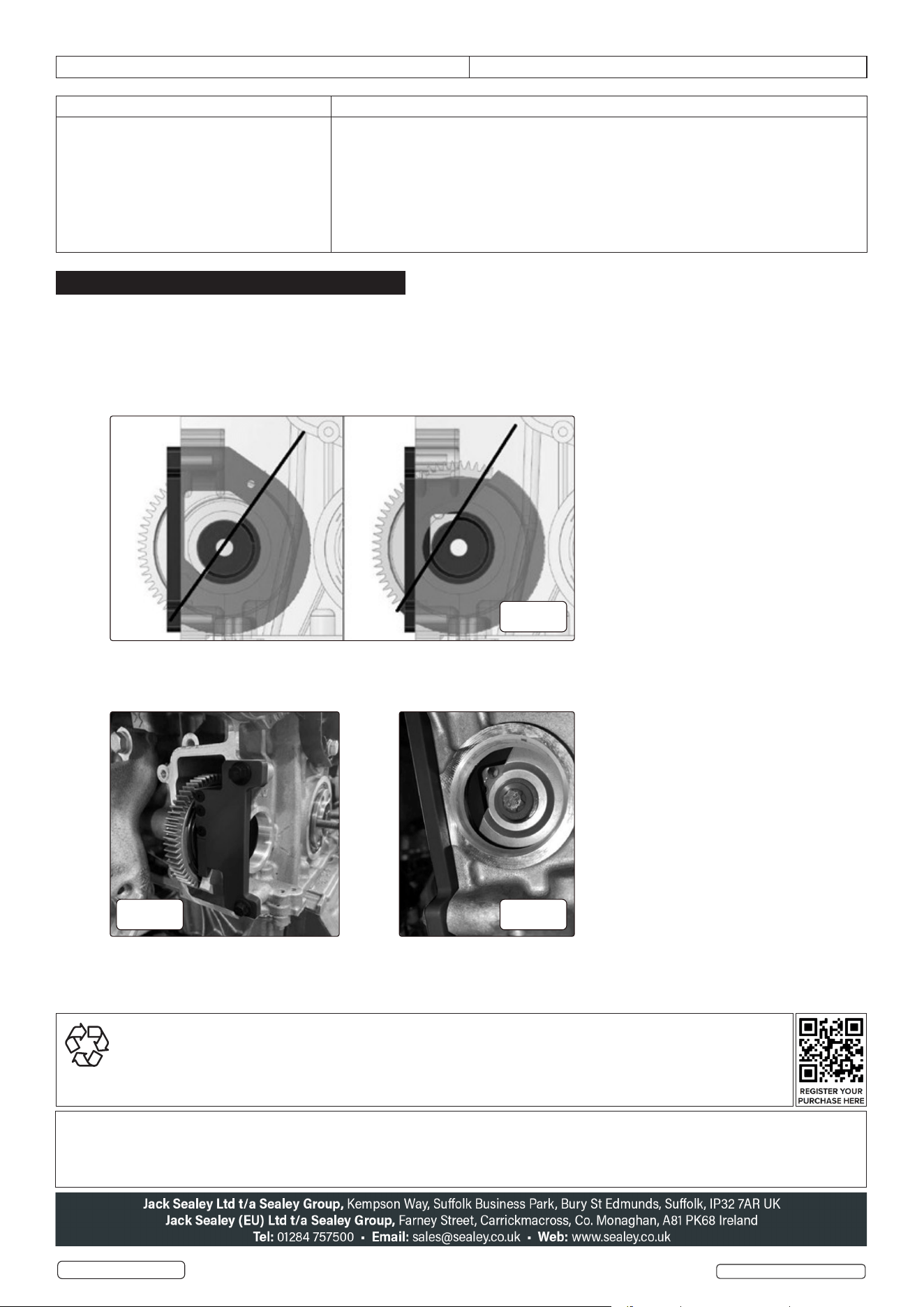

NOTE: There are different setting tools for the Euro 5 multi-point fuel injection and Euro 6 direct injection (GDi) engines.
The balance shaft on the Euro 5 engines have a parallel at located across the centreline of the shaft, Euro 6 engines have an offset
at located across the centreline of the shaft. (g.1)
5.0.2. With the engine in its timed position, select the correct Balance Shaft Setting Plate for the engine type and onto the balance shaft gear
aperture as shown. (g.2 and g.3)
Original Language Version
© Jack Sealey Limited
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
VS5296 Issue1 23/06/25
Engine Codes:
1.2 PureTech HNP (EB2ADT), HNS (EB2ADTS), HNZ (EB2DT), HMZ (EB2F), HMP (EB2FB), HNV
(EB2DT), HMM (EB2FAD), HMR (EB2FA), HNY (EB2DTS), HNV (EB2DTM), HNK
(EB2ADTD), HNT (EB2ADTS), HNN (EB2ADTS), HNE (EB2ADTD), HNL (EB2ADTSM), HNJ
(EB2ADTXM)
HNX (EB2DTSD), EB2ADTD (HNK), EB2ADTS (HNS), EB2ADTX (HNN), EB2DT (HNZ),
EB2FAD (HMH), EB2ADTD (HNE), EB2DTS (HNY), EB2DTS (HNW), EB2ADT (HNP), LEZ/
B12XE, LEZ/D12XE, LEZ/F12XE, LES/B12XHL, LEG/B12XHT, LEG/D12XHT, LES/D12XHL,
LEG/F12XHT, LES/F12XHL, LES/B12XHT, LES/D12XHT, LES/F12XHT
Associated Tools: VSE5092, VSE5093, VSE5094, VS5255
g.1
g.3g.2
Euro 5 Euro 6
