digital tyre depth gauge - pin tip
model no: VS0565
thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. Safety
Warning! ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools and
equipment.
8 dO nOt use gauge if damaged.
9 maintain gauge in good and clean condition for best performance.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep children and unauthorised persons away from the work area.
8 dO nOt use the gauge for any purpose other than for which it is designed.
8 dO nOt get gauge wet or use in damp or wet locations, or areas where there is condensation. Keep gauge clean and dry using a dry
cotton cloth only.
8 dO nOt dip or submerge the gauge in any type of liquid.
8 dO nOt expose gauge to bright sunlight or dust.
8 dO nOt disassemble gauge. The gauge must be checked by qualified service personnel only.
8 dO nOt apply any voltage to the gauge i.e. with an electric marker pen.
9 The gauge is a precision instrument, treat with care, avoid using force and do not subject to knocks or shocks.
9 Use gauge in reasonably constant temperature conditions of approximately 20°C.
9 When not in use, turn off and store gauge in a safe, dry, childproof location.
2. intrOductiOn
Hardenedandtemperedstainlesssteelgauge.11mmhighguresinLCDdisplayforeaseofreading.MetricandImperialcalibration
with conversion between the two. Zero setting control allows for comparative measurement. Pin type tread-probe. Supplied with
calibrationcerticateandstoragecase.
3. SpecificatiOn
model no ........................................................... VS0565
Range ...................................................... 0-25mm(0-1”)
Resolution ...........................................0.01mm(0.0005”)
Accuracy ...........................................±0.02mm(±0.001”)
Battery Type ................................................SR44 - 1.5V

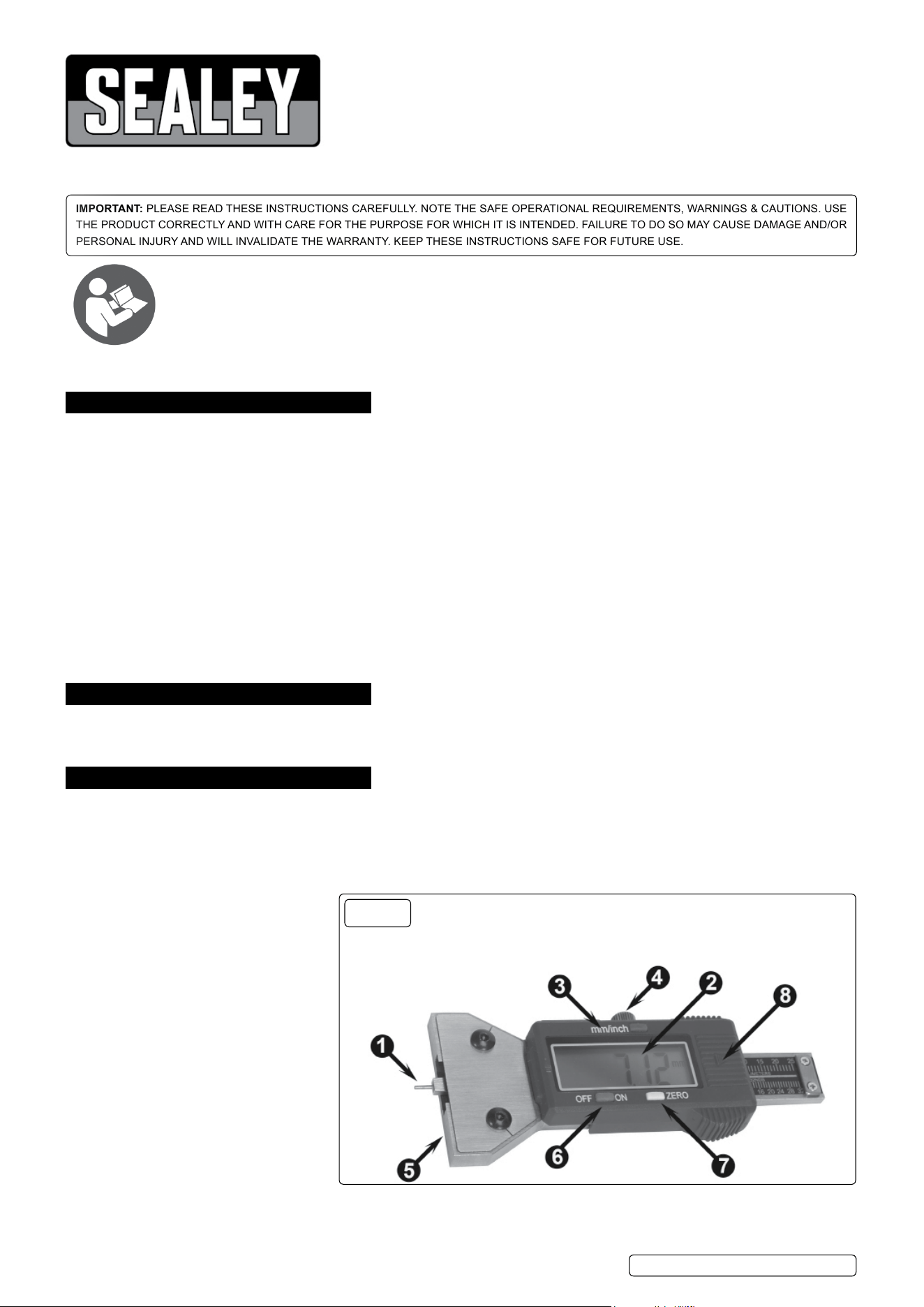

Item Description
1 depth measuring probe
2 lCd display
3 mm/inch button
4 locking screw
5 Foot
6 Power “on/oFF” button
7 Zero set button
8 Battery cover
VS0565|Issue2(HF)27/02/18
Original Language Version
© Jack Sealey limited
Refer to
instructions
g.1
4. OperatiOn
4.1. ZerO Setting.
Prior to operation, perform a zero setting. To do this place the gauge foot (fig1.5.) on a flat surface. Press the probe (fig1.1.) down
until it is level with the foot then press the ‘ZeRo’ button (fig1.7.); the gauge has been set to zero when the lCd displays ‘0.00’.
note: After zero setting, the gauge retains this setting until the ‘ZeRo’ button is pressed again or the battery is removed.
4.2. prOduct uSage.
Switch on the gauge by pressing the on/oFF button (fig.1.6.). Place the gauge foot across the tyre tread with the probe tip over the
tyre groove. Press the probe down until it stops moving then read the display. The pressure exerted by the tip of the measuring probe
must be uniform and constant to ensure correct and stable readings. dO nOt press too hard or incorrect results will be recorded
5. Maintenance
5.1. Battery inStallatiOn/replaceMent (fig.2)
nOte!Thebatteryshouldlastforoneyearofcontinuoususe.Ifthedisplayisblankorthe
digits are flashing the battery voltage is too low, replace the battery with a new SR44 battery.
Ifthedigitsdonotchangewhenbuttonsarepressedorprobeismoved,removethebattery
for 1 minute to reset the unit. The battery should be removed if the gauge is not to be used
for a long period of time.
5.1.1. Remove battery cover by sliding backwards and lifting off.
5.1.2. Remove exhausted battery and fit replacement with +ve side uppermost. Place the battery
into the recess and press into place. Slide the cover back and click home.
5.1.3. dispose of old battery in a safe and approved manner. dO nOt burn.
Sealey group, Kempson Way, Suffolk Business park, Bury St edmunds, Suffolk. ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
enVirOnMent prOtectiOn
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Weee regulatiOnS
dispose of this product at the end of its working life in compliance with the eU directive on Waste electrical and electronic equipment
(Weee). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Battery reMOVal See SectiOn 5.1
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey ltd Batteries Producer Registration number (BPRn) is BPRn00705.
note:Itisourpolicytocontinuallyimproveproductsandassuchwereservetherighttoalterdata,specificationsandcomponentpartswithoutprior
notice.
important: no liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
VS0565|Issue2(HF)27/02/18
Original Language Version
© Jack Sealey limited
g.2
