IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL

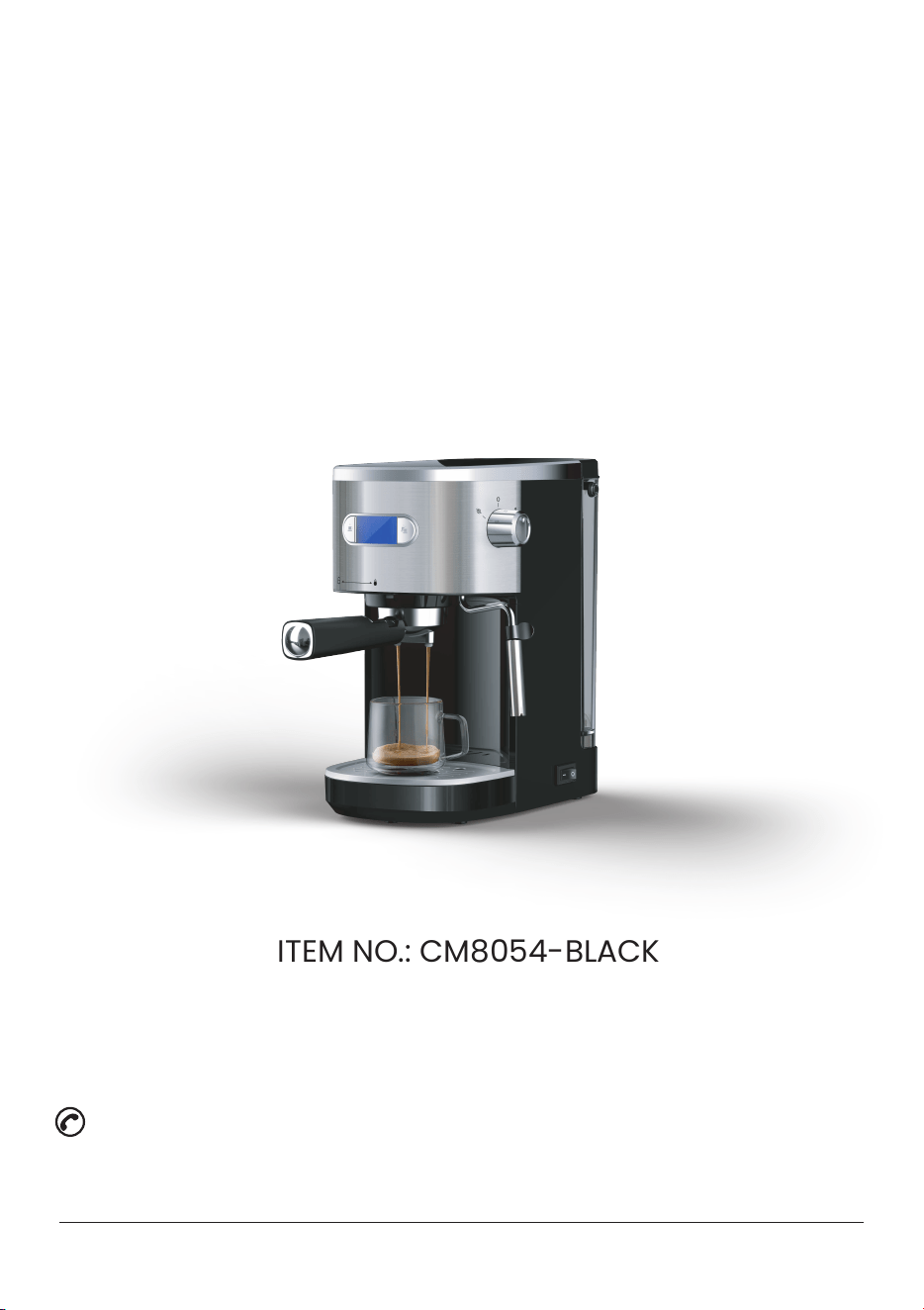

ITEM NO.: CM8054-BLACK
MODEL NO.: CM5400BA-UL
120V~ 60Hz 1350W

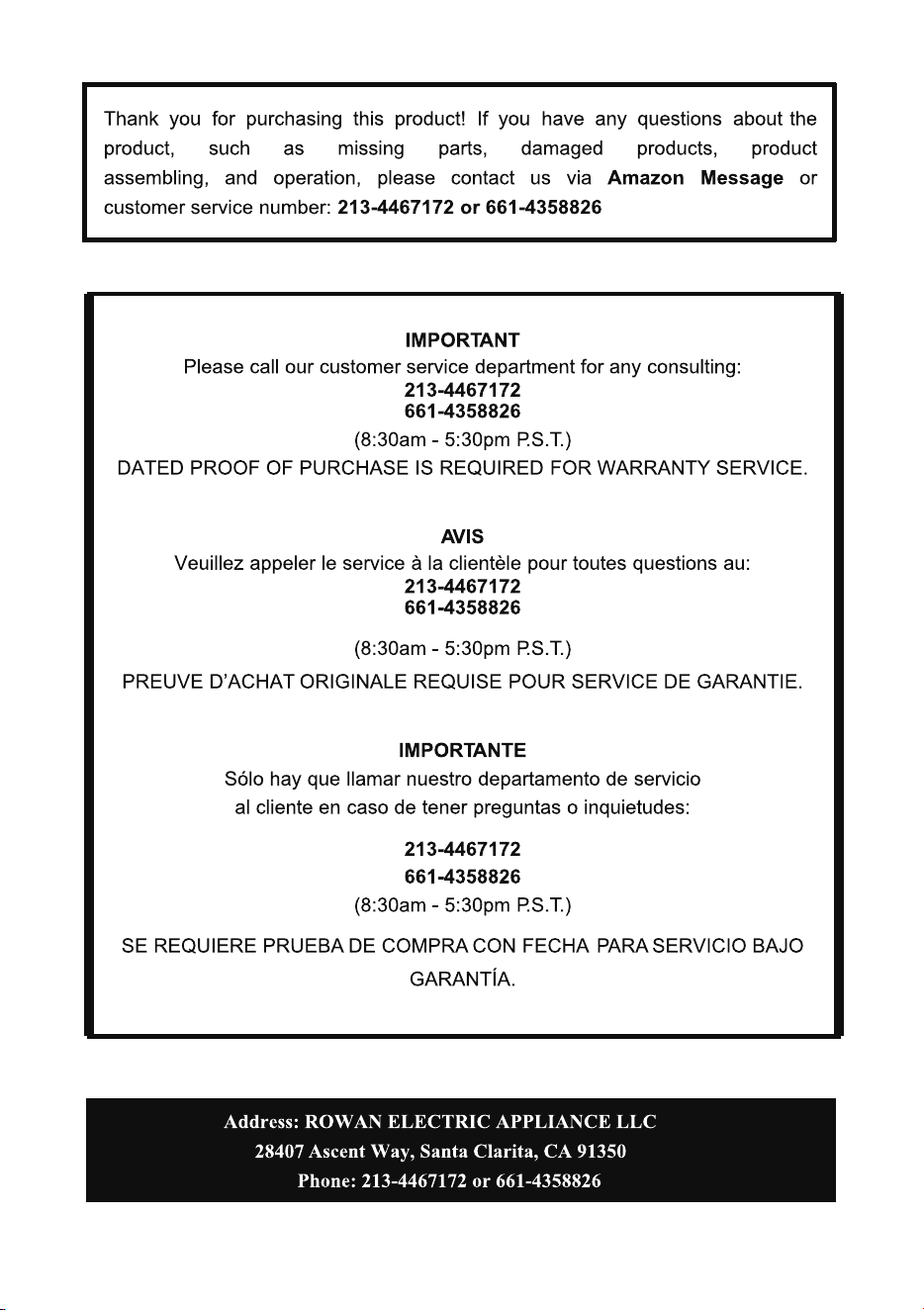

Thank you for purchasing this product! If you have questions about the
product such as missing parts,damaged products, product assembling
and operation etc., please contactus via Amazon Message or customer
service phone:213-4467172 or 661-4358826.
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic
precautions should always be followed including the
following:
1. Read all instructions.
2. Before using check that the voltage of wall outlet
corresponds to rated voltage marked on the rating
plate.
3. This appliance has been incorporated with a grounded
plug. Please ensure the wall outlet in your house is well
earthed.
4. To protect against fire, electric shock and injury to
persons do not immerse cord, plug, in water or other
liquid.
5. Remove plug from wall outlet before cleaning and when
not in use. Allow appliance cool down completely before
taking off, attaching components or before cleaning.
6. Do not operate any appliance with a damaged cord
or plug or after the appliance malfunctions, or is
dropped or damaged in any manner. Return appliance
to the nearest authorized service facility for examination,
repair or electrical or mechanical adjustment.
7. The use of accessory attachments not recommended
by the appliance manufacturer may result in fire, electric
shock or injury to persons.
8. Place appliance on flat surface or table, do not hang
power cord over the edge of table or counter.
9. Ensure the power cord do not touch hot surface of
appliance.
10. Do not place the coffee maker on hot surface or beside
fire in order to avoid to be damaged.
11. To disconnect, turn any control to “off,” then remove
plug from wall outlet. Always hold the plug. But never
pull the cord.
12. Do not use appliance for other than intended use and
place it in a dry environment.
13. Close supervision is necessary when your appliance is
being used by or near children.
14. Be careful not to get burned by the steam.
15. Do not touch the hot surface of appliance (such as
steam wand, and the steel mesh just boiling). Use
handle or knobs.
16. Do not let the coffee maker operate without water.
17. Scalding may occur if the water tank is removed during
the brewing cycles.
18. Do not remove the metal funnel when appliance in
brewing coffee or when steam and hot water escape
from metal funnel and ensure to release the pressure in
water tank before removing metal funnel.
19. Connect plug to wall outlet before using and turn any
switch off before plug is removed from wall outlet.
20. Relief pressure through steam wand before removing
tank cover or metal funnel.
21. This appliance is not intended for used by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliances by a person
responsible for their safety.
22. Children should be supervised to ensure that they do
not play with the appliance.
23. This appliance is intended to be used in household and
similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
– farm houses;
– bed and breakfast type environments.
24. Do not use outdoors.
25. Do not place on or near a hot gas or electric burner, or
in a heated oven.
26. Save these instructions.
KNOW YOUR COFFEE MAKER
Single cup steel mesh
Measuring spoon
Metal funnel
Double cup steel mesh
11
2
3
4
1
1
1
Capsule filter
5 1
No. Name quantity
Accessories list:
(Product may be subject to change without prior notice)
To ensure the first cup of coffee tastes excellent, you
should rinse the coffee maker with warm water as follows:
Step1. Remove the water tank from the coffee machine,
remove the red silicone plug between the water tank
and the coffee machine, and dispose of it properly.
Step2. Pour water into water tank, the water level should
not exceed the “MAX” mark in the tank. Then close
the water tank cover.
Note:
The appliance is supplied with a detachable tank for
easy cleaning, you can fill the tank with water firstly, and
then put the tank into the appliance.
1. Single cup key
2. LCD display screen
3. Double cups key
4. Capsule filter
5. Metal funnel
6. Press bar
7. Funnel handle
8. Drip plate
9. Drip tray
10. Measuring spoon
11. Tank cover
12. Handle
13. Coffee/steam knob
14. Water tank
15. Steam wand
16. Metal sleeve
17. ON/OFF Switch
18. Double cup steel
mesh
19. Single cup steel
mesh
BEFORE THE FIRST USE
Step3. Set steel mesh into metal funnel (no coffee in
steel mesh).
Step1. Remove the detachable tank and open the tank
cover to fill it with desired water, the water level
should not exceed the “MAX” mark in the tank. Then
place the tank into the appliance properly.
Step6. When the LCD display screen becomes solid, the
appliance stops pumping water automatically, the
pre-heating is finished.
Step3. Place an espresso cup (your cup) on removable
drip plate.
Step4. Then connect the appliance to power supply
source. Make sure the “Coffee/Steam knob” is on
the “ ” position.
Step5. Press the ON/OFF switch, the LCD display screen
will flash.
Step2. Set steel mesh（single cup or double cup) into
metal funnel, make sure the tube on the funnel
aligns with groove in the appliance, then insert the
funnel into the appliance from the “ ” position,
and you can fix them into coffee maker firmly through
turn it anticlockwise until it is at the“ ” position.
To make a cup of good hot Espresso coffee, we
recommend you preheat the appliance before making
coffee, including the funnel, steel mesh and cup, so that
the coffee flavour can not be influenced by the cold parts.
Note:
The appliance is not equipped with jug, please use
your own jug or coffee cup.
Step4. Place an espresso cup (your cup) on drip plate.
Make sure the “Coffee/Steam knob” is on the
“ ” position.
PRE-HEATING
Step1. Remove the funnel by turning clockwise, add ground
coffee to steel mesh with coffee spoon, a spoon of
ground coffee powder can make about a cup of
top-grade coffee, then press the ground coffee
powder tightly with the coffee spoon.
Step3. Pour out the hot water in the cup. Then place the
hot cup (yourself cup) on drip plate.
Step6. After finishing making the coffee, rotate the “Coffee/
Steam knob” to “ ” position，you can take the
metal funnel out through turn clockwise, then pour
the coffee residue out with the steel mesh pressed
by press bar.
Step5. The appliance will stop working when the coffee-
brewing is finished, and then your coffee is ready
now.
Step4. Rotate “Coffee/Steam knob” to “ ”position，Press
the “single cup key“ ” or “double cup key” “ ”
according to your demand. After waiting for a
moment, there will be coffee flowing out.
Step2. Set steel mesh into metal funnel, make sure the tube
on the funnel aligns with groove in the appliance,
then insert the funnel into the appliance as
indicating of “ ” mark, and you can fix them into
coffee maker firmly by turning it anticlockwise
until it is in the “ ” position.
Note:
There may be noise when pumping the water on the
first time, it is normal, the appliance is releasing the air in
the appliance. After about 20s, the noise will disappear.
WARNING:
Do not leave the coffee maker unattended during
making the coffee,as you need to operate manually
sometimes!
MAKE ESPRESSO COFFEE
USING THE PORTA-FILTER FOR OriginaILine
NESPRESSO® CAPSULES.
Step7. Press the power switch to cut off the power source.
Step1. Lift the lid of the OriginaILine Nespresso® capsule
filter. Place the OriginaILine Nespresso® capsule
inside the filter and then close the lid.
Step2. Set the OriginaILine Nespresso® capsule filter into
metal funnel, then put the metal funnel into
the appliance as indicating of “ ” mark, and
you can fix them into coffee maker firmly by turning
it anticlockwise until it is in the “ ” position .
Step3. At the time, rotate “Coffee/Steam knob” to “ ”
position，Press the “single cup key “ ” . After
waiting for a moment, there will be coffee flowing
out.
Step4. After finishing making the coffee,rotate the “Coffee/
Steam knob” to “ ” position，you can take the
metal funnel out by turning it clockwise, then pour
the coffee residue out with the steel mesh pressed
by press bar.
Step8. Let them cool down completely, then rinse under
running water.
Note:
The filter only matches Nespresso® capsules.
Step1. Prepare espresso first with a container big enough
according to the part “MAKE ESPRESSO COFFEE”.
Step2. Fill a jug with about 100 grams of milk for each
cappuccino to be prepared, you are recommended
to use whole milk at refrigerator temperature
(not hot!).
Note:
Clean the steam outlet with a wet sponge immediately
after steam stops generating, but care not to hurt!
Step4. When the required purpose is reached, you can turn
the “Coffee/ Steam knob” to the “ ” position.
Step6. Press the power switch to cut off the power source.
Step5. Pour the frothed milk into the espresso prepared,
now the cappuccino is ready. Sweeten to taste and
if desired, sprinkle the froth with a little cocoa
powder.
Step3. Insert the metal sleeve into the milk about two
centimeters, then turn the“Coffee/Steam knob” to
the “ ” position, steam will come out from the
steam outlet and froth milk in the way moving vessel
round from up to down.
Warning:
Be sure to operate carefully as the steam may
result in scald to person.
Note:
In choosing the size of jug, it is recommended the
diameter is not less than 2.8±0.2 inch, and bear in
mind that the milk increases in volume by 2 times,
make sure the height of jug is enough.
You get a cup of cappuccino when you top up a cup of
espresso with frothing milk.
Note:
during making steam, the metal funnel must be
assembled in position.
Please strictly follow the steps below
FROTHING MILK/ MAKE CAPPUCCINO
Step1. Remove the detachable tank and fill it with desired
water, the water level should not exceed the “MAX”
mark in the tank. Then place the tank into the
appliance properly.
Step2. Then connect the appliance to power supply source.
Step3. Press the ON/OFF switch, The LCD display screen
will flash.
Step4. When the LCD display screen becomes solid, it
shows the preheating is finished.
Step6. When the required temperature is reached or the
frothing milk is obtained, you can turn the “Coffee/
Steam knob” to the “ ” position.
Step7. Press the ON/OFF switch to cut off the power source.
Step5. Dip the steam wand with metal sleeve into the
liquid to be heated or the intended froth milk. Turn
the “Coffee/Steam knob” to the “ ” position and
start making steam.
The steam wand can be used to froth milk singly or make
hot beverages like drinking chocolate and water.
Please strictly follow the steps below
After pressing the power switch, if there is no any
operation within 15 minutes, the unit will power off
automatically.
PRODUCING STEAM TO HEAT LIQUIDS
AUTOMATICALLY POWER-OFF FUNCTION
Step1. Cut off power source and let the coffee maker cool
down completely before cleaning.
Step1. To make sure your coffee maker operates efficiently,
internal piping is clean and the peak flavor of coffee,
the coffee machine needs to be descaled, cleaned
and maintained periodically.Descaling warning will
be shown when the appliance has cumulatively
worked for 500 cycles, at that time, the icon “ ”
will flash 10 times alternatively, which means that
the coffee machine needs to be performed
descaling, and then the appliance will go back into
normal condition. Descaling warning will be shown
each time when you turn on the appliance if you
do not cancel.
Step4. Clean all the attachments in the water and dry
them thoroughly.
Note:
Do not clean with alcohol or solvent cleanser. Never
immerse the housing in water for cleaning.
Step2. Clean housing of coffee maker with moisture-proof
sponge often and clean water tank, drip tray and
drip plate regularly then dry them.
Step2. Fill the tank with water and descaler to the MAX
level( the scale of water and descaler is 4:1, the
detail refers to the instruction of descaler. Please
use“household descaler”, you can use the citric
acid(obtainable from chemists or drug stores)
Step3. Detach the metal funnel by turning it clockwise, get
rid of coffee residue inside, then you can clean it
with cleanser, but at last you must rinse with clear
water.
CLEAN AND MAINTENANCE
CLEANING MINERAL DEPOSITS
Symptom Cause Corrections
Step3. Press “Double-cup key” “ ”once to make hot
water for about 100ml. Then turn off the appliance
and leave the descaling solution in the appliance
for 5 minutes.
Step4. Turn on the appliance and repeat the Step 3 for 3
times. Repeat the steps of 3 for 2 times with tap
water at the MAX level (it is not necessary to wait
for 5 minutes).
Step5. After finishing descaling, cancel the descaling
warning. And you can directly cancel the descaling
warning if you do not want to perform descaling
when the descaling warning is shown. Follow the
operation below to cancel the descaling warning:
Turn the knob to “ ” while pressing the “Single-
cup key” “ ” button and then turn the knob “ ”.
instead of the descaler (the one hundred parts
of water and three parts of citric acid).
Water leaks from the
bottom of coffee
maker.
Water leaks out of
outer side of filter.
Acid (vinegar) taste
exists in Espresso
coffee.
There is some coffee
powder on filter edge.
No clean correctly after
cleaning mineral deposits.
The coffee powder is
stored in a hot, wet place
for a long time. The
coffee powder turns bad.
Get rid of them.
Clean coffee maker
per the content in
“before the first use”
for several times.
Please use fresh coffee
powder, or store
unused coffee powder
in a cool, dry place.
After opening a
package of coffee
powder, reseal it tightly
and store it in a
refrigerator to maintain
its freshness.
There is much water in the
drip tray.
The coffee maker is
malfunction.
Please clean the drip
tray.
Please contact with the
authorized service
facility for repairing.
TROUBLE SHOOTING
Correct Disposal of this product
This marking indicates that this product should not
be disposed of with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product
for environmentally safe recycling.
The coffee maker
cannot work any
more.
The steam
cannot froth.
Plug the power cord
into a wall outlet
correctly, if the
appliance still does
not work, please
contact with the
authori zed service
facility for repairing.
The power outlet is not
plugged well.
The white indicator is
not illuminated.
The container is too big
or the shape is not fit.
You have used
skimmed milk
Only after the white
indicator is illuminated,
the steam can be used
to froth.
Use high and
narrow cup.
Use whole milk or
half-skimmed milk
Do not take apart the appliance by yourself if the cause of failure is not found,
you had better contact a certified serving center.
