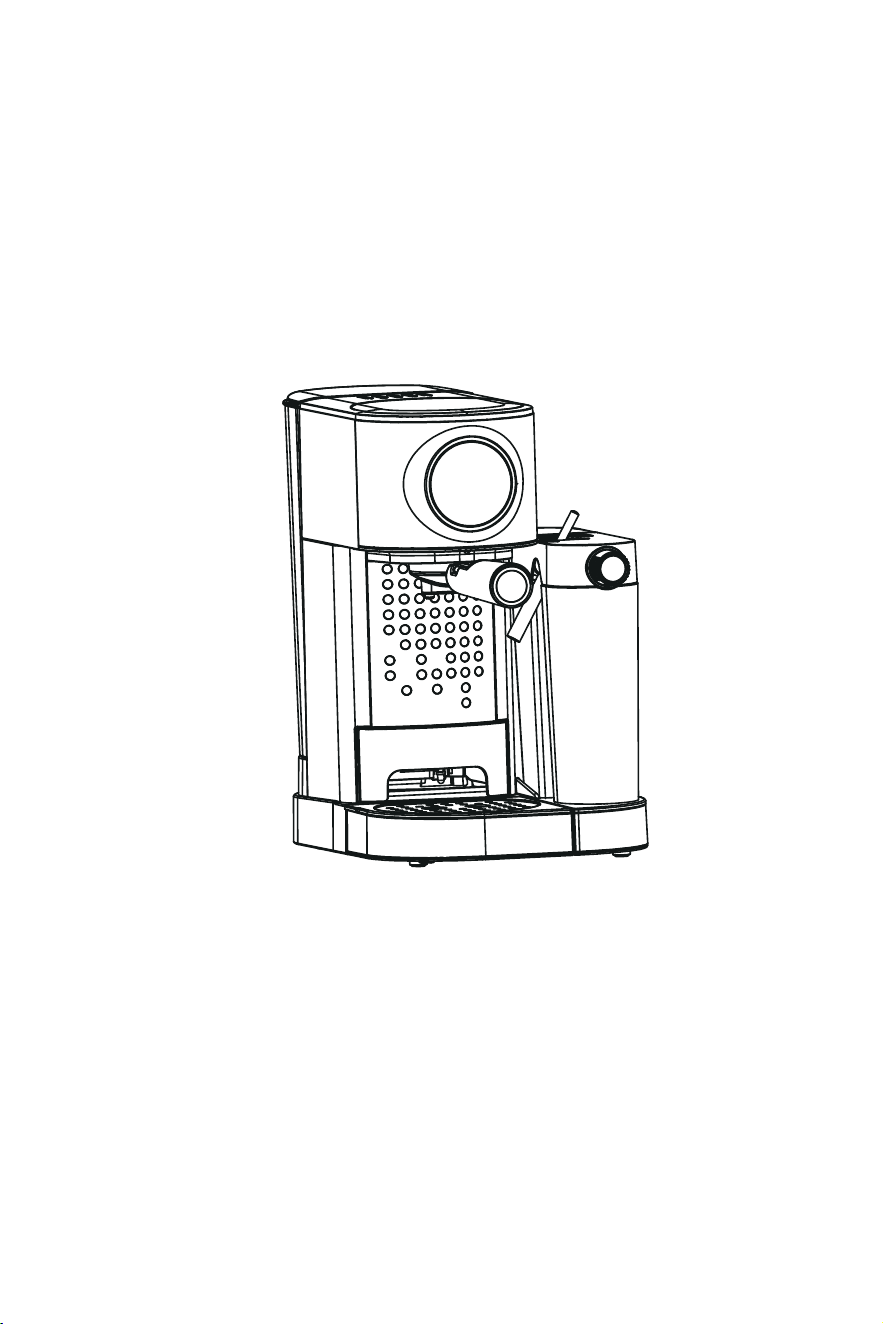

COFFEE MAKER
INSTRUCTION MANUAL
Model No.: CM7008TH-UL
Item No.: CM8008-BLACK
CM8008-BLACK-CS
Please read the manual thoroughly before using
and save it for future reference.
1
2
3

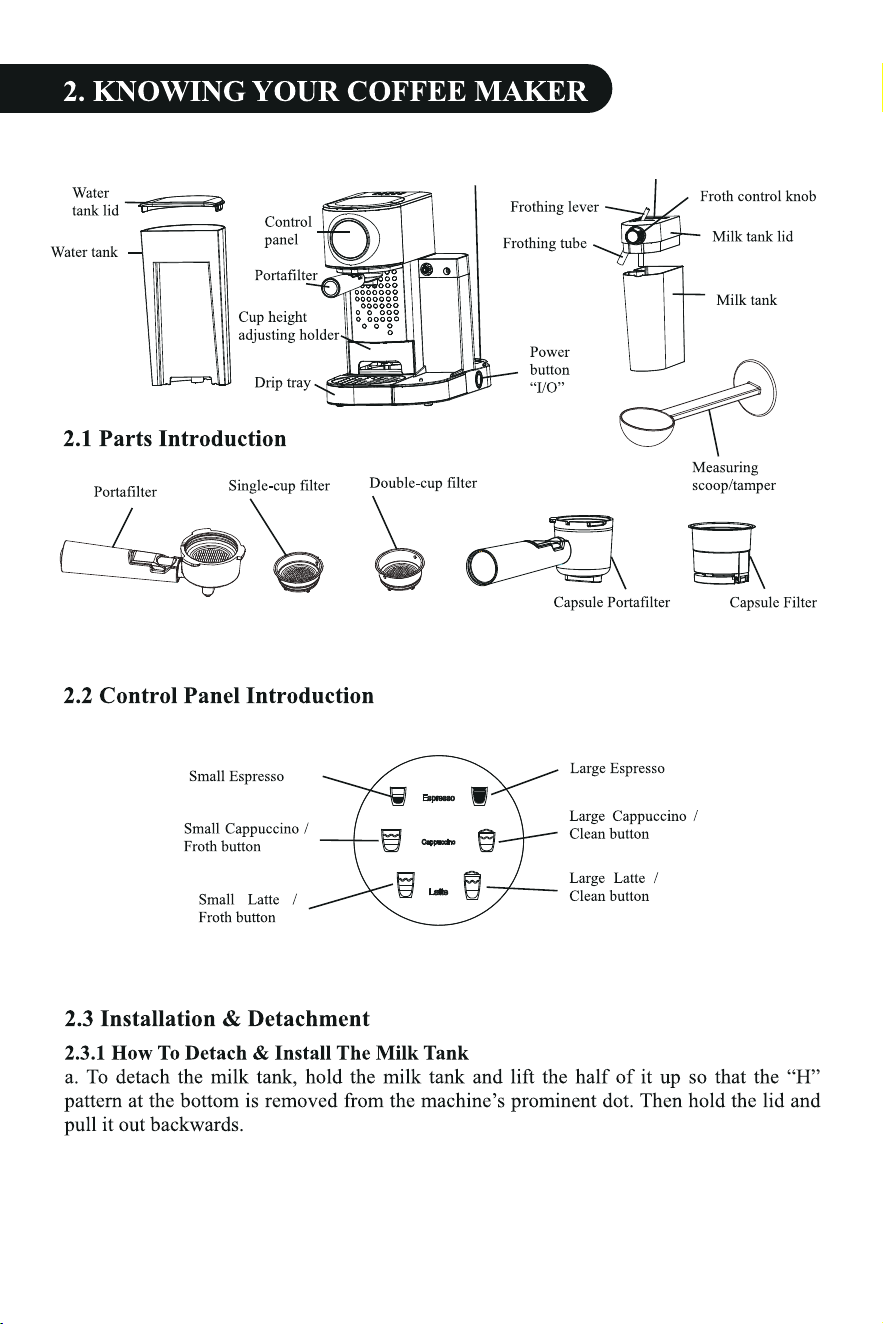

Frothing tube connector
on the back (not shown)
Location to put accessories
(Filters & Funnel)
4
5
6
7
8
9
NOTE
10
NOTE
NOTE
WARNING
5.1.2 Clean The Internal Pipes In The Milk Tank Lid
Despite that the milk tank with remaining milk can be put into the refrigerator,
the milk tank and frothing tube need to be cleaned regularly in order to avoid
residual build-up and clogging. Please clean regularly as the following
instructions:
1. Fill the milk tank with clean water and put back. Place large empty cups under
the frothing tube.
2. Turn the knob to CLEAN position. Long press the Small Cappuccino and
Small Latte buttons for 3s in standby mode. The frothing tube will dispenses
water and steam.
3. When there is no milk coming out from the frothing tube, you can press the
Small Cappuccino or Small Latte button once to stop cleaning. Or wait for the
machine to work for 76 seconds and automatically exit cleaning.
4. Empty the tank and put back on the appliance.
2
2
2
5.2.3 Descaling Alarm
After 500 cycles, the coffee maker will automatically start the descaling alarm, and the Small
and Large Latte indicators will flash in turn to remind the user to descale. This descaling
alarm is to take into account that some users do not operate the above descaling, which will
cause the water channel to be blocked.
In the descaling reminder state, you can still perform the relevant function, but it will return
to the descaling alarm mode after the execution.
1. Make sure to remove the minerals deposited in the water tank.
2. Pour the solution of water and white vinegar into the two tanks above the “MIN” mark.
Prepare large cups under the brewing head and the frothing tube.
3. Connect the plug to the power socket. Press the power button to “I” position.
4. When the 6 indicator lights on the control panel illuminate solidly, long press the Large
Cappuccino and Large Latte buttons for 3s to start the cleaning function. The 6 indicators
slowly flash clockwise in a circle, and the water pump starts intermittently. The frothing tube
dispenses water for 30s, then the brew head dispenses water for 30s, which cycles twice.
NOTE: Press any button to pause the descaling process.
5. After about 2 minutes of operation, the water pump stops working, the 6 indicators on the
control panel illuminate solidly, and the coffee maker returns to standby mode.
6. Pour out the remaining descaling solution in the tanks, clean and refill the tanks with pure
water. Continuously brew 2 cups of large latte without coffee powder (the purpose of boiling
2 cups in a row is to clean the remaining water in the machine).
7. The cleaning of the machine is completed, you can decide whether to clean more times.
When it accumulates to 500 cycles of brewing, it will send out a prompt for descaling again.
