INSTRUCTION MANUAL

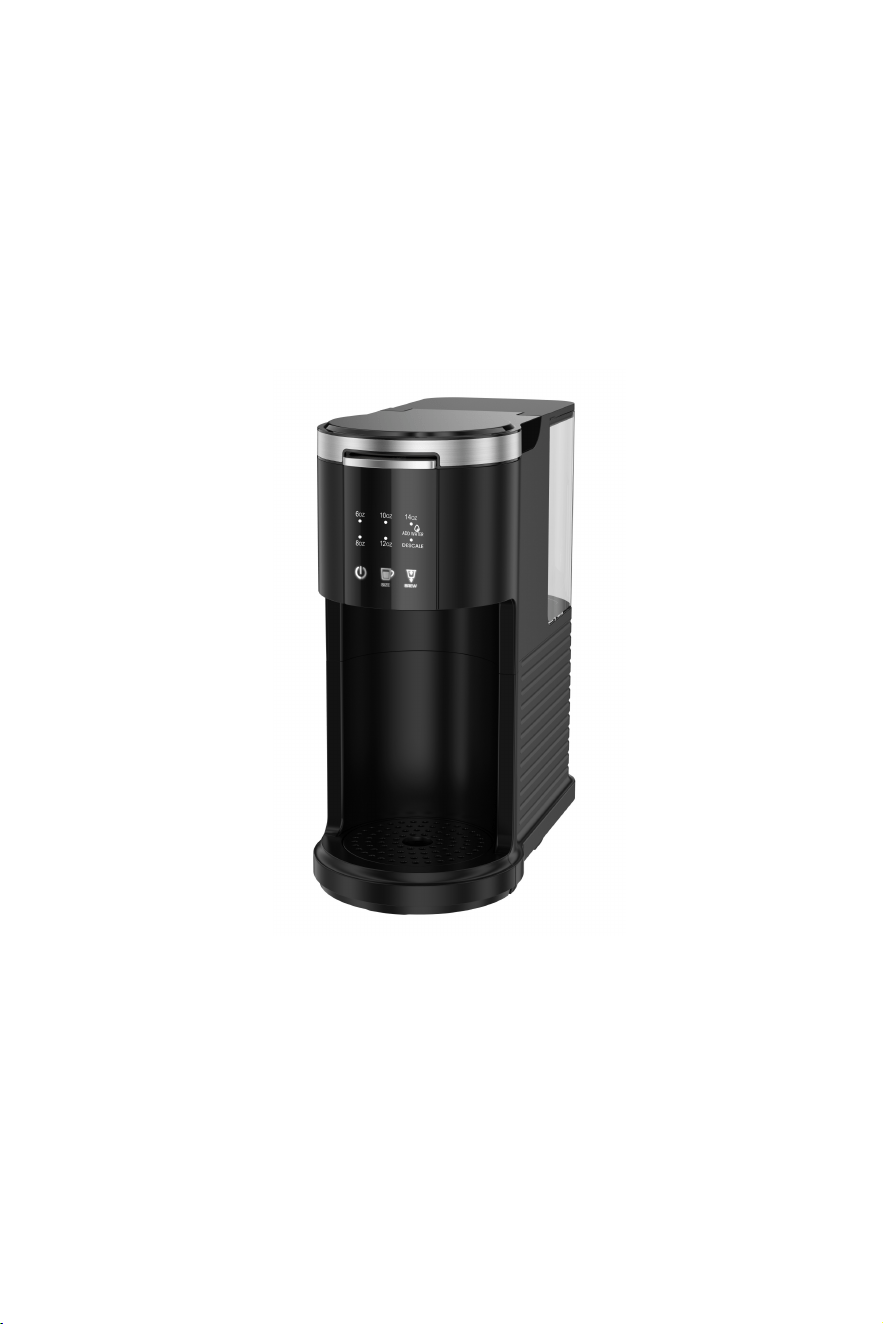

SINGLE SERVE COFFEE MAKER
ITEM NO.: CM3729-BLACK
MODEL NO.:CM9429D-UL
Thank you for purchasing this product! If you have questions about the
product such as missing parts,damaged products,product assembling and
operation etc.please contact us via Amazon Message or customer service
phone:213-4467172 or 661-4358826.
1
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and/or injury to persons, including the following:
1. Read all instructions.
2. This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental
capabilities,or lack of experience and knowledge, unless they
are closely supervised and instructed concerning use of the
appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used
by or near children. Children should be supervised to ensure
that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must
be taken, as burns can occur from touching hot parts or from
spilled, hot liquid.
5. To protect against electric shock, do not place cord, plug, or
coffee maker in water or other liquid.
6. Unplug from outlet when the coffee maker is not in use and
before cleaning. Allow to cool before putting on or taking off
parts and before cleaning the appliance.
7. Coffee maker must be operated on a flat surface away from
the edge of counter to prevent accidental tipping.
8. Do not operate any appliance with a damaged supply cord
or plug, or after the appliance malfunctions or has been
dropped or damaged in any manner. Supply cord replacement
and repairs must be conducted by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a
hazard.
2
Call the provided customer service number for information on
examination, repair, or adjustment.
9. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch
hot surfaces, including stove.
12. Do not place on or near a hot gas or electric burner, or in a
heated oven.
13. Avoid contacting moving parts.
14. Be certain lid is securely in place during frothing or warming.
15. To disconnect appliance, press control button(s) until
power indicator light is no longer glowing and then remove
plug from wall outlet.
16. To unplug, grasp the plug and pull from the outlet. Never pull
from the power cord.
17. Do not place coffee maker in a cabinet when in use.
18. ⚠ WARNING! To avoid hot water spraying from the
piercing needle, do not lift the lid during the brew process.
19. Do not use appliance for other than intended use.
20. ⚠ WARNING! To reduce the risk of fire or electric shock,
do not remove the bottom cover of the coffee maker. There are
no user-serviceable parts inside. Repair should be done by
authorized service personnel only.
21.
⚠
CAUTION! Cut Hazard: Removable single-serve pod
holder contains a sharp needle. Use caution when handling.
22. ⚠ CAUTION! Cut Hazard: Piercing needle is sharp. Use
caution when cleaning.
3
23.To reduce the risk of fire，do not store anything directly on
top of the appliance surface when the appliance is in
operation.
⚠ CAUTION: There are two sharp needles that puncture the
capsules.
One is located inside the capsule holder and the other is
located on the top underside of the holder compartment. To
avoid risk of injury do not place fingers inside either parts. Also
exercise ca iut on when cleaning the parts.
⚠ CAUTION: There are boiling water in the front tab lid
lia
section during the brew process.
Do not open the lid at any time for risk of injury.
24. Only use capsules intended for this appliance. If the
capsule does not fit,do not fores the capsule into the
nce.
25.
app
⚠
WARNING: To avoid the risk of injury, do not open the
brew chamber during the brew process.
4
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
NOTES ON THE PLUG:
This appliance has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock, this plug
will fit in a polarized outlet only one way. If the plug does not fit
fully into the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not modify the plug in any way.
NOTES ON THE CORD
a) A short power-supply cord (or detachable power-supply
cord) is provided to reduce risks resulting from becoming
entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords
are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord
is used:
1) The marked electrical rating of the detachable
power-supply cord or extension cord should be at least as
great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension
cord should be a grounding- type 3-wire cord;
3) The longer cord should be arranged so that it will not
drape over the counter top or table top where it can be pulled
on by children or tripped over.
5
PLASTICIZER WARNING
⚠ CAUTION: To prevent plasticizers from migrating from the
finish of the counter top or table top or other furniture, place
NON-PLASTIC coasters or place mats between the appliance
and the finish of the counter top or table top. Failure to do so
may cause the finish to darken; permanent blemishes may
occur or stains can appear.
ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your
appliance may not operate properly. It should be operated on
a separate electrical circuit from other appliances.
⚠ WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,DO NOT
REMOVE THIS COVER.NO USER SERVICEABLE PARTS INSIDE. REPAIR
SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.
6

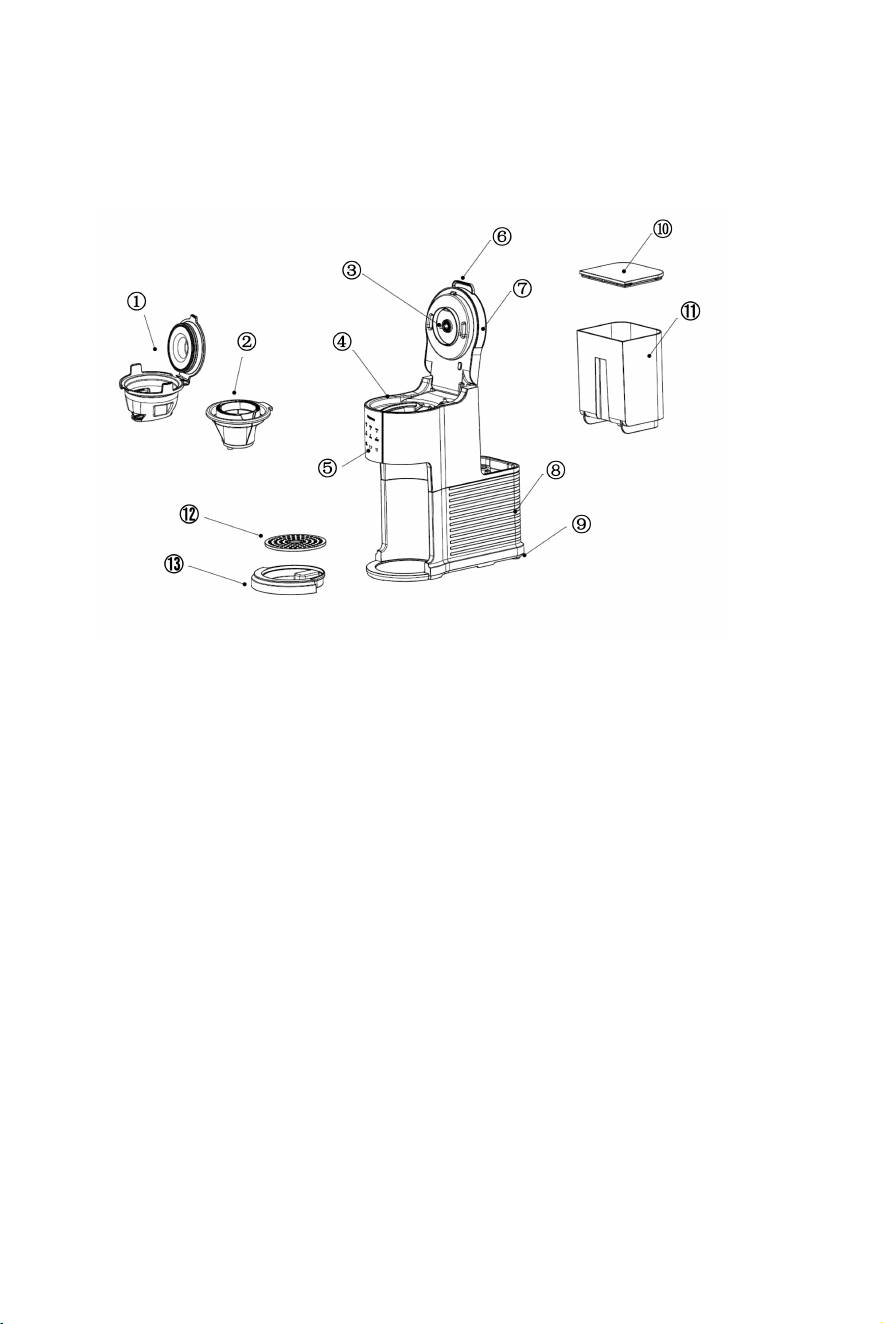

NOW YOUR COFFEE MAKER
① Ground Coffee Holder ⑧ Main housing
② Capsule Holder ⑨ Bottom Cover
③ Water outlet pin ⑩ Water tank cover
④ Holder compartmen ⑪ Water tank
⑤ Control panel ⑫ Drip tray cover
⑥ Front Lid Tab ⑬ Drip tray
⑦ Holder compartment lid
⑧ Main housing
⑨ Bottom Cover
⑩ Water tank cover
⑪ Water tank
⑫ Drip tray cover
⑬ Drip tray
7

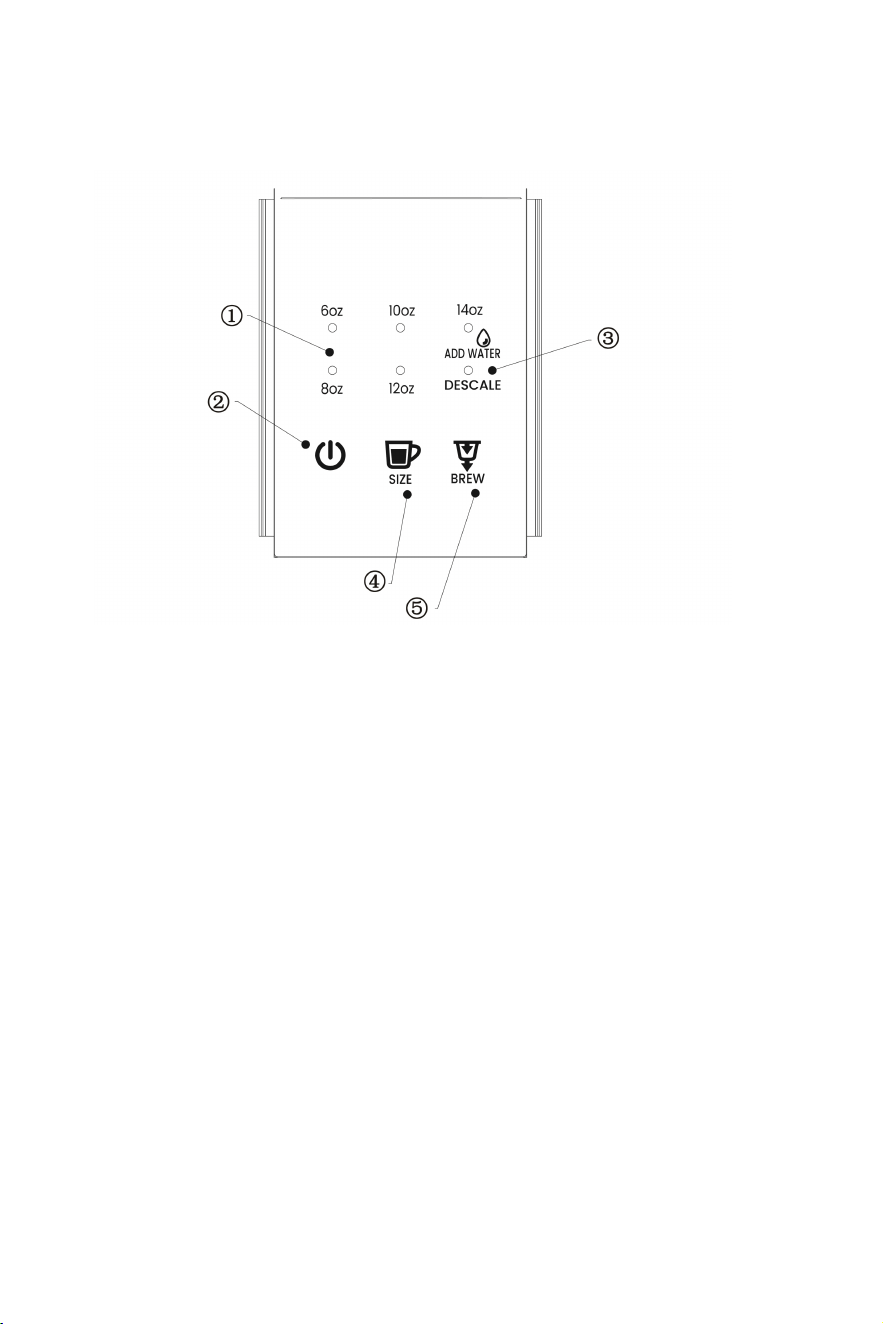

CONTROL PANEL
① Size Indicator Light
② Power Button
③ Add Water
Descale
④ Size Button
⑤ Brew Button
( White )
( White )
( Blue )
( White )
( White )
( White )
l
8
BEFORE USING FOR THE FIRST TIME
⚠ CAUTION: To protect against electrical shock, do not
immerse the Coffee Maker or allow the power cord to come
into contact with water or other liquids.
Remove all packing material and labels from the inside and
outside of the Coffee Maker. Place the unit on a flat, clean
surface. Make sure to remove both holder from the inner
packaging.
1. Before use, thoroughly clean both holder with warm soapy
water.
2. Clean the inside of the unit, it is recommended to brew a full
tank of water, which corresponds to brew 3 to 4 tall cups.
3. Grasp the removal water tank using the designated grips.
Lift the water tank up and remove it from the base of the unit.
4. Remove the lid and fill the water tank to the MAX indicator
line with cold water.
NOTE: Never fill the water tank past the MAX indicator line and
ensure water level is above the MIN indicator line.
5. Put the lid back and put the water tank back into place.
Place down firmly to make sure it is securely in place.
6. Select the desired height for the drip tray, depending on the
size of the cup, mug, or tumbler being used.
7. Place the empty cup, mug, or tumbler in position on the drip
tray cover.
NOTE: Do not add any accessories for this initial cleaning.
9
MAKING COFFEE
1. Press the Power button, the product is powered on and the
indicator light is on.
2. To select the brew size (6 oz,8 oz, 10 oz, 12 oz,or 14 oz), press
the size button until the indicator light illuminates the desired
size.
3. Press Ground Coffee (BREW) button, the machine starts to
work.
4. At the end of the cycle, the Coffee Maker enter standby
mode.
IMPORTANT: Repeat this process twice to thoroughly clean the
machine before using for the first time.
5. Unplug the Coffee Maker when not in use.
THE CAPSULE HOLDER
⚠ WARNING: Before brewing, it is recommended the water
tank be filled at least to the MIN indicator line. But never fill the
water tank past the MAX indicator line.
To avoid damage to your Coffee Maker, never operate your
Single Serve Coffee Maker when the water tank is empty.
1. Grasp the removal water tank using the designated grips. Lift
the water tank up and remove it from the base of the unit.
2. Remove the lid and fill the water tank to the MAX indicator
line with cold water.
If the Add water Blue light on the control panel flashes,it
indicates that there is no water in the water tank, please add
room temperature water into the water tank, then re-start to
work
10
IMPORTANT: For optimal flavor, distilled water is
preferred.
3. Put the lid back and put the water tank back into place.
4. Place down firmly to make sure it is securely in place.
5. Select the desired height for the drip tray, depending on the
size of the cup, mug, or tumbler being used.
6. Place the empty cup, mug, or tumbler in position on the drip
tray cover.
7. Pull the holder compartment lid’s front lid tab up to unlock
and lift the lid.
8. Choose the capsule holder. Add the capsule of your choice
into the holder.Press down on the capsule until it is flush with
the holder. You will hear a pierce as the needle penetrates the
capsule.
9. place the capsule holder into the holder compartment.
10. Press the holder compartment lid down firmly. An audible
click can be heard as the lid is locked firmly into position, and
the top of the capsule will be punctured.
11. Plug the Coffee Maker into a 120V AC electrical wall outlet.
12. Press the Power button, the product is powered on and the
indicator light is on.
13. To select the brew size (6 oz., 8 oz.,10 oz.,12 oz., or 14 oz.),
press the Size button until the indicator light illuminates the
desired size.
14. Press Ground Coffee (BREW) button, the machine starts to
work.
15. The Coffee Maker begins heating the water.
16. The pump will then activate and coffee will begin to stream
through the nozzle.
11
17. To interrupt the brewing cycle at any time, press the brew
button. Then remove the plug from the wall outlet.
18. At the end of the cycle, the Coffee Maker enter standby
mode.
19. Allow unit to cool before removing the used capsule to
discard.
20. Unplug the Coffee Maker when not in use.
⚠ CAUTION: There are two sharp needles that puncture the
capsules. One is located inside the capsule holder and the
other is located on the top underside of the holder
compartment. To avoid risk of injury, do not place fingers inside
either parts. Also exercise caution when cleaning the parts.
12
USING THE GROUND COFFEE HOLDER
The ground coffee holder allows you to create your own
favorite blend of coffee. Personalize your blends by adding a
dash of cinnamon, orange peel, cardamom, or vanilla bean for
flavoring, to name a few options.
NOTE: For best results, use medium ground coffee.
⚠
WARNING: Before brewing, it is recommended the water
tank be filled at least to the MIN indicator line but never fill the
water tank past the MAX indicator line. To avoid damage to
your Coffee Maker, never operate your Single Serve Coffee
Maker when the water tank is empty.
1. Grasp the removal water tank using the designated grips. Lift
the water tank up and remove it from the base of the unit.
2. Remove the lid and fill the water tank to the MAX indicator
line with cold water. If the Add water blue light on the control
panel flashes,it indicates that there is no water in the water
tank, please add room temperature water into the water tank,
then re-start to work.
IMPORTANT: For optimal flavor, distilled water is preferred.
3. Put the lid back and put the water tank back into place.
Place down firmly to make sure it is securely in place.
4. Select the desired height for the drip tray, depending on the
size of the cup, mug, or tumbler being used.
5. Place the empty cup, mug, or tumbler in position on the drip
tray cover.
6. Pull the holder compartment lid’s front lid tab up to unlock
and lift the lid.
7. Choose the ground coffee holder and fill it in with drip or
13
regular grind coffee. It is recommended to use 1 level
tablespoon of grind coffee for each cup of coffee desired
(1 cup = 5oz. of coffee). For stronger or milder coffee, adjust
amount of coffee to suit your taste. DO NOT EXCEED the MAX fill
line.
Selection of the ratio of coffee powder to water：
Water
Grounds
6oz
0.35oz(10g)
8oz
0.4oz(12g)
10oz
0.5oz(15g)
12oz
0.6oz(18g)
14oz
0.7oz(20g)
8. Press the holder compartment’s lid down firmly. An audible
click can be heard as the lid is locked firmly into position.
9. Plug the Coffee Maker into a 120V AC electrical wall outlet.
10. Press the Power button, the product is powered on and the
indicator light is on.
11. To select the brew size (10 oz., 12 oz., or 14 oz.), press the Size
button until the indicator light illuminates the desired size.
12. Press Ground Coffee (BREW) button, the machine starts to
work. The white BREW light will illuminate.
13. The Coffee Maker begins heating the water.
14. When the water has reached the optimum temperature, the
pump will then activate and coffee will begin to stream
through the nozzle.
15. To interrupt the brewing cycle at any time, press the Ground
Coffee button. Then remove the plug from the wall outlet.
14
16. At the end of the cycle, the Coffee Maker enter standby
mode.
17. Unplug the Coffee Maker when not in use.
15
USER MAINTENANCE INSTRUCTIONS
This appliance requires little maintenance. It contains no
user-serviceable parts. Any servicing requiring disassembly
other than cleaning must be performed by a qualified
appliance repair technician.
CARE & CLEANING INSTRUCTIONS
1. Always make sure Coffee Maker is unplugged and the drip
tray and cover are cool before removing from the base.
2. Rinse drip tray and cover and replace in the Coffee Maker
base.
3. Press the holder compartment’s front lid to unlock and lift
the lid.
4. Remove the used capsule from the capsule holder and
discard. Rinse the capsule holder in warm water before each
use.
5. When using the reusable ground coffee holder, discard the
used coffee. Wash holder in warm, soapy water, to remove all
coffee grinds. Rinse well.
NOTE: Both the capsule and the ground coffee holder are
top rack dishwasher safe.
6. Use a damp paper towel or sponge to completely remove
any residue from the holder compartment.
7. Wipe the exterior of the Coffee Maker with a damp cloth to
remove superficial stains. For stubborn stains, use a nylon or
plastic pad with a non-abrasive cleanser. Do not use metal
scouring pads or abrasive cleansers.
16
DESCALING INSTRUCTIONS
Special cleaning of your Coffee Maker is recommended at
least twice a year, depending on frequency of use and quality
of water used in the unit. If water in your area is especially hard,
the following cleaning procedure should be performed more
often, since minerals in water can detract from the flavor of the
coffee and possibly lengthen brew time.
NOTE: If the DESCALE white light on the control panel flashes, it
means must be cleaned.
1. Fill water tank with 1 part white vinegar to 3 parts cold water
do not add any accessories.
2. Place an empty tumbler in position on the drip tray cover.
3. Press and hold the Size Button and Ground Coffee (BREW)
button at the same time to start the product and start
cleaning.
4. the CLEAN white indicator is always on, and the Ground
Coffee (BREW) button white indicator is always on.
5. The heater will starts to heat up. After heating, it will be
pre-soaked for a period of time and then the hot water will be
pumped out to complete a cleaning procedure.
6. Repeat steps 3 to 6 until the water tank is empty.
7. Following the same procedure, continue to run clean water
through the Coffee Maker three times.
8. Unplug the Coffee Maker when not in use.
9. Dry parts thoroughly. Wipe the Coffee Maker’s exterior with a
dry cloth.
17
STORING INSTRUCTIONS
1.Unplug unit and allow to cool.
2.Never wrap cord tightly around the appliance. Do not put any
stress on the cord where it enters the unit, as it could cause the
cord to fray and break.
3.Store one clean adaptor in the Coffee Maker’s holder
compartment.
4.Store the other adapter with the unit.
5.Store the Coffee Maker in a cool, dry place.
6.Never store unit while it is still plugged in.
Thank you for purchasing this product! If you have any questions about the
product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO
GARANTÍA.
Phone: 213-4467172 or 661-4358826
