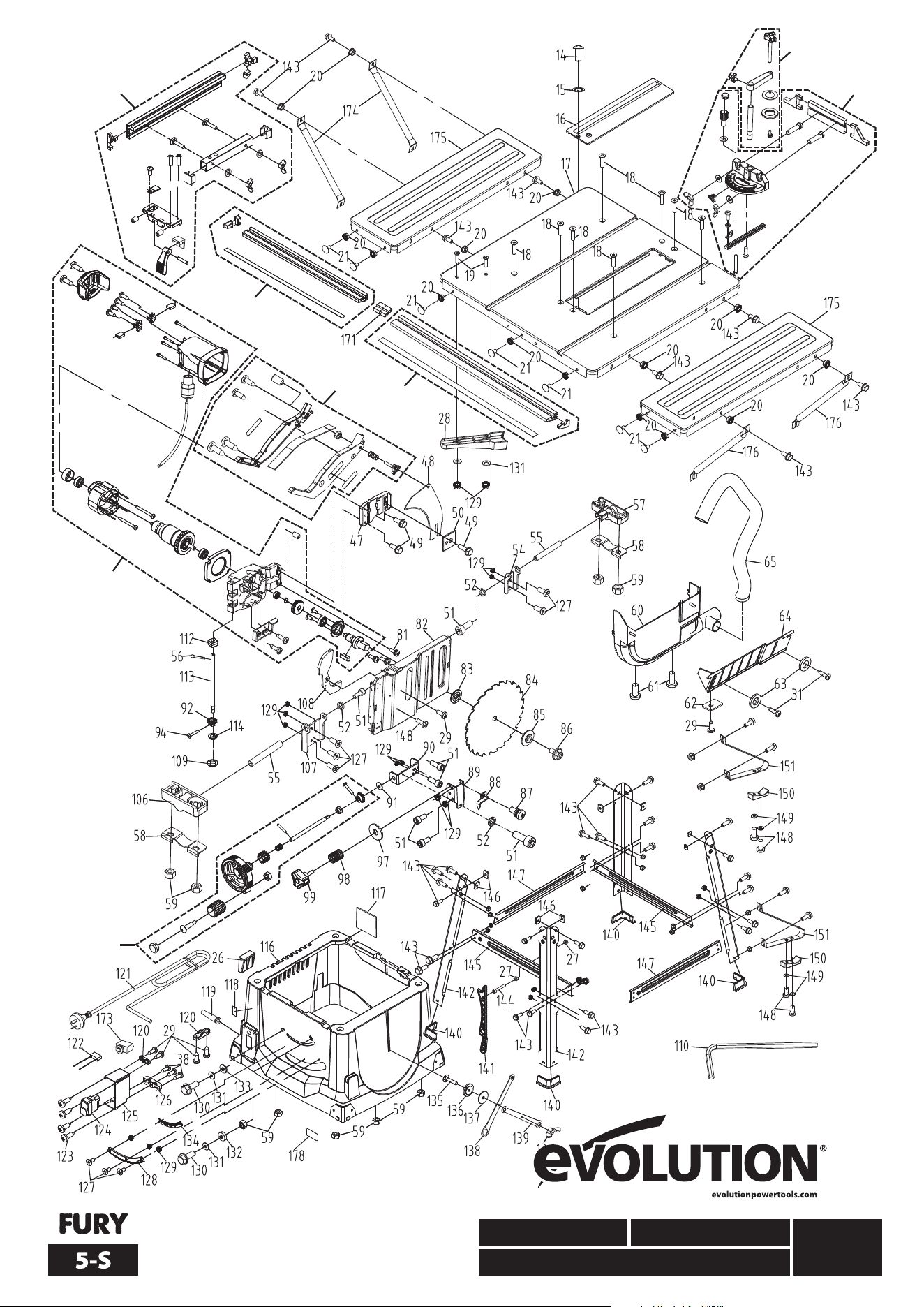

Service Parts List
V: 056-0001.01
230V
UK
255mm Multi-Material Cutting Table Saw
13 WING NUT 056-0113 5
14 CROSS HEAD SCREWS 056-0333 1
15 O-RING 056-0236 1
16 TABLE INSERT 056-0334 1
17 TABLE 056-0336 1
18 COUNTERSUNK INNER HEX SCREW F-SCHS-M6-25-ST-BO 8
19 SCREW 056-0292 2
20 HEX NUT F-NSF-M6-ST-BZP 35
21 SQUARE NECK SCREW 056-0104 7
26 PUSH STICK SUPPORT 056-0226 1
27 HEX NUT F-NSH-M6-ST-BO 2
28 TABLE SUPPORT BLOCK 056-0337 1
29 THREAD FORMING SCREW F-TFPX-4.2-13-ST-BO 7
31 THREAD FORMING SCREW F-TFPX-4-10-ST-BO 6
32 CARBON BRUSH 056-0130 2
33 BRUSH HOLDER 056-0129 2
38 THREAD FORMING SCREW F-TFPX-4.2-16-ST-BO 4
47 RIVING KNIFE BRACKET 056-0303 1
48 RIVING KNIFE 056-0342 1
49 HEX SCREWS F-HFB-M6-25-BZP 3
50 RIVING KNIFE CLAMP 056-0343 1
51 SOCKET HEAD CAP SCREWS F-SHCS-M5-12-ST-BO 3
52 SPRING WASHER M5 F-SWA-M5-ST-BO 3
53 SCREWS 056-0344 10
54 REAR MOUNT PLATE 056-0345 1
55 ROTATING SHAFT 056-0346 2
56 SPLIT PIN F-SP-2.5-20-ST-BO 2
57 REAR BEVEL SHAFT SUPPORT 056-0347 1
58 LOCKING PLATE 056-0348 2
59 HEX NUT F-NSF-M6-ST-BZP 8
60 DUST COVER 056-0158 1
61 CROSS HEAD SCREWS F-SPHPZ-M6-16-ST-BO 2
62 PLATE 056-0350 1
63 WASHER 056-0237 2
64 BLADE GUARD PLATE 056-0351 1
65 EXTRACTION HOSE 056-0159 1
81 CROSS HEAD ASSEMBLY 056-0354 3
82 HANGER FRAME 056-0355 1
83 INNER BLADE FLANGE 056-0304 1
85 OUTER BLADE FLANGE 056-0305 1
86 BLADE BOLT 056-0157 1
87 CROSS HEAD ASSEMBLY 056-0306 3
88 BEVEL INDICATOR 056-0163 1
89 HANGER FRAME PLATE 056-0307 1
90 BEVEL BRACKET - DRIVING ROD 056-0308 1
91 WASHER 056-0169 1
92 BEVEL GEAR 056-0170 2
94 SELF TAPPING SCREW F-TFPX-4.2-22-ST-BO 2
97 WASHER 056-0165 1
98 SPRING 056-0166 1
99 BEVEL LOCK KNOB 056-0167 1
106 FRONT BEVEL SHAFT SUPPORT 056-0309 1
107 FRONT MOUNT PLATE 056-0310 1
108 BLADE GUARD 056-0311 1
109 Nut 056-0312 1
110 Allen Key 056-0313 1
112 DOUBLE NUT 056-0315 1
113 THREADED ROD 056-0316 1
114 BEVEL GEAR WASHER 056-0179 1
116 MAIN CASING 056-0212 1
119 CORD PROTECTOR 056-0206 1
120 CABLE CLAMP 056-0205 1
121 POWER CORD 230V (UK) 056-0207 1
122 CAPACITOR 230V (UK) 056-0191 1
123 SELF TAPPING SCREWS 056-0317 4
124 SWITCH 230V (UK/EU) 056-0318 1
125 SWITCH BOX 056-0201 1
126 SWITCH BOX COVER 056-0202 1
127 SCREWS F-SCHPZ-M5-12-ST-BO 3
128 GEAR RACK 056-0322 1
129 HEX NUT F-NSF-M5-ST-BO 3
130 HEX SCREWS F-HFB-M6-16-ST-BZP 2
131 WASHER 056-0162 9
132 45°BUSH 056-0203 1
133 90° BUSH 056-0204 1
134 ANGLE LABEL 056-0189 1
No. Description Part Code Qty No. Description Part Code Qty
135 SQUARE NECK SCREW 056-0235 1
136 THREADED SPACER 056-0213 1
137 WASHER 056-0214 1
138 BLADE SPANNER A 056-0215 1
139 BLADE SPANNER B 056-0216 1
140 RUBBER FOOT 056-0220 4
141 PUSH STICK 056-0358 1
142 LEG A 056-0323 4
143 HEX SCREWS 056-0360 36
144 SOCKET SCREWS 056-0324 1
145 BEAM B 056-0218 2
146 SQUARE NUT 056-0325 8
147 BEAM C 056-0221 2
148 CROSS HEAD SCREWS 056-0326 5
149 WASHER 056-0327 4
150 STABILITY SUPPORT FOOT 056-0328 2
151 STABILITY SUPPORT 056-0361 2
171 CONNECTOR 056-0369 1
173 OVERLOAD SWITCH 230 V (UK/EU) 056-0371 1
174 LEFT TABLE SUPPORT BAR 056-0372 2
175 EXTENSION TABLE 056-0373 2
176 RIGHT TABLE SUPPORT BAR 056-0224 2
178 CASE LABEL 056-0234 1
181 HOLD DOWN CLAMP 056-0254 1
182 RIP FENCE ASSEMBLY 056-0375 1
183 BLADE GUARD 056-0377 1
184 ANGLE GAUGE 056-0378 1
185 GEARBOX ASSEMBLY 056-0380 1
186 MOTOR ASSEMBLY 230V (UK/EU) 056-0381 1
187 HANDLE ASSEMBLY 056-0260 1
188 LEFT GUIDE RAIL ASSEMBLY 056-0385 1
189 RIGHT GUIDE RAIL ASSEMBLY 056-0387 1
190 ASSEMBLY SCREW KIT 056-0389 1
