10L PNEUMATIC TRANSMISSION OIL FILLING
SYSTEM
MODEL NO: VS7019
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. IMPORTANT Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
9 Keep these instructions in a safe accessible place.
WARNING! Ensure health & safety, local authority, and general workshop practice regulations are strictly adhered to when using this
equipment.
9 Familiarise yourself with product application and limitations, as well as the specic potential hazards peculiar to this product.
9 Maintain the product in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will invalidate the warranty.
9 Ensure safety eye protection and protective clothing are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintain correct balance and footing. Ensure the oor is not slippery and wear non slip shoes.
9 Keep children and unauthorised persons away from the working area.
9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT use to extract corrosive uids.
8 DO NOT dismantle, tamper with or adapt the pump for any purpose other than for which it is designed.
8 DO NOT use the unit if it has been dropped or mishandled, check the unit to ensure there is no damage.
9 Keep the pump clean and store in a safe, dry, childproof location.
WARNING! DO NOT allow uncontrolled discharge of uids thus polluting the environment.
WARNING! Always pay attention to the pressure control since it’s a pressurised unit.
2. INTRODUCTION

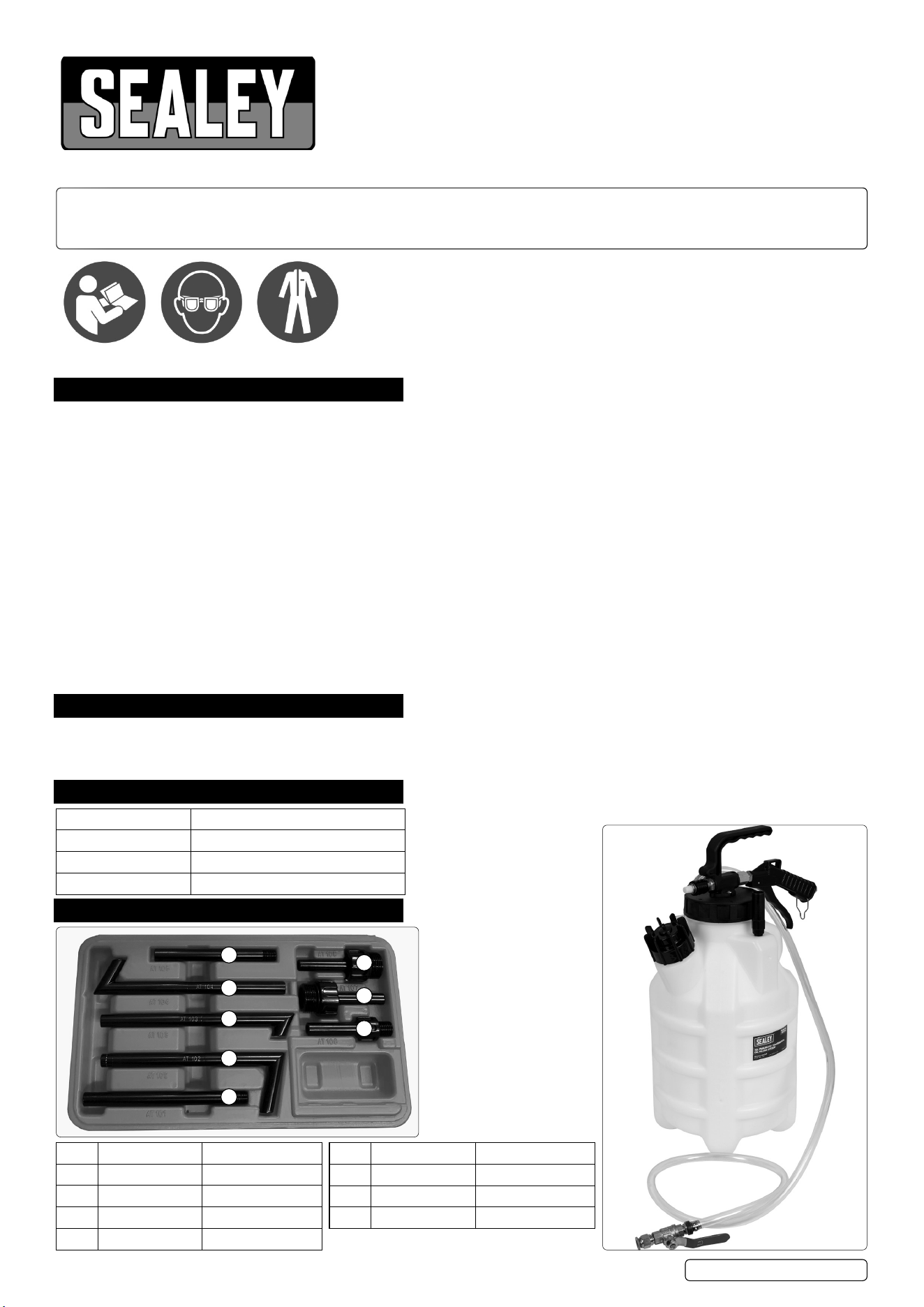

Pneumatic operated oil dispensing unit with 10L capacity. Large visual measurement container will identify the amount dispensed.
Supplied with a range of eight transmission uid adaptors. Features a safety valve to stop over-pressurising. Supplied with a storage
case for the adaptor to minimise oil leakage when not in use.
3. SPECIFICATION
4. CONTENTS
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
clothing
Item Part no. Description
1 VS7009.A05 Adaptor VW Audi
2 VS7009.A04 Adaptor VW Audi
3 VS7009.A03 Adaptor VW Audi
4 VS7009.A02 Adaptor universal
VS7019 Issue 2 16/02/24
Model No: VS7019
Capacity: 10L
Maximum Pressure: 100psi (7bar)
Nett Weight: 3.02kg
1
2
3
4
5
6
7
8
5 VS7009.A01 Adaptor Ford
6 VS70090.02 Audi/VW CVT
7 VS70090.03 Audi/VW DSG
8 VS70090.01 Mercedes
5. OPERATION
5.1. FILLING NEW FLUID
5.1.1. Open lling cap and ll with oil to level. DO NOT overll maximum capacity is 10L. To ll oil
into the tank by vacuum. Ensure the vacuum function switch is in the vacuum position, g.1.
Insert dispensing hose into oil container. Select an appropriate adaptor for the vehicle and
connect to dispensing hose. Connect compressed air to the air inlet on handle and press
trigger to create the vacuum required to insert new oil into the tank. Connect air supply.
5.2. FILLING TRANSMISSION FLUID
5.2.1. Select appropriate adaptor tting from the adaptor box required for the specic vehicle.
Connect the adaptor to the dispensing hose. Unscrew tting from end of dispensing valve
assembly, g.2. Insert required adaptor and slide dispensing valve nut (and seal) over the
adaptor and tighten. Turn valve on handle to the ON position to dispense the oil into the
transmission. Turn valve on handle to the OFF position to stop the oil owing.
6. MAINTENANCE
6.1. Wipe down after use. DO NOT use solvents.
Original Language Version
© Jack Sealey Limited
VS7019 Issue 2 16/02/24

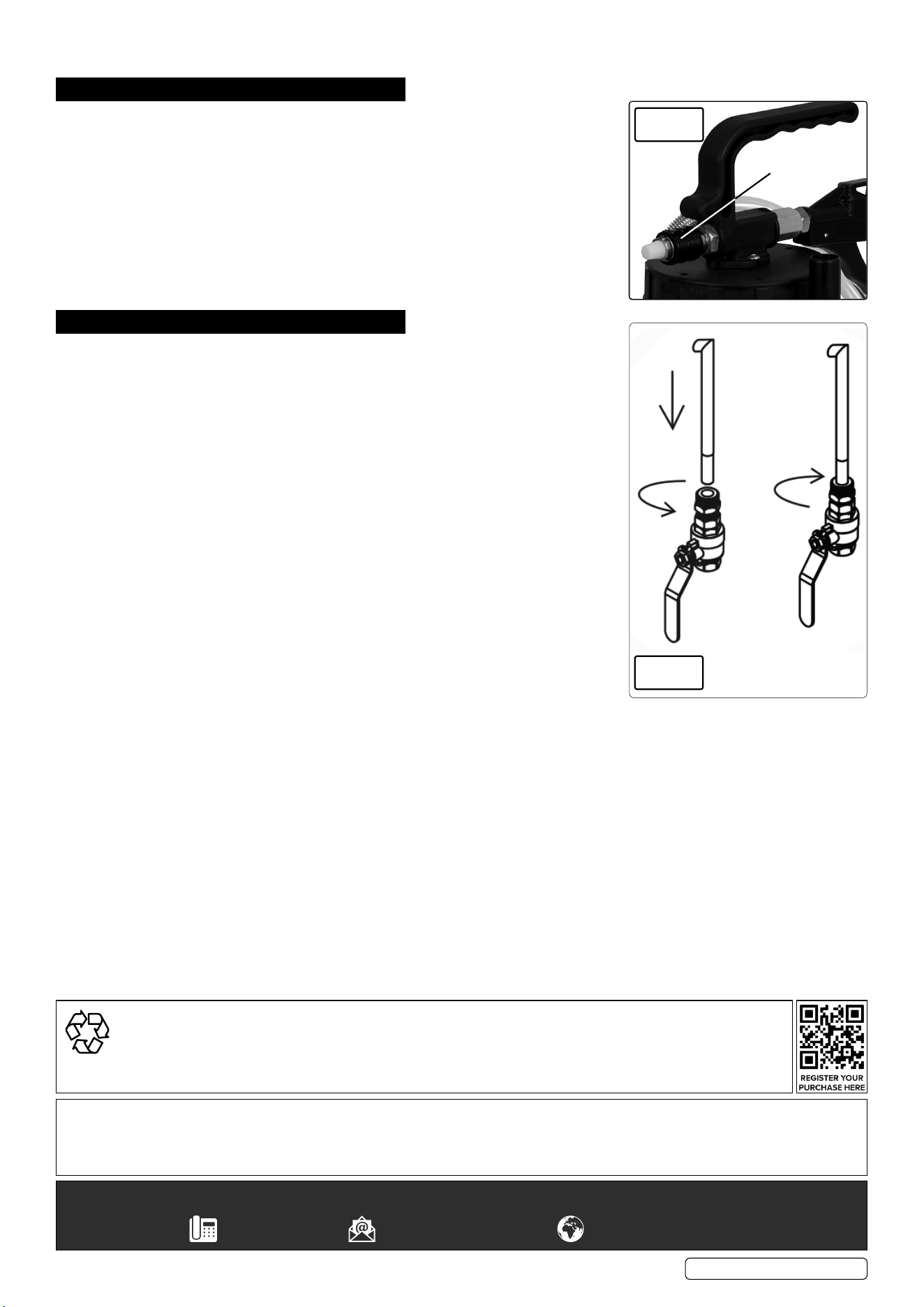

fig.1
Vacuum
Position Switch
fig.2
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
