Sealey VS7009 Gear Oil Dispensing Unit 7L User Manual

tRANSMISSION & ENGINE OIL

FILLING SYStEM

mODEL NO: VS7009.V2

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFEtY

 WARNING! Ensure health & safety, local authority, and general workshop practice regulations are strictly adhered to when using this

equipment.

9  Familiariseyourselfwithproductapplicationandlimitations,aswellasthespecicpotentialhazardspeculiartothisproduct.

9 maintain the product in good condition (use an authorised service agent).

9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will invalidate the warranty.

9 Use only to pump oils up to SAE 140 viscosity.

9 Ensure safety eye protection and protective clothing are worn when using this product.

9 Keep the work area clean, uncluttered and ensure there is adequate lighting.

9  Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnonslipshoes.

9 Keep children and unauthorised persons away from the working area.

9 Dispose of waste liquids in accordance with local authority regulations.

8 DO NOt usetoextractcorrosiveuids.

8 DO NOt dismantle, tamper with or adapt the pump for any purpose other than for which it is designed.

8 DO NOt use the unit if it has been dropped or mishandled, check the unit to ensure there is no damage.

9 Keep the pump clean and store in a safe, dry, childproof location.

 WARNING! DO NOt allowuncontrolleddischargeofuidsthuspollutingtheenvironment.

2. INtRODuctION

manually operated oil dispensing unit manufactured from composite materials. Large visual measurement will identify amount dispensed.

Suppliedwitharangeofveautomatictransmissionuidadaptors.Deliversapproximately70mlperstroke.Featuresauidcontrolvalveand

adaptorstowagetominimizeoilleakagewhennotinuse.

3. SpEcIFIcAtION

model no .............................................................. VS7009.V2

Capacity ............................................................................. 7lt

Hose length .................................................................... 1.5m

4. cONtENtS

Original Language Version

Refer to

instructions

Wear eye

protection

Wear protective

clothing

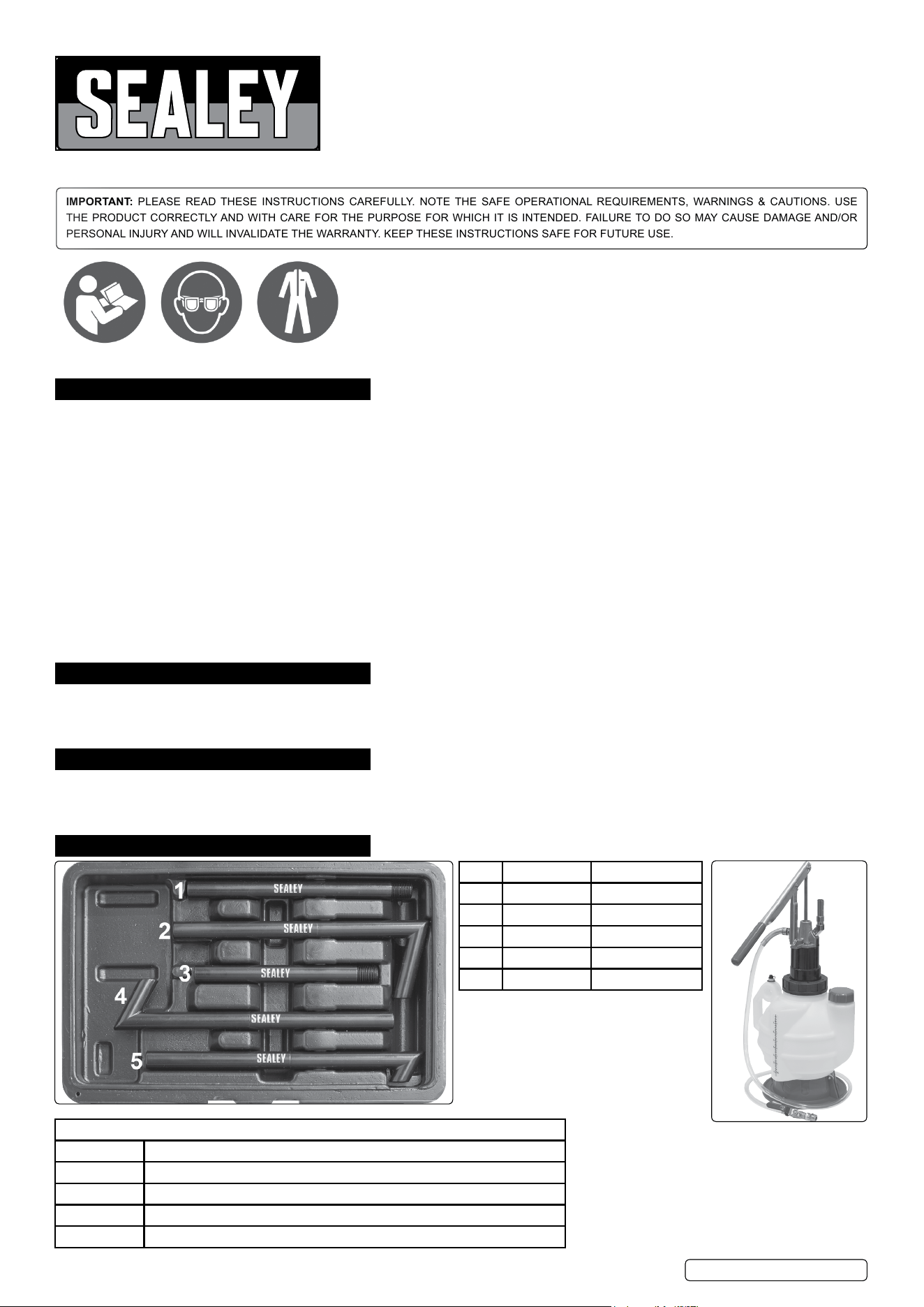

Item part no. Description

1 VS7009.A01 Adaptor Ford

2 VS7009.A02 Adaptor universal

3 VS7009.A05 Adaptor VW Audi

4 VS7009.A04 Adaptor VW Audi

5 VS7009.A03 Adaptor VW Audi

Accessories

part no. Description

VS70091 Transmissionoillleradaptor-VAGM30x1.5mm

VS70092 Transmissionoillleradaptor-Toyota/LexusM18x1.5mm

VS70093 Transmissionoillleradaptor-VWPassat/Tiguan

VS70090 3pc Transmission oil adaptor set

VS7009.V2|Issue:112/08/19

Original Language Version

5. OpERAtION

5.1.  Openllingcapandllwithoiltobedispensed,g.1.

5.2. Select appropriate adaptor for the vehicle.

5.3. cONNEct thE ADAptOR tO thE DISpENSING hOSE

5.3.1.  Unscrewnutfromendofdispensingvalveassembly,g.2.

5.3.2. Insertrequiredadaptorandslidedispensingvalvenut(andseal)overtheadaptorandtighten.

5.4. Open valve.

5.5.  Push/pullthehandletodispensetheoil,extendfoottoaidstabilitywhilstpumping.

6. MAINtENANcE

6.1. Wipe down after use. DO NOt use solvents.

ENVIRONMENt pROtEctION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Sealey Group, Kempson Way, Suffolk Business park, Bury St Edmunds, Suffolk. Ip32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

Note:Itisourpolicytocontinuallyimproveproductsandassuchwereservetherighttoalterdata,specificationsandcomponentpartswithoutprior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

VS7009.V2|Issue:112/08/19

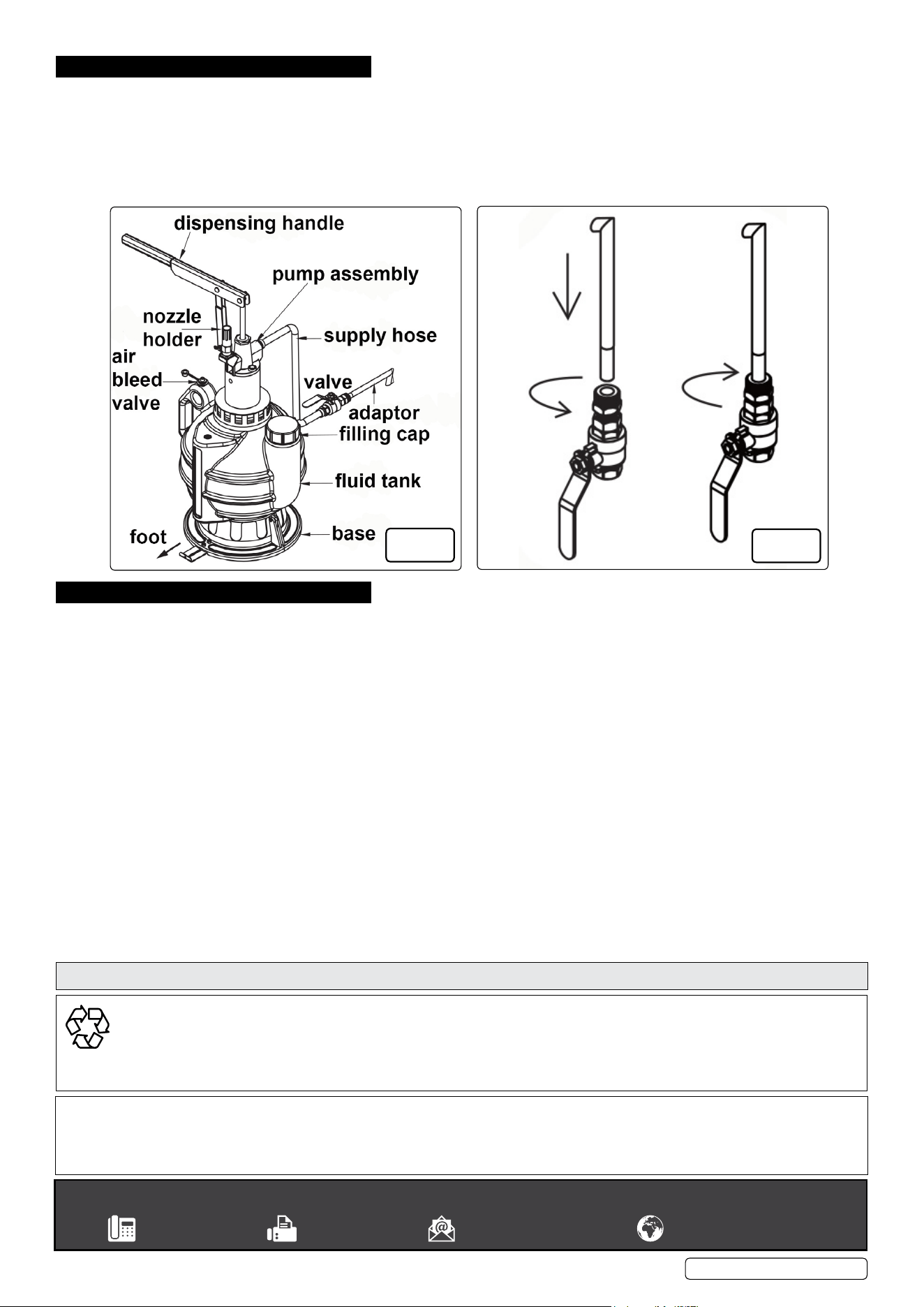

fig.1

fig.2

Partssupportisavailableforthisproduct.Pleaseemailsales@sealey.co.ukortelephone01284757500
