TRANSMISSION JACK LIFTING PLATE 200KG
MODEL NO: TRP200
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this
product, but must be applied by the operator. A risk assessment should be performed prior to use.
WARNING! Ensure all preliminary checks are carefully carried out before use and that all xings are correctly and securely engaged.
Immediately repair or replace damaged parts (use authorised service agent). Ensure use of genuine parts only.
Unauthorised parts may be dangerous and will invalidate the warranty.
WARNING! Use jack on level and solid ground, preferably smooth concrete. Ensure the oor over which the loaded jack will be
transported is swept clean.
WARNING! Ensure that the loaded item is correctly supported, well balanced and secured in place prior to nal removal from vehicle
and before any movement of the loaded jack within the workshop.
8 DO NOT make any modications to the unit supplied.
▲ DANGER! DO NOT use on tarmacadam, or any other soft surface as jack may sink or topple. Serious injury may result if ignored.
▲ DANGER! If the load tips or leans, stop what your are doing. MOVE QUICKLY TO A SAFE DISTANCE. DO NOT TRY TO HOLD
OR STEADY JACK.
9 The unit is intended for use only with Sealey transmission jacks.(TR / ETJ and TRQ models in our ranges).
9 Ensure that load adaptor is correctly attached to the jack and that the grub-screw is tted before use.
2. INTRODUCTION
Attaches to the existing pronged saddle, tted to our TR, ETJ and TRQ model transmission jacks. This plate will assist in working on
fuel tanks, sub frames, transmissions and many other tasks. The chemical resistant rubber pad protects the point of contact. Supplied
with four eyelets to fasten down the load onto the plate. Powder Painted to create a durable and rust resistant nish.
3. SPECIFICATION
Model No.: ........................................................TRP200
Capacity ..............................................................200 kg
4. ASSEMBLY

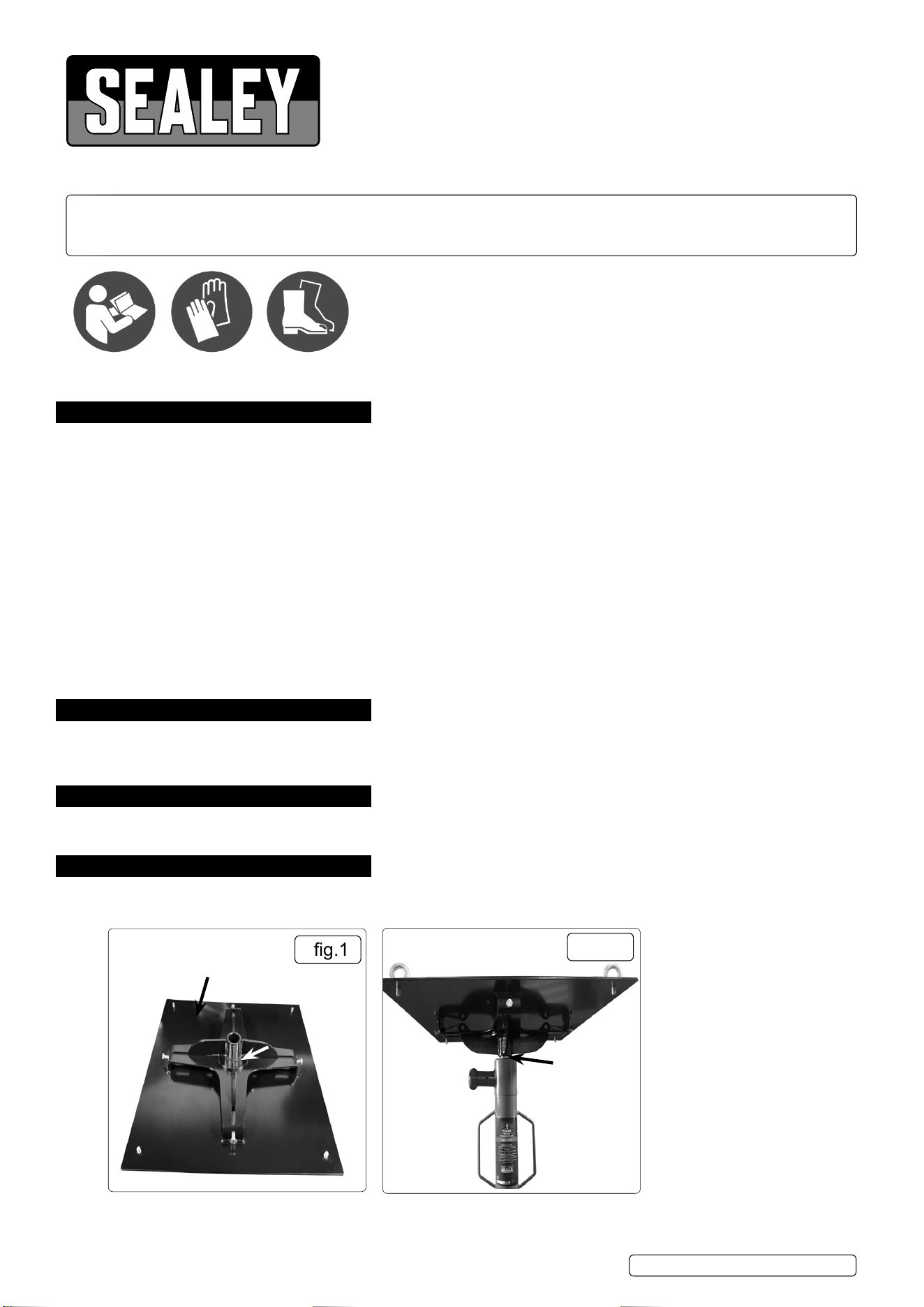

4.1. Place the boss located on the underside of the Load Plate (g.1) onto the Jack ram (g.2). Fix in place ensuring the securing bolts
retain the plate centrally.
M16 Stud bar
and Hex. nut
Tool post and
Hand wheel
Support arm
Hand wheel
Support arm
Guide
TRP200 Issue 2 16/02/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves
Wear safety
footwear
g.1
Underside of
load plate
Lifting
saddle
Jack ram
g.2

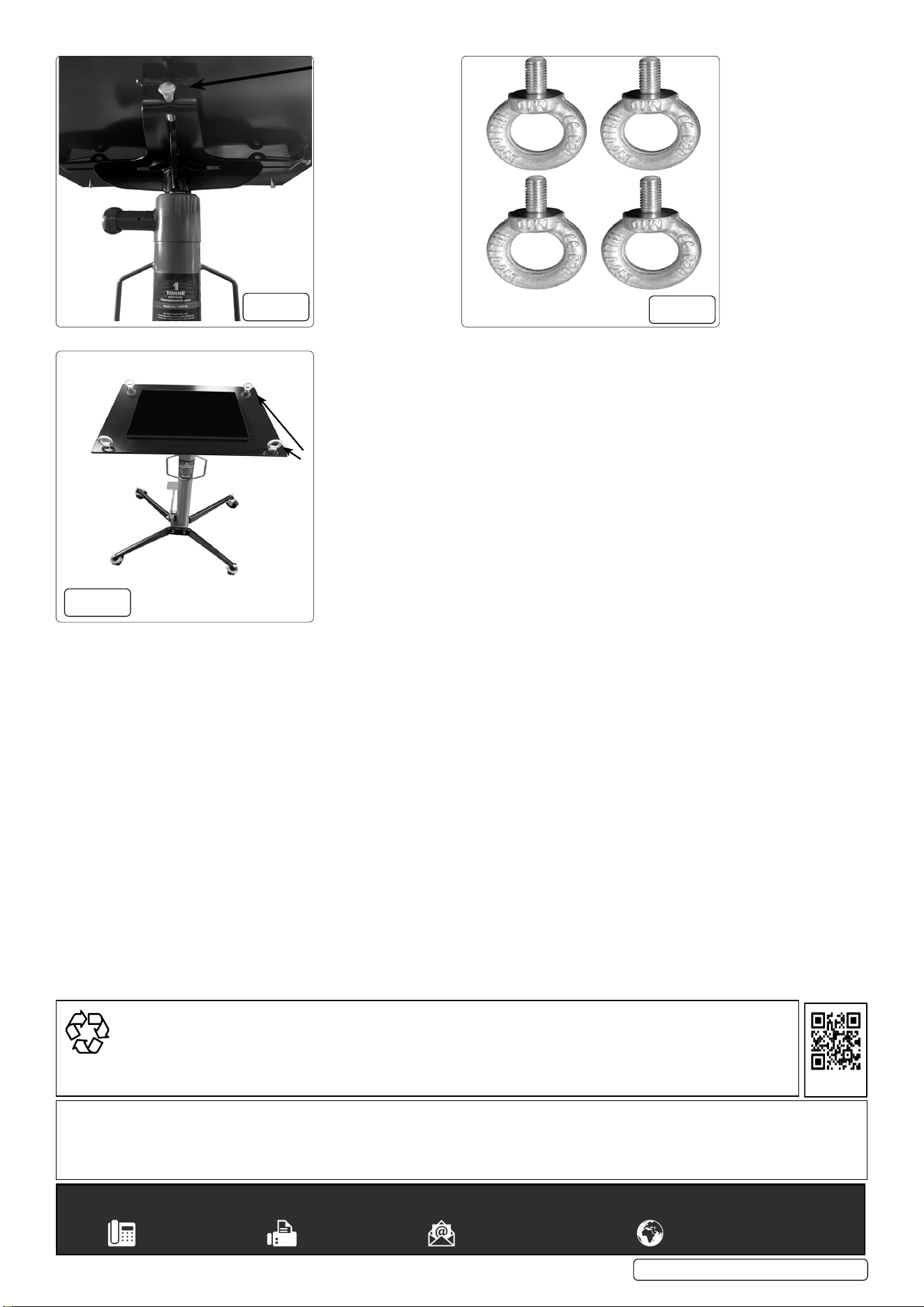

4.2. Insert the four M10 eyelets into the top of the loadplate and place the 14mm rubber pad on the top as shown (g.4/5).
g.3
M10 bolts X4 tighten
evenly to centralise
g.4
g.5
14MM Rubber pad
M10 Eyelets
TRP200 Issue 2 16/02/24
Original Language Version
© Jack Sealey Limited
