CVJ STRETCH BOOT INSTALLATION TOOL
MODEL NO: VS701
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1 GENERAL SAFETY
Carefully read these operating and safety instructions before using the boot tool. Keep them for future reference.
This tool should only be used by properly trained operators.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
Keep children and unauthorised persons away from the working area.
Keep the boot tool away from fire, heat and chemicals.
DO NOT use the boot tool for any purpose other than that for which it is designed.
DO NOT operate the boot tool when you are tired, under the influence of alcohol, drugs or intoxicating medication.
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
1.3 MECHANICAL SAFETY
Maintain the boot tool in good condition (use an authorised service agent).
If the tool falls or is knocked, stop operation and check for any damage.
DO NOT operate the boot tool if any parts are damaged as this may cause failure and/or personal injury.
1.4 OPERATIONAL SAFETY
Working with the boot tool requires protective equipment including safety shoes, work gloves and safety goggles. DO NOT bring the
tool close to the face while operating.
When operating the boot tool, to open a CV rubber boot, turn the tool away from your face and body.
2. INTRODUCTION
EnablesinstallationofCVJbootinsituwithoutsplittingthedrivetrain.SlimdesignidealforttingCVJbootswhereaccessislimited.
Suitable for use with all Sealey CVJ stretch boots. Length 442mm. Maximum CVJ diameter Ø122mm. Use in conjunction with
Sealey VS705.
3. SPECIFICATION
Model No:. ........................................................... VS701
Lenght: ...............................................................442mm
Maximum Joint Diameter:................................ Ø122mm
4. OPERATION
WARNING! The boot tool is designed for the installation of a flexible Sealey universal rubber CV boots only and should be used with no
other products and for no other purpose.
4.1. Use cleaner to clean out the C.V joint.
4.2. Fill with grease.
4.3. PutuniversalrubberbootontheSealeyVS701seeg.1andsprayrubberprotection
uidonit.
4.4. SprayrubberprotectionuidonSealeyVS705(notsupplied)inordertomakeSealeyVS705
surfacesmooth(g.2)
4.5. UsetheSealeyVS701toputboottothebottomofSealeyVS705slowly(g.3).PressC.Vboot
overC.Vjoint(g.4).
4.6. OnceithasbeenpushedintoplacetheVS705canberemovedeasily(g.5).
4.7. RemovetheSealeyVS701(g.6).
4.8. Fixbootintoasuitablelocationandsecurewithsteelclipstosecuretheboot,insomecasesyoumayhavetotrimtheboottot.
(g.7).
VS701 Issue 1 14/04/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves

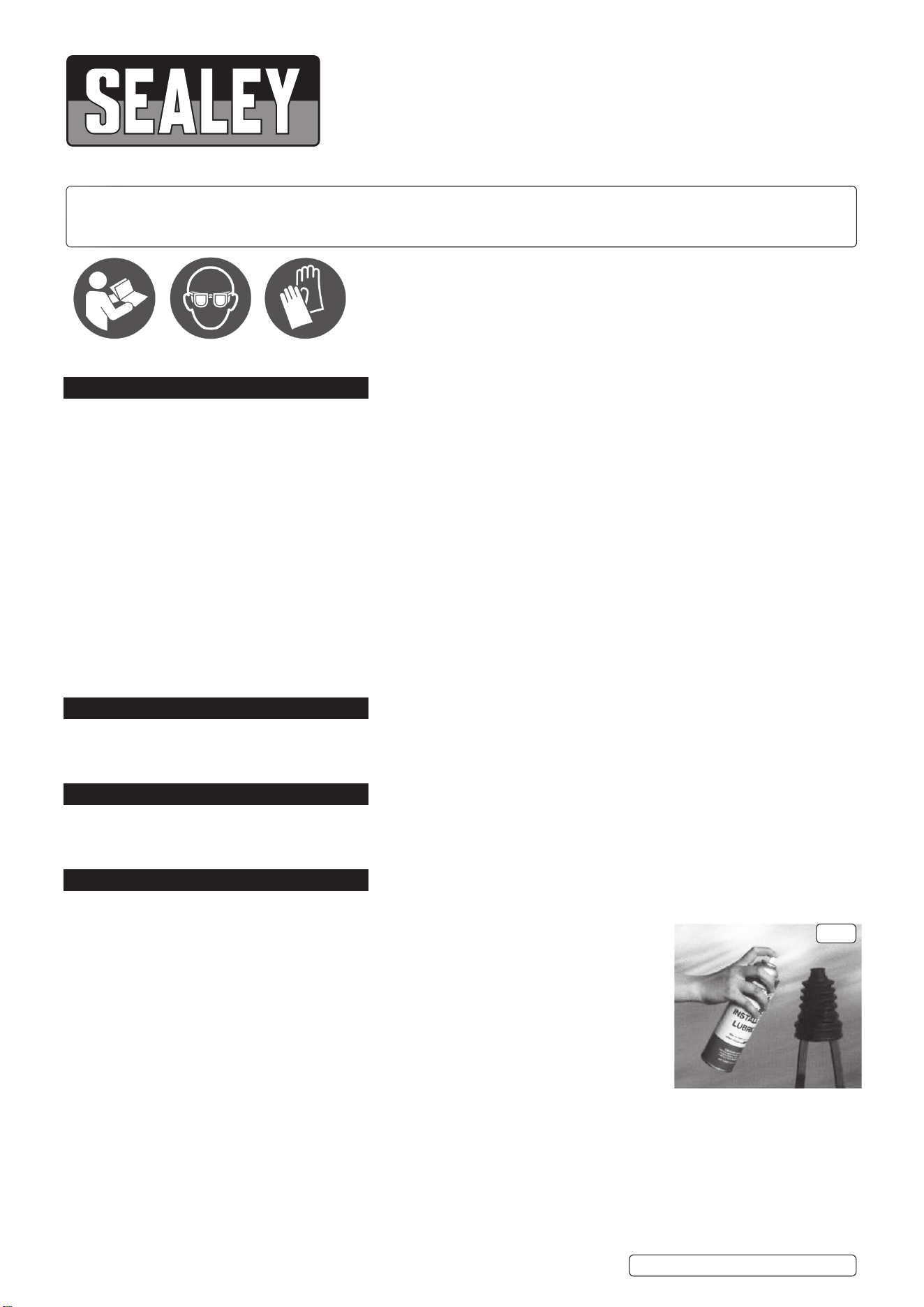

g.1
5. MAINTENANCE
5.1. Apart from keeping the boot tool clean there is no routine maintenance required.
5.2. Use genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
Original Language Version
© Jack Sealey Limited
VS701 Issue 1 14/04/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

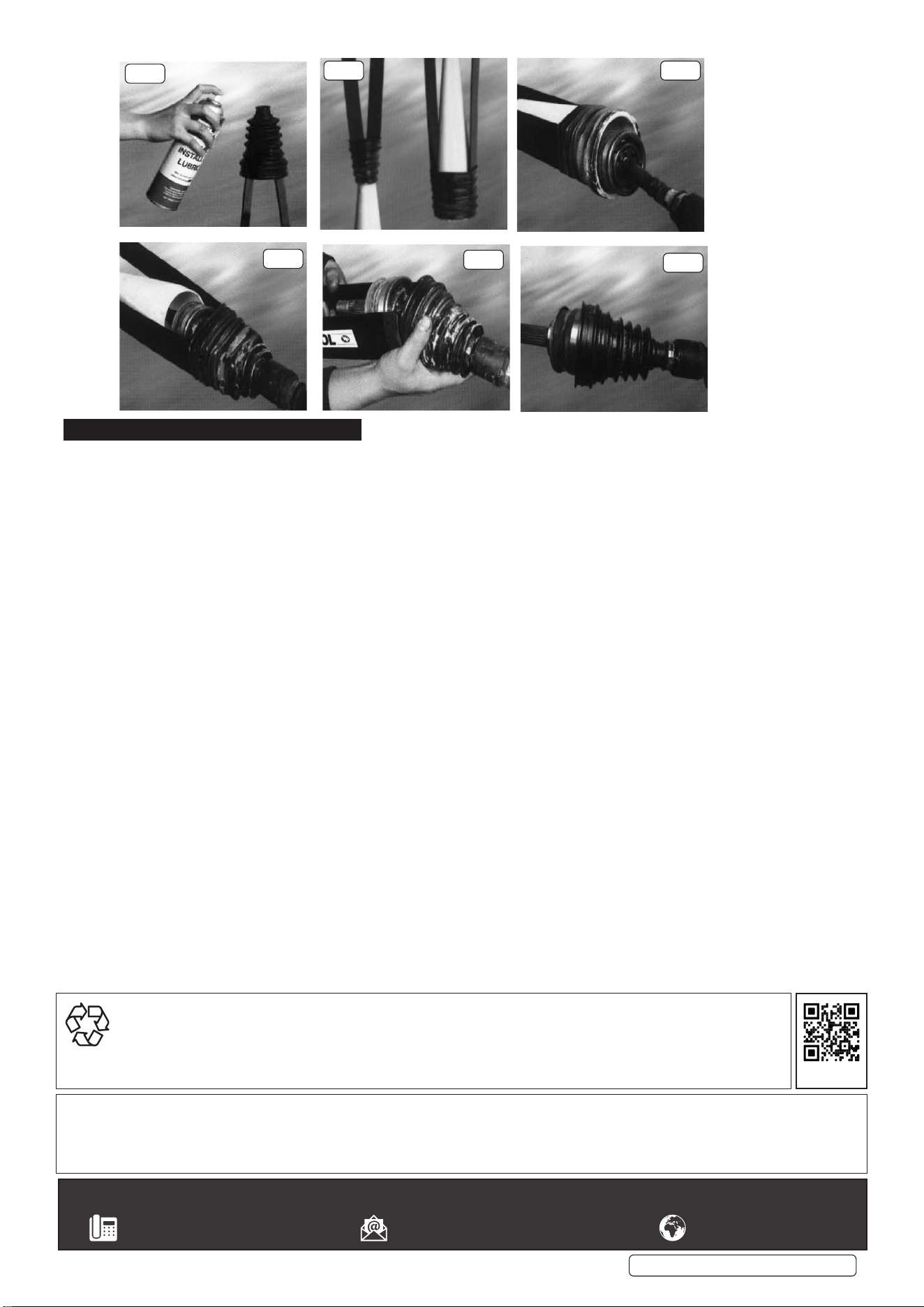

g.2
g.3 g.4
g.5
g.6
g.7
