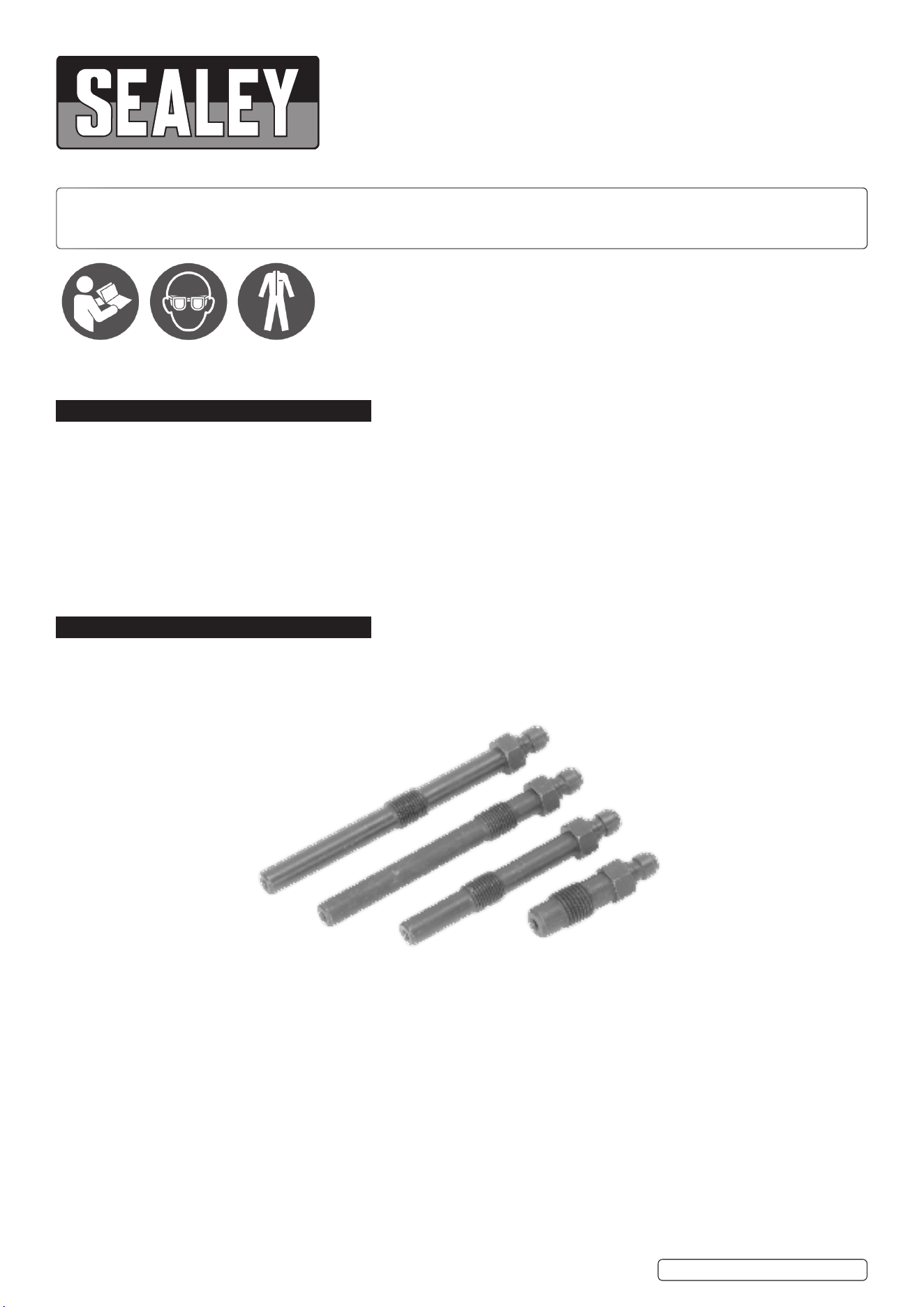

DIESEL COMPRESSION ADAPTOR KIT - BMW,
MERCEDES, ROVER, VAG
MODEL NO: VSE3151
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
Wear eye
protection
Wear protective
clothing
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools
8 DO NOT use tools if threads are damaged. Any defectives must be rectied before use, to avoid incorrect readings.
9 Maintain tools in a good, clean condition for the best and safest performance.
9 Ensure that a vehicle that has been jacked up, is adequately supported with axle stands.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Ensure any disconnected fuel pipes are plugged to avoid spillage.
9 Ensure that the correct connector is used for the engine being tested.
9 Always release the pressure from the gauge, before disconnecting the quick release coupling.
9 Account for all tools and parts being used and DO NOT leave them in or near the engine.
9 Always refer to the vehicle manufacturer’s service instructions, or a proprietary manual, to establish the current procedure and data.
2. INTRODUCTION
Diesel engine glow plug compression test adaptor kit that cover a wide range of modern vehicles. For use in conjunction with Sealey Diesel
Compression Gauge, Hose & TDC Base Kit (Model No. VSE3157). See Sealey website for complete vehicle applications.
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
3. APPLICATIONS
Make / Model Engine Type Information Year Adaptor No
Alfa Romeo
145 1.9 TD AR67501 (AR67.502NO) 04/94 -> 09/96 2
145 1.9 TD AR33601 10/96 -> 09/97 2
146 1.9 TD AR67501 (AR67502NO) 02/95 -> 09/96 2
146 1.9 TD AR33601 10/96 -> 09/97 2
155 1.9 TD AR67502 04/93 -> 04/96 2
155 2.5 TD VM07, VM31B, VM425CLIEA 05/95 -> 01/98 12
164 2.5 TD VM08B, VM32B,VM425-SLIRA 05/95 -> 09/98 12
Audi
A2 1.2 TDi ANY 02/00 -> 12
A2 1.4 TDi AMF 02/00 -> 08/03 12
A3 1.9 TDi AGR, AHF, AJM, ALH 09/96 -> 05/03 12
A3 1.9 TDi ASV 01/97 -> 07/98 12
A3 1.9 TDi ANU 08/98 -> 12
A3 1.9 TDi ASZ 10/00 -> 05/03 12
A3 1.9 TDi ATD 10/00 -> 12
A3 1.9 TDi AXR 10/00 -> 09/01 12
A3 1.9 TDi AZV, BKD 03/03 -> 12
A4 1.9 D AFF, AHH 03/96 -> 07/97 12
A4 1.9 TDi 1Z 01/95 -> 07/96 12
A4 1.9 TDi AFN 02/96 -> 06/00 12
A4 1.9 TDi AFF 03/96 -> 06/00 12
A4 1.9 TDi AHU 08/96 -> 06/00 12
A4 1.9 TDi AJM 01/98 -> 12/98 12
A4 1.9 TDi AVG 08/99 -> 06/00 12
A4 1.9 TDi ATJ 03/00 -> 09/01 12
A4 1.9 TDi ATD 09/01 -> 12
A4 1.9 TDi AVB 09/01 -> 04/04 12
A4 1.9 TDi AVF, AWX 01/01 -> 12
A4 2.5 TDi AFB, AKN 09/97 -> 09/01 16
A4 2.5 TDi AKE, AVL 11/00 -> 16
A4 2.5 TDi AYM 08/01 -> 07/02 16
A4 2.5 TDi BFC, BDG, BCZ 07/02 -> 16
A6 1.9 TDi 1Z, AHU 07/94 -> 10/97 12
A6 1.9 TDi AFN 04/97 -> 04/01 12
A6 1.9 TDi AJM 01/98 -> 04/01 12
A6 1.9 TDi AVF, AWX 07/01 -> 12
A6 2.5 TDi AAT, AEL 06/94 -> 10/97 12
A6 2.5 TDi AFB 04/97 -> 07/98 16
A6 2.5 TDi AKN 07/98 -> 05/01 16
A6 2.5 TDi AKE 02/00 -> 16
A6 2.5 TDi AYM 08/01 -> 06/02 16
A6 2.5 TDi BFC 05/02 -> 16
A6 2.5 TDi BFC, BDG, BCZ 07/02 -> 16
A6 2.5 TDI BAU, BDH 02/00 -> 01/05 16
A8 2.5 TDi AFB 06/97 -> 09/98 16
A8 2.5 TDi AKN 07/98 -> 09/98 16
A8 3 TDI ASB 08/03 -> 16
A8 4 TDI ASE 03/03 -> 16
A8 3.3 TDi AKF 09/99 -> 09/02 16
Allroad 2.5 TDi AKE 05/01 -> 16
Cabrio 1.9 TDi 1Z, AHU 07/95 -> 11/00 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
BMW
3-Series 318 (E36) TDS M41 09/94 -> 01/98 2
3-Series 318 Compact (E36) TDS M41 D18U 03/94 -> 07/01 2
3-Series 320 (E46) D M47 D20 04/98 -> 09/01 12
3-Series 320 Compact (E46) TD M47 N204 D4 09/01 -> 12
3-Series 325 (E36) TD M51 09/91 -> 01/98 2
3-Series 325 (E36) TDS M51 08/93 -> 03/98 2
3-Series 330 (E46) Di DDE306, M57 D30 08/99 -> 02/05 12
3-Series 330 (E46) D M57306D1 08/00 -> 02/05 12
3-Series 330 (E46) Di M57 D30 06/00 -> 02/05 12
5-Series 520 (E39) Di M47 D20 06/02 -> 12
5-Series 520 (E39) D M47 D20 02/00 -> 05/02 12
5-Series 524 (E34) TD M21 03/88 -> 09/91 2
5-Series 525 (E39) D M57 D25 02/00 -> 06/03 12
5-Series 525 (E34) TD M51 D25 09/91 -> 12/96 2
5-Series 525 (E34) TDS M51 D25 08/93 -> 01/96 2
5-Series 525 (E39) TDS M51 D25 01/96 -> 06/03 2
5-Series 525 (E39) TDS M51 D25 01/97 -> 06/98 2
5-Series 525 (E39) TDS M57 D25 02/00 -> 05/04 12
5-Series 530 (E39) D M57 D30 05/98 -> 09/00 12
7-Series 725 (E38) TDS M51 D25 02/96 -> 09/98 2
7-Series 730 (E38) D M52 D30H 05/98 -> 12
7-Series 740 (E38) TD M67 D40 01/99 -> 15
X5 2.9 (E53) Di M57 D30 05/01 -> 06/03 12
Chrysler
Grand Voyager 2.5 TD VM HR425 CLIEE 05/95 -> 04/01 12
Jeep Cherokee 2.5 TD VM HR425 CLIRX 10/94 -> 2
Jeep Grand Cherokee 2.5 TD VM HR492/VM 425CLIRE 01/93 -> 2
Jeep Grand Cherokee 2.5 TD ENC 04/99 -> 12
Jeep Grand Cherokee 3.1 TD EXA 04/99 -> 12
PT Cruiser 2.2 CRD EDJ 03/02 -> 15
Voyager 2.2 TD VM HR 492 /VM 425 CLIRE 06/92 -> 01/96 2
Voyager 2.5 TD VM HR 425 CLIEE 04/92 -> 04/95 2
Voyager 2.5 TD VM 05/95 -> 04/01 12
Citroen
AX 1.5 D TUD5 10/94 -> 04/97 12
Berlingo 1.8 D XUD7 08/96 -> 2
Berlingo 1.8 D XUD7 08/96 -> 08/98 2
Berlingo 1.8 TD DW8TD 09/98 -> 12
Berlingo 1.9 D XUD9A 07/96 -> 08/98 2
Berlingo 1.9 D DW8B 07/98 -> 12
Berlingo 1.9 Di XUD9A 09/98 -> 2
C15 1.8 D XUD7 06/95 -> 2
C15 1.9 D DW8B 07/98 -> 12
C25 1.9 D XU9DA 07/87 -> 01/94 2
C25 2.5 TD CRD 93 LS 04/87 -> 01/94 2
C35 2.5 D CRD 93 B 01/80 -> 01/94 2
CX 2.5 TD M25-669,671 01/87 -> 12/92 2
Dispatch 1.9 D XUD9AU 03/94 -> 08/98 2
Dispatch 1.9 D XUD9AU 09/98 -> 12
Dispatch 1.9 TD XUD9TF 03/94 -> 08/98 2
Dispatch 1.9 TD XUD9TF 09/98 -> 12
Dispatch 2.4 D DJ5 03/94 -> 08/98 2
Dispatch 2.4 D DJ5 09/98 -> 2
Dispatch 2.4 TD DJ5T 03/94 -> 08/96 2
Dispatch 2.5 TDi DJ5TED 09/96 -> 15
Evasion 1.9 TD XUD9TF, XUD9BTF 07/94 -> 08/98 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Evasion 1.9 TD XUD9TF, XUD9BTF 09/98 -> 10/02 2
Evasion 2 TD DHX 05/97 -> 10/02 2
Evasion 2.1 TD XUD11BTE 05/96 -> 04/97 2
Evasion 2.1 TD XUD11BTE 05/97 -> 10/02 2
Jumper 1.9 D XUD9AU 03/94 -> 05/95 2
Jumper 1.9 D XUD9, XUD9AU 06/95 -> 2
Jumper 1.9 TD XUD9TF 03/94 -> 2
Jumper 1.9 TD XUD9TF 09/98 -> 2
Jumper 2.5 D DJ5 03/94 -> 2
Jumper 2.5 D DJ5TE 03/94 -> 08/96 2
Jumper 2.5 D DJ5 03/94 -> 2
Jumper 2.5 TD DJ5TE 03/94 -> 12/96 2
Jumper 2.5 TDi DJ5TED 09/96 -> 15
Jumpy 1.9 D XUD9A 09/95 -> 2
Jumpy 1.9 D DW8 07/98 -> 12
Jumpy 1.9 TD XUD9TF 09/95 -> 2
Relay 1.8 D DW8 09/98 -> 12
Relay 1.8 TD DW8TD 09/98 -> 12
Relay 1.9 D XUD9A 09/95 -> 2
Relay 1.9 TD XUD9TF 09/95 -> 08/98 2
Relay 1.9 TD XUD9TF 09/98 -> 2
Saxo 1.5 D TUD5,5B 02/96 -> 10/03 12
Synergie 1.9 TD XUD9TF, XUD9BTF 01/94 -> 08/98 2
Synergie 1.9 TD DW8 09/98 -> 12
Synergie 1.9 TD XUD9TF, XUD9BTF 09/98 -> 2
Synergie 2.1 TD XUD11BTE 05/96 -> 08/98 2
Synergie 2.1 TD XUD11BTE 09/98 -> 2002 2
Visa 1.8 D XUD7 01/87 -> 03/91 2
Xantia 1.9 D XUD9 AL 03/93 -> 01/96 2
Xantia 1.9 D XUD9SD 06/94 -> 2
Xantia 1.9 D XUD9A 02/96 -> 08/98 2
Xantia 1.9 TD XUD9BTF 03/93 -> 08/98 2
Xantia 1.9 TD XUD9BTF 09/98 -> 2
Xantia 2.1 TD XUD11BTE 05/95 -> 08/98 2
Xantia 2.1 TD XUD11BTE 09/98 -> 2
XM 2.1 D XUD 11A,L 05/89 -> 06/95 2
XM 2.1 TD XUD 11ATE,L,BTE 05/89 -> 05/01 2
XM 2.1 TD XUD11ATE,BTE 07/94 -> 08/98 2
XM 2.1 TD XUD11ATE,BTE 09/98 -> 12/00 2
XM 2.5 TD DK5ATE 07/94 -> 05/01 2
Xsara 1.5 D TUD5 09/97 -> 12
Xsara 1.8 D XUD7 09/97 -> 2
Xsara 1.8 TD 09/97 -> 2
Xsara 1.9 D XUD9A 09/97 -> 2
Xsara 1.9 D DW8,8B 04/98 -> 12
Xsara 1.9 D XUD9BSD 09/98 -> 2
Xsara 1.9 TD XUD9TE, XUD9TE/Y 09/97 -> 08/98 2
Xsara 1.9 TD XUD9TE, XUD9BSD 09/98 -> 2
ZX 1.5 D TUD5 10/94 -> 06/98 12
ZX 1.8 D XUD7 05/94 -> 06/98 2
ZX 1.9 D XUD 9A,L 03/91 -> 04/94 2
ZX 1.9 D XUD 9A,L 05/94 -> 06/98 2
ZX 1.9 TD XUD9T,L 09/92 -> 04/94 2
ZX 1.9 TD XUD9T,L 05/94 -> 06/98 2
Daihatsu
Hijet (S85) 1.2 D LDW 05/95 -> 02/98 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
FIAT
Brava 1.9 D 160A7.000 09/95 -> 03/96 2
Bravo 1.9 D 160A7.000 09/95 -> 03/96 2
Croma 2.5 D 8144.67 1990-> 1997 2
Croma 2.5 TD 8144.91.200,8144.97 01/93 -> 12/93 2
Ducato 1.9 D 230.A2.000 03/94 -> 04/02 2
Ducato 1.9 D DJY 04/98 -> 12
Ducato 1.9 TD 280A1.000 01/90 -> 02/94 2
Ducato 1.9 TD 230A4.000 03/94 -> 04/02 2
Ducato 1.9 TD 230A3.001 03/94 -> 04/02 2
Ducato 1.9 TD 230A3.000 03/94 -> 2
Ducato 1.9 TD DHX 04/98 -> 2
Ducato 2.5 TD 03/94 -> 2
Elba 1.7 D 04/89 -> 12/96 2
Fiorino 1.7 D 146.B2.000 1992 -> 2
Fiorino 1.7 TD 146D7.000 1997 -> 2
Marengo 1.9 D 160A7.000 01/92 -> 2
Marengo 1.9 TD 160.A6.000 01/92 -> 12/96 2
Palio 1.7 D 176A3.000 04/96 -> 2
Palio 1.7 TD 176A3.000 04/96 -> 2
Palio Weekend 1.7 TD 176A3.000 07/97 -> 2
Punto 1.7 D 176A3.000 06/93 -> 1999 2
Punto 1.7 D 176A3000, 176B3000 04/94 -> 11/96 2
Punto 1.7 TD 176TD 1697 TT 06/93 -> 09/96 2
Punto 1.7 TD 176B7.000 09/96 -> 09/99 2
Punto 1.7 TD 176A5.000 10/96 -> 09/99 2
Punto 1.7 TDS 176A5000 04/96 -> 02/00 2
Scudo 1.8 D DW8,B 09/98 -> 12
Scudo 1.8 TD DW8TD 09/98 -> 12
Scudo 1.9 D D9B 1995-> 07/98 2
Scudo 1.9 TD D8B 1995-> 07/98 2
Tempra 1.9 D 160 A.000 02/91 -> 09/96 2
Tempra 1.9 D 160A6.000 02/91 -> 09/96 2
Tempra 1.9 TD 160B6.046 07/91 -> 12/96 2
Tempra 1.9 TD 160D.1000 04/93 -> 09/96 2
Tipo 1.9 TD 160D.1000 04/93 -> 09/95 2
Tipo 1.9 TD 160A7.000 06/93 -> 10/95 2
Ulysse 1.9 JTD XUD9TU 09/94 -> 03/99 2
Ulysse 2 TD XUD11 ATE 05/96 -> 2
Ulysse 2.1 TD P8C 08/96 -> 10/99 2
Ford
Courier 1.8 D RTJ,RTK 02/96 -> 07/98 2
Courier 1.8 Di RTP 01/00 -> 12/01 2
Escort 1.8 TD RVA 08/90 -> 07/98 2
Escort 1.8 TD RFS 01/95 -> 02/99 2
Escort Van TD RVA 12/95-06/01 2
Fiesta 1.8 D RTK,RTJ 11/95 -> 2
Fiesta 1.8 D D18NA,RTK,RTJ 11/95 -> 04/00 2
Fiesta 1.8 Di RTQ Endura 01/00 -> 12/01 2
Fiesta 1.8 Di RTN, RTP, RTQ Endura 04/00 -> 2
Fiesta 1.8 TD 11/95 -> 2
Fiesta Van 1.8 D RTK 02/96 -> 2
Fiesta Van 1.8 D RTJ,RTK 05/98 -> 2
Galaxy 1.9 TD 1Z,AHU,ANU 10/95 -> 10/01 12
Galaxy 1.9 TDi AFN 02/95 -> 04/00 12
Galaxy 1.9 TDi AVG 06/99 -> 12
Galaxy 1.9 TDi AUY 04/00 -> 09/01 12
Galaxy 1.9 TDi AHU, 1Z, ANU 10/01 -> 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Galaxy 1.9 TDi AUY 10/01 -> 12
Mondeo 1.8 TDi D18TDi 09/96 -> 09/00 2
Scorpio 2.5 TD SCB,SCC (E2D36) 11/94 -> 06/96 12
Scorpio 2.5 TD SCD 09/96 -> 08/98 12
FSO
Polonez 1.9 D XUD9A 1991 -> 2
Honda
Accord 2 TDi L Series 20TN2 05/95 -> 10/98 12
Accord 2 TDi 02/99 -> 12
Civic 2 D L Series 03/96 -> 2001 12
Civic 2 TDi 20TN2-20T2R 10/97 -> 12
Civic Aerodeck 2 TDi 20T2N 05/98 -> 2001 12
Civic Fastback 2 TDi 20T2N 10/97 -> 02/01 12
Concerto 1.8 TD XUD7T 08/94 -> 10/96 2
Jeep
Cherokee 2.5 TD VM 10/94 -> 2
Cherokee 3.1 TD 09/01 -> 12
Commander 3.0 CRD Mercedes 2006 -> 15
Grand Cherokee 2.5 TD VM 01/93 -> 02/99 12
Grand Cherokee 2.5 TD 03/99 -> 12
Grand Cherokee 2.7 CRD 11/01 -> 12
Grand Cherokee 3.1 TD 03/99 -> 12
Kia
Magentis 2 CRDi D4 EA 04/06 -> 15
Lada
Cossack 1.9 D Peugeot XUD 9L 01/94 -> 2
Hussar 1.9 D Peugeot XUD 9L 01/94 -> 2
Niva 1.9 D Peugeot XUD 9L 01/94 -> 2
Sagona 1.5 D TUD5L 11/96 -> 12
Samara 1.5 D TUD5L 11/96 -> 12
Lancia
Zeta 1.9 TD XUD 9T 04/95 -> 09/02 2
Zeta 2.1 TD P8C 07/96 -> 1999 2
Land Rover
Defender 2.5 (90) TDi 23L 09/90 -> 12/98 15
Defender 2.5 (110) TDi 23L 09/90 -> 12/98 15
Defender 2.5 Td5 06/98 -> 15
Discovery 2.5 TDi 12L 21L 08/96 -> 15
Discovery 2.5 TDi 19L 10/95 -> 15
Freelander 2.0 Di 20TCIE 07/97 -> 11/00 12
Freelander 2.0 Td4 M47 D20 (BMW) 11/00 -> 12
Range Rover 2.5 TDi 14L 08/94 -> 03/02 15
Range Rover 2.5 TDS M51 D25 (BMW) 11/94 -> 03/02 2
Range Rover 3.0 Td6 M57 D30 (BMW) 03/02 -> 12
LDV
200 1.9 D XUD9 10/94 -> 03/96 2
200 2.0 D 1989-> 03/96 2
400 2.5 D 1989-> 03/96 2
400 2.5 TD 1989 -> 10/98 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Pilot 1.9 D XUD9A 04/96 -> 2
Mazda
121 1.8 D RTJ 03/96 -> 2
Mercedes
600 612 - 2.9 TD 602980 08/96 -> 2
C-Class C200 - 2.1 CDi (203) OM611.962 09/00 -> 15
C-Class C200 - 2.1 CDi (203) OM 04/03 -> 15
C-Class C200 - 2.2 CDi (202) OM611.960 03/98 -> 05/00 15
C.Class C200 - 2.2 CDi OM 03/98 -> 05/00 15
C-Class C220 - 2.2 CDi (202) OM611.960 09/97 -> 05/00 15
C-Class C220 - 2.2 CDi (203) OM611.962 05/00 -> 02/04 15
C-Class C220 - 2.2 CDi (203) OM611.962 05/00 -> 02/04 15
C-Class C220 - 2.2 CDi (203) OM646.963 02/04 -> 15
C-Class C270 - 2.7 CDi (203) OM612.962 06/00 -> 15
CLK-Class CLK270 - 2.7 CDi (209) OM612.962/967 10/02 -> 15
E-Class E200 - 2.1 CDi (210) OM611.960 06/98 -> 07/99 15
E-Class E200 - 2.1 CDi (210) OM611.962 07/99 -> 03/02 15
E-Class E200 - 2.1 TD (211) OM 06/02 -> 15
E-Class E220 - 2.2 CDi (210) OM611.961 07/98 -> 06/00 15
E-Class E220 - 2.2 CDi (210) OM611.962 07/99 -> 03/02 15
E-Class E220 - 2.2 CDi (210) OM611.961 03/02 -> 15
E-Class E270 - 2.7 CDi (210) OM612.961 07/99 -> 03/02 15
E-Class E270 - 2.7 CDi (211) OM647,961 04/02 -> 15
E-Class E320 - 3.2 DCi (210) OM613.961 07/99 -> 03/02 15
E-Class E320 - 3.2 DCi 9211) OM648,961 11/02 -> 15
G-Class G270 - 2.7 CDi (463) OM612.966 10/01 -> 15
G-Class G400 - 4.0 CDi (463) OM628.962 09/00 -> 15
ML-Class ML270 - 2.7 CDi (163) OM612.963 02/98 -> 15
ML-Class ML400 - 4.0 CDi (163) OM628.963 09/01 -> 15
S-Class S320 - 3.2 CDi (220) M613.960 01/00 -> 15
S-Class S400 - 4.0 CDi (220) M628.960 01/00 -> 15
Sprinter 2.2 CDi OM611.960 04/00 -> 15
Sprinter 2.2 CDi 04/00 -> 15
Sprinter 2.2 CDi OM611A 04/00 -> 15
Sprinter 2.7 CDi OM612 04/00 -> 15
Sprinter 2.9 D OM602.980.10 (Dela ->9849) 02/95 -> 2
Sprinter 2.9 D OM602.980.12 (Dela->136) 02/95 -> 2
Sprinter 2.9 D OM602.980.10 (Dela ->9849) 04/95 -> 2
Sprinter 2.9 D OM602.980.12 (Dela ->136) 04/95 -> 2
Sprinter 2.9 D OM602.980.10 (Dela ->9849) 04/95 -> 2
Sprinter 2.9 D OM602.980.12 (Dela ->136) 04/95 -> 2
V-Class V200 - 2.0 CDi OM611.960 03/99 -> 09/03 15
V-Class V220 - 2.2 CDi OM611.980 03/99 -> 09/03 15
Viano 2.2 Cdi OM646.982 09/03 -> 15
Viano 2.2 Cdi OM646.982 09/03 -> 15
Vito 2.2 CDi OM611A 03/99 -> 09/03 15
Vito 2.2 Cdi OM646.983 09/03 -> 15
Vito 2.2 CDi OM611.960 03/98 -> 09/03 15
Vito 2.2 Cdi OM646.982 09/03 -> 15
Vito 2.2 CDi OM611.980 03/99 -> 09/03 15
Vito 2.2 Cdi OM646.983 09/03 -> 15
MG
ZR 2.0 TD 06/01-> 12
ZS 2.0 TD 01/04-> 12
ZT 2.0 CDTi 204D2 06/02->09/03 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Mitsubishi
Carisma 1.9 TD F8QT 10/96 -> 2
Nissan
Almera 1.5 dCi 01/03 -> 12
Interstar 1.9 dCi 80 F9Q, 772 07/02 -> 12
March 1.5 D TUD5 10/96 -> 12
Micra 1.5 D TUD5,TUD15 05/98 -> 12/02 12
Micra 1.5 TD K9K 2002-> 12
Note 1.5 dCi lp K9K 03/06 -> 12
Note 1.5 dCi hp K9K 03/06 -> 12
Primastar 1.9 dCi 03/01-> 12
Peugeot
106 1.5 D TUD5,TUD5B 03/94 -> 12
205 1.8 D XUD7 10/83 -> 05/97 2
205 1.8 TD XU7.DT,XUD7 07/85 -> 05/97 2
206 1.9 D DW8,DW8B 07/98 -> 12
306 1.8 D XUD7(CEE95L3) 1994->08/98 2
306 1.8 D XUD7 06/95 -> 08/98 2
306 1.8 D XUD7(CEE95L3) 09/98 -> 03/01 2
306 1.8 D XUD7 09/98 -> 03/01 2
306 1.9 D XUD9 04/92 -> 08/98 2
306 1.9 D XUD9A,L 03/93 -> 03/01 2
306 1.9 D DW8,DW8B 04/98 -> 03/01 12
306 1.9 D XUD9 09/98 -> 03/01 2
306 1.9 TD XUD9TE 03/93 -> 08/98 2
306 1.9 TD XUD9TE 09/98 -> 03/01 2
405 1.9 D XUD9 03/88 -> 01/97 2
405 1.9 D XUD9A 02/97 -> 2
405 1.9 TD XUD9TE,XUD9TF 09/92 -> 01/97 2
406 1.9 TD XUD9BTF,SD,TE 10/95 -> 08/98 2
406 1.9 TD XUD9BTF,SD,TE 09/98 -> 03/99 2
406 2.1 TD XUD11BTE 10/95 -> 08/98 2
406 2.1 TD XUD11BTE 09/98 -> 03/99 2
605 2.1 TD XUD11BTE(CEE95L3) 06/89 -> 08/98 2
605 2.1 TD XUD11BTE(CEE19.5) 06/89 -> 02/00 2
605 2.1 TD XUD11BTE(CEE95L3) 09/98 -> 02/00 2
605 2.5 TD DK5ATE 07/94 -> 08/98 2
806 1.9 TD XUD9TE 07/94 -> 08/98 2
806 1.9 TD XUD9TE 09/98 -> 2002 2
806 2.1 TD XUD11ATE,BTE 05/95 -> 08/98 2
806 2.1 TD XUD11ATE,BTE 09/98 -> 09/99 2
Boxer 1.8 D XUD7 09/98 -> 2
Boxer 1.9 D XUD9 07/95 -> 08/98 2
Boxer 1.9 D XUD9,XUD9AU 09/98 -> 2
Boxer 1.9 TD XUD9TE 03/94 -> 08/98 2
Boxer 1.9 TD XUD9TE,XUD9UTF 09/98 -> 2
Boxer 2.5 D DJ5 03/94 -> 2
Boxer 2.5 DTi DJ5T 03/94 -> 2
Boxer 2.5 DTi DJ5TED 09/96 -> 15
Boxer 2.8 JTD 10/97 -> 2
Expert 1.9 D XUD9A,L 09/95 -> 2
Expert 1.9 D DW8 07/98 -> 12
Expert 1.9 D XUD9A,L 09/98 -> 2
Expert 1.9 TD XUD9TE 09/95 -> 2
J5 2.5 D DJ5 02/94 -> 2
J5 2.5 TD DJ5T 02/94 -> 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Partner 1.8 D XUD7 08/96 -> 08/98 2
Partner 1.8 D XUD7 09/98 -> 2
Partner 1.9 D XUD9A 08/96 -> 08/98 2
Partner 1.9 D DW8 07/98 -> 12
Partner 1.9 D XUD9A 09/98 -> 2
Ranch 1.9 D XUD9A 05/96 -> 08/98 2
Ranch 1.9 D XUD9A 09/98 -> 2
Renault
19 1.9 TD F8Q-740,744 09/90 -> 03/96 2
Avantime 2.2 dCi F9Q 09/01 -> 12
Clio 1.5 DCi K9K65,K9K80,K9K700 06/01 -> 12
Clio 1.5 dCi K9K 768 06/05 -> 12
Clio 1.5 dCi K9K 766 06/05 -> 12
Clio 1.5 dCi K9K 764 06/05 -> 12
Clio 1.9 D F8Q-676,678,692,696 03/91 -> 08/98 2
Clio 1.9 D F9Q.780 03/99 -> 12
Clio 1.9 DTi F9Q.716 02/99 -> 12
Clio 1.9 DTi F9Q.716 03/99 -> 12
Espace 1.9 DTi F9Q-722 02/99 -> 12
Espace 1.9 DCi F9Q-820 11/02 -> 12
Espace 2.1 TD J8S-610,772,776,778 04/91 -> 09/96 2
Espace 2.2 TD G8T- 714,716 10/96 -> 08/00 12
Express 1.9 D F8Q 640,644,646,648,682 09/94 -> 2
Extra 1.9 D F8Q 640 01/96 -> 2
Kangoo 1.5 DCi K9K-710 09/02 -> 12
Kangoo 1.5 DCi K9K-700, 704 12/01 -> 12
Kangoo 1.5 DCi K9K-702 07/02 -> 12
Kangoo 1.9 DTi F9Q-780 02/00 -> 12
Kangoo 1.9 DTi F9Q-790 10/01 -> 12
Laguna 1.5 dCi 10/07 -> 12
Laguna 1.9 DTi F9Q.716 05/98 -> 01/99 12
Laguna 1.9 DTi F9Q710,717,718 01/99 -> 12/00 12
Laguna 1.9 DCi F9QT-750,751,752 01/01 -> 12
Laguna 2 dCi M9R 920 10/07 -> 12
Laguna 2 dCi M9R 920 10/07 -> 12
Laguna 2.2 D G8T-706,752,790,792,794 02/96 -> 06/98 12
Laguna 2.2 TD G8T 01/94 -> 03/01 12
Laguna 2.2 TD G8T-760 02/96 -> 06/98 12
Laguna 2.2 DCi F9Q 03/01 -> 12
Master 1.9 DTi F9Q-770 09/99 -> 12
Master 2.2 DCi F9Q 06/00 -> 12
Master 2.5 D S8U-730,731,742 06/82 -> 07/98 2
Master 2.5 TD So m 8140.27.2580 08/89 -> 07/98 2
Megane 1.5 DCi 09/02 -> 12
Megane 1.9 DCi F9Q 11/03 -> 12
Megane 1.9 D F8Q-620,624 11/95 -> 2
Megane 1.9 D F8Q-620 01/96 -> 2
Megane 1.9 TD F8Q-784 01/96 -> 2
Megane 1.9 DCi F9Q-731,736 01/99 -> 08/02 12
Megane 1.9 DCi F9Q-732,733 03/99 -> 08/02 12
Megane 1.9 DTi F9Q-730,734 03/97 -> 12/98 12
Megane 1.9 DTi F9Q-730,734 04/97 -> 02/99 12
Megane 1.9 DTi F9Q-731,732,736,740 01/99 -> 08/02 12
Megane 1.9 DTi F9Q-731,736 01/99 -> 08/02 12
Megane 1.9 DTi F9Q-744 02/01 -> 08/02 12
Megane 1.9 DTi F9Q-744 02/01 -> 08/02 12
Megane Scenic 1.9 D F8Q-620,624 11/95 -> 02/99 2
Megane Scenic 1.9 Di F9QT-770 06/00 -> 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Megane Scenic 1.9 TD F8Q-784 01/96 -> 09/99 2
Megane Scenic 1.9 TD F9Q-730, 734 01/96 -> 09/99 12
Megane Scenic 1.9 dCi F9Q-730,734 01/96 -> 09/99 12
Megane Scenic 1.9 dCi F9Q-732,733 03/99 -> 12
Megane Scenic 1.9 dCi F9Q-731,736 03/99 -> 09/99 12
Megane Scenic 1.9 dCi F9Q-716, 718 06/00 -> 12
Megane Scenic 1.9 DTi F9Q-731,732,736,740 01/99 -> 12
Megane Scenic 1.9 DTi F9Q-716, -718 03/99 -> 12
Megane Scenic 1.9 DTi F9Q-744 02/01 -> 12
Modus 1.5 dCi 12/04-> 12
Rapid 1.9 D F8Q-640 09/94 -> 03/98 2
Safrane 2.1 TD J8S-760 04/92 -> 10/96 2
Safrane 2.2 TD G8T-740 10/96 -> 11/01 12
Safrane 2.5 TD S8U-762,763 05/93 -> 10/96 2
Scenic 1.5 dCi K9K-722 06/03 -> 12
Scenic 1.5 dCi K9K-728 12/03 -> 12
Scenic 1.9 dCi F9Q-730, 734 01/96 -> 09/99 12
Scenic 1.9 dCi F9Q-731, 736 03/99 -> 09/99 12
Scenic 1.9 dCi F9Q-716, 733 11/00 -> 12
Scenic 1.9 dCi 06/03 -> 12
Scenic 1.9 dCi F9Q-812 06/03 -> 12
Scenic 1.9 dCi 05/05 -> 12
Thalia 1.5 dCi K9K-700 04/02 -> 12
Thalia 1.5 dCi K9K-702 06/01 -> 12
Trac 1.9 dCi F9Q-760, 762 03/01 -> 12
Trac 2.1 D J8S-620,622,758 09/80 -> 10/97 2
Trac 2.1 D 852-750 09/80 -> 10/97 2
Trac 2.5 D So m S8U 10/82 -> 10/97 2
Trac 2.5 D 8140.67.2500 03/90 -> 10/97 2
Rover
25 2 TD 20T 10/99 -> 12
45 2 TD 20T 02/00 -> 12
75 2 CDT M47R (BMW) 04/99 -> 12
75 2 CDTi 204 D2 02/03 -> 12
100 115 - 1.5 D TUD5 03/95 -> 12
200 218 - 1.9 D XUD 9A 03/91 -> 03/00 2
200 218 - 1.9 D XUD9 09/91 -> 03/00 2
200 220 - 2.0 D 20T2N, 20T2R 01/96 -> 03/00 12
400 418 - 1.8 TD XUD 7TE 03/91 -> 03/00 2
400 418 - 1.9 D XUD 9A 03/91 -> 03/00 2
400 420 - 2.0 SD 20T2R 03/96 -> 12
400 420 - 2.0 SDi 20T2N 03/96 -> 12
600 620 - 2.0 TD 20T2N 02/95 -> 06/99 12
800 825 - 2.5 TD VM HR-492/VM 425 SLIRR 01/93 -> 04/95 2
800 825 - 2.5 TD VM425 Slira 05/95 -> 02/99 12
Saab
9-3 2.2 TiD D223L/X22DTH 09/98 -> 11/00 15
9-3 2.2 TiD 11/00 -> 15
Seat
Alhambra 1.9 TDi 1Z,AFN 01/96 -> 12
Alhambra 1.9 TDi AHU 07/96 -> 12
Alhambra 1.9 TDi ANU 03/99 -> 09/01 12
Alhambra 1.9 TDi AVG 06/99 -> 12
Alhambra 1.9 TDi AJM 04/00 -> 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Alhambra 1.9 TDi AUY 06/00 -> 12
Alhambra 1.9 TDi ASZ 11/02 -> 12
Arosa 1.4 TDi AMF 08/99 -> 12
Arosa 1.7 SDi AKU 10/97 -> 12
Cordoba 1.7 SDi 07/97 -> 06/99 12
Cordoba 1.9 D 1Y 05/93 -> 08/99 2
Cordoba 1.9 SDi AEF 03/93 -> 08/99 2
Cordoba 1.9 SDi AEY 01/96 -> 09/02 12
Cordoba 1.9 SDi AQM,AGP 06/99 -> 12
Cordoba 1.9 SDi ASY 10/02 -> 12
Cordoba 1.9 TD AAZ 05/94 -> 08/99 2
Cordoba 1.9 TDi 1Z,AHU,ALH,AGR 08/96 -> 12
Cordoba 1.9 TDi AFN,ASK,ASV 06/97 -> 12
Cordoba 1.9 TDi ASZ 10/02 -> 12
Cordoba 1.9 TDi ATD 10/02 -> 12
Ibiza 1.7 SDi 07/97 -> 08/99 12
Ibiza 1.9 D EAF 03/93 -> 2
Ibiza 1.9 D 1Y 05/93 -> 08/96 2
Ibiza 1.9 SDi AEF 03/93 -> 08/99 2
Ibiza 1.9 SDi AEY 03/93 -> 08/99 12
Ibiza 1.9 SDi AQM,AGP 08/99 -> 12
Ibiza 1.9 TD AAZ 05/93 -> 2
Ibiza 1.9 TDi 1Z,AHU,AFN 08/96 -> 08/99 12
Ibiza 1.9 TDi ALK,ALH,AGR,ASK,ASV 08/99 -> 12
Inca 1.9 D 1Y,1EY 11/95 -> 2
Inca 1.9 SDi AEY,AYQ 11/95 -> 12
Leon 1.9 SDi AQM 11/99 -> 12
Leon 1.9 TDi ALG,AGR 09/99 -> 12
Leon 1.9 TDi ASV,AHF 09/99 -> 12
Leon 1.9 TDi ARL 01/01 -> 12
Toledo 1.9 D 1Y 03/91 -> 10/98 2
Toledo 1.9 SDi AEY 12/95 -> 03/99 12
Toledo 1.9 TD AAZ 03/91 -> 04/97 2
Toledo 1.9 TDi 1Z,AFN 08/96 -> 10/98 12
Toledo 1.9 TDi AGR,AHU,ALH 01/97 -> 12
Toledo 1.9 TDi AHF,ASV 11/98 -> 12
Toledo 1.9 TDI ASZ 05/03-> 12
Toledo 1.9 TDi ARL 01/01 -> 12
Skoda
Fabia 1.4 TDi AMF 04/03 -> 12
Fabia 1.9 SDi ASY 1999-> 12
Fabia 1.9 SDi AGP 12/99 -> 12
Fabia 1.9 TDi ATD 1999-> 12
Fabia 1.9 TDi AJM 12/99 -> 12
Fabia 1.9 TDi AHF 10/00 -> 12
Felicia 1.9 D 1Y 09/96 -> 2
Felicia 1.9 D AEF 1996->06/01 2
Octavia 1.9 D AGP 07/96 -> 12
Octavia 1.9 SDi AEY 09/96 -> 12
Octavia 1.9 SDi AGP,AQM 05/97 -> 12
Octavia 1.9 TDi 1Z 1996->07/00 12
Octavia 1.9 TDi AGR 01/96 -> 12
Octavia 1.9 TDi ALH 07/96 -> 12
Octavia 1.9 TDi AHF 01/97 -> 12
Octavia 1.9 TDi AGR,AHF,ALH,ASV,ATD 08/00 -> 12
Octavia 1.9 TDi AJM, AUY 10/00 -> 12
Octavia 1.9 TDi ATD 10/00 -> 12
Octavia 1.9 TDi ASZ 02/03 -> 12
Pick Up 1.9 D AEF 01/96 -> 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Roomster 1.4 TDI BNM, BMS 09/06 -> 12
Superb 1.9 TDi AVB 08/02 -> 12
Superb 1.9 TDi AVF, AWX 02/02 -> 12
Superb 2.5 TDi AYM 02/02 -> 16
Superb 2.5 TDi BDG 06/03 -> 16
Ssangyong
Korando 2.5 D XD3P 06/93 -> 07/97 2
Suzuki
Baleno 1.9 TD XUD9 02/99 -> 2
Grand Vitara 1.9 DDiS F9Q 10/05 -> 12
Jimny 1.5 DDiS K9K 700 12/03 -> 12
Samurai 1.9 TD RFP 09/98 -> 2
Vitara 1.9 D XUD9 04/96 -> 03/98 2
Vitara 1.9 TD XUD9 11/95 -> 08/98 2
Vitara 1.9 TD XUD9 09/98 -> 2
Vauxhall / Opel
Arena 1.9 D F8Q 07/98 -> 11/99 2
Arena 2.5 TD S8U 09/98 -> 11/99 2
Astra 1.7 D 17YD 08/91 -> 03/04 2
Astra Mk IV 1.7 TD X17DTL 02/98 -> 08/00 2
Astra Mk IV 2 DTi X20DTL, Y20DTL 03/98 -> 03/04 15
Astra Mk IV 2 DTi X20DTH,Y20DTH 08/99 -> 03/04 15
Astra Van 1.7 D 08/83 -> 03/04 2
Astra Van 1.7 D 17D 09/88 -> 08/94 2
Astra Van 1.7 D 17DR 09/93 -> 08/94 2
Astra Van 1.7 TD X17DTL 09/94 -> 03/04 2
Astra Van 2 Di X20DTL 09/98 -> 03/04 15
Brava 2.5 D 03/92 -> 2
Combo 1.7 Di Y17DTL 10/01 -> 2
Corsa Van 1.7 D 17D, X17D 09/93 -> 2
Frontera 2.2 DTi X22DTH 09/98 -> 15
Frontera 2.2 DTi Y22DTH 08/00 -> 15
Frontera 2.5 TD 25TD 09/96 -> 08/98 12
Movano 1.9 DTi F9Q-770 12/99 -> 12
Movano 2.5 DTi S8U 12/99 -> 2
Movano 2.8 DTi S9W 11/98 -> 2
Omega 2 TDi X20DTH 02/98 -> 15
Omega 2.2 DTi Y22DTH 08/00 -> 15
Omega 2.5 TD BMW - X25DT OHC-R6 04/94 -> 2
Signum 2 DTi Y20DTH 05/03 -> 15
Signum 2.2 DTi Y20DTR 05/03 -> 15
Sintra 2.2 DTi X22DTH 09/98 -> 04/99 15
Vectra 1.7 TD X17DT 09/95 -> 12/96 15
Vectra 2 Di X20DTL 08/99 -> 03/02 15
Vectra 2 DTi X20DTH 06/96 -> 02/98 15
Vectra 2 DTi X20DTH 03/98 -> 15
Vectra 2 DTi Y20DTH 08/99 -> 15
Vectra 2 DTi Y20DTH 06/02 -> 15
Vectra 2.2 DTi Y22DTR 07/00 -> 15
Vectra 2.2 DTi Y20DTR 04/02 -> 15
Vivaro 1.9 Di F9Q-770 12/99 -> 12
Vivaro 1.9 DTi F9Q.760 08/01 -> 12
Zara 2 DTi X20DTL 05/99 -> 15
Zara 2.2 DTi X22DTL 09/99 -> 15
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
VW
Beetle 1.9 TDi ALH, AGR 11/98 -> 09/00 12
Beetle 1.9 TDi ATD 10/00 -> 10/01 12
Beetle 1.9 TDi ATD 11/01 -> 12
Beetle 1.9 TDi AXR 03/03 -> 12
Bora 1.9 SDi AGP, AQM 09/98 -> 12
Bora 1.9 TDi AHF, ALH, AGR, ASV, AJM, AUY, ANU 10/98 -> 06/01 12
Bora 1.9 TDi ARL 05/00 -> 10/01 12
Bora 1.9 TDi ARL 11/01 -> 12
Bora 1.9 TDi ASZ (Ch No ->172.600000) 11/01 -> 12
Bora 1.9 TDi ASZ (Ch No 172.600001->) 11/01 -> 12
Bora 1.9 TDi ATD 11/01 -> 12
Bora 1.9 TDi AXR 11/01 -> 12
Caddy 1.7 SDi AHB 10/96 -> 12
Caddy 1.9 D 1Y, AEF 01/96 -> 02/04 2
Caddy 1.9 SDi AEY 11/95 -> 02/04 12
Caddy 1.9 TDi AHU, ALE 08/96 -> 02/04 12
California 1.9 TD ABL 08/92 -> 03/98 2
California 2.4 D AAB 09/90 -> 04/98 2
California 2.4 D AJA 05/97 -> 03/98 2
California 2.5 TDi ACV 08/95 -> 12
California 2.5 TDi AJT 05/98 -> 12
Caravelle 1.9 D 09/90 -> 04/96 2
Caravelle 2.5 TDi 08/95 -> 12
Eurovan 2.4 SDi 10/92 -> 2
Eurovan 2.5 SDi 01/95 -> 12
Fox 1.4 TDi BNM 04/05 -> 12
Golf 3 1.9 D 1Y 09/91 -> 08/98 2
Golf 3 1.9 TD AAZ 09/91 -> 08/98 2
Golf 3 1.9 SDi AEY 09/93 -> 02/99 12
Golf 3 1.9 TDi 1Z,AHU,ALE 09/91 -> 07/96 12
Golf 3 1.9 TDi AFN 09/93 -> 02/99 12
Golf 4 1.9 D 1Y 10/97 -> 02/99 2
Golf 4 1.9 Di ANU 01/99 -> 03/04 12
Golf 4 1.9 TD AAZ 10/97 -> 02/99 2
Golf 4 1.9 SDi AEY 10/97 -> 02/99 12
Golf 4 1.9 SDi AGP,AQM 07/97 -> 03/04 12
Golf 4 1.9 TDi AFN,AHF,ASV 10/97 -> 06/01 12
Golf 4 1.9 TDi AGR,ALH,AHU 09/97 -> 06/01 12
Golf 4 1.9 TDi ASZ 01/98 -> 10/01 12
Golf 4 1.9 TDi AJM,AUY 04/98 -> 06/01 12
Golf 4 1.9 TDi ARL 05/00 -> 10/01 12
Golf 4 1.9 TDi ATD 10/00 -> 03/03 12
Golf 4 1.9 TDi AVF 07/01 -> 03/03 12
Golf 4 1.9 TDi ARL 11/01 -> 03/03 12
Golf 4 1.9 TDi ASZ 11/01 -> 03/03 12
Golf 4 1.9 TDi ATD 11/01 -> 03/03 12
Golf 4 1.9 TDi AXR 11/01 -> 03/03 12
Golf Van 1.9 D 08/92 -> 2
LT28 2.4 TD ACL 09/92 -> 08/96 2
LT28 2.5 SDi AGX 05/96 -> 12
LT28 2.5 TDi AHD, ACV 05/96 -> 08/99 12
LT28 2.5 TDi ANJ, AVR 01/99 -> 12
LT28 2.5 TDi APA 05/99 -> 12
LT35 2.4 TD ACL 09/92 -> 08/96 2
LT35 2.5 SDi AGX 05/96 -> 04/01 12
LT35 2.5 TDi AHD 05/96 -> 08/99 12
LT35 2.5 TDi ANJ, AVR 01/99 -> 12
LT35 2.5 TDi APA 05/99 -> 12
LT40 2.4 D 1S, ACT 08/89 -> 04/96 2
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
LT40 2.4 TD 1G 02/83 -> 04/96 2
LT45 2.4 TD ACL 09/92 -> 08/96 2
LT46 2.5 TDi ANJ 01/99 -> 12
LT46 2.5 TDi APA 05/99 -> 12
Lupo 1.2 TDi ANY 06/99 -> 11/00 12
Lupo 1.2 TDi AYZ 11/00 -> 10/01 12
Lupo 1.2 TDi ANY, AYZ 11/01 -> 12
Lupo 1.4 TDi AMF 01/99 -> 10/01 12
Lupo 1.4 TDi AMF 11/01 -> 12
Lupo 1.7 SDi AKU 10/98 -> 12
Multivan 1.9 TD ABL 09/92 -> 04/98 2
Multivan 1.9 TDi AXB 04/03 -> 12
Multivan 2.4 D AAB 09/90 -> 04/98 2
Multivan 2.4 D AJA 05/98 -> 2
Multivan 2.5 TDi ACV 08/95 -> 12
Multivan 2.5 TDi AJT 05/98 -> 12
Multivan 2.5 TDi AXE 04/03 -> 12
Multivan 2.5 TDi AXD 04/03 -> 12
Passat 1.9 TD AAZ 03/90 -> 10/96 2
Passat 1.9 TDi 1Z, AHU, AHH 10/93 -> 12/00 12
Passat 1.9 TDi AFN, AVG 10/96 -> 12/00 12
Passat 1.9 TDi AJM, AWX, ATJ 10/98 -> 12
Passat 1.9 TDi AVB, ATD 11/00 -> 10/01 12
Passat 1.9 TDi AVF 01/01 -> 10/01 12
Passat 1.9 TDi AVF,AWX, AVB 11/01 -> 12
Passat 2.5 TDi AFB, AKN 08/98 -> 16
Phaeton 5 TDi AJS 11/02 -> 12
Polo 1.4 TDi AMF 04/99 -> 09/01 12
Polo 1.4 TDi AMF, BAY, ATD, AXR 10/01 -> 12
Polo 1.7 SDi AHB 01/96 -> 12/99 12
Polo 1.7 SDi AHG, AKU, AKW 05/97 -> 09/01 12
Polo 1.7 SDi AKW 11/97 -> 12
Polo 1.7 SDi AKU 10/99 -> 04/00 12
Polo 1.9 D 1Y, AEF 12/95 -> 09/01 2
Polo 1.9 SDi AEY, AGD 07/96 -> 09/01 12
Polo 1.9 SDi AQM 09/99 -> 09/01 12
Polo 1.9 TDi AHU, ALE 08/96 -> 08/99 12
Polo 1.9 TDi AFN, ATD 06/98 -> 08/01 12
Polo 1.9 TDi ALH, AGR 09/99 -> 08/01 12
Sharan 1.9 TDi 1Z,AHU, ANU 09/95 -> 10/01 12
Sharan 1.9 TDi AFN,AVG 09/95 -> 04/00 12
Sharan 1.9 TDi AUY 03/00 -> 10/01 12
Sharan 1.9 TDi AUY, AHU, ANU 11/01 -> 12
Sharan 1.9 TDi ASZ 11/02 -> 12
Touareg 2.5 R5 TDI BAC 01/03-> 12
Touareg 5 TDi 10/02 -> 12
Transporter 1.9 TD ABL 09/92 -> 04/98 2
Transporter 2.4 D ACT 02/92 -> 2
Transporter 2.4 D AJA 04/97 -> 04/98 2
Transporter 2.4 TD 1G 08/88 -> 04/96 2
Transporter 2.5 TDi ACV 08/95 -> 04/98 12
Transporter 2.5 TDi AHY, AJT 05/98 -> 12
Transporter 2.5 TDi AUF 11/99 -> 12
Transporter 2.5 TDi AYC 09/00 -> 12
Transporter 2.5 TDi AYY 10/01 -> 12
Vento 1.9 D 1Y 09/91 -> 10/98 2
Vento 1.9 TD AAZ 09/91 -> 10/98 2
Vento 1.9 SDi AEY 01/95 -> 07/97 12
Vento 1.9 TDi 1Z 10/93 -> 07/96 12
Vento 1.9 TDi AHU, AFN, ALE 08/96 -> 10/98 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Volvo
360 1.8 D XUD7 09/98 -> 2
440 1.9 TD F8Q, D19T 01/93 -> 12/96 2
460 1.9 TD F8Q, D19T 01/93 -> 08/97 2
850 2.5 TDi D5252T 08/95 -> 12/98 12
940 2.4 TDi D24TIC 01/94 -> 05/97 2
S40 1.9 DI D4192T3 03/99->07/00 12
S40 1.9 TD F8Q 05/96 -> 08/99 2
S40 1.9 TDi D4192T (F8QT) 09/96 -> 08/99 2
S60 2.5 TDi D5252T 10/01 -> 12
S70 2.5 TDi D5252T 12/96 -> 11/00 12
S80 2.5 TDi D5252T 07/98 -> 12
V40 1.9 DI D4192 T2 03/99->07/00 12
V40 1.9 TD F8Q Kombi 01/96 -> 08/99 2
V40 1.9 TD D4192T (F8QT) 09/96 -> 08/99 2
V40 1.9 TD D4192T2 03/99 -> 08/99 2
V70 2.5 TDi D5252T 12/96 -> 11/00 12
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
4. INSTRUCTIONS
4.1. OVERVIEW OF COMPRESSION TESTING.
4.1.1. When an engine’s performance is down, or if misring occurs which cannot be attributed to the ignition or fuel systems, a
compression test can provide diagnostic clues as to the engine’s condition.
4.1.2. Compression should build up quickly in a healthy engine.
4.1.3. A very low compression reading on the rst stroke, followed by gradually increasing pressure on successive strokes, indicates worn
piston rings.
4.1.4. A low compression reading on the rst stroke, which does not build up during successive strokes, indicates leaking valves or a
faulty head gasket (a cracked head could also be the cause).
4.1.5. Deposits on the undersides of the valve heads can also cause low compression.
4.1.6. If the pressure in any cylinder is considerably lower than the others, introduce a small quantity of clean oil into that cylinder through
the glow plug hole, and repeat the test. If the addition of oil temporarily improves the compression pressure, this indicates that bore
or piston wear is responsible for the pressure loss. If there is no improvement, it suggests that the leakage is around the valves, or a
faulty head gasket.
4.1.7. A low reading from two adjacent cylinders suggests a faulty head gasket between the two cylinders. The presence of coolant in
the engine oil will conrm this.
4.1.8. If the compression is unusually high, the combustion chambers are probably coated with carbon deposits. If this is the case, the
cylinder head should be removed and de-carbonised.
4.1.9. As a rough guide, engines having a compression pressure in excess of 100psi (6.9 bar), should not exceed a compression loss of
more than 10psi (0.69 bar). On older engines with lower compression pressure, loss should not exceed 0.35 bar (5psi).
4.2. COMPRESSION TESTING.
4.2.1. Check the engine oil is at the correct level.
4.2.2. Remove all of the glow plugs from the engine.
4.2.3. Select the applicable adaptor and screw it into the rst glow plug port, ensuring there is a good seal with the O-ring (if tted). Connect
the coupling on the pressure gauge hose to the adaptor, ensuring it locks into place.
4.2.4. Turn over the engine using the starter motor and observe the gauge, looking for a steady increase in the reading, and note
the maximum reading obtained. Refer to the vehicle/engine manufacturer’s workshop manual for compression results data.
4.2.5. Depress the Re-set Valve (situated under the gauge) to release the pressure. The Re-set Valve allows the test to be repeated if
required without disconnecting the tester from the glow plug port.
WARNING! Always release pressure via the Re-set Valve BEFORE disconnecting the Tester.
4.2.6. Disconnect the compression tester from the adaptor and remove the adaptor from the glow plug port. Install them into the next
cylinder’s glow plug port and repeat the tests. Continue the tests for all of the remaining cylinders in turn.
NOTE: A variation in compression readings between cylinders is often a better indication of engine problems than the individual values of
compression.
4.3. TDC INDICATOR TOOL.
4.3.1. Remove the glow plug from cylinder number 1. It may also be necessary to remove all glow plugs to facilitate manual turning over
of the engine.
4.3.2. Select the applicable adaptor from one of the accompanying kits and screw it into the glow plug port of cylinder number 1. Ensure
that there is a good seal with the O-ring (if tted). Connect the coupling on the TDC nder to the adaptor, ensuring it locks into
place.
4.3.3. Position the indicator in a vertical position, in a suitable viewable location, using the magnetic hook if needed.
4.3.4. Turn the engine over manually, using a spanner or socket on the crankshaft pulley, in the direction of engine rotation and watch for
the oat to rise in the tube. As the piston rises on the compression stroke, the oat will rise to the top of the tube and stay there,
when the piston goes past TDC and compression is lost, the oat will suddenly sink. Note position and temporarily make
suitable marks to indicate TDC, or compare with existing timing marks.
4.3.5. Turn the engine over a further 1¾ turns and the oat should start to rise again as the piston rises on the compression stroke.
Continue to slowly turn the crankshaft towards TDC (watching the timing marks) - note the exact point when the oat drops. Alter
the timing mark if required.
4.3.6. Repeat the procedure, turning the engine over a further 2 turns to re-check for accuracy.
4.3.7. Disconnect the TDC tool from the adaptor and remove the adaptor from the glow plug port.
VSE3151 Issue 2 04/04/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
REGISTER YOUR
PURCHASE HERE
