WHEEL BEARING REMOVAL/INSTALLATION KIT
MODEL NO: VS7020.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using
tools.
8 DO NOT use tools if damaged or worn.
9 Maintain the tools in good and clean condition for best and safest performance.
9 Ensure all threads are clean and well lubricated.
9 Ensure vehicle is adequately supported with axle stands, ramps, etc. as appropriate.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Account for all tools and parts being used and DO NOT leave them in or on the vehicle.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or proprietary manual, to establish the correct
procedure and data for the specific vehicle you are working on. These instructions for use are provided as a guide only.
2. INTRODUCTION
Comprehensive kit of tools for the fast and effective removal and installation of wheel bearings on front-wheel drive vehicles. Reduces chances
of damage to hub and bearing. Heavy-duty steel drifts with phosphate coating to prevent corrosion. Heavyweight drive screw for use with impact
tools. Also suitable for removing and installing large industrial bearings. Supplied in storage case.
3. SPECIFICATION
Model No: .............................................................VS7020.V3
Drift sizes:
....Ø50, 55, 60, 64, 67, 70, 72 (x2), 73, 75, 78, 82, 84, 88mm
External sleeve diameter: ....................... Ø76, 86, 92, 101mm
Hub screw size: ...................................210 x 32, 210 x 38mm

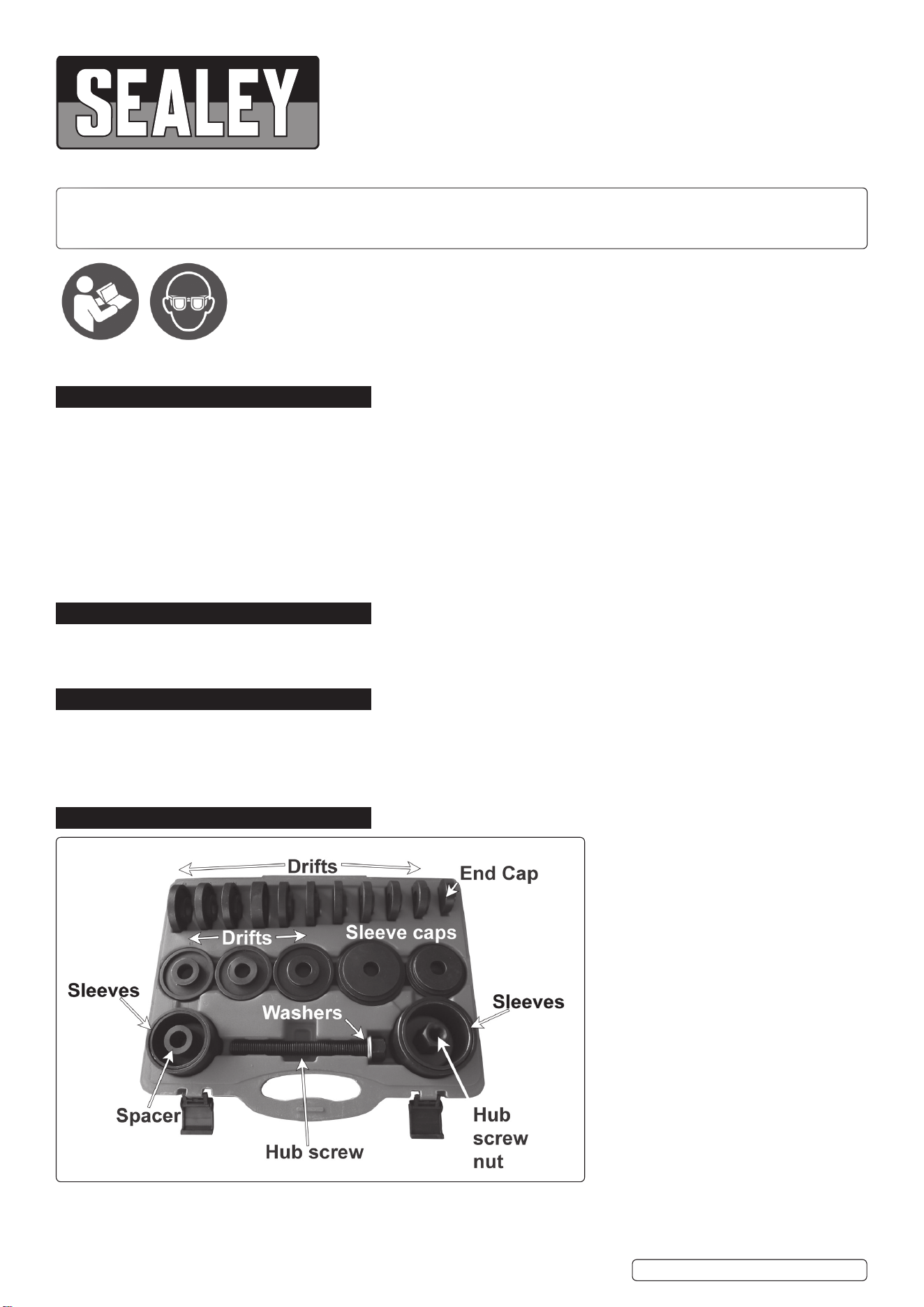

4. CONTENTS
4.0.1.
Refer to
instruction
manual
Wear eye
protection
VS7020.V3 Issue:3 ( H,F) 16/01/24
Original Language Version
© Jack Sealey Limited
5. OPERATION
Original Language Version
© Jack Sealey Limited
VS7020.V3 Issue:3 ( H,F) 16/01/24
1. HUB SCREW NUT 5. VEHICLE HUB
2. WASHER 6. SLEEVE
3. DRIFT 7. SLEEVE CAP
4. BEARING 8. HUB SCREW

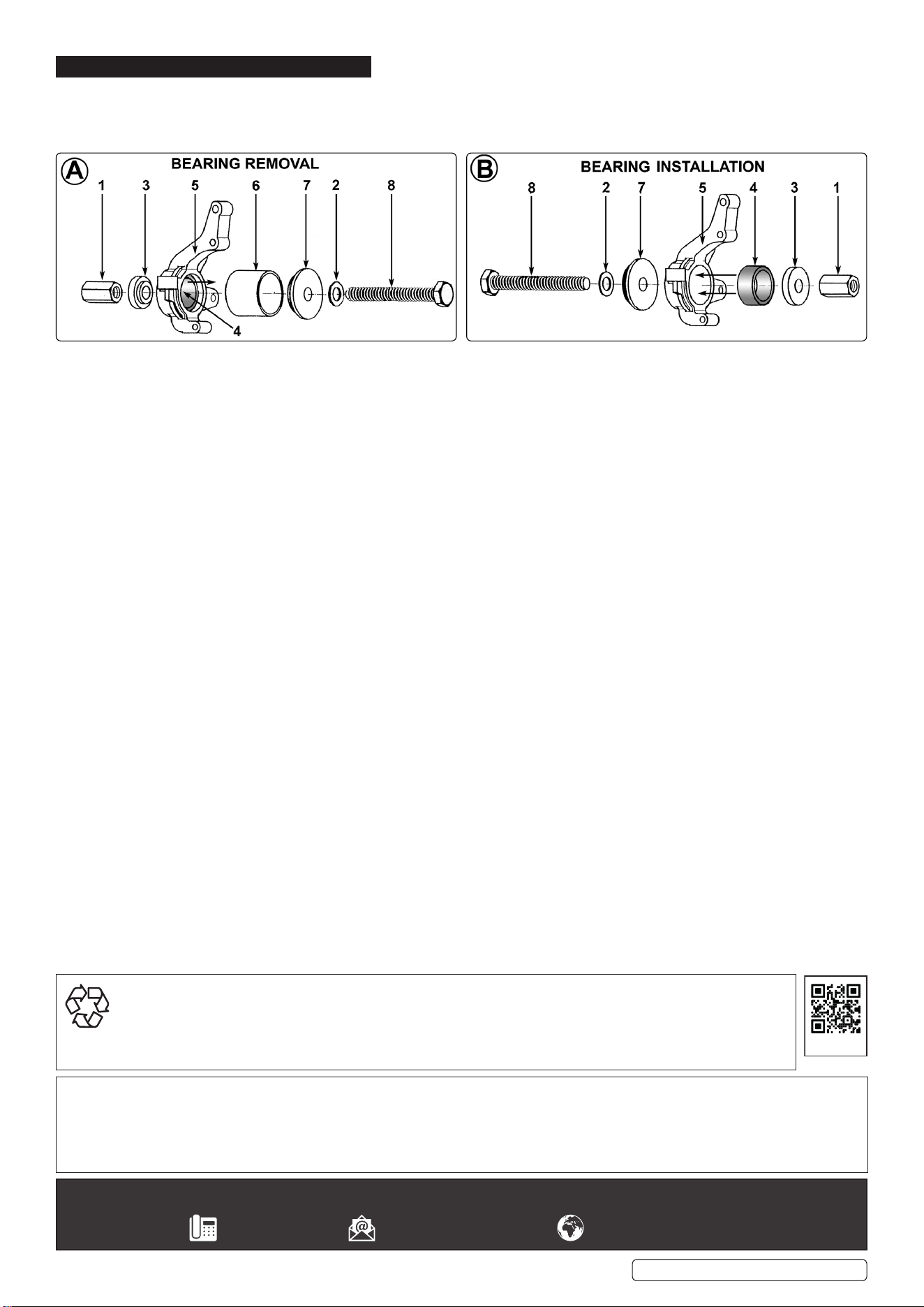

BEARING REMOVAL: Identify the correct sleeve (6) to sit on the
Outside of the bearing housing and the correct drift (3) to drive the
Bearing from the housing. Assemble as shown in g.1A using the
correct sleeve cap (7). Keep the hub screw and nut well lubricated
whilst driving out the bearing.
BEARING INSTALLATION: Identify the correct sleeve cap (7) to sit on
the outside of the bearing housing and the correct diameter drift (3) to
drive the new bearing into the housing. Assemble as shown in g.1B.
Keep the hub screw and nut well lubricated whilst driving the new
Bearing into the housing. The 50mm end cap is used to locate into the
back of the drifts; they can then be used in a workshop press when it is
not possible to use the hub screw.
