Haier HWM75TLU Washer

User Manual

For HWM75TLU.

PDF File Manual, 16 pages, Read Online | Download pdf file

HWM75TLU photo
background
HWM75TLU
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...

Other documents for Haier HWM75TLU

The following documents are available:
User Manual Photos

Specifications

User Manual - Transcript

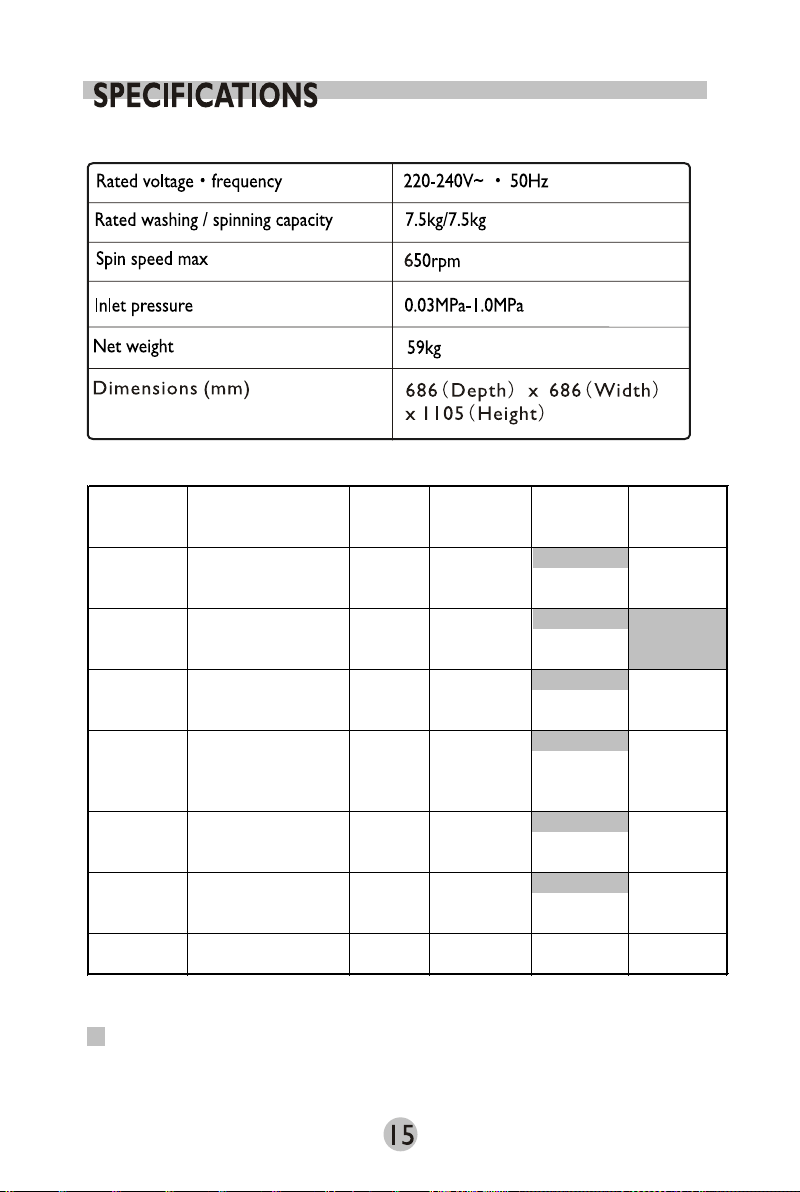

  • Page 2 - English - : TABLE OF CONTENTS PAGE IMPORTANT SAFETY INSTRUCTIONS23 OPERATING INSTRUCTIONS4 Parts and Features4 Operating instructions5 CARE AND CLEANING GUIDE7 Cleaning and Maintenance7 Moving amp Vacationing 8 TROUBLE SHOOTING8 INSTALLATION INSTRUCTIONS10 Tools and Materials Required10 Unpacking Your Washer11 Levelling Your Washer11 Steps for Installation12 ELECTRICAL REQUIREMENTS 14 Power Interruptions14 SPECIFICATIONSBack Cover
  • Page 3 - English - : IMPORTANT SAFETY INSTRUCTIONS Warning To reduce the risk of fire electric shock or injury when using your appliance follow basic precautions including the following 1 Read all instructions before using the appliance 2This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance 3 Use this appliance only for its intended purpose as described in this user and care guide 4 Use only detergents or softeners recommended for use in this appliance and keep them out of the reach of children 5 This appliance must be properly installed in accordance with the installation instructions before it is used 6 Never unplug your appliance by pulling on the power cord Always grasp the plug firmly and pull straight out from the outlet 7 Replace worn power cords loose plugs and power outlets immediately 8 Unplug your appliance before cleaning or before making any repairs Repairs should only be done by authorised technician 9 Do not operate your appliance when parts are missing or broken 10 Do not tamper with controls 11 Do not operate your appliance in the presence of explosive fumes or toxic flammable vapours o 12 Do not use hot water that exceeds 60 C in temperature This refers to hot water entering the machine If temperature cannot be controlled use WARM wash only
  • Page 4 - English - : 13 Do not use this appliance to wash clothes which are stained spotted or washed in gasoline dry cleaning solvents or any other explosive or flammable substances that could ignite and explode 14 Do not add or mix any flammable or explosive substances to the wash 15 Do not try to remove clothes while the washer is in motion Wait until it comes to a complete stop 16 The lid must be closed when the machine is in operation 17 Do not use this appliance for commercial applications 18 Do not operate this appliance unless all panels are properly intact 19 The appliance is not to be used by children without adult supervision 20 This appliance must be connected to an approved electrical outlet with 220240V power source 21 Do not repair or replace any part of the appliance this can only be done by an authorised technician 22 To reduce the risk of electric shock or fire do not use extension cords or adapters to connect the unit to electrical power source 24Use the hoses provided For washing machines having ventilation openings in the base the installation instructions shall state that the openings must not be obstructed by a carpet 25 If this appliance is supplied from a cord extension set or electrical portable outlet device the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture

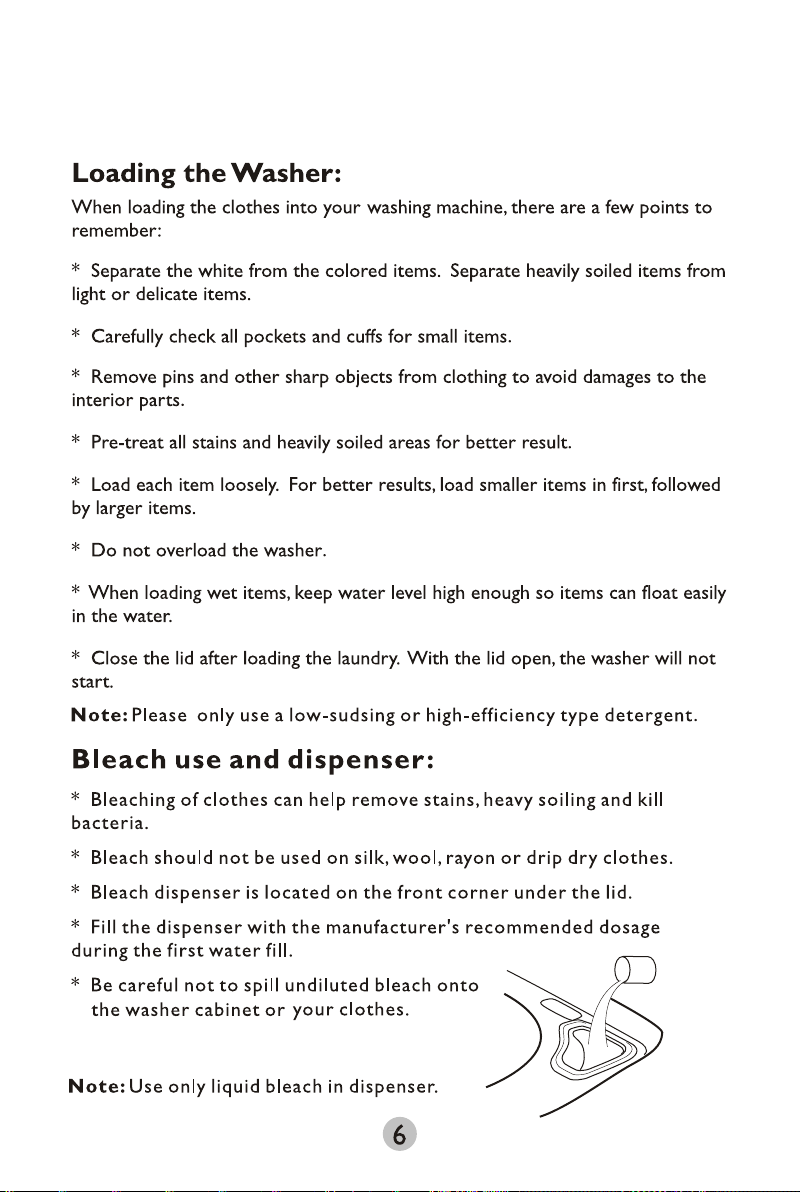

  • Page 7: Temp WarmCold Load SizeSuperProgram Select Normal Energy Label Program
  • Page 8 - English - : Add Fabric softenerif desired 1 Mix fabirc softener with an equal amount of warm but mix only enough to ll to the line marked inside the fabric softener dispenser 2 Pour the diluted fabric softener mixture into the hole on the top of the agitator Notes Fabirc softener will automatically be dispensed before the deep rinse cycle To avoid staining do not overll the dispenser or spill fabirc softener onto the lanudry When using fabirc softener do not stop the washing machine during the spray rinse cycle
  • Page 9 - English - : Moving amp Vacationing Turn off water supply at the faucet and disconnect hoses Drain water from all hoses Disconnect electrical plug Dry inner wash tub If moving washer disconnect drain hose Turn the leveling legs clockwise all the way in Move and store your washer in upright position only To prevent mold or mildew leave lid open so moisture inside machine can evaporate Insert transporting bolts if you are relocating the washer Ensure removal prior to usage If washer does not operate Check the unit is plugged in The plug may have come loose Check if the electrical wall receptacle is of proper voltage Check if the circuit breaker needs to be reset or if the fuse needs replacing Check if the washer is overloaded load may need to be rearranged or redistributed evenly Check if the lid is open You may have to close the lid properly The washer pauses in some cycles This is normal in delicate or hand wash cycles which has short period of time You will not hear washer operation for a short period of time When the soak time is over it will start automatically Problems with water Not enough water coming out Water faucet may need to be completely turned on Hoses may be tangled or kinked Straighten out hoses Check water level selection it may need to be readjusted TROUBLE SHOOTING
  • Page 10 - English - : Water temperature is incorrect Check your water heater temperature Hot water needs to be at a temperature of at least 120 F 140 F49 C60 CCheck to make sure the inlet hoses are properly connected Eg Hot to hot amp cold to cold Water leaks This may be due to incorrectiy installed drain hose or fill hoses Your home drain may be clogged You may need to tighten hoses check the plumbing or call a plumber for assistance Water will not drain This may be due to not installing your drain hose correctly Check the position of the drain hose In order to drain properly make sure that top of drain outlet is less than 5 ft 15 m above the floor Washer is making noise Washer may need to be reinstalled Check washer installation section Washer load may need to be rebalanced as the load may be uneven Coins loose change buttons or other heavy objects could create noise related sounds Squealing sound Due to overloaded wash tub Vibration Noise may be caused by not leveling washer properly on the floor or uneven distribution of clothes in the tub The following sounds are normally heard during the operation of the washer Tumbling sounds This is normal as the heavy wet clothes in the washer are continuously being lossed around Air rushing noise This happens when the washer tub spins at very high speeds Wash and Rinse cycles going on and off will also make clicking sounds Normal Operating Sounds
  • Page 11 - English - : LED Display Notes Trouble Codes Problems with clothes Clothes become excessively creased this is due to improper sorting overloading or washing in excessively hot water repeatedly Avoid overloading and resort your load Wash in cooler water Soap residue detergent may not be dissolved in water Check water temperature add detergent as wash tub is being filled with water Reduce detergent dosage or predissolve detergent before adding to wash Spots or stains on your clothes this is due to incorrect use of fabric softener Refer to manufacturers instructions on the container and follow directions Clothes are grayed or yellowed this may be due to not using sufficient detergent for large loads Add more detergent to the load Clothes are ripped amp have holesexcessive wear amp tear this may be due to sharp objects left in washing Remove all small loose sharp objects fasten belts zippers metal snaps etc Check if you are using undiluted bleach Never add undiluted bleach to wash Reasons Rinse and spin indicators flash All progress indicators flash Super and Largeload size water level indicators flash Beeps Unit does not drain or the speed of draining is too slow The washer is out of balance Please open the lid and rebalance the load The water inlet time exceeds the preset time Water overflow protection The water level sensor fault Call service Top lid not close properly INSTALLATION INSTRUCTIONS Tools and Materials Required You will need to have following tools to help you with the installation of your washer Pliers WrenchTape Measure GlovesLevel All load size water level indicators flash Small and Extra Small load size water level indicators flash
  • Page 12 - English - : Quantity Accessories Supplied 1Hot amp Cold inlet hoses 2Drain Hose Hook 3Pipe Clipbrace 4Outer Drain Hose Unpacking Your Washer Remove all packing materials This includes the foam base and all adhesive tape holding the washer accessories inside and outside Open the top lid to remove the drum brace Pull to remove NOTE Save drum brace Reinstall when moving the washer Inspect and remove any remains of packing tape or printed materials before using the washer WARNING To avoid danger of suffocation keep plastic bag and other packing material away from babies and children Do not use this bag in cribscarriages and playpens The plastic bag could block nose and mouth and prevent breathing This bag is not a toy Leveling Your Washer Your washer has 4 leveling legs which are located on the four bottom corners After properly placing your washer in its final position you can level your washer Leveling legs can be adjusted by turning them counterclockwise to raise your washer or turning them clockwise to lower your washer WARNINGLeveling of washer is very important to prevent vibration during spin Adjustable foot High Low

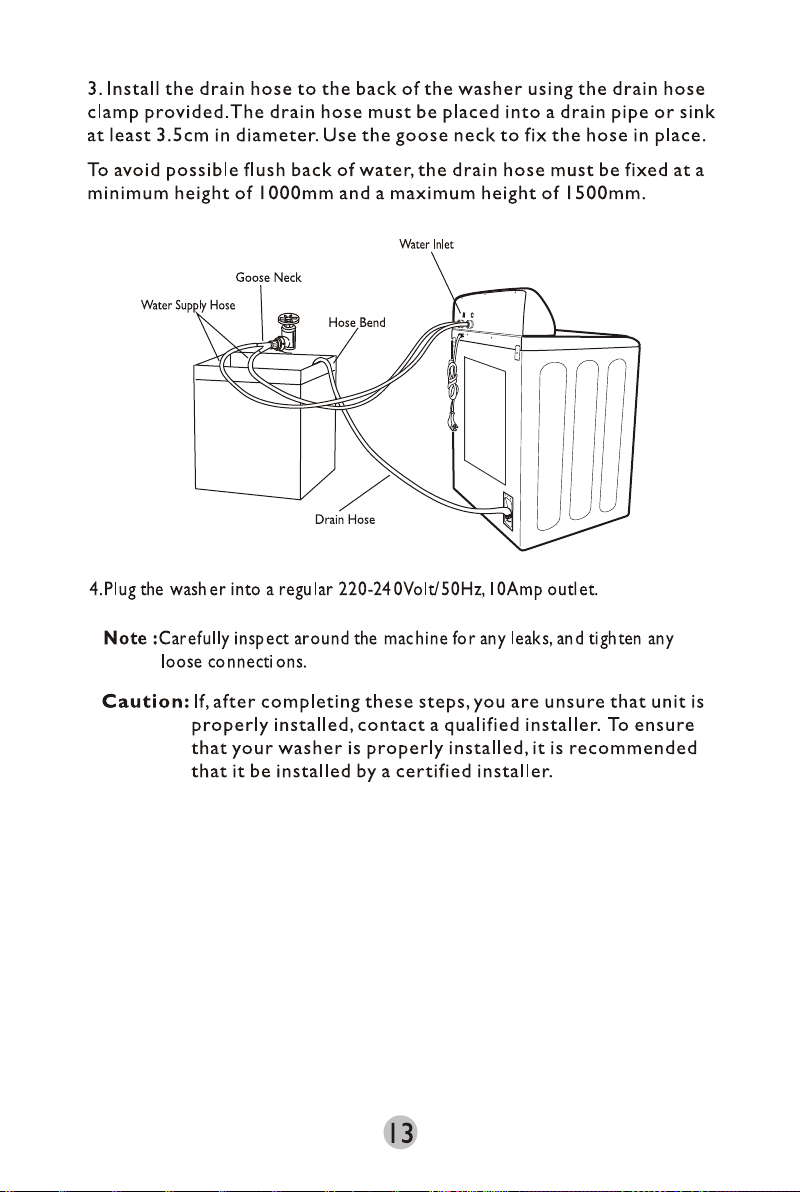

  • Page 13 - English - : Hot water inlet hose Cold water inlet hose Steps for Installation Select a suitable location for the washer on a hard even surface away from direct sunlight or heat source eg radiators baseboard heaters cooking appliances etc Any floor unevenness should be corrected with the leveling legs located on the bottom corners of the washer The washer must be placed at room temperature You must not place washer where the temperature is at below freezing For this machine having ventilation openings in the base make sure the openings must not be obstructed by a carpet Installing Your Washer Read installation instructions carefully before installation 1 Do not use water inlet hoses without a flat washer on each end The washer in the coupling has to be placed firmly Flat water inlet hose washers are preinstalled in each end of the water inlet hoses New hosesets supplied with the appliance are to be used and that old hosesets should not be reused NOTE You may have to use pliers to tighten the coupling Do not over tighten because you may cause damage to the valve 2 Connect the hot and cold water inlet hoses to the hot and cold water faucet
  • Page 15 - English - : ELECTRICAL REQUIREMENTS Earthing Instructions This appliance must be grounded In the event of an electrical short circuit grounding reduces the risk of electric shock by providing an escape wire for the electric current This appliance is equipped with a grounding wire with a grounded plug The plug must be inserted into an outlet that is properly installed and grounded Improper use of the plug can result in a risk of electric shock Consult a qualified electrician or service person if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded Wiring Requirements The washer must be plugged into at least 10AMP 220240 VOLT 50 HZ GROUNDED OUTLET If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard Note If a standard twoprong outlet is encountered it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded threeprong outlet Extension Cords We d o not re c omm e nd th at you u se an e xte n sion c ord CAUTION If this appliance is supplied from a cord extension set or electrical portable outlet device the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture Power Interruptions Occasionally there may be power interruptions due to thunderstorms or other causes Remove the power cord from AC outlet when a power outage occurs When power has been restored replug power cord to AC outlet If outage is for a prolonged period clean washer before using it again
  • Page 16 - English - : NoteDefault settings when you choose this program after power on These times are for reference only and may not match your model exactly Default settings Cycle Fabric Type Wash Process Estimated TimeMin Temp Extra Rinse Option Wash WarmCold Rinse HotCold Spin ColdCold Wash HotCold Rinse WarmCold Spin ColdCold Wash ColdCold Rinse WarmCold Spin HotCold Soak WarmCold Wash HotCold Rinse Spin Wash WarmCold Rinse HotCold Spin ColdCold Wash WarmCold Rinse Spin Spin Only Clean soaking wet garments Spin 125 Quick CottonsLinens and mixed garments Delicate Lingerie sheer fabrics with lace trim Heavy Duty heavily soiled durable colorfast fabrics ColdCold Colors Dark and color dyed fabrics Whites White garments Normal CottonsLinens and mixed garments optional
