Haier HWMP95TLU Washer

User Manual

For HWMP95TLU.

PDF File Manual, 16 pages, Read Online | Download pdf file

HWMP95TLU photo
background
Washing Machine
USE & CARE GUIDE
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...

Other documents for Haier HWMP95TLU

The following documents are available:
User Manual Photos

Specifications

User Manual - Transcript

  • Page 1: Washing Machine USE amp CARE GUIDE

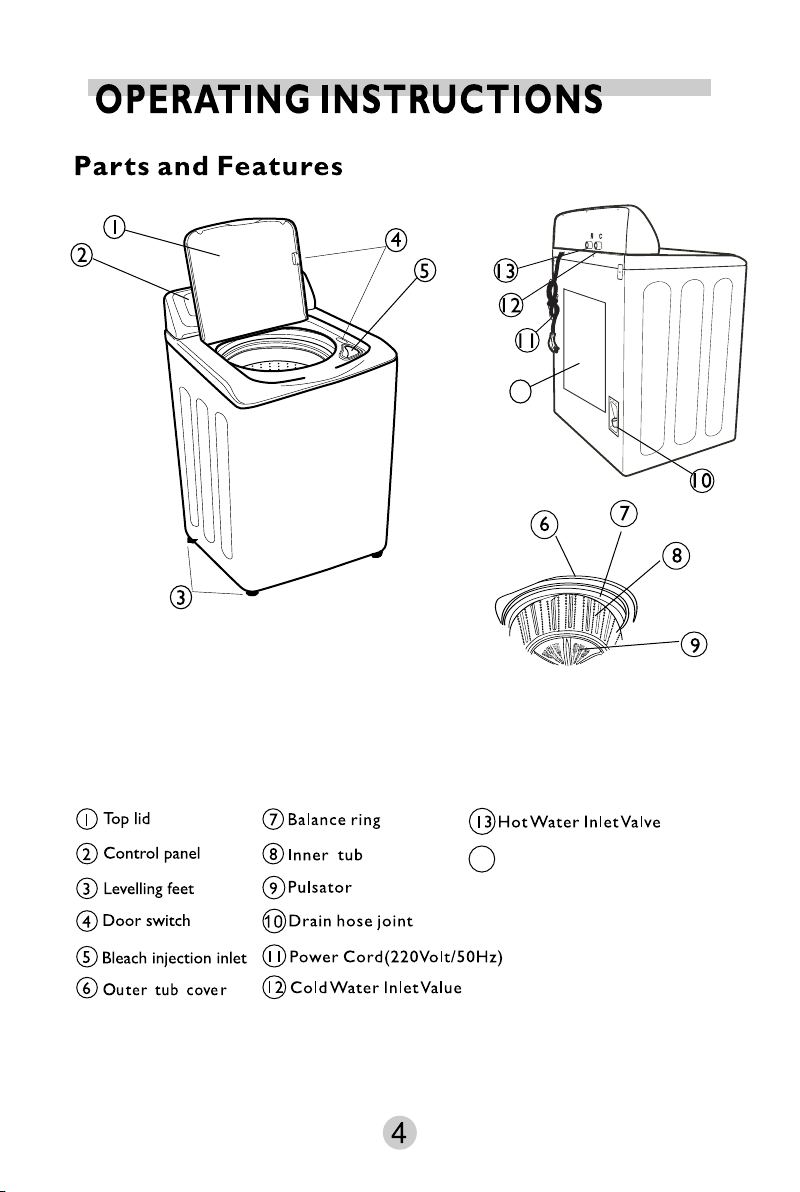

  • Page 2 - English - : TABLE OF CONTENTS PAGE IMPORTANT SAFETY INSTRUCTIONS23 OPERATING INSTR UCTIONS4 Parts and Features4 Operating instructions5 CARE AND CLEANING GUIDE7 Cleaning and Maintenance7 Moving amp Vacationing 8 TROUBLE SHOOTING8 INSTALLATION INSTRUCTIONS10 Tools and Materials Required10 Unpacking Your Washer11 Levelling Your Washer11 Steps for Installation12 ELECTRICAL REQUIREMENTS 14 Power Interruptions14 SPECIFICATIONSBack Cover
  • Page 7: Temp HotCold Program Select Normal Load SizeSuper Soli Level Normal Energy Label Program
  • Page 8 - English - : Note Please only use a lowsudsing or highefficiency type detergent Bleach use and dispenser Bleaching of clothes can help remove stains heavy soiling and kill bacteria Bleach should not be used on silk wool rayon or drip dry clothes Bleach dispenser is located on the front corner under the lid Fill the dispenser with the manufacturers recommended dosage during the first water fill Be careful not to spill undiluted bleach onto the washer cabinet or your clothes Note Use only liquid bleach in dispenser Warning Always unplug your washer to avoid electric shock before cleaning Ignoring this warning may result in injury Before using cleaning products always read and follow manufacturer warnings to avoid personal Injury or product damage CARE AND CLEANING GUIDE Cleaning and Maintenance Use only a damp or sudsy cloth for cleaning the control panel To avoid any kind of damage to cabinet finish wipe washer cabinet as needed If you spill liquidpowdered softener bleach or detergent on the cabinet wipe cabinet immediately Do not use any abrasive harsh chemicals ammonia chlorine bleach concentrated detergent solvents or metal scouring pads These chemicals may dissolve damage andor discolor your washer Leave lid open after washing to allow inside of washer to dry and assist in preventing unwelcomed bad odours
  • Page 9 - English - : Moving amp Vacationing Turn off water supply at the faucet and disconnect hoses Drain water from all hoses Disconnect electrical plug Dry inner wash tub If moving washer disconnect drain hose Turn the leveling legs clockwise all the way in Move and store your washer in upright position only To prevent mold or mildew leave lid open so moisture inside machine can evaporate Insert transporting bolts if you are relocating the washer Ensure removal prior to usage If washer does not operate Check the unit is plugged in The plug may have come loose Check if the electrical wall receptacle is of proper voltage Check if the circuit breaker needs to be reset or if the fuse needs replacing Check if the washer is overloaded load may need to be rearranged or redistributed evenly Check if the lid is open You may have to close the lid properly The washer pauses in some cycles This is normal in delicate or hand wash cycles which has short period of time You will not hear washer operation for a short period of time When the soak time is over it will start automatically Problems with water Not enough water coming out Water faucet may need to be completely turned on Hoses may be tangled or kinked Straighten out hoses Check water level selection it may need to be readjusted TROUBLE SHOOTING
  • Page 10 - English - : Water temperature is incorrect Check your water heater temperature Hot water needs to be at a temperature of at least 120 F 140 F49 C60 CCheck to make sure the inlet hoses are properly connected Eg Hot to hot amp cold to cold Water leaks This may be due to incorrectiy installed drain hose or fill hoses Your home drain may be clogged You may need to tighten hoses check the plumbing or call a plumber for assistance Water will not drain This may be due to not installing your drain hose correctly Check the position of the drain hose In order to drain properly make sure that top of drain outlet is less than 5 ft 15 m above the floor Washer is making noise Washer may need to be reinstalled Check washer installation section Washer load may need to be rebalanced as the load may be uneven Coins loose change buttons or other heavy objects could create noise related sounds Squealing sound Due to overloaded wash tub Vibration Noise may be caused by not leveling washer properly on the floor or uneven distribution of clothes in the tub The following sounds are normally heard during the operation of the washer Tumbling sounds This is normal as the heavy wet clothes in the washer are continuously being lossed around Air rushing noise This happens when the washer tub spins at very high speeds Wash and Rinse cycles going on and off will also make clicking sounds Normal Operating Sounds
  • Page 11 - English - : LED Display Notes Trouble Codes Problems with clothes Clothes become excessively creased this is due to improper sorting overloading or washing in excessively hot water repeatedly Avoid overloading and resort your load Wash in cooler water Soap residue detergent may not be dissolved in water Check water temperature add detergent as wash tub is being filled with water Reduce detergent dosage or predissolve detergent before adding to wash Spots or stains on your clothes this is due to incorrect use of fabric softener Refer to manufacturers instructions on the container and follow directions Clothes are grayed or yellowed this may be due to not using sufficient detergent for large loads Add more detergent to the load Clothes are ripped amp have holesexcessive wear amp tear this may be due to sharp objects left in washing Remove all small loose sharp objects fasten belts zippers metal snaps etc Check if you are using undiluted bleach Never add undiluted bleach to wash Reasons Rinse and spin indicators flash All process indicators flash All water level indicators flash Super and Largeload size water level indicators flash Medium and Small load size water level indicators flash Beeps Unit does not drain or the speed of draining is too slow The washer is out of balance Please open the lid and rebalance the load The water inlet time exceeds the preset time Water overflow protection The water level sensor fault Call service Top lid not close properly INSTALLATION INSTRUCTIONS Tools and Materials Required You will need to have following tools to help you with the installation of your washer Pliers WrenchTape MeasureGlovesLevel
  • Page 12 - English - : Quantity Accessories Supplied 1Hot amp Cold inlet hoses 2Drain Hose Hook 3Pipe Clipbrace 4Outer Drain Hose Unpacking Your Washer Remove all packing materials This includes the foam base and all adhesive tape holding the washer accessories inside and outside Open the top lid to remove the drum brace Pull to remove NOTE Save drum brace Reinstall when moving the washer Inspect and remove any remains of packing tape or printed materials before using the washer WARNING To avoid danger of suffocation keep plastic bag and other packing material away from babies and children Do not use this bag in cribscarriages and playpens The plastic bag could block nose and mouth and prevent breathing This bag is not a toy Leveling Your Washer Your washer has 4 leveling legs which are located on the four bottom corners After properly placing your washer in its final position you can level your washer Leveling legs can be adjusted by turning them counterclockwise to raise your washer or turning them clockwise to lower your washer WARNINGLeveling of washer is very important to prevent vibration during spin Adjustable foot High Low
  • Page 13 - English - : Hot water inlet hose Cold water inlet hose Steps for Installation Select a suitable location for the washer on a hard even surface away from direct sunlight or heat source eg radiators baseboard heaters cooking appliances etc Any floor unevenness should be corrected with the leveling legs located on the bottom corners of the washer The washer must be placed at room temperature You must not place washer where the temperature is at below freezing For this machine having ventilation openings in the base make sure the openings must not be obstructed by a carpet Installing Your Washer Read installation instructions carefully before installation 1 Do not use water inlet hoses without a flat washer on each end The washer in the coupling has to be placed firmly Flat water inlet hose washers are preinstalled in each end of the water inlet hoses New hosesets supplied with the appliance are to be used and that old hosesets should not be reused NOTE You may have to use pliers to tighten the coupling Do not over tighten because you may cause damage to the valve 2 Connect the hot and cold water inlet hoses to the hot and cold water faucet
  • Page 14 - English - : Caution If after completing these steps you are unsure that unit is properly installed contact a qualified installer To ensure that your washer is properly installed it is recommended that it be installed by a certified installer 3 Install the drain hose to the back of the washer using the drain hose clamp provided The drain hose must be placed into a drain pipe or sink at least 35cm in diameter Use the goose neck to fix the hose in place To avoid possible flush back of water the drain hose must be fixed at a minimum height of 1000mm and a maximum height of 1500mm 4Plug the wash er into a regular 22024 0Volt 50Hz10Amp outlet Note Carefully inspect around the mac hine fo r any leak s and tighten any loose connecti ons Water Inlet Water Supply Hose Goose Neck Hose Bend Drain Hose
  • Page 16 - English - : NoteDefault settings when you choose this program after power on These times are for reference only and may not match your model exactly Default settings Cycle Fabric Type Wash Process Estimated Time Min Temp Wash WarmCold Rinse HotCold Spin ColdCold Soak WarmCold Wash HotCold Rinse Spin Wash WarmCold Rinse HotCold Spin ColdCold Soak ColdCold Wash WarmCold Rinse Spin Wash WarmCold Rinse HotCold Spin ColdCold Wash WarmCold Rinse HotCold Spin ColdCold Wash WarmCold Rinse HotCold Spin ColdCold ColdCold heavily soiled durable colorfast fabrics HotCold Dark and color dyed fabrics Lingerie sheer fabrics with lace trim Normal CottonsLinens and mixed garments Quick Whites White garments Heavy Duty Bulky Colors CottonsLinens and mixed garments Delicate CottonsLinens and mixed garments
