User manual Dryer for Haier HLP141E

Table of contents

  • Safety Instructions
  • Product Registration
  • Electrical Requirements
  • Unpacking Your Dryer
  • Parts and Features
  • Location of Your Dryer
  • Assemble Dryer for Installation
  • Venting the Dryer
  • Wall Mounting Instructions
  • Completing Installation
  • Control Panel
  • Quick Start
  • Timed Dry
  • Drying Tips and Precautions
  • Moving and Vacationing and Storage
  • Troubleshooting
  • Limited Warranty

Location of Your Dryer

  • Check dryer size and ensure a good location for the dryer installation on a wall where you can mount the unit using wall studs or beams.

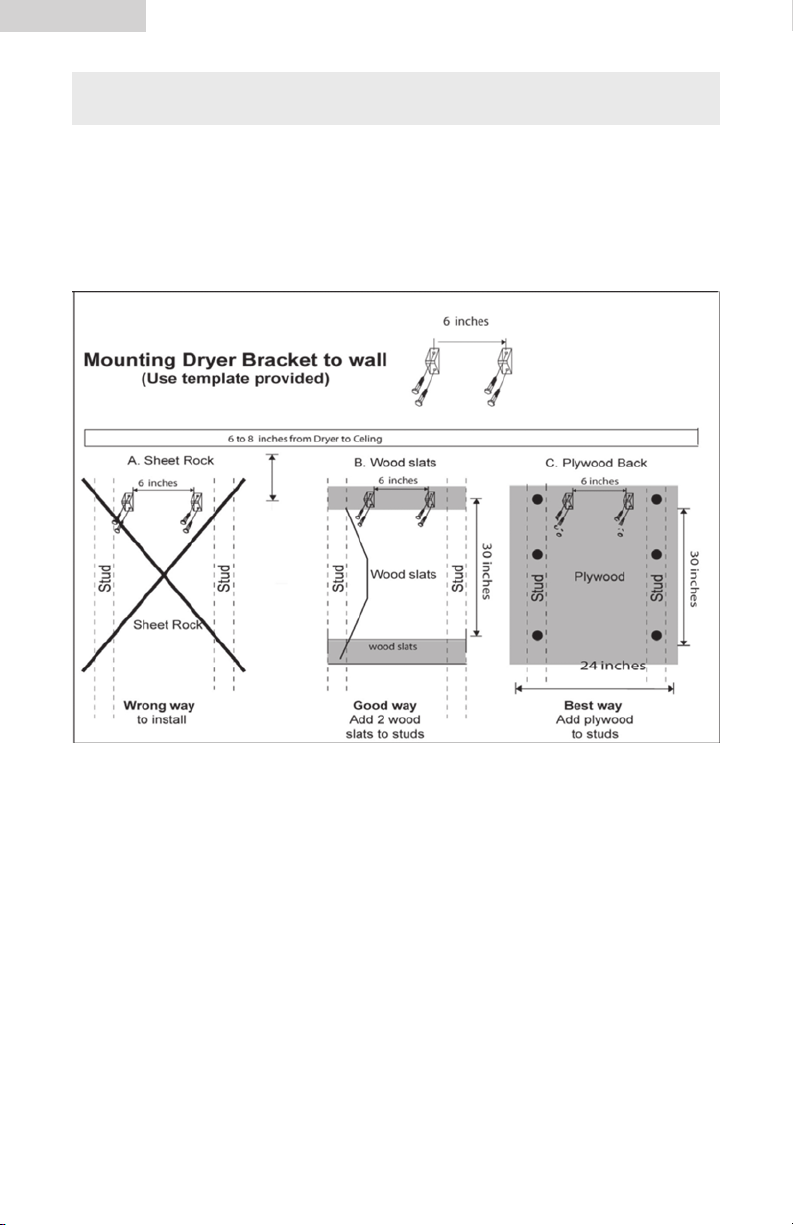

  • It is recommended to use a plywood board (30 by 24 inches) to mount the dryer using the walls beams and studs as support, rather than just wood slats.
  • Make sure the dryer power cord can reach a 120 Volt outlet.
  • Make sure you can connect the exhaust vent to the outside or designated dryer vent (in a laundry room).
  • The length of exhaust ducting should not exceed 6 feet.
  • Please read the additional ducting information and warnings in this manual.

Exhaust Requirements and Maintenance.

  • Venting must conform to local building codes.
  • Do not use thin plastic or foil ducting.
  • Use 4 inches (10.2cm) diameter rigid or flexible metal duct (note: venting materials are not supplied with the dryer, and you should obtain the venting materials necessary for proper installation at your local hardware store).
  • Position the Dryer such that the exhaust duct run is as short as possible. Make sure there is no more than 6 feet of exhaust ducting.
  • Clean old ducts before installing this dryer
  • Never bend or collapse ducting flex hose. Use few elbows joints as needed.
  • Use duct tape on all duct joints.
  • Insulate ductwork that runs through unheated areas in order to reduce condensation and lint build-up on pipe walls.


  • Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). These substances give off vapors that may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
  • Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a clothes load to catch fire.
  • Any article on which you have used a cleaning solvent or that contains flammable materials (such as cleaning cloths, mops, towels used in beauty salons, restaurants or barber shops, etc.) must not be placed in or near the dryer until solvents or flammable materials have been removed. There are many highly flammable items used in homes such as acetone, denatured alcohol, gasoline, kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and products containing petroleum distillates.
