OWNER’S MANUAL AND SAFETY INSTRUCTIONS
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER.
7 TON HYDRAULIC LOG SPLITTER
ITEM# 65061-XP
LOG SPLITTER
2
GB
TABLE OF CONTENTS
INTRODUCTION
Introduction 2
Specifications 5
Symbols 3
Safety 3
Special Warnings & Instructions 5
Know your Machine 6
Transport 7
Splitter Operation 8

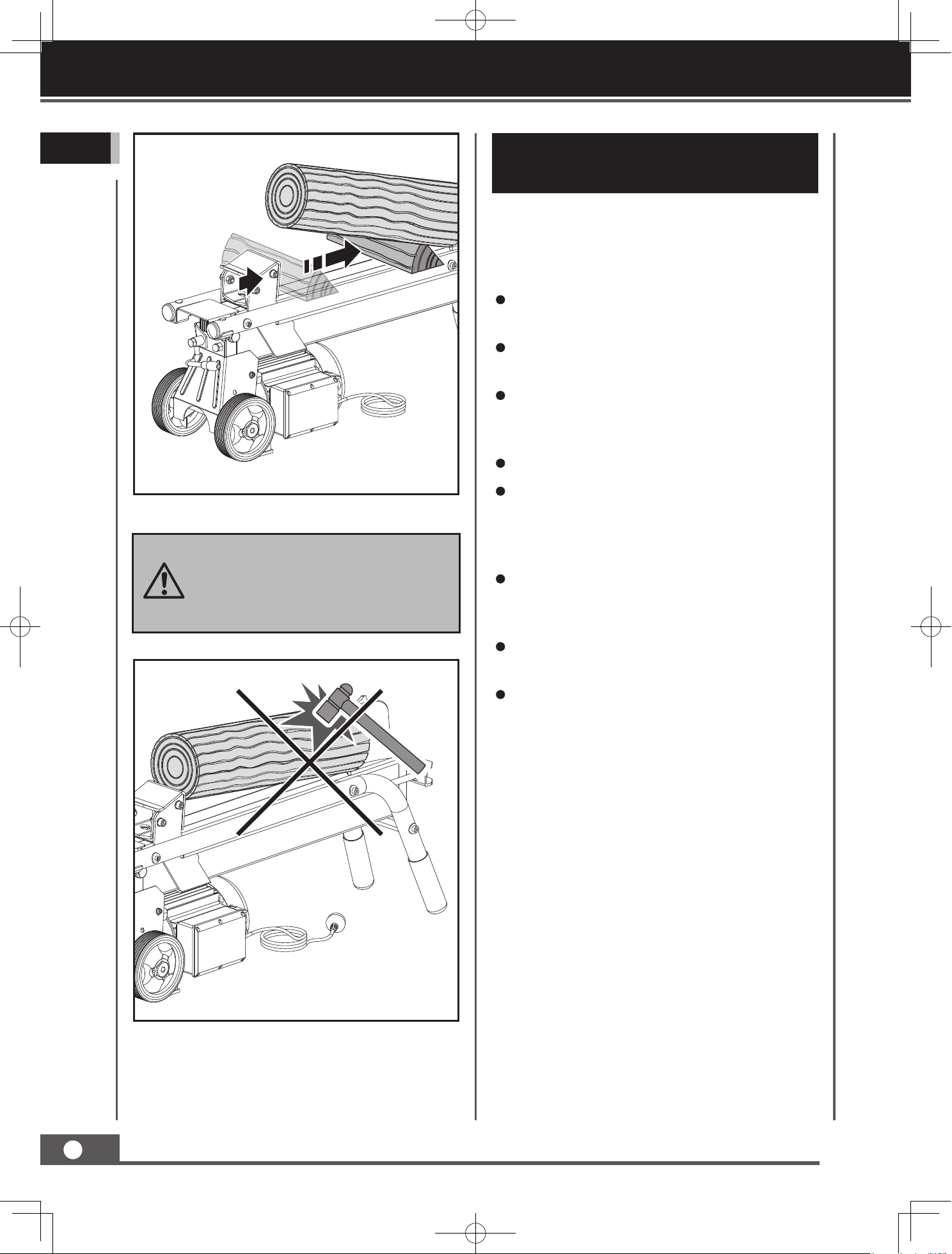

Freeing A Jammed Log 9

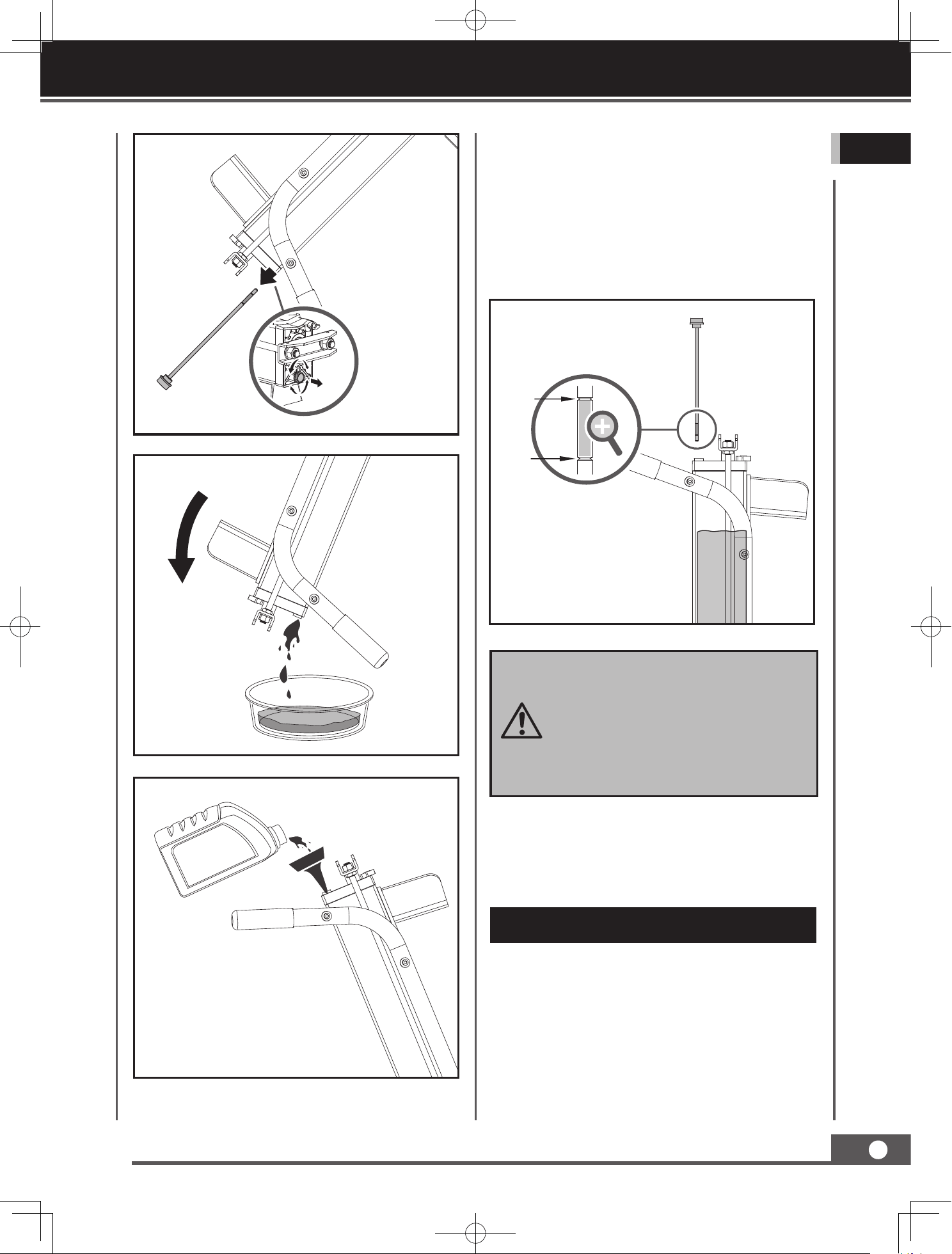

Replacing Hydraulic Oil 10
Sharpening Wedge 11
Trouble Shooting 12
Parts Schedule 13
Parts List 14

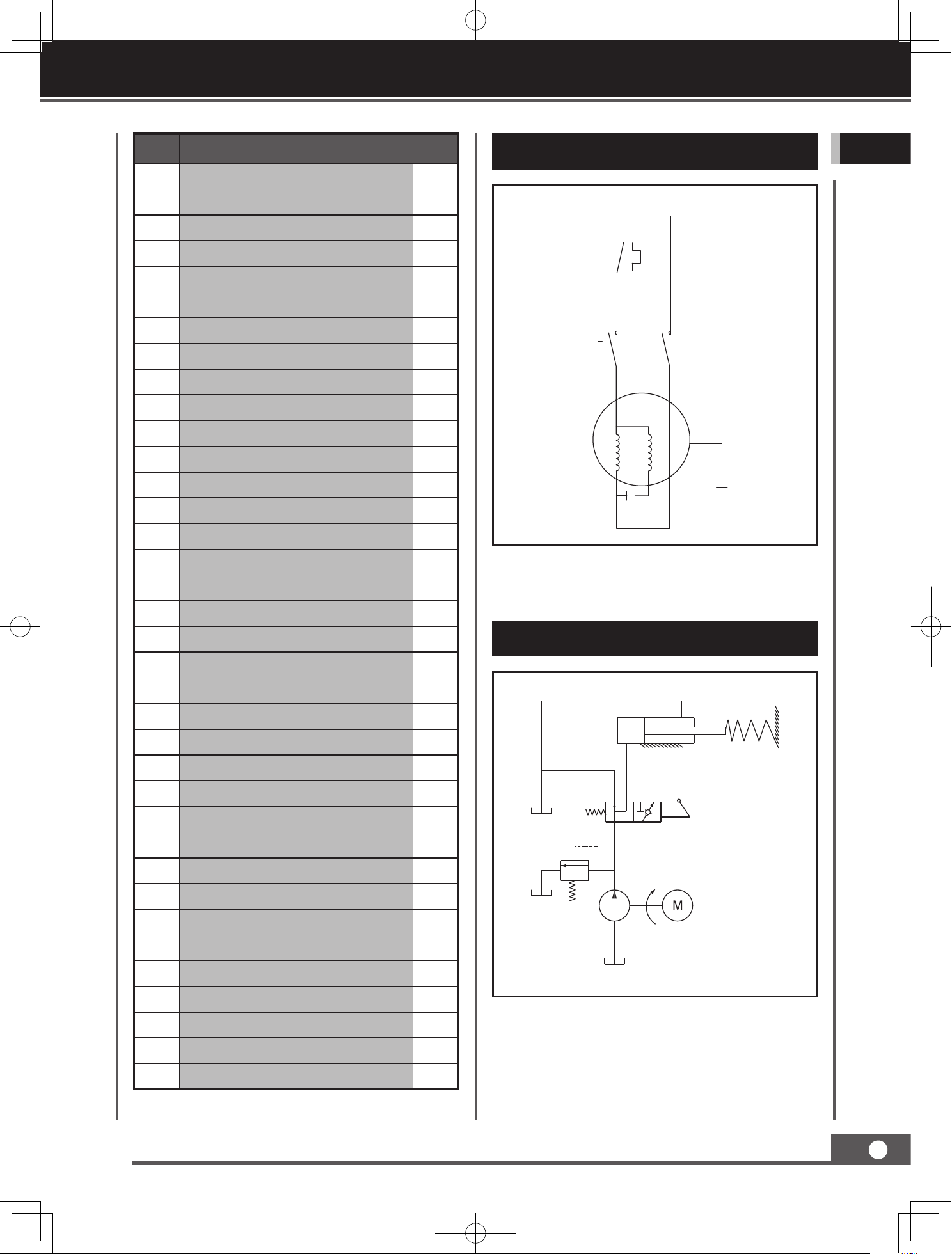

Wiring Diagram 15
Plumbing Diagram 15
Your new log splitter will more than satisfy
your expectations. It has been manufactured
under stringent quality standards to meet
superior performance criteria. You will find
your new unit easy and safe to operate, and
with proper care, it will give you many years
of dependable service.
* The diameter of the log is indicative – a small
log can be difficult to split when it has knobs
or a particularly tough fiber. On the other
hand, it may not be difficult to split logs with
regular fibers.
Carefully read through this entire
operator's manual before using your
new log splitter. Take special care
to heed the cautions and warnings.
Specifications
Item No. 65061-XP
Motor
120V~ 60Hz 1 3/4 HP,
15A
Log
Capacity
Max.
Diameter
10"
Max.
Length
20.5"
Splitting Force 7 t
Hydraulic Oil Capacity 0.93 gal (3.5L)
Overall
Size
Length 36.61"
Width 10.24"
Height 18.31"
Weight 97 lbs
SAFETY WARNINGS
TABLE OF CONTENTS
RECYCLING AND DISPOSAL
This marking indicates that this
product should not be disposed with
other household wastes. To prevent
possible harm to the environment
or human health from uncontrolled
waste disposal, recycle it responsibly
to promote the sustainable reuse of
material resources. To return your
used device, please use the return and
collection systems or check with your
local authority or local stores for advice
of environmental safe recycling.
ELECTRICAL REQUIREMENTS
Connect the main leads to a standard 120-
±
10% (60Hz
±
1%) electrical supply which has
protection devices of under-voltage, over-
voltage, over-current as well as a residual
current device (RCD) which maximum residual
current rated at 0.03A.
LOG SPLITTER
3
GB

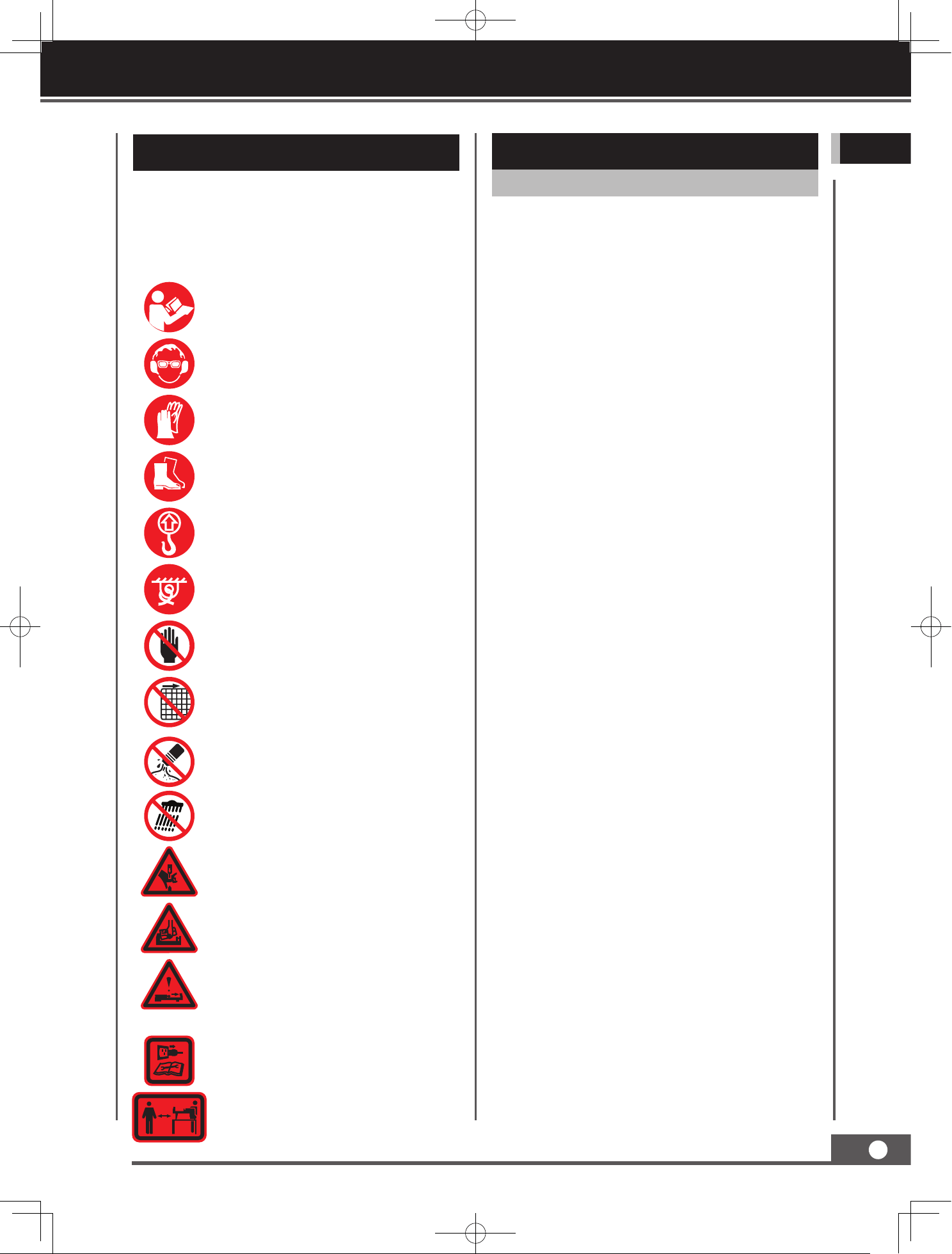

SYMBOLS
The rating plate on your machine may
show symbols. These represent important
information about the product or instructions
on its use.
SAFETY
Read these instructions in full
before using the machine.
Wear eye protection!
Wear hearing protection!
Wear protective gloves!
Wear safety footwear!
Lifting Point.
Bundling mark.
Keep your hands away!
Do not remove or tamper with
any protection or safety devices.
Dispose of the used oil in an
environment-friendly way.
Do not use in the rain.
Danger! Keep clear of moving
parts!
Do not remove jammed logs with
your hands.
Warning! Stay clear of moving
parts!
Before starting any repair
maintenance or cleaning, always
disconnect the power.
Keep bystanders away from the
working area.
Safety Warnings & Instructions
SAFETY WARNINGS
TABLE OF CONTENTS
UNDERSTAND YOUR LOG SPLITTER
Read and understand the owner's manual
and labels affixed to the log splitter. Learn
its application and limitations as well as the
specific potential hazards peculiar to it.
DRUGS, ALCOHOL AND MEDICATION
Do not operate the log splitter while under the
influence of drugs, alcohol, or any medication
that could affect your ability to use it properly.
AVOID DANGEROUS CONDITIONS

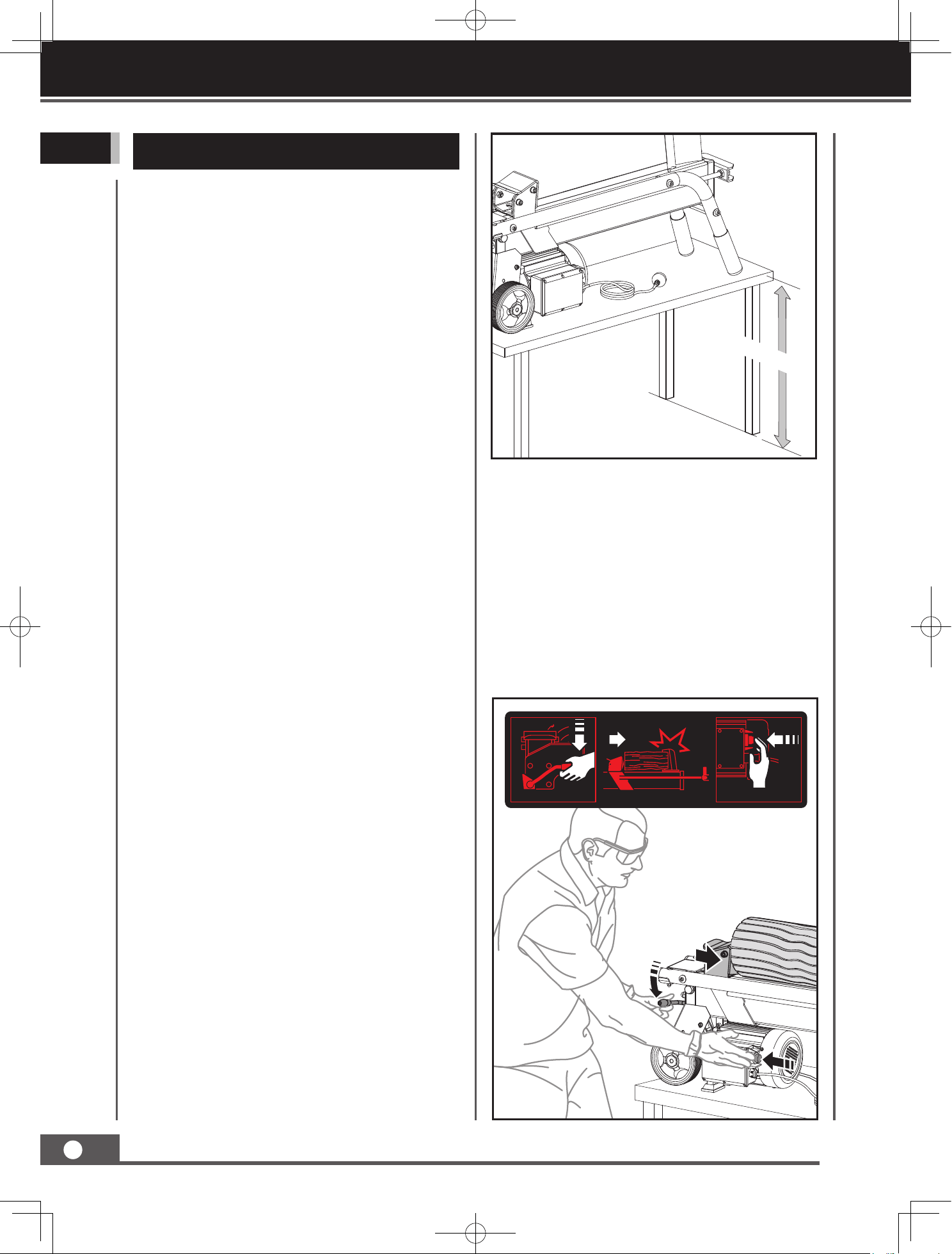

Put the log splitter on a 72-85 cm high, stable,
flat, and level work bench where there is
plenty of room for handling, and help the
operator stay altert. Bolt the log splitter to the
work surface if it tends to slip, walk, or slide.
Keep your work area clean and well lit.
Cluttered areas invites injuries.
Do not use the log splitter in wet or damp
areas or expose it to rain.
Do not use it in areas where fumes from paint,
solvents or flammable liquids pose a potential
hazard.
INSPECT YOUR LOG SPLITTER
Check your log splitter before turning it on.
Keep guards in place and in working order.
Form a habit of checking to see that keys and
adjusting wrenches are removed from tool
area before turning it on. Replace damaged,
missing or failed parts before using it.
DRESS PROPERLY
Do not wear loose clothing, gloves, neckties
or jewelry (rings, wrist watches). They can be
caught in moving parts.
Protective electrically non conductive gloves
and non-skid footwear are recommended
when working. Wear protective hair covering
to contain long hair, preventing it from get
caught in machinery.
LOG SPLITTER
4
GB
SAFETY WARNINGS
SAFETY WARNINGS
PROTECT YOUR EYES AND FACE
Any log splitter may throw foreign objects
into the eyes. This can cause permanent
eye damage. Always wear safety goggles.
Everyday eyeglasses have only impact
resistant lenses. They are not safety glasses.
Do not put the log splitter on the ground for
operations. This is awkward operating position
means that the operator has to bring his face
close to the machine, and thus risks being
struck by wood chips or debris.
EXTENSION CORDS
Improper use of extension cords may cause
inefficient operation of the log splitter
which can result in overheating. Be sure the
extension cord is no longer than 25 feet and
its diameter is no less than 14 A.W.G. to allow
sufficient current flow to the motor.
Avoid use of free and inadequately insulated
connections. Connections must be made with
protected material suitable for outdoor use.
AVOID ELECTRICAL SHOCK
Check that the electric circuit is adequately
protected and that it corresponds with the
power, voltage and frequency of the motor.
Check that there is a ground connection, and
a regulation differential switch upstream.
Ground the log splitter. Prevent body contact
with grounded surfaces: pipes, radiators,
ranges, and refrigerator enclosures.
Never open the pushbutton box on the motor.
Should this be necessary, contact a qualified
electrician.
Mark sure your fingers do not touch the plug's
metal prongs when plugging or unplugging
the log splitter.
KEEP VISITORS AND CHILDREN AWAY
The log splitter must be always operated by
one person only. Other people should keep a
safe distance from the work area, especially
when the log splitter is under operations.
Never use another person to help you with
freeing a jammed log.
INSPECT YOUR LOG
Make sure there are no nails or foreign objects
in logs to be split. The ends of the logs must
be cut square. Branches must be cut off flush
with the trunk.
DON'T OVERREACH
Floor must not be slippery.
Keep proper footing and balance at all times.
Never stand on log splitter. Serious injury
could occur if the tool is tipped or if the
cutting tools are unintentionally contacted.
Do not store anything above or near the log
splitter where anyone might stand on the tool
to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Always pay full attention to the movement of
the log pusher.
Do not attempt to load the log on until the log
pusher has stopped.
Keep hands out of the way of all moving parts.
PROTECT YOUR HANDS
Keep you hands away from splits and cracks
which open in the log; They may close
suddenly and crush or amputate your hands.
Do not remove jammed logs with your hands.
DON'T FORCE TOOL
It will do a better and safer job at its design
rate. Never try to split logs larger than those
indicated in the specifications table. This could
be dangerous and may damage the machine.
Don't use log splitter for a purpose for which
it was not intended.
NEVER LEAVE TOOL RUNNING UNATTENDED
Don't leave tool until it has come to a
complete stop.
DISCONNECT POWER
Unplug when not in use, before making
adjustments, changing parts, cleaning, or
working on the log splitter. Consult technical
manual before servicing.
LOG SPLITTER
5
GB
SAFETY WARNINGS
SAFETY WARNINGS
PROTECT THE ENVIRONMENT
Take used oil to an authorized collection point
or follow the stipulations in the country where
the log splitter is used.
Do not discharge into drains, soil or water.
MAINTAIN YOUR LOG SPLITTER WITH CARE
Keep the log splitter clean for best and safest
performance.
MAKE THE WORKSHOP CHILDPROOF
Lock the shop. Disconnect master switches.
Store the log splitter away from children and
others not qualified to use it.
The splitting operation of the machine is
designed to be activated by one person. While
there is the possibility that additional operators
could be working with the machine (e.g. for
loading and unloading), only one operator
should activate splitting operations;
The machine shall not be used by children;
Description of functional tests of the machine;
The installation and maintenance requirements
including a list of those devices e.g. two-hand
control device which should be verified, how
frequently the verification shall be carried out
and by what method;
Do not remove jammed logs with your hands.
Never use another person to help you with
freeing a jammed log. Lower the wedge until
the log is split open.
Only qualified person can assemble the
machine.
Special Warnings & Instructions
LOG SPLITTER
6
GB

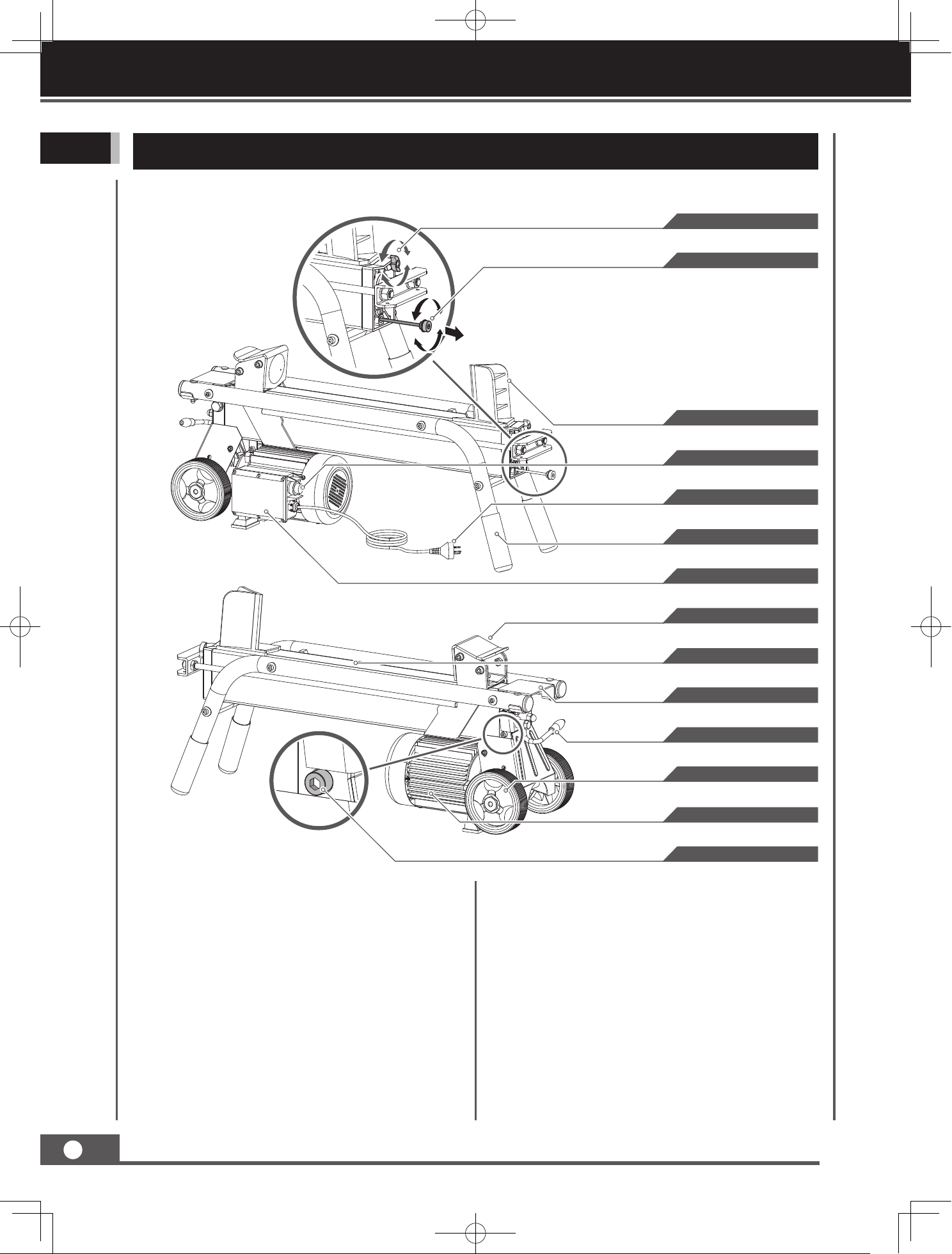

KNOW YOUR MACHINE
Oil Drain Bolt w/ Dipstick
Power Cord
Control Lever Guard
Bleed Screw
Switch
Work Table
Stand
Hydraulic Control Lever
Motor
Wedge
Log Pusher
Pushbutton Box
Wheel
Max Pressure Limiting Screw
OPERATION
OPERATION
LOG SPLITTER
7
GB
Bleed Screw
TRANSPORT
Failure to loosen the bleed screw
will keep the sealed air in hydraulic
system being compressed after being
decompressed. Such continuous air
compression and decompression will
blow out the seals of the hydraulic
system and cause permant damage
to the log splitter.
Max Pressure Limiting Screw
Do not adjust the max pressure
limiting screw !
Do not transport the log splitter
with wood loaded!
Before operating the log splitter, the
Bleed Screw should be loosened by
some rotations until air can go in
and out of the oil tank smoothly.
Air flow thru the Bleed Screw hole should
be detectable whilst the log splitter is under
operation.
Before moving the log splitter, make sure the
Bleed Screw is tightened to avoid oil leaking
from this point.
Max pressure was set before the log splitter
ex work and the max pressure limiting screw
is sealed with glue to ensure the log splitter
works under pressure no more than 7 tons.
The setting was done by qualified mechanic
with professional instruments.
Unauthorized resetting will cause the hydraulic
pump fail to output enough splitting pressure
or RESULT IN SERIOUS INJURY AS WELL AS
DAMAGE TO THE MACHINE.

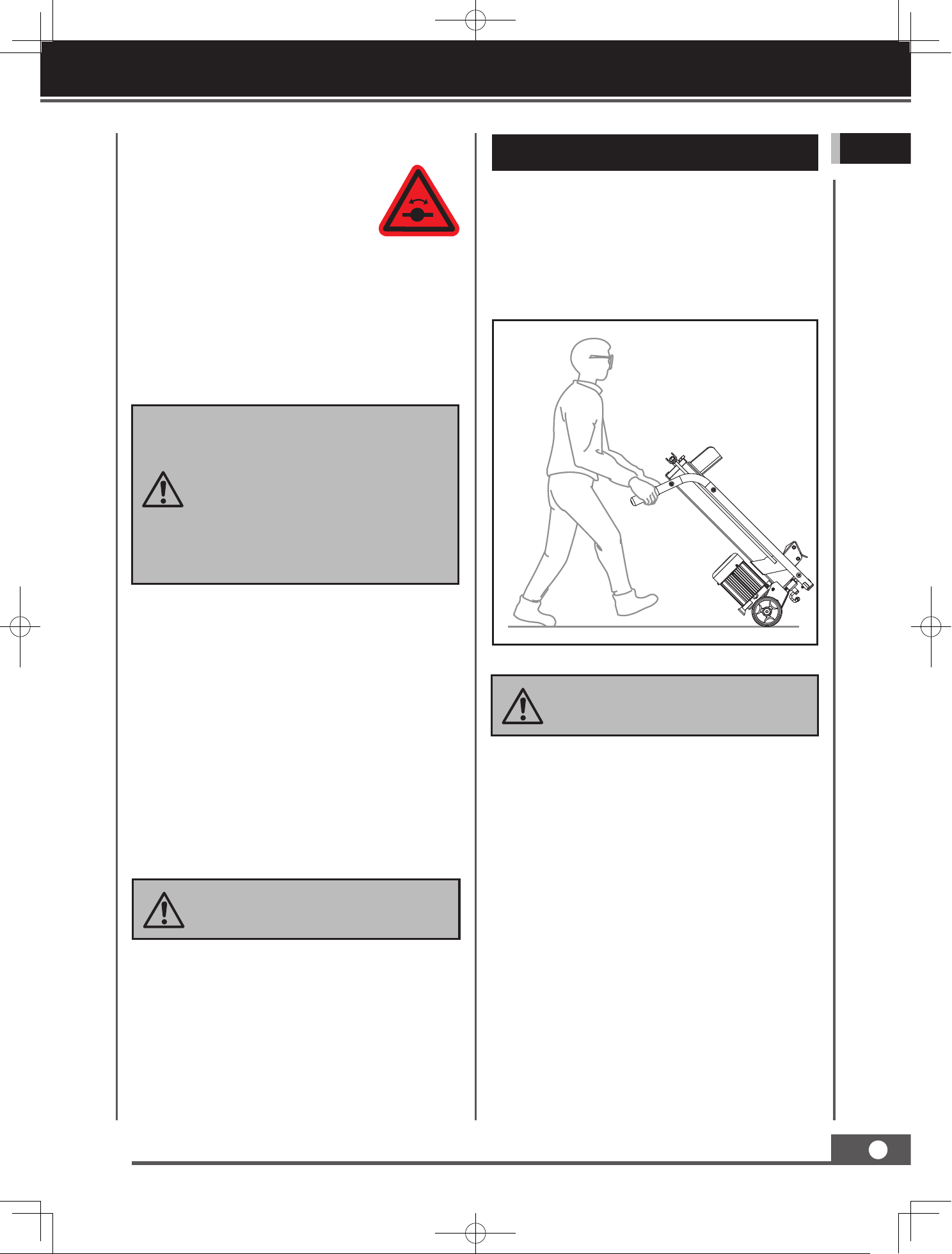

The log splitter is equipped with 2 wheels for
minor moving. To move the log splitter to the
work site. Grip the handle to tilt the log splitter
slightly after making sure the oil tank cover is
tightened.
OPERATION
OPERATION
LOG SPLITTER
8
GB
OPERATION
OPERATION
Splitting - Two Hands Operation
This log splitter is equipped with "ZHB"
control system that requires to be operated
by both hands of the user-Left hand controls
the hydraulic control lever while right hand
controls the pushbutton switch. The log
splitter will freeze upon absence of either
hand. Only after both hands release the
controls, the log pusher starts to return
backward to the starting position.
LEFT HANDR IGHT HAND
720 mm ~ 850 mm
Application Conditions
This log splitter is a home use model. It
is designed for operating under ambient
temperatures between +5°C and 40°C and for
installation at altitudes no more than 1000m
above M.S.L. The surrounding humidity should
be less than 50% at 40°C. It can be stored
or transported under ambient temperatures
between -25°C and 55°C.
1. Before operation, choose a location where
there is plenty of room for handling.
Carefully lift the log splitter from both ends
and place the log splitter on a stable, flat,
and level work surface that is 28-33.5" (72-
85cm) high.
2. Make sure the handle is free of oil, grease
and resins.
3. Ensure the equipment is in safe working
condition. Operate the unit without loading
to make sure it is working normally. Check
all nuts, bolts and hydraulic fittings are tight.
Check the switch, power cable and plug
for damage. Check all safety shields are in
proper position.
4. Check that the outlets main voltage and
frequency match the data stated in the
model plate or technical specifications in
this manual.
5. Plug in the power cable and switch on the
motor. NEVER use an extension cord longer
than 25 feet and the size lower than 14
A.W.G.. The power supply to this log splitter
must have a protection device (circuit
breaker) for over or under voltage.
SPLITTER OPERATION
LOG SPLITTER
9
GB
OPERATION
OPERATION

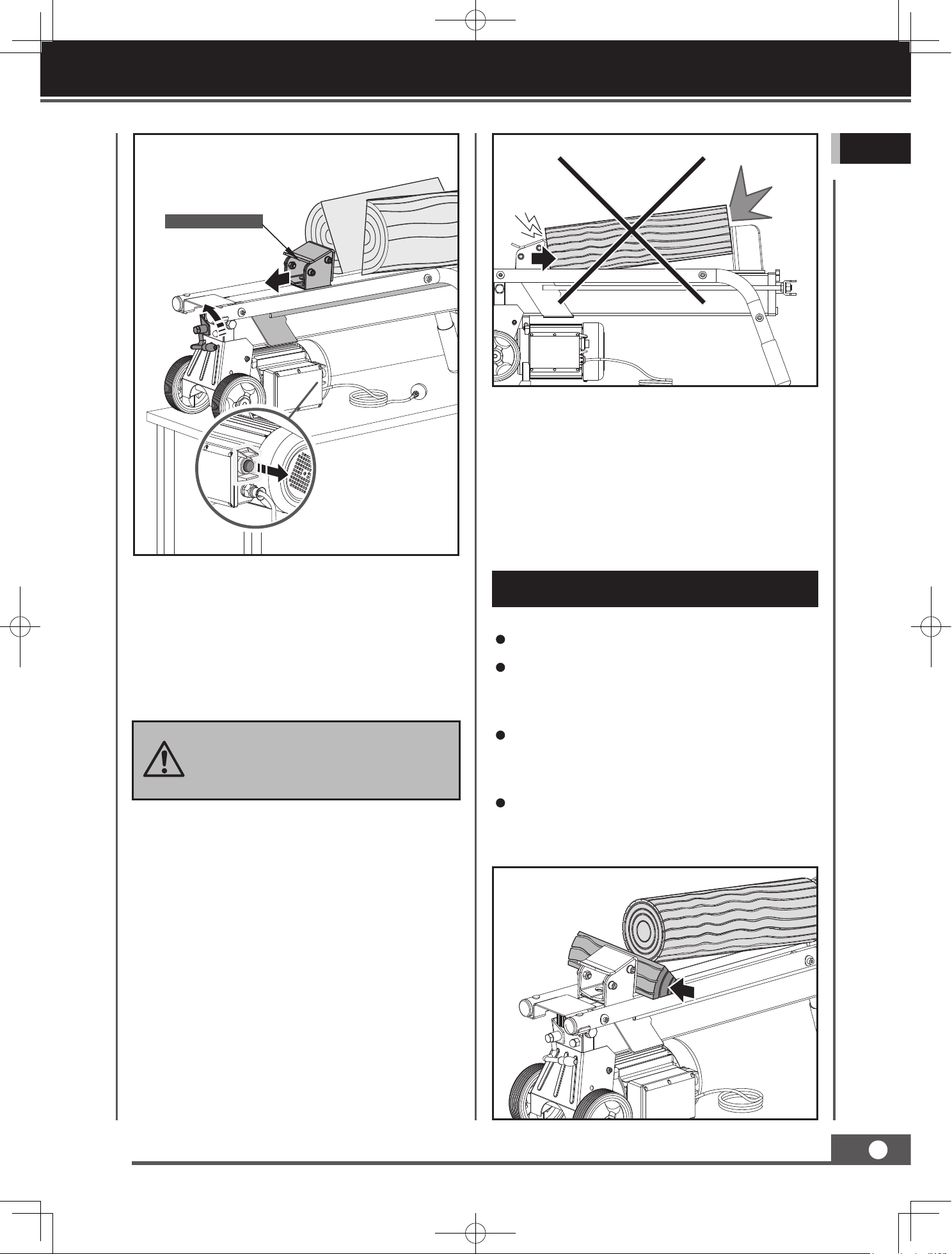

Trigger type lock-out device is adopted to
avoid accidental Hydraulic Control Lever
pushdown. To operate the Hydraulic Control
Lever, draw the Trigger backward with the
index finger before pushing the Hydraulic
Control Lever forward.
After this time interval, the oil under pressure
will be overheated and the machine could
be damaged. For such extremely hard log,
rotate it by 90° to see whether it can be split
in a different direction. In any case, if you are
not able to split the log, this means that its
hardness exceeds the capacity of the machine
and thus that log should be discarded to
protect the log splitter.
Always set logs firmly on the log retaining
plates and work table. Make sure logs will
not twist, rock or slip while being split. Do
not force the blade by splitting the log on
the upper part. This will break the blade or
damage the machine.
Automatic Return
Never force the log splitter for more
than 5 seconds by keeping pressure
on it to split excessively hard wood.
Break log in the direction of its growing
grain. Do not place log across the log splitter
for splitting. It may be dangerous and may
seriously damage the machine.
Do not attempt to split 2 pieces of log at the
same time. One of them may fly up and hit
you.
Release both controls.
After the log pusher moves back and
completely stops at its starting position,
insert a wedge wood under the jammed log.
Start the log splitter to push the wedge
wood to go completely under the jammed
one.
Repeat above procedure with sharper slope
wedge woods until the log is completely
freed.
FREEING A JAMMED LOG
LOG SPLITTER
10
GB
REPLACING
HYDRAULIC OIL
Do not try to knock the jammed log
off. Knocking about will damage the
machine or may launch the log and
cause an accident.
Replace the Hydraulic oil in the log splitter
after every 150 hours of use. Take the
following steps to replace it.
Replace the Hydraulic oil in the log splitter
after every 150 hours of use. Take the
following steps to replace it.
Following hydraulic oils or equivalent are
recommend for the log splitter's hydraulic
transmission system:
Make sure all moving parts stop and the log
splitter is unplugged.
Unscrew Oil Drain Bolt with Dipstick to
remove it.
Turn the log splitter on the Support Leg side
over a 4 liters capacity container to drain
the hydraulic oil off.
Turn the log splitter on the motor side.
Refill fresh hydraulic oil at the volume as
per the hydraulic oil capacity of a particular
model indicated in above specifications
table.
Clean the surface of Dipstick on the Oil Drain
Bolt and put it back into the oil tank while
keeping the log splitter vertical.
Make sure the level of the refilled oil is just
between 2 grooves around the Dipstick.
Clean the Oil Drain Bolt before threading
them back. Make sure they are tightened to
avoid leakage before placing the log splitter
horizontally.
SHELL Tellus 22
MOBIL DTE 11
ARAL Vitam GF 22
BP Energol HLP-HM 22
MAINTENANCE
MAINTENANCE
LOG SPLITTER
11
GB
Use a drain pan to aid in the removal of all
used oil and particles.
Remove oil drain plug to drain oil from the
hydraulic transmission system. Examine oil
for metal chips as a precaution to future
problems.
This log splitter is equipped with a reinforced
splitting wedge, which has a blade which
is specially treated. After long periods of
operation, and when required; sharpen the
wedge using a fine-toothed file removing any
burrs or flat spots on the edge.
Oil Level
MAX
MIN
SHARPENING WEDGE
Read dipstick to determine the
maximum and minimum of the
oil level. Low oil can damage the
oil pump. Overfilling can result
in excessive temperature in the
hydraulic transmission system.
MAINTENANCE
MAINTENANCE
LOG SPLITTER
12
GB
TROUBLE SHOOTING
PARTS INFORMATION
TROUBLE SHOOTING
ATTENTION: ALL REPAIR WORK MUST BE DONE BY A SPECIALIST FOR THIS
PRODUCT.
Problem Probable Cause Remedy Suggested
Fails to split logs
Log is improperly positioned
Refer to “Log Splitter Operation”
section for perfect log loading.
The sizes or hardness of the
log exceeds the capacity of the
machine
Reduce the log sizes before
splitting it on the log splitter.
Wedge cutting edge is blunt
Refer to “Sharpening Wedge”
section to sharpen the cutting
edge.
Oil leaks
Locate leak(s) and contact the
dealer.
Unauthorized adjustment was
made on Max. Pressure Limiting
Screw. Lower max pressure rating
was set.
Contact the dealer.
The log pusher
moves jerkily,
taking unfamiliar
noise or vibrating
a lot
Lack of hydraulic oil and excessive
air in the hydraulic system.
Check oil level for possible oil
refilling.
Contact the dealer.
Oil leaks around
cylinder ram or from
other points
Air sealed in hydraulic system
while operating.
Loosen Bleed Screw by 3 ~ 4
rotations before operating the log
splitter.
Bleed Screw is not tightened
before moving the log splitter.
Tighten the Bleed Screw up
before moving the log splitter.
Oil Drain Bolt with Dipstick is
not tight.
Tighten the Oil Drain Bolt with
Dipstick.
Hydraulic Control Valve Assembly
and / or seal(s) worn
Contact the dealer
LOG SPLITTER
13
GB
PARTS INFORMATION
TROUBLE SHOOTING
PARTS SCHEDULE
LOG SPLITTER
14
GB
No. Description Q'ty
1 Lever Mount Nut 1
2 Nut Cap M10 3
3 Lever 1
4 Lever Knob 1
5 ? ?
6 Nut 2
7 Copper Gasket 10 4
8 Screw M8 1
9 O-ring 5.5x2 1
10 Snap Washer 6 1
11 Valve Retract Spring 1
12 O-ring 6x1.5 1
13 Valve Core Rod 1
14 Sliding Pressure Sensor Sleeve 1
15
Sliding Pressure Sensor Sleeve
Sping
1
16 Alumium Cover ( Rear ) 1
17 O-ring 60X3.1 1
18 Piston 1
19 Piston Ring 60 1
20 O-ring 32X3.5 1
21 Spring 1
22 Stud 4
23 Hydraulic Cylinder 1
24 Alumium Cover ( Front) 1
25 Piston Rod Seal 30 1
26 O-ring 7x1.9 1
27 Wing Bolt M5X12 1
28 wahser groupware 14 1
29 Dipstick 1
30 Piston Rod 1
31 ? 2
32 ? 2
33 Washer 6 2
34 Screw M6x50 2
35 ? 1
No. Description Q'ty
36 ? 2
37 Nut M14 2
38 Flat Wahser C14 2
39 Nut M14 2
40 Nut Plug 1
41 wahser groupware 16 1
42 Valve Sleeve 1
43 O-Ring 14x1.9 5
44 Adjusting Screw M5x8 1
45 Steel Ball 6 1
46 Pressure Limited Valve Spring 1
47 Adjusting Screw M8x8 1
48
Log Pusher Connection
Weldment
1
49 Plastic Insert 1 1
50 Plastic Insert 2 1
51 Log Pusher 1
52 Nut M10 4
53 Flat Wahser C10 5
54 Screw M10x25 4
55 Wheel cover 2
56 Block turn 14 2
57 Wheel 4
58 Screw M10x25 2
59 Washer C6 2
60 Wheel shelf 1
61 Bolt M8x55 6
62 Spring Washer 8 9
63 Washer C8 9
64 Gear Pump Cover 1
65 O-Ring 10.6x2.65 2
66 Gear Housing Plate 1
67 Circlip 10 2
68 Gear Shaft 1
69 Steel Ball 2.5 1
70 Gear 2
Parts List
PARTS INFORMATION
PARTS INFORMATION
LOG SPLITTER
15
GB
No. Description Q'ty
71 Pin 2.5x4 1
72 Bolt M5x180 3
73 Motor Cover 1
74 Seal FB11x26x7 1
75 Nut M8 1
76 Screw M8x35 1
77 Motor 1
78 Fan 1
79 Block Turn A17 1
80 Shroud 1
81 Flat Washer 5 6
82 Spring Washer 5 6
83 Screw M5x10 2
84 Pipe Left 2
85 Frame Tube 1
86 ? 4
87 ? 4
88 ? 2
89 Cable & plug 1
90 ? 1
91 Screw M4x10 8
92 Switch Box cover 1
93 Airproof Underlay 1
94 Connection Terminal 1
95 Capacitor 1
96 Switch 1
97 Switch Box 1
98 Waterproof underlay 1
99 Motor Support Left Shoe 1
100 Motor Support Right Shoe 1
101 Pin 7.8x24 2
102 O-Ring 46.2x1.8 2
103 Sliding Sleeve 4
104 Bolt M8x30 3
105 Spring Washer 14 2
106 Cap Nut M6 2
PARTS INFORMATION
PARTS INFORMATION
WIRING DIAGRAM
PLUMBING DIAGRAM
L
KH
SB
M
C
PE
N
OF NOTE
Questions, issues or missing parts?
Before returning to your retailer, our customer service team is here to help.
Call Us: 909.628.4900
Email Us: [email protected]
Hours of Operation: 9am – 3pm PST Monday - Friday,
July 31, 2020
MADE IN CHINA
PLEASE READ THE FLOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOO ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN
FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPARIS
AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and not
available individually as replacement parts.
