3 TON 60” OFF-ROAD FARM JACK LIFT BUMPER
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 50017
For questions please call our customer support: (909) 628 4900 Mon-Fri 9am to 3pm PST
1
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product was
designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use this
equipment for a purpose for which it was not intended.
DO NOT exceed 6600 lb. rated capacity
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put
you dangerously close to cutting tools and rotating parts.
Use only on hard, flat, level surfaces.
Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
Keep children and bystanders away from the work area while operating the tool. DO NOT allow
children to handle the product.
Stay alert, watch what you are doing, and use common sense when operating the tool. DO NOT use the
tool while you are tired or under the influence of drugs, alcohol, or medication.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles also use non-skid safety shoes.
Lower load slowly in controlled fashion. Do not allow load to drop quickly.
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and
birth defects or other reproductive harm. (California Health & Safety Code § 25249.5, et seq.)
Check for damaged parts before each use. Carefully check that the product will operate properly and
perform its intended function. Replace damaged or worn parts immediately. Never operate the product
with a damaged part.
Be aware of dynamic loading! Sudden load movement may briefly create excess load causing
product failure.
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in serious injury. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
2
STEEL STANDARD BAR
HANDLE W/
COTTER PIN
BASE
TOP CLAMP CLEVIS
HANDLE
SOCKET
CONNECTING
ROD
REVERSING LEVER
REVERSING LATCH
SPECIFICATIONS 60” FARM JACK
MAXIMUM LOAD CAPACITY: 3 TONS / 6600 LBS
MAXIMUM RAISED HEIGHT: 60”
This multi-functional farm jack is great for lifting tractors or heavy trucks, pulling posts and poles, and
even serves as an all-purpose hoist or winch. Whether pulling posts and poles or lifting heavy vehicles,
this versatile high-lift farm jack handles it all. You can even use this all-purpose farm jack as a come-along
to stretch fence, recover a vehicle or uproot saplings.
TOP CLAMP
CLEVIS BOLT
LIFTING ARM
Multipurpose design for lifting, pulling and
spreading
Ideal for lifting off-road vehicles and eld
equipment
Ratcheting action to speed thru the toughest
job
HD steel construction supports up to 6,000 lbs
Adjustable top clevis clamp can be moved to
any position on the upright
Lifting range: 6” to 60”
Mounting holes: 3 x 5/16”
Base dimension: 7” x 4”
Jaw dimension: 1/2” (W) x 3-1/2” (L)
Dimension: 4” x 10” x 60-1/2” (handle
folded)
DIAGRAM AND SPECIFICATIONS
3

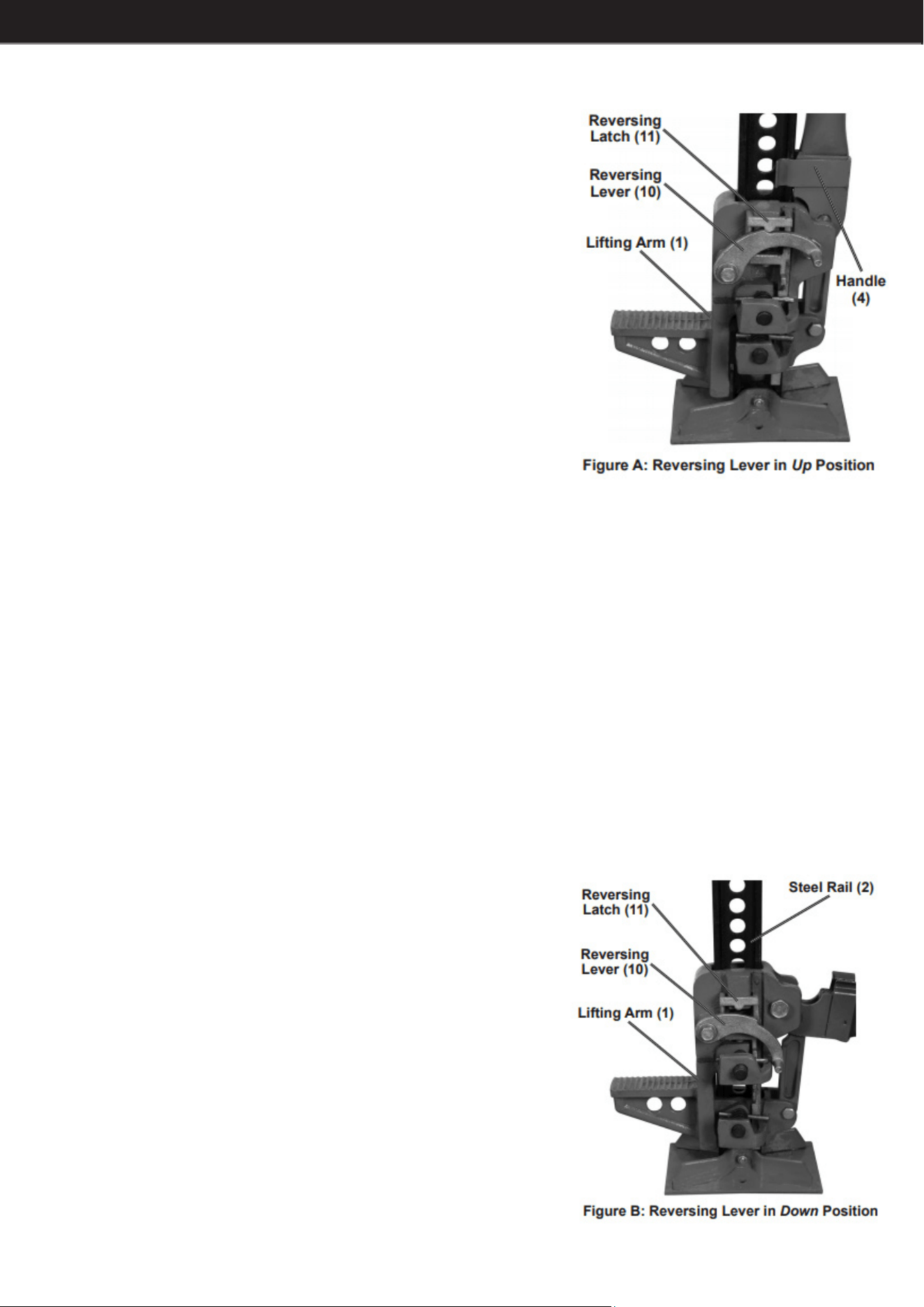

LIFTING A LOAD:
1. Place the Jack on a stable area to prevent shifting or slipping.
2. With the Reversing Lever (10) in the down position, move the
Lifting Arm (1) to the desired position on the Steel Rail (2) and
place the Lifting Arm completely under the object to be lifted.
3. To raise the load, pull up on the Reversing Lever until the
notch on the Lever engages the protrusion on the Reversing
Latch (11), locking it in the up position.
4. Slowly pump the Handle (4) to raise the load. Always keep a
firm grip on the Handle while operating the Jack.
5. After the load is raised to the desired height, insert a Grade
5, 1/2” bolt (sold separately) through the hole in the Steel Rail
immediately below the lifting mechanism as a safety precaution.
6. Insert additional supports to make sure the load is
properly supported at the lift point to prevent shifting.
NOTE: When the Reversing Lever is in the down position and there is no load on the Jack, the
ratcheting mechanism allows the Lifting Arm to move freely up or down on the Steel Rail.
WARNING: Dynamic loading may under certain circumstances create a situation where the actual weight
being held or lifted is far in excess of Jack or bolt capacity. DO NOT drop weight onto the Lifting Arm, or
allow sudden motion of the Lifting Arm, as this may shear the 1/2” bolt or cause the Jack to fail.
NOTE: Do not use extensions on the handle. Always keep a firm grip on the handle.
LOWERING A LOAD:
1. Place the Handle (4) in the upright position and remove the
1/2” safety bolt placed through the Steel Rail (2) before tripping
the Reversing Lever (10) to lower the load.
2. Place the Reversing Lever in the down position.
3. Slowly pump the Handle to lower the load. Continue pumping
the Handle until the load rests on the ground.
NOTE: To lower loads one raised level at a time, the Jack must
be loaded with 110 lb. (50 kg) or more. Otherwise, the Lifting
Arm (1) will drop when the Reversing Lever is placed in the
down position.
OPERATION
PRODUCT MADE IN CHINA
4
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
