IMPORTANT SAFETY INFORMATION
It is important that you read the entire manual to become familiar
with the unit before you begin assembly.
The Operator
Common sense and caution are factors which cannot be bull into any product. these factors must
be supplied by the operator.please remember:
Do not use the product if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment/reflexes might be
impaired.
Do not wear loose clothing or jewelry as they can be caught in moving parts.
Protective gloves and non-skid footwear is recommended.
Wear restrictive hair covering to contain long hair.
Use eye and ear protection. Always wear: ANSI-approved impact safety goggles.
Maintain proper footing and balance at all times.
Work Area
To avoid risk of rersonal injury , equipment damage ,fire and shock,make sure your work area is:
Free of damp ,wet or rainy conditions
Free of children (never let them handle tools or machinery) well-lit
Clean and uncluttered
Before Operating
Before using any tool ,any part that appears dam-aged should be carefully checked to
determine that it will operate properly and perform its intended function.
Before using your Slide Hammer check for damaged parts.
When operating keep hands and fingers out of the way of the hand weight.
Technical Specifications
Slide Hammer Set
13lbs
24”
1”
Tool Name:
Slide Weight:
Slide Pole Length:
Slide Pole Diameter:
Construction:
Heat Treated Steel
2
TECHNICAL SPECIFICATIONS AND OPERATION
Attachments:
Rubber cover, Hasp iron ,Hasp iron ,Long tube Hasp iron ,Casting hammer, Hasp iron, Hex
Nut ,Circular nut ,Right angle flat steel ,Circular pipe , Hex standard
component ,Tapping Screw, Hex standard component, Connector, Hasp iron,
double-barrelled connector, Hasp Iron
Assembly
Your Slide Hammer set comes unassembled .
It is Important that your read the entire manual to become familiar with the unit before you use
the Slide Hammer, before assembling your Slide Hammer, be sure that you have all parts
describe in the Parts Information on page 4,5.
Assemble and disassemble your Slide Hammer set for each use.
Put back all pieces in the carrying case provided and store in carrying case to ensure that
no pieces are lost.
Operation
The Slide Hammer comes with a complete set of Pullers for various pulls. Each of the
attachments Included in the Slide Hammer set have been designed for a specific use. Although uses
differ, the Following steps for Hasp Pulling are generally applicable for all other attachments.
When operating ,keep hands and fingers out Of the way of the Castiron Hammer.
Hasp pulling
Step 1) Attach most suitable Hasp Iron (Part #2,#3,#5 or #7) to the threaded end of the Slide Hammer.
Step 2) Identify the lip area or edge of the object you will be inserting the chosen hasp into or onto.
Step 3) Place the Hasp into/onto the edge or lip of the object to be pulled.
Step 4) Push the Casting Hammer toward the object to be pulled. Forcefully pull the
castiron Hammer back towards the Handle, using the force of Castiron Hammer and the
impact on the Hammer to pull out the object.
Step 5) Repeat Step 4 until the object has been pulled out.
3
PARTS INFORMATION

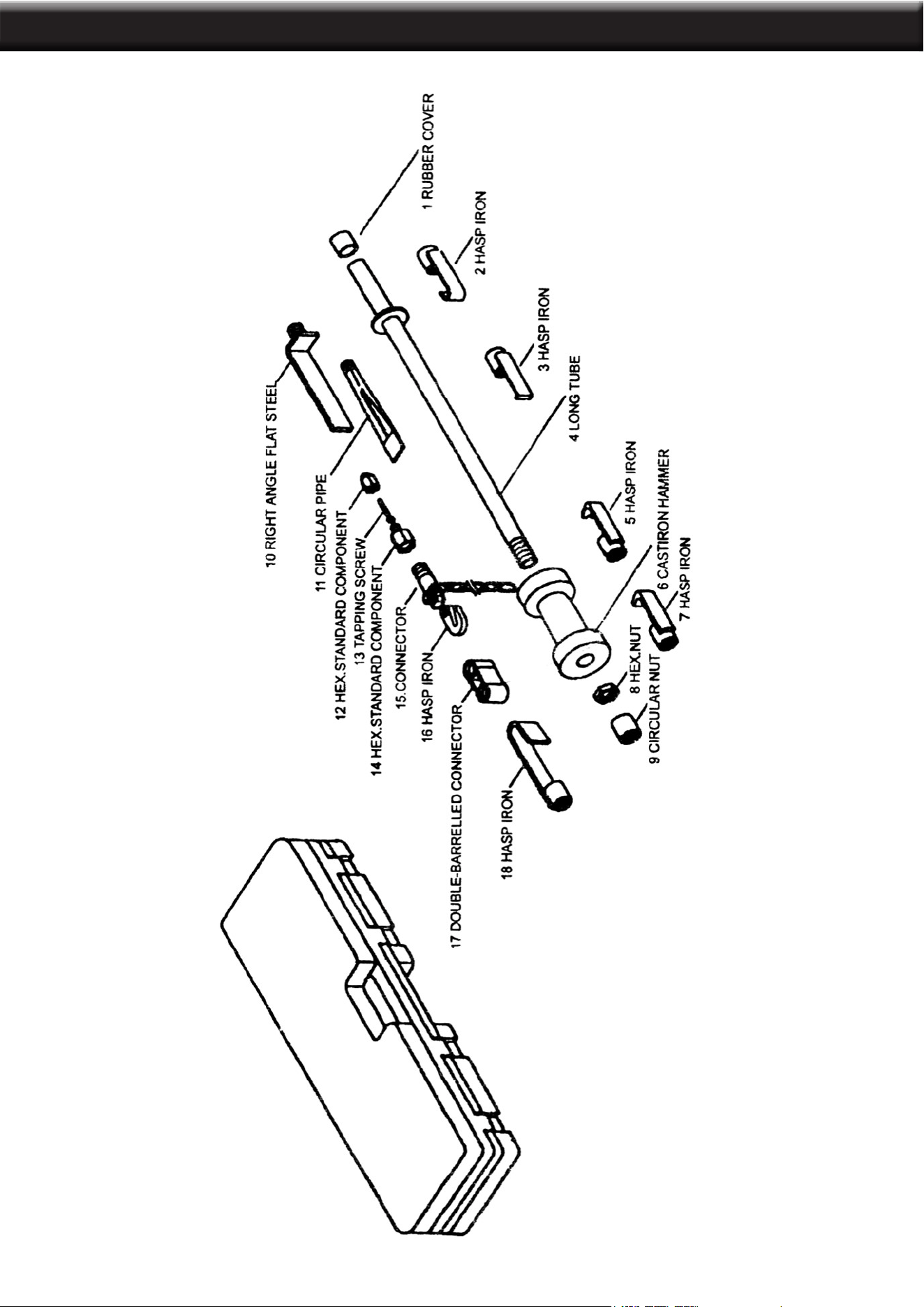

Parts Diagram
4
PARTS INFORMATION
NO. PART NAME QTY
1 RUBBER COVER 1
2 HASP IRON (BENT 7.8x39.8) 1
3 HASP IRON (FLAT 4x39.8) 1
4 LONG TUBE 1
5 HASP IRON (GAP 7.88x30) 1
6 CASTIRON HAMMER 1
7 HASP IRON (FLAT 7.8x39.8) 1
8 HEX NUT 1
9 CIRCULAR NUT 1
10 RIGHT ANGLE FLAT STEEL 1
11 CIRCULAR PIPE 1
12 HEX STANDARD COMPONENT 1
13 TAPPING SCREW 1
14 HEX STANDARD COMPONENT 1
15 CONNECTOR 1
16 HASP IRON HOOK 1
17 DOUBLE-BARRELLED CONNECTOR 1
18 HASP IRON (BENT 7.8x39.8) 1
P
arts List
ASSEMBLY / OPERATION
DISCLAIMER
5
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
