ASSEMBLY AND USER’S GUIDE
SKU: 58117
PALLET TRUCK STACKER DOLLY LIFT
58117
WITH TABLE FORK - MAX LOAD 441 LBS
Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
DANGER
THIS PAGE INTENTIONALLY LEFT BLANK
TABLE OF CONTENTS
1
18REPLACEMENT PARTS
INTRODUCTION
6ASSEMBLY INSTRUCTIONS
4
4OVERVIEW
4PRODUCT INFORMATION
2
Legends and Symbols
2IMPORTANT SAFETY INSTRUCTIONS
1TABLE OF CONTENTS
19PARTS LIST
18PARTS DIAGRAM
7STEP 2
6STEP 1
9STEP 4
8STEP 3
GENERAL SAFETY INFORMATION 3
SPECIFICATION 4
20DISCLAIMER
20Customer Service
20Disclaimer
12STEP 7
10
STEP 5
14STEP 9 COMPLETED WITHOUT FLAT STEEL PLATFORM
13STEP 8
15STEP 10 OPTIONAL: WITH FLAT STEEL PLATFORM
11STEP 6
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or pool products,
please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
PACKAGING CONTENTS 5
16STEP 11 OPTIONAL: WITH FLAT STEEL PLATFORM
17STEP 12 COMPLETED WITH FLAT STEEL PLATFORM
IMPORTANT SAFETY INSTRUCTIONS
2
For safety reasons, children should not be allowed to use this product.
Packing materials and plastic bags are not toys. Keep them away from children to prevent the risk
of suffocation.
Failure to comply with all instructions and warnings may lead to severe bodily
injury or even death. For optimal safety and functionality, it is advisable to have the product installed
and serviced by a certified service professional. Prior to using this product, installers, operators, and
owners must carefully review these warnings and all instructions provided in the owner's manual. It
is essential to leave these warnings and the owner's manual with the owner for their reference and
safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation,
operation, and safe use of this product. It is essential to provide this manual to the end user of the
product. Failure to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or
significant property damage.
WARNING: Indicates potential hazards that can result in severe personal injury,
death, or significant property damage. Ignoring these warnings presents a real
danger.
CAUTION: Indicates potential hazards that can result in minor or moderate
personal injury, property damage, or actions that are unpredictable and unsafe.
Ignoring these cautions presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly
related to hazards.
This guide provides instructions for installing and using the Pallet Truck Stacker Dolly Lift. If you
have any questions about the equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After
installation, make sure to share this information with the owner/operator or leave it with them for their
reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention
to the following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
WARNING
CAUTION
NOTE
DANGER
IMPORTANT SAFETY INSTRUCTIONS
3

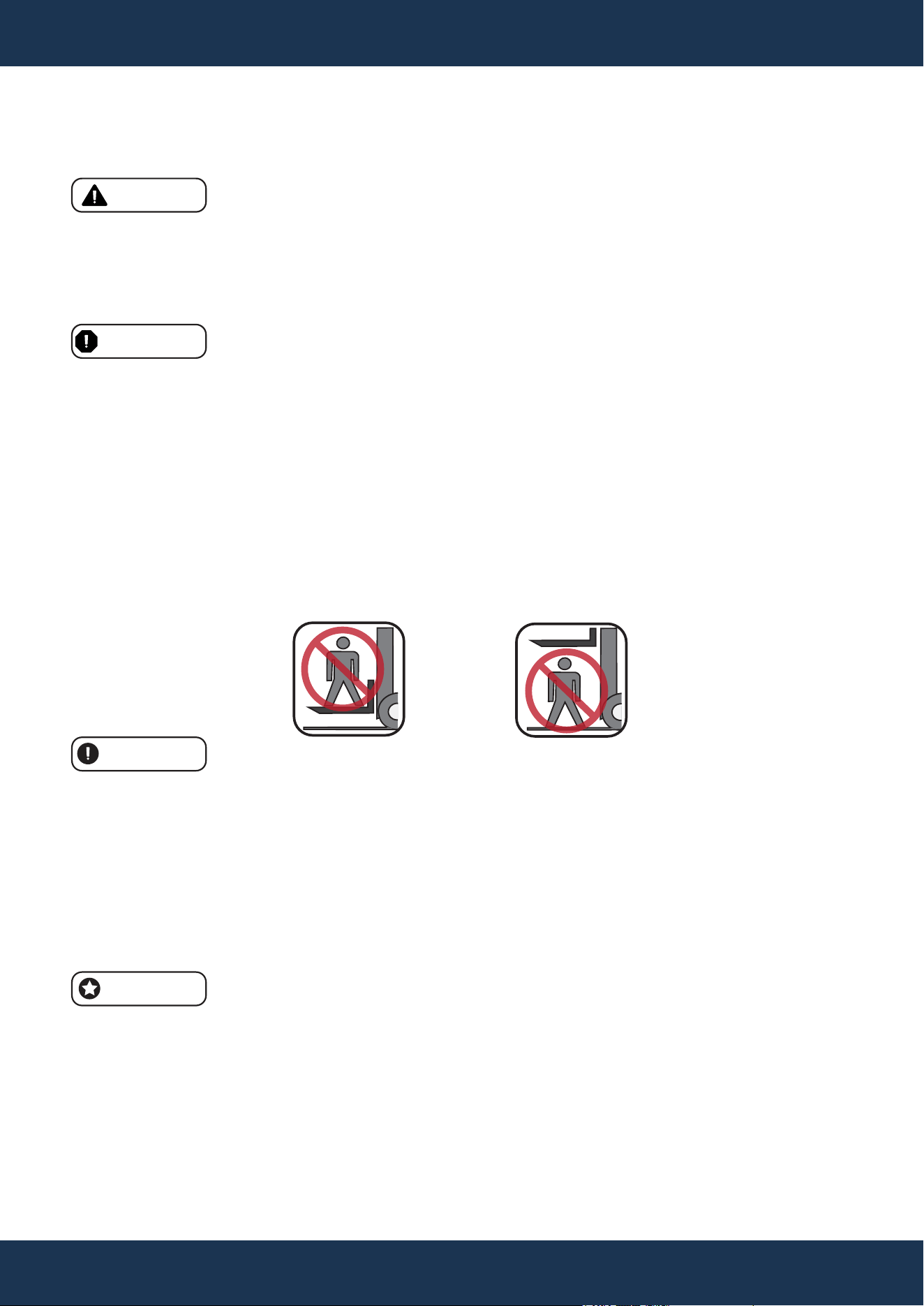

GENERAL SAFETY INFORMATION
DANGER
• Exceeding Load Capacity: Never exceed the recommended load capacity. Overloading can
lead to tipping or mechanical failure, posing serious risks.
• Emergency Lowering: In case of an emergency, lower the load immediately if safe to do so.
WARNING
CAUTION
NOTE
• Stable Loading: Always ensure that loads are stable and securely positioned on the forks.
Use straps or wraps to secure the load as needed.
• Clear Path: Make sure the travel path is free of obstacles and bystanders before moving.
• Speed Control: Move at a controlled speed to prevent load shifting that can lead to instability
or accidents.
• Regular Maintenance: Follow the manufacturer's guidelines for routine maintenance and
check all operational parts regularly.
• Proper Storage: Keep the equipment clean and store in a dry area to avoid rust and corro-
sion.
• Report Issues: Immediately report any accidents or equipment malfunctions to a supervisor
or maintenance team.
• Wear PPE: Always wear the appropriate personal protective equipment (PPE), including
safety shoes, gloves, and, if necessary, eye and ear protection.
• Proper Use: Never use the dolly lift for riding or purposes other than its intended use.
• Training and Competence: Ensure all operators are properly trained and competent in the
safe operation of this equipment.
• Pre-Use Inspection: Conduct thorough inspections before use to check for any damage or
malfunctions, particularly in the hydraulic system and lifting mechanisms.
• Operating Conditions: Operate only on flat, stable surfaces to prevent accidents. Avoid
uneven terrain and slopes.
• Visibility Obstruction: Do not operate if the load obstructs the view. Use a spotter or operate
in reverse if necessary.
• Avoid Riding on Forks: Riding on the forks is strictly prohibited.
• Stay Clear of Underneath Forks: Do not remain underneath the forks at any time.
4
XtremepowerUS Pallet Truck Stacker Dolly Lift with Table Fork, a versatile lifting and handling
solution for warehouses and distribution centers. This robust tool combines a pallet truck and
stacker, equipped with a durable table fork to manage various load sizes and types efficiently.
Its design ensures stability, durability, and easy maneuverability in tight spaces, enhancing
productivity and reducing physical strain for operators. Ideal for daily operations and heavy
lifting tasks.
INTRODUCTION
PRODUCT INFORMATION

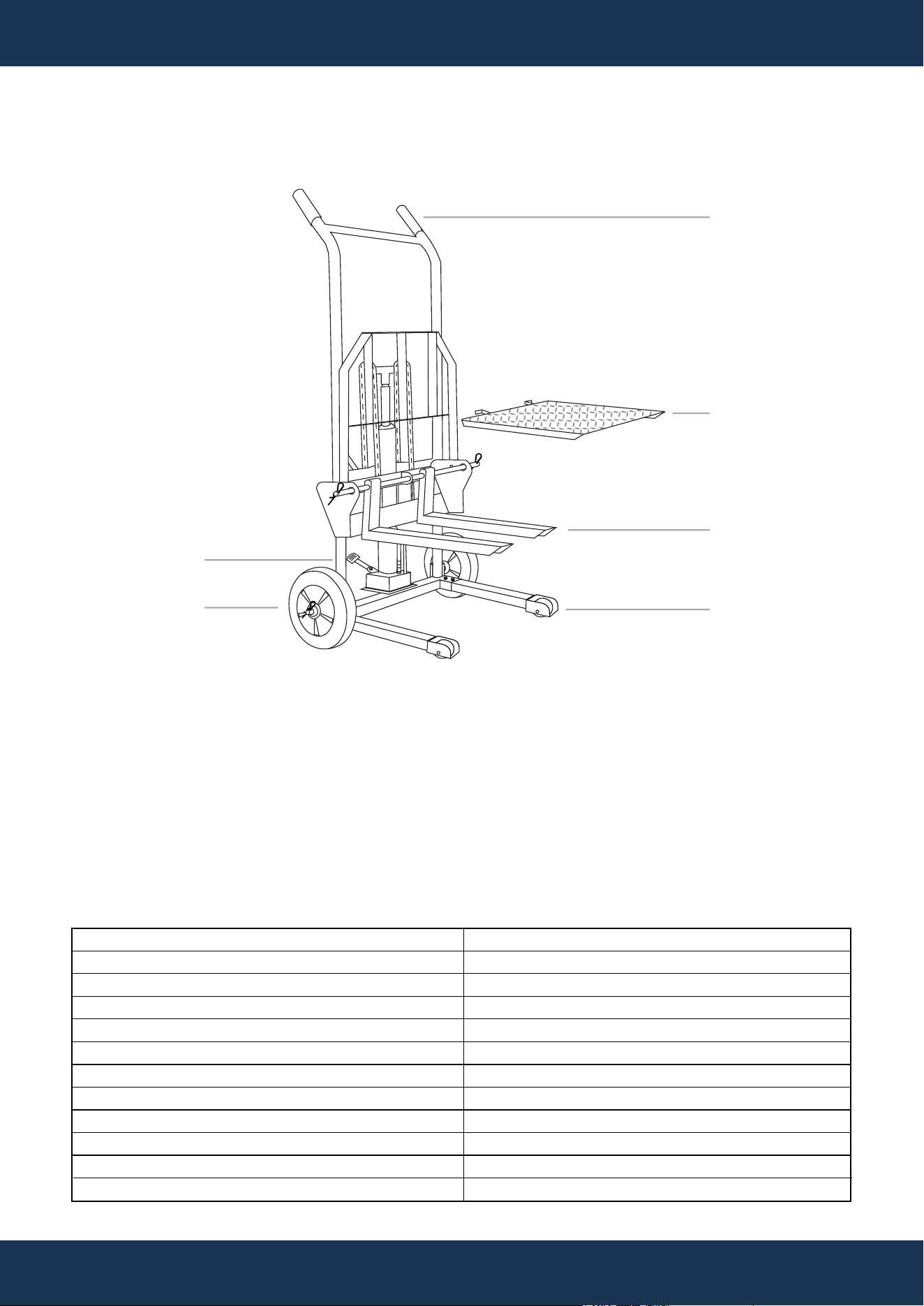

OVERVIEW
PRODUCT INFORMATION
HANDLE
SPECIFICATION
TYPE
MAXIMUM LOAD CAPACITY
FORK DIMENSIONS (L X W)
FORK ADJUSTMENT RANGE
LIFT HEIGHT RANGE
OVERALL DIMENSIONS (H X W X L)
WHEEL MATERIAL
WHEEL SIZE
BASE LEGS DIMENSIONS (W X L)
WEIGHT WITH STEEL PLATFORM
WEIGHT WITHOUT STEEL PLATFORM
FLAT STEEL PLATFORM DIMENSIONS
COMBINATION FORK & FLAT BED
441 LBS
18.5” X 2.75”
0” ~ 20”
2.75” ~ 36”
30” X 32” X 49”
RUBBER
FRONT: 2”, REAR: 9”
2” X 18.5”
95 LBS
85 LBS
18.5” X 21.7”
CARGO FORKS
FRONT WHEEL
REAR WHEEL
FLAT STEEL
PLATFORM
FOOT PEDAL

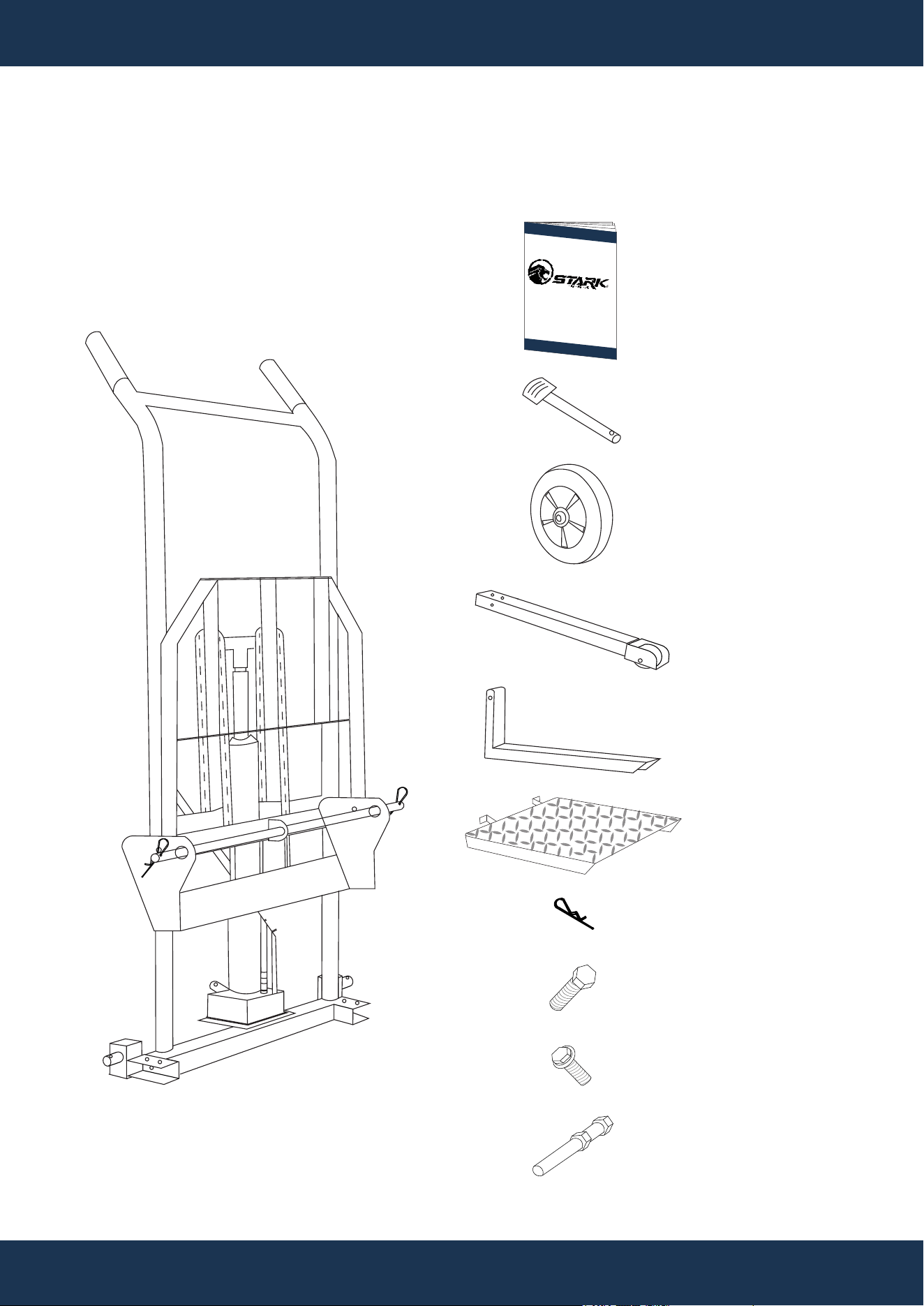

PACKAGING CONTENTS
PRODUCT INFORMATION
5
PRODUCT INFORMATION
INSTRUCTION MANUAL
1 PC(S)
SKU 58117
PARTS # 2
FOOT PEDAL
1 PC(S)
PARTS # 3
9 INCH REAR WHEEL
2 PC(S)
LIFT ASSEMBLY 1 PC(S)
PARTS # 4
2 INCH FRONT WHEEL
ASSEMBLY
2 PC(S)
PARTS # 5
FORKS
2 PC(S)
PARTS # 7
FLAT STEEL PLATFORM
1 PC(S)
PARTS # 8
LOCKING PIN
2 PC(S)
PARTS # 11
SCREW WITH NUT
2 PC(S)
PARTS # 10
SCREW WITH WASHER
4 PC(S)
PARTS # 9
SCREW
1 PC(S)
6
ASSEMBLY
ASSEMBLY INSTRUCTION

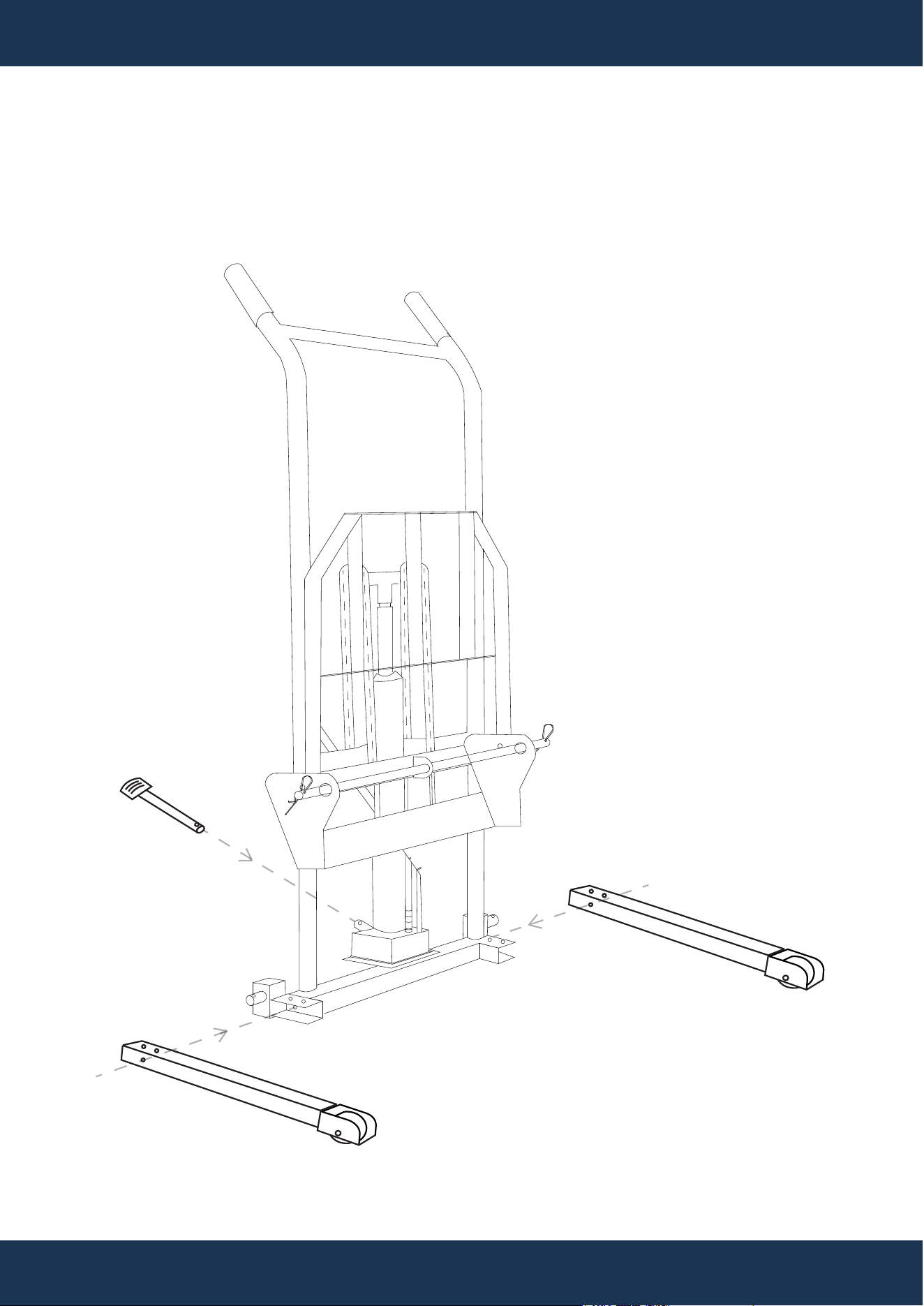

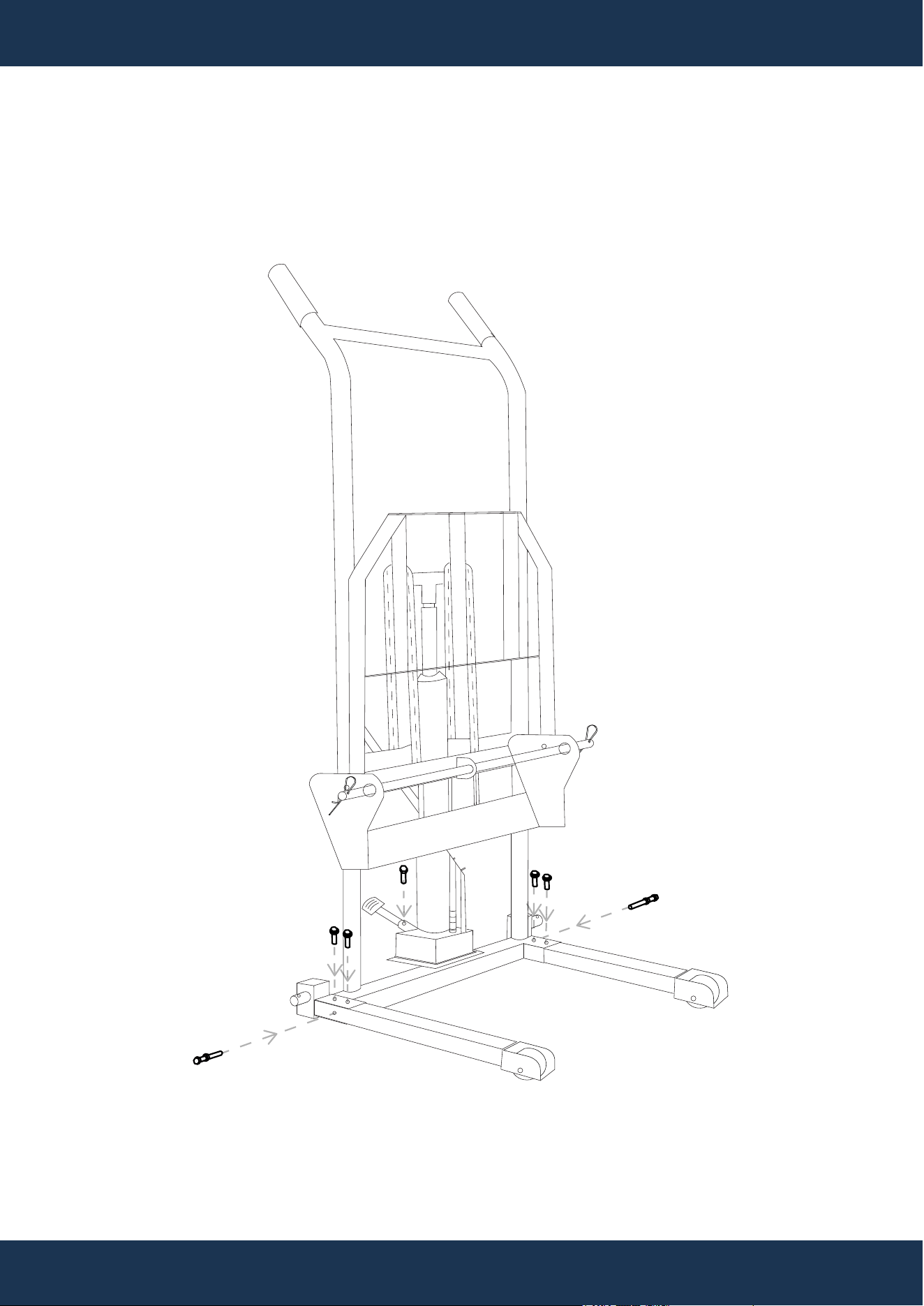

STEP 1
7
ASSEMBLY
STEP 2
8
ASSEMBLY

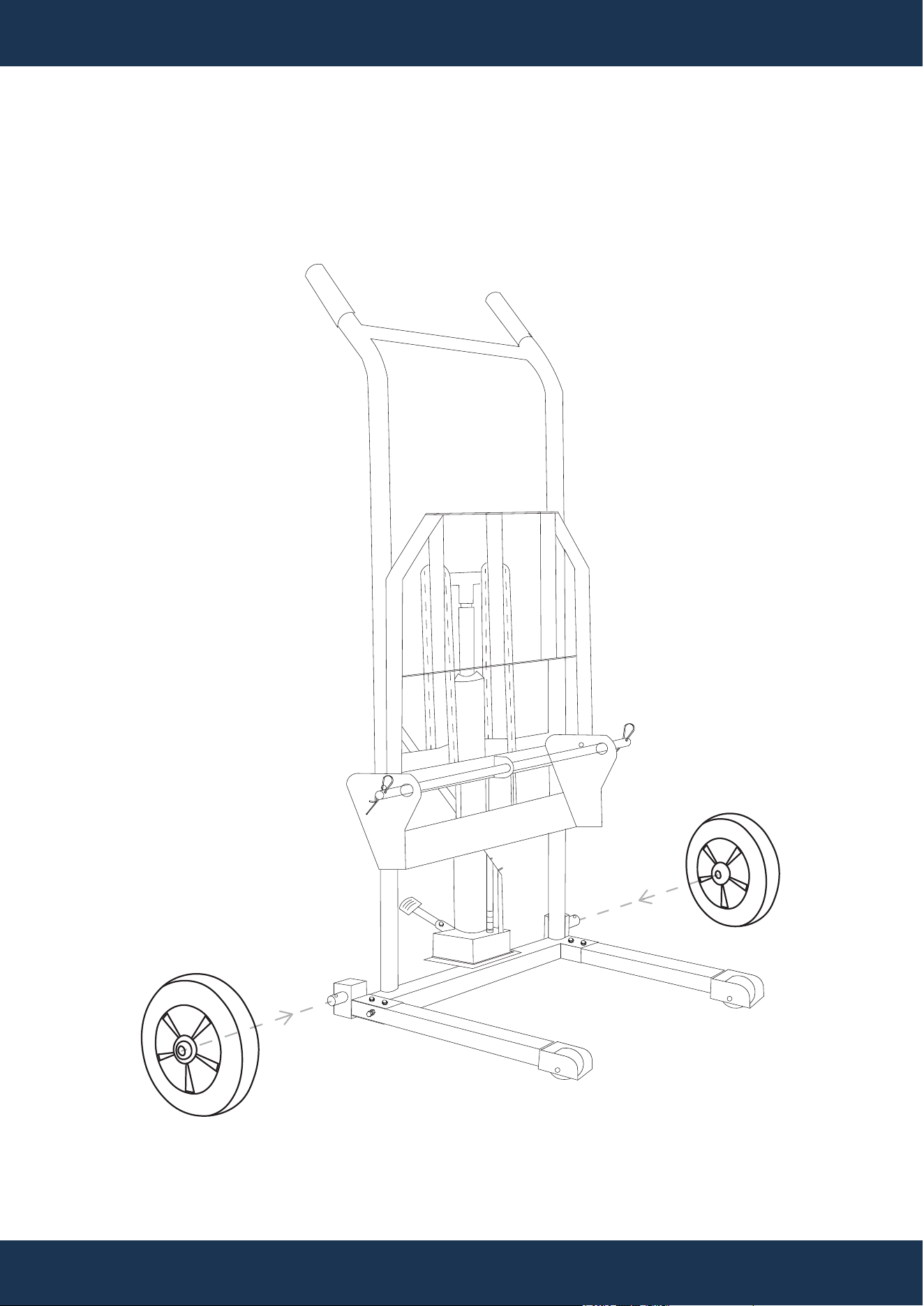

STEP 3
STEP 4
9
ASSEMBLY

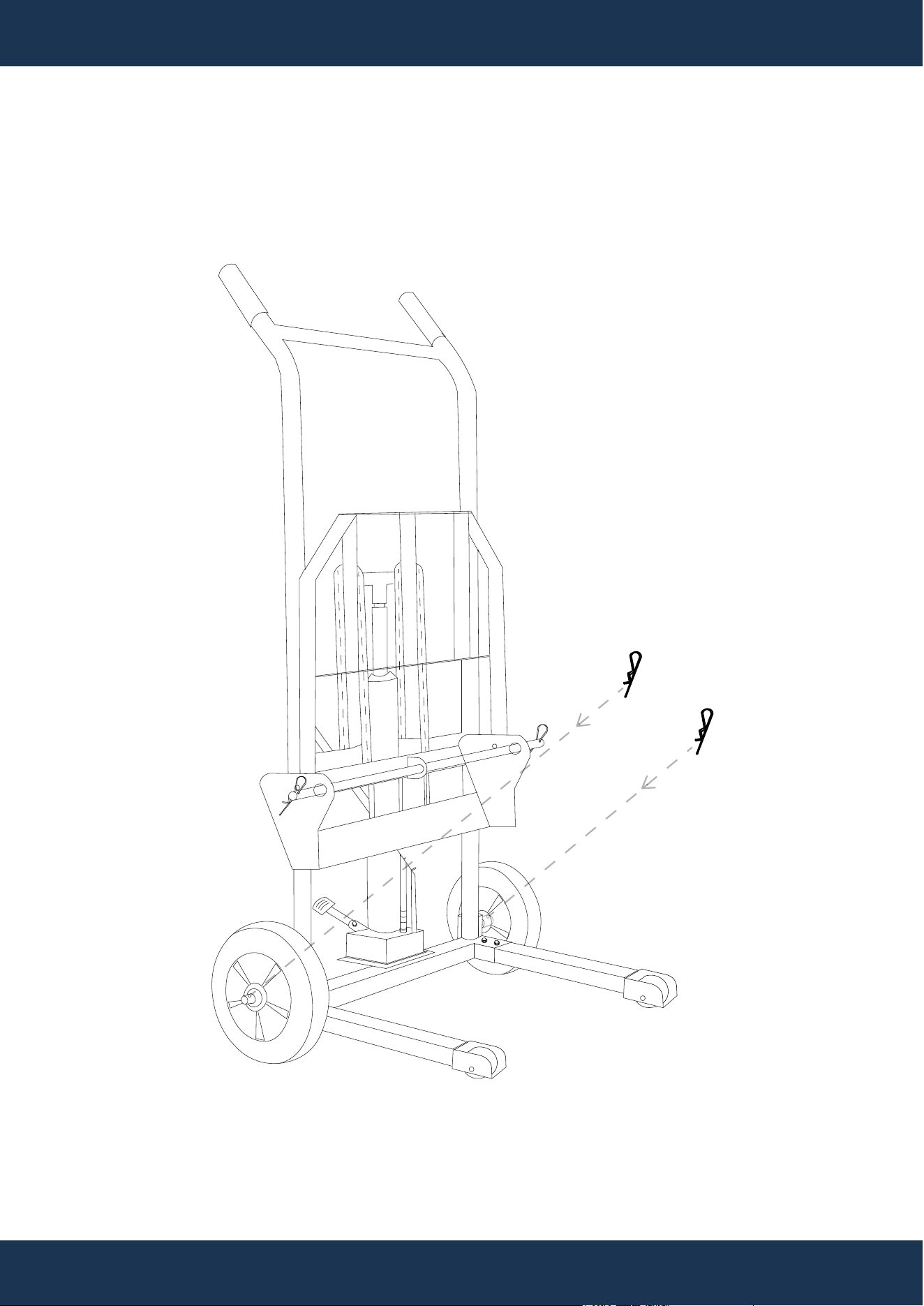

STEP 5
10
ASSEMBLY

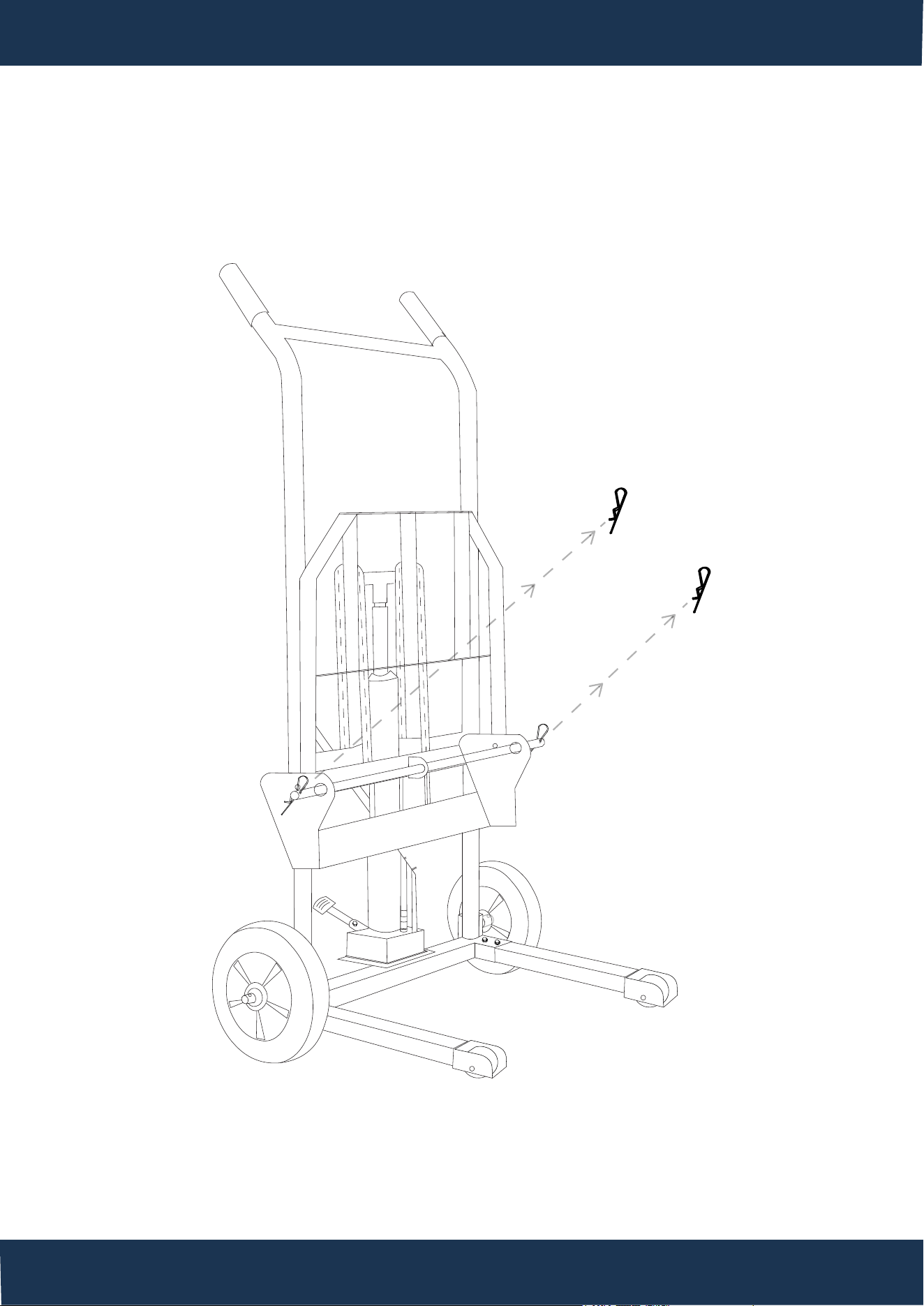

STEP 6
11
ASSEMBLY

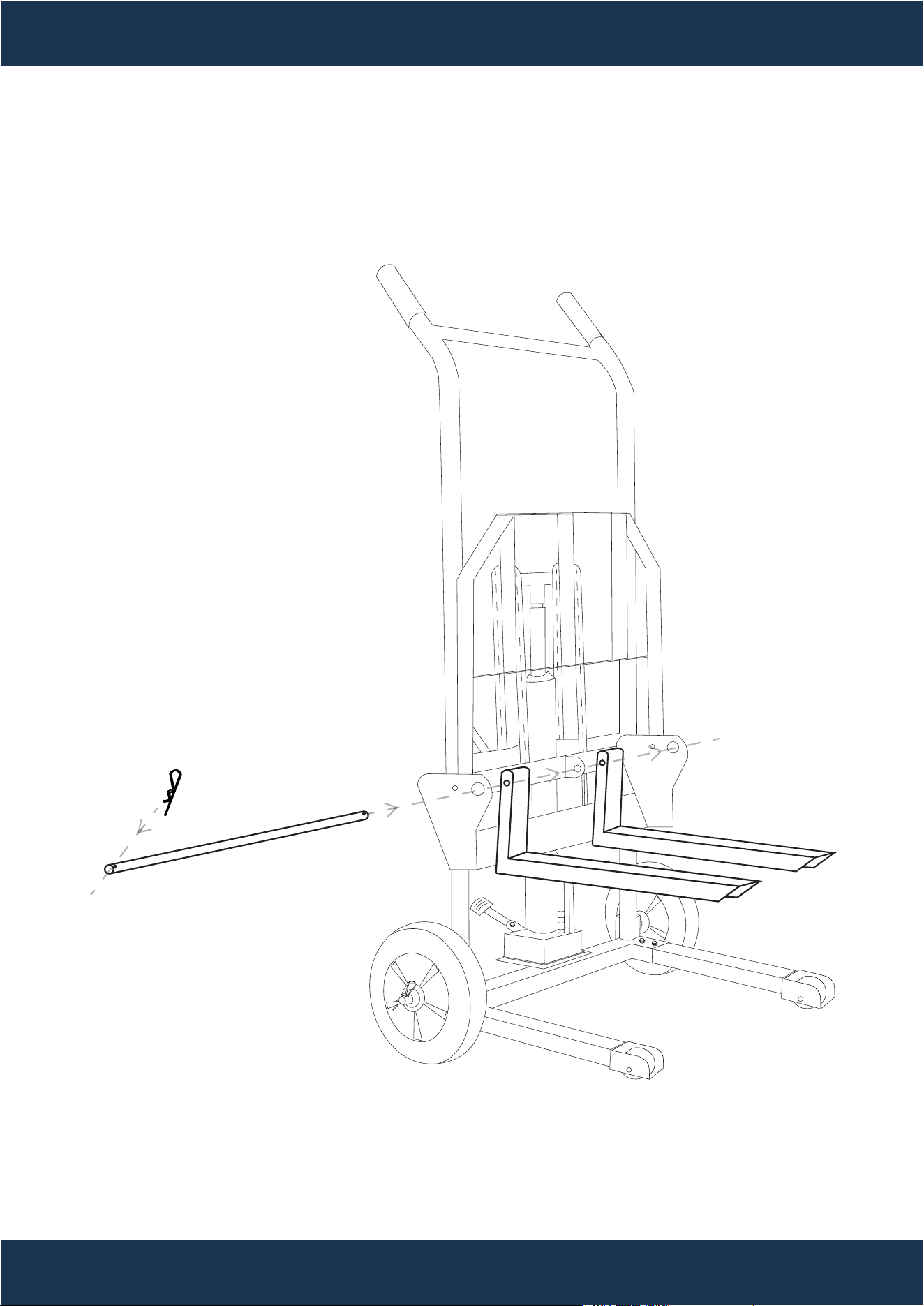

STEP 7
12
ASSEMBLY

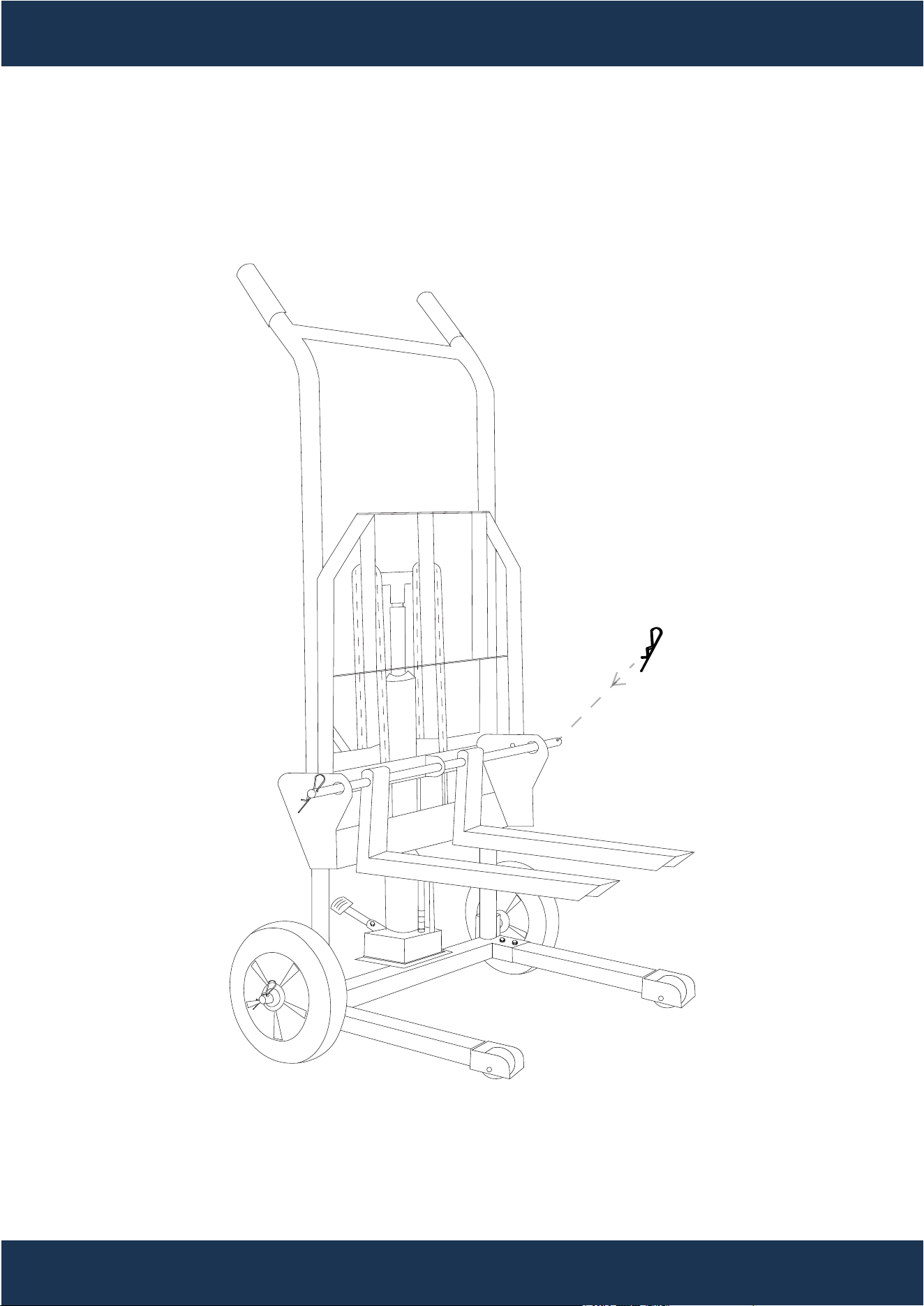

STEP 8
ASSEMBLY
13

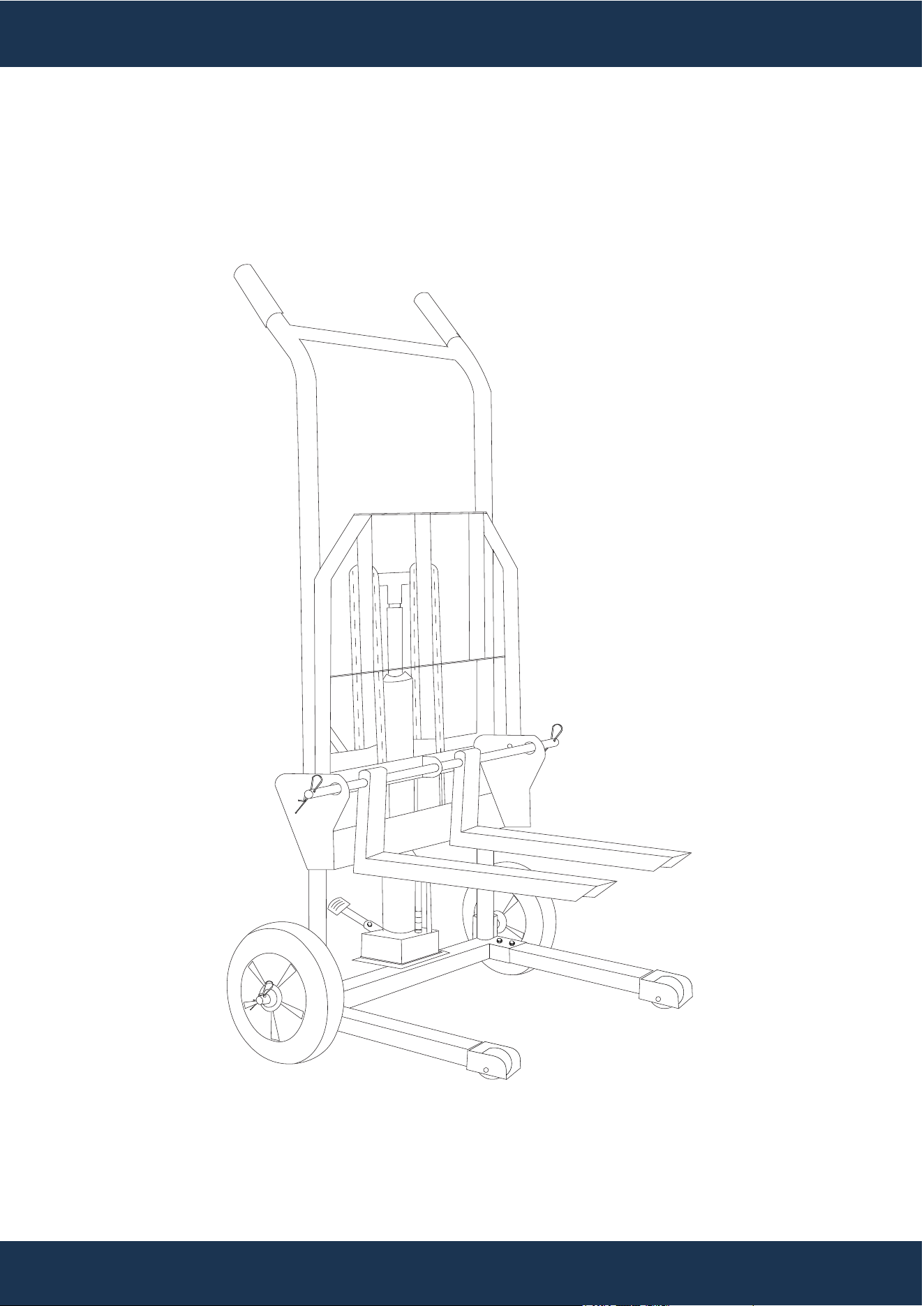

STEP 9 COMPLETED WITHOUT FLAT STEEL PLATFORM
ASSEMBLY
14
15

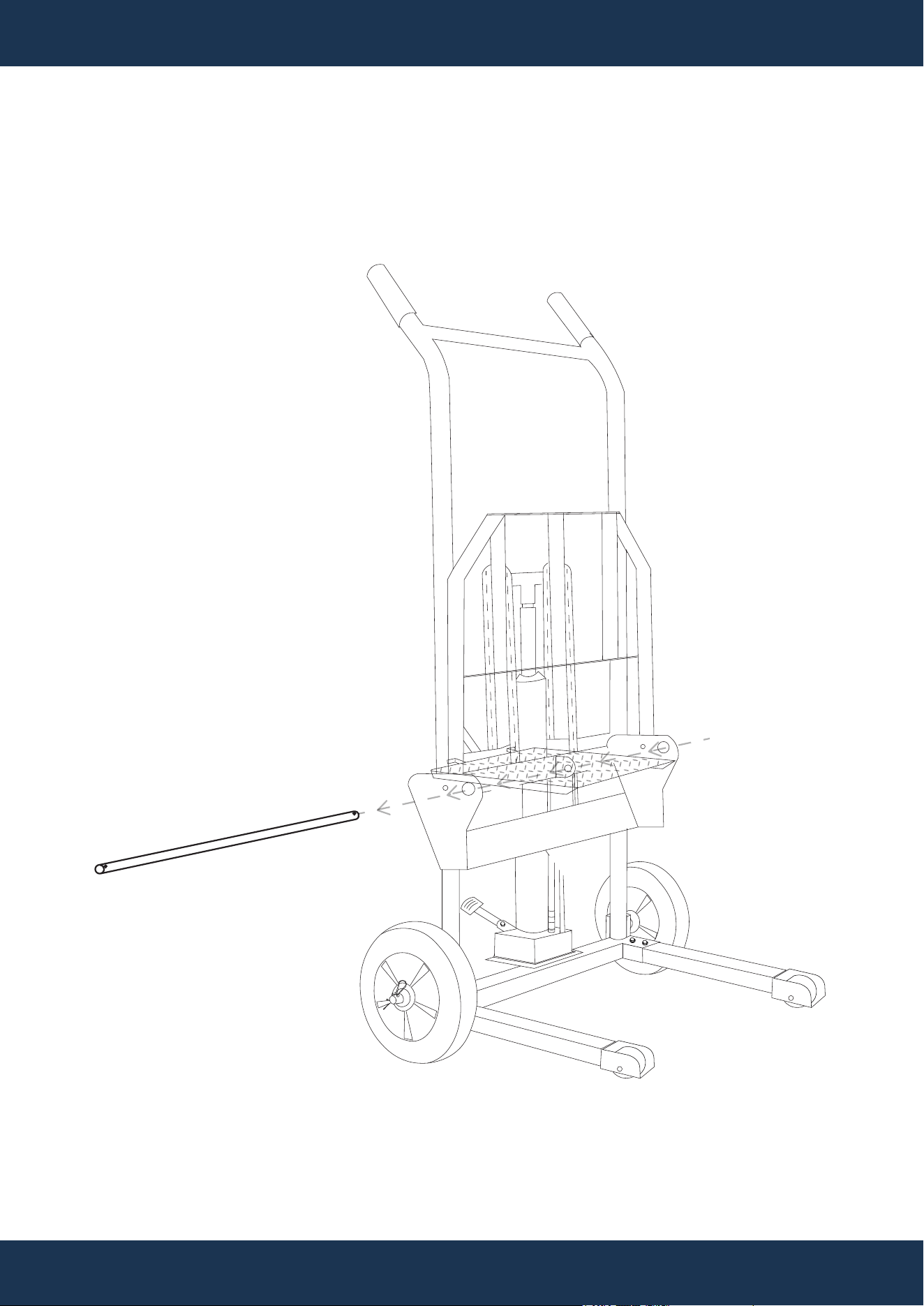

STEP 10 OPTIONAL: WITH FLAT STEEL PLATFORM
ASSEMBLY
ASSEMBLY
16

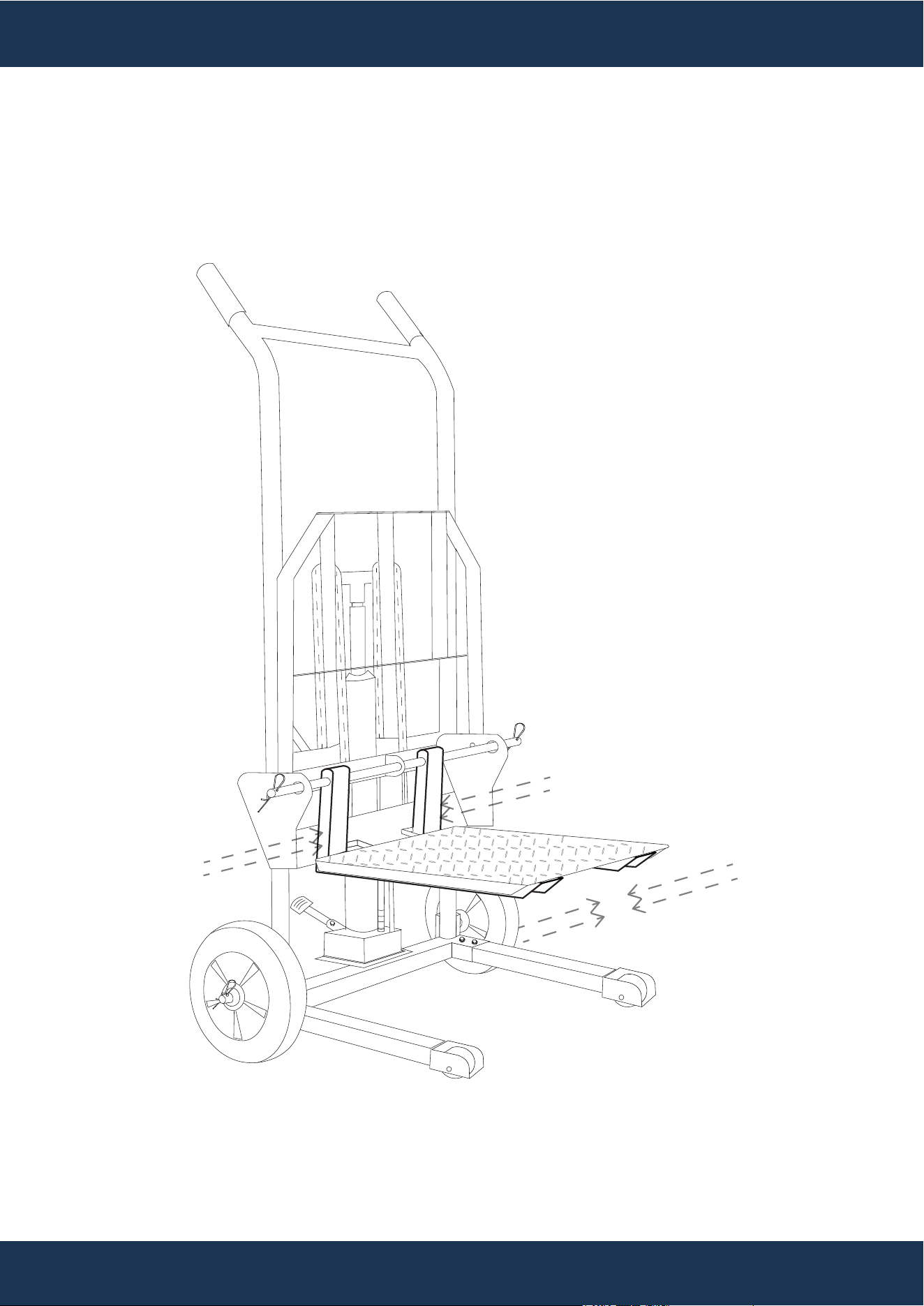

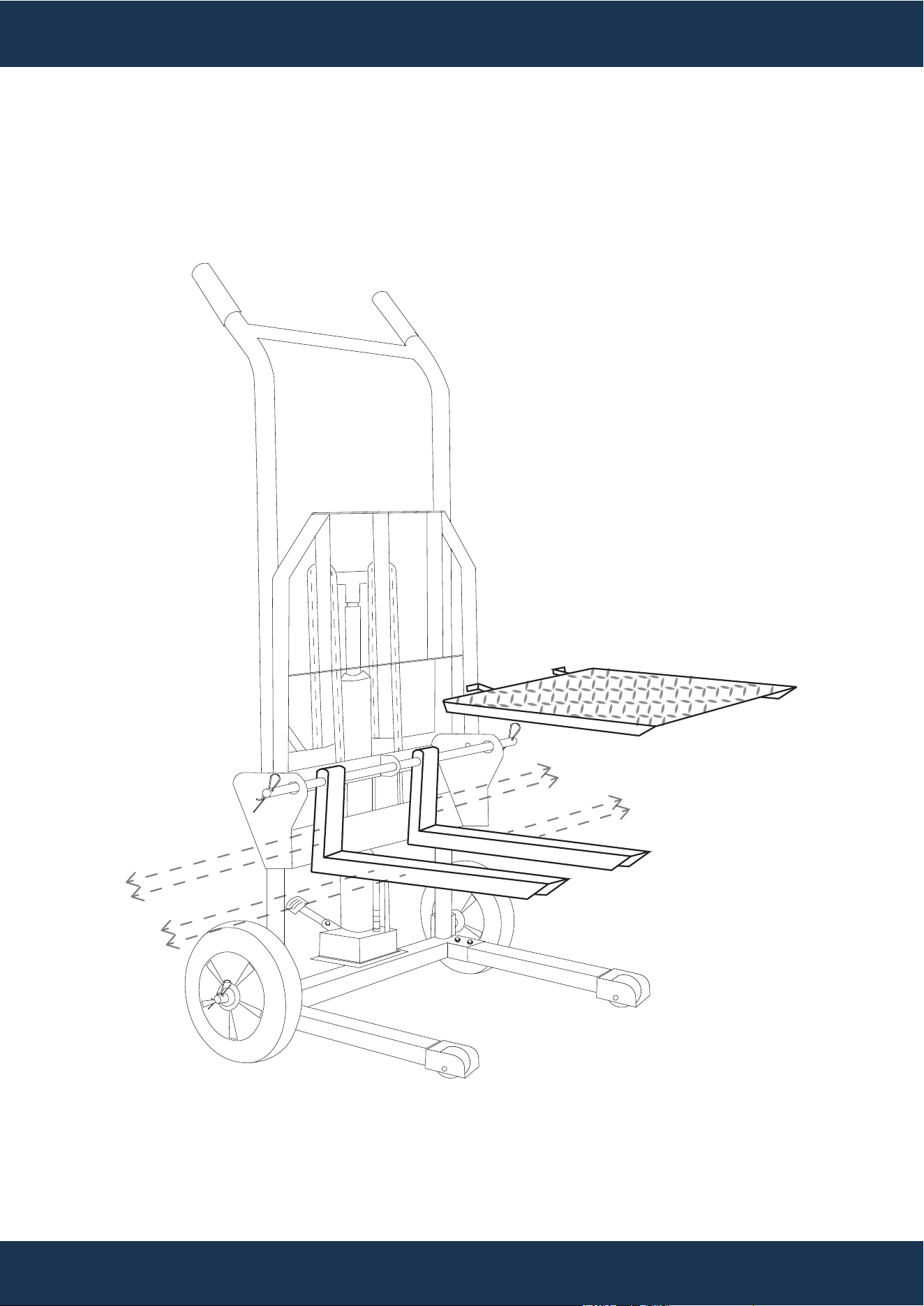

STEP 11 OPTIONAL: WITH FLAT STEEL PLATFORM
ASSEMBLY
17

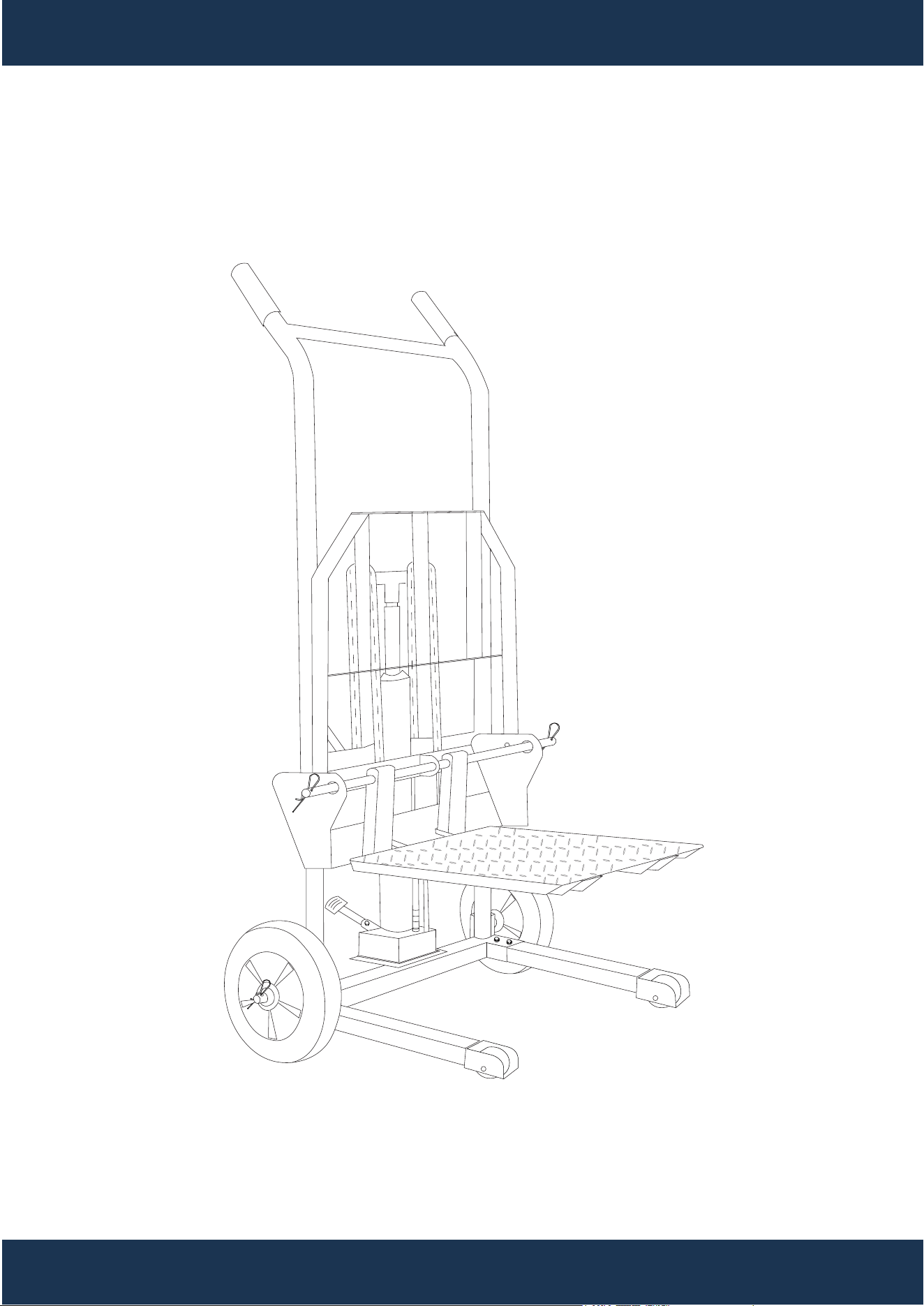

STEP 12 COMPLETED WITH FLAT STEEL PLATFORM
18
REPLACEMENT PARTS
REPLACEMENT PARTS

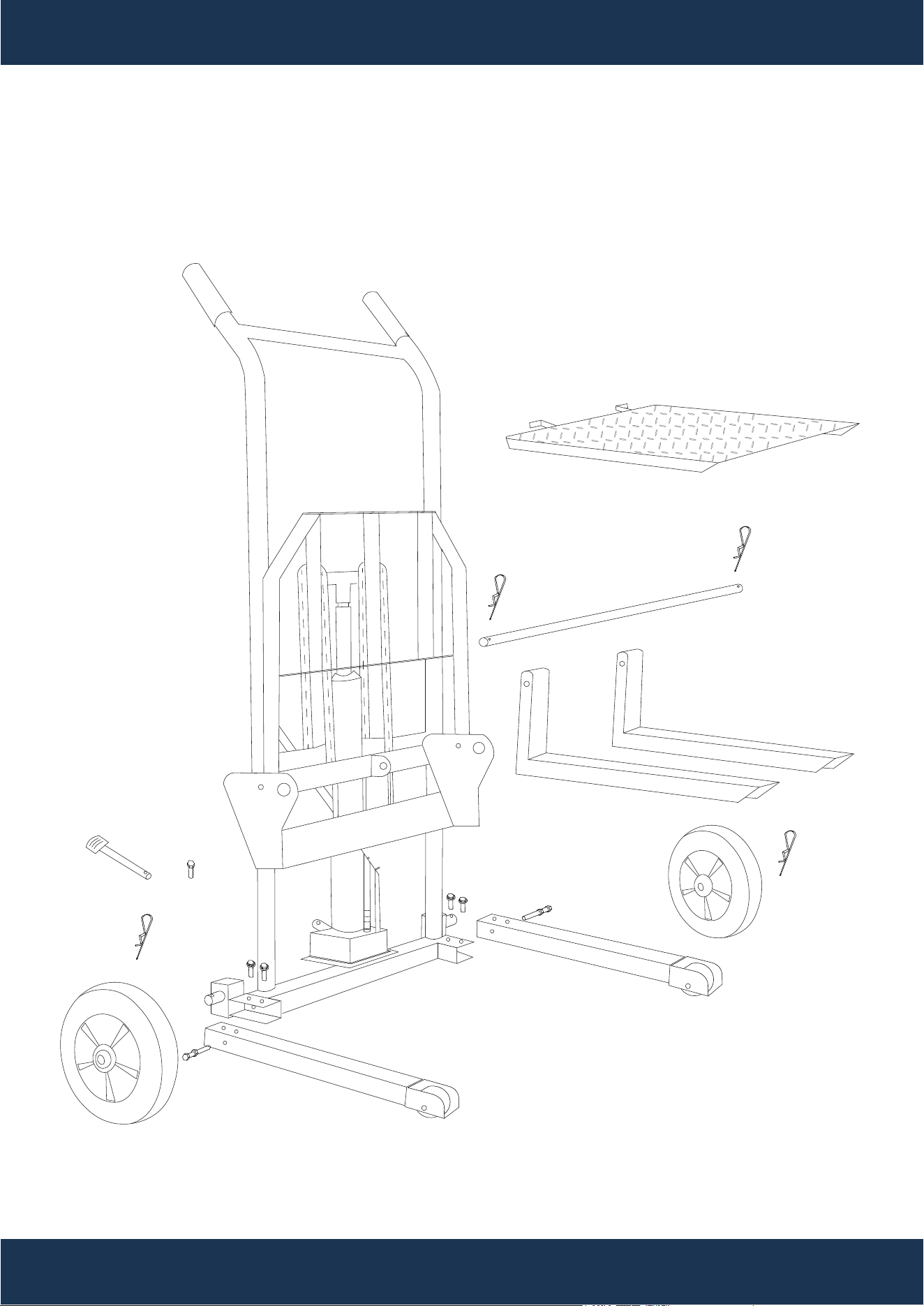

PARTS DIAGRAM
PARTS # 1
PARTS # 2
PARTS # 3
PARTS # 4
PARTS # 10
PARTS # 9
PARTS # 8
PARTS # 7
PARTS # 6
PARTS # 5
PARTS # 11
19
REPLACEMENT PARTS
PARTS LIST
PARTS#
1
2
3
4
5
6
7
8
9
10
11
DESCRIPTION
LIFT ASSEMBLY
FOOT PEDAL
9” REAR WHEEL
2” FRONT WHEEL ASSEMBLY
FORKS
FORK ASSEMBLY ROD
FLAT STEEL PLATFORM
LOCKING PIN
SCREW
SCREW WITH WASHER
SCREW WITH NUT
QTY
1
1
2
1
2
1
1
4
1
4
2
20
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this
manual for reference purposes only. They do not make any representation or warranty to the buyer
that they are qualified to make repairs to the product or replace any parts of the product. In fact, the
manufacturer and/or distributor expressly state that all repairs and parts replacements should be
undertaken by certified and licensed technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or
replacement parts or arising from their installation of replacement parts. It is strongly advised that
qualified professionals handle any repairs or replacements to ensure safety and proper functioning
of the product. Improper installation and operation may result in injury, property damage, or voiding
of warranty. The manufacturer and/or distributor shall not be held responsible for any accidents,
damages, or malfunctions resulting from the buyer's installation and operation of the product. It is
essential to follow all safety guidelines and recommendations provided in this manual and to seek
professional assistance if unsure about the installation or operation procedures.
