Monitor • User Manual
i
Legal Information
About this Document
● This Document includes instructions for using and managing the Product. Pictures, charts,
images and all other information hereinafter are for description and explanation only.
● The information contained in the Document is subject to change, without notice, due to
firmware updates or other reasons. Please find the latest version of the Document at the
Hikvision website (https://www.hikvision.com). Unless otherwise agreed, Hangzhou Hikvision
Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as "Hikvision") makes no
warranties, express or implied.
● Please use the Document with the guidance and assistance of professionals trained in
supporting the Product.
About this Product
This product can only enjoy the after-sales service support in the country or region where the
purchase is made.
Acknowledgment of Intellectual Property Rights
● Hikvision owns the copyrights and/or patents related to the technology embodied in the
Products described in this Document, which may include licenses obtained from third parties.
● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part
of this Document may be excerpted, copied, translated, or modified in whole or in part by any
means without written permission.
● and other Hikvision's trademarks and logos are the properties of Hikvision in
various jurisdictions.
● Other trademarks and logos mentioned are the properties of their respective owners.
● The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United
States and other countries.
LEGAL DISCLAIMER
● TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS
IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK.
IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
Monitor • User Manual
ii
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
● YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
● YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
● IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
Monitor • User Manual
iii
Applicable Models
This manual is applicable to 43&55 inch monitor.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Safety Instructions
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100 to 240 VAC according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause over-
heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
Provide a surge suppressor at the inlet opening of the device under special conditions such as
the mountain top, iron tower, and forest.
If the device uses a 3-prong power supply plug, it must be connected to an earthed mains
socket-outlet properly.
The socket-outlet shall be installed near the device and shall be easily accessible.
Do not touch the bare components (such as the metal contacts of the inlets) and wait for at
least 5 minutes, since electricity may still exist after the device is powered off.
CAUTION: Replace the fuse only with the same model to reduce the risk of fire or electric
shock.
The device must be connected to an earthed mains socket-outlet.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Monitor • User Manual
iv
Make sure that the power has been disconnected before you wire, install, or disassemble the
device.
CAUTION: This device is for use only with specified bracket (Hikvision's monitor stand). Use
with other (carts, stands, or carriers) may result in instability causing injury.
If the device is equipped with personal music player function, to prevent possible hearing
damage, do not listen at high volume levels for long periods. Refer to datasheet for details.
The interface varies with the models. Please refer to the product datasheet for details.
If the device needs to be wired by yourself, select the corresponding wire to supply power
according to the electric parameters labeled on the device. Strip off wire with a standard wire
stripper at corresponding position. To avoid serious consequences, the length of stripped wire
shall be appropriate, and conductors shall not be exposed.
If the device is not working properly, contact the store where the device was purchased or the
nearest service center and do not remove or modify the device in any way. (Our company is
not responsible for problems caused by unauthorized modifications or repairs.)
Do not connect several devices to one power adapter as adapter overload may cause over-
heating or a fire hazard.
The device shall not be exposed to water dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the equipment.
Ensure correct voltage and wiring of the terminals for connection to mains supply.
The device has been designed, when required, modified for connection to an IT power
distribution system.
identifies the battery holder itself and identifies the positioning of the cell(s) inside the
battery holder.
+ identifies the positive terminal(s) of equipment which is used with, or generates direct
current. - identifies the negative terminal(s) of device which is used with, or generates direct
current.
No naked flame sources, such as lighted candles, should be placed on the device.
The ventilation should not be impeded by covering the ventilation openings with items, such
as newspapers, tablecloths, curtains, etc. The openings shall never be blocked by placing the
equipment on a bed, sofa, rug or other similar surface.
Keep product surface clean and dry. Do not operate in humid or explosive environment.
Avoid contact with exposed circuits. Do not touch exposed contacts or components when
powering on the product.
The USB port of the device is used for connecting to a mouse, a keyboard, or a USB flash drive
only.
Install the device according to the instructions in this manual.
To prevent injury, this device must be securely attached to the floor/wall in accordance with
the installation instructions.
Monitor • User Manual
v
Never place the device in an unstable location. The device may fall, causing serious personal
injury or death.
The additional force shall be equal to three times the weight of the device but not less than
50 N. The device and its associated mounting means shall remain secure during the
installation.
After the installation, the device, including any associated mounting plate, shall not be
damaged.
Do not cause objects to fall on the device or shake the device vigorously, and keep the device
away from areas where magnetic field interference exists. Avoid installing the device in a place
where the surface vibrates or is vulnerable to shock.
Do not install the device at high temperatures (above 40 ° C) or low temperatures (below -10 °
C) or high humidity.
Keep vertical when moving or using the device.
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
If no power adapter is provided, ensure the power adapter or other power supply complies
with Limited Power Source. Refer to the product label for the power supply output
parameters.
Monitor • User Manual
1

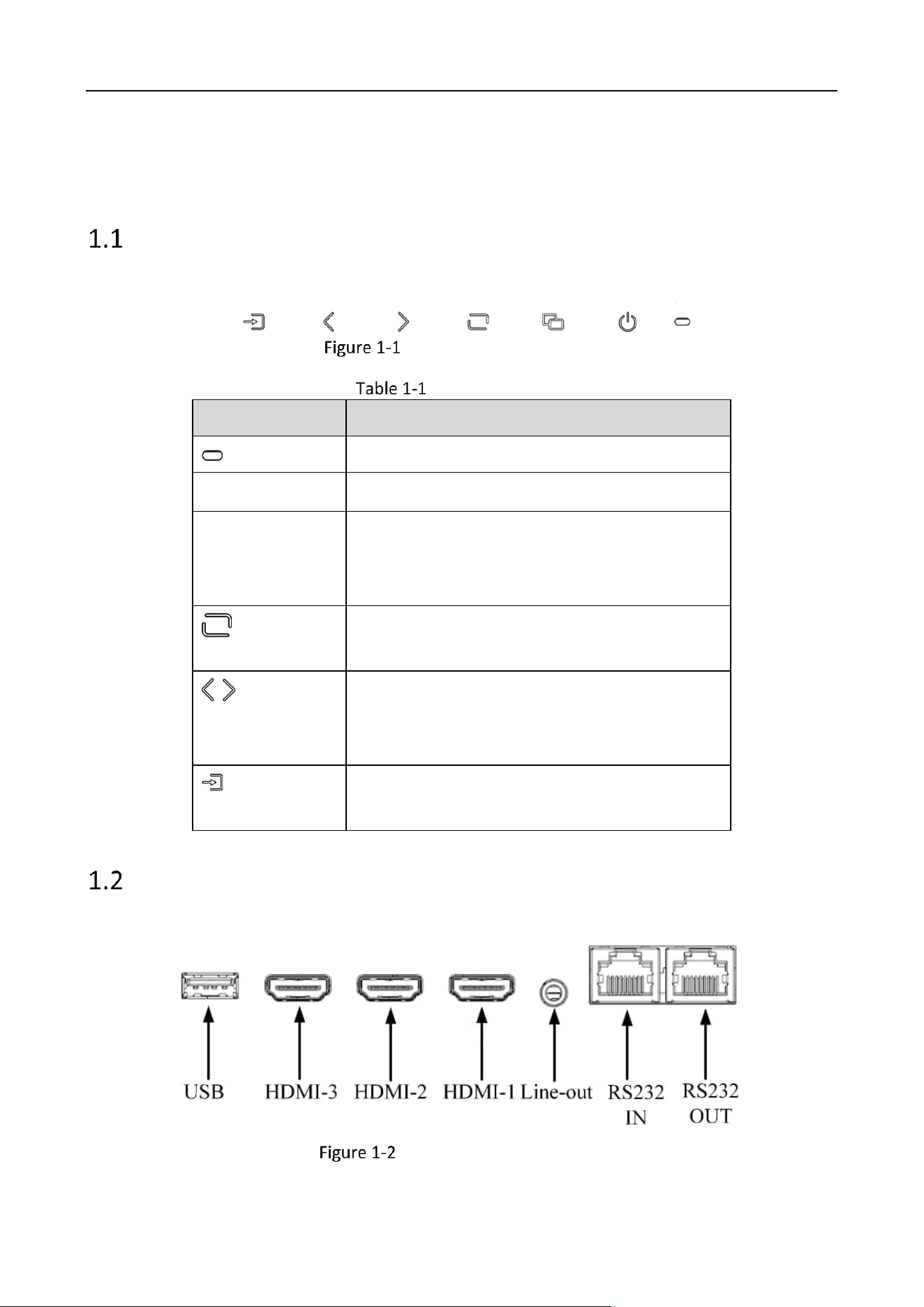

Chapter 1 Product Introduction
Buttons on the Front Panel
Buttons on the front panel of the device are shown as follows.
Buttons on the Front Panel
Button Description
Button
Description
Power indicator.
Power On/Off.
Second-level menu page: Exit Menu.
File selection for USB playing: Play.
Other pages: Show main menu page.
Show the current input sources.
All the menu pages: OK.
First-level page: Previous/Next.
Second-level page: Add/Reduce.
USB playing page: Volume up/down.
Show all the input sources.
All the menu pages: Switch to next one.
Interfaces on the Rear Panel
The interfaces that may be found on the rear panel of the device are defined as follows.
Interfaces on the Rear Panel
Monitor • User Manual
2
Interfaces Description
Interface
Description
Interface
Description
USB
USB2.0 interface
HDMI-3/2/1
HDMI digital signal input
Line-out
3.5 mm audio output
Interface
RS232 IN
Connect with the output of
the central control device.
You can remotely control the
display through the client.
RS232 OUT
Connect with the RS232IN
port of the next monitor.
Used as a cascading loop
output outlet for multiple
monitors.
Monitor • User Manual
3

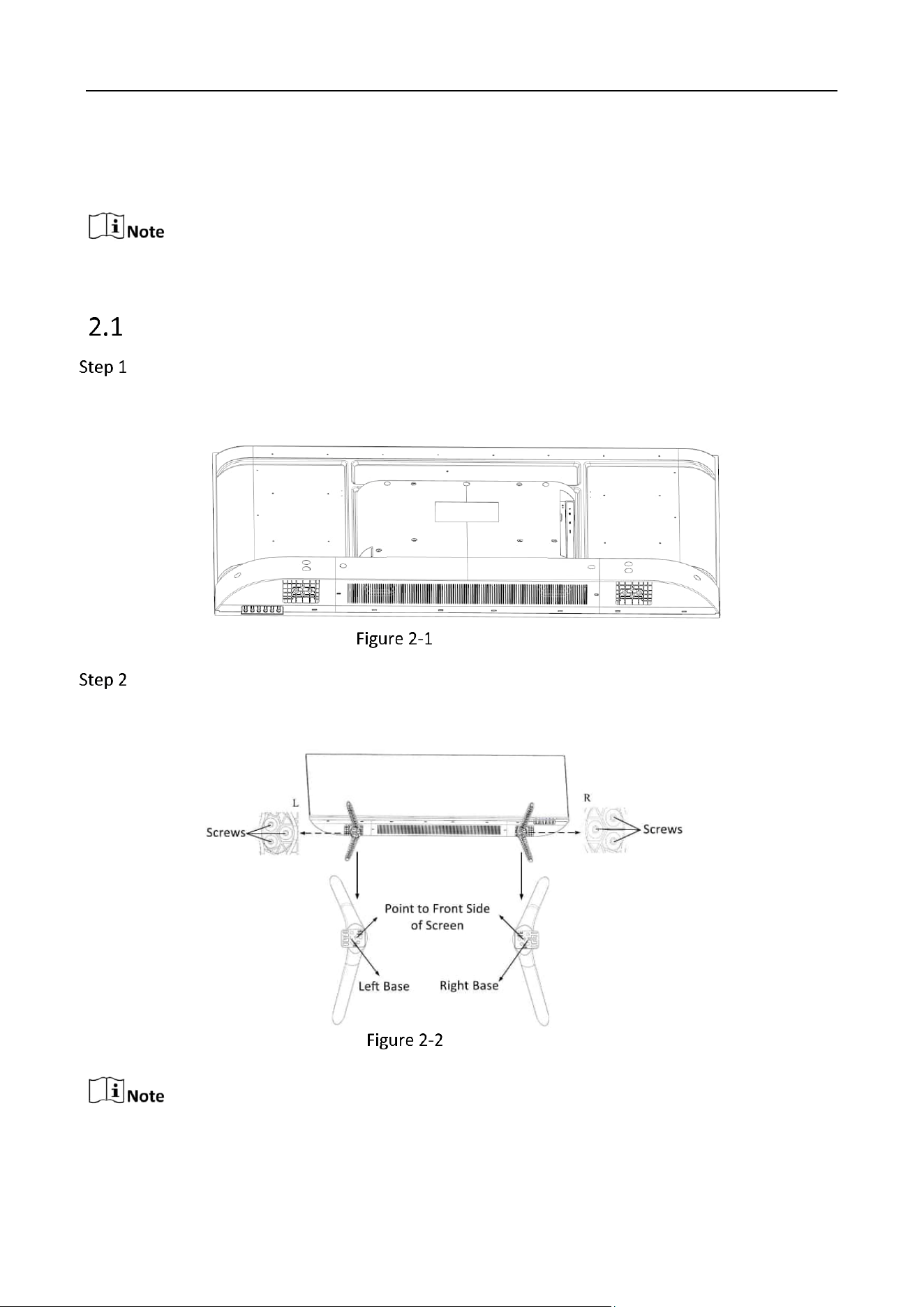

Chapter 2 Installation and Power On
The installation drawings are for reference only.
Install the Square Base
Gently lift the device. Place the screen down on a stable surface covered with a thick soft
cloth so that the bottom of the device is close to the edge of the surface for mounting the
bracket.
Place the Monitor
Take out the bases and screws. Align the base with the mounting holes on the bottom of the
unit as shown in the figure below, install them to the corresponding positions, and lock the
three screws on each side.
Install the Base
The L and R markings on the bases need to correspond to the L and R markings at the bottom of
the device.
Monitor • User Manual
4
Power On the Device
Connect the device to an earthed mains socket-outlet, and power on the device.
Power Supply: AC 100 to 240 V, 50/60 Hz, Max. 1.0 A.
Power off the device and disconnect the plug if it is not in use for a long time.
The device cannot be connected to DC power supply.
When there is no signal input, the device will enter standby mode and the screen will be off.
The device will run at the lowest power consumption. After receiving the signal source, the
device will exit the standby mode.
Standby Power Consumption: no more than 0.5 W.
Monitor • User Manual
5

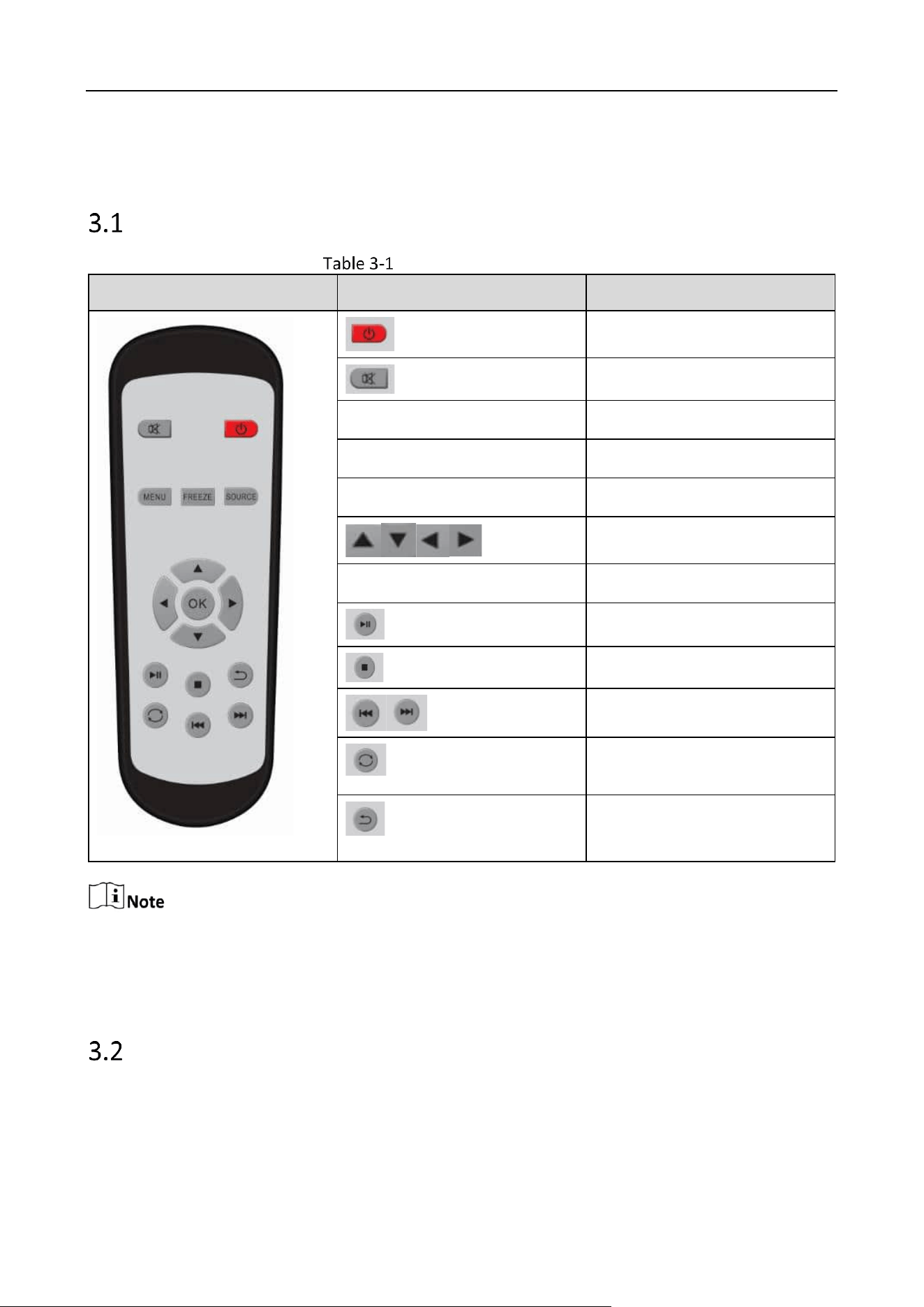

Chapter 3 Remote Control
Buttons on the Remote Control
Remote Control Description
Appearance
Button
Description
Power on/off
Mute/Unmute
【FREEZE】
Freeze the current display
【MENU】
Go to menu settings
【SOURCE】
Check or select a signal source.
Up/Down/Left/Right
【OK】
OK
Play/Pause
Stop
Previous/Next
Repeat
Return
The remote control is not available to all kinds of devices. Whether your device is equipped
with a remote control depends on the actual situation.
Please choose and equip the remote control according to your actual needs.

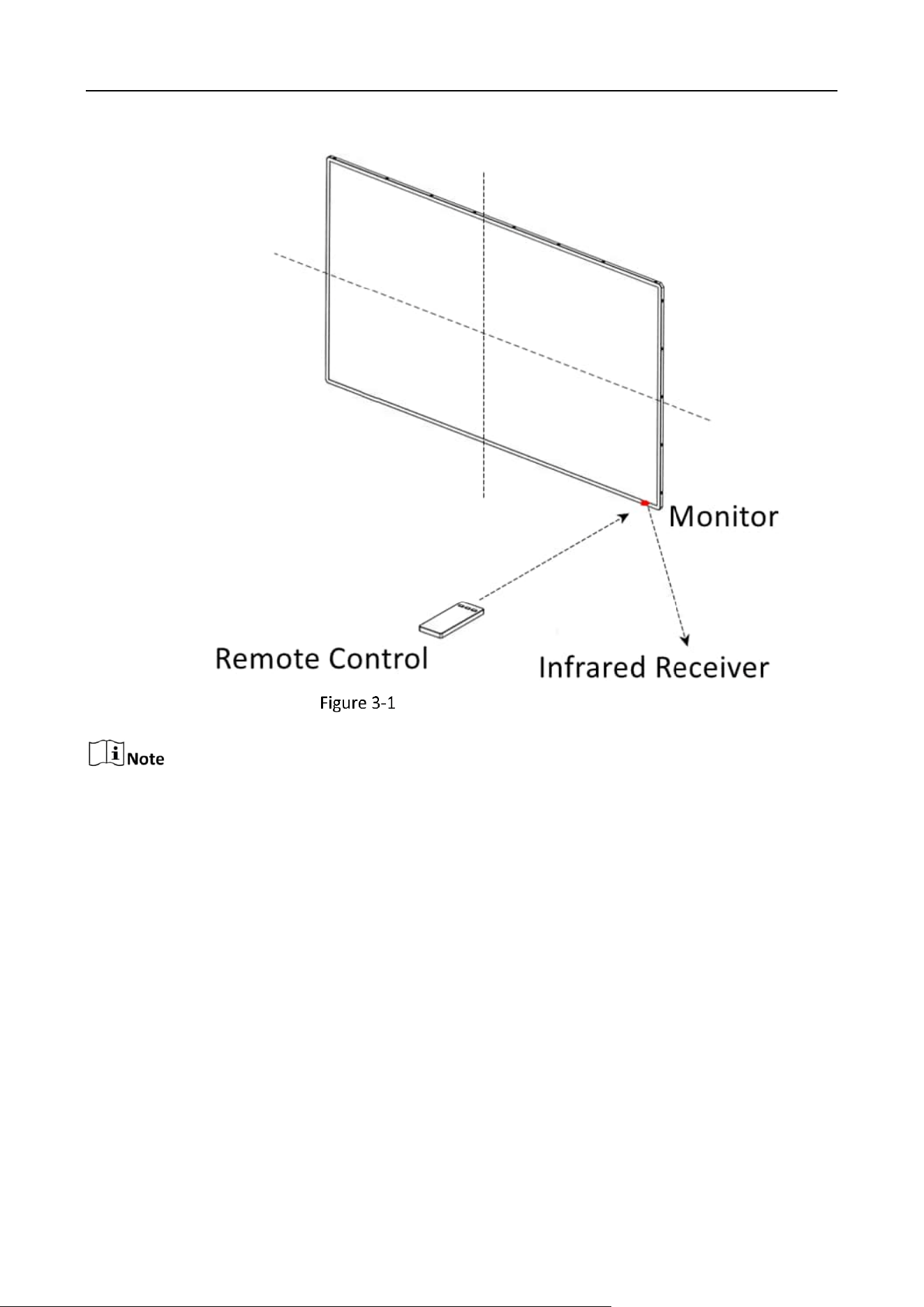

Remote Control Operation
There are two ways to use the remote control. Please select one according to the real situation:
When the infrared receiver is visible on the panel, aim at the infrared receiver to operate the
remote control. The best distance to operate the remote control ranges from 3 meters to 5 meters.
Monitor • User Manual
7

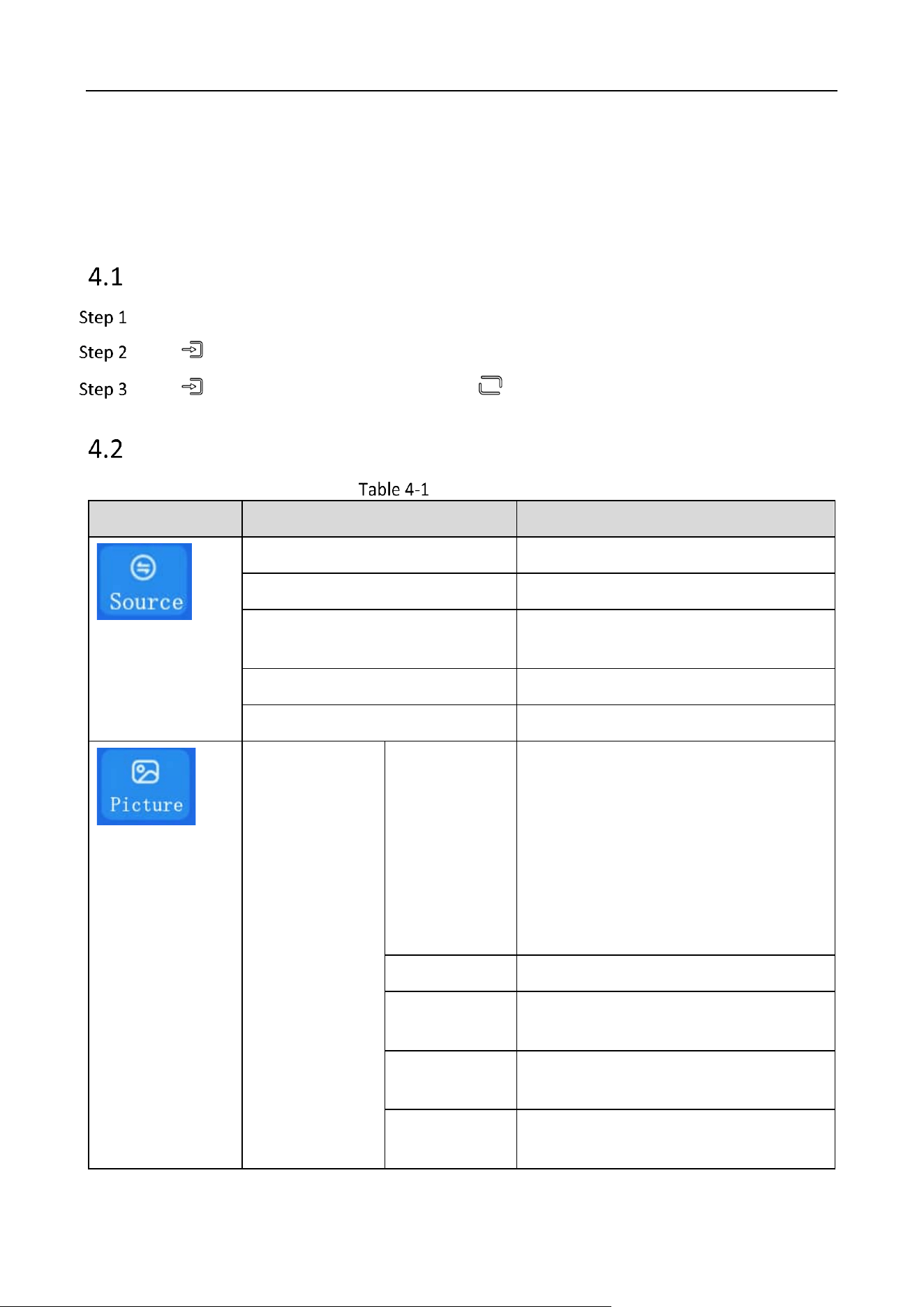

Chapter 4 Basic Operations
The pages vary with different models. The figures followed are only for illustration.
Select the Signal Source
After connecting the signal cables or inserting the USB flash drive, power on the device.
Press to enter the signal source page.
Press to switch input sources, and press to confirm.
Main Menu
Menu Description

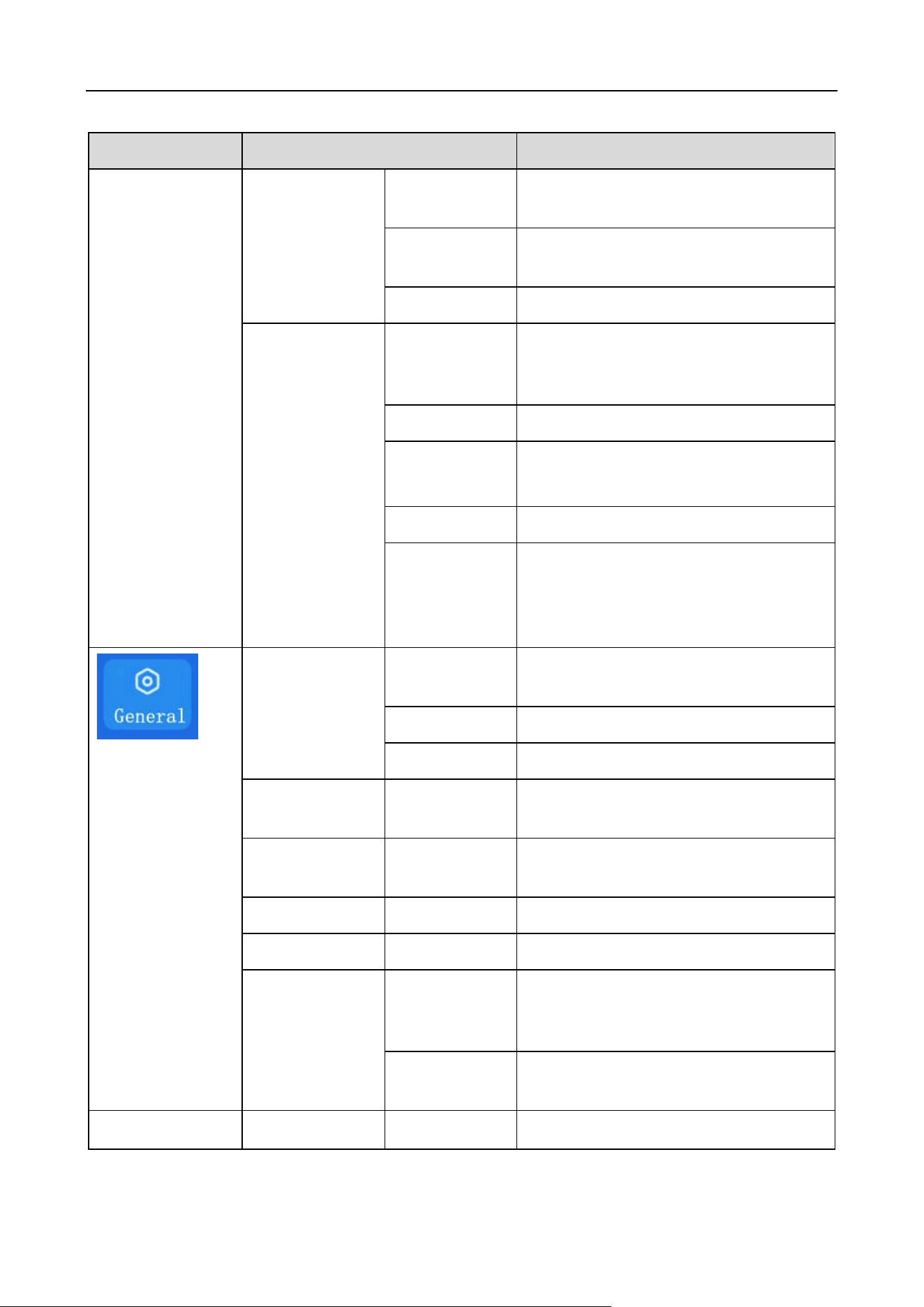

Tab
Parameters
Description
HDMI1/2/3
HDMI digital signal input.
TV USB
Play the materials stored in the USB.
Volumn
0~100. Adjust the volume of the
monitor.
Backlight
0~100.
Mute
Disable/Enable
Picture Mode
Picture Mode
Standard: Suitable for a normal
environment. It is the default picture
mode.
Vivid: Suitable for a bright room.
Soft: Suitable for a dark room.
User: Customize the brightness,
contrast, color sharpness or hue to
adjust display effect.
Color Temp.
Standard/Warm/Cool/User
Brightness
0~100. The higher the value is, the
brighter the image will be.
Contrast
0~100. The higher the value is, the
clearer the image will be.
Color
0~100. The higher the value is, the more
colorful the image will be.
Monitor • User Manual
8
Tab
Parameters
Description
Sharpness
0~100. Rise the value up to make the
image more vivid.
Hue
0~100. It determins the contrast degree
between the bright and dark.
Backlight
0~100.
Image Settings
Aspect Ratio
16:9/4:3/1:1. Adjust the image scale:
the ratio between the width and height
of the image.
Color Space
Auto/0~255/16~235.
EDID Switch
EDID 1.4: Suitable for 1080p image.
EDID 2.0: Suitable for 4K image.
Image Freeze
Enable/Disable.
HDR
Enable/Disable. After enabling, it can
show a wider range of colors and light,
and more details in between the
extremes.
Audio Settings
Volume
0~100. Adjust the volume of the
monitor.
Balance
0~100.
Mute
Enable/Disable.
Screensaver
No Signal
Blue/Black. The background color of the
screen when there is no signal.
Source Settings
Auto Source
Enable/Disable. Get the signal source
automatically.
Device Lock
Keypad
Enable/Disable.
Sleep Settings
Auto Sleep
Off/1 min/5 min/10 min/30 min/1 h
Overheat Alarm
Overheat
Alarm
Enable/Disable. If the temperature
exceeds the designated value, an alarm
will be triggered.
Alarm
Temp(°C )
0 °C ~100 °C . You can set the alarm
temperature.
OSD Settings
OSD Language
中文/English.
Monitor • User Manual
9
Tab
Parameters
Description
OSD Duration
Always On/5s/15s/30s/1min. The time
for OSD menu occurance when no
operation is done.
OSD Rotation
Off/90°/180°/270°. If Rotation is
enabled, the OSD will rotate the
corresponding degree clockwise.
Control Linkage
Control
Linkage
Enable/Disable. Once enabled, many
operations can be done including turn
on or turn off the screen.
Videowall No.
1~100.

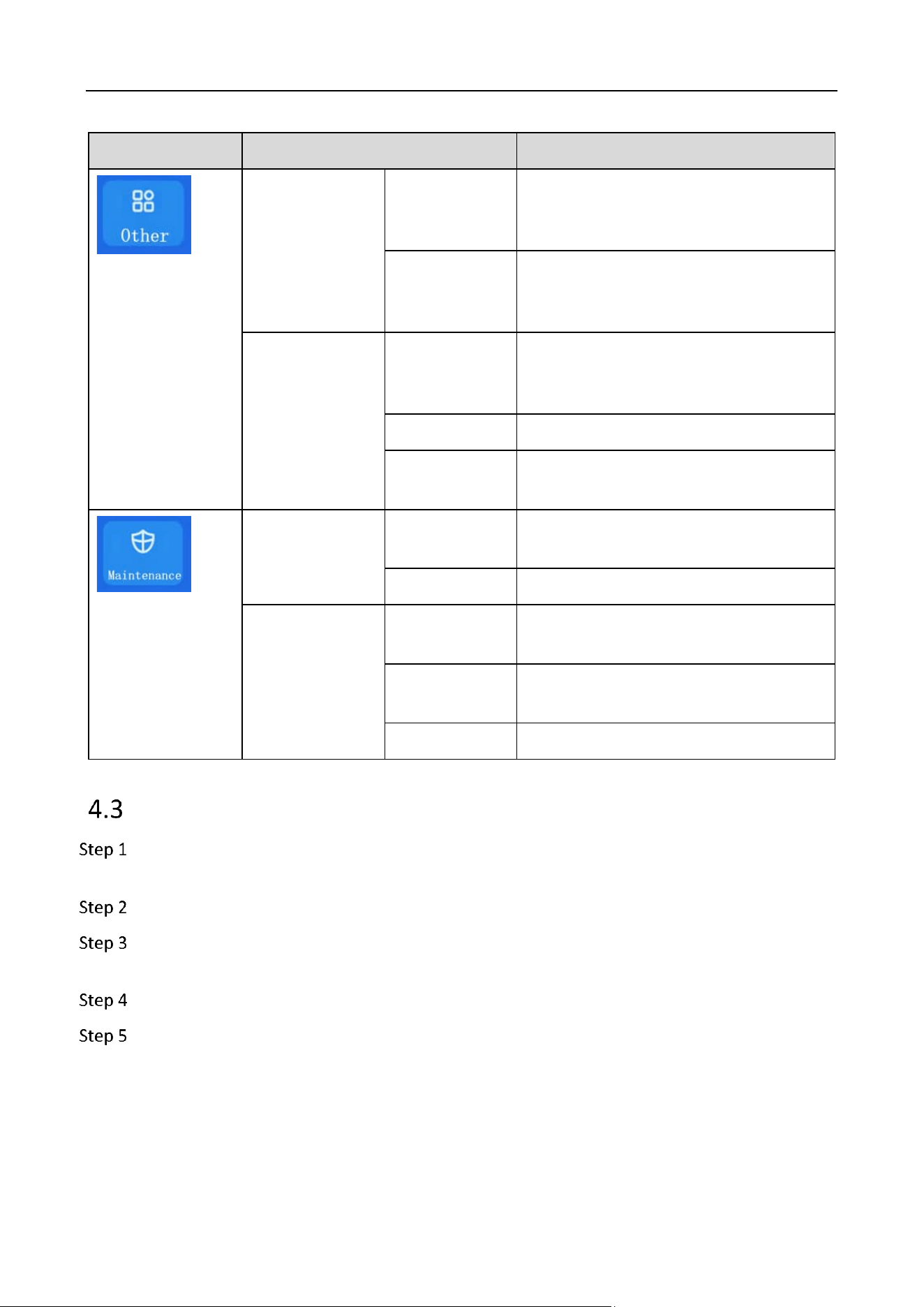

Intelligent
Scenes
Enable/Disable. After enabling, you can
switch the image mode on the screen.
Maintenance
Upgrade(USB)
Upgrade software version by USB flash
drive.
User Restore
Restore to default settings.
Device Info
Software
Version
Information about software version.
Current
Temp(°C )
Current temperature of the device.
Serial Number
Serial number of the device.
USB Menu
Insert the USB flash drive to the USB interface, and press MENU button on the remote
control.
Select USB in the signal source page to enter the USB MENU.
Press direction button to select the pictures, music, movies or files you want to play. Press
OK.
Press the direction button to select your desired file type for playing.
Press Play to play the materials.
0
UD39583B-A
