22-Inch & 24-Inch Monitor
User Manual
22-Inch & 24-Inch Monitor • User Manual
i
Legal Information
© 2023 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information contained in the Manual is subject to change,
without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision
website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Trademarks
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO
EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT,
EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION
SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES
RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,
HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE
FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING
THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT
LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR
PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
22-Inch & 24-Inch Monitor • User Manual
ii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info
22-Inch & 24-Inch Monitor • User Manual
iii
Applicable Models
This manual is applicable to 22-inch and 24-inch monitors.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Safety Instructions
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
The equipment shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the equipment.
CAUTION: To reduce the risk of fire, replace only with the same type and rating of fuse.
The equipment must be connected to an earthed mains socket-outlet.
Ensure correct wiring of the terminals for connection to an AC mains supply.
The equipment has been designed, when required, modified for connection to an IT power
distribution system.
Do not ingest battery. Chemical burn hazard!
This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away
from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
CAUTION: Risk of explosion if the battery is replaced by an incorrect type.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
22-Inch & 24-Inch Monitor • User Manual
iv
Improper replacement of the battery with an incorrect type may defeat a safeguard (for
example, in the case of some lithium battery types).
Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery,
which may result in an explosion.
Do not leave the battery in an extremely high temperature surrounding environment, which
may result in an explosion or the leakage of flammable liquid or gas.
Do not subject the battery to extremely low air pressure, which may result in an explosion or
the leakage of flammable liquid or gas.
Dispose of used batteries according to the instructions.
identifies the battery holder itself and identifies the positioning of the cell(s) inside the
battery holder.
+ identifies the positive terminal(s) of equipment which is used with, or generates direct
current. - identifies the negative terminal(s) of equipment which is used with, or generates
direct current.
No naked flame sources, such as lighted candles, should be placed on the equipment.
The ventilation should not be impeded by covering the ventilation openings with items, such
as newspapers, tablecloths, curtains, etc. The openings shall never be blocked by placing the
equipment on a bed, sofa, rug or other similar surface.
The USB port of the equipment is used for connecting to a mouse, a keyboard, or a USB flash
drive only.
NEVER place items that might tempt children to climb, such as toys and remote controls, on
the top of the equipment.
Install the equipment according to the instructions in this manual.
To prevent injury, this equipment must be securely attached to the floor/wall in accordance
with the installation instructions.
Keep vertical when moving or using the equipment.
CAUTION: This equipment is for use only with specified bracket (Hikvision's monitor stand).
Use with other (carts, stands, or carriers) may result in instability causing injury.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
22-Inch & 24-Inch Monitor • User Manual
1
Chapter 1 Power On
Connect the device to an adapter and plug into an earthed mains socket-outlet, and press the
power button.
DC power supply for the adapter: 12 V, 2 A.
Power off the device and disconnect the plug if it is not in use for a long time.
22-Inch & 24-Inch Monitor • User Manual
2
Chapter 2 Rear Panel Interface
The panel appearances and interfaces vary with different models.
Rear Panel
Interface Description
Interface
Description
Interface
Description
HDMI
HDMI digital signal input interface
VGA
VGA analog signal input interface
DC 12 V
Power adapter interface
--
--
22-Inch & 24-Inch Monitor • User Manual
3
Chapter 3 Panel Buttons
The buttons at the bottom-right corner of the front panel are shown as follows.
Panel Buttons
Button Description
Button
Description
Power indicator.
Green: Power on.
Red: In standby.
Power On/Off
Menu page, source page, and volume page: Exit the current page.
Other pages: Display main menu page.
Display the current input source.
All the menu pages: OK
Second-level page: Add/Reduce
Volume page: Volume up/down
Display all the input sources.
All the menu pages: Switch to next one.
Only devices with audio feature supports audio control.
Manual Name • Manual Type
4
Chapter 4 Basic Operation
The display interfaces vary with different models. The figures followed are for illustration purpose
only.

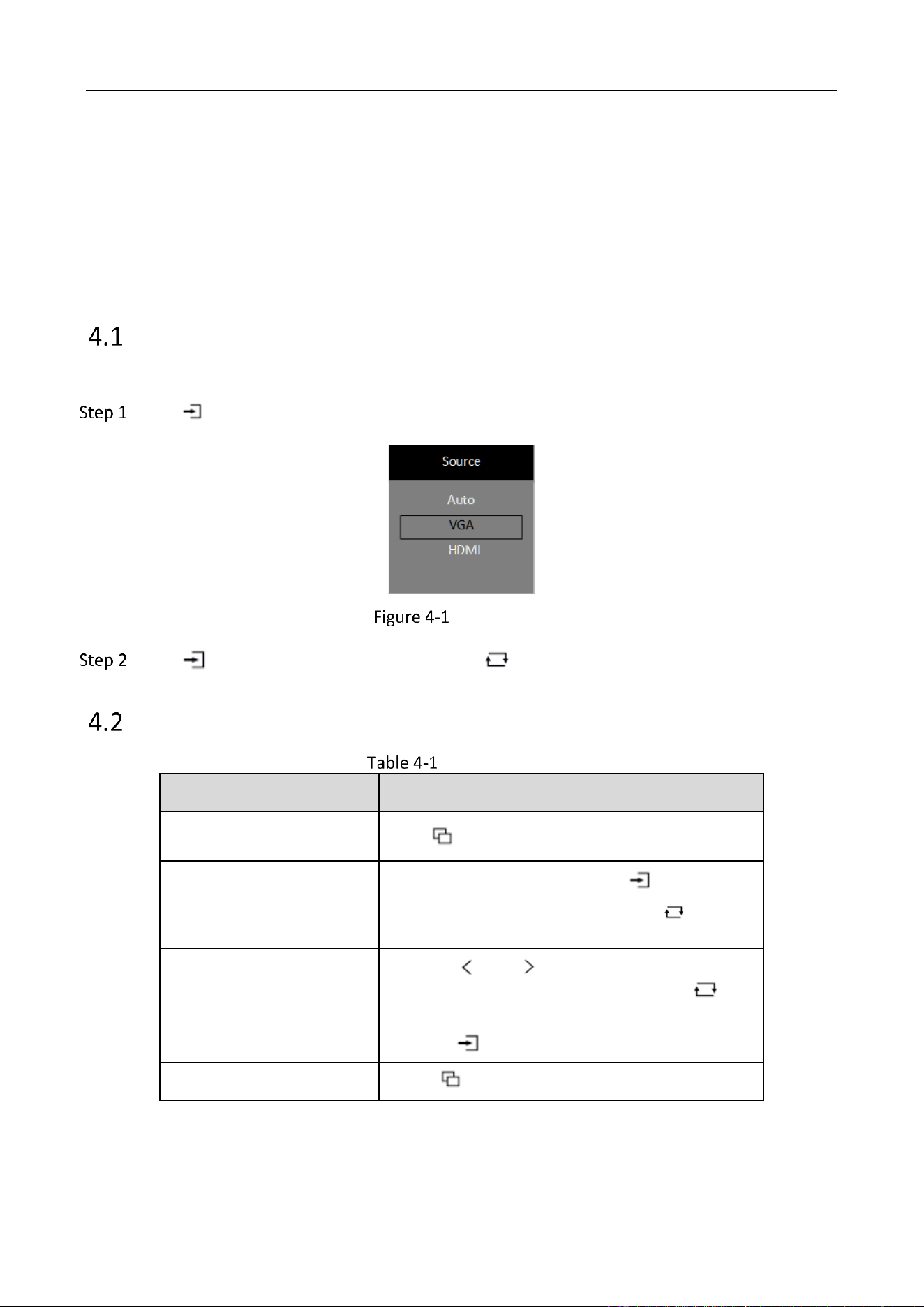

Switch Signal Source
Connect the device to mains socket-outlet and signal source, and power the device on.
Press to enter the signal source page.
Signal Source
Press to switch input sources, and press to confirm.
Menu Operation
Basic Operation
Operation
Description
Enter main menu page
Press .
Check first-level menu
On the main menu page, press to switch.
Check parameters
On the first-level menu page, press to enter
and check different parameters.
Configure parameters
Press or to adjust the value of the
selected parameter, and press to
confirm.
Press to switch to other parameters.
Return to the upper menu
Press on any pages.
22-Inch & 24-Inch Monitor • User Manual
5
You can switch picture modes and adjust image parameters including contrast, brightness, color,
sharpness, and hue. The adjustable parameters will change when you switch from a picture mode
to another.
Image Settings
Image Parameters
Parameter
Description
Picture Mode
Standard: Suitable for a normal environment. It is set as the
default picture mode.
Soft: Suitable for a dark room.
Dynamic: Suitable for a bright room.
Custom: Set the brightness, contrast, color, sharpness or hue to
adjust display effect.
Brightness
Ranges from 0 to 100. The higher the value is, the brighter the
display will be.
Contrast
Ranges from 0 to 100. The higher the value is, the clearer the image
will be
Color
Ranges from 0 to 100. The higher the value is, the more colorful
the image will be.
Sharpness
Ranges from 0 to 30. Rise the value up to make the image more
vivid.
Hue
Ranges from 0 to 100. It determines the contrast degree between
the bright and dark.
Eye Protect
Off/Weak/Medium/Strong
22-Inch & 24-Inch Monitor • User Manual
6
Under custom mode, brightness, contrast, color, sharpness, and hue are adjustable.
Under other modes, only brightness and contrast are adjustable.
Parameters in white bar are adjustable. If the parameter bar is gray, it indicates that the
parameter is not adjustable under the current mode or input source.
Eye protection mode is only available for type C.
When you select VGA as the input source, you can adjust VGA parameters to make the picture
show in the correct position.
VGA Settings
VGA Parameters
Parameter
Description
Manual Adjust
Adjust. Press or to enable or disable.
H-Position
Ranges from 0 to 100.
V-Position
Ranges from 0 to 100.
Phase
Ranges from 0 to 100.
Clock
Ranges from 0 to 100.
Auto Adjust
Off/On
22-Inch & 24-Inch Monitor • User Manual
7
Adjusting the value of H-Position and V-Position will change the image position in a large
extent, while Phase and Clock in a slight extent.
Change the value of Clock will stretch or narrow the image.
If Auto Adjust is enabled, the related parameters will self-adjust under the following 3
circumstances: The device is restarted, a VGA input source is accessed, and the input
source is switched to VGA.
VGA parameters cannot be changed when Auto Adjust is disabled.
You can change the settings of language, screen saver, volume, and other parameters on the page
of system setting. Volume settings is only available to part of the models.
System Settings
System Parameters
Parameter
Description
Language
中文
/English/Русский/Deutsch/Italiano/Français/
Nederlands/Português/Español/Tiếng Việt/
Български/Magyar/Ελληνικά/Čeština/Slovenčina/
Polski/Română/Dansk/Svenska/Norsk/Suomi
User Restore
No/Yes
Screen Saver
Black Screen/Blue Screen
Auto Sleep
Off/30 S/1 Min/5 Min/10 Min/30 Min/1 H
Scaling Mode
16:9/4:3
22-Inch & 24-Inch Monitor • User Manual
8
OSD parameters concern the display effect of OSD, such as position, transparency, and rotation.
OSD Settings
OSD Parameters
Parameter
Description
Horizontal
Ranges from 0 to 100.
Vertical
Ranges from 0 to 100.
Transparency
Off/Weak/Medium/Strong
OSD Time Out
Off/5 S/15 S/30 S/1 Min
OSD Rotation
Off/On
Keypad
Set as On by default. If set as Off, OSD can
be changed within 5 seconds. If there is no
operation with the 5 seconds, the system
will exit OSD and you can press any button
to see unlock prompt. You can follow the
prompt and hold Menu to unlock.
If OSD Rotation is enable, the OSD will rotate 270 degrees clockwise, and the point (0, 0) is at
the bottom-left corner.
22-Inch & 24-Inch Monitor • User Manual
9
Version
UD34074B
