1.1 Product Description
The product is a cardioid directional gooseneck microphone, the gooseneck unit and the base of the one-piece
structure design, effectively avoiding the split structure of the product caused by multiple insertion and removal
of shaking and poor contact problems. The appearance of simple and exquisite, excellent performance and
characteristics, focus on the frequency response at high frequency detail design, the use of high-frequency
enhancement and ultra-high frequency attenuation, to further improve the clarity and naturalness of voice. The
product is suitable for meeting rooms, command and control centres,monitoring centres and other indoor places.
1.2 Product Features
A cardioid condenser capsule with a high signal-to-noise ratio and balanced frequeny response is used.
Equipped with high sensitivity, low noise preamplifier circuitry, it can clearly capture the sound of speech
from a distance and achieve high quality audio transmission.
Adopting bendable gooseneck design, the angle and direction can be adjusted freely according to the needs,
while adopting one-piece structure design, which effectively avoids the problems of product shaking and poor
contact caused by multiple plugging and unplugging of the split structure.
The pickup section is designed in a teardrop shape, which effectively reduces the impact of the sound stage
on the pickup unit.
Using voltage adaptive technology, the product is compatible with both 12V DC power supply and 48V
phantom power supply.
Selection of superior quality components and rigorous testing to ensure the reliability of the products used.
Suitable for meetings, speeches, recitations and other scenes, with clear and natural tone and excellent sound
quality.
Support for monitoring centre calls.
Gooseneck Microphone • Quick Start Guide
2
1.3 Inventory equipment and accessories
When purchasing the equipment, please first check the product packaging and appearance of any obvious
damage, then please open the product box, refer to the packing list,check whether the product is equipped with
accessories. After confirming that there is no error, the equipment can be installed and used.
Table 1-1 Packing List
NAME
QUANTITIES
NAME
QUANTITIES
Gooseneck
microphone
1
12V DC
Power Supply
1
XLR cable
1
specification
1
Gooseneck Microphone • Quick Start Guide
3
1.4 Technical parameters
Capsule Size
Φ9.7mm
Capsule Type
Electret Condenser Capsule
Directivity
Cardioid
Frequency response
100Hz-16kHz
SNR
70dB A-weighted
Sensitivity
-30dB (0dB=1V/Pa@1kHz)
Output Impedance
120Ω
SPL
104dB
Dynamic range
80dB
Equivalent noise level
≤24dB A-weighted
Pickup Distance
50cm
Power supply method
12V DC power supply, 48V phantom power supply
Current consumption
≤10mA
Maximum service temperature
35°C
Power connector
XLR connector, DC12V power connector
Indicator light
Buttons, Header Indicators
Detachable base
No
Adjustable angle
Universal 360°
Product Size
Foundation：35×98×119 mm
Rod length：409 mm
Weights
0.59Kg
Gooseneck Microphone • Quick Start Guide
4
Chapter 2 Product Appearance and lnterface
2.1 Installation Diagram

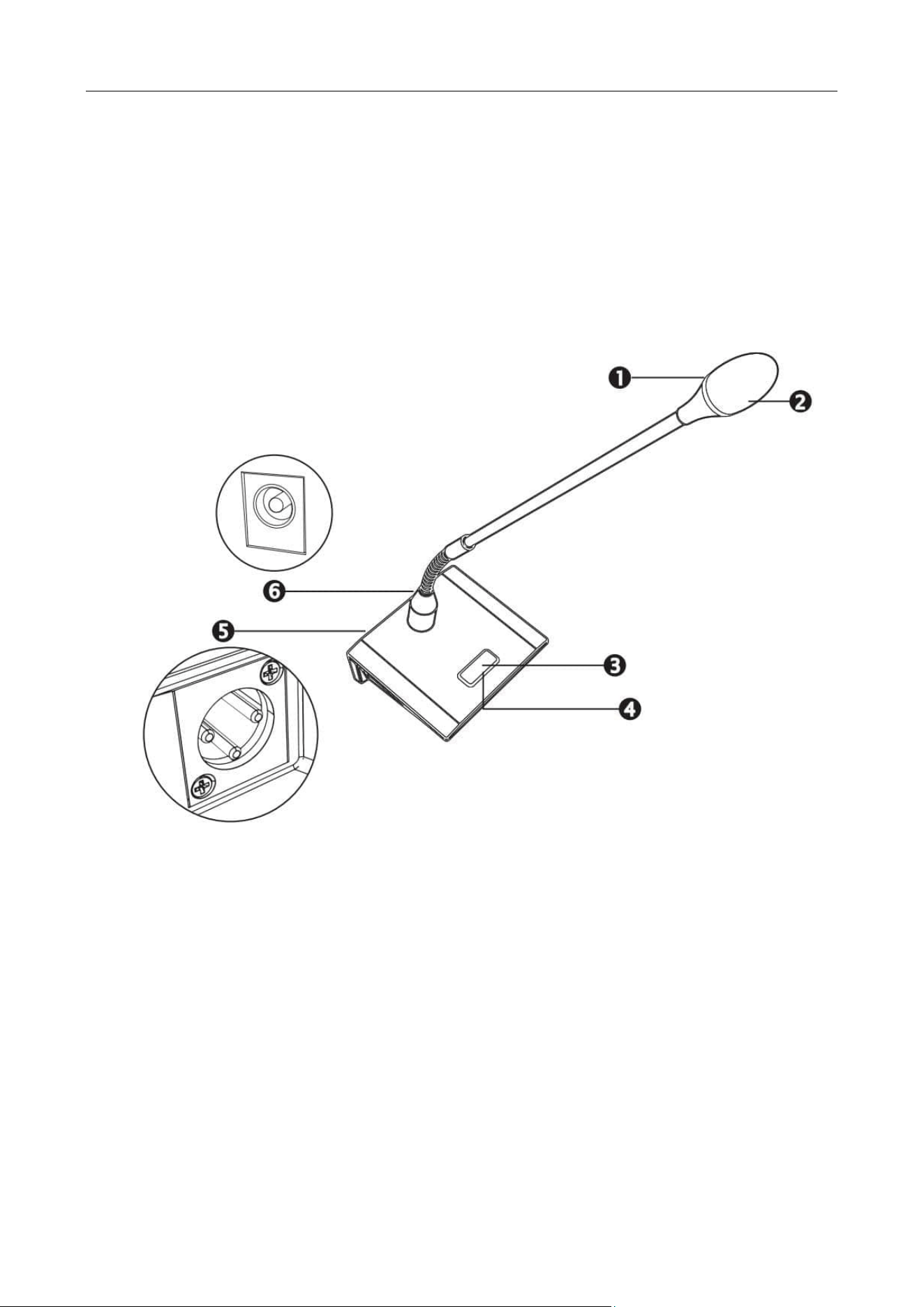

Figure 2-1 Exterior View
1、Microphone operating indicator 2、Windscreen 3、Switching Indicator Lights
4、Switching button 5、XLR 6、DC12V power connector
