1. Camera Introduction
Device Overview

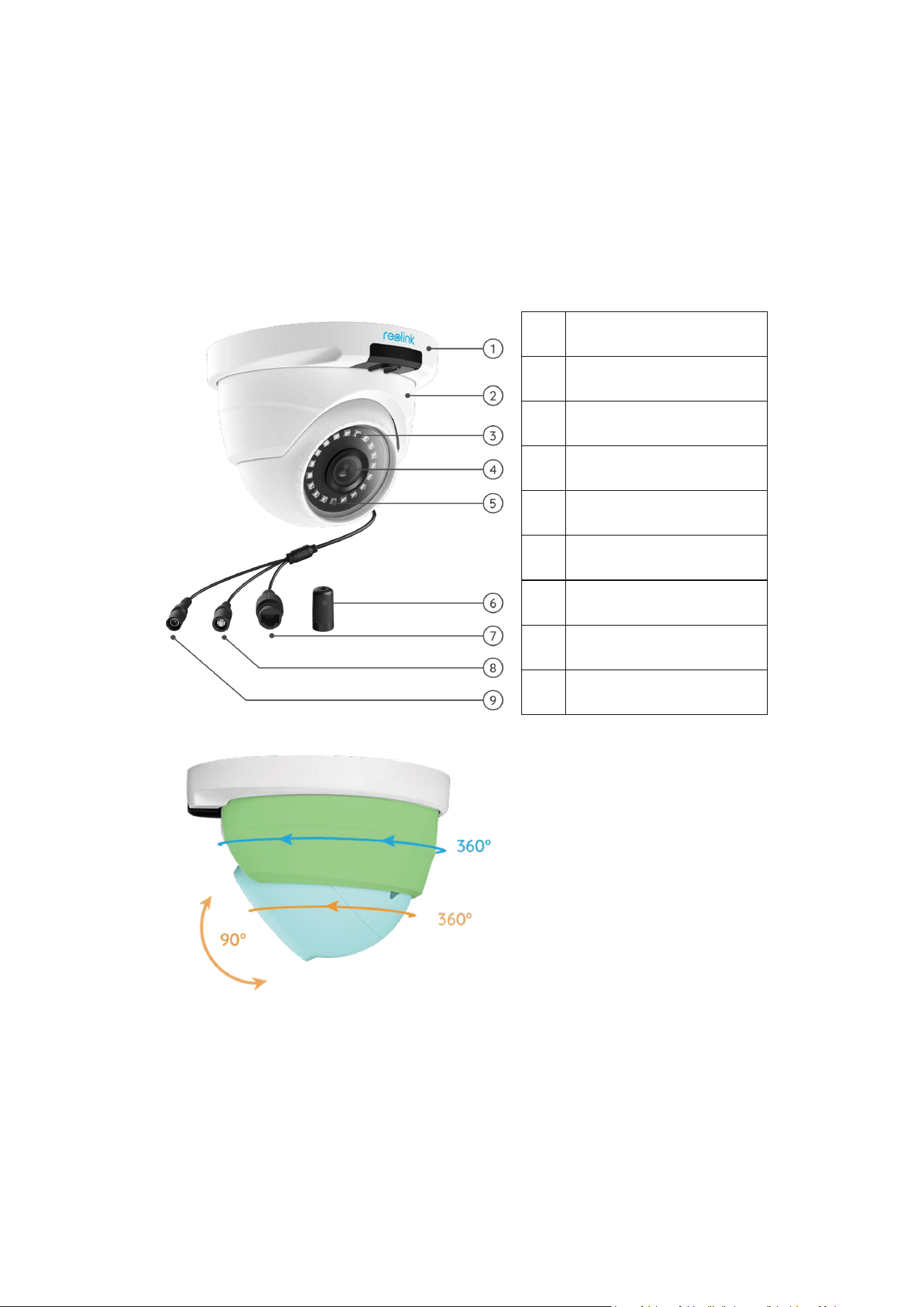

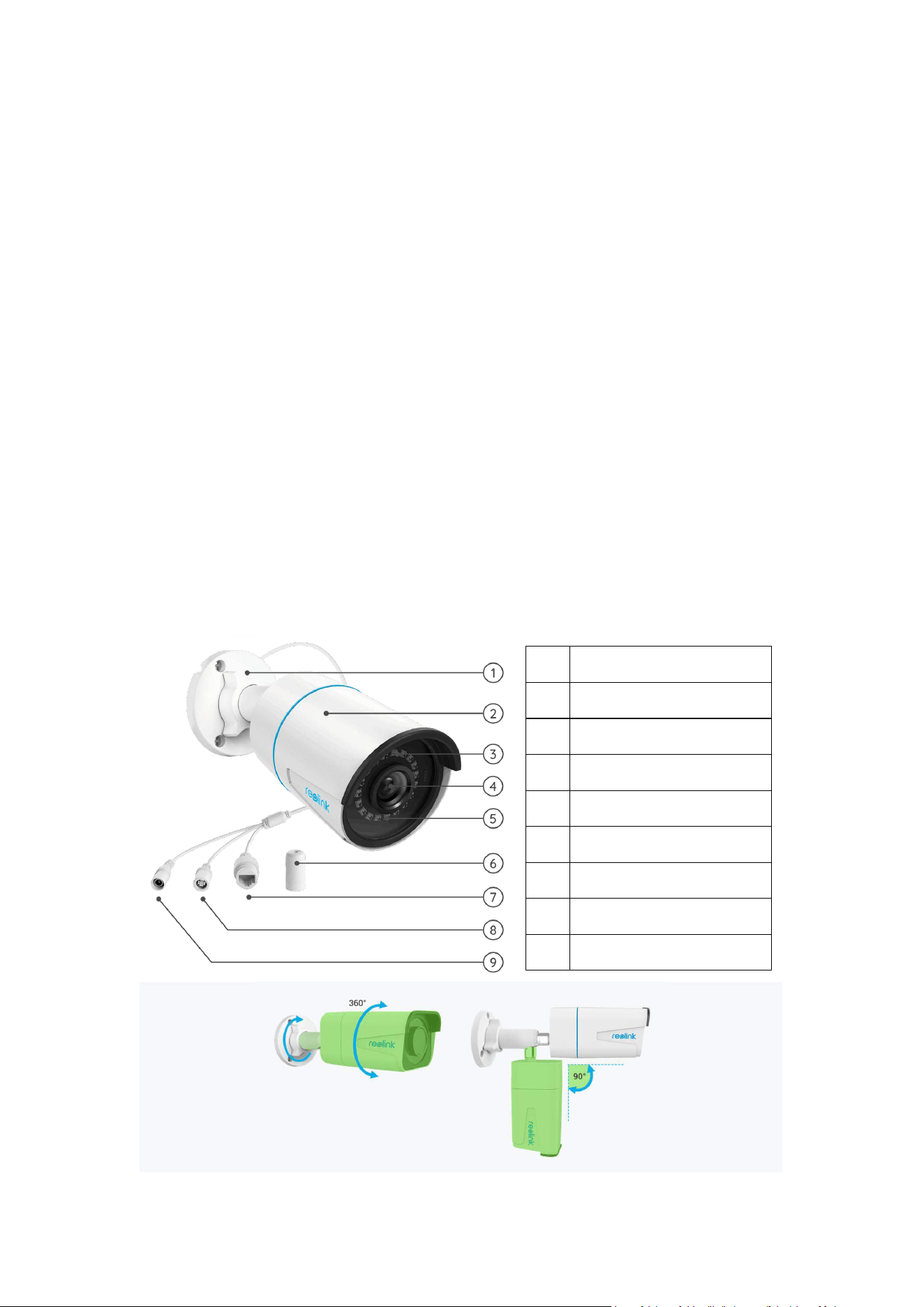

RLC-510A/RLC-410/B400
RLC-510A: Boasting a high resolution of 2560x1920 with nearly 5 million pixels,
RLC-510A security IP camera can capture crystal clear video with fine details. With
the built-in microphone, it also picks up ambient sound for an extra layer of
security.
RLC-410: 5MP RLC-410 is with a pixel resolution of 2560x1920, that is, nearly 2.4X the
resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees your
home security more clearly, with more details.
B400: 4MP B400 with 2560x1440 high resolution to capture beautiful and smooth
4-megapixel live video streaming and video clips than 720p and 1080p cameras.
No details will be missed!
Note:
B400 is an add-on camera, which cannot work independently. It works perfectly
when connected to Reolink 8-channel NVR RLN8-410, 16-channel NVR RLN16-410,
or in Reolink PoE surveillance systems.
1
Mount
2
Metal Case
3
Infrared Lights
4
Lens
5
Daylight Sensor
6
Waterproof Lid
7
Network Cable
8
Reset Button
9
Power Port
Loosen the mount, adjust the cam
in any directions, and twist it back
to fix the camera.
Reolink PoE Camera
User Manual
3

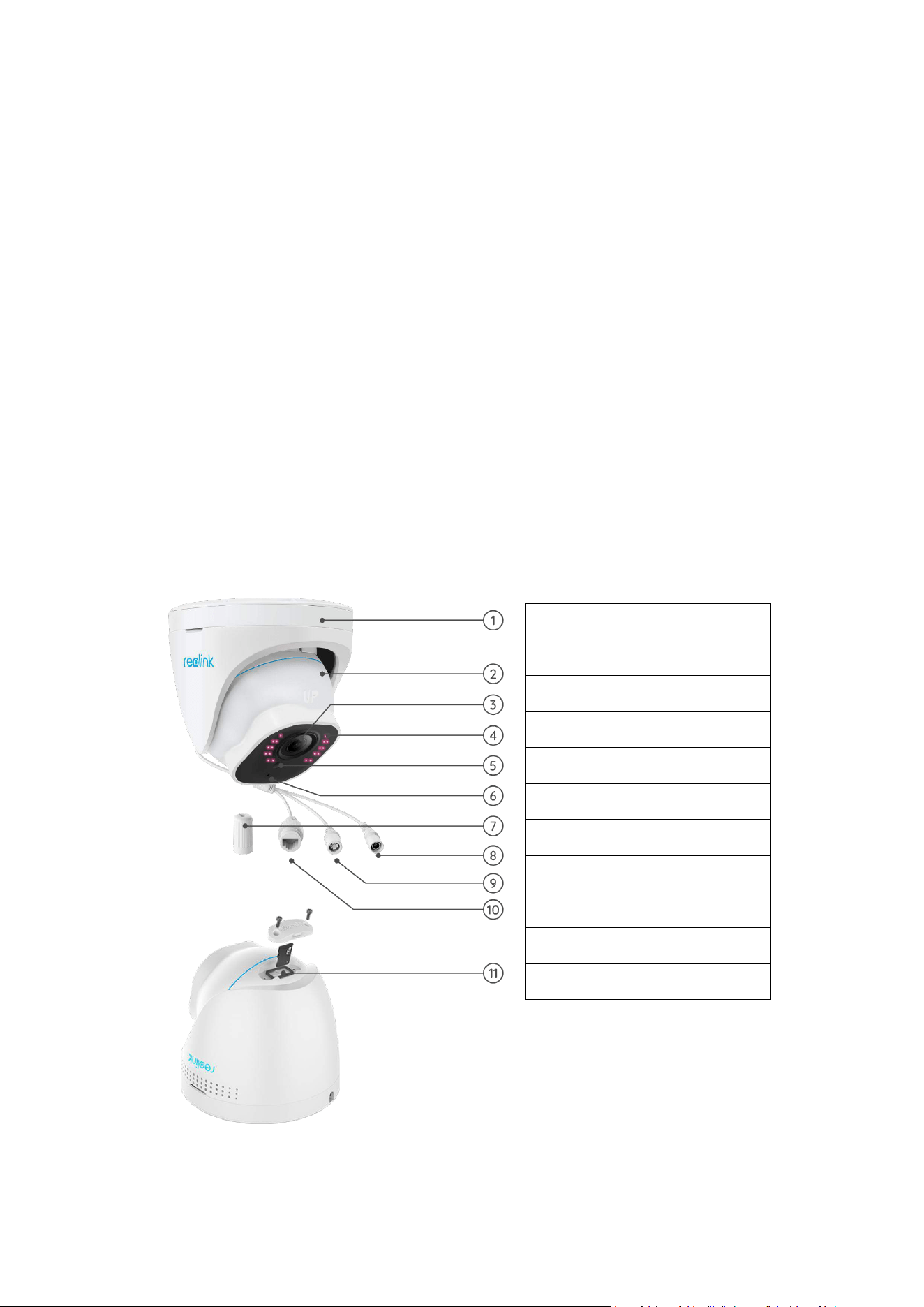

RLC-520A/RLC-520/RLC-522/RLC-820A/RLC-822A/RLC-1220A/D800
RLC-520A/RLC-520/RLC-522: Boasting a high resolution of 2560x1920 with nearly 5
million pixels, the security IP camera can capture crystal clear video with epic
details. With the built-in microphone, it also picks up ambient sound for an extra
layer of security.
RLC-820A/RLC-822A: Equip with on-device detection technology to discern people
and vehicles from other objects. With its accurate detection, you can keep a
sharper eye on the true threats and release your mind from the bombardment of
unnecessary notifications.
RLC-1220A: RLC-1220A brings with it the marvelous video quality of 12MP resolution,
which is a leap forward from 8MP: more details, more colors, and immersive clarity.
Never miss the hard-to-see details and more. Zoom in, you will discover more.
B800: This 4K 8MP IP camera B800 boasts the pixel resolution of 3840x2160,
delivering the highest level of imagery like never before. More than just capturing
the images, it mirrors the reality.
Notes:
RLC-520/RLC-820A/RLC-822A/RLC-1220A/D800: f=4.0mm Lens
RLC-522: f=2.7mm-12mm Lens
D800 is the same as B400, an add-on camera.

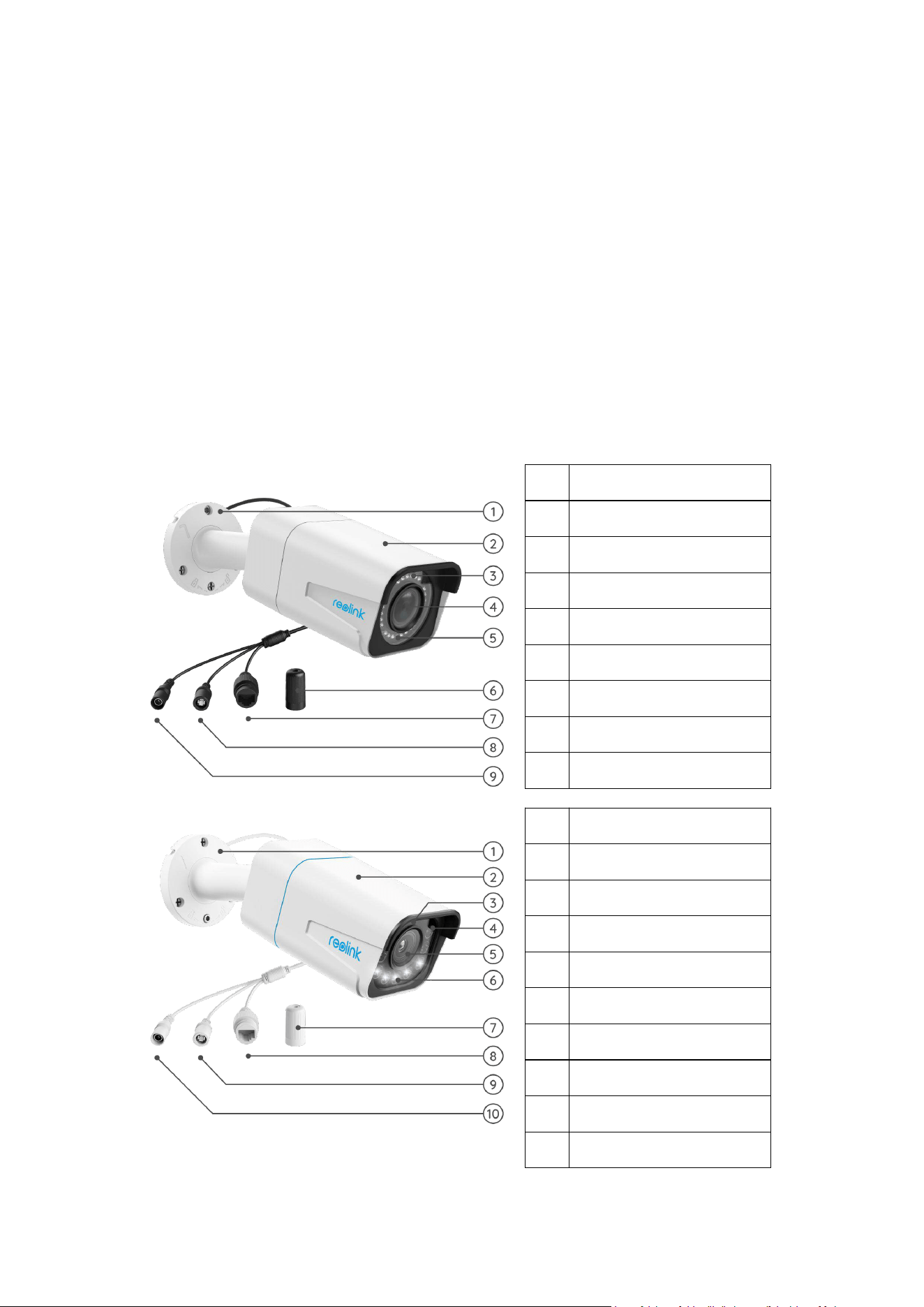

RLC-511/RLC-810A/RLC-811A/RLC-1210A/B800
1
Mount
2
Metal Case
3
Lens
4
Infrared Lights
5
Daylight Sensor
6
Built-in Mic
7
Waterproof Lid
8
Power Port
9
Reset Button
10
Network Cable
11
Micro SD Socket

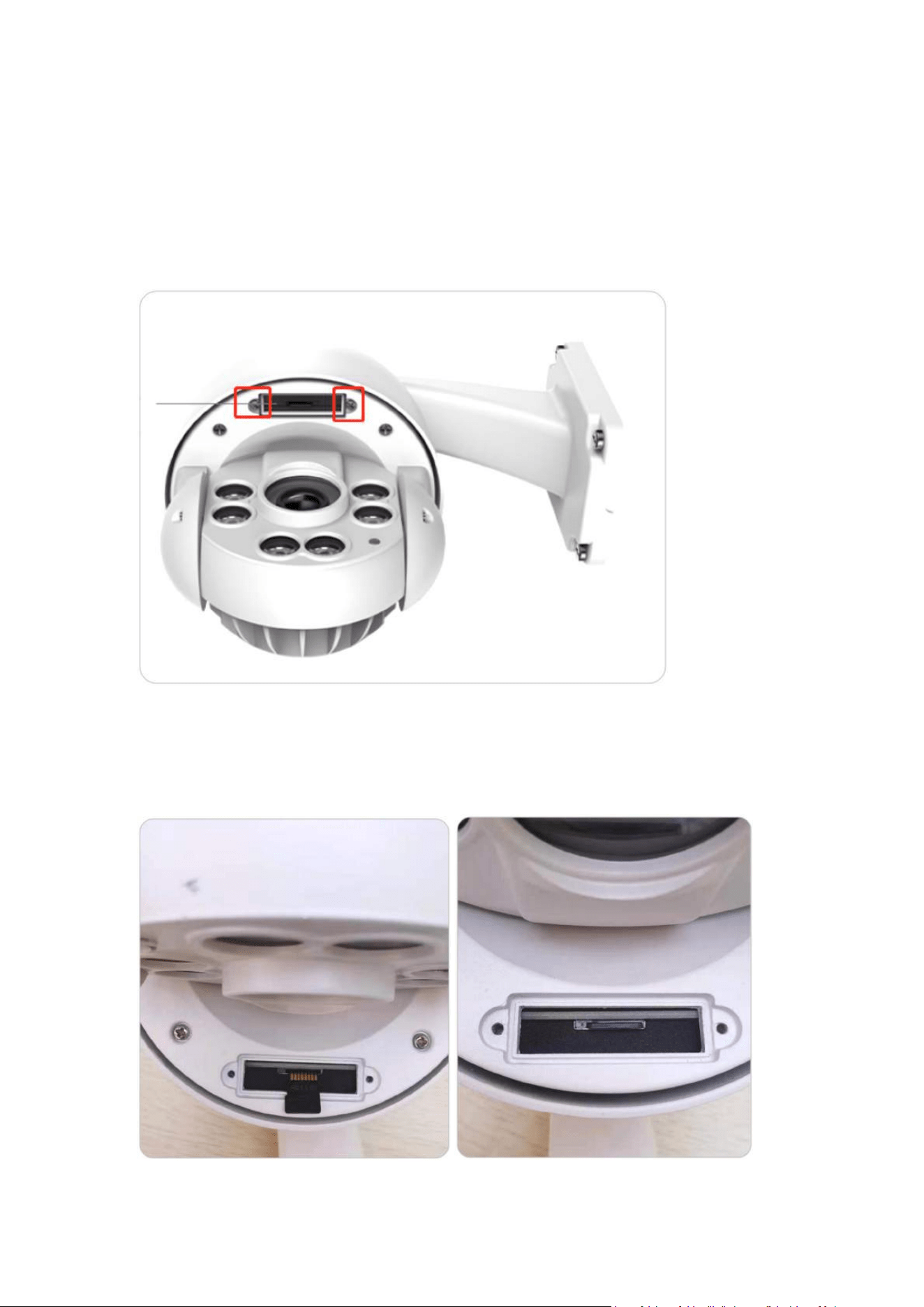

Rotate the lens, and the micro SD card socket is on the bottom of the lens.
Reolink PoE Camera
User Manual
4
RLC-511: The higher the camera resolution is, the more image details you’ll obtain.
RLC-511 PoE security IP camera prides in the high resolution of 2560x1920, which is
about 2.4X the resolution of 1080p, and even 1.3X the resolution of 1440p Super HD.
It ensures true-color images with vivid details.
RLC-810A/RLC-811A: Unites security and intelligence. The security camera can not
only capture its vision sharply, but understand what it sees. This camera notifies
you of the true threats and frees you from other trifles.
RLC-1210A/RLC-1220A: 12MP Ultra HD PoE Camera with Person/Vehicle Detection.
Notes:
RLC-511: f=2.7-12mm Lens
RLC-810A/RLC-1210A/B800: f=4.00mm Lens
RLC-811A: f=2.7-13.5mm Lens
RLC-811A has 5 spotlights.
B800 is the same as B400, an add-on camera.
1
Mount
2
Metal Case
3
Daylight Sensor
4
Infrared Lights
5
High Definition Lens
6
Spotlight
7
Waterproof Lid
8
Network Cable
9
Reset Button
10
Power Port
1
Mount
2
Metal Case
3
Infrared Lights
4
Lens
5
Daylight Sensor
6
Waterproof Lid
7
Network Cable
8
Reset Button
9
Power Port
Reolink PoE Camera
User Manual
5
Micro SD Socket
Reolink PoE Camera
User Manual
6
RLC-423
5MP RLC-423 is with a pixel resolution of 2560x1920, that is, 2.4X the resolution of
1080p Full HD, and even 1.3X the resolution of 1440p Super HD. You will definitely
have the best chance to see every image detail as you wish.
1
Mount
2
Lens
3
Infrared Lights
4
Daylight Sensor
5
Waterproof Lid
6
Network Cable
7
Earth Wire
8
Reset Button
9
Power Port
10
Audio in
11
SD Card Slot
Reolink PoE Camera
User Manual
7
RLC-823A
RLC-823A is smart enough to distinguish person and vehicle from other objects. It
frees your mind by offering accurate detection and greatly reducing the false
alarms on trivial objects' movements.

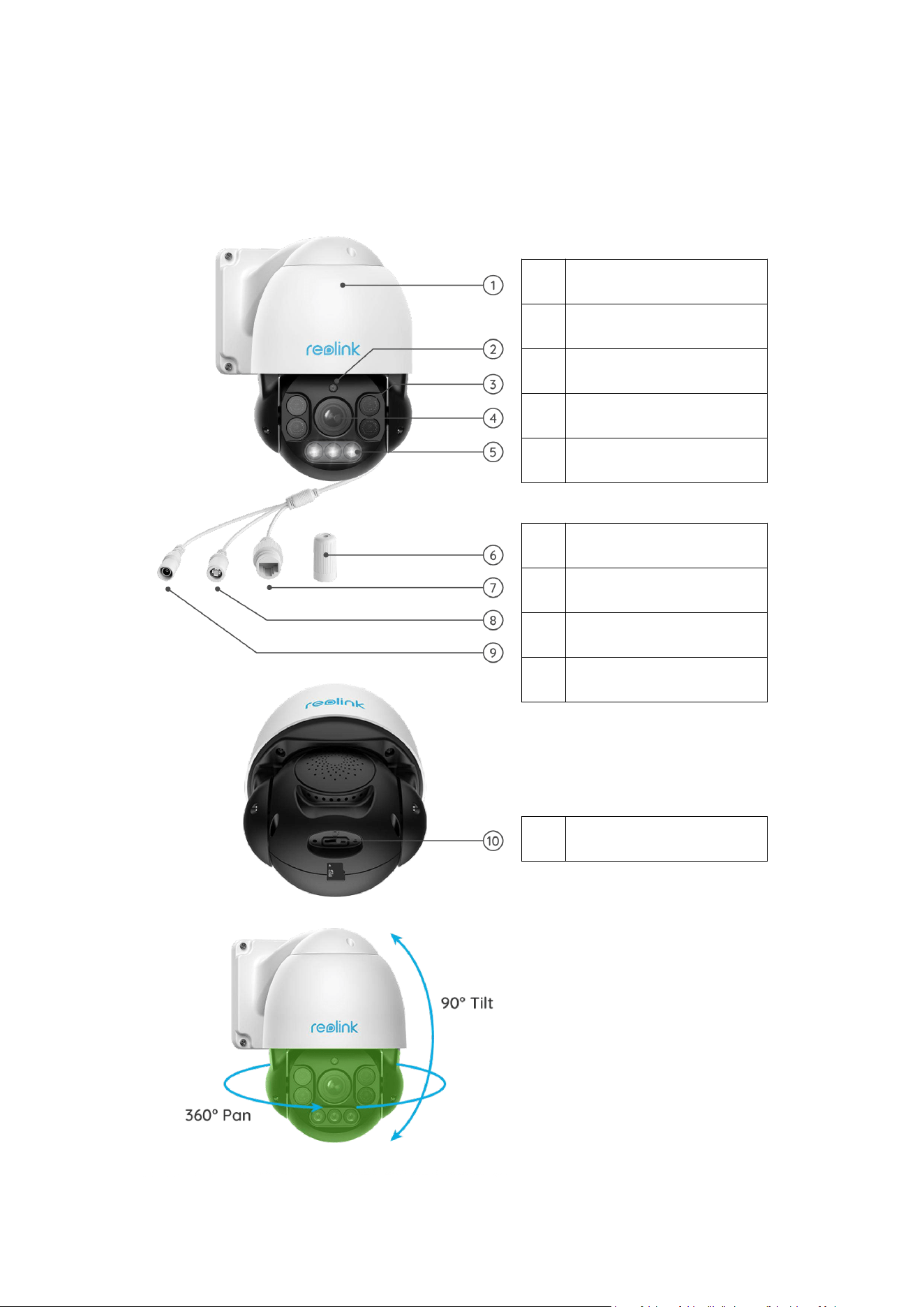

1
Mount
2
Daylight Sensor
3
Infrared Lights
4
Lens
5
Spotlight
6
Waterproof Lid
7
Network Cable
8
Reset Button
9
Power Port
10
SD Card Slot
Reolink PoE Camera
User Manual
8
D400
With 2560x1440 high resolution, this top-notch PoE security camera can capture
beautiful and smooth 4-megapixel live video streaming and video clips than 720p
and 1080p cameras. It helps to see more clearly, and no details will be missed!
Note:
D400 is the same as B400, an add-on camera.
1
Mount
2
Metal Case
3
Infrared Lights
4
Lens
5
Daylight Sensor
6
Waterproof Lid
7
Network Cable
8
Reset Button
9
Power Port
Reolink PoE Camera
User Manual
9
2. Setup and Installation
Power on PoE Cameras

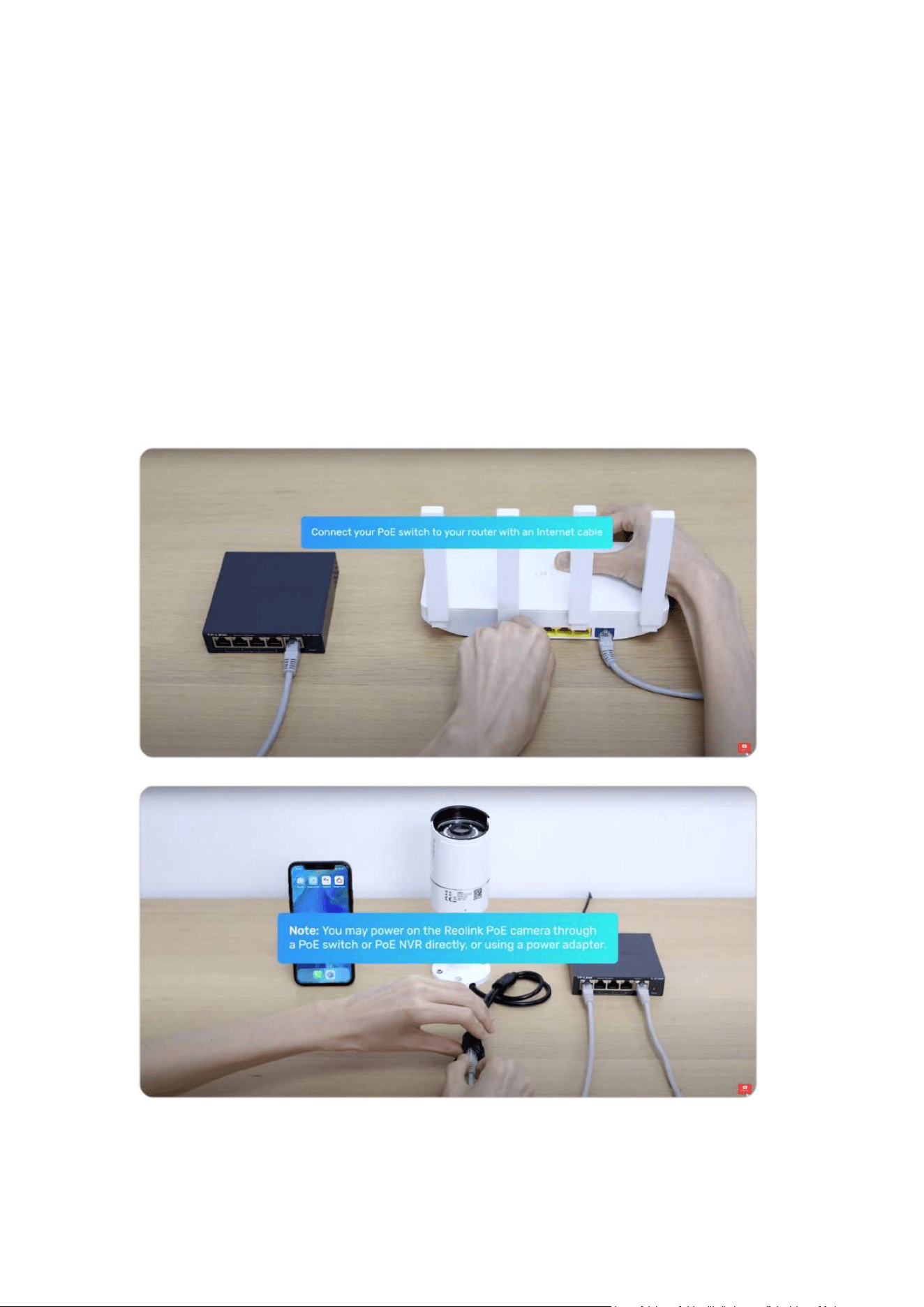

You may power on Reolink PoE cameras via PoE injector/switch or PoE NVR
directly, or by using the power adapter.
Method 1: Power via PoE Injector/Switch
For Reolink RLC-423, you need to make sure that the PoE injector/switch
is 802.3at compliant (48V) and supports active mode.
For other Reolink PoE cameras, please make sure that the PoE injector/switch
is 802.3af compliant (48V) and supports active mode.
Reolink PoE Camera
User Manual
10
Method 2: Power by PoE NVR
Connect your PoE camera to the PoE NVR by a single network cable, then the PoE
camera will get power via the PoE NVR.

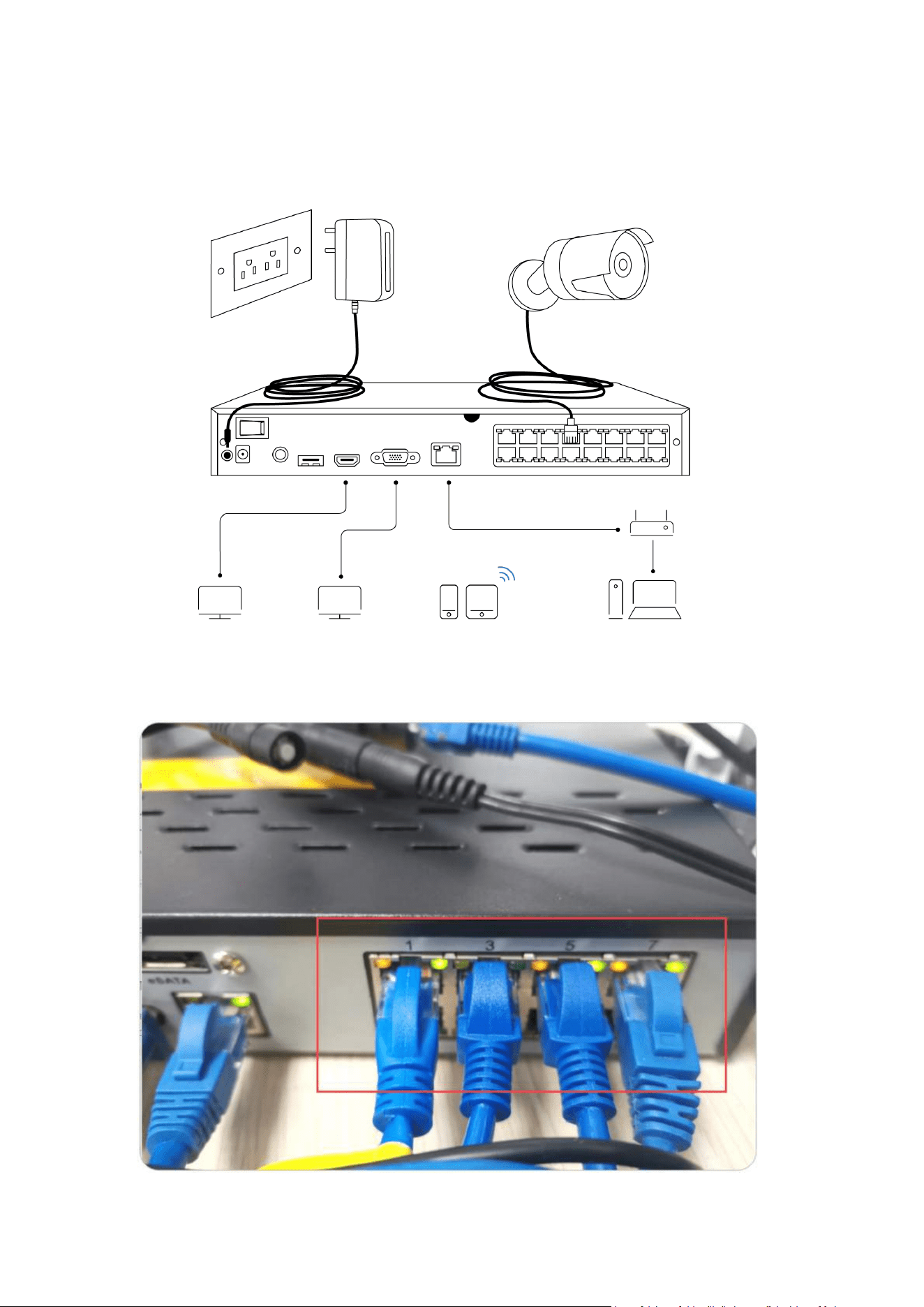

220V 60Hz /
110V/50Hz
PoE NVR
Router
PC
Phone/Pad
(iOS/Android)
Monitor
(VGA)
HD TV
(HDMI)
Camera
Reolink PoE Camera
User Manual
11
Method 3: Power by Using the Power Adapter
Alternatively, you can power on the camera in another way – by using a power
adapter.
For Reolink RLC-423, the ratings of power adapter should be DC 12V 2A.
For other Reolink PoE camera models, the ratings of power adapter should be DC
12V 2/1A.
Notes:
Do not purchase passive PoE injectors as they won’t work with Reolink PoE
cameras.
It's better to use high-quality PoE injectors/switches.
We recommend that you purchase the Ethernet cable with Cat5 and above.
Please install the waterproof lid at the junction of the Ethernet cable and the
camera to protect the junction from water.
Please note that the optimum distance between the camera and the PoE
switch/Reolink NVR is 300 feet.
Set up PoE Cameras on App
Please power on your camera properly before the initial setup, and refer to the
steps below.

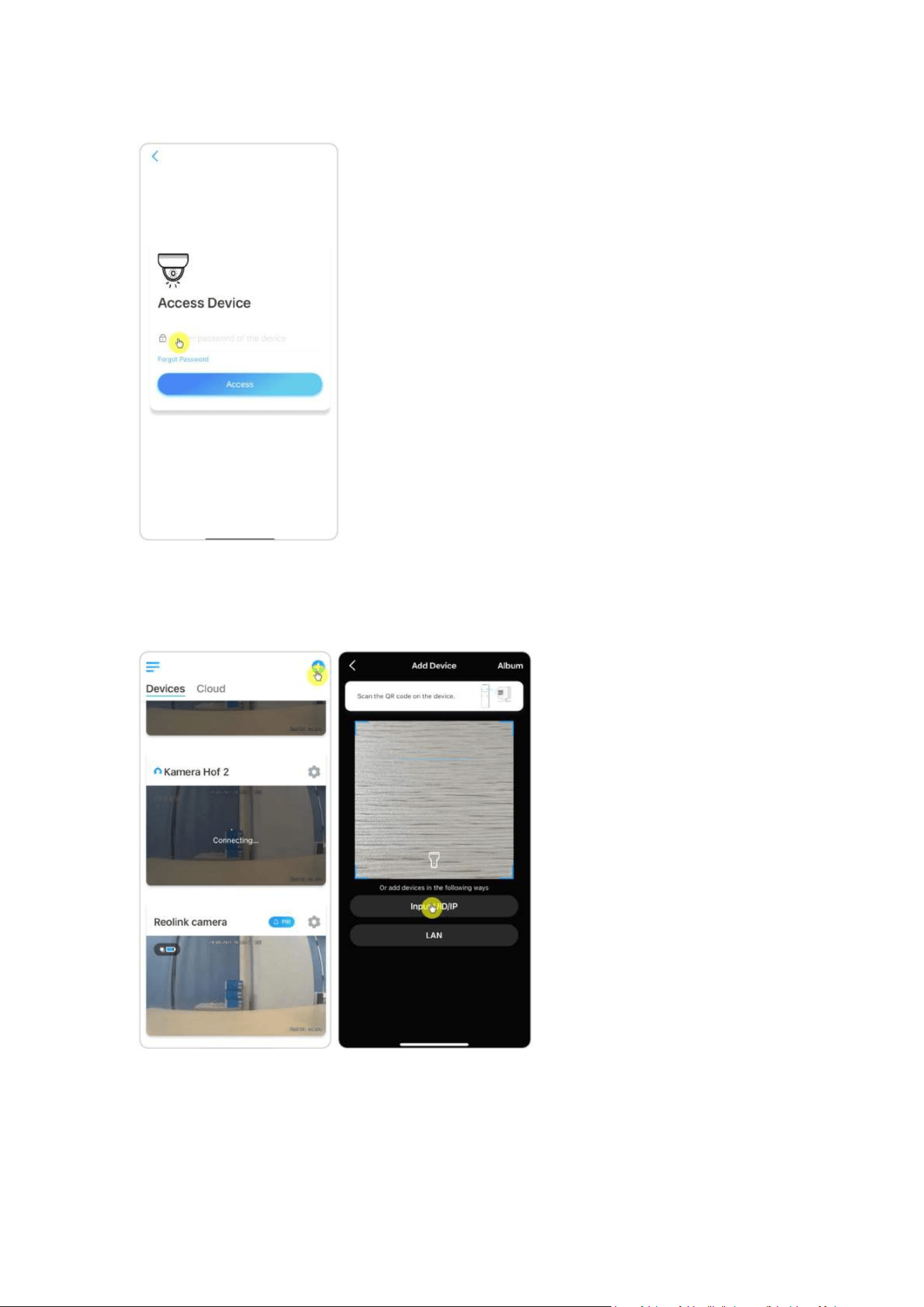

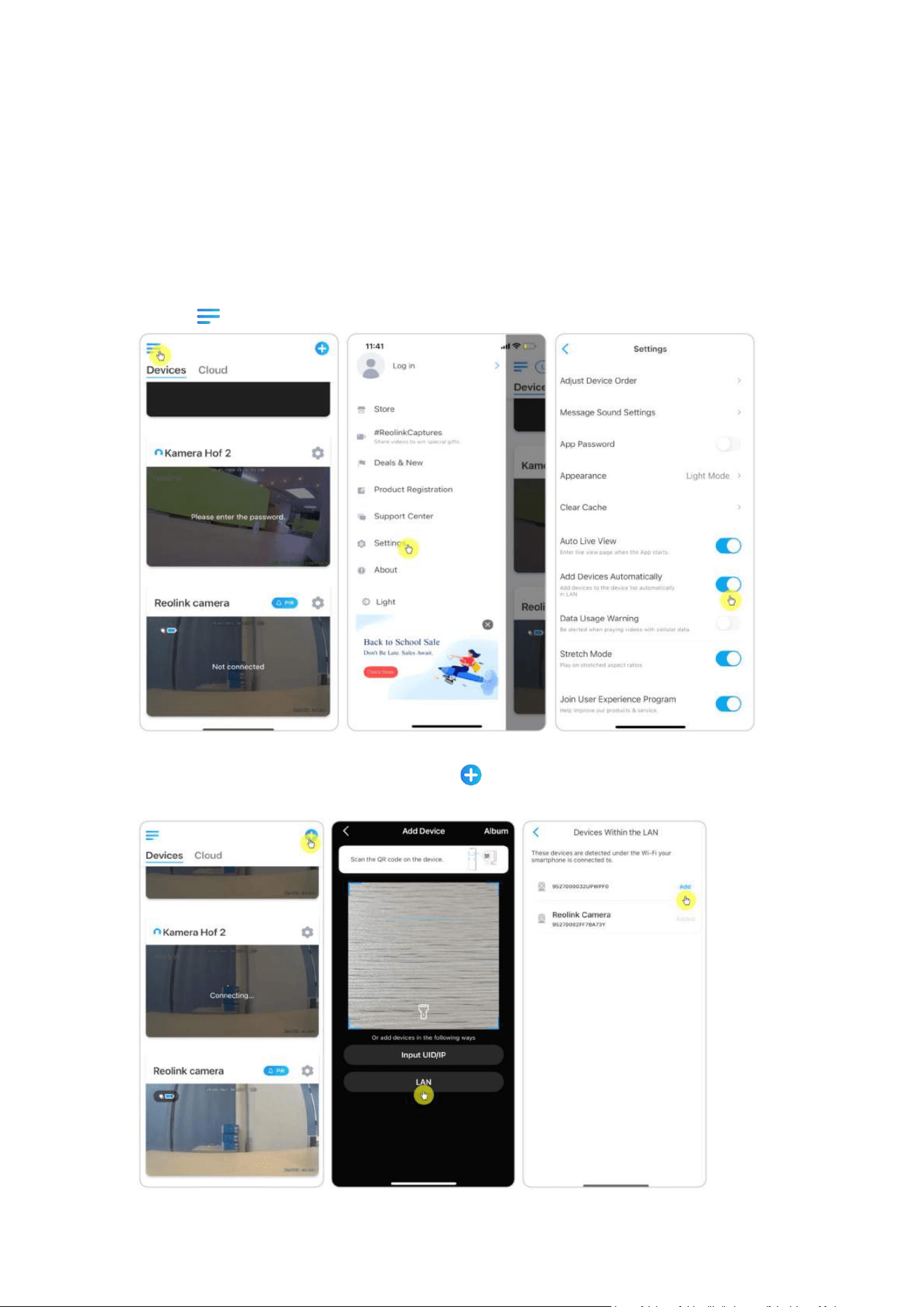

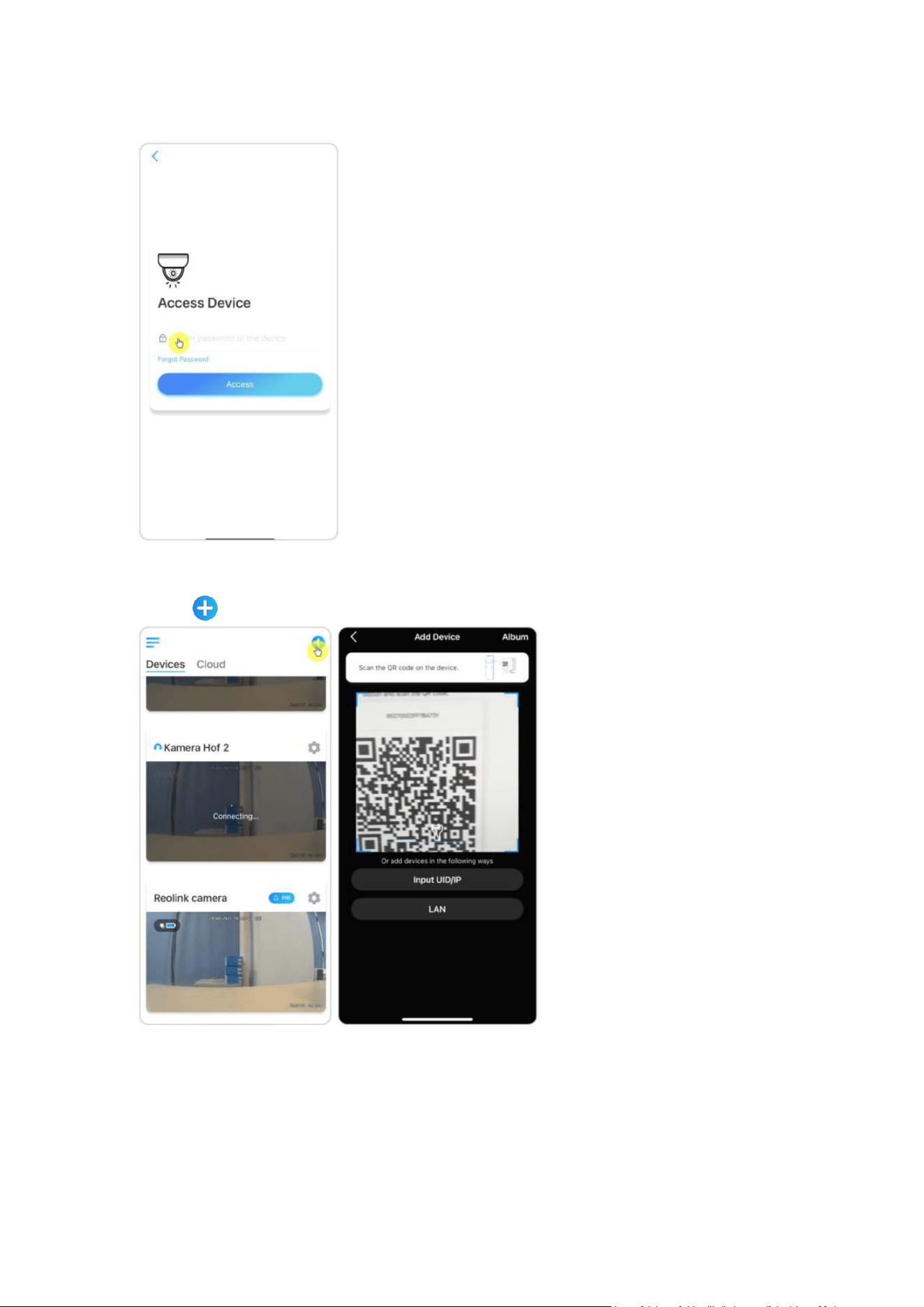

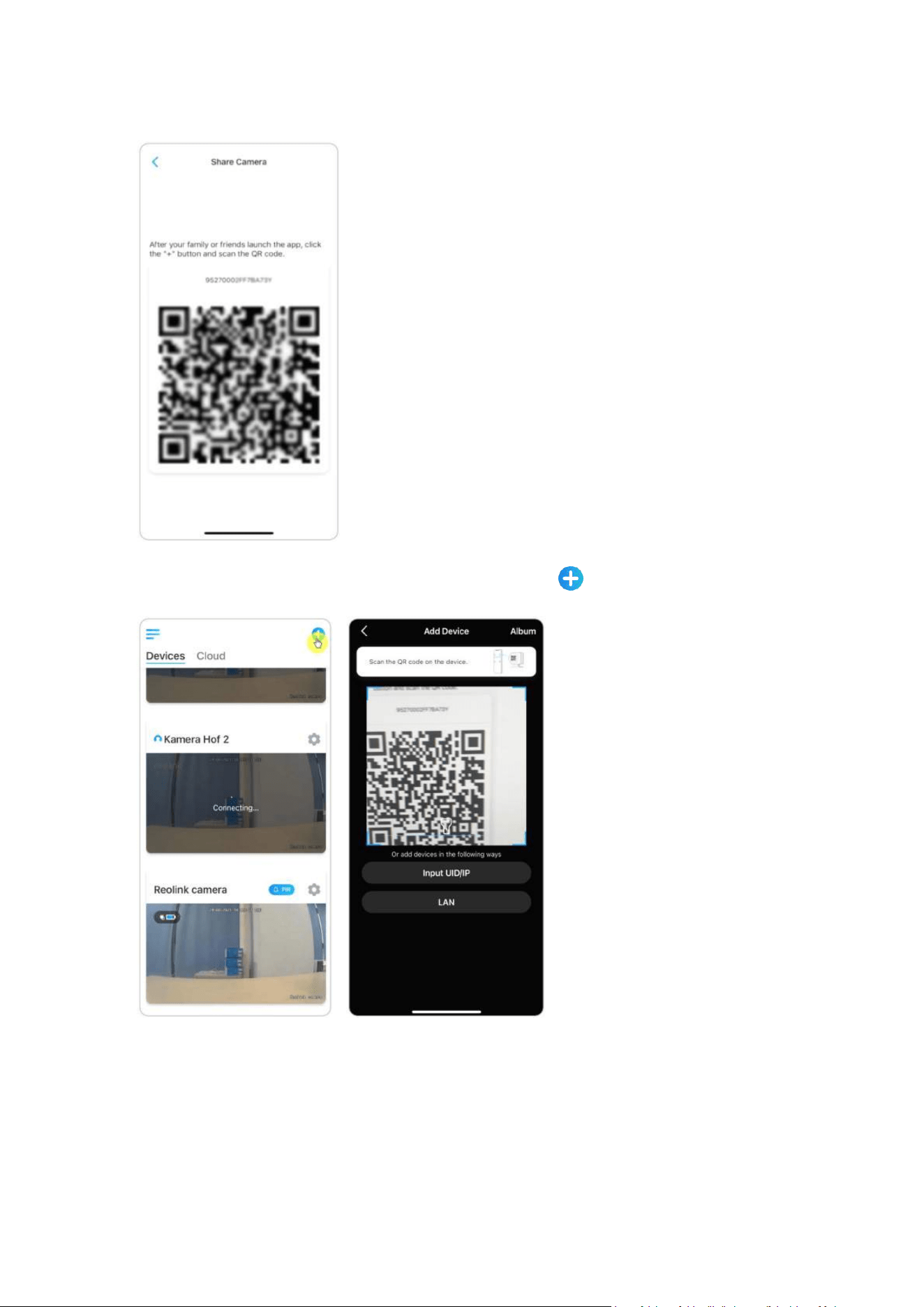

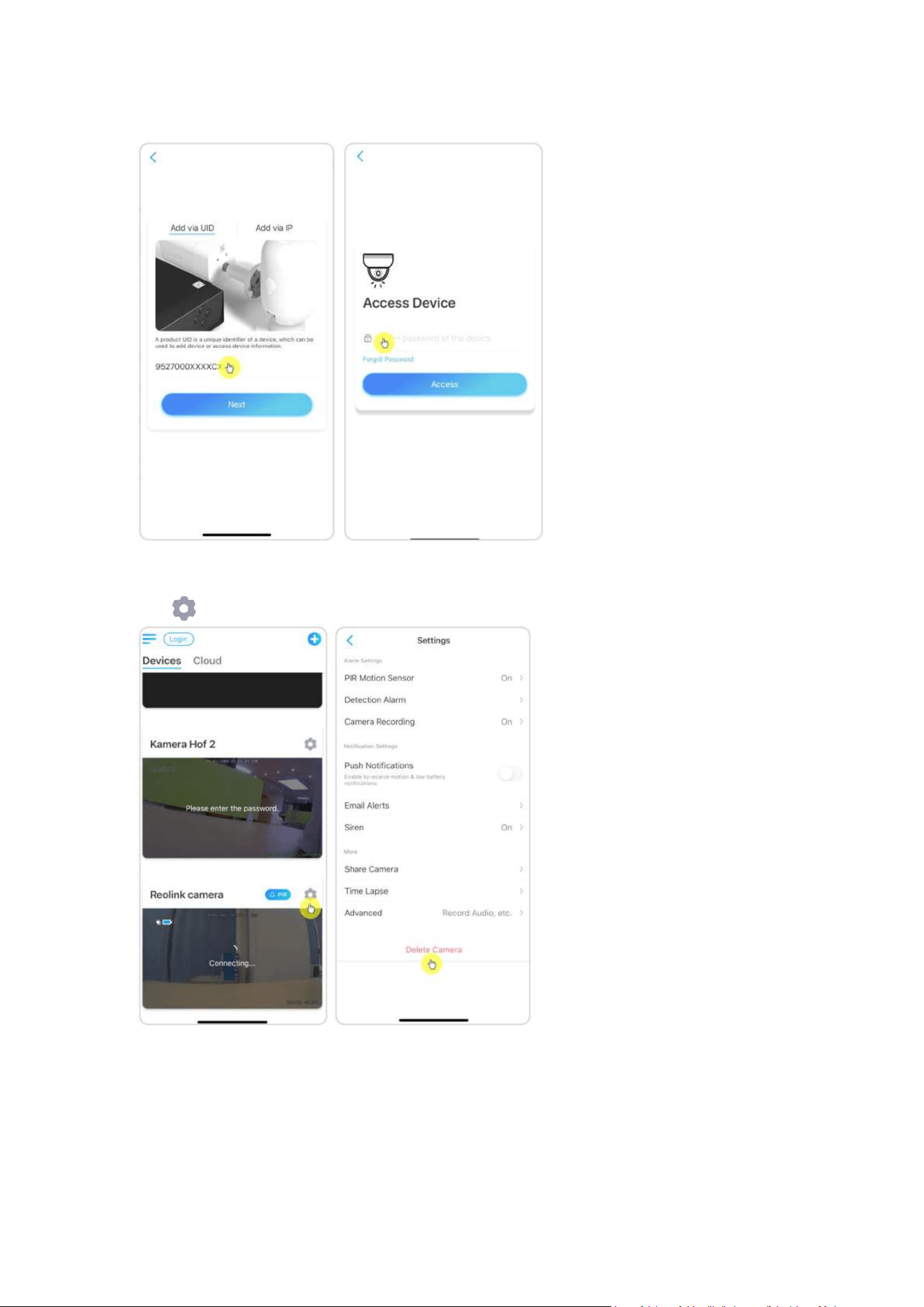

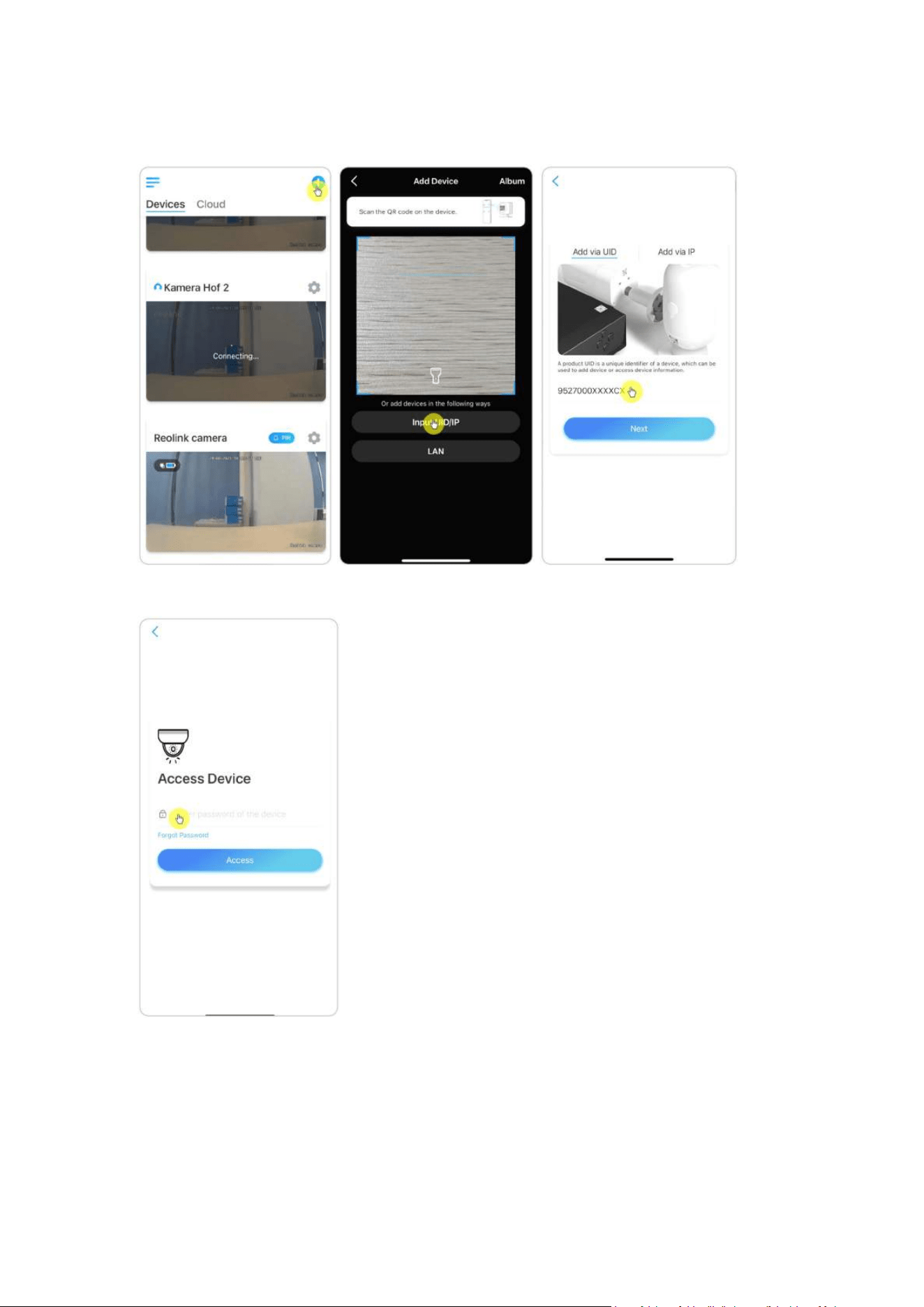

Step 1. If you've opened the Add Device Automatically option in the Settings page,
you can click this device in the Devices page and turn to step 2 directly. If you don't
enable that option, you can click + on the upper right corner, scan the QR code on
the camera to add this device.
Reolink PoE Camera
User Manual
12

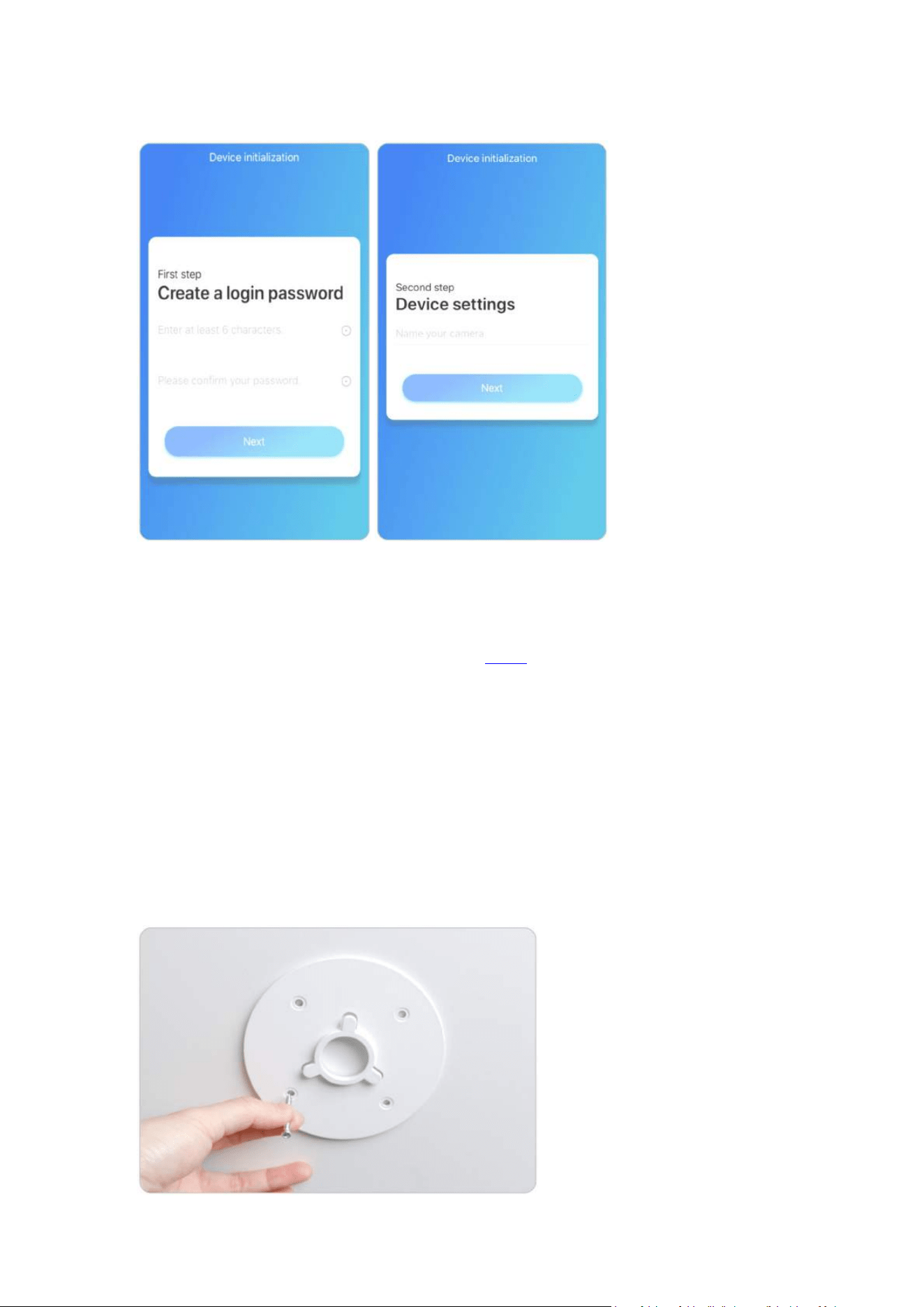

Step 2. Create the password, name the device, and then start live view.
Note:

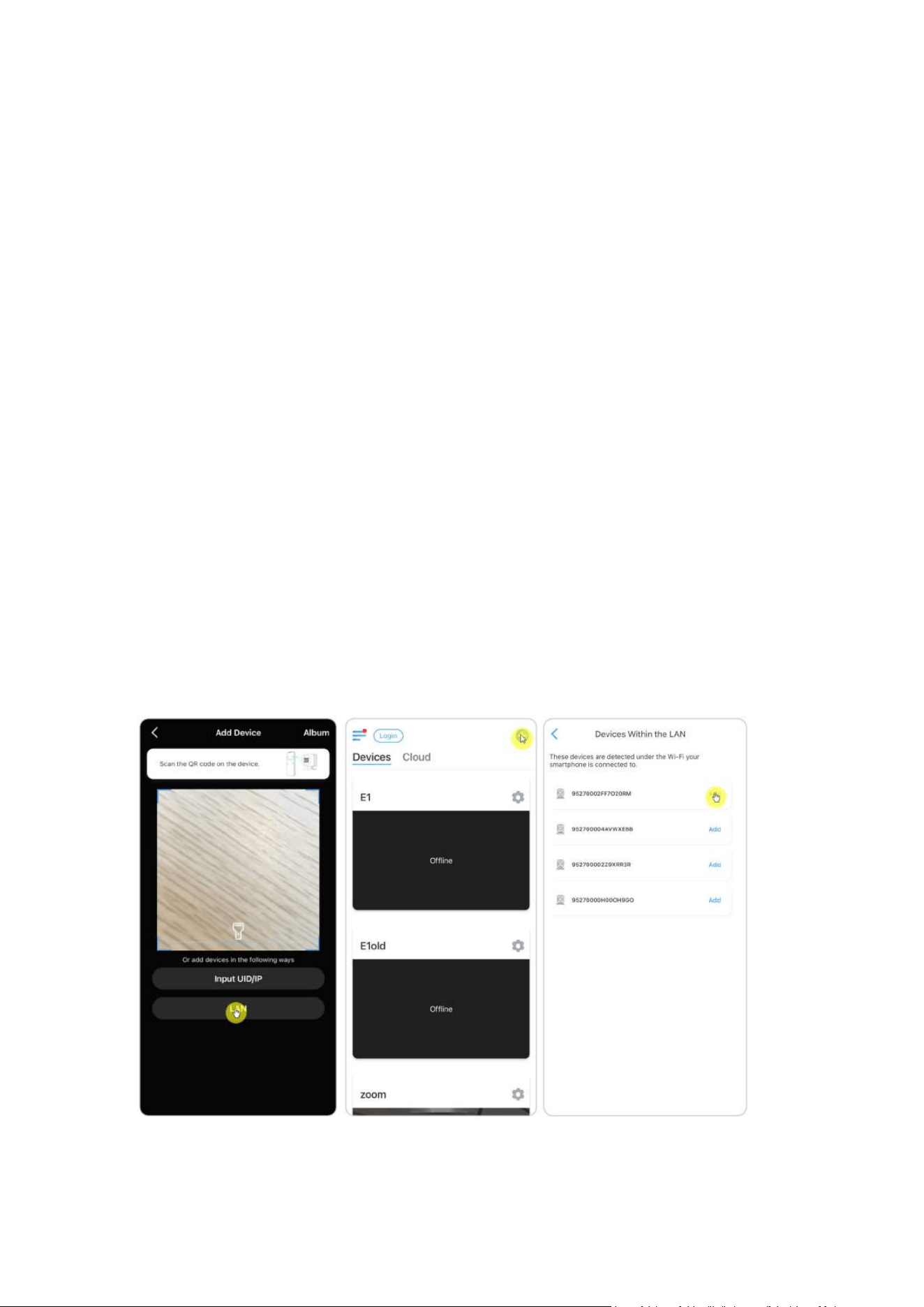

There are four ways to set up the camera on Reolink App: scan QR code on the
camera, scan device in LAN, enter UID, enter IP address.
For the other three ways, please refer to this video.
Install the Camera
Install Dome Cameras
RLC-520A/RLC-520/RLC-522/RLC-820A/RLC-822A/RLC-1220A/D800

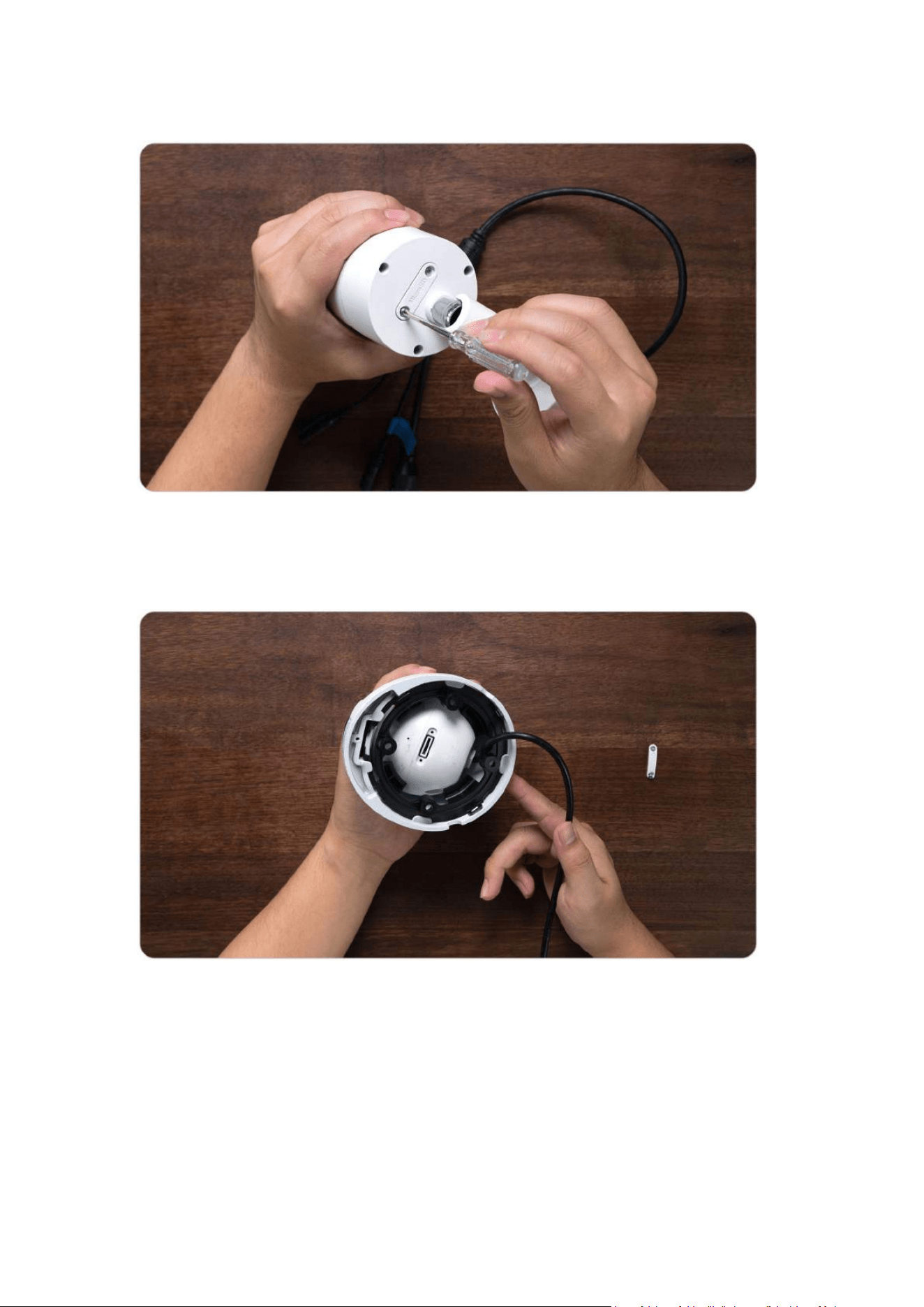

Step 1. Use the mounting hole template to drill mounting holes on the ceiling, and
plant the rubber anchors into the mounting holes.
Step 2. Screw the base panel to the mounting holes on the ceiling or wall. It's
generally suggested to install dome cameras on the ceiling.
Reolink PoE Camera
User Manual
13

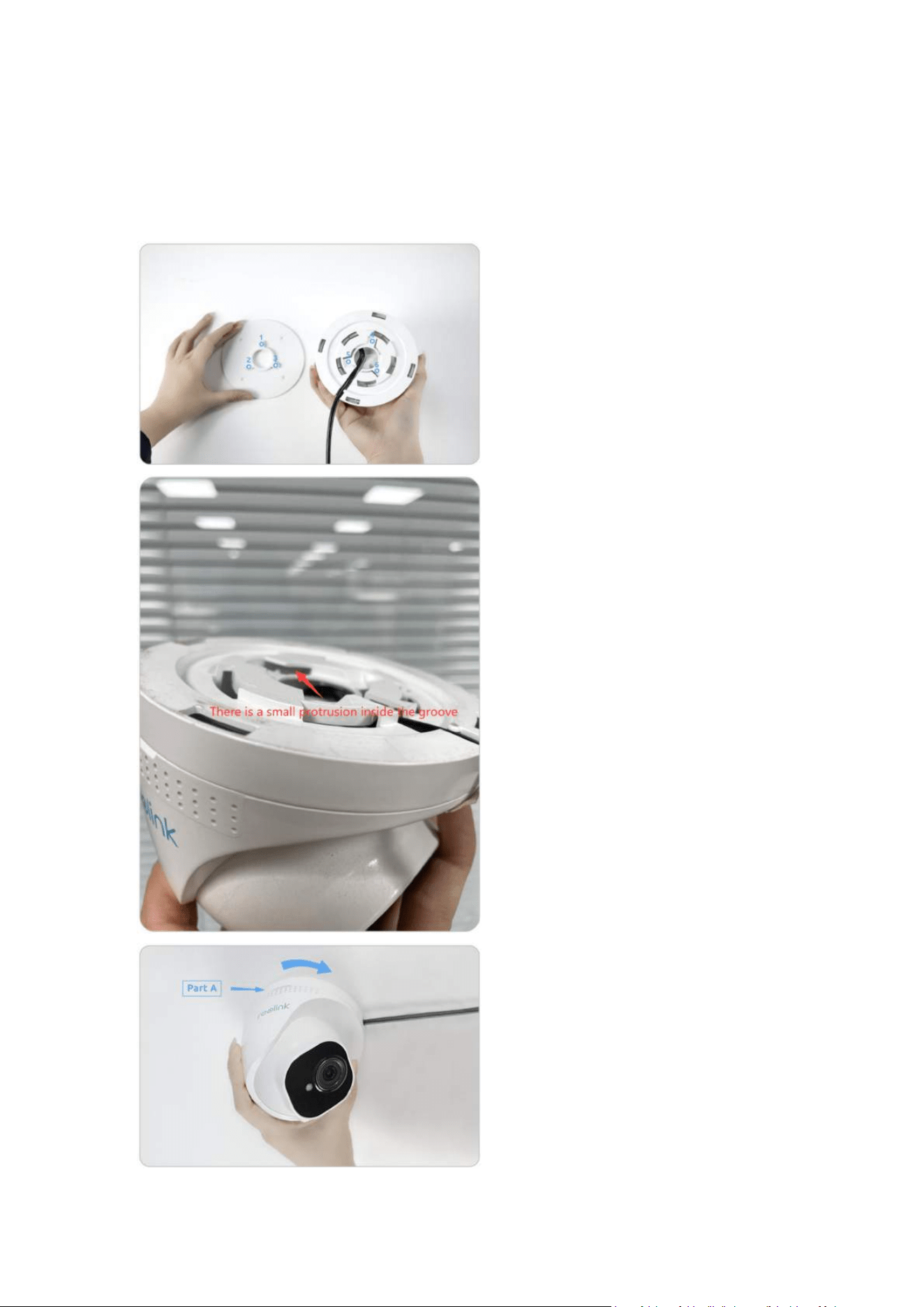

Step 3. Fit the concave at the bottom of the camera (marked as 4, 5, 6 in the
picture below) to the convex on the base panel (marked as 1, 2, 3 in the picture
below), and then rotate the camera seating (marked as Part A) clockwise to lock
the camera tightly with the base panel.
Note: To take down the camera, please rotate part A anti-clockwise.
Reolink PoE Camera
User Manual
14

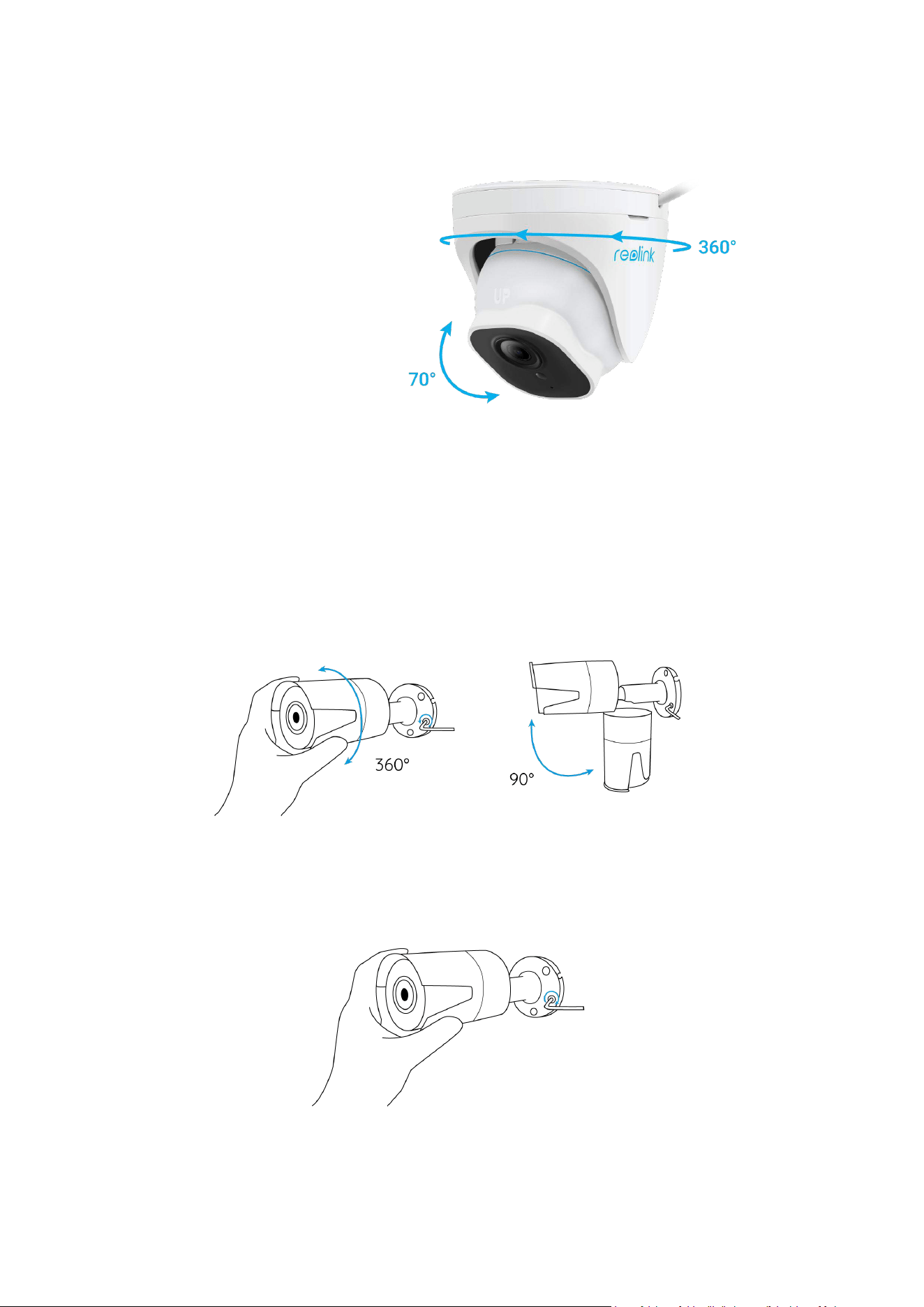

Step 4. Once the camera is installed, you can adjust the angle up & down 70
degrees or 360 degrees horizontally.
Install Bullet Cameras
RLC-510A/RLC-410/B400/RLC-511/RLC-810A/RLC-811A/RLC-1210A/B800
Note:
It is not recommended to install Reolink bullet cameras in the open air in this way.
You can follow these steps to install Reolink bullet cameras to the ceiling.

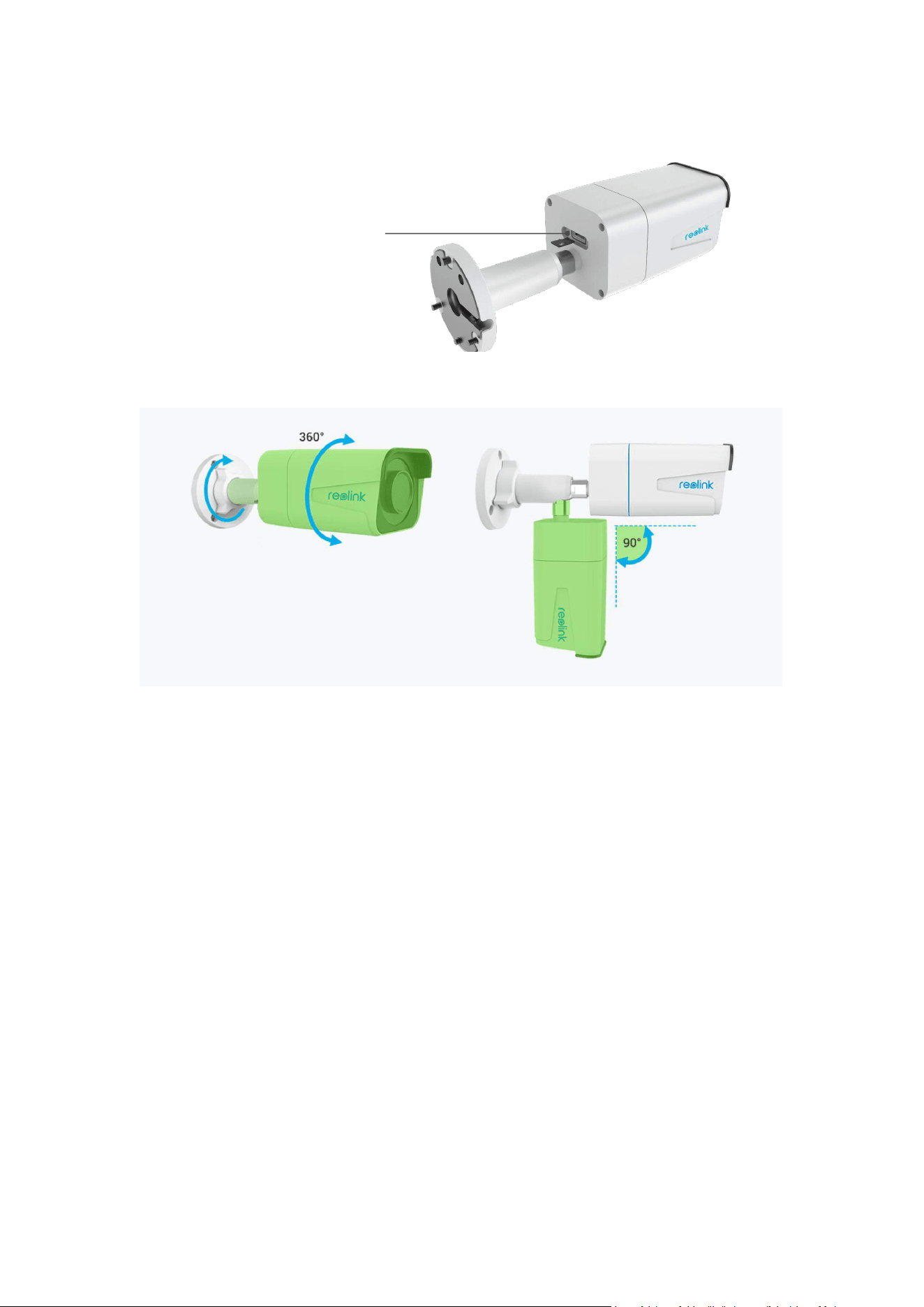

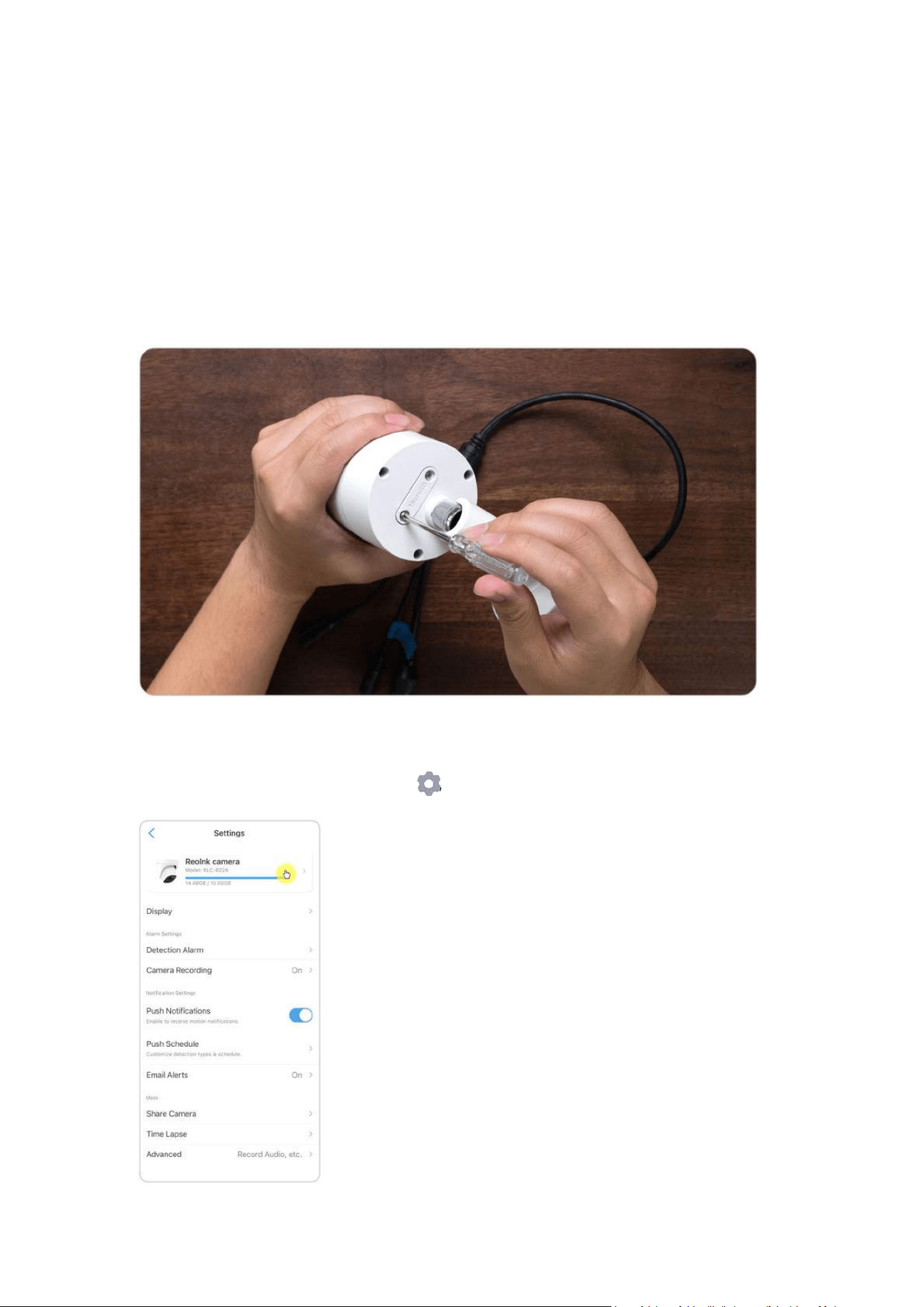

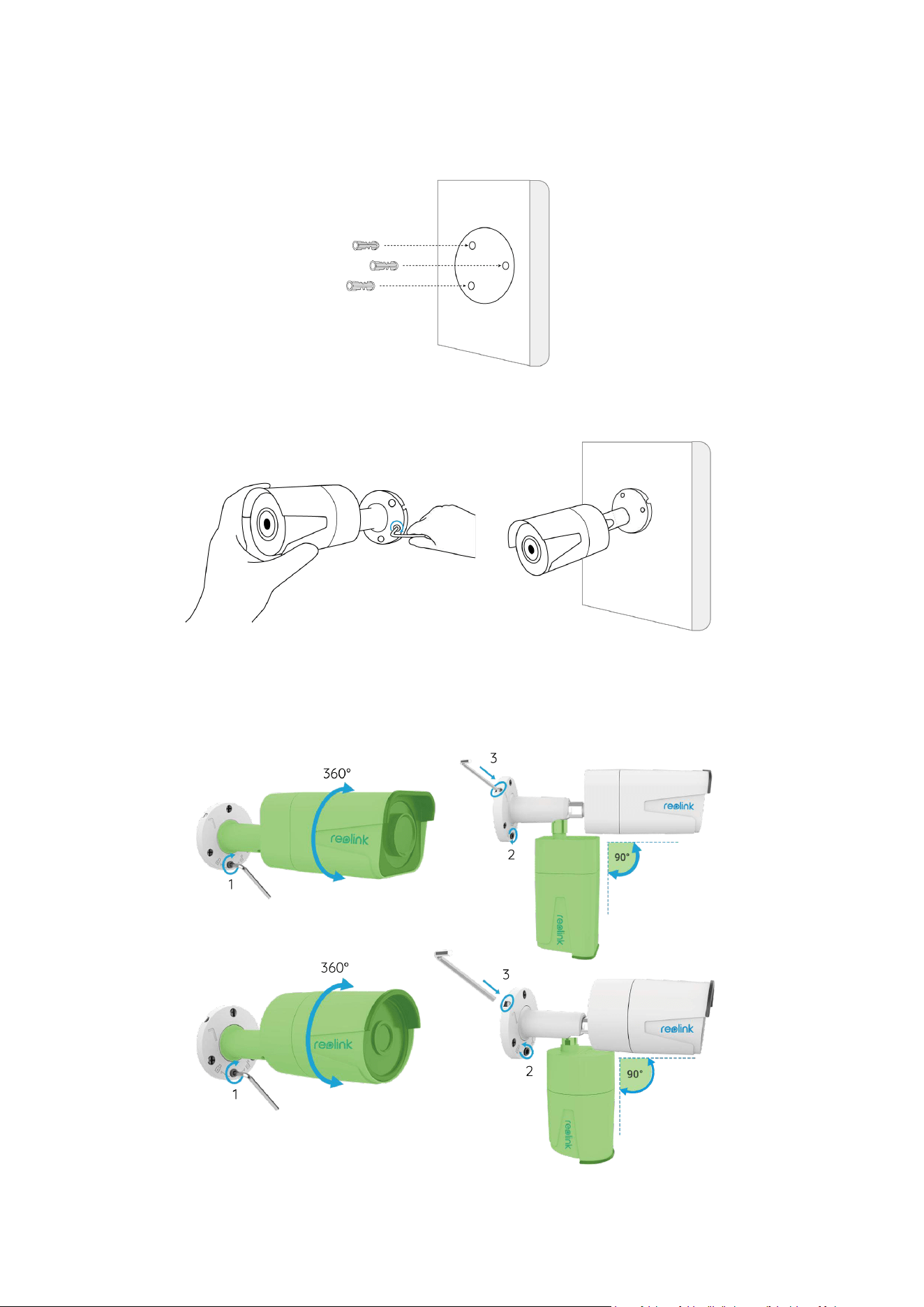

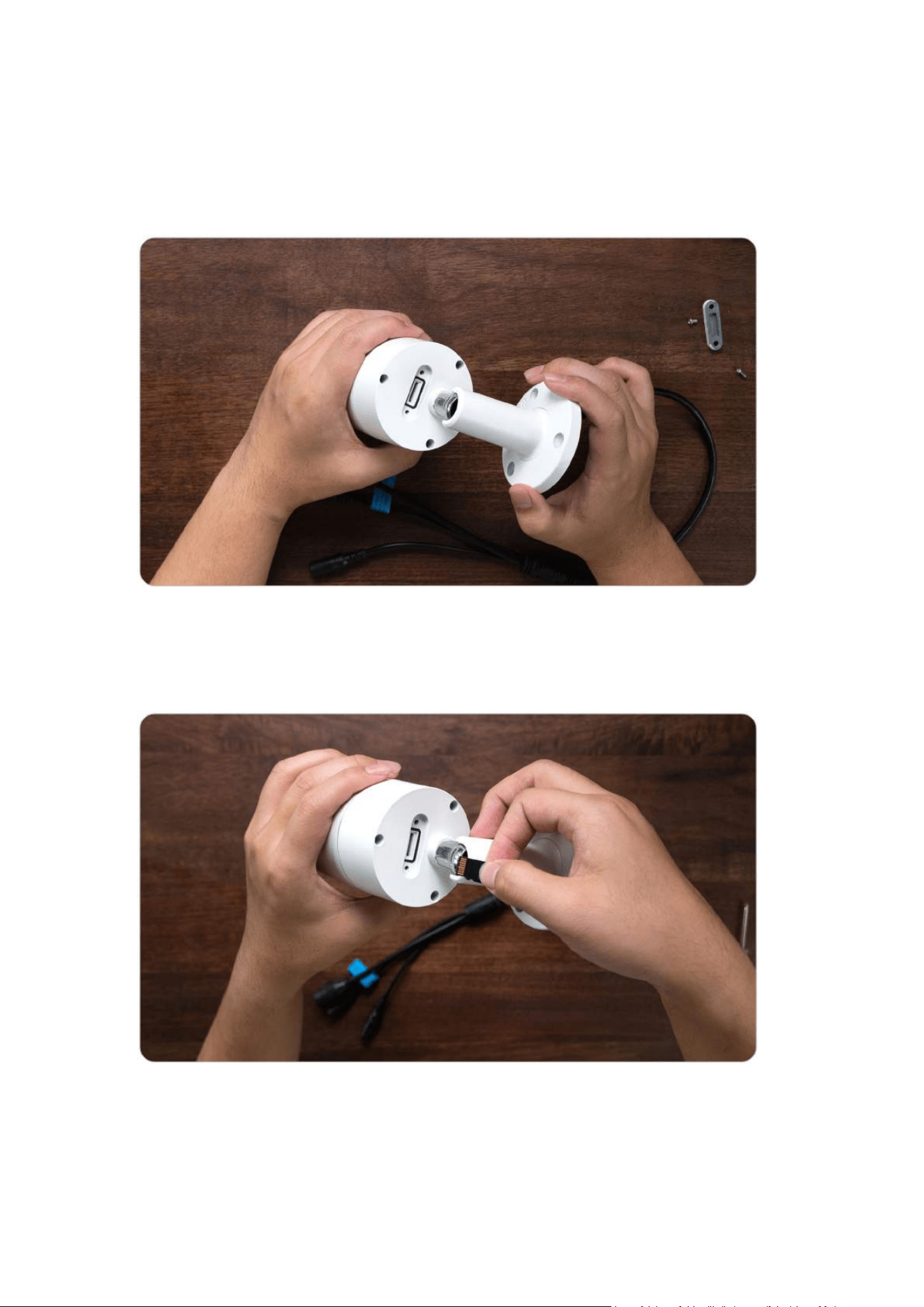

Step 1. Take out the mounting wrench, adjust the camera to any angle you want.
Step 2. Tighten the screw toward the direction of the Lock symbol after you adjust
the camera to a suitable angle.
Manually rotate the camera
body to adjust the
surveillance angle.
Reolink PoE Camera
User Manual
15
Step 3. Drill three screw holes on the wall according to the mounting hole
template.
Step 4. Secure the camera in place by tightening the screws.
Step 5. If you want to adjust the angle of this camera, you can loosen the screw
toward the direction of Unlock symbol.
Reolink PoE Camera
User Manual
16
Notes:
1. Twist it with the wrench to unlock, and adjust the cam (green part) in any
directions.
2. After adjustment, twist it back to lock it.
3. Store the wrench here for later use.
3. View Your Camera
Live View

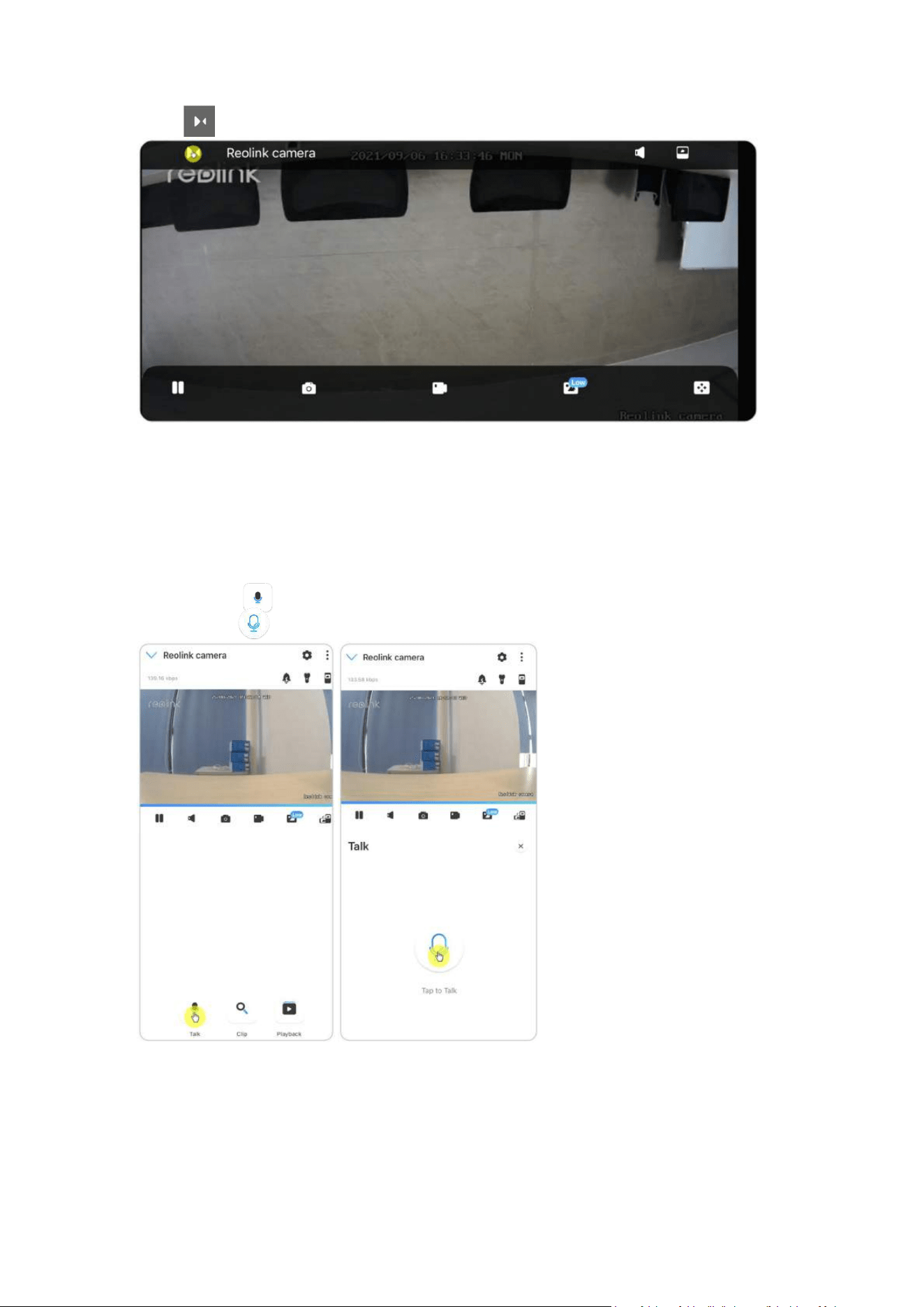

Note:
The live view screen may vary for different models.

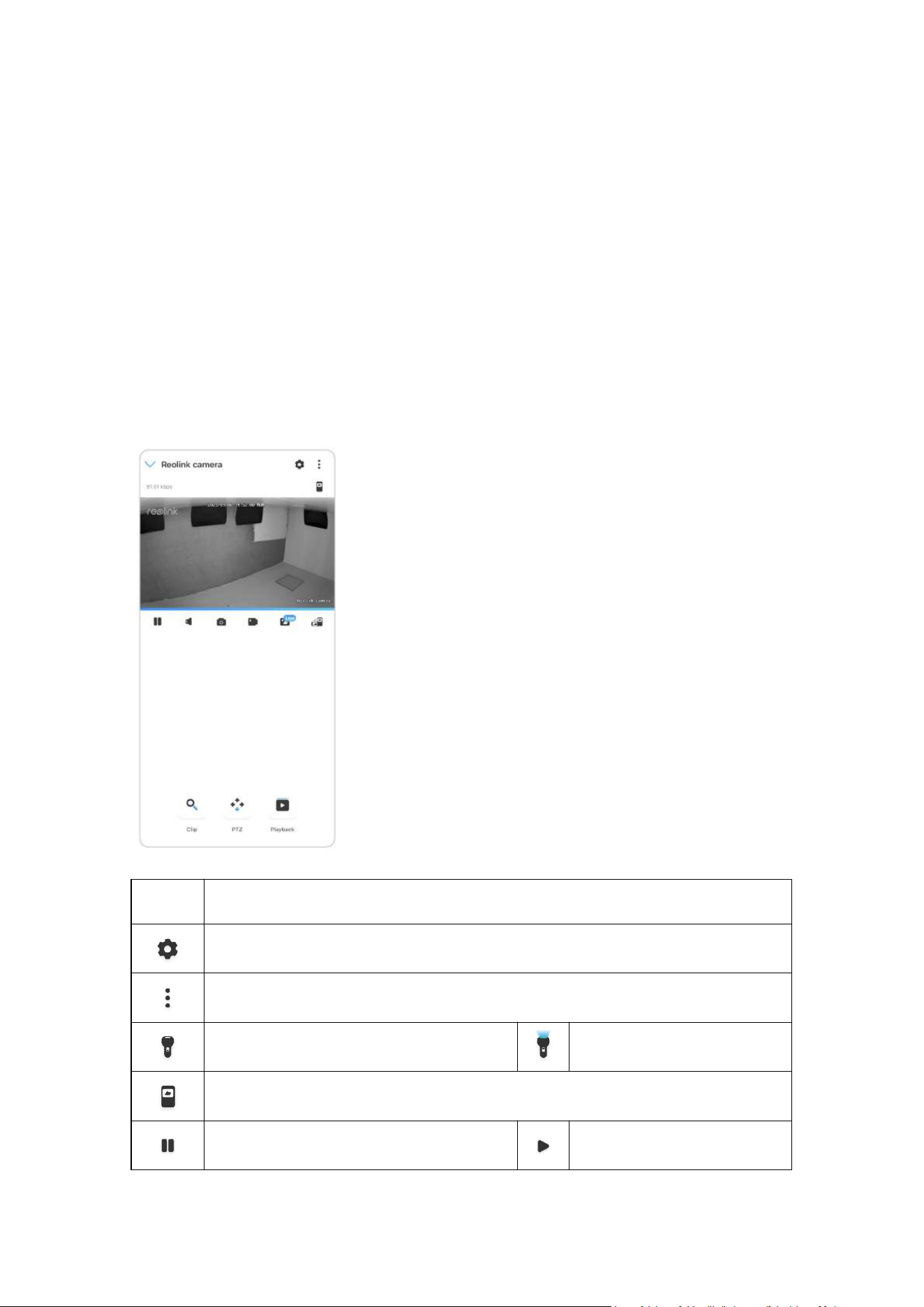

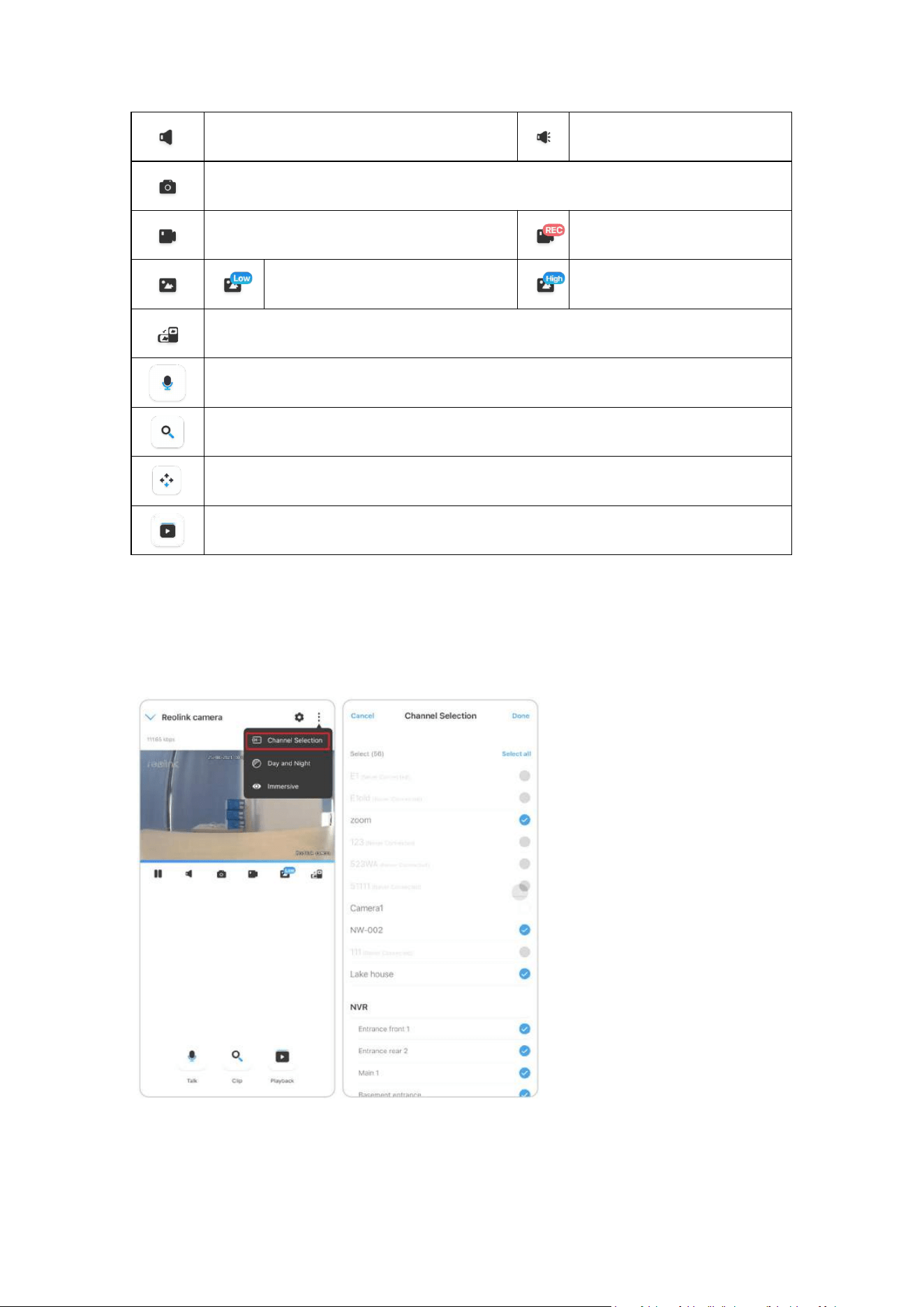

Icon
Meaning
Settings: Provide access to a camera’s settings such as system
information, detection alarm and camera recording.

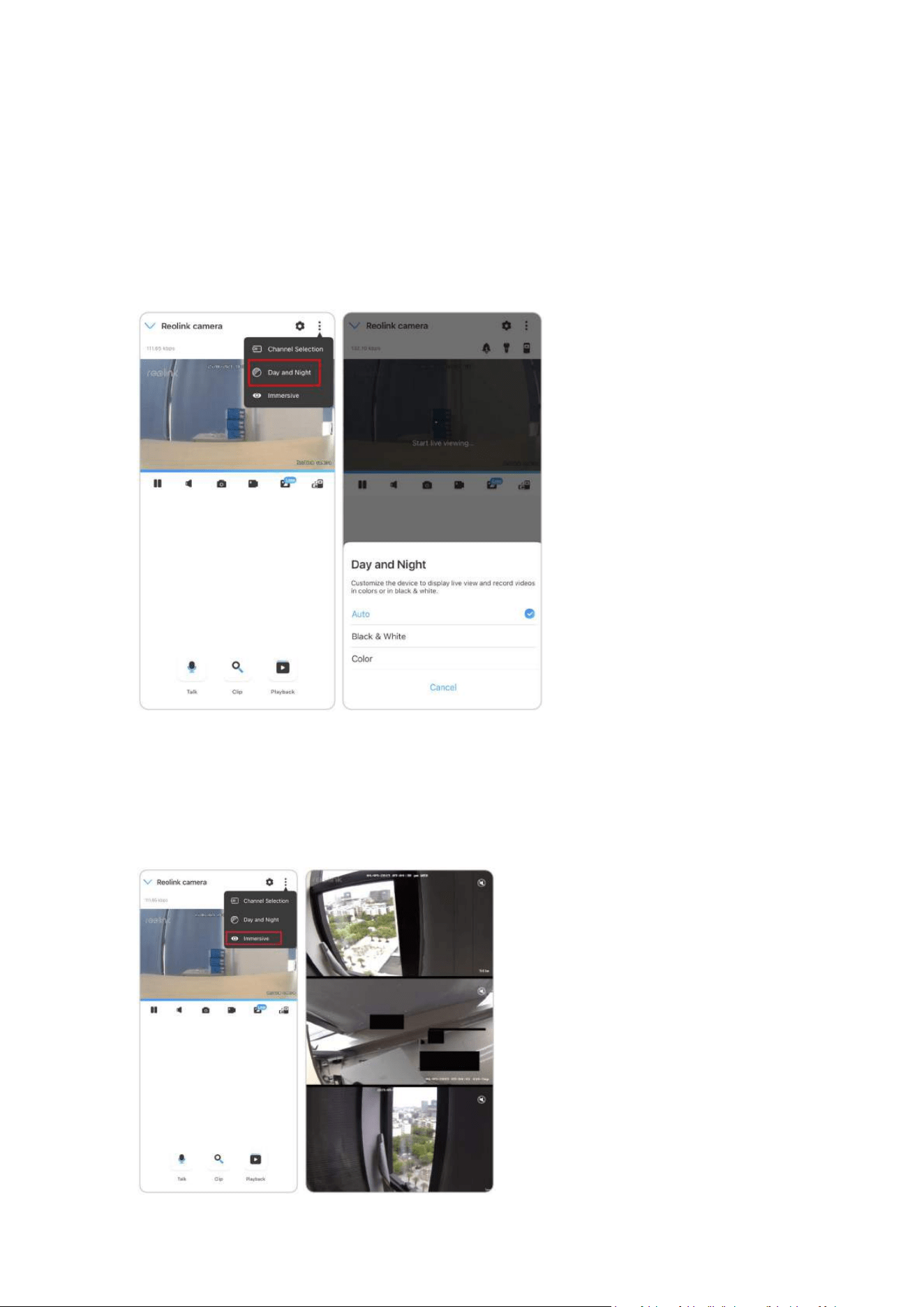

More options of live view: Channel Selection, Day and Night, Immersive.
Spotlight
Turn on the spotlight
Multiple views
Display
Pause
Reolink PoE Camera
User Manual
17
Audio
Enable audio
Manually capture
Manually record
Manually recording
Live view in sub-stream mode
Live view in main stream
mode
View your camera in a full-screen mode.
Talk: Tap to talk (two-way audio).
Clip: Drag the rectangle to the position you want to see.
PTZ: Control pan,tilt or zoom.
Playback: Replay the recordings saved to the SD card.
Channel Selection
You can choose the devices you want on the device list.
Reolink PoE Camera
User Manual
18
Day and Night
Set the camera’s color mode during different times of the day and night.
Set the camera’s color mode during different times of the day and night.
-Color: The camera will capture color images that usually appear during the day.
-Black & White: The camera will capture black-and-white images that usually
appear during the night with the IR LEDs on.
-Auto: The camera will automatically switch between Color and Black & White
modes according to the light conditions.
Immersive
The immersive mode has a larger viewing area with less interference and focuses
on previewing. It is suitable for viewing 2 or 3 cameras on one screen.
Note: One screen can accommodate up to three cameras. You could slip the
screen to preview other cameras.
Reolink PoE Camera
User Manual
19
Multiple Views
If you have several cameras added in your Reolink App, you can view multiple
streams at the same time on Reolink App.
Full-Screen View

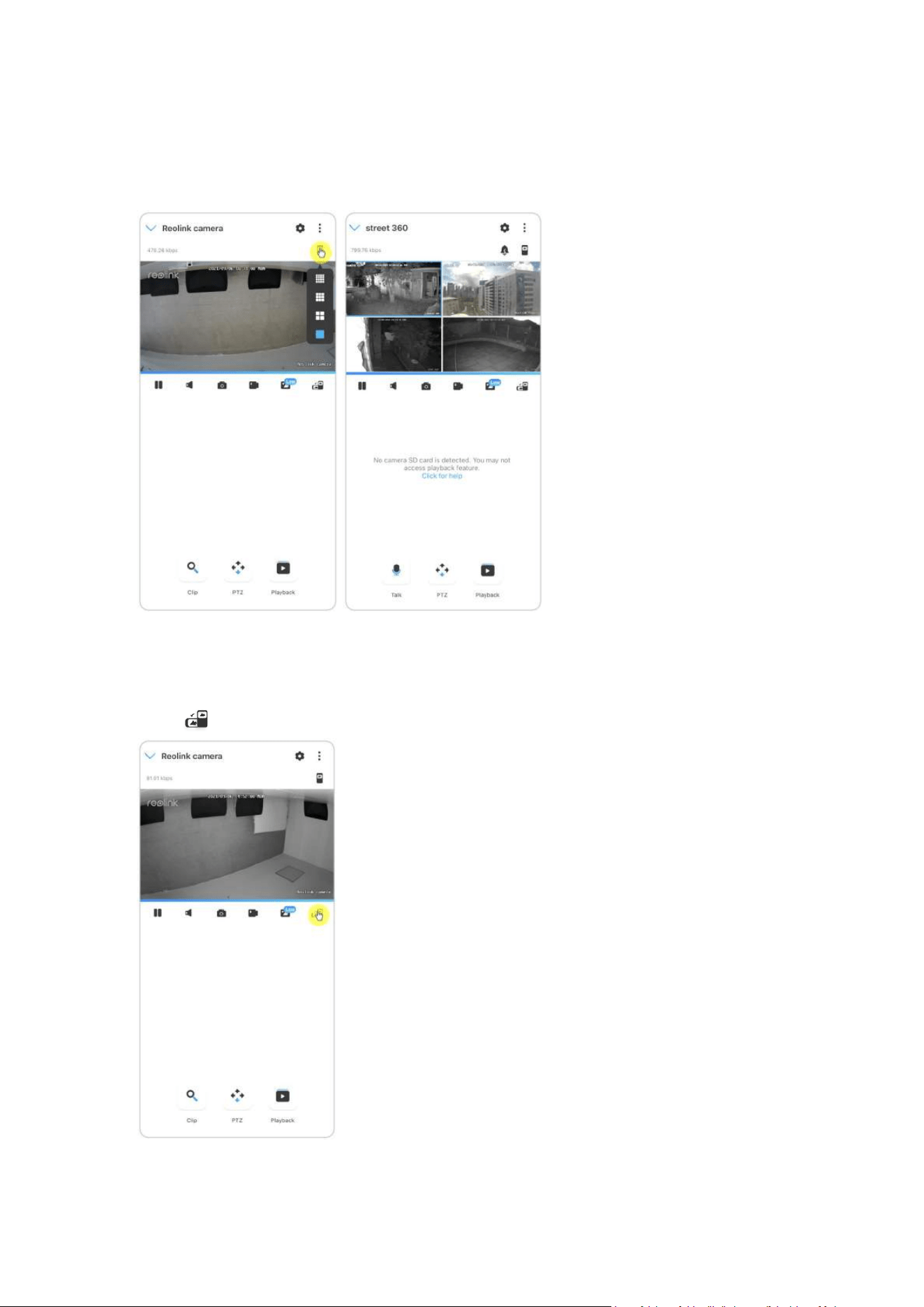

Click to enter the full-screen mode.
Reolink PoE Camera
User Manual
20
Click to return back.
Two-Way Audio
Note:
Two-way audio is only available for RLC-811A and RLC-823A.
Step 1. Click to enter into the two-way audio page;
Step 2. Click to talk.
Reolink PoE Camera
User Manual
21

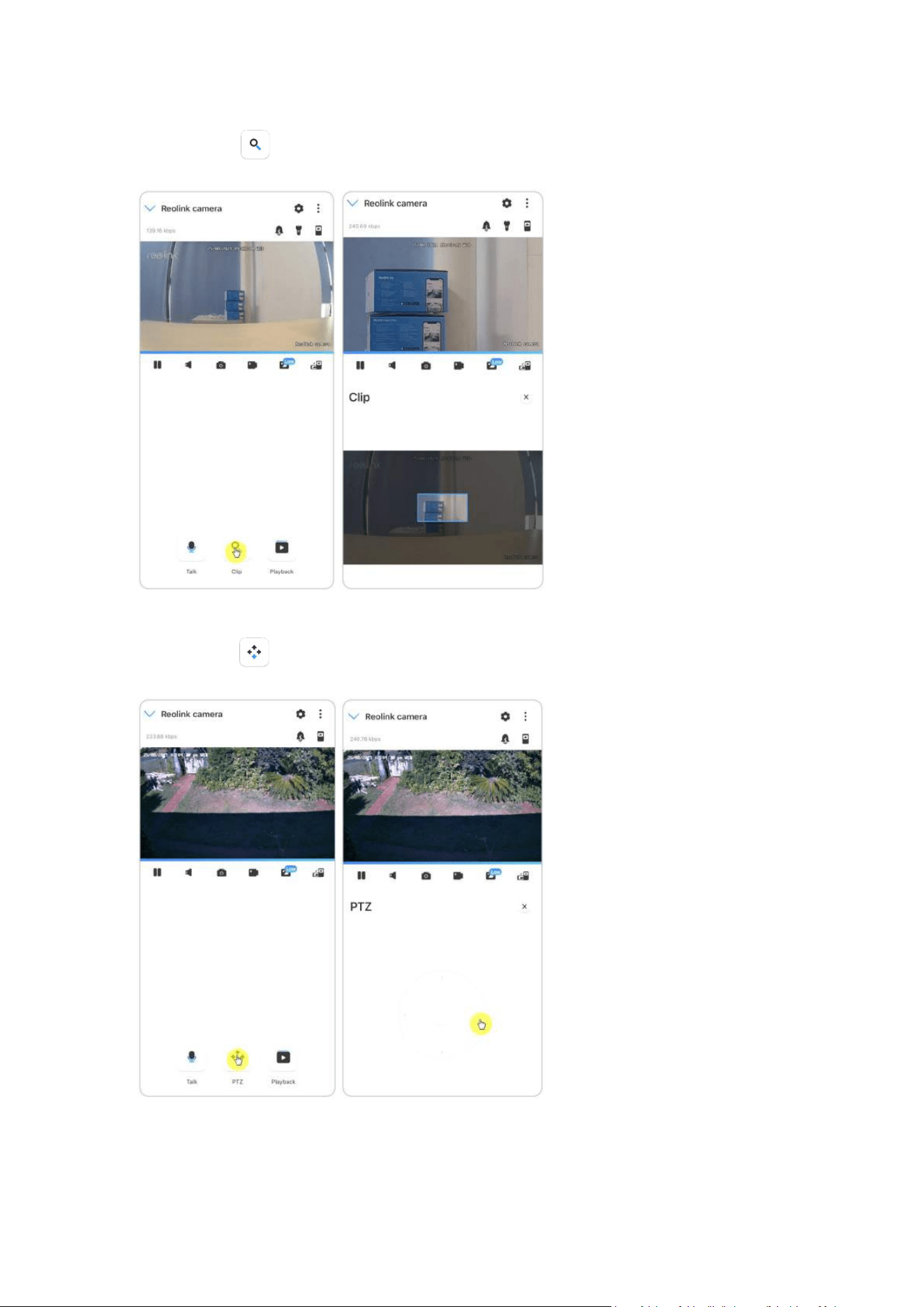

Clip
Step 1. Click to enter into the clip page;
Step 2. Drag the rectangle to the position you want to see.
PTZ
Step 1. Click to enter into the PTZ page;
Step 2. Choose the direction you want the camera to pan and tilt.
Reolink PoE Camera
User Manual
22
Display Settings

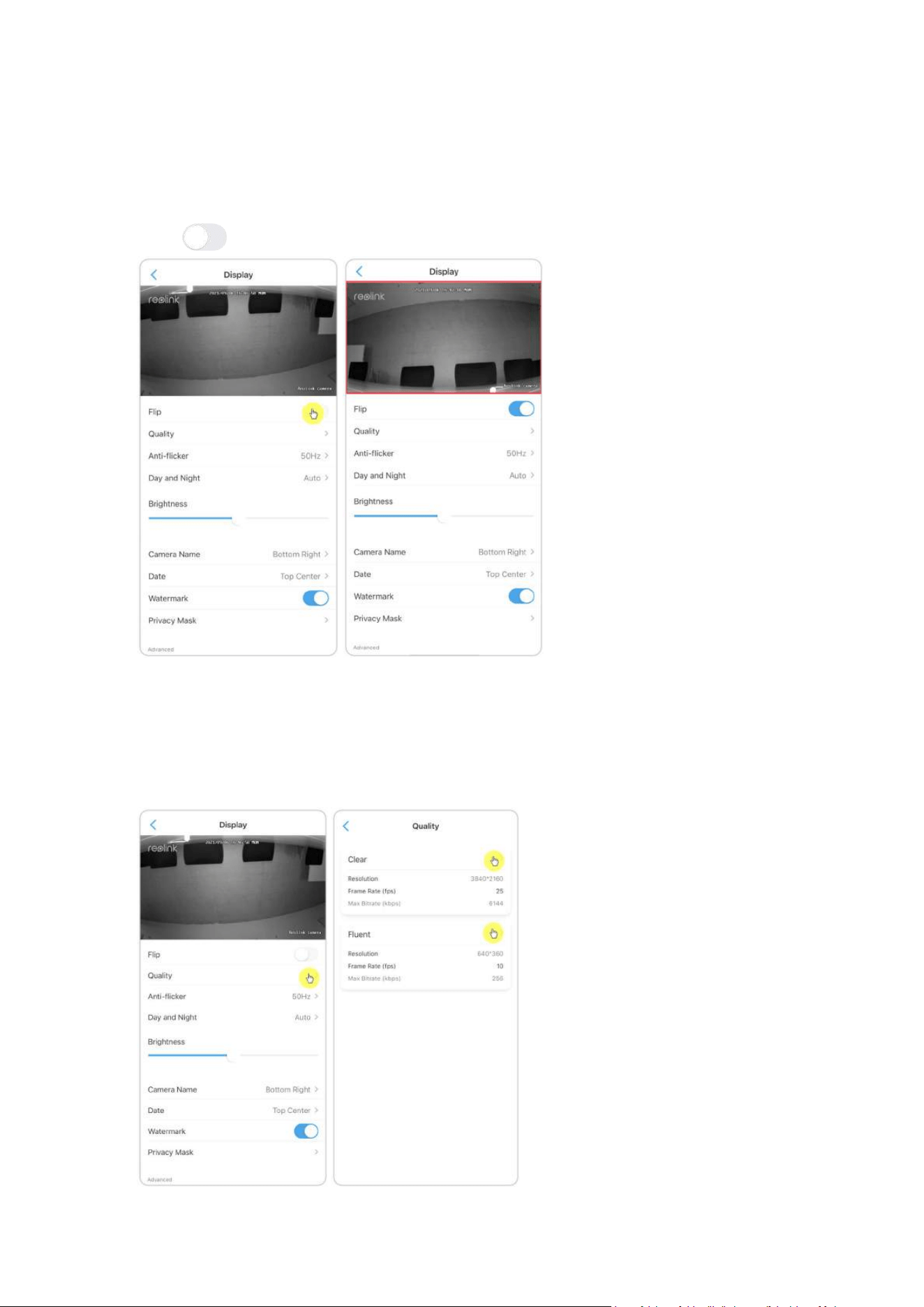

Flip
Click , then the image will be turned upside down.
Quality
Step 1. Click Quality to enter into the Quality page;
Step 2. Click Clear mode or Fluent mode to enter into the settings page for Clear
mode or Fluent mode;
Reolink PoE Camera
User Manual
23
Step 3. Click Save to save the settings.

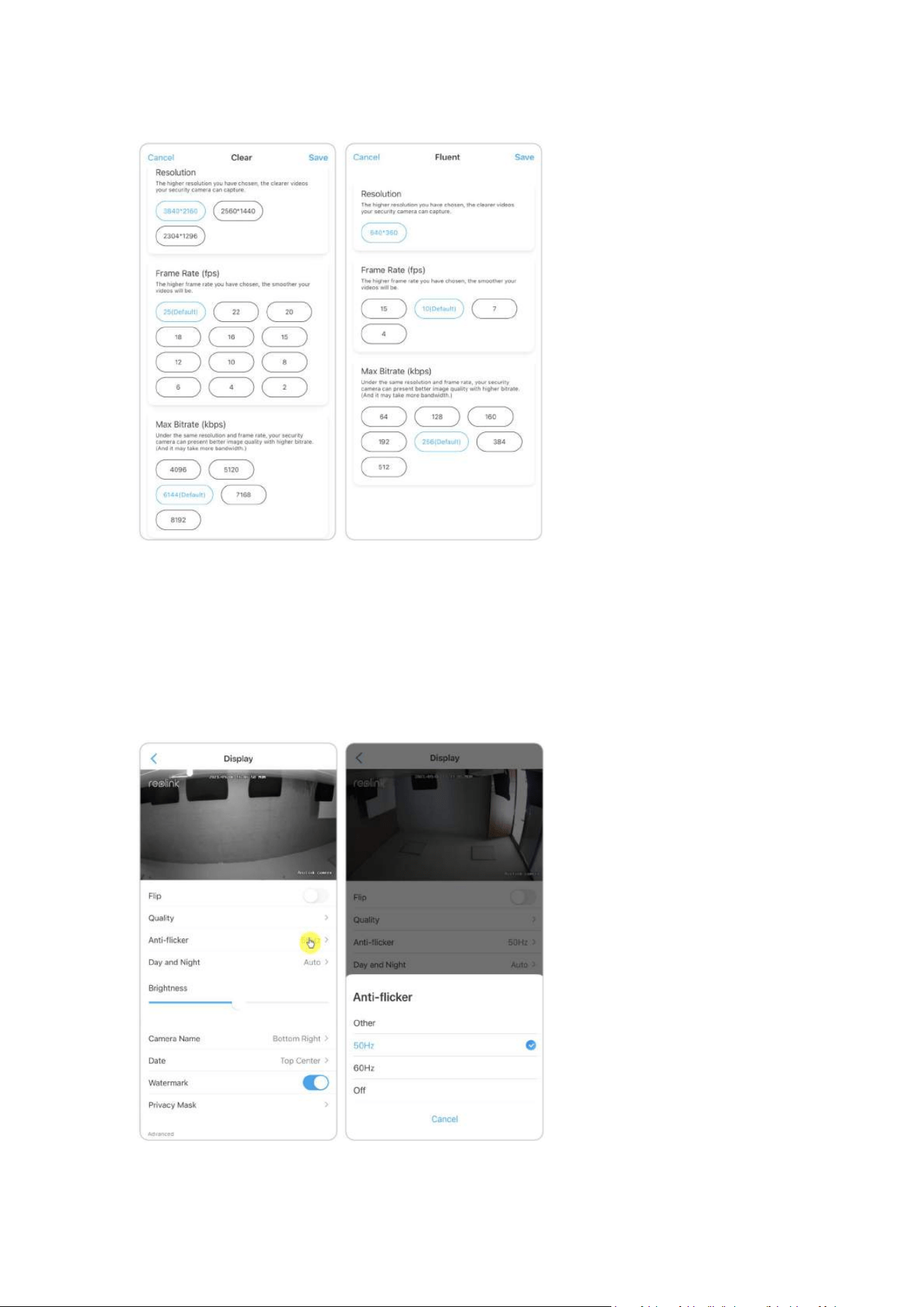

Anti-flicker
Use this feature if some devices such as TV screens and lights are flickering.
- 50GHz: Used for Australia and the UK.
- 60GHz: Used for the USA and Canada.
Step 1. Click Anti-flicker;
Step 2. Choose a proper setting.
Reolink PoE Camera
User Manual
24

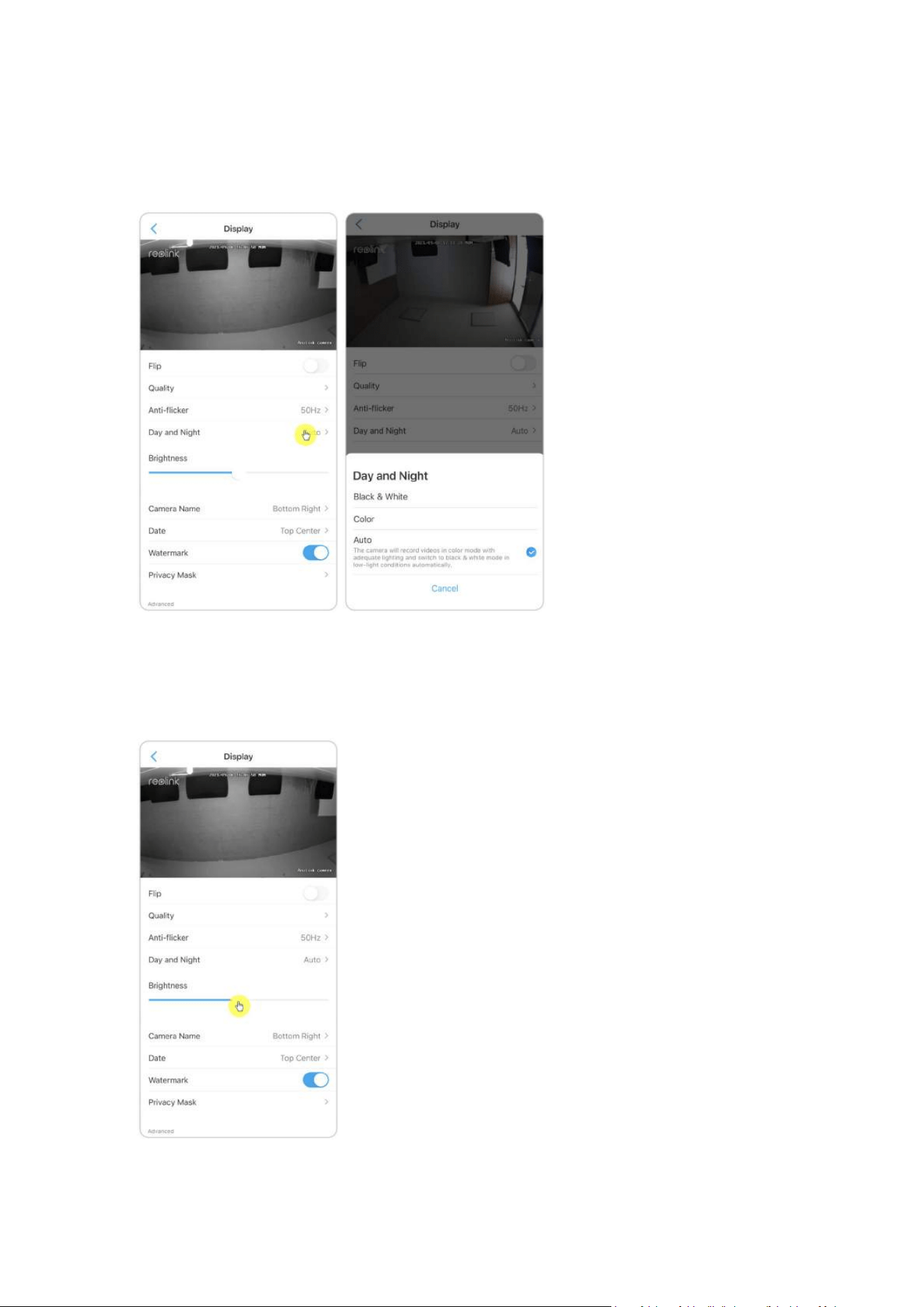

Day and Night
Click Day and Night to enter into the settings page.
Note: It is the same as the settings on the Live View part.
Brightness
Drag the circle in the progress bar to adjust the brightness of the image.
Reolink PoE Camera
User Manual
25

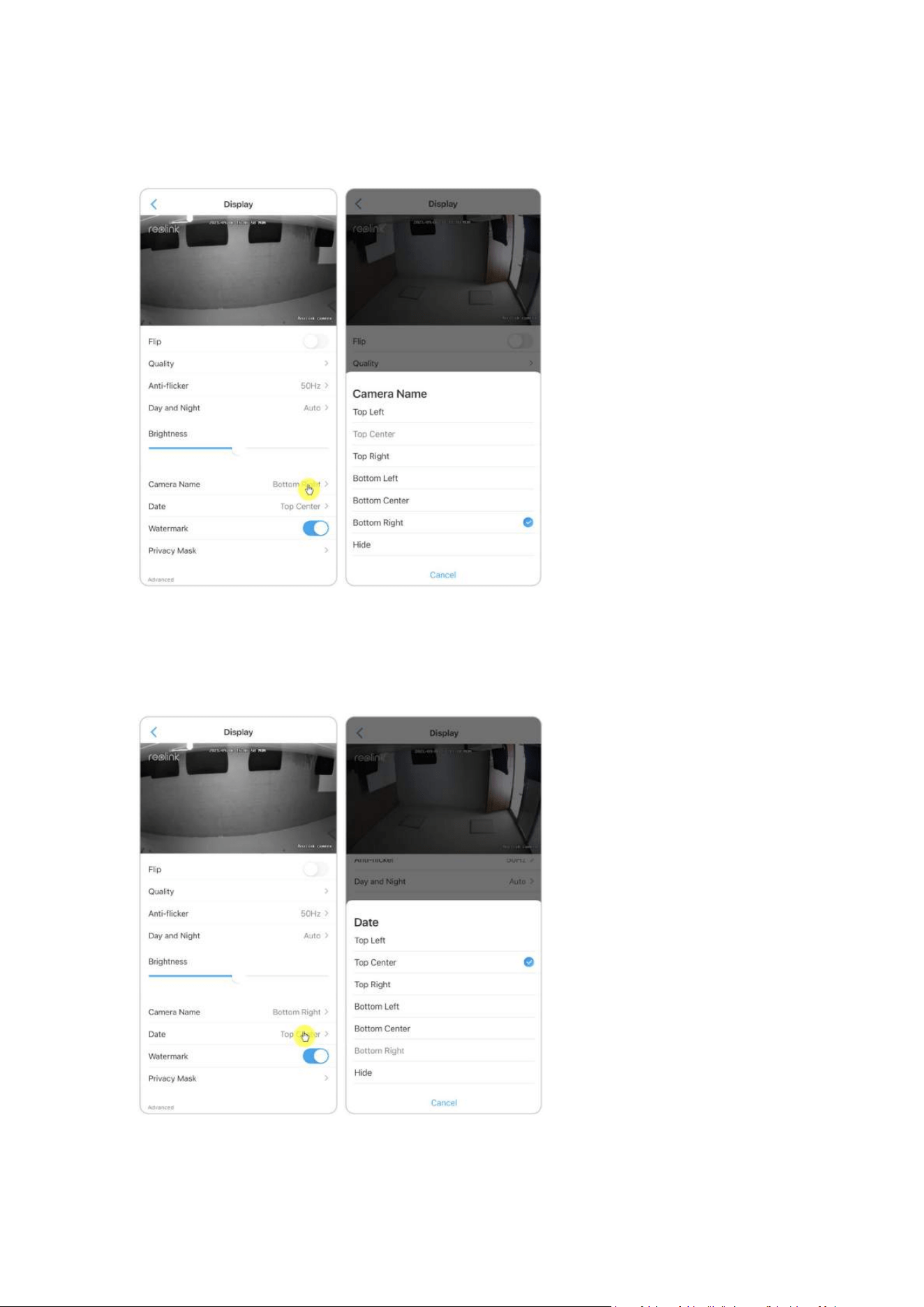

Camera Name
You can set the position of the camera name on the screen.
Date
You can set the position of the date on the screen.
Reolink PoE Camera
User Manual
26

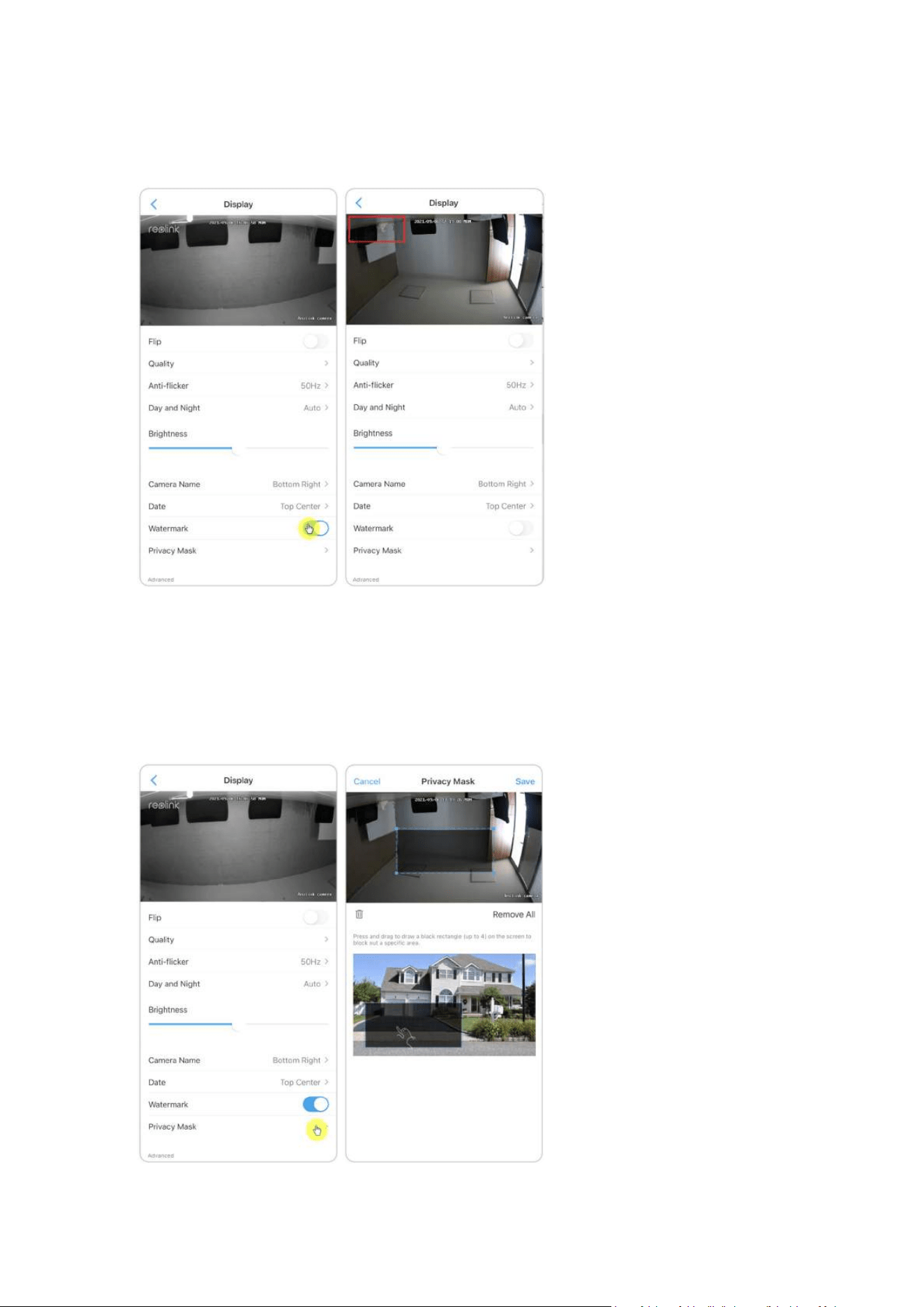

Watermark
Click to disable the watermark shown on the screen.
Privacy
If you don’t want others to view some parts in the image, you can set the privacy
mask to protect your privacy. Press and drag to draw a black rectangle (up to 4
rectangles) on the screen to block out a specific area.
Reolink PoE Camera
User Manual
27

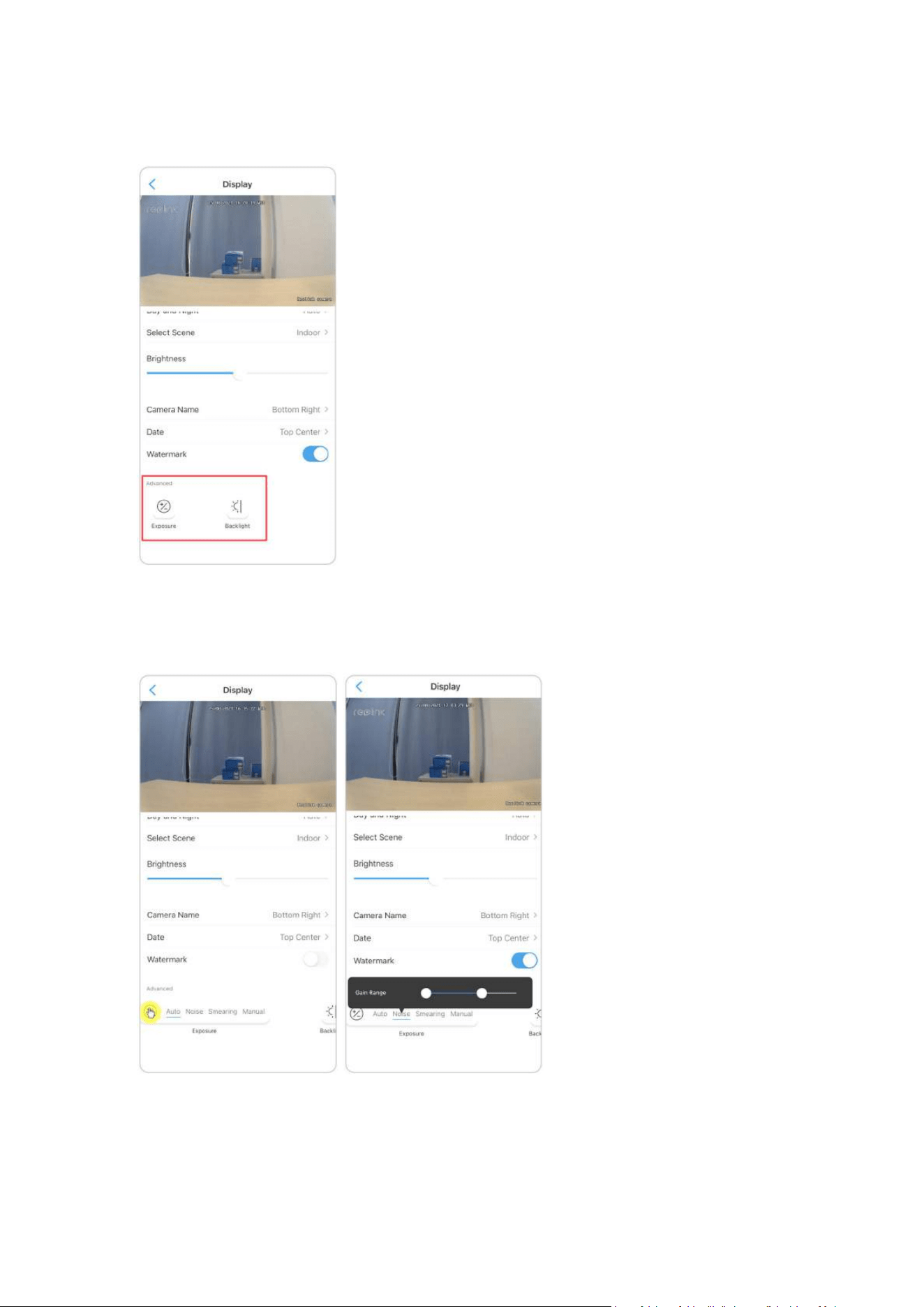

Advanced
It includes Exposure and Backlight.

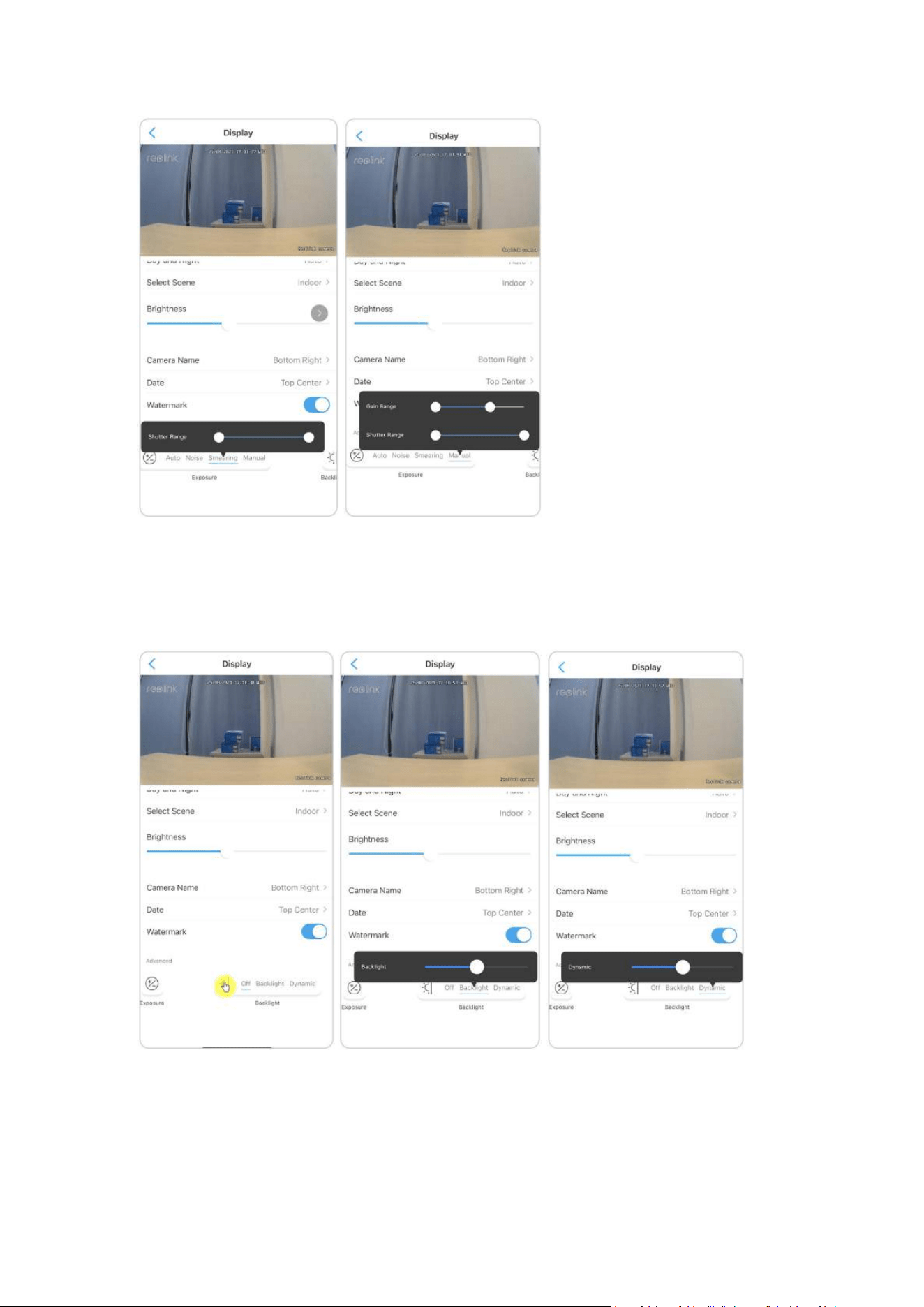

Exposure: Select the exposure level of the camera based on pre-defined
conditions. Select Manual to adjust the shutter range and gain range of the
camera manually.
Reolink PoE Camera
User Manual
28
Backlight: Optimize brightness and contrast levels to compensate for differences
between dark and bright objects. This may improve image clarity in high contrast
situations but should be tested at different times of the day and night to ensure
there is no negative effect.
Reolink PoE Camera
User Manual
29
Lights and LED

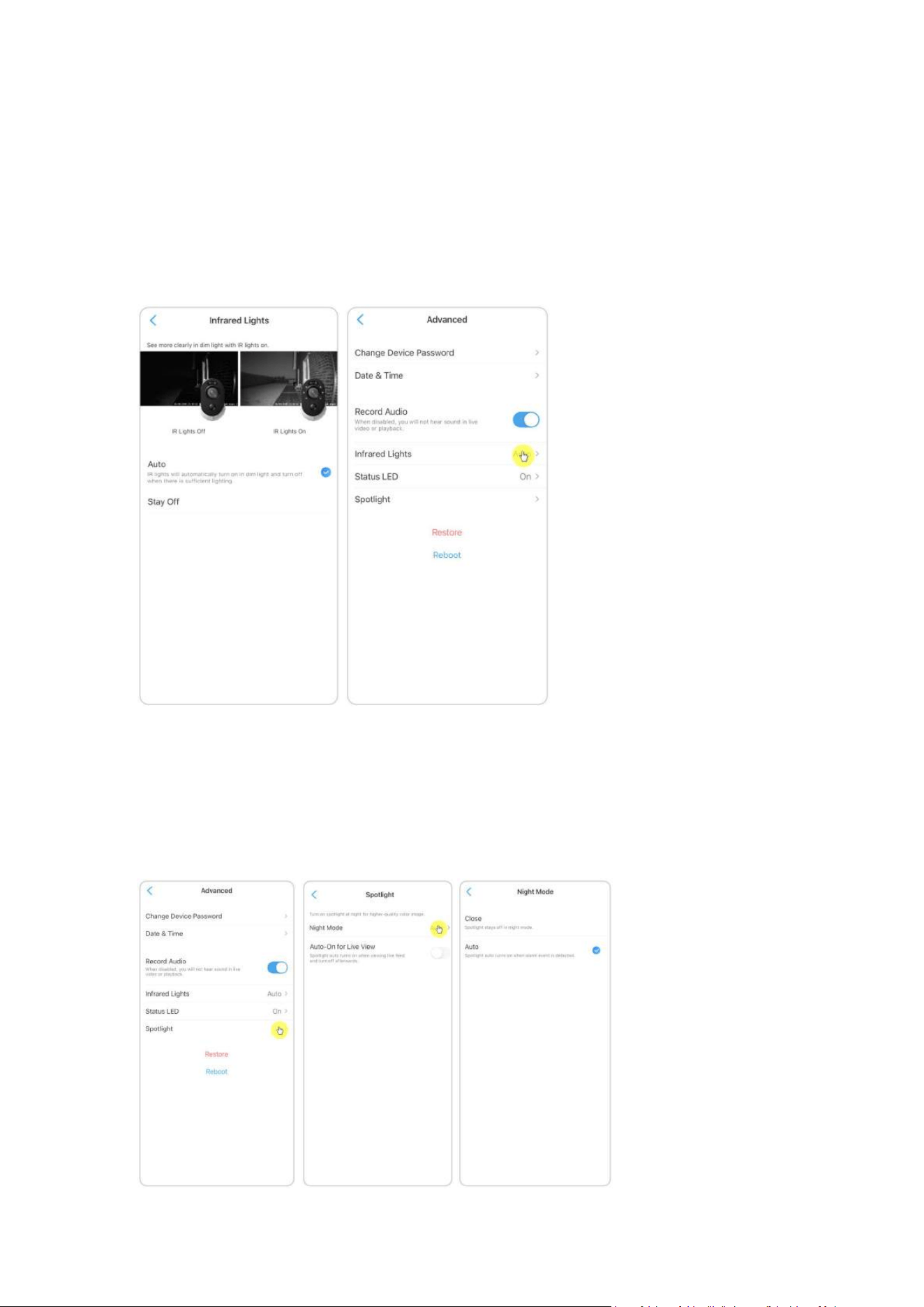

Infrared Lights
By default, the infrared lights on the cameras are set to Auto. They will be
automatically turned on in dim environment. If there is enough illumination, you
may choose to turn off the infrared lights.
Spotlight
When an alarm event is detected, it will be automatically turned on, and the
spotlight can also add light sources to produce full-color images.
By default, the Night Mode is set as Auto.
Reolink PoE Camera
User Manual
30

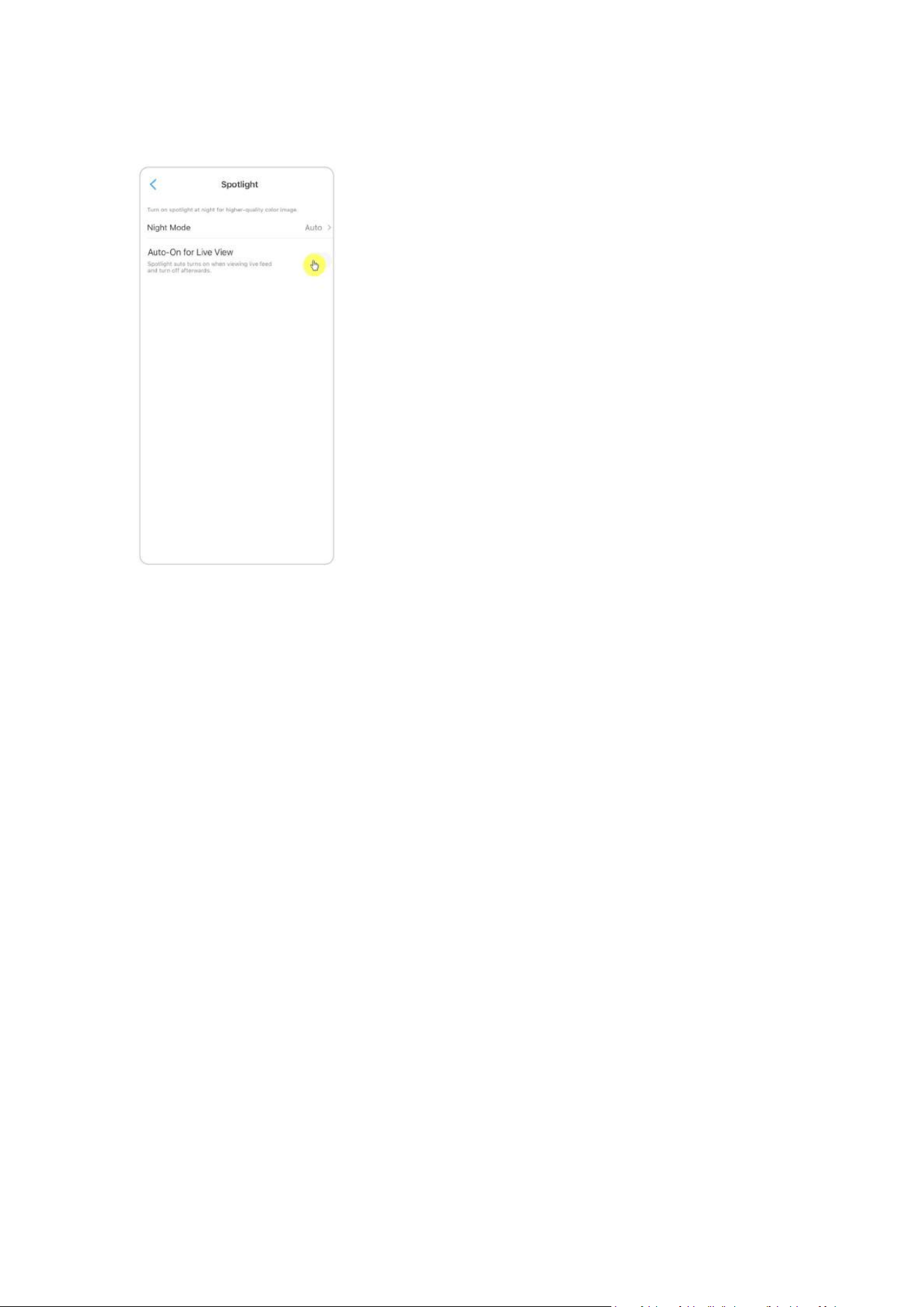

And you can also enable the Auto-On for Live View, which means the spotlight
will automatically turn on when viewing the live feed and turn off afterwards.
4. Alarm and Detection
Set up Motion Detection
Reolink camera judges whether each macroblock has moved by dividing the grid.
When the number of moved blocks reaches a certain proportion of the number of
armed blocks, the alarm will start.
The working principle of motion detection is that a camera will judge it as a motion
when differences in 2 frames reach 0.5%-10% (customize by adjusting motion
sensitivity) of the image. When the picture changes, the number calculated and
compared will exceed the threshold and instruct the system to automatically
make corresponding process.
Detection Zone

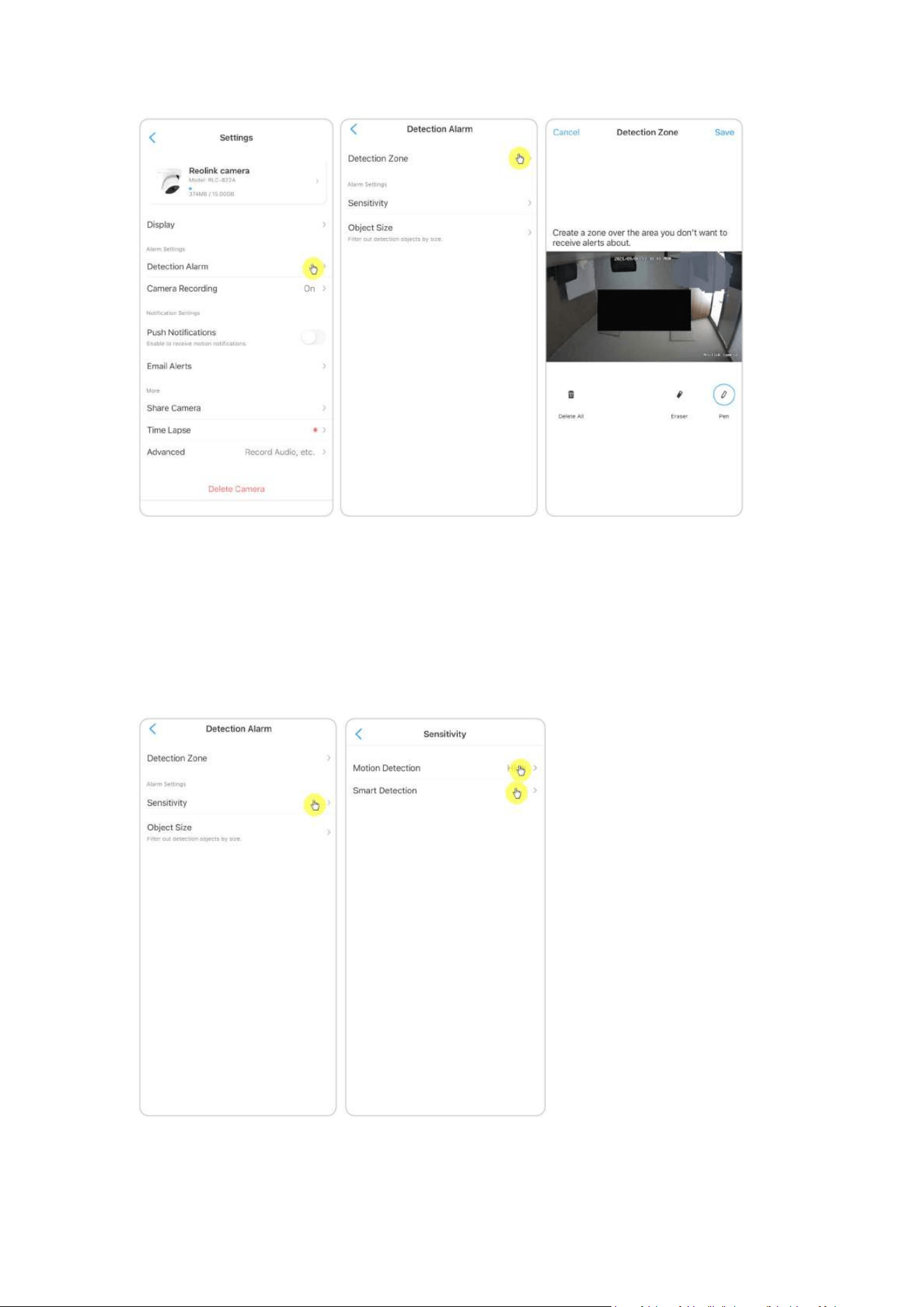

Detection Alarm > Detection Zone > Create a zone over the area you don’t want to
receive alerts about.
Reolink PoE Camera
User Manual
31
Sensitivity
Sensitivity can be set for motion detection and smart detection.
Note:
Smart detection is only for PoE cameras which support the smart person and
vehicle detection.
Reolink PoE Camera
User Manual
32

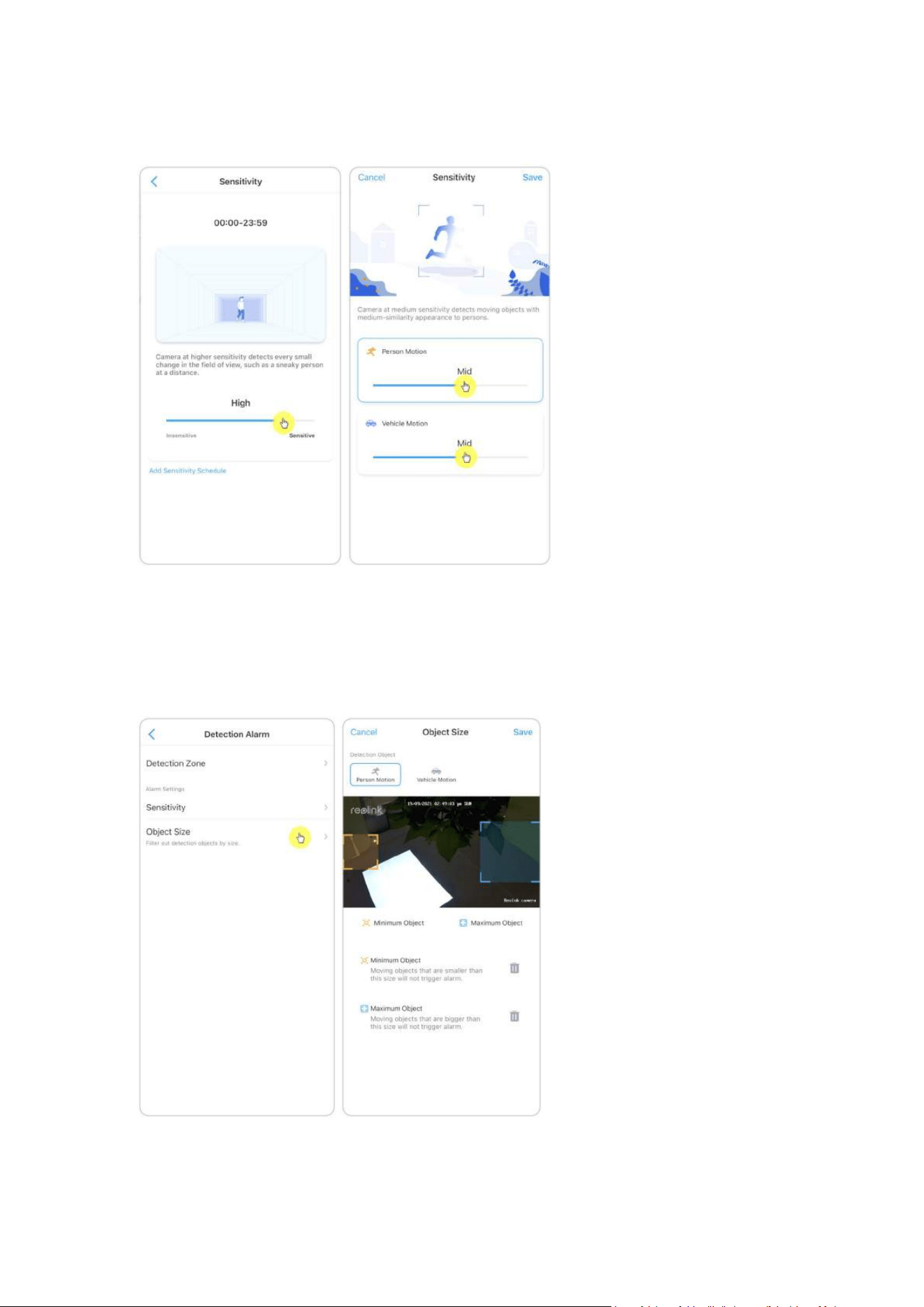

Drag the bar to adjust the sensitivity from low, mid to high.
For the sensitivity of motion detection, you can also add sensitivity schedule.
Object Size
You can set the minimum and maximum object size. Moving objects that are
smaller or bigger than the size will not trigger alarm.
Reolink PoE Camera
User Manual
33
Set up Motion Alerts
Push Notification

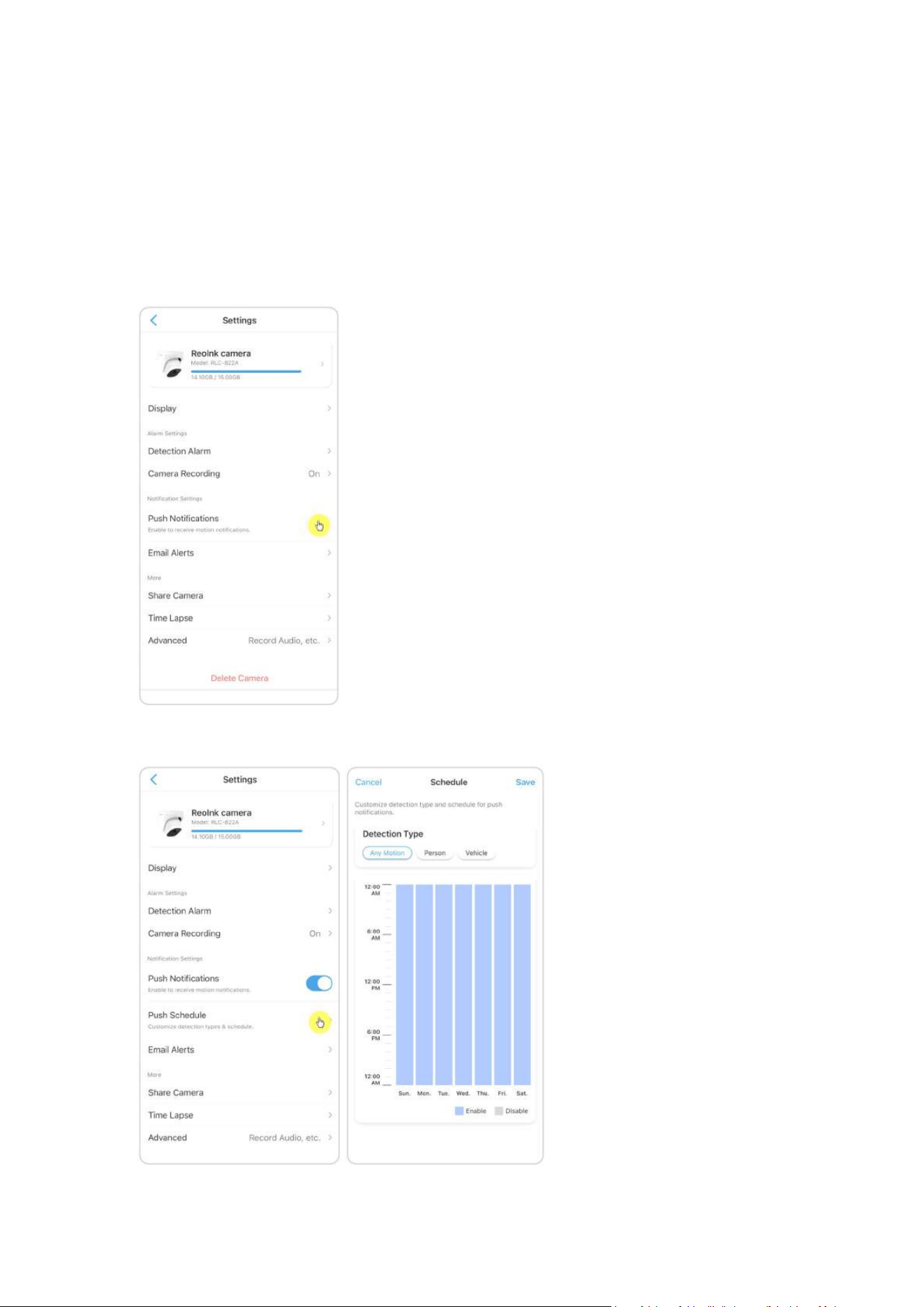

When the camera detects a motion, it will send a push notification, which pops up
on your mobile phone.
1. Tap on Push Notifications to enable this function.
2. Set a Push Schedule if you need: Any Motion, Person, Vehicle.
Reolink PoE Camera
User Manual
34
Notes:
1. The push notification for person and vehicle is only for PoE cameras which
support the smart person and vehicle detection.

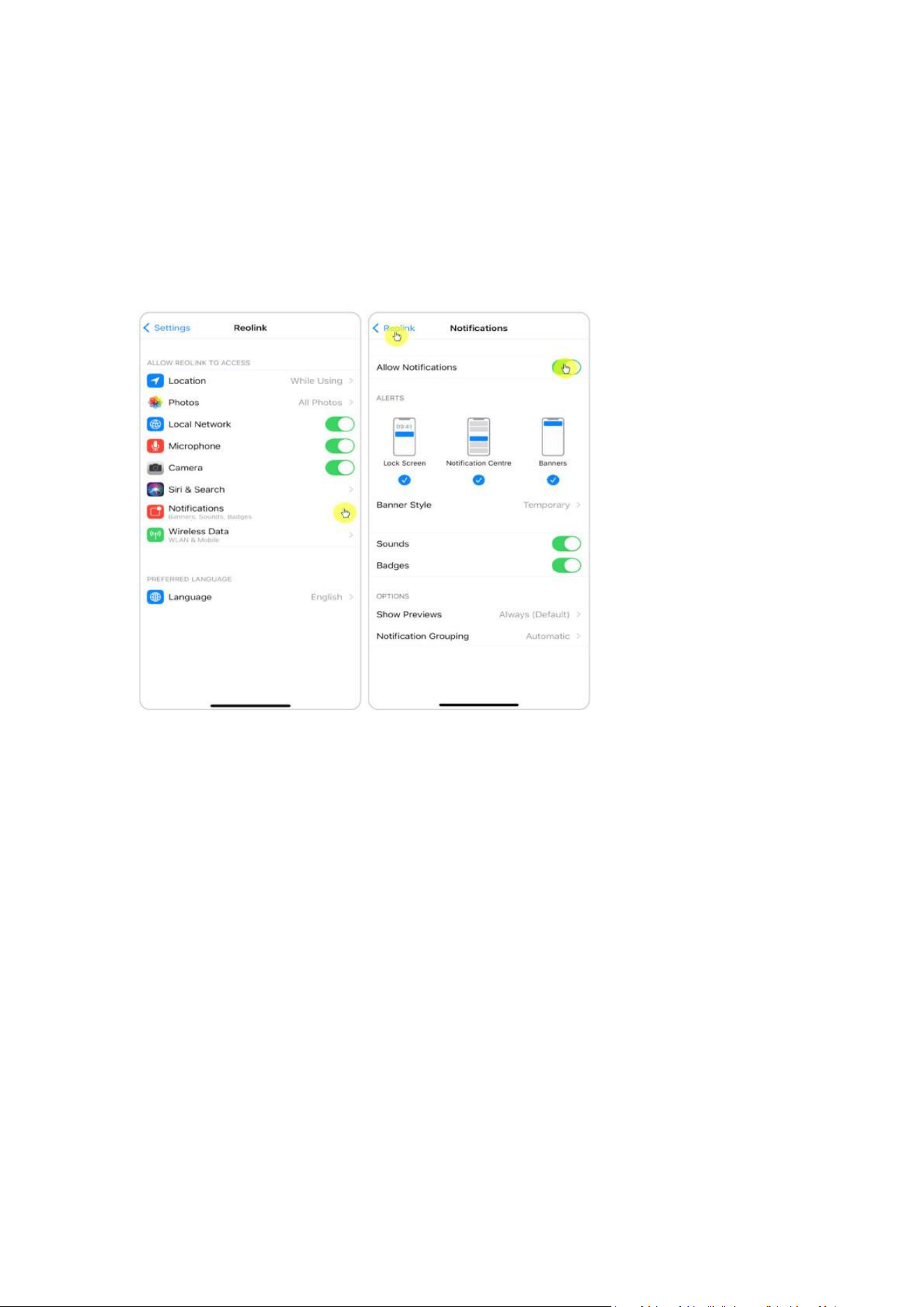

2. For iOS, please set your phone to allow Reolink App to send push notifications.
Go to your phone Settings, find Notifications and among the App list find the
Reolink App. Make sure the Reolink App can send notifications.
For Android, different phone brands have different notification settings, so please
make sure the push notification is allowed to be received.
Reolink PoE Camera
User Manual
35

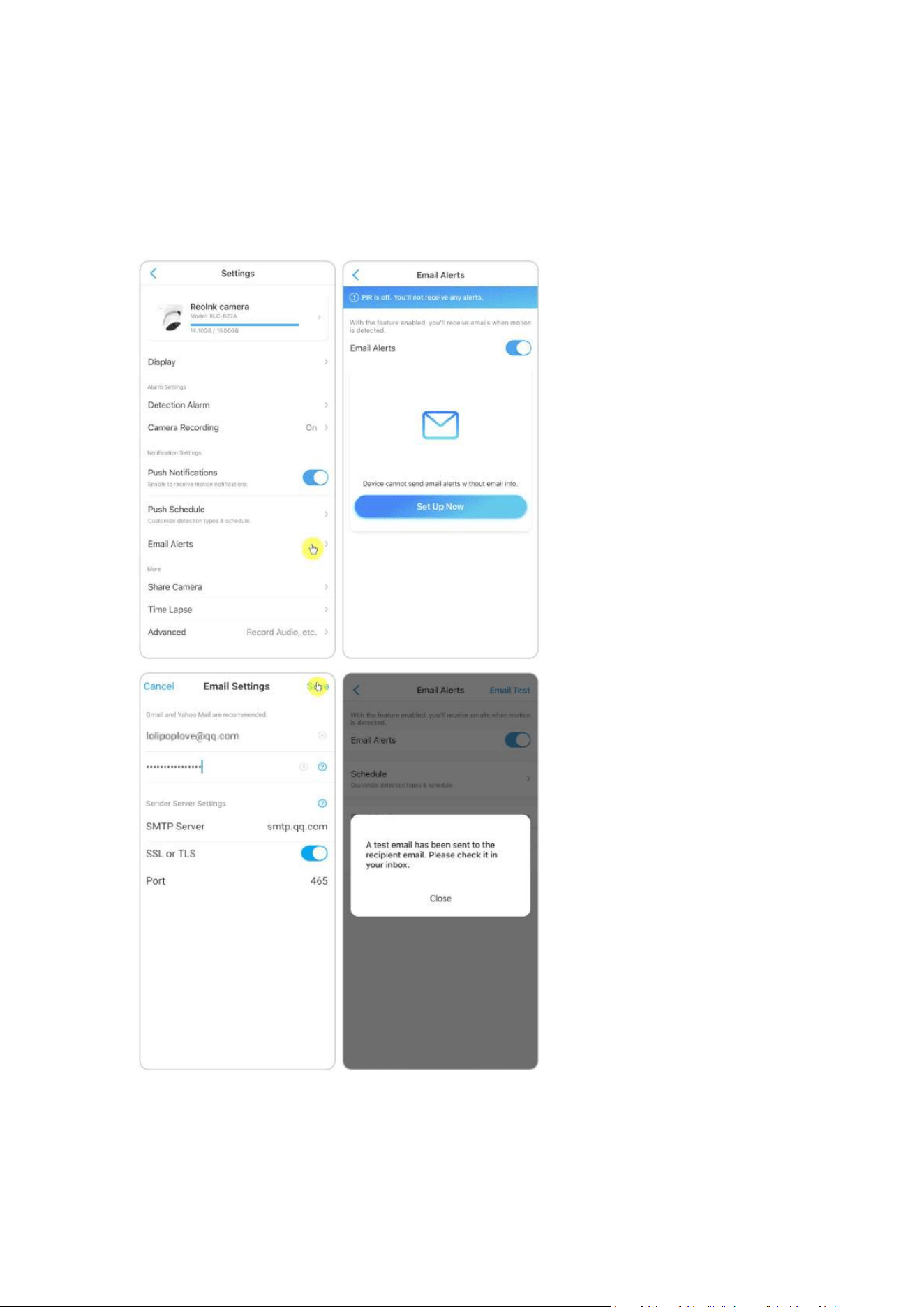

Alarm Email
When the camera detects a motion, it will send an alarm email with plain texts or
the camera’s live image.
1. Tap Set up Now to enter Email Settings, and enter the Email address and
Email password, SMTP server and port. Then tap on Save.
Reolink PoE Camera
User Manual
36

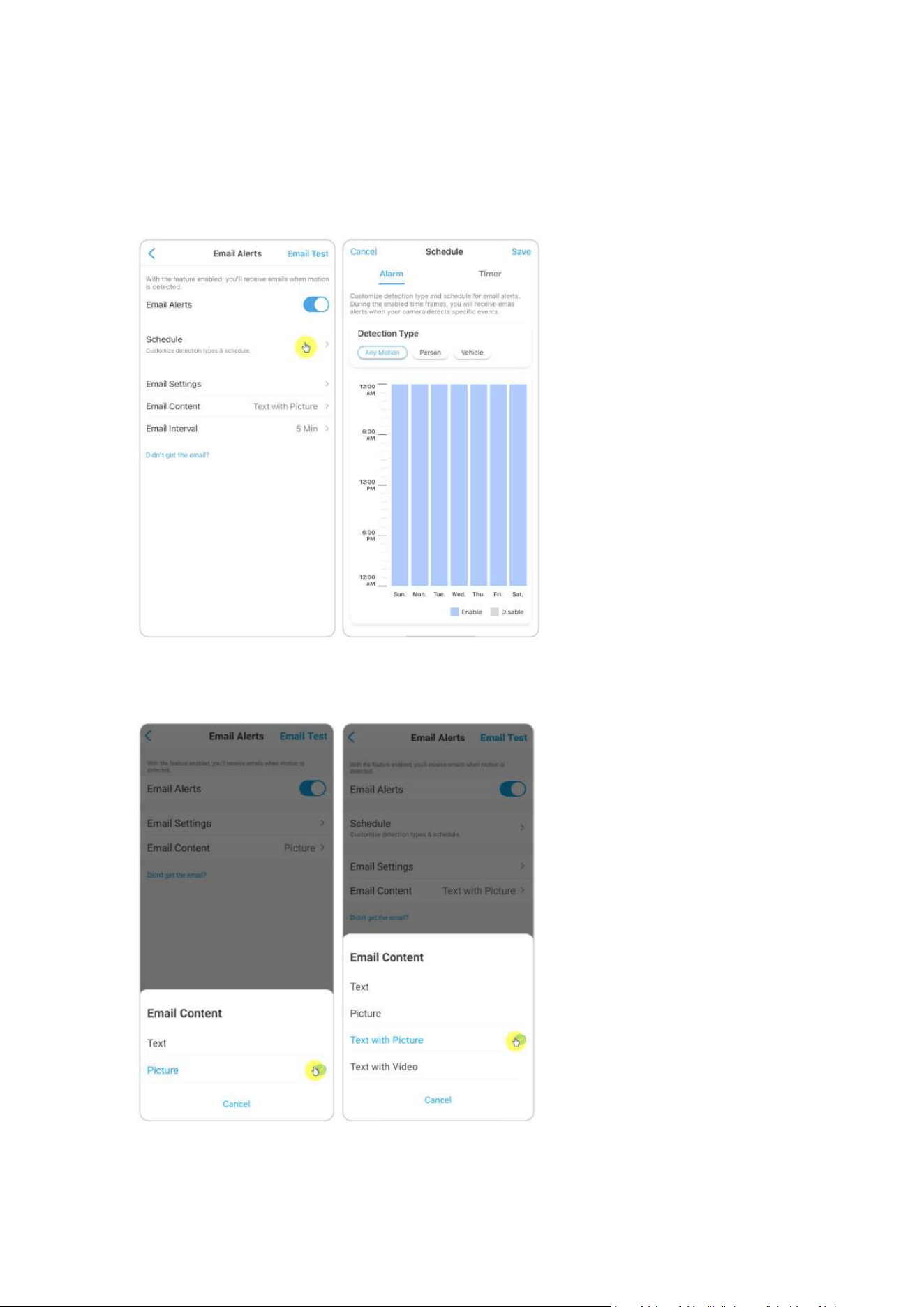

2. Tap Schedule to set up a schedule when you’d like to receive the email alerts,
and tap Save.
Note:
The email notification for person and vehicle is only for PoE cameras which support
the smart person and vehicle detection
3. Tap Email Content to choose for the camera to send email, you can choose
Text, Picture, Text with Picture or Text with Video.
Reolink PoE Camera
User Manual
37

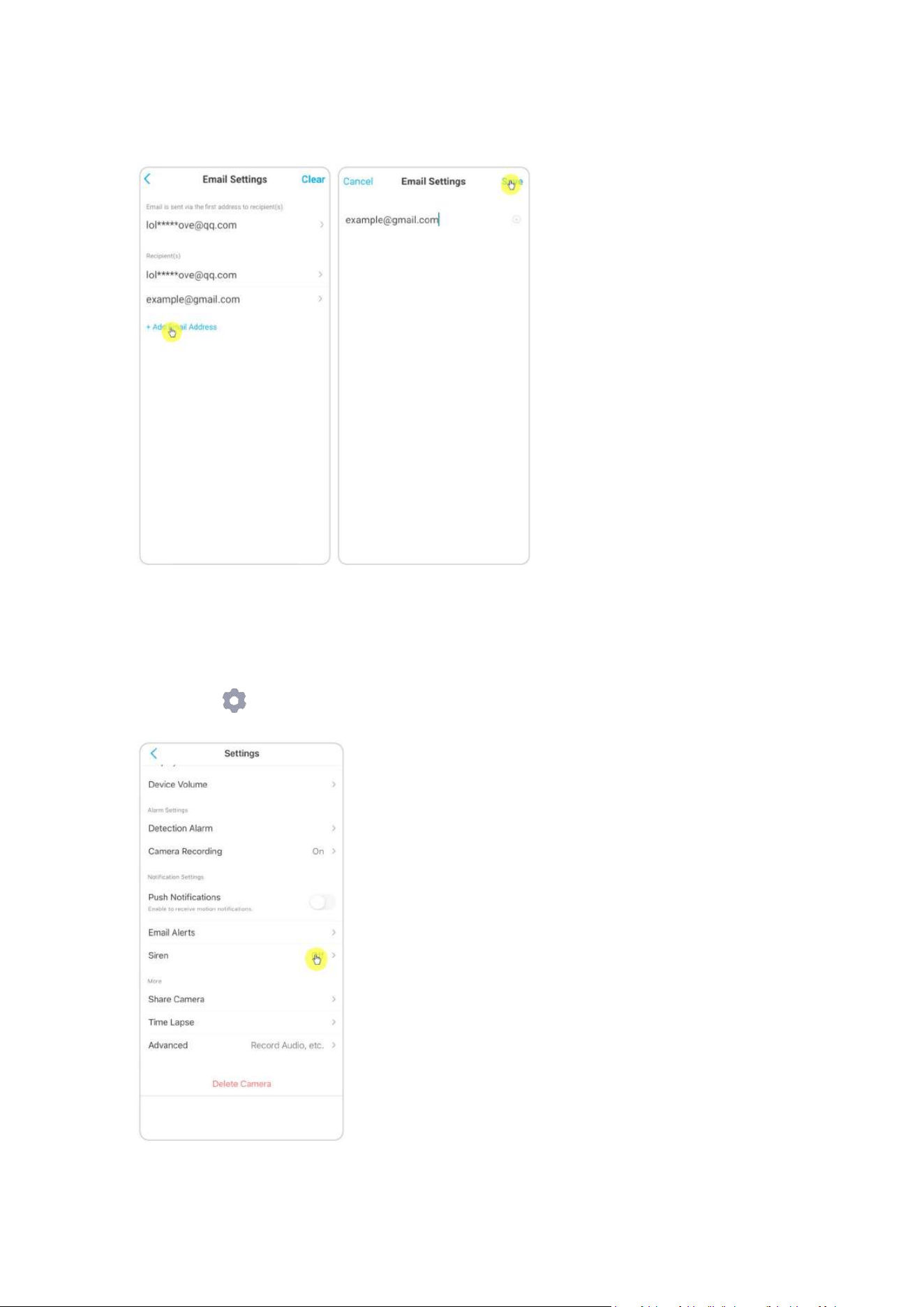

4. Tap Email Settings, then +Add Email Address to add more recipients of email
alerts, then tap Save.
Alarm Siren
You can set up the camera siren to make an alert sound when a motion is
detected.
1. Tap on . Tap on Siren and enable Siren.
Reolink PoE Camera
User Manual
38

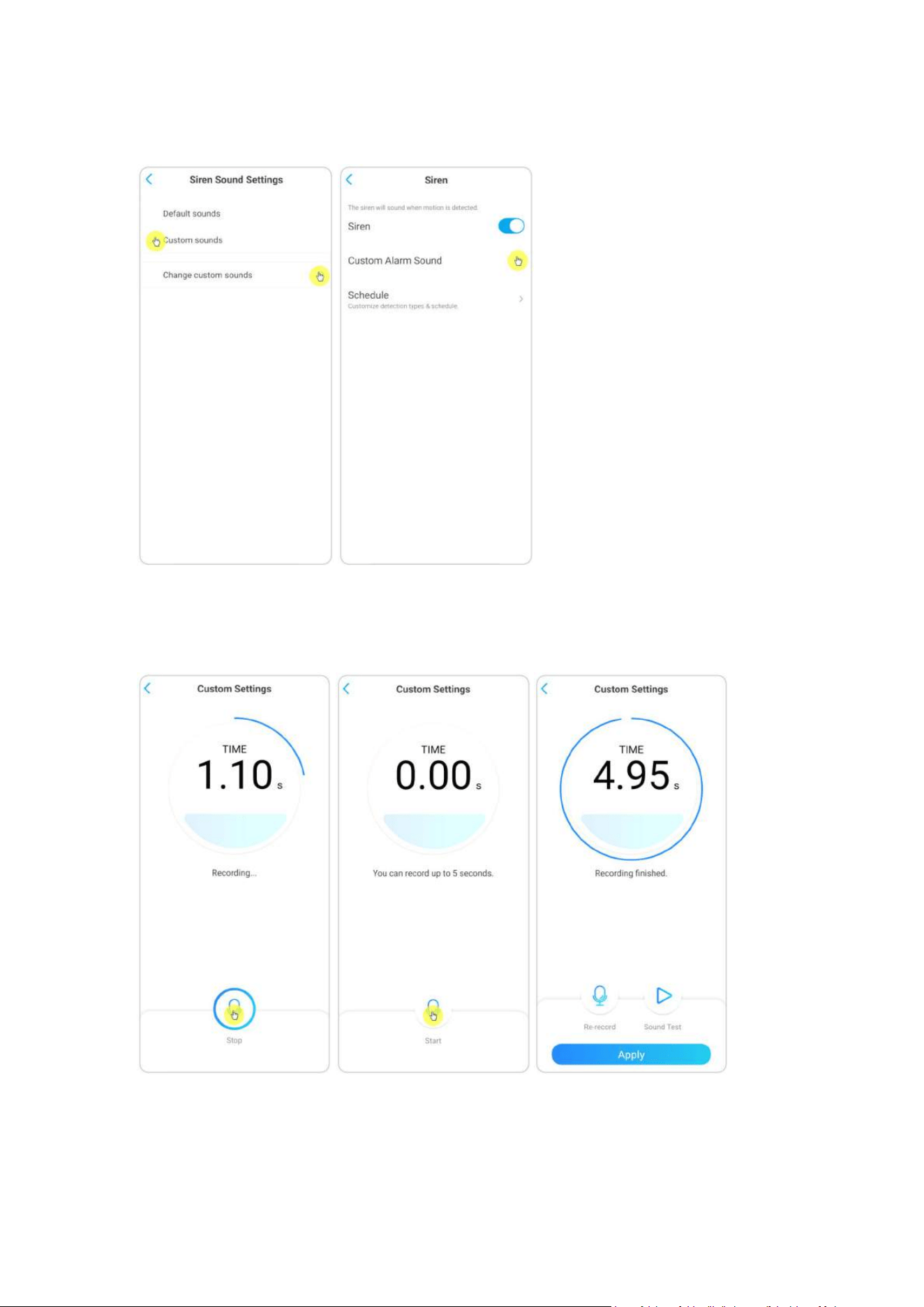

2. Tap on Custom Alarm Sound, if you want to use a custom sound. Tap Custom
sounds, then tap Change custom sounds to record an up-to-5-second sound.
3. Tap Start to start recording or tap Stop to stop recording. Tap on Sound Test to
test the recorded sound or tap Re-record to record again till you’re satisfied. Then
tap Apply to save the changes.
Reolink PoE Camera
User Manual
39

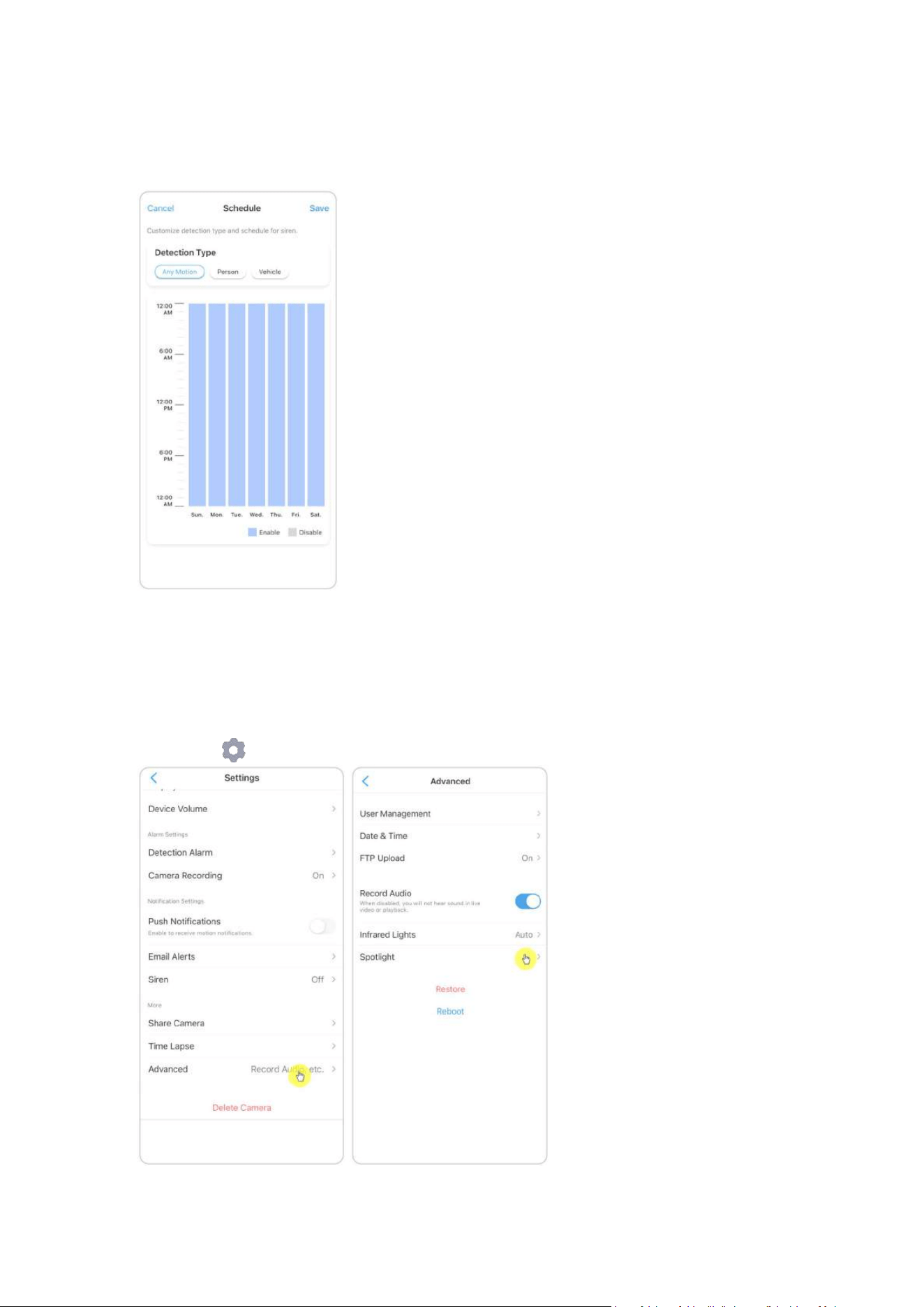

4. Tap Schedule to set up a schedule when you want the siren to work, then tap
Save. For PoE cameras supporting the smart person and vehicle detection, you
can also choose the Detection Type: Person, Vehicle or Any Motion.
Alarm Spotlight
Camera model RLC-811A and RLC-823A have built-in spotlights, which can
automatically turn on when a motion is detected.
1. Tap on . Then tap Advanced, then tap Spotlight.
Reolink PoE Camera
User Manual
40

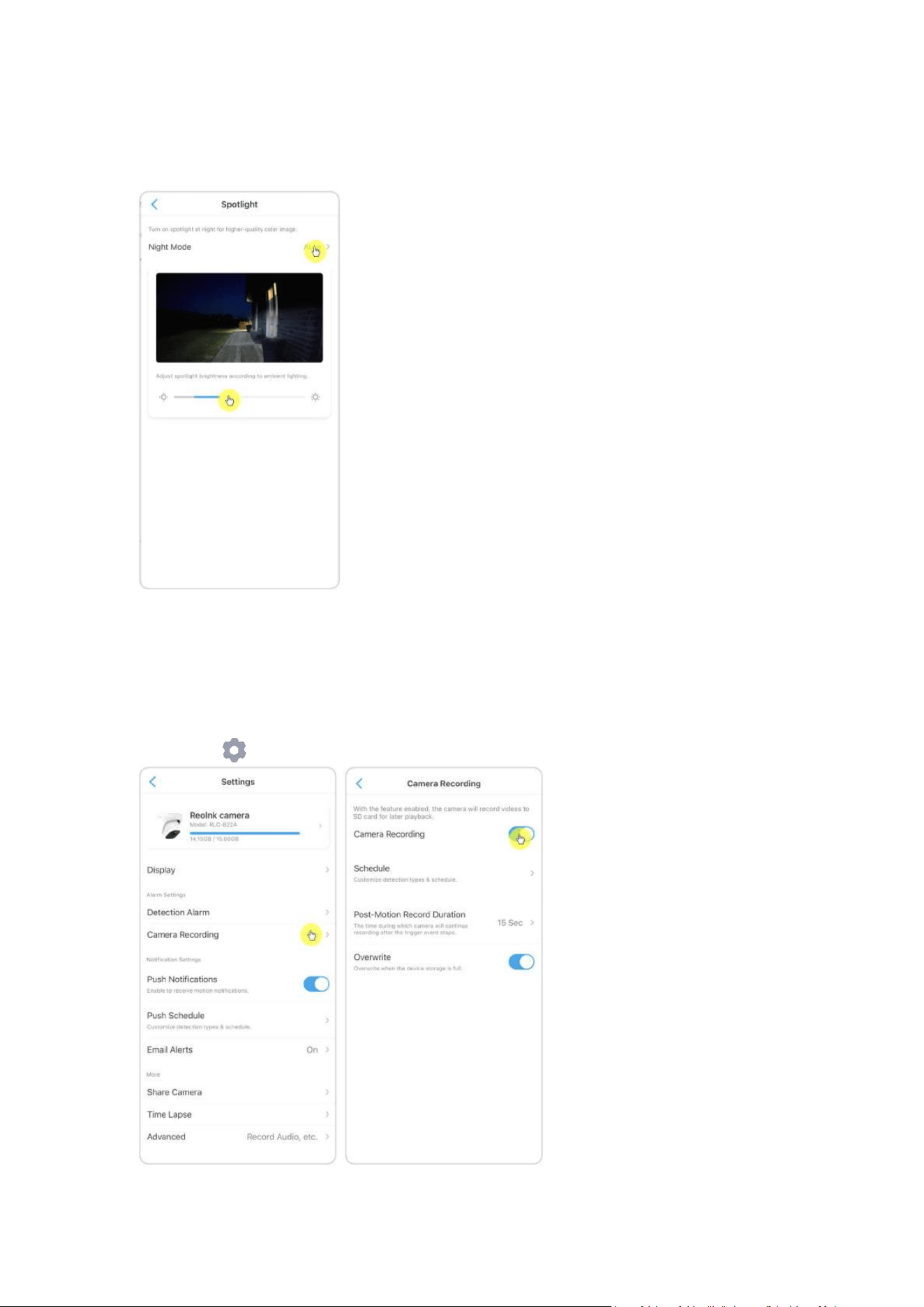

2. Tap Night Mode to set it as Auto, in this way, when a motion is detected during
night time, it’ll automatically turn on the spotlights.
And you can drag the bar to adjust the spotlight brightness.

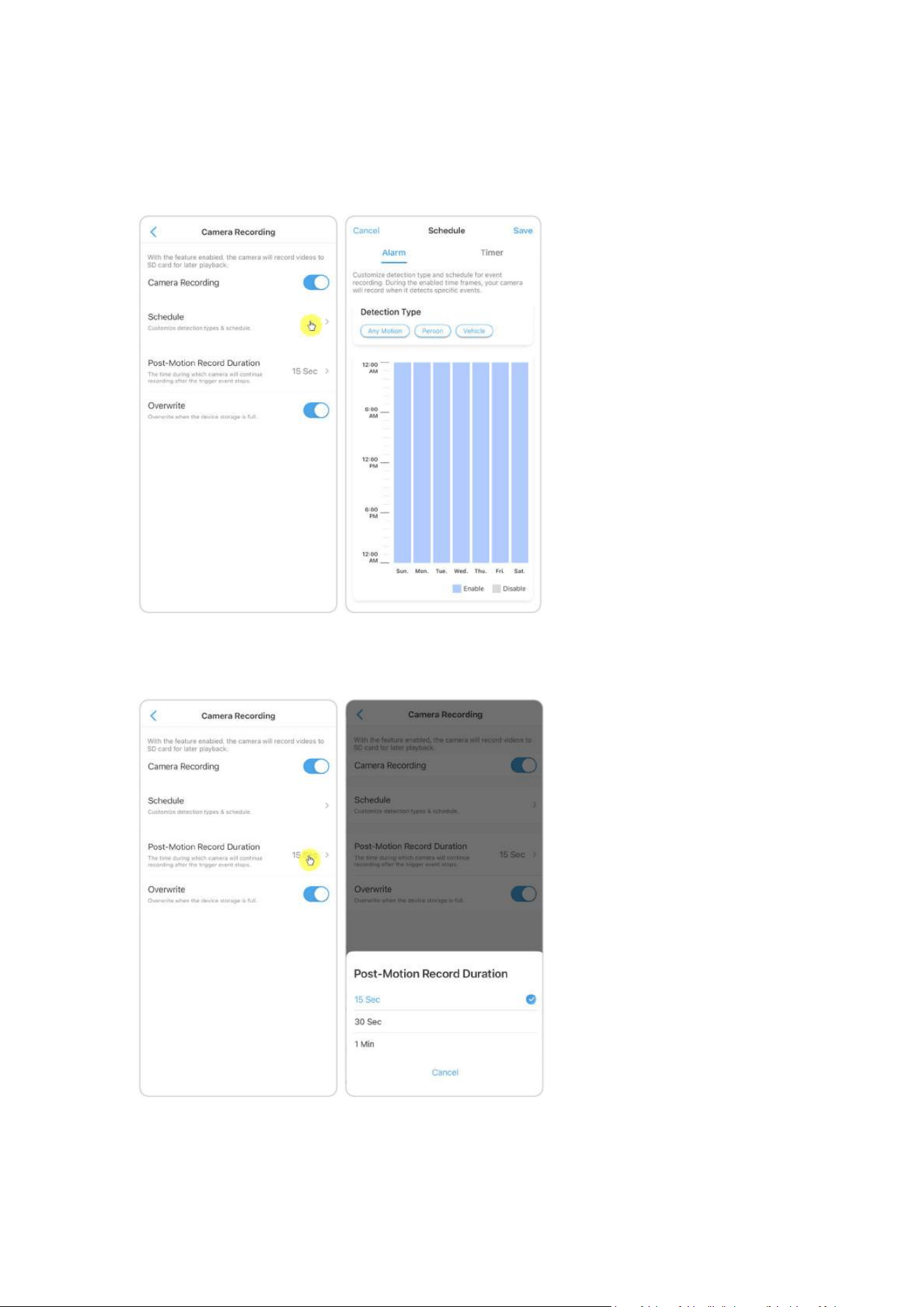

Set up Motion Recording
When the camera detects a motion, it can record and save motion recordings to
SD card automatically. You need to install a SD card to the camera.
1. Tap on . Then tap on Camera Recording, tap again to enable it.
Reolink PoE Camera
User Manual
41

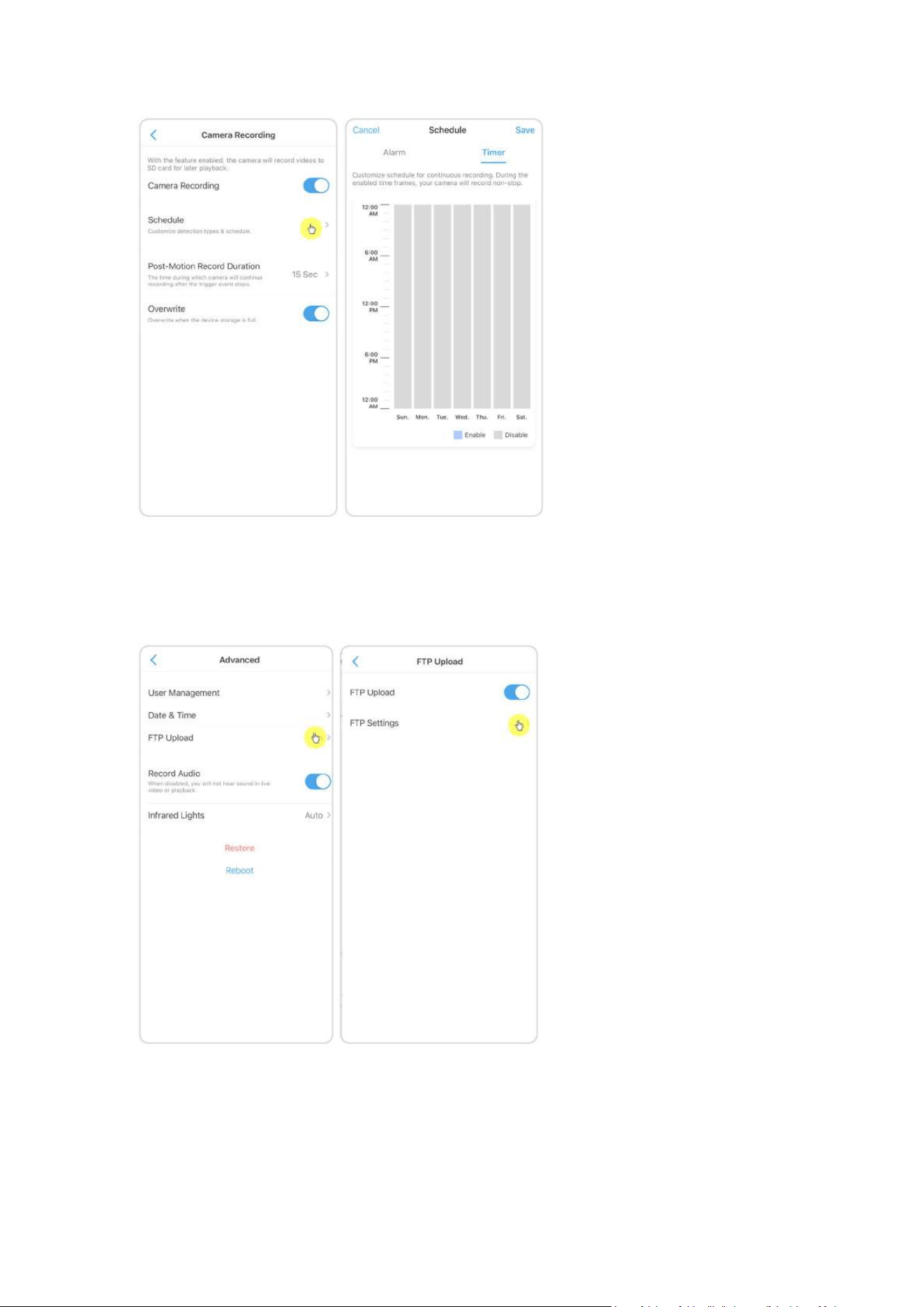

2. Tap Schedule to set up a schedule when you want the camera to save motion
recordings, then tap Save. For the PoE cameras which support the smart person
and vehicle detection, you can also choose the Detection Type: Person, Vehicle or
Any Motion.
3. Tap Post-Motion Record Duration to set up the motion recording length, you
can choose 15 sec, 30 sec or 1 min.
Reolink PoE Camera
User Manual
42

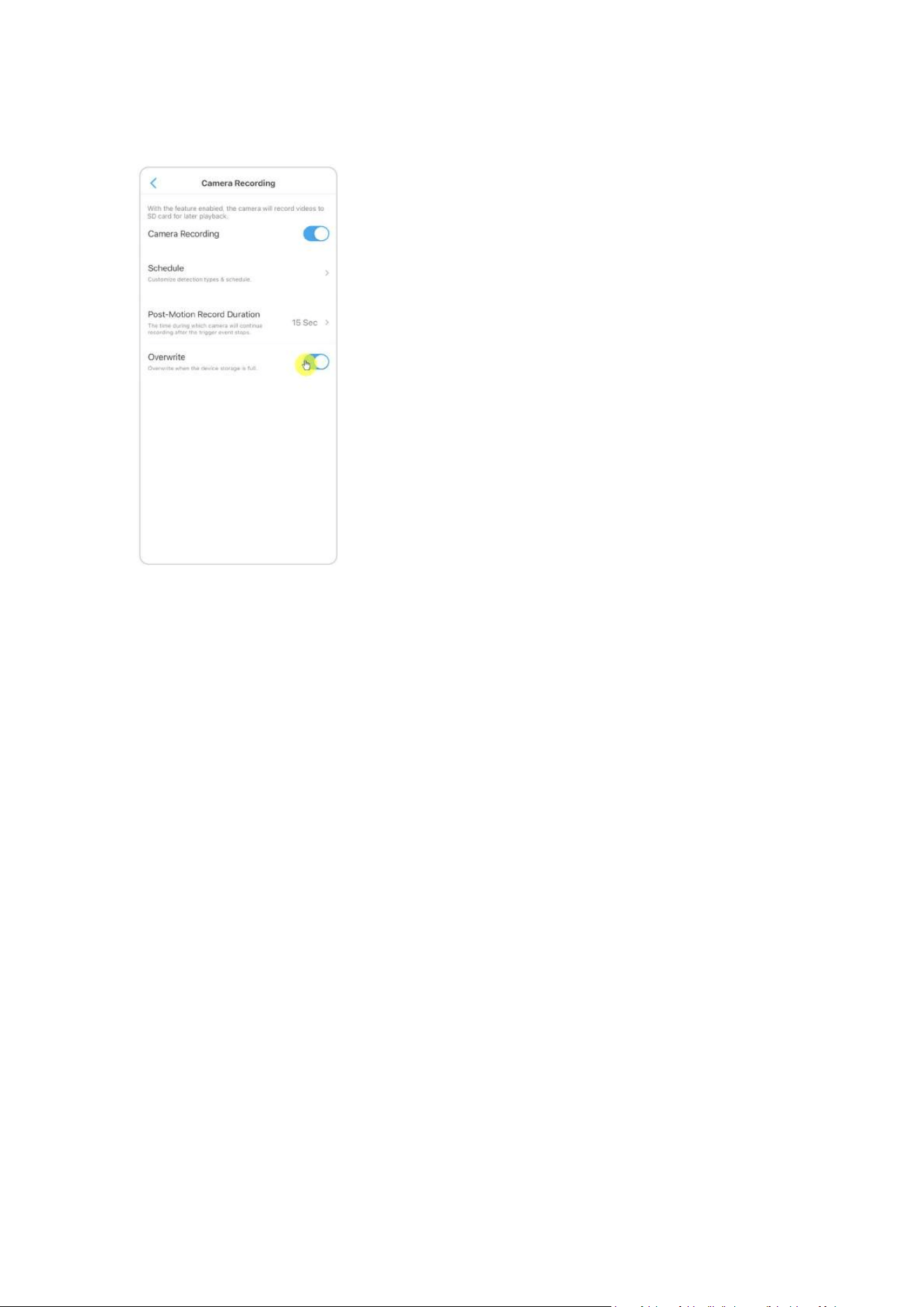

4. Tap Overwrite to overwrite the recordings when the SD card is full, and the
overwrite function is enabled by default.
5. Recording and Playback
Set up Recording
Reolink PoE cameras support both motion recordings and continuous recordings.
And recordings can be saved into micro SD cards and uploaded to FTP server.
For how to set up the motion recording, please refer to chapter 4 “Set up Motion
Recording”.
Set up Continuous Recording
And you can also set continuous recording to the SD card by choosing Timer.
Reolink PoE Camera
User Manual
43
FTP Settings
Step 1. Go to Advanced > FTP Upload page, enable FTP Upload option and then
click FTP Settings to enter this page.
Reolink PoE Camera
User Manual
44

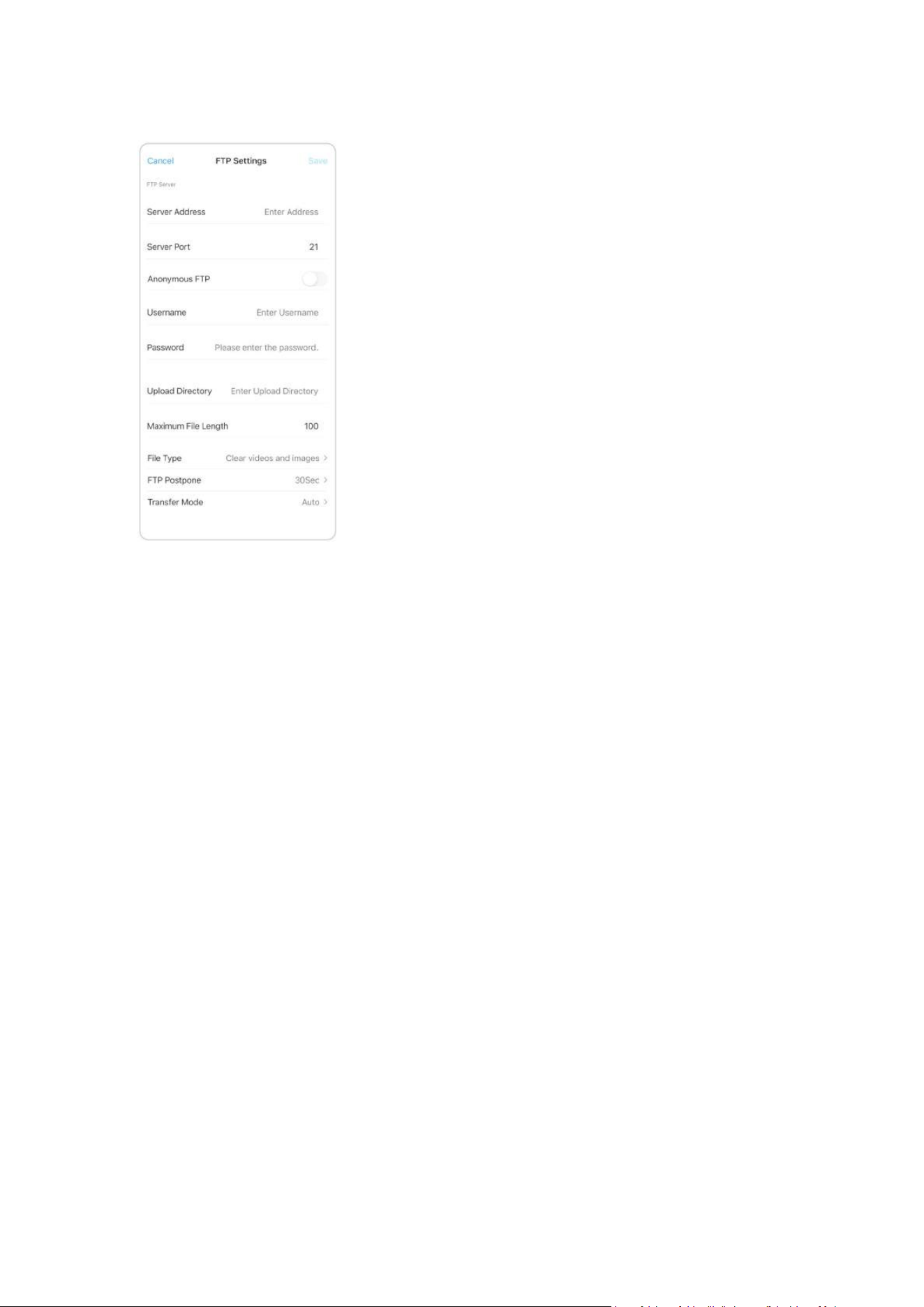

Step 2. Complete the information required and click Save to save all the settings.
Server Address: Type in the address of your FTP server and FTP Port. The default
FTP Port for Reolink products is 21.
User Name and Password: Enter the User Name and Password of your FTP server.
If there is no username and password required, please enable Anonymous FTP.
Upload Directory: Set an upload directory for device video recording. You may also
leave it blank.
Maximum File Length: You can enter the file length here.
File Type: Choose to upload both video and picture or picture only.
FTP Postpone: Set the record time limit after a motion is detected. This option is
only available when File Type is Video and FTP Schedule is Motion.
Transfer Mode: This option consists of Auto, PORT, and PASV three modes. We
recommend you choose the Auto option.
Record with Audio

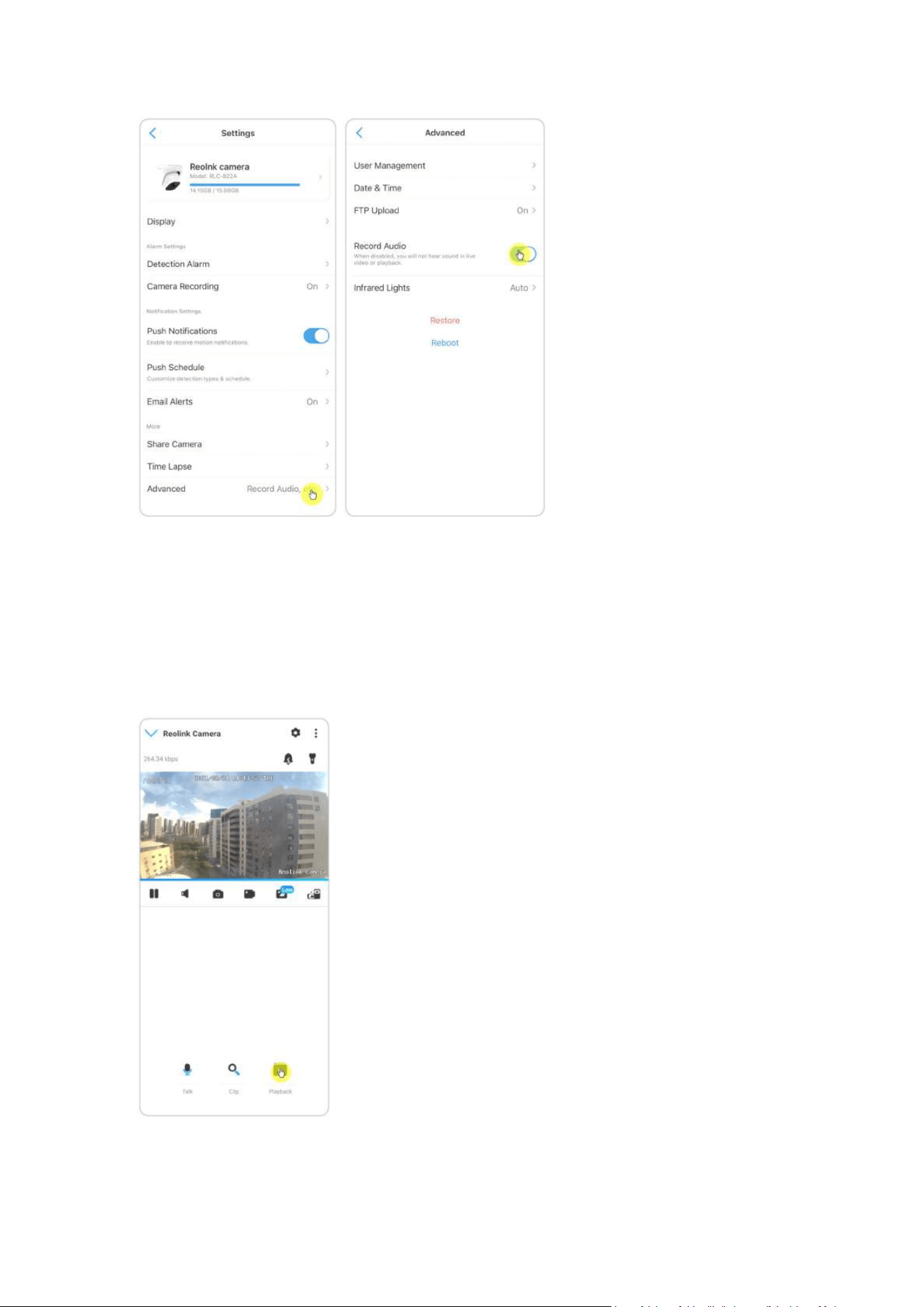

Tap on Advanced and then find Record Audio, tap to enable record audio option.
Then the camera will record audio in video recordings.
Reolink PoE Camera
User Manual
45
Replay and Download Recordings
Replay Recordings

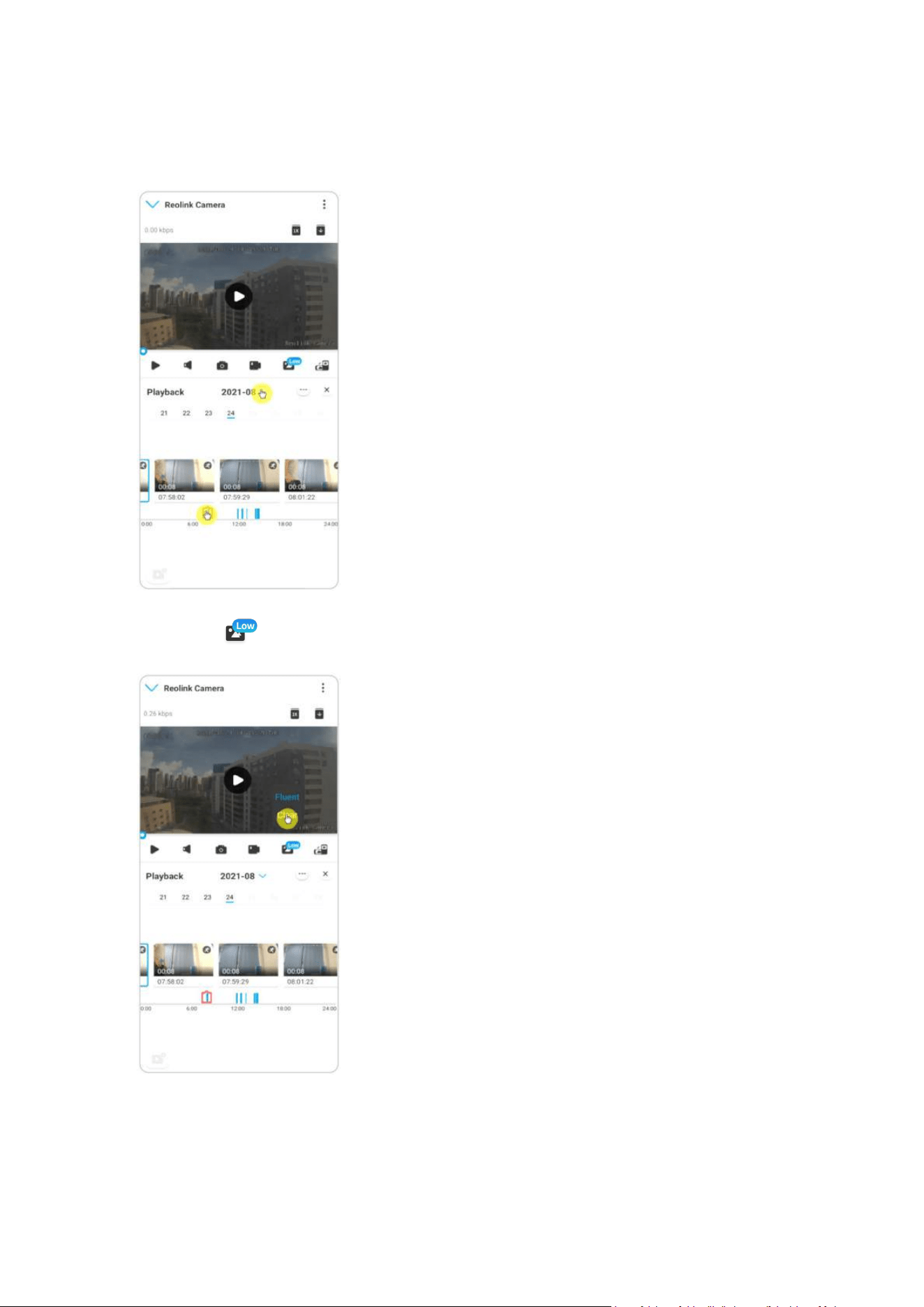

1. Open live view of the camera. Then tap on Playback on the bottom.
Reolink PoE Camera
User Manual
46
2. Select a date to search the recordings. Slide through the timeline to find the
recordings you want to replay, tap on the selected recording and it’ll automatically
starts to play.

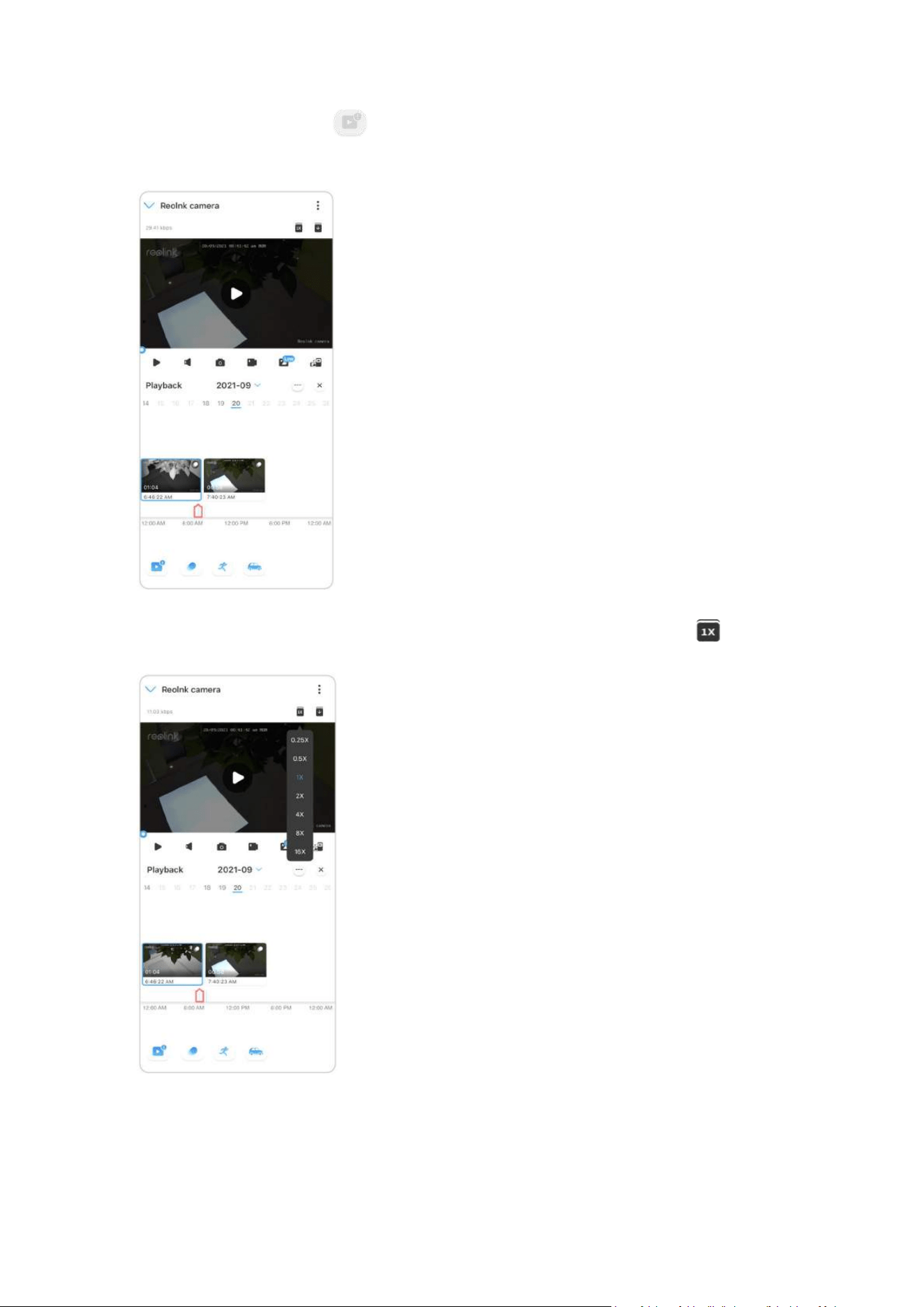

3. Tap on to choose Fluent or Clear to replay the recordings in clear mode or
fluent mode.
Reolink PoE Camera
User Manual
47
4. Tap show alarm icon on the bottom to show the alarm recordings only.
For PoE cameras supporting the smart person and vehicle detection, you can
select motion recording type of Person,Vehicle or Any Motion to replay.
5. To replay the recording in slow or fast speed, please tap on the icon and
then choose the playback speed at 0.25X, 0.5X, 1X, 2X, 4X, 8X or 16X.
Reolink PoE Camera
User Manual
48

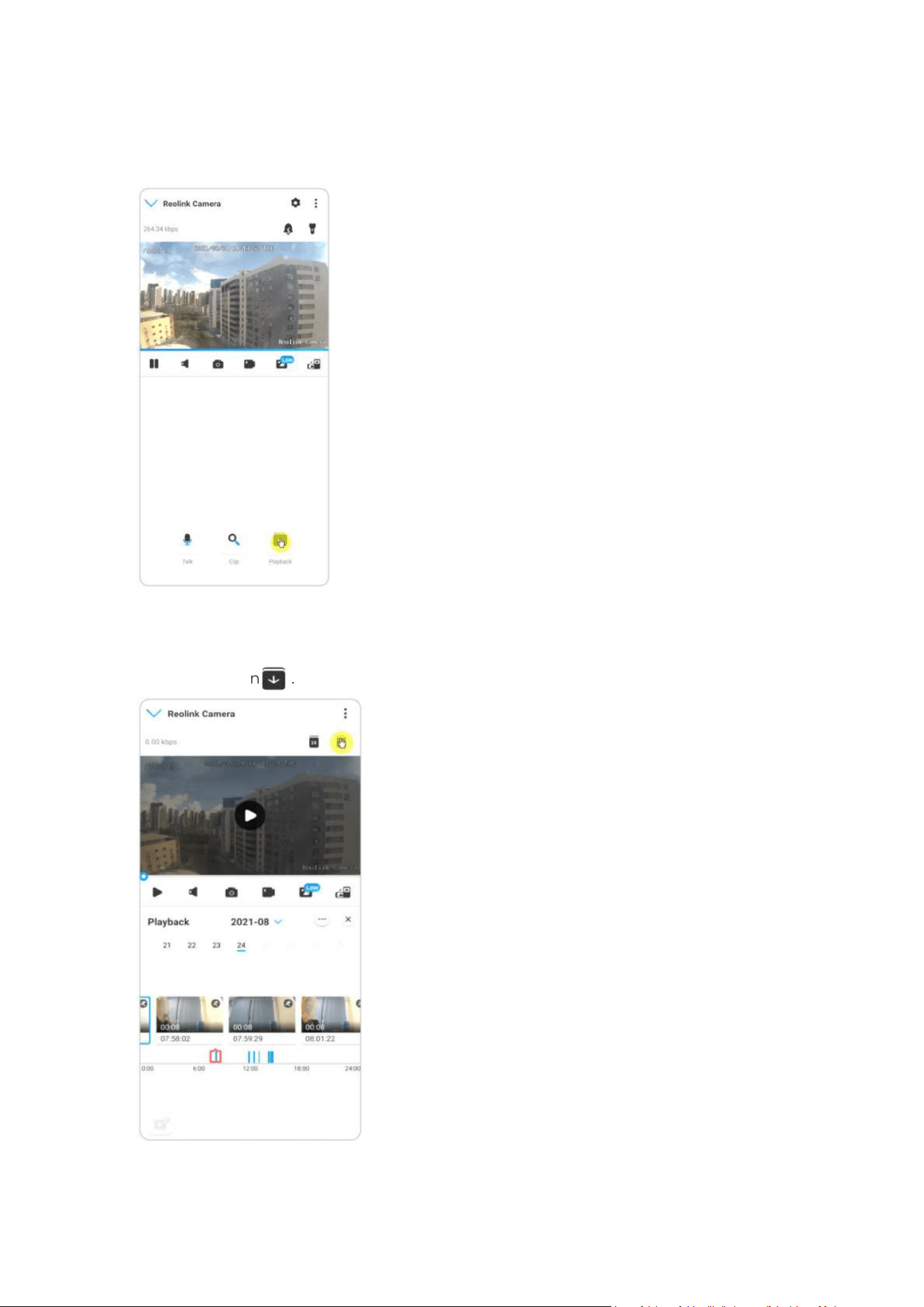

Download Recordings
1. Open live view of the camera. Tap on Playback on the bottom.
2. Select a date to search the recordings. Slide through the timeline to find the
recordings you want to replay, tap on the selected recording and then tap on the
Download icon .
Reolink PoE Camera
User Manual
49

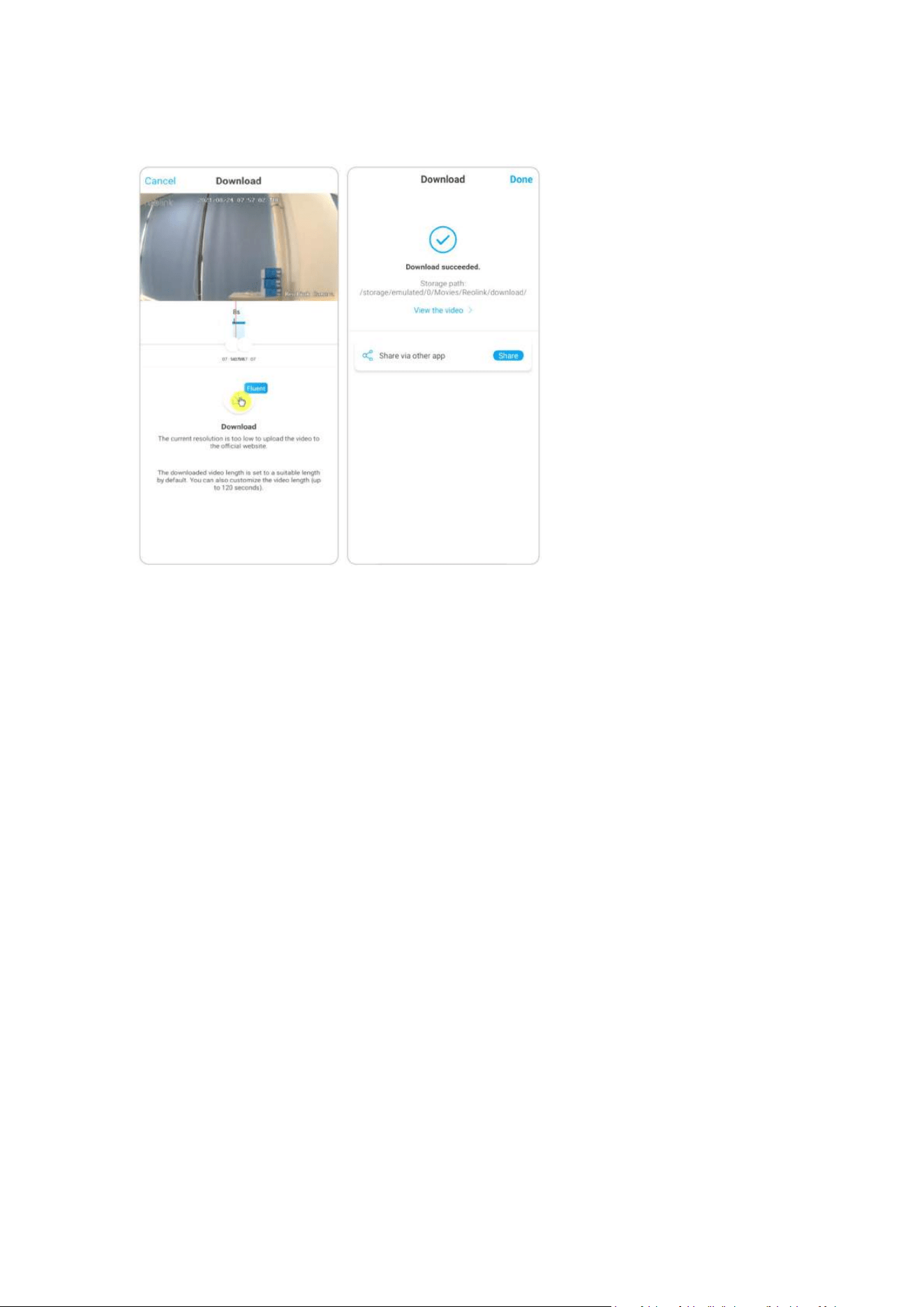

3. Drag on the timeline to cut the recordings up to 120 seconds, then tap on
Download to download the recording to your phone.
Delete Recordings
Reolink cameras don’t support deleting selected recordings. The camera will
automatically delete and overwrite the older recordings when the SD card is full.
Or you can manually format the SD card to delete all recordings.
Time Lapse
Time-lapse photography, also known as time-lapse video, is a shooting technique
that compresses time. It shoots a group of photos or videos, by connecting photo
series or extracting video frames, the process of several minutes, hours, or even
several years is compressed into a short period of time and played as a video. In a
time-lapse video, the process of slowly changing objects or scenes is compressed
into a short period of time, presenting a wonderful scene that is usually
undetectable by the naked eyes.
The process of shooting time-lapse photography with a camera is similar to
making a stop motion animation (Stop Motion), connecting a single still picture in
series to get a dynamic video. It is a means of recording at regular intervals, and
reproducing the slow changing process of the scene with obviously changing
images.
Reolink PoE Camera
User Manual
50

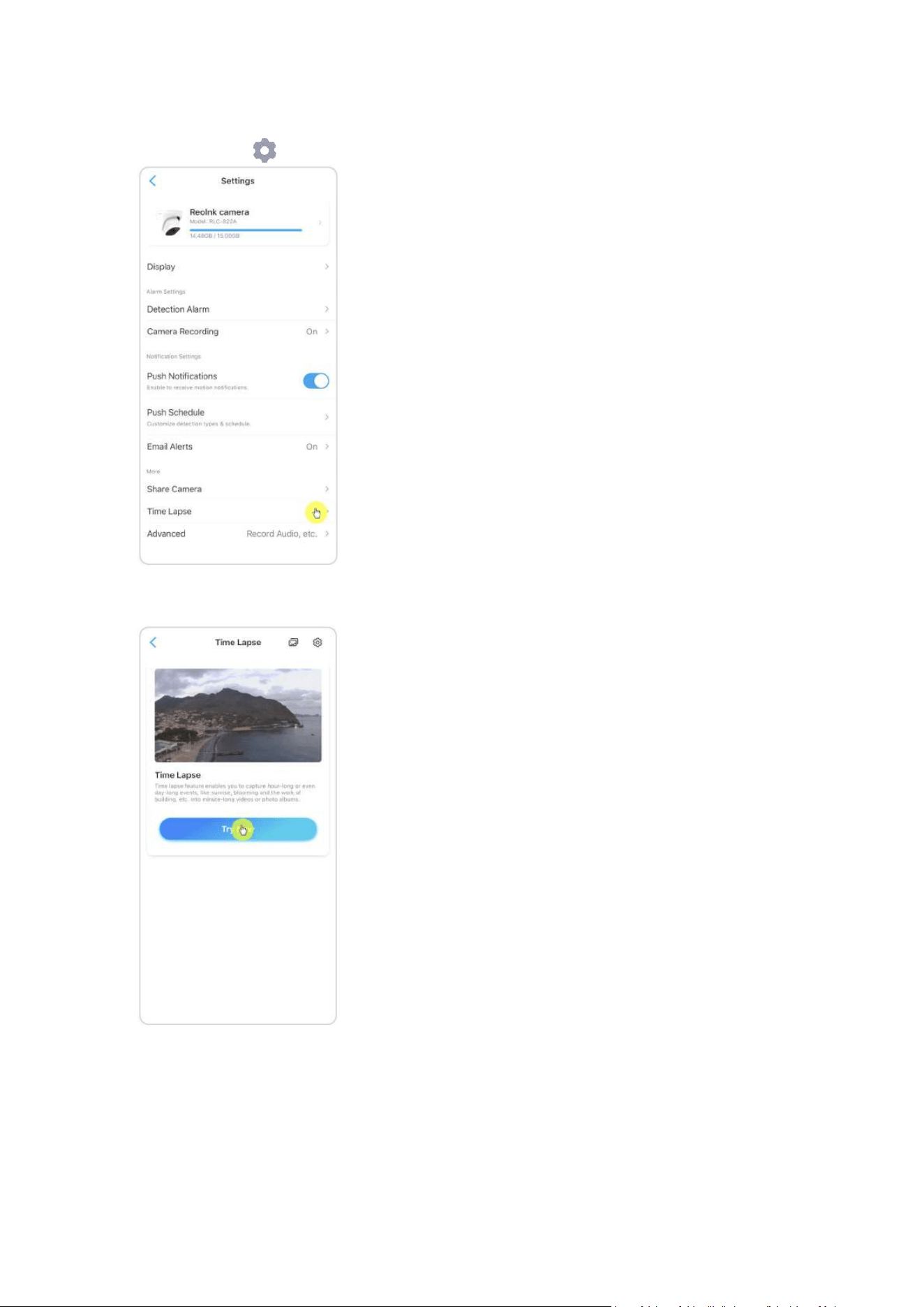

Set up Time Lapse
1. Tap on the . Then tap on Time Lapse.
2. Tap Try Now or Create New Time Lapse Capture.
Reolink PoE Camera
User Manual
51

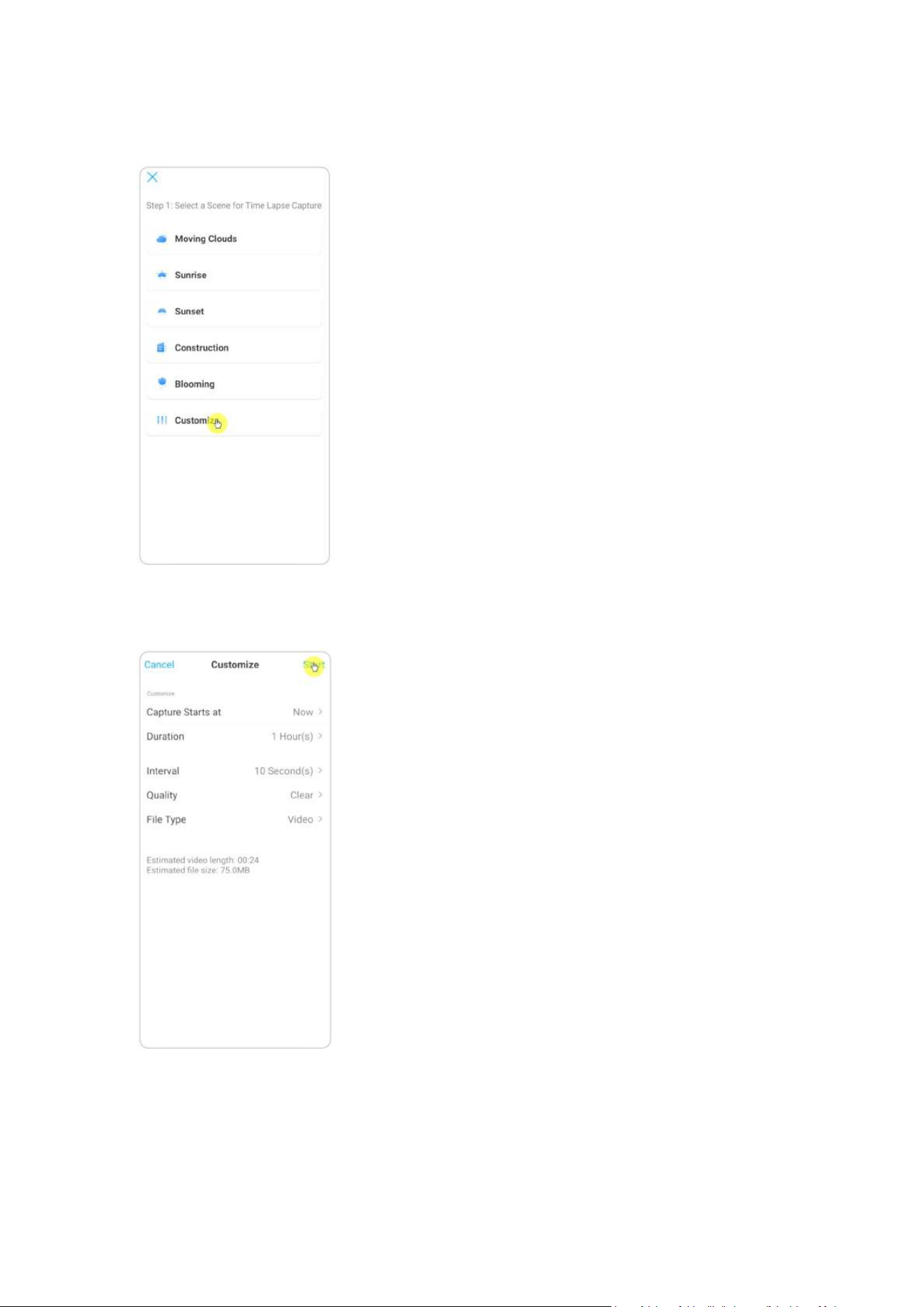

3. Select a scene from the list or tap on Customize to create a customized time
lapse capture.
4. Customize when the capture starts, Duration, Interval, Quality and File Type,
then tap on Start. The camera will automatically start to capture at the set time.
Reolink PoE Camera
User Manual
52

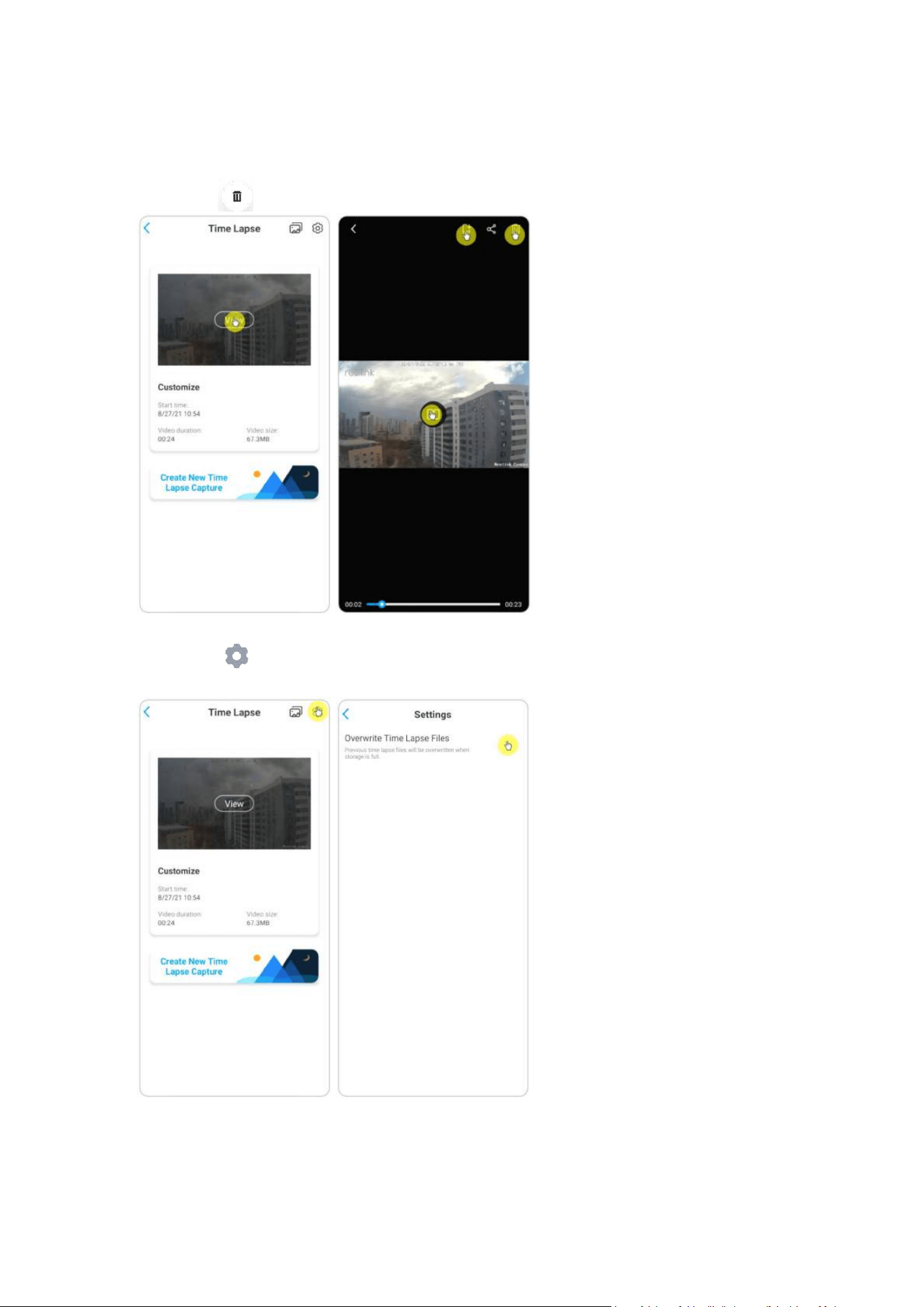

5. Later when the time lapse video is created, you can tap on View on the Time
Lapse page to play back or download it. It usually takes several seconds or minutes
for the time lapse video to cache before playback starts. You can also tap on the
trash icon to manually delete the time lapse video.
6. Tap on icon, here you can turn on or off the option Overwrite Time Lapse
Files.
Reolink PoE Camera
User Manual
53

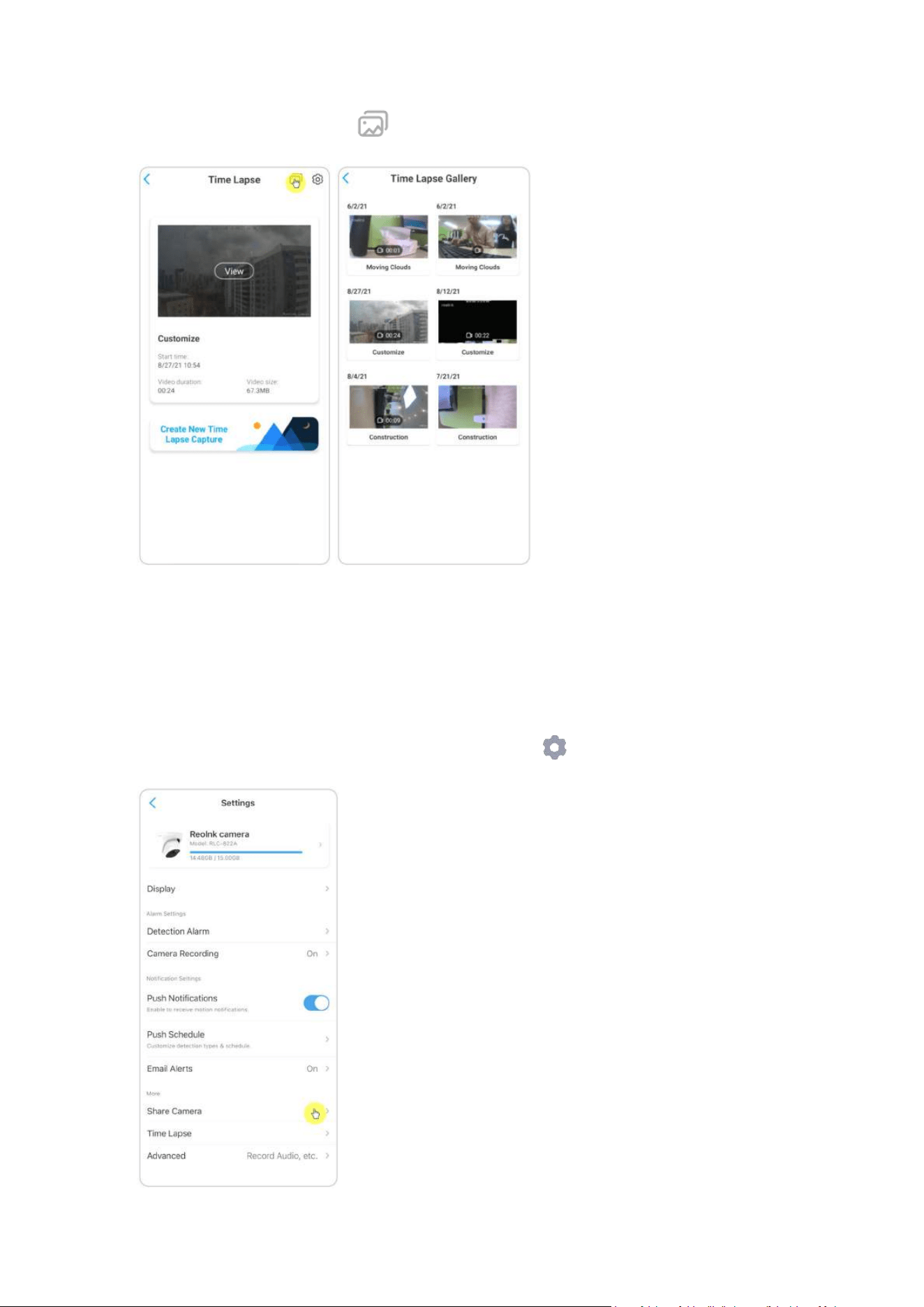

7. Tap on the pictures icon to view the Time Lapse Gallery. Here you can
view or manage all time lapse videos.
6. Use the Reolink App
Share Your Devices with Others
1. Launch Reolink App on your phone, then tap on to enter the Device
Settings page.
Reolink PoE Camera
User Manual
54
2.
Tap Share Camera to get the camera’s QR code.
3. Launch the Reolink App in another phone and tap button to scan the QR
code.
Reolink PoE Camera
User Manual
55
Or you can manually input the camera’s UID to add the device. The camera UID
consists of 16 digits that start with 9527000xxxxxxx.
After entering the UID, please tap > Next to enter the camera password to log in.
Reolink PoE Camera
User Manual
56
Scene Modes
The Scene Modes setting is designed for different usage scenarios. You could
control all your cameras under different modes as you need. For instance, you
could disable all cameras alarm under home mode when you're home, but enable
all the alarms under outside mode when you’re away.

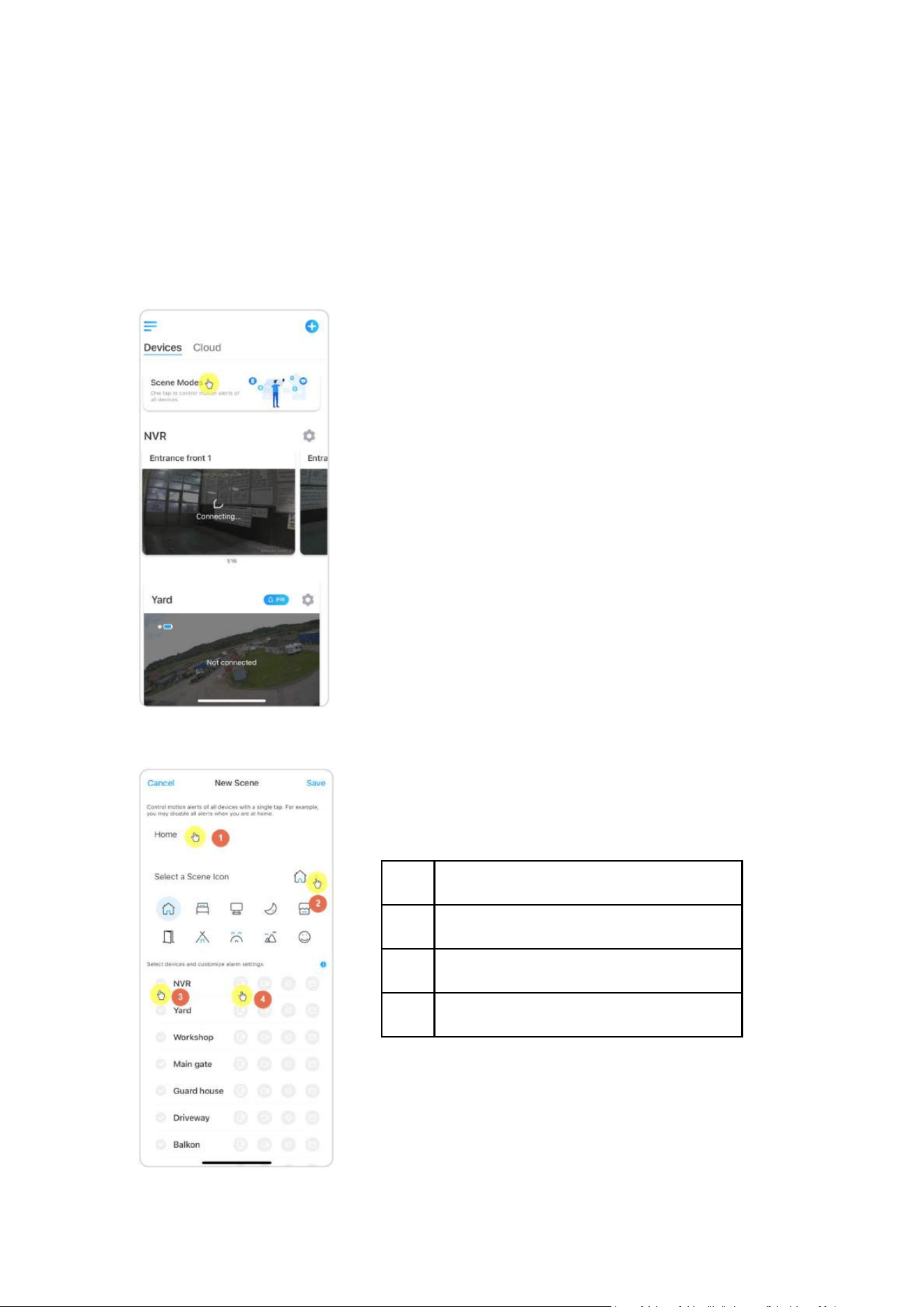

1. Scroll down the Devices list to find the Scene Modes configuration entrance.
2. Tap it to name the scene and select a scene.
1
Name the scene
2
Select a scene icon
3
Select devices
4
Customize the alarm settings
Reolink PoE Camera
User Manual
57
3. Select devices for this scene and customize the alarm settings.
4. If you want to receive push, email, audio alarm under this scene mode that you
can enable the alarm settings with push, email, audio, alarm, the blue icon means
enabled, gray means disabled.
5. Tap Save in upper right corner to save the settings.
Note: If the selected cameras are successfully activated, you’ll see the prompt “xxx
mode setup succeeded” as the picture shown below.

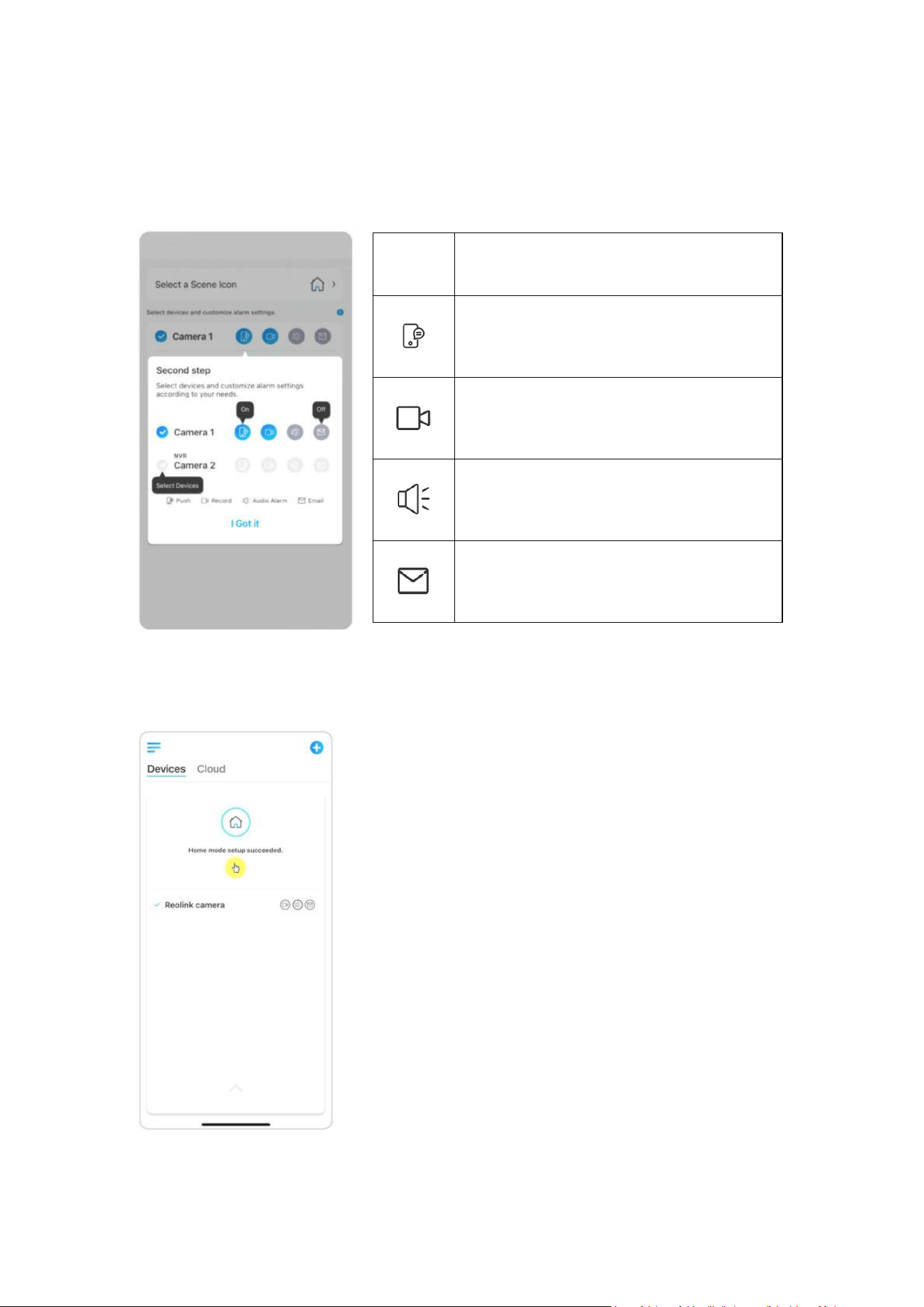

Icon
Meanings
push notifications, blue means enabled,
grey means disabled
recording, blue means enabled, grey
means disabled
audio alarm, if the motion triggered the
camera, it will alarm with siren, blue
means enabled, grey means disabled
email notifications, blue means
enabled, grey means disabled
Note: If you want to make some changes to a
certain scene, long-press the scene button to
edit or delete the scene, the camera you
selected will stay in this mode until you change
to another mode.
Reolink PoE Camera
User Manual
58
Add or Delete a Camera
Add the camera in LAN
1. If you want to add the camera in LAN, we recommend that you enable the Add
Devices Automatically option. Once your smart phone and camera are connected
to the same network, the Reolink App can find the Reolink device automatically in
LAN.
2. Tap and go to Settings > Add Devices Automatically.
Or you can go to the home page and tap > LAN and select the camera you
want to add.
Reolink PoE Camera
User Manual
59
3. Enter the camera password to log in.
Add Camera by Scanning the Camera QR Code
1. Tap and scan the QR code on the camera body.
Reolink PoE Camera
User Manual
60
2. Enter the camera password to log in.
Add Camera by Entering the Camera UID
1. Select Input UID/IP, please note that you are unable to add the camera with IP
address.
Note:
The camera UID consists of 16 digits that start with 9527000xxxxxxx.
Reolink PoE Camera
User Manual
61
2. Enter the camera UID, tap Next to log in with the camera password.
Delete a Camera from Reolink App
Tap then scroll down the page to delete the device.
Reolink PoE Camera
User Manual
62

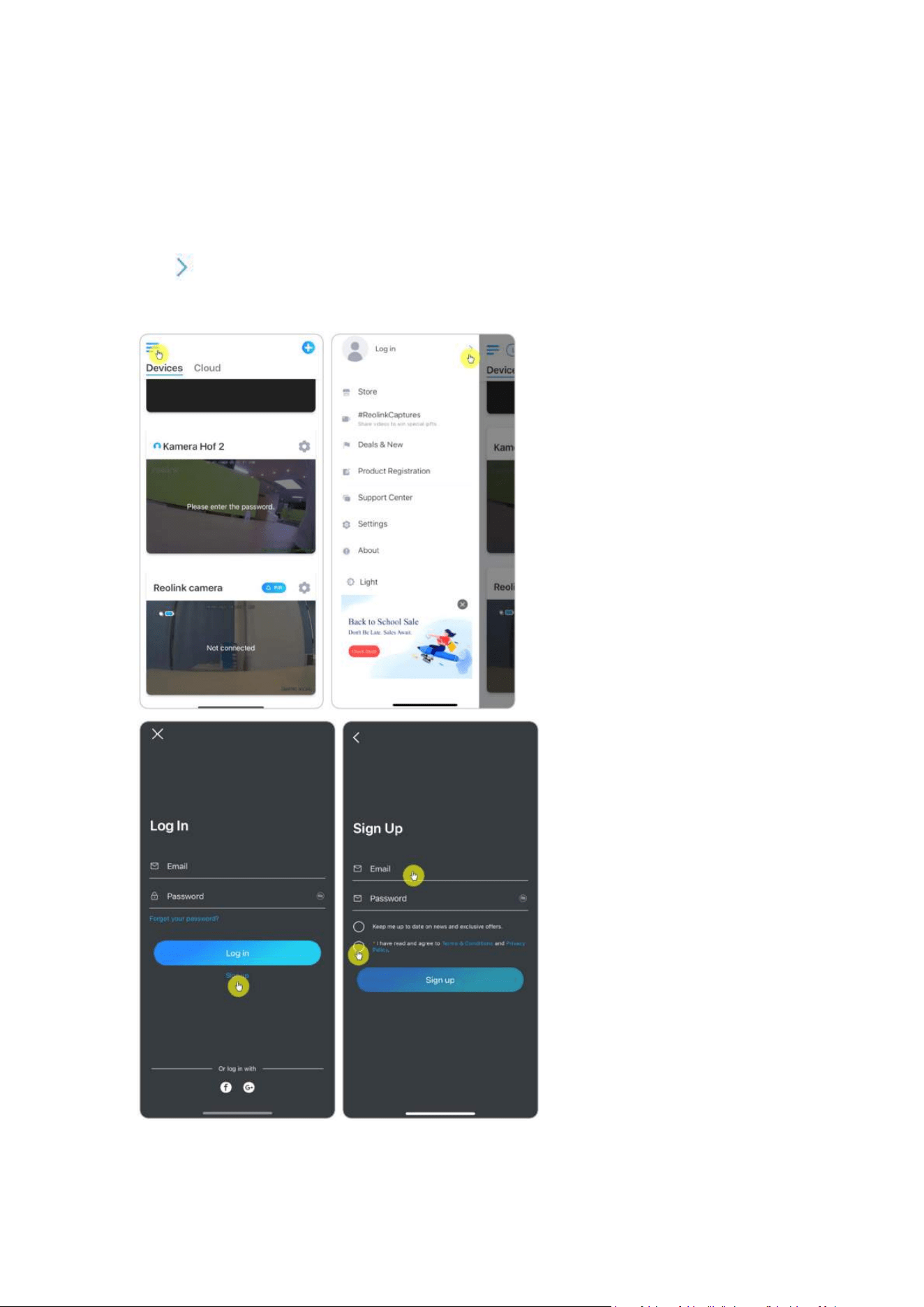

Register Account
A Reolink account can be used to place orders on the Reolink website, check order
history, and log in to cloud or smart home like Google Home or Alexa.
You can follow up the steps below to register a Reolink Account.
Tap and enter your email address and password to sign up.
Note:
Only check “I have read and agree to Terms & Conditions and Privacy Policy”.
After that you will receive a verify email. Once finished to verify the email, you can
log in your Reolink Account.
Reolink PoE Camera
User Manual
63
App Settings

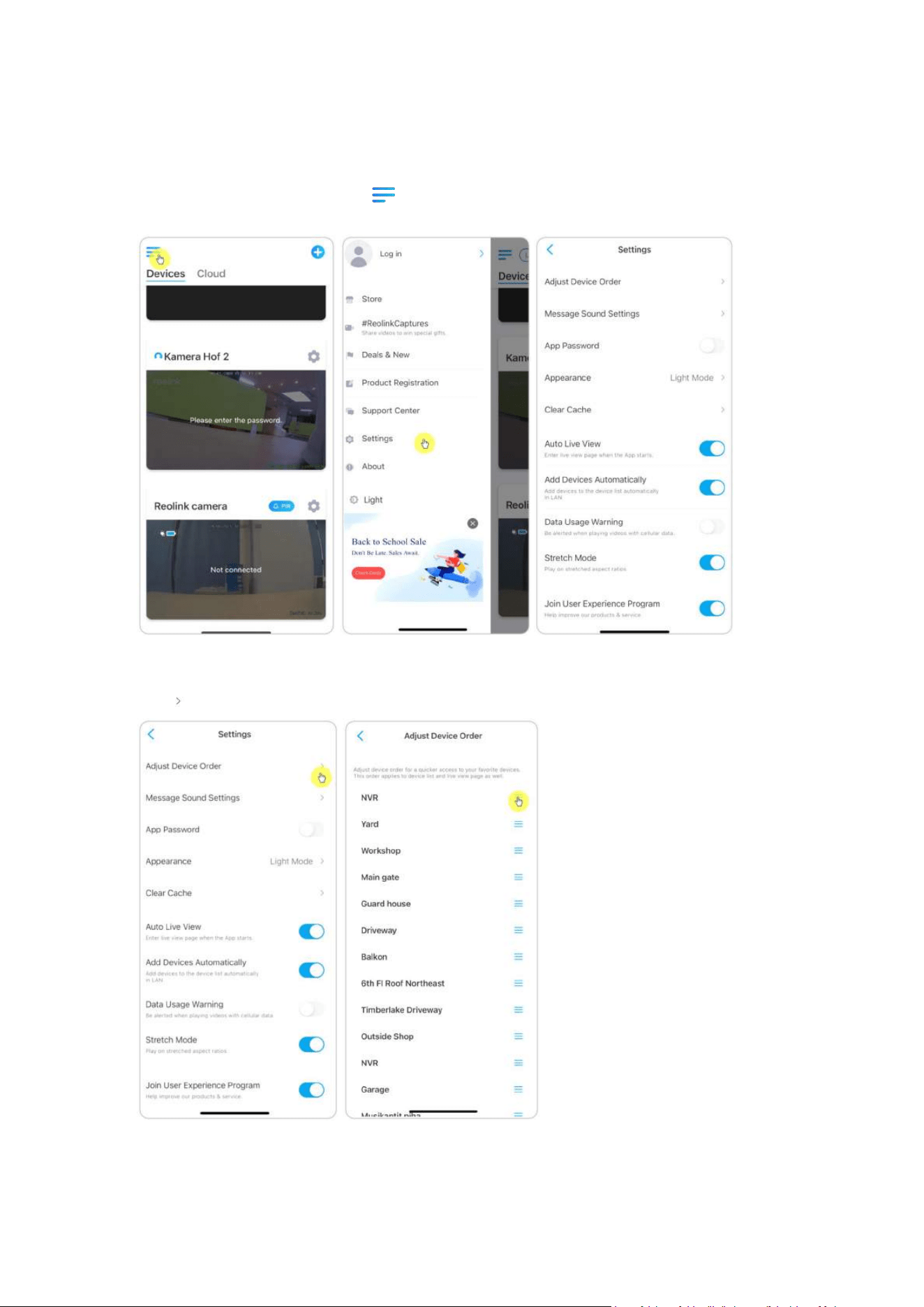

Launch the Reolink App. Tap and you can adjust the device order, change
sound settings, App password, clean cache, etc.
Adjust Device Order: Adjust order for a quicker access to the devices you want,
tap and drag the device to the channel as you want.
Reolink PoE Camera
User Manual
64

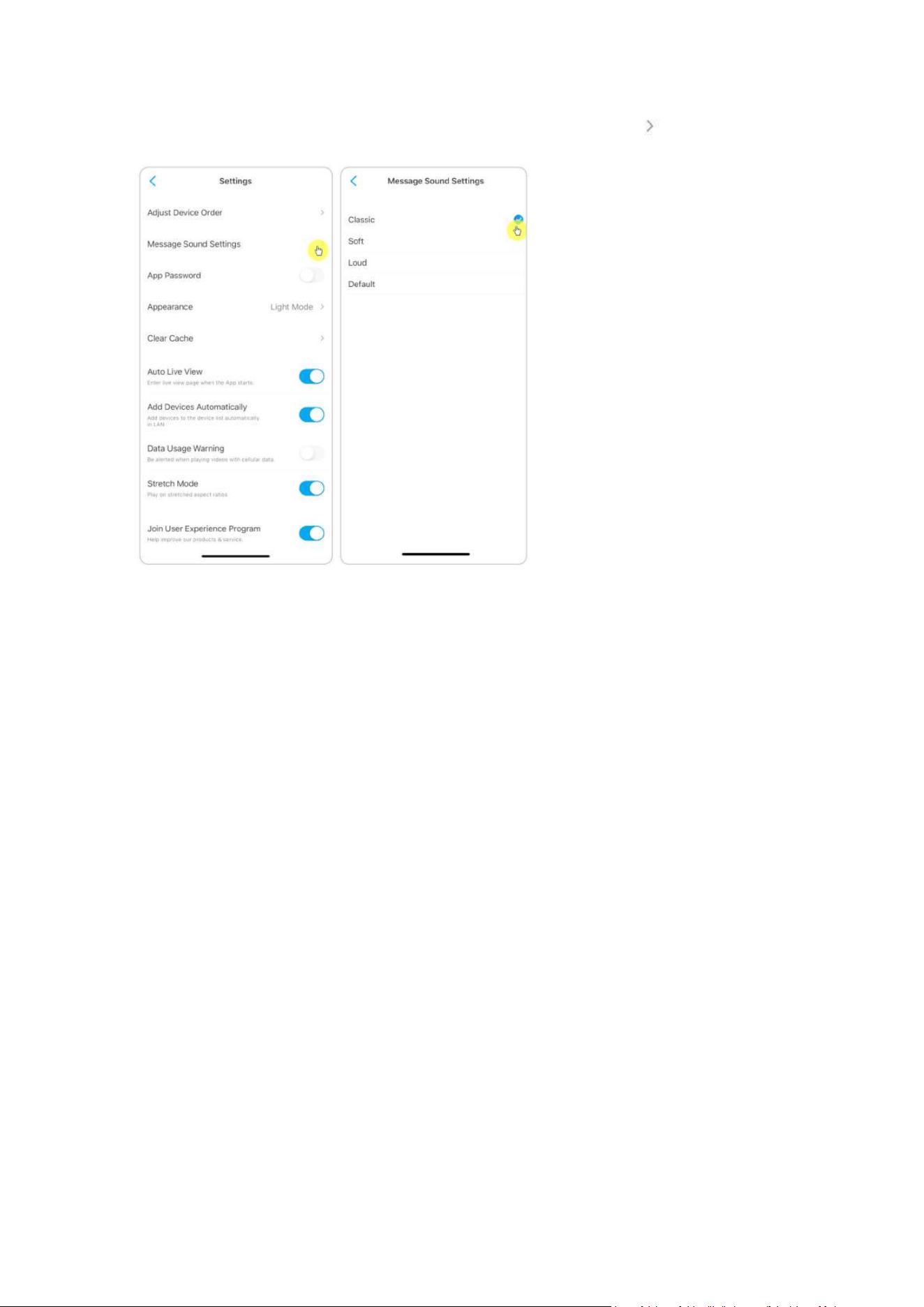

Message Sound Settings: Like the push notification sounds, tap and you can
choose the notification sound you like.
App Password: You can set up an App password to protect the App.
Appearance: There are three modes to choose: Light mode, dark mode, follow
system.
Clear Cache: Clean the Reolink App cache. Cache is the temporary data generated
when you use the App. Clearing cache will not affect the normal use of Reolink
App.
Auto Live View: When you launch the Reolink App, the App wil start the live
stream automatically.
Add Devices Automatically: It will scan and add the Reolink devices in LAN
automatically.
Data Usage Warning: You will get a warning like “play over cellular data” when
trying to see the live feed.
Stretch Mode: Play on stretched aspect ratios.
Hardware Decoding: You may disable or enable it, if you have problems while
playing back the videos.
Join User Experience Program: Help improve our product & service.
Reolink PoE Camera
User Manual
65
7. Camera Settings
SD Card Storage
Choose a Proper SD Card
Please choose a SD card with specifications below so it can be compatible with the
camera.
Item
Requirement
Capacity
Up to 128GB (Argus 2; Argus 2E; Argus 3; Argus Pro; Argus
Eco; Argus PT; Reolink Go PT with the latest firmware
version)
Read and
Write Speed
Class 10 or higher/≥26Mbps
Format
FAT32
Reolink PoE Camera
User Manual
66

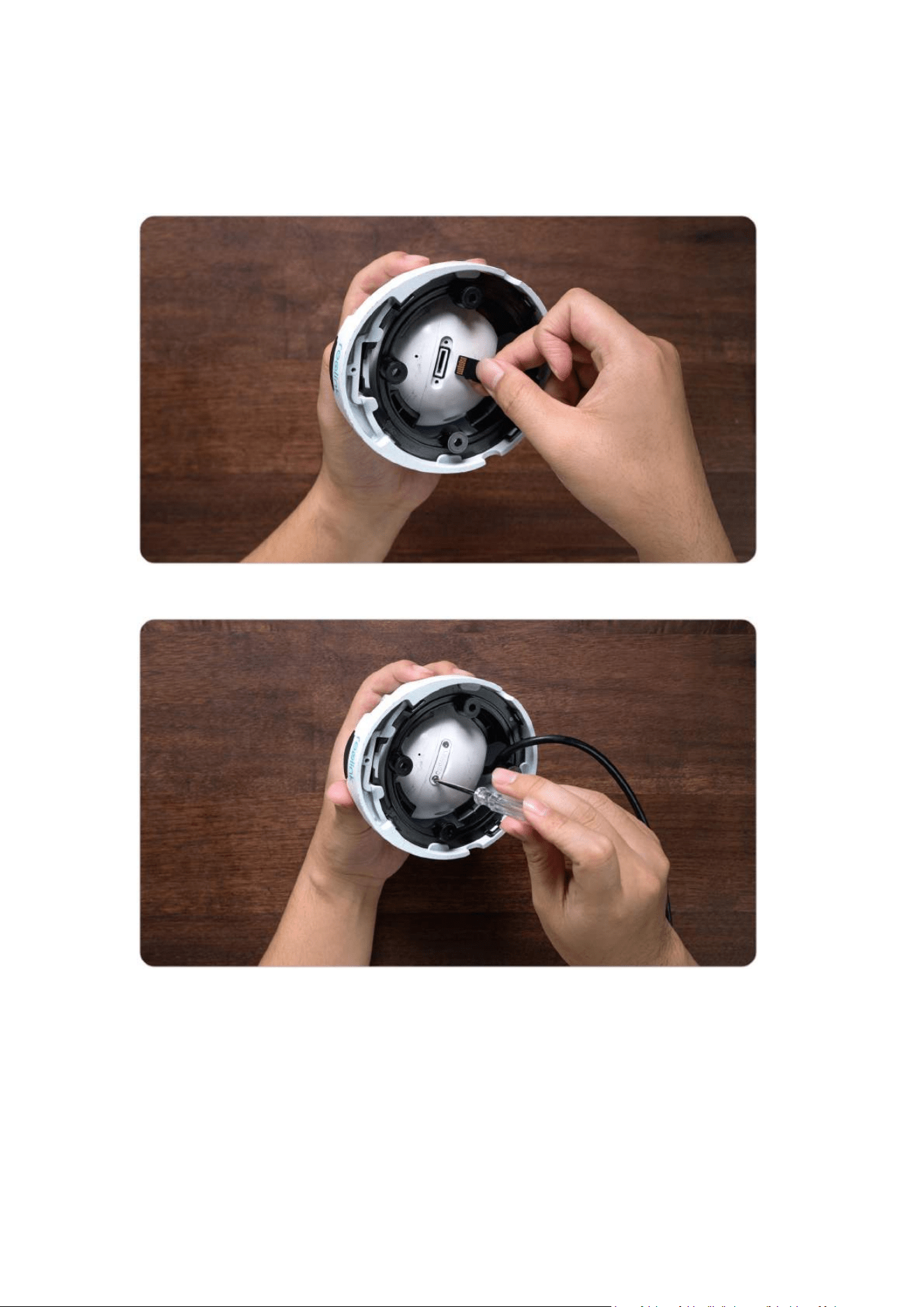

Install the Micro SD Card
Bullet Cameras
Step 1. Find the micro SD card slot at the back of the camera and unscrew the
screws to open it.
Step 2. Insert the micro SD card just like the way in the picture below, please use
your fingernail (or use the provided reset needle) to push the micro SD card in until
it is locked, and you will hear a click sound and the micro SD card will not pop out if
it is inserted in properly.
Reolink PoE Camera
User Manual
67
Step 3. Screw the screws to close the cover tightly.
RLC-420/D400
Step 1. Find the micro SD card slot at the top of the camera and unscrew the
screws to open it.
Reolink PoE Camera
User Manual
68
Step 2. Insert the micro SD card just like the way in the picture below, please use
your fingernail (or use the provided reset needle) to push the micro SD card in until
it is locked, and you will hear a click sound and the micro SD card will not pop out if
it is inserted in properly.
Step 3. Screw the screws to close the cover tightly.
Reolink PoE Camera
User Manual
69
RLC-423
Note:
Before installing/uninstalling the SD card, please power off the camera first, in case
it will damage the SD card.
Step 1. Find the micro SD card slot and unscrew the screws to open it.
Step 2. Insert the micro SD card just like the way in the picture below, please use
your fingernail (or use the provided reset needle) to push the micro SD card in until
it is locked, and you will hear a click sound and the micro SD card will not pop out if
it is inserted in properly.
Reolink PoE Camera
User Manual
70
Step 3. Screw the screws to close the cover tightly.
Remove the Micro SD Card
Please refer to the steps below to remove the SD card from your camera.
Note:
Before uninstalling the SD card, please power off the camera first, in case it will
damage the SD card.
Please find the SD card slot and open its cover like the picture below.
Check the Micro SD Card Status
1. Launch the Reolink App and tap , then tap the camera to enter Device Info
page.
Reolink PoE Camera
User Manual
71
2.

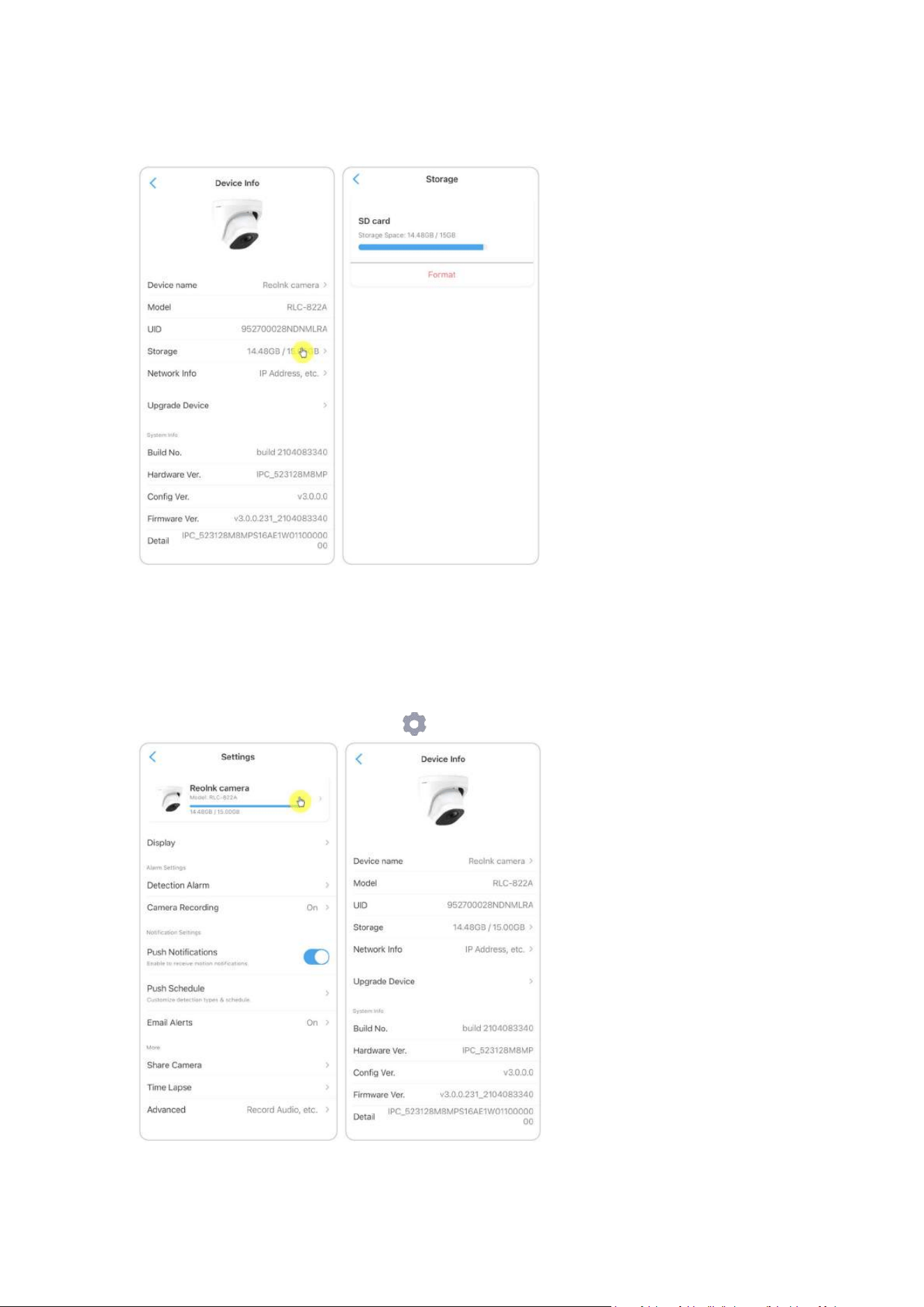

Tap Storage, and you can see the SD card used space/total storage space. Tap
Format to format the SD card.
Device Information
From device information page, you can check the basic information about your
camera include Model No., UID, and Firmware Version.
Launch the Reolink App then tap , then go to Device Info.
Reolink PoE Camera
User Manual
72
Device Password
To access and use a camera, a password is required. The default username is
admin and password is blank (no password). When setting up the camera, it’ll ask
for a password before you can access the camera.
Change Device Password

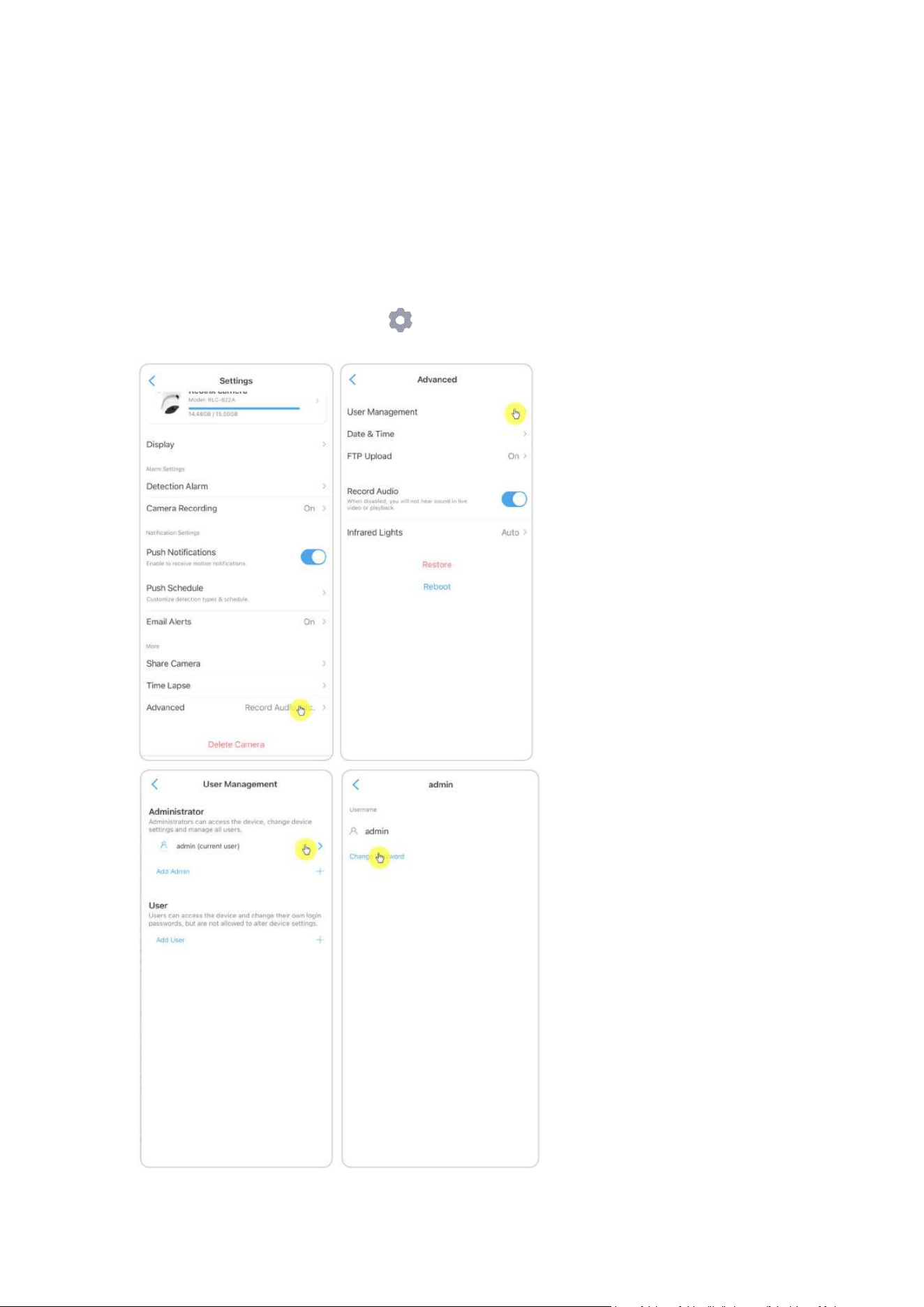

1. Launch Reolink App and tap > Advanced > User Management > Admin >
Change password.
Reolink PoE Camera
User Manual
73

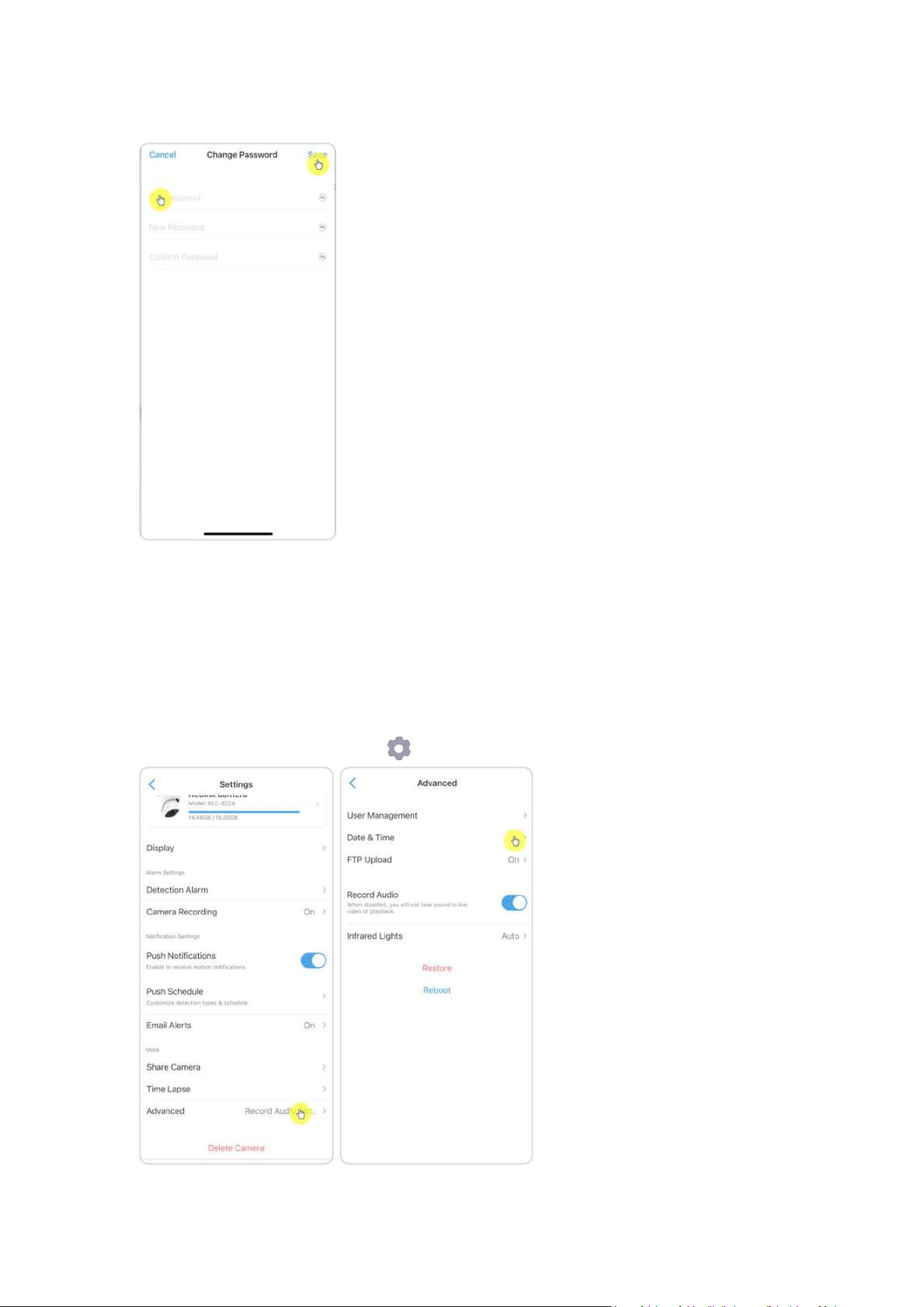

2.
Enter the old and new password, then tap on Save.
Notes:
1. The confirm password must be the same as the new password.
2. Tap Save to save the changes.
Date and Time
Sync Camera Time With Your Phone
1.
Launch Reolink App and tap > Advanced > Date & Time.
Reolink PoE Camera
User Manual
74

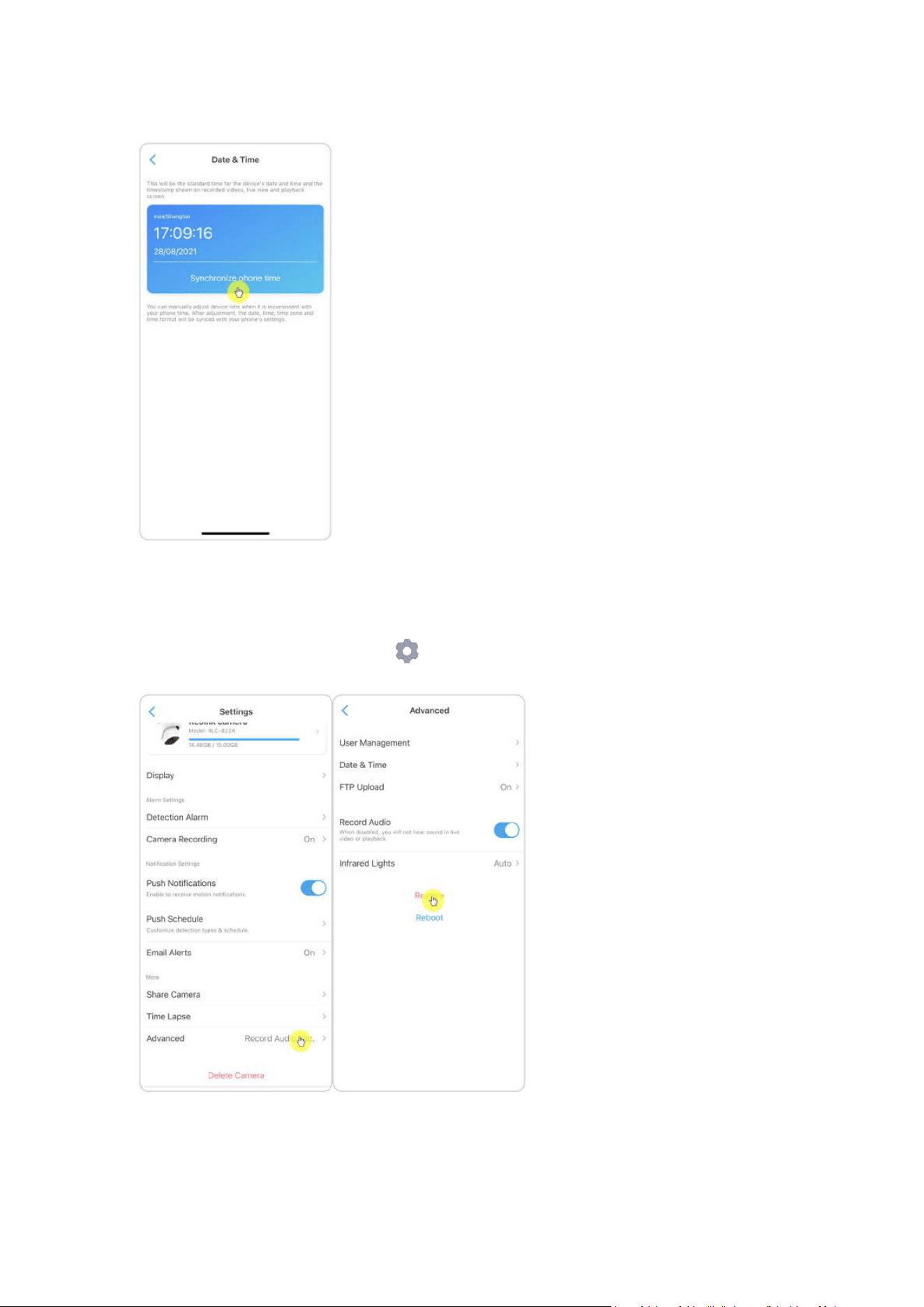

2. Then tap Synchronize phone time.
Reboot and Restore
Launch the Reolink App and tap > Advanced > Reboot or Restore. Here you
can choose to reboot the camera or restore the camera to default.
Note:
Restoring will remove all the camera settings including camera password, camera
name, PIR settings, etc.
Reolink PoE Camera
User Manual
75
Firmware Upgrade

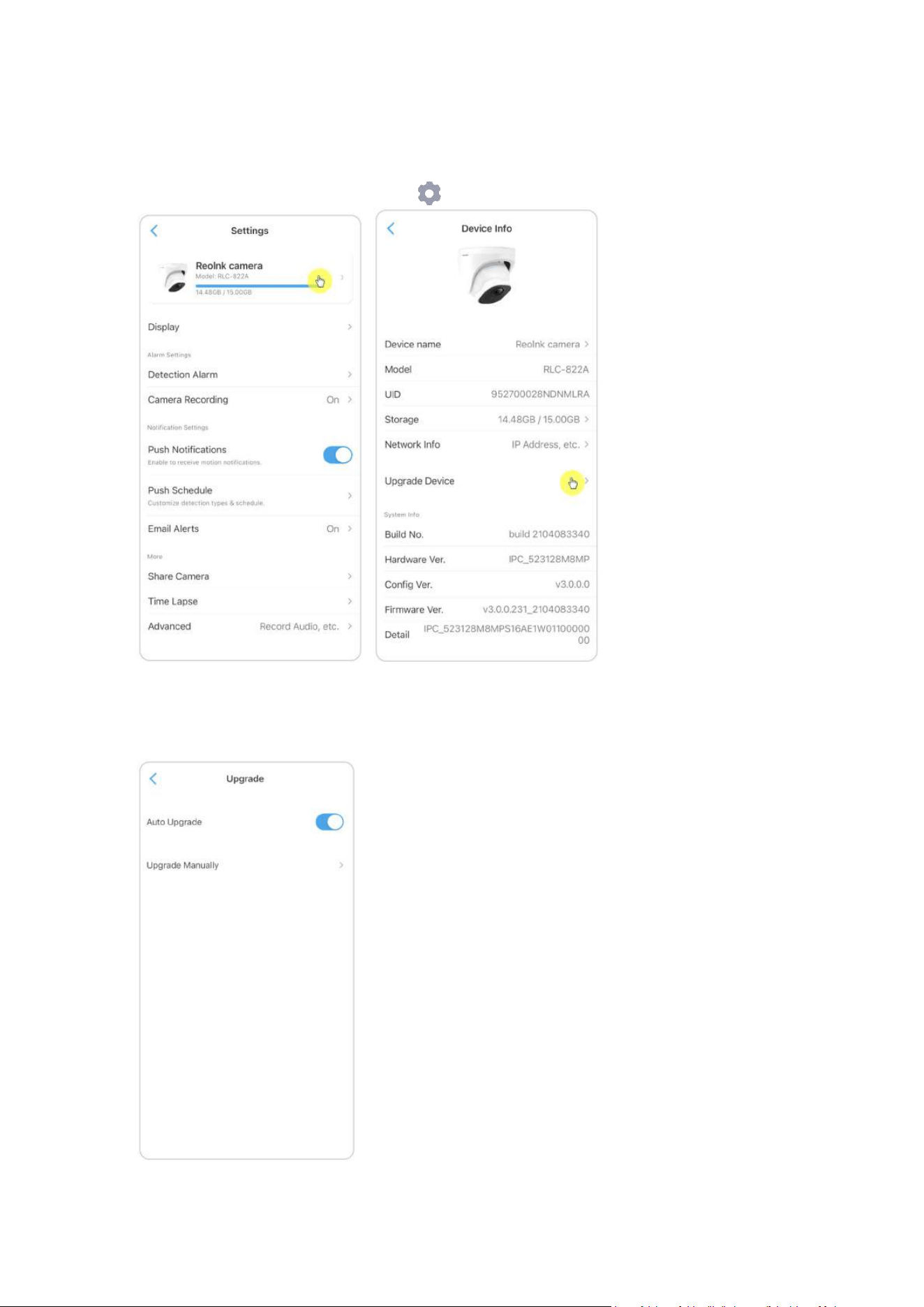

1. Launch the Reolink App and tap > Device Info > Upgrade Device.
2. If Auto Upgrade turns on, the camera will upgrade to the latest firmware
automatically.
Reolink PoE Camera
User Manual
76

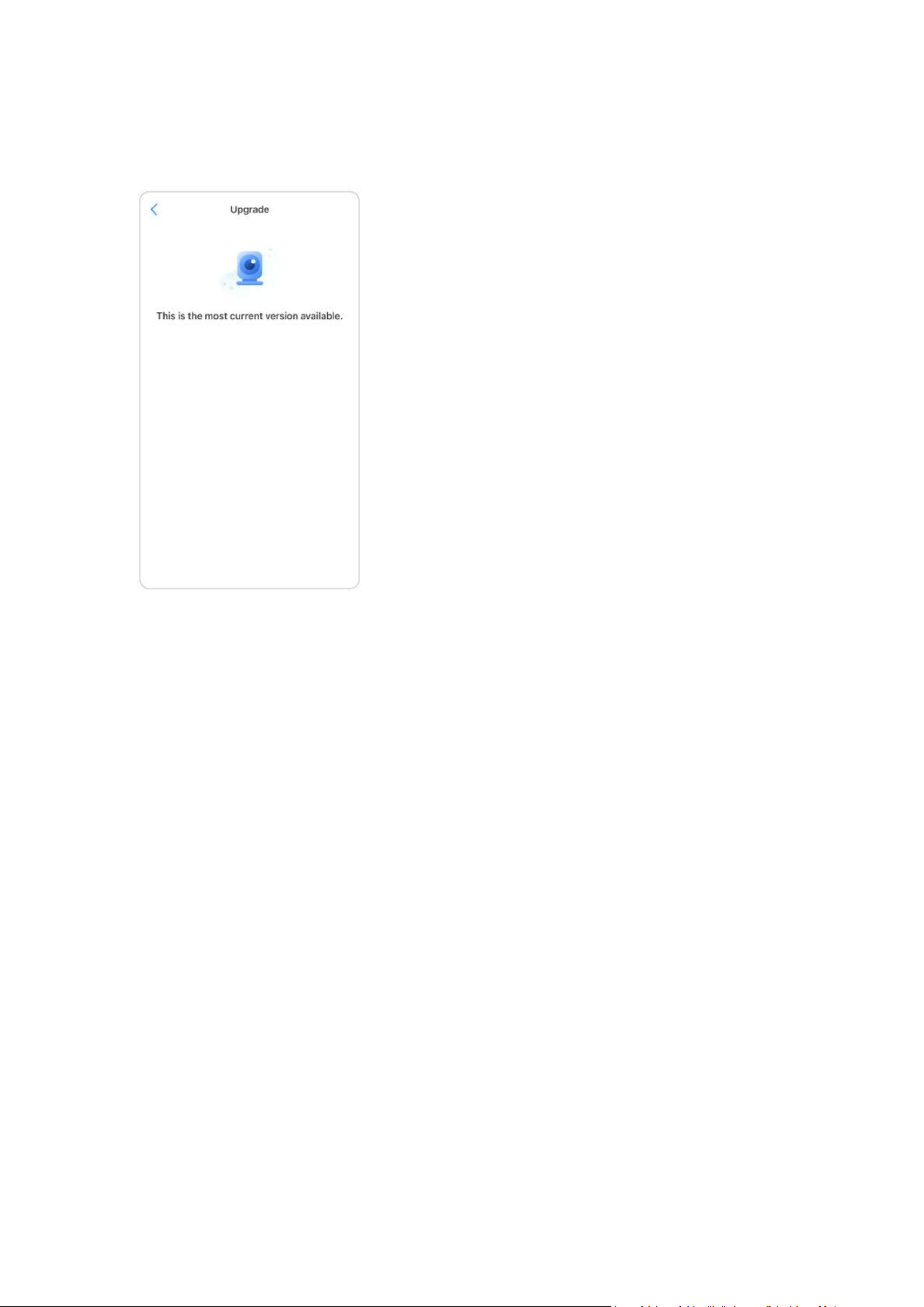

If Auto Upgrade is off, you can choose to upgrade manually. If you see the image
below that means the camera’s firmware is already the latest one, there is no
newer firmware to upgrade.
Note:
The online upgrading is only for PoE cameras with the firmware of IPC_523, but it
will not take into effect until there is online firmware released.
8.Smart Homes
Google Home
Note: IP cameras with hardware IPC_513, IPC_515 and IPC_523 can work with
google home and Alexa. For cameras coming with the NVR system, they cannot
work with smart homes.
Reolink PoE Camera
User Manual
77
1.

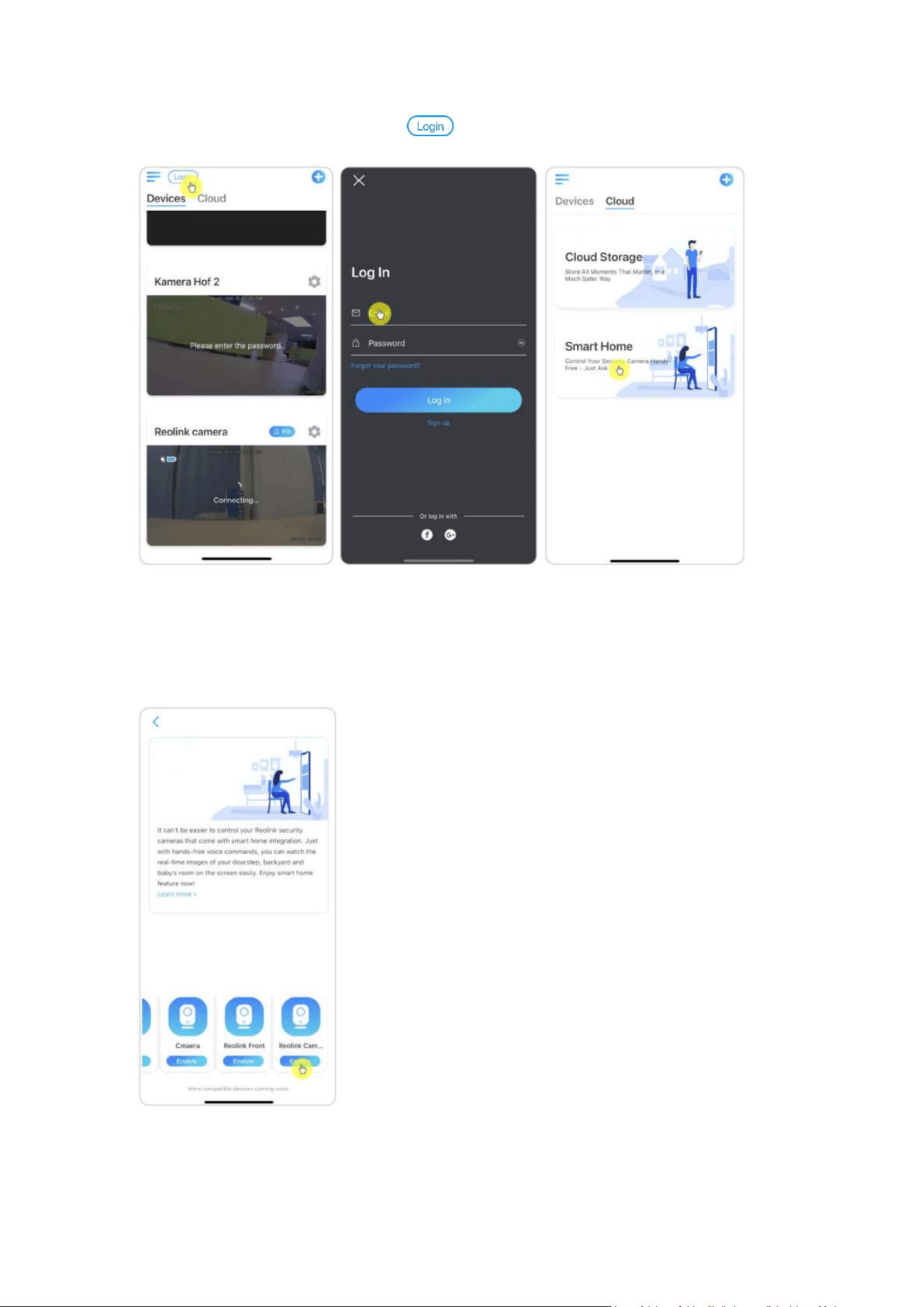

Launch the Reolink App to tap to log in your Reolink account and go to
Cloud > Smart Home.
2. Tap Enable to add the device to Google Home in the Smart Home page.
Note:
Only when it turns to disable that means the smart home feature is enabled.
Reolink PoE Camera
User Manual
78
3. Launch the Google Home, sign in your account and then Get Started to create a
home.

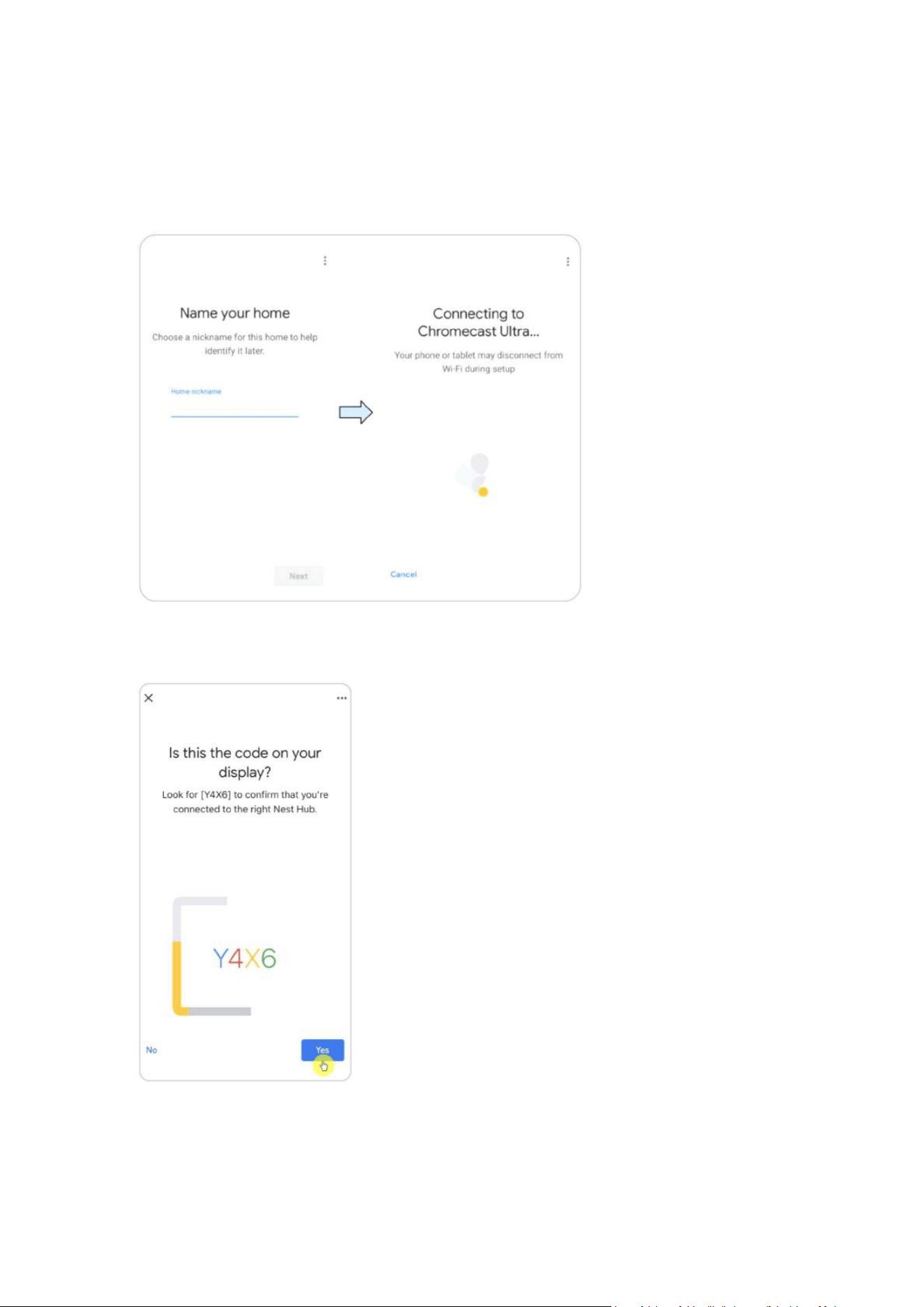

4. Name your home and tap Next to build a connection between
the Chromecast and the Google Home.
5. After the Chromecast found, please check the code shown on your TV and
tap Yes to continue.
Reolink PoE Camera
User Manual
79

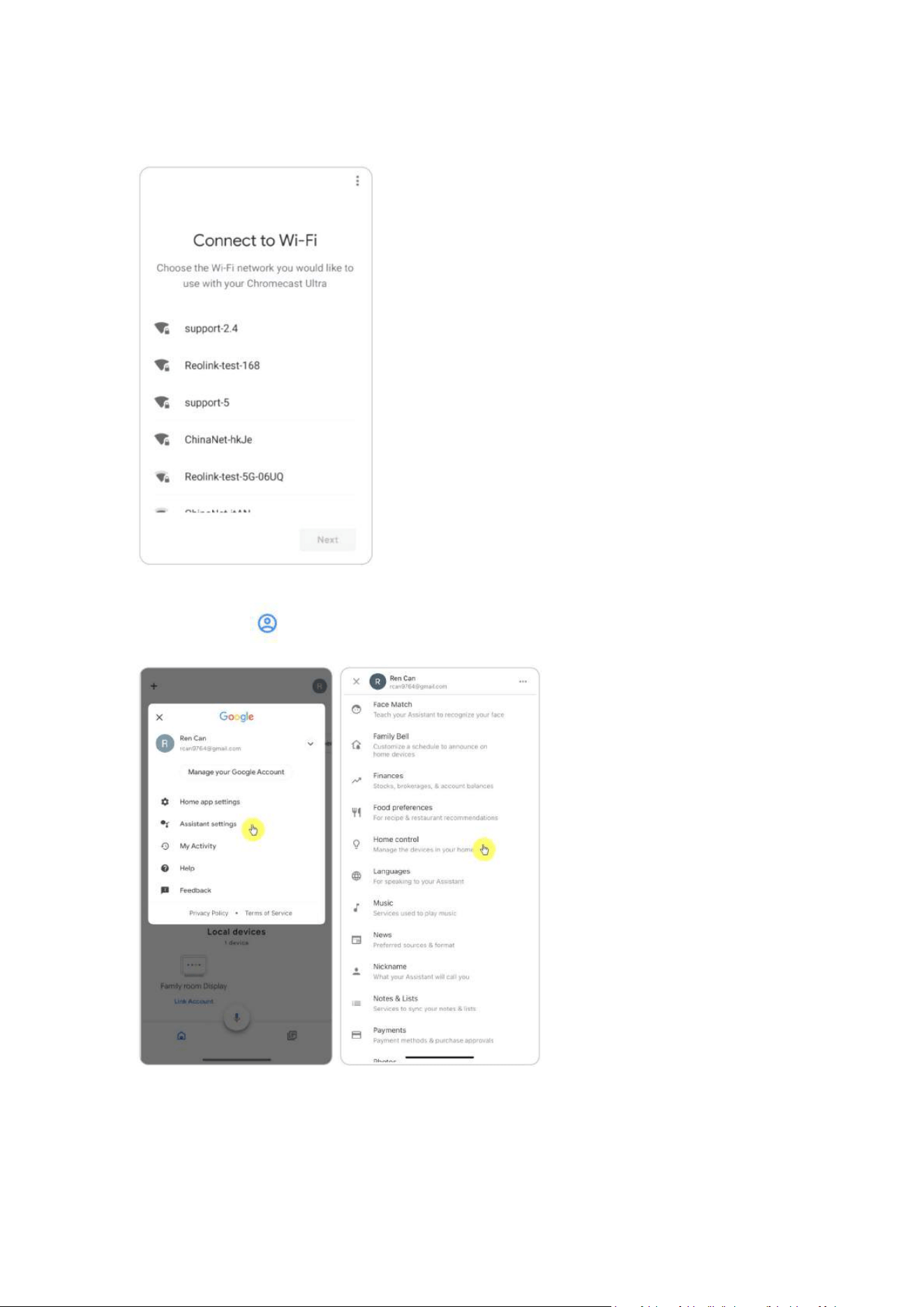

6. Connect the Wi-Fi network you would like to use with your Chromecast, then
you can customize a room name, which will be added to your room list.
7. Now tap the button to enter the account page, and then tap Settings >
Assistant > Home Control.
Reolink PoE Camera
User Manual
80

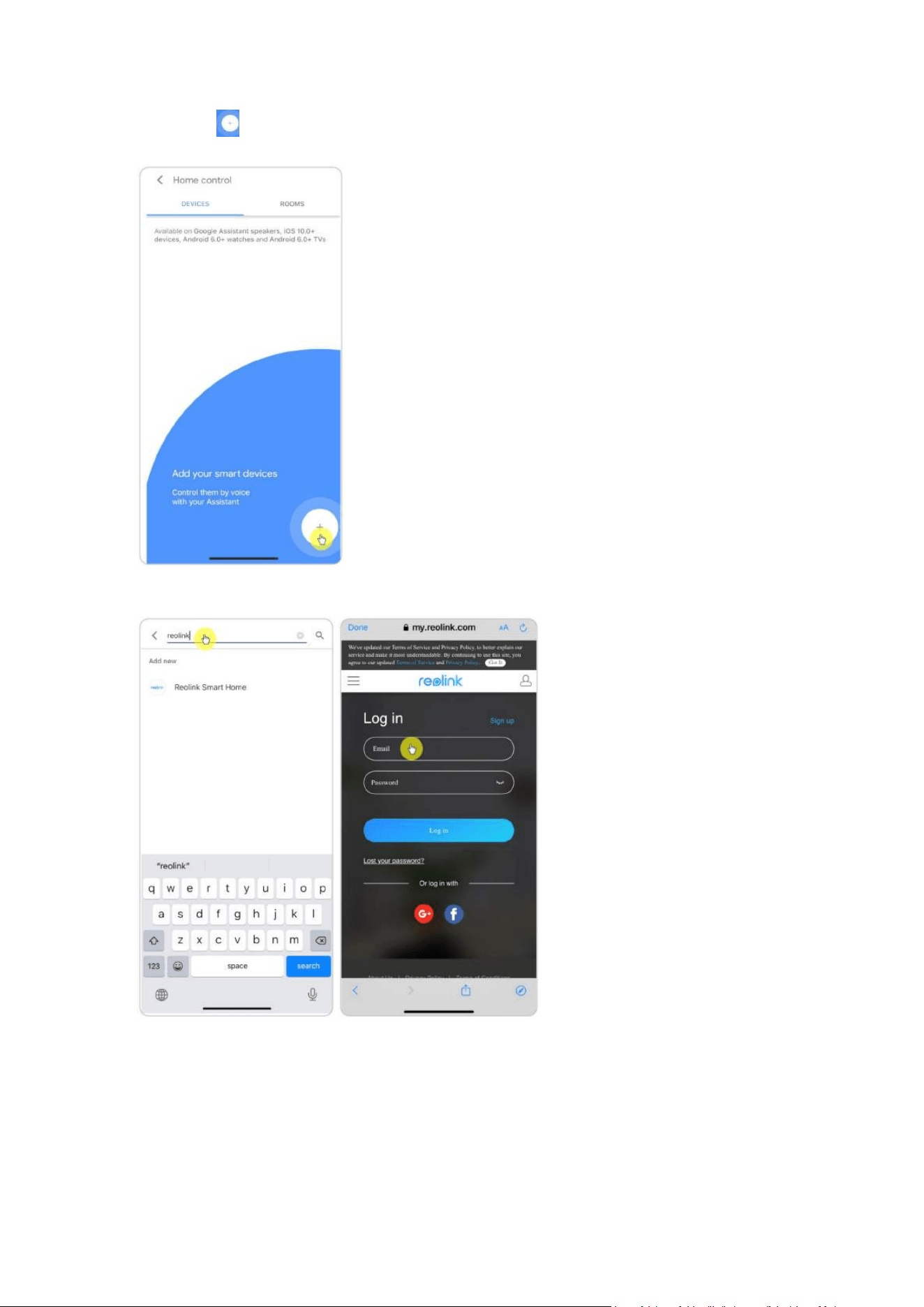

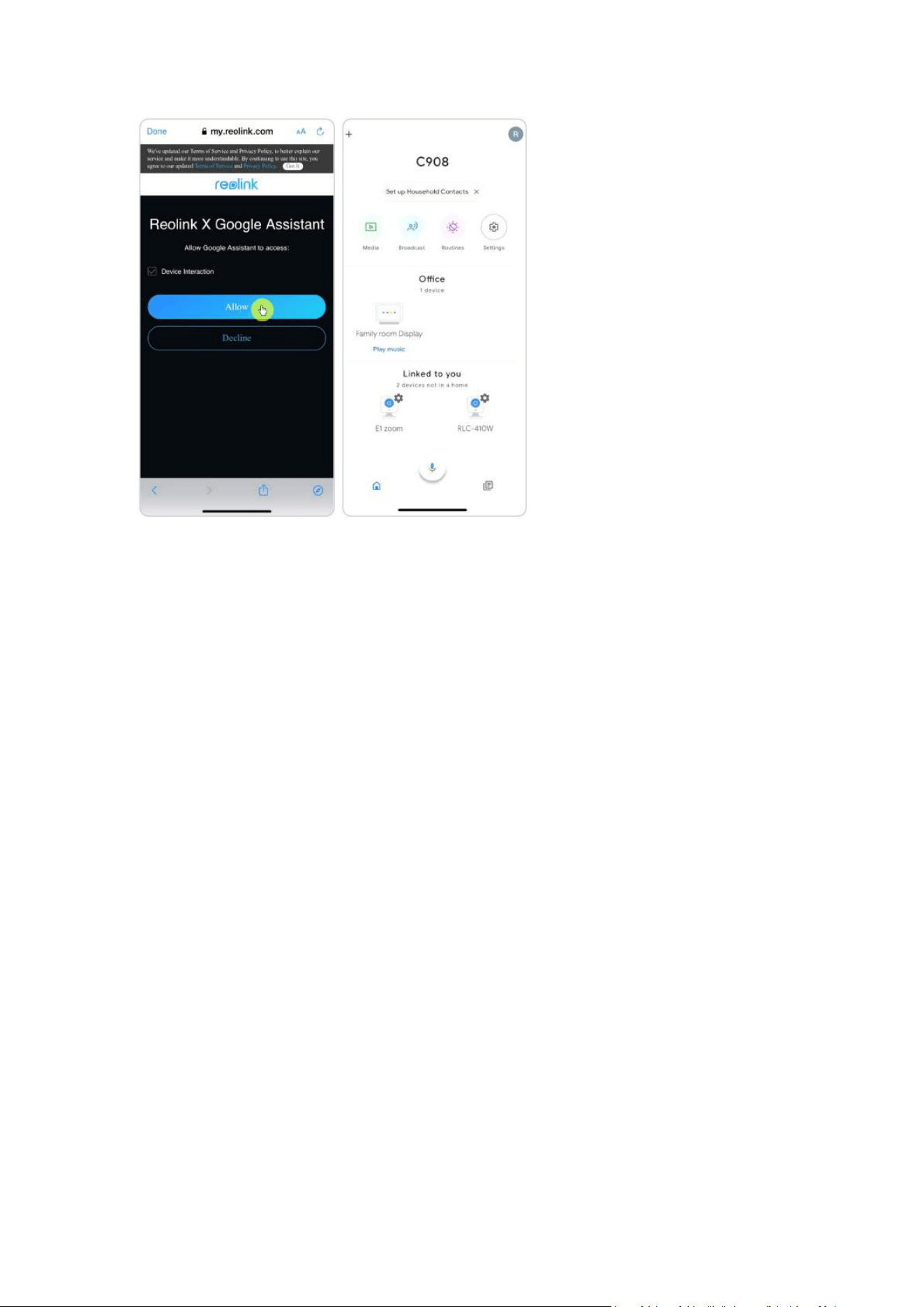

8. Tap the button, and search Reolink in the search bar and assign the room for
the camera you enabled in the cloud account via Reolink App.
9. Done! Now you've added the Reolink camera to the Google Home successfully.
Reolink PoE Camera
User Manual
81
9. To test your camera, please launch the Google Assistance and say “Hey Google,
show [name of room where the camera is placed] on [name of Chromecast
device].”
Amazon Alexa
To connect your camera to Alexa, make sure you have 3 devices at hand: a Reolink
camera, an Amazon Alexa device and your mobile phone; and 2 apps on your
phone: the Reolink App and Amazon Alexa App. If the current camera firmware is
not compatible with Alexa, please upgrade it to the latest in the Download Center.
Alexa doesn't support all countries currently; it is only available for the countries
below:
America: United States, Brazil, Canada, Mexico
Europe: Germany, Spain, France, Italy, United Kingdom
Asia & Oceania: Japan, India, Australia
Reolink PoE Camera
User Manual
82

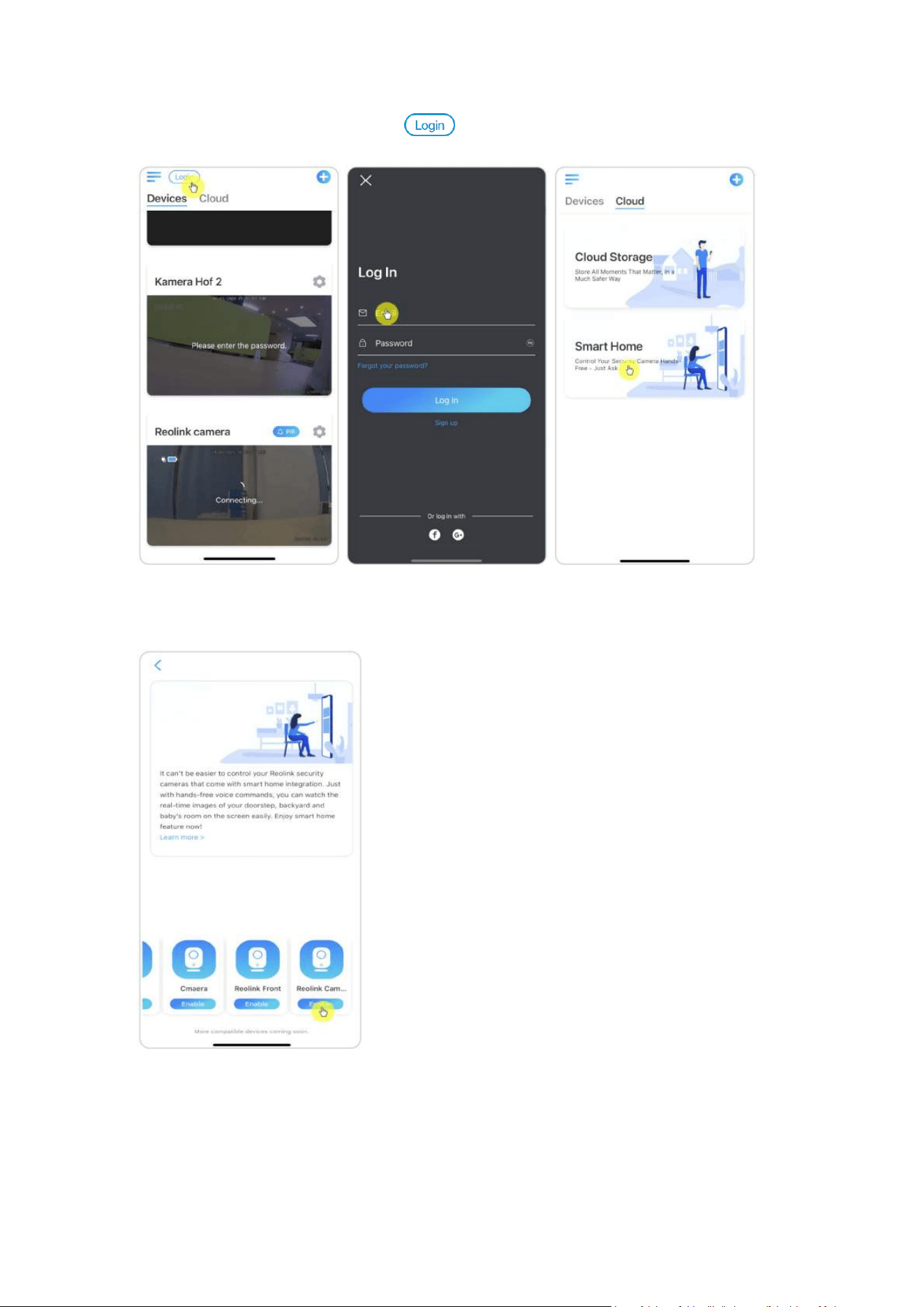

1. Launch the Reolink App to tap to log in your Reolink account and go to
Cloud > Smart Home.
2. Tap Enable to add the device to Amazon Alexa in the Smart Home page.
Note: Only when it turns to disable that means the smart home feature is enabled.
Reolink PoE Camera
User Manual
83

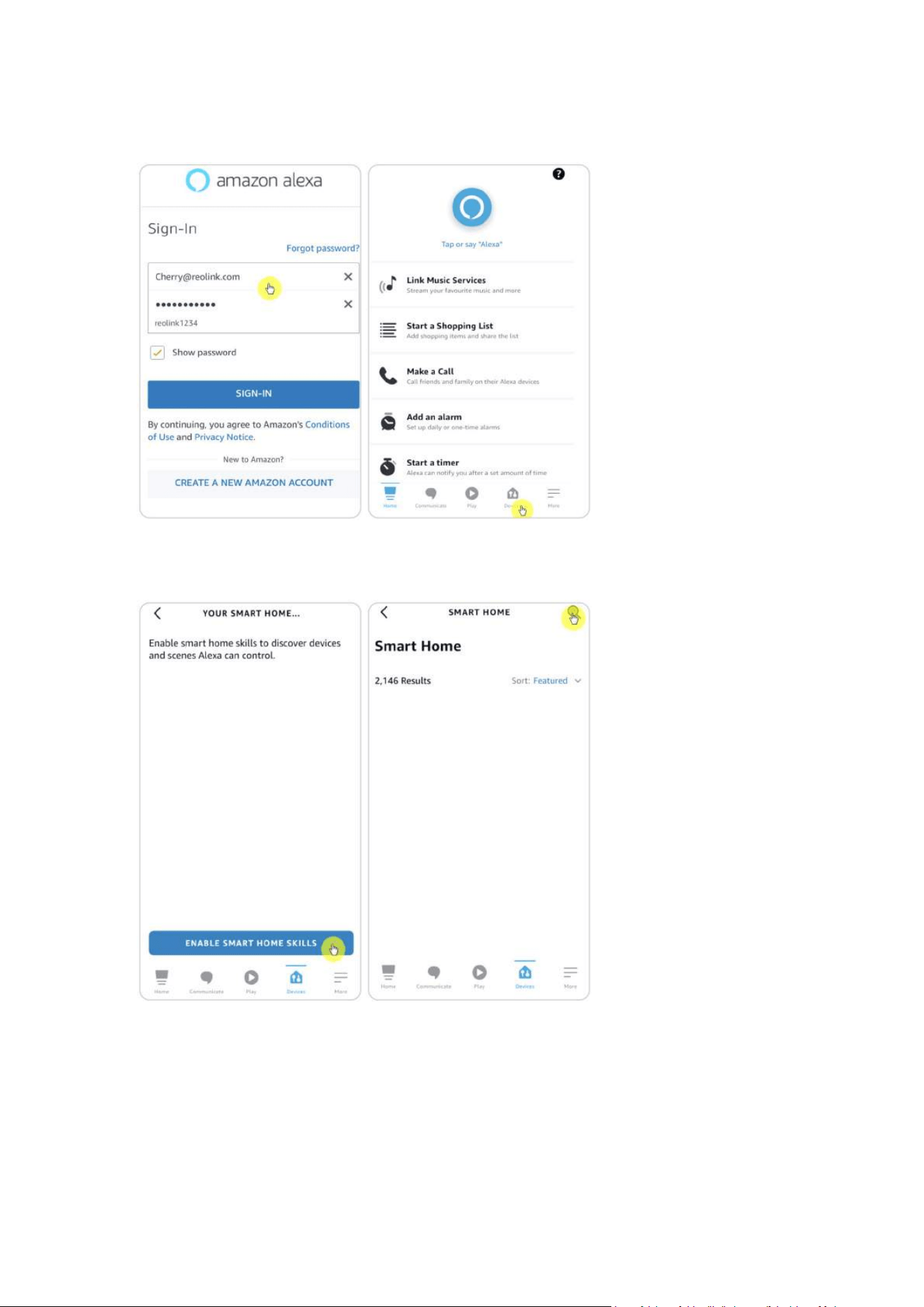

3. Launch the Amazon Alexa App, sign in to your Alexa account and then tap on
Devices in the bottom right corner.
4. Select Your Smart Home Skills and tap Enable Smart Home Skills. Please tap
the Search icon at the top right corner and search Reolink Smart Home.
Reolink PoE Camera
User Manual
84

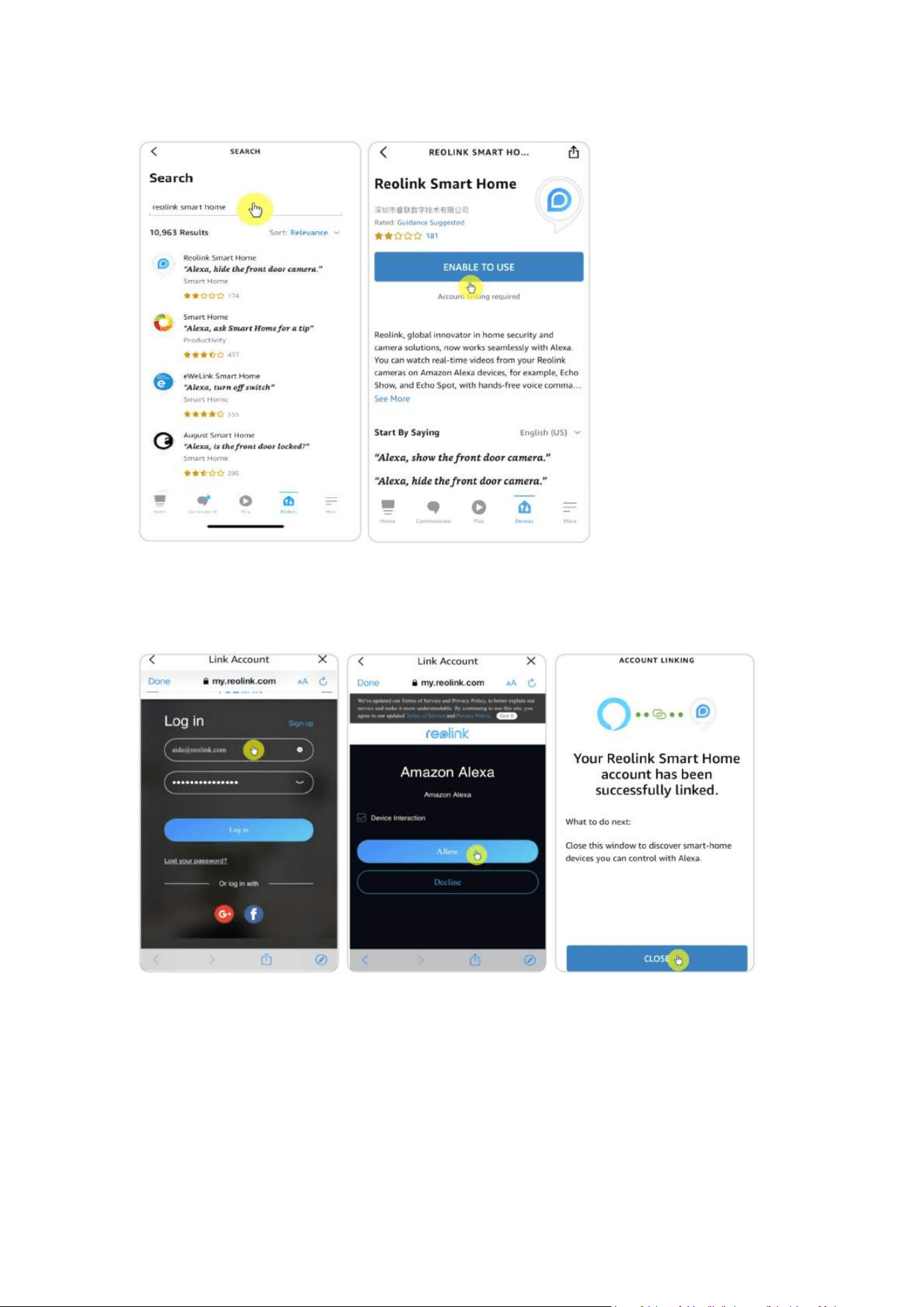

5. After search and find Reolink Smart Home, tap ENABLE TO USE.
6. Type in your Reolink account, and then Tap Log in. After logging in successfully,
then tap Allow, the App will remind that “Reolink Smart Home has been
successfully linked”. Tap Close to go to the next step.
Reolink PoE Camera
User Manual
85

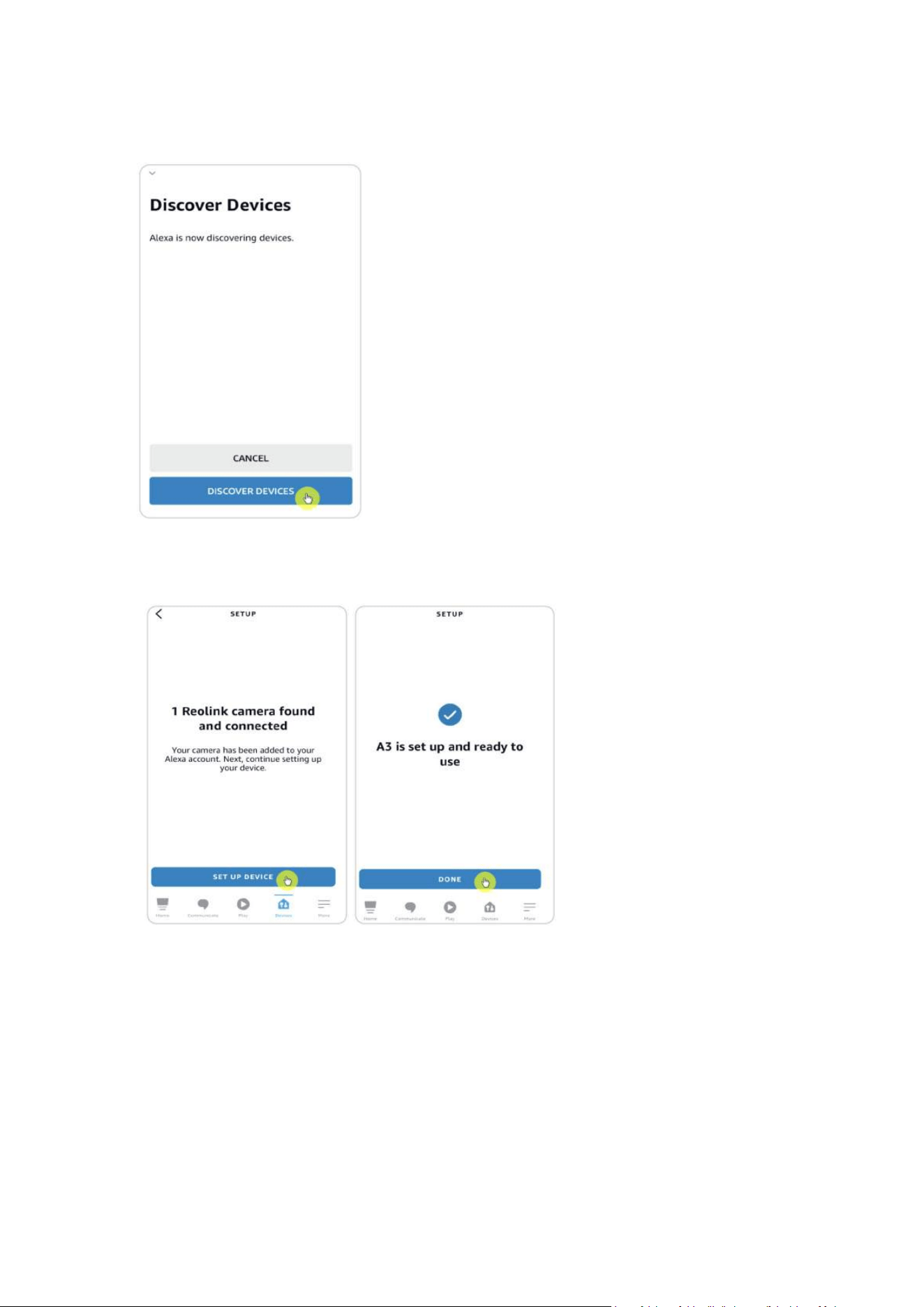

7. Tap on Discover Devices or say the voice command "Alexa, discover devices".
Alexa will scan and show the cameras bound to your Reolink account.
8. Tap Set up Device. You can tap Choose Group to add your device to a group if
you want to, or you can skip this step and tap Close to finish the setup.
9. Done! Now you've added the Reolink camera to Amazon Alexa successfully.
To test your camera, turn on the turn on the Amazon device and say “Alexa, show
[name of the camera]" to view the live feed and say "Alexa, stop [name of the
camera]" to stop the live feed.
Reolink PoE Camera
User Manual
86
9. FAQs and Troubleshooting
FAQs
Q1: Can the Recordings Saved to FTP Server be Overwritten?
A: Sorry to tell you that our device does not have permission to delete FTP files.
Whether the recordings saved to the FTP server can be overwritten depends on
the function of the FTP server. Some FTP servers support overwrite function, and
you can set on FTP.
Q2: Specification of Ethernet Cables that Reolink PoE Cameras Require.
A: Reolink PoE cameras support T-568B connectors and CAT5, CAT6, CAT7 with 8
PIN Ethernet cable. You may buy an Ethernet cable like the one in the link.
The maximum cable length that the camera supports is 80 meters (264feet).
Q3: Which PoE Injector/Switch Can I Use for Reolink PoE Cameras?
A: The PoE injector/switch is not included in the package of our product and it’s
not sold in Reolink stores. You may purchase the PoE injector/switch separately.
Please refer to the standards we support below:
For Reolink RLC-423, you need to make sure that the PoE injector/switch
is 802.3at compliant (48V) and supports active mode.
For other Reolink PoE camera models, please make sure that the PoE
injector/switch is 802.3af compliant (48V) and supports active mode.
Q4: Can Two Cameras be Connected via One Cable?
A: Reolink PoE cameras can be powered over the Ethernet cable, and the Ethernet
cable can transmit both data and power.
You may run 1 Ethernet cable from the NVR to a PoE switch, then plug 2 cameras
(up to 3 cameras) to the PoE switch.
However, please don't split 1 Ethernet cable into 2 RJ45 connectors, as 1 PoE port
can't provide enough power for 2 cameras. And also, the Ethernet splitter doesn't
support 2 cameras to connect to network at the same time.
Q5: Can I Rotate Camera Image 90 Degrees?
Reolink PoE Camera
User Manual
87
A: Rotating image 90 degrees is not supported.
Please note that mounting cameras sideways is not recommended.
Q6: Can I Play back or Download Recordings Remotely?
A: If you access the camera with the user accounts of an admin user, you can play
back and download recordings remotely.
But if you access the camera with the user accounts of a common user, you cannot
do that.
Q7: Can I Download All Recordings at Once on Reolink App?
A: No, Reolink App only supports downloading one file at once. And the video is cut
into a moderate length by default. You can customize the video length (up to 120
seconds).
Q8: Can this camera record continuously?
A: Yes, the camera of the latest firmware supports recording continuously.
Q9: Can I Use Reolink Cameras with iCloud?
A: Due to the hardware and software limitation, the cameras temporarily do not
support the icloud, but you can use cameras with the Reolink cloud storage.
The models which support the Reolink cloud storage: Argus 2, Argus Pro, Argus PT,
Argus Eco, Reolink Go, Reolink Go PT, Reolink E1, Reolink E1 Pro, E1 zoom, Reolink
Lumus.
The countries which support the Reolink cloud storage: United States, Canada,
Australia, New Zealand, Thailand, Vietnam, Malaysia, South Korea, Philippines,
Indonesia, Hong Kong (China), Macau (China), Israel, Qatar, Bahrain, United Arab
Emirates, Saudi Arabia, Kuwait, Lebanon, Singapore.
Q10: Can I Add a PoE Switch Between the Reolink PoE Cameras and Reolink PoE
NVR?
A: Yes. But we don't recommend to connect in this way. If you have to connect in
this way because of the inconvenience to hook multiple wires in the scenes like
between two buildings, please make sure do not add more than three cameras
into the PoE switch and then connect the switch to the PoE port on the NVR.
Reolink PoE Camera
User Manual
88
If you added more than 3 cameras on one PoE switch and connect the switch to
the PoE port on the NVR, the video stream may be delayed or frozen.
Troubleshooting
Camera Is Not Powered up
If your camera is not powered up, please try the following solutions:
1. Please change another working adapter/working cable/working port to
connect the camera.
2. Please refer to this user manual to reset the camera.
3. Then please cover the day/night sensor or place the camera in a dark
environment to check if the IR lights are on.
Camera does not work with the third-party software
Reolink IP cameras (battery-powered models not included) are ONVIF2.1 compliant,
which means they can be added to some third-party surveillance software for
monitoring and recording. For the surveillance software you mentioned, sorry that
we’re not able to assure you that it will be fully compatible with Reolink cameras as
we didn’t test it or made any adaptations. Those we have tested and guarantee
compatibility can be seen at https://reolink.com/3rd-party-compatibility/.
Fail to upgrade the firmware
If you fail to upgrade the firmware for your camera, here are some steps for your
confirmation:
1.Check what is the firmware version of your camera, and what is the firmware
version you want to upgrade. The camera model and hardware number should
match, this way to make sure you upload the correct firmware.
2.Ensure to unzip the downloaded zip file and check the format of the file a pak.
file.
3.Re-download the firmware to try upgrade again.
4.Reset the camera to factory settings then try upgrade the firmware again.
