Reolink TrackMix LTE
4G LTE Dual-Lens Camera
with Auto-Zoom Tracking
• Dual-View Display
• Auto-Zoom Tracking
• 4G LTE Network
Specifications
Video & Audio
Image Sensor 1/3"CMOS Sensor
Video Resolution
Up to 3840×2160 (8.0 Megapixels) at 15
frames/sec
Lens
f=2.8mm@F=1.6，f=8mm@F=1.6
Video Compression H.264,H.265
Field of View
• Horizontal: 96°-38°
• Vertical: 55°-21°
Zoom Mode 6X hybrid zoom
Day & Night IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 Meters (100ft)(LED: 2pcs/
850nm)
Color Night Vision Spotlight: 1pcs/6500K/450 Lumens
Audio Two-way audio
Power
Battery
7.2V 5100mAh rechargeable battery
(Battery life varies based on settings,
usage & temperature)
36.72Wh(Power capacity)
Solar Reolink Solar Panel 2
DC Power 5V/2A
Interface
Power USB Type-C port
System Reset button
Storage Micro SD card slot (max. 128GB)
Audio Built-in microphone and speaker
Pan & Tilt
Pan &Tilt
Pan: 355°, Tilt: 0°~90°; (Speed can be
set)
Preset Points 32
Auto Tracking Support
3G/4G Bandwidth
Frequency Bands
Europe version: LTE FDD: B1/B3/B7/B8/
B20/B28A WCDMA: B1/B8" "USA
version: LTE FDD: B2/B4/B5/B12/B13/
B14/B66/B71" "Australia version: LTE
FDD: B1/B3/B5/B7/B8/B28 WCDMA: B1/
B5/B8
Transmission Data
LTE FDD: Max 10Mbps(DL), Max
5Mbps(UL) LTE TDD: Max
8.96Mbps(DL), Max 3.1Mbps(UL) HSPA+:
Max 42Mbps(DL), Max 5.76Mbps(UL)
UMTS: Max 384Kbps(DL), Max
384Kbps(UL)
Software Features
Frame Rate
• Mainstream: 10fps - 15fps
• Substream: 10fps - 15fps
Code Rate
• Mainstream: 1024Kbps -4096Kbps
• Substream: 64Kbps -512Kbps
OS Supported
PC: Windows, Mac OS; Smartphone:
iOS, Android
Smart Alarm
PIR detection/person detection/
vehicle detection/pet detection
Record Mode Motion-triggered recording
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP,
P2P
Maximum User Access
Support up to 12 simultaneous video
streams (10 substreams & 2
mainstreams)
Work with Google Assistant, Reolink Cloud
Working Environment
Operating Temperature -10°C~+55°C (14°F~131°F)
Operating Humidity 20% ~ 85%
Weatherproof IP65
Size & Weight
Dimensions 228.2*147*129mm
Weight 1.4KG
Warranty
Limited Warranty
2-year limited warranty. For support,
visit https://support.reolink.com/hc/en-
us/
Gallery & Specs
1. Spotlight
2. Infrared LED
3. Lens
4. Mic
5. Daylight Sensor
6. PIR Sensor

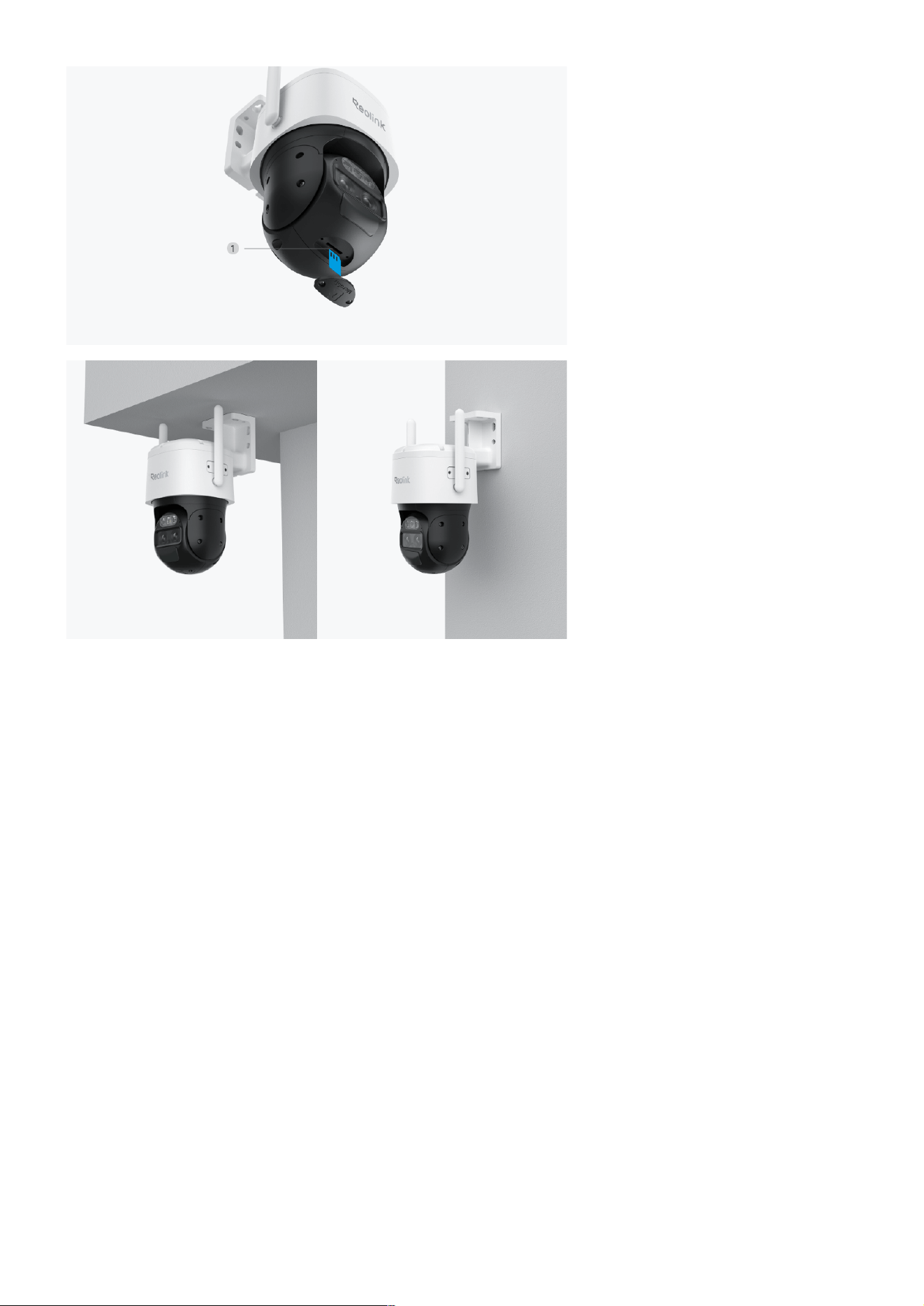

1. Micro SD Card Slot
www.reolink.com
