Reolink Duo 3 PoE
16MP Dual-Lens 180° View PoE
Camera
• 16MP Ultra HD
• 180° Panorama
• Motion Track
Specifications
Video & Audio
Image Sensor 1/2.7" CMOS sensor
Resolution 7680x2160 (16MP) @ 20FPS
Lens f=2.8mm/F1.6
Video Compression H.265
Field of View Horizontal: 180° Vertical: 55°
Infrared Night Vision
30 meters (LED: 6pcs/20mil/850nm)
(Auto-switching with IR-cut
filter)
Color Night Vision
With spotlight: 8pcs/5W/6500K/560
Lumens
Frame Rate
Main stream: 4fps - 20fps (default:
20fps) Sub stream: 4fps - 20fps
(default: 20fps)
Code Rate
Mainstream: 3072-10240Kbps (default:
8192kbps) Substream: 256-2045Kbps
(default: 1024kbps)
Audio Two-way audio
DC Power DC 12.0V
23
93 2A, <12W
Power Requirements
PoE IEEE 802.3af, 48V, active
Interface
Power Port DC power port
Ethernet Port One 10M/100Mbps; RJ45
SD Card Slot Supports Max. 256GB microSD card
Reset Button YES
Audio In/Out Built-in microphone and speaker
Software
Browsers Supported Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone:
iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4,
UPnP, RTSP, RTMP, ONVIF, SMTP, NTP,
DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 user); Max.
12 simultaneous streams (2 main & 10
sub streams)
Other Feature(s)
Smart Alarm
Motion detection; person detection;
vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default);
scheduled recording, 24/7 recording
Time Lapse YES
Smart Home Compatibility Google Assistant
Working Environment
Operating Temperature -10°C~+55°C (14°F~131°F)
Operating Humidity 10% ~ 90%
Weatherproof IP67
Mechanical
Dimensions 195x103x56 mm
Weight (Battery Included) 680g
Warranty
Limited Warranty
2-year limited warranty.
Gallery & Specs
1
. Daylight Sensor
2. Lens
3. IR LED
4. Spotlight
5. Mic
6. Mounting Bracket
1
. microSD Card Slot
2. Reset Button
3. Speaker

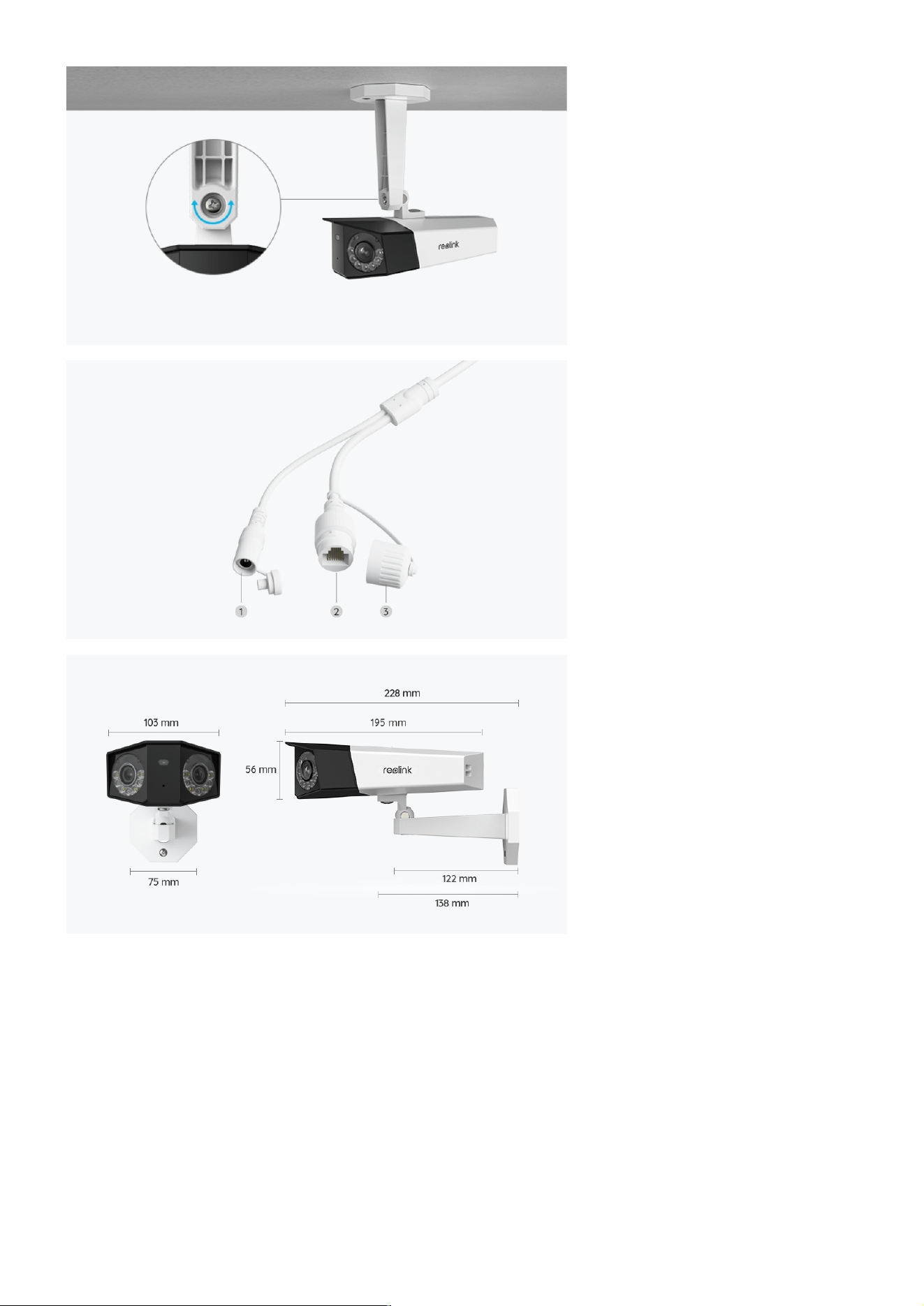

1
. You can mount the cam
on the wall or on the
ceiling. </br>2. You can
loosen the screw to adjust
the cam in any direction,
and then tighten the screw
to
fix the cam.
1
. Power Port
2. Ethernet Port
3. Waterproof Lid
