Senix STX2-M 40V Max 18" Cordless Snow Blower User Manual

EnglishWWW.SENIXTOOLS.COM

18” CORDLESS SNOW BLOWER

Instruction Manual

Model: STX2-M

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• WARRANTY

CAUTION: Before using this tool, please read this manual completely,

and follow all operating safety measures.

YAT USA INC. 10506 Bryton Corporate Center Dr, #500 Huntersville, NC 28078

For customer support, please call 1-800-261-3981 or email us at [email protected]

EN - 2

WWW.SENIXTOOLS.COM

SAFETY &

INTERNATIONAL

SYMBOLS

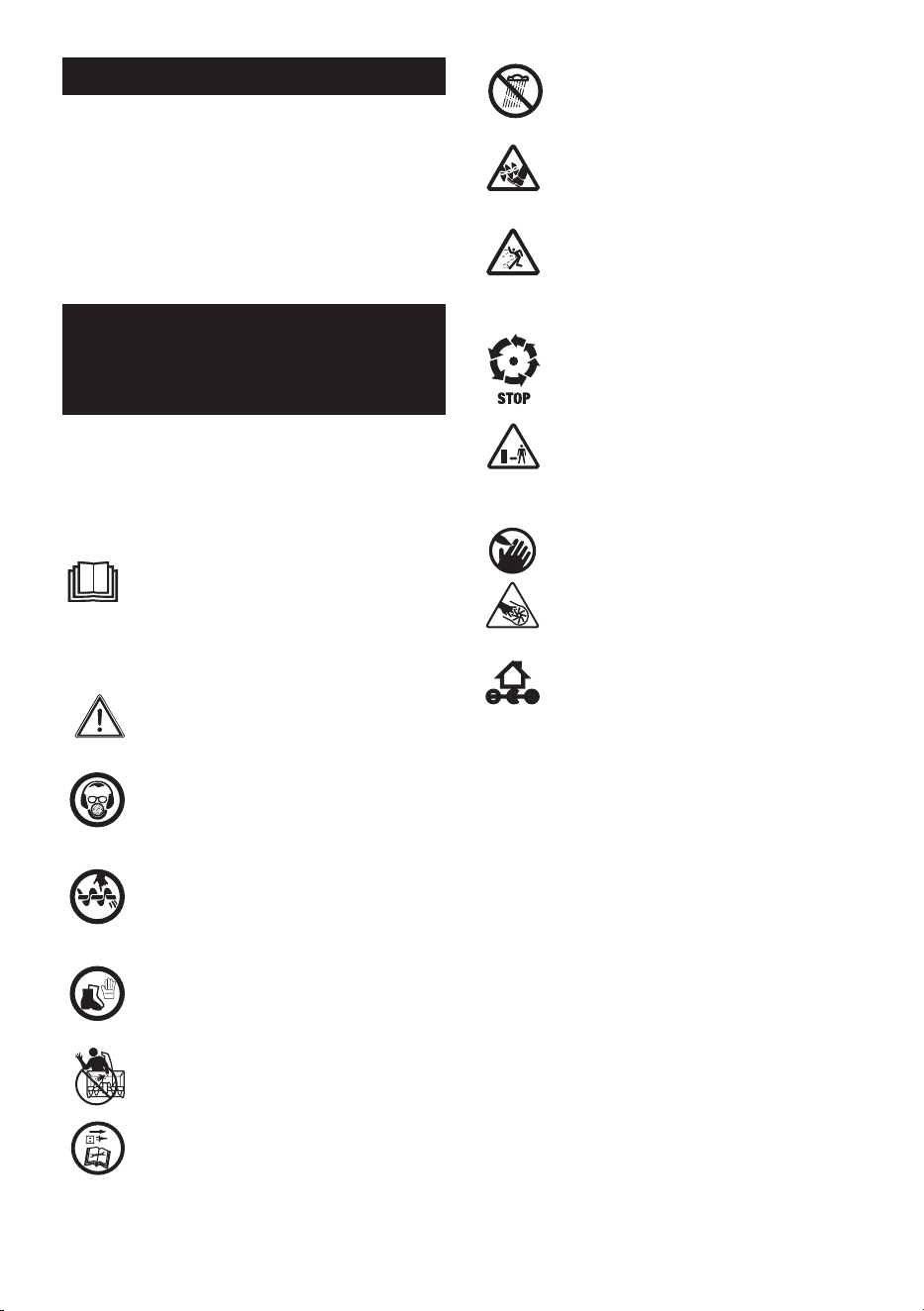

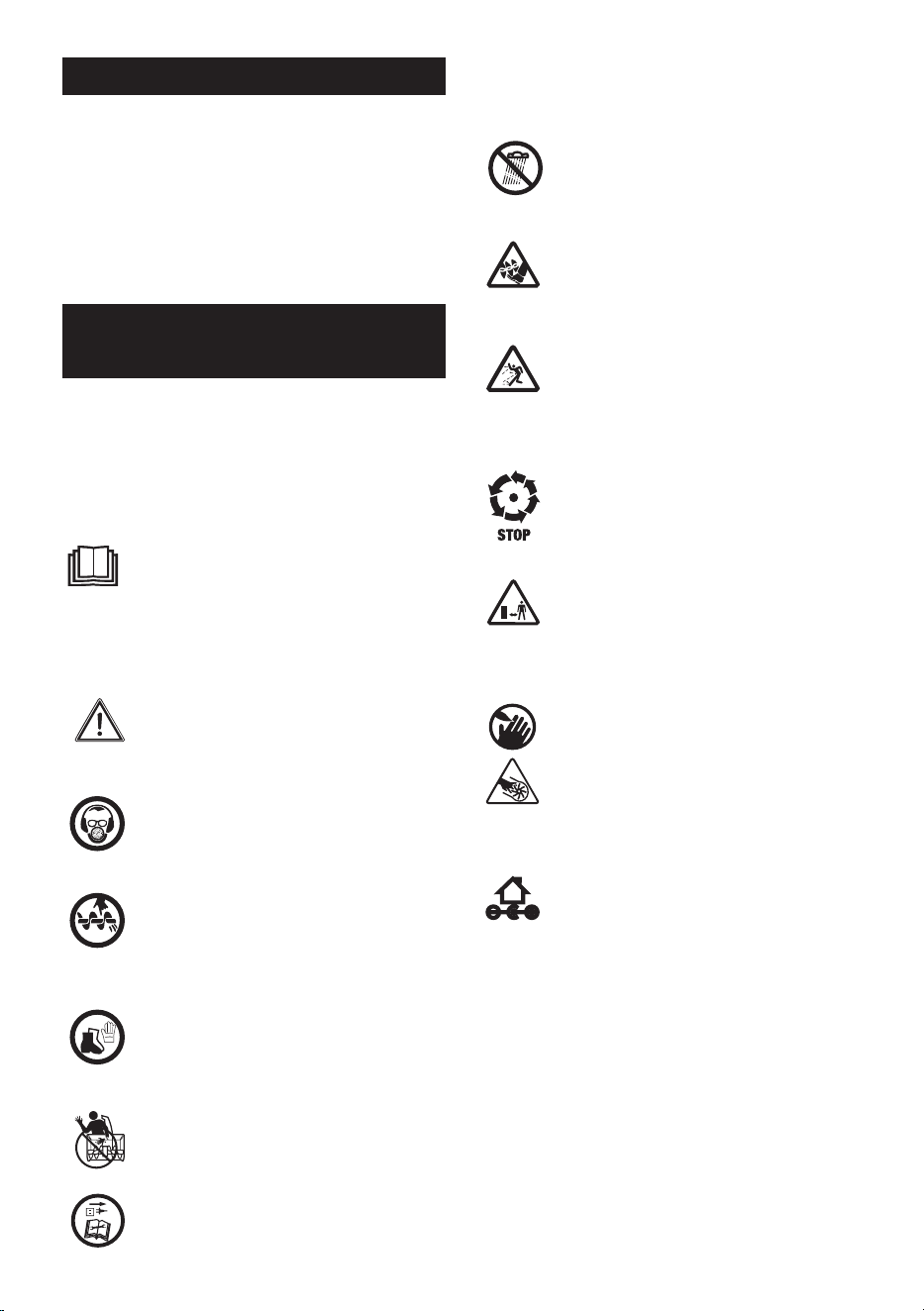

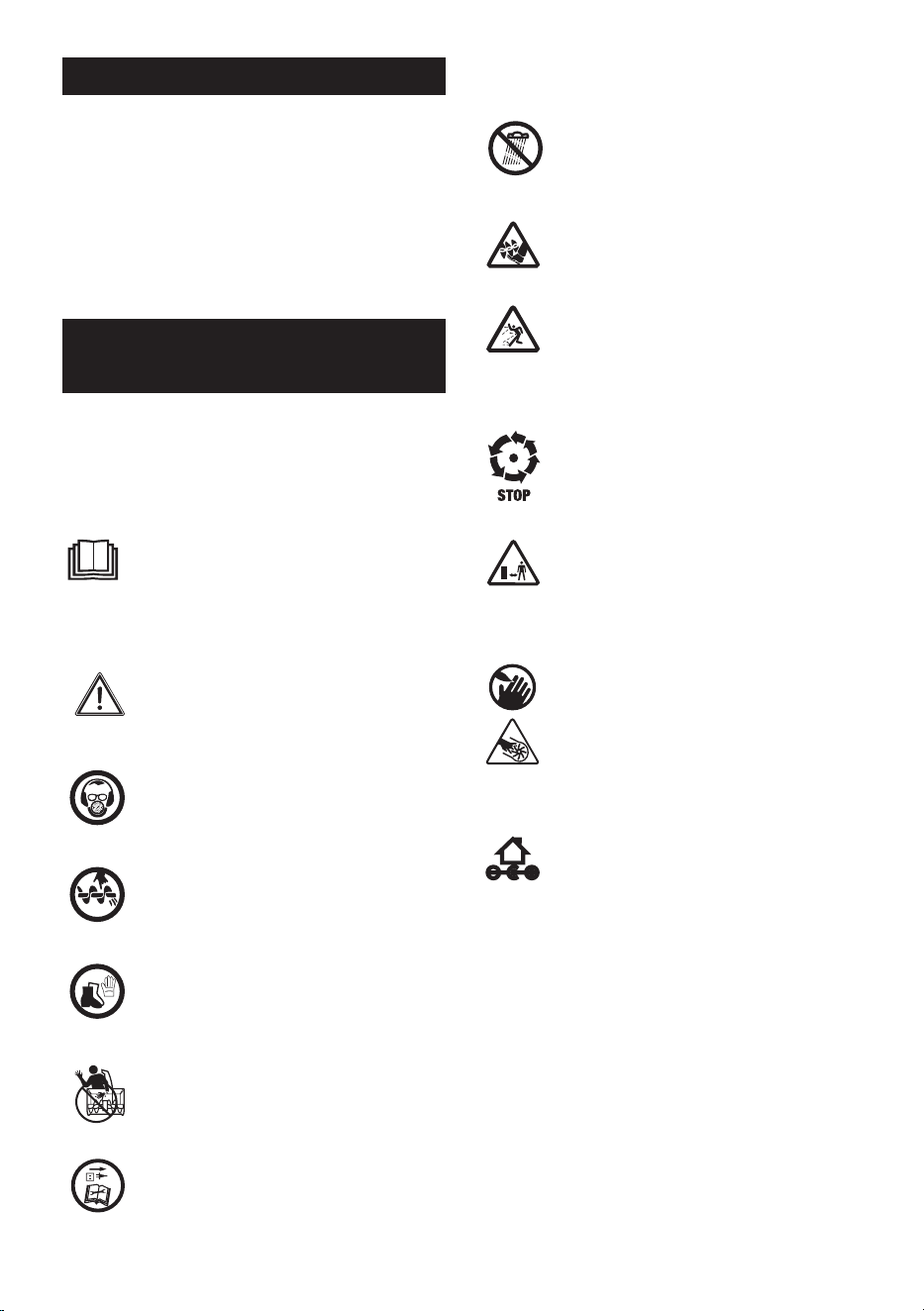

The following table depicts and describes

safety symbols that may appear on this

product. Read, understand and follow all

instructions on the machine before attempting

to assemble and operate.

READ THE OPERATOR'S

MANUAL(S) - Read, understand

and follow all instructions in the

user manual(s) before attempting

to assemble and operate.

SAFETY ALERT – Indicates a

precaution, a warning or a danger.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Keep hands, feet and clothing away

from the rotating auger to avoid

injury.

Wear protective gloves and non-slip

footwear when using the machine

and handling debris.

Do not use hands to unclog chute.

WARNING! Always turn the

machine OFF and remove the safety

key before conducting inspection,

cleaning and maintenance.

WARNING! Do not expose the unit

to rain or wet conditions. Keep dry.

DANGER! Cutting/dismemberment

hazard - Keep feet away from the

rotating auger.

CAUTION! Beware of stones and

other foreign objects that could be

thrown from the equipment.

The rotating part will continuously

run for several seconds after you

turn off the machine.

Keep bystanders and children a

safe distance (at least 33 ft/10 m)

away from the work area.

DANGER! Cutting/dismemberment

hazard – Keep hands away from the

rotating auger. Do not use hands to

unclog rotor housing. Stop motor

before removing debris.

Indoor use only. Only use battery

charger indoors.

TABLE OF CONTENTS

SAFETY & INTERNATIONAL SYMBOLS ..............2

SAFETY INSTRUCTIONS .........................................3

KNOW YOUR UNIT .....................................................6

SPECIFICATIONS .......................................................7

ASSEMBLY ................................................................... 7

OPERATION ..................................................................9

MAINTENANCE ..........................................................11

TROUBLESHOOTING ..............................................12

WARRANTY ................................................................13

3 - EN

WWW.SENIXTOOLS.COM

SAFETY INSTRUCTIONS

ALL OPERATORS

MUST READ THESE

INSTRUCTIONS BEFORE

USE

WARNING:

Read all instructions when using cordless

snow blowers.

Basic safety precautions should always be

followed to reduce the risk of re, electric shock,

and personal injury.

GENERAL SAFETY RULES

Notice the personal safety alert symbol

used in this manual to draw your attention to

a WARNING given along with the particular

operating instruction. This means that the

operation requires special ATTENTION,

CAUTION, and AWARENESS.

• Keep work area clean and well lit -

cluttered, dark areas invite accidents.

• Keep bystanders away – All bystanders

and pets should be kept a safe distance

away from the work area.

• Dress properly – Do not wear loose

clothing or jewelry. They can get caught in

moving parts. Protective rubber gloves and

non-slip footwear are recommended when

working outdoors.

• Use the right product – Do not use this

machine for any job except that for which it

is intended.

CAUTION!

• Exercise caution to avoid slipping or falling.

Wear protective footwear that will protect

your feet and improve your footing on

slippery surfaces.

• Use safety glasses – Also use safety

footwear, snug-fitting clothing, protective

gloves, hearing and head protection.

• Do not force the snow blower – Use the

snow blower at the rate for which it was

designed to ensure optimal performance

and safe operation.

• Stay alert – Watch what you are doing. Use

common sense. Do not operate the snow

blower when you are tired or under the

influence of alcohol or drugs.

• Do not overreach – Keep proper footing

and balance at all times.

• Store indoors – When not in use, the snow

blower should be kept dry and stored out

of the reach of children in a high or locked

place.

• Maintain snow blower with care – Follow

instructions for lubricating and changing

accessories.

WARNING!

Turn off the power switch and disconnect

the battery before making any adjustments,

inspecting, servicing, changing accessories,

cleaning the snow blower, or when any other

dangerous conditions present. Any such

operation should be performed after revolving

parts inside the snow blower stop completely.

Such preventive safety measures reduce the

risk of starting the power tool accidentally.

WARNING!

When replacing any parts, you must strictly

observe the instructions and procedures

described in this user manual. Special care

should be paid to any rubber parts, since

these parts may increase the engine load and

decrease its mechanical power if damaged.

WARNING!

If you notice that the snow blower is not

running properly or hear abnormal sounds

from the engine when it is in use, immediately

stop the machine, disconnect the battery, and

contact your service center.

• Surfaces – This snow blower is intended

for use on paved surfaces. Do not use on

gravel, stone or other unpaved surfaces

unless the snow blower is adjusted for such

surfaces according to the instructions

given in the instruction manual.

• Moving parts present risks – Keep

your face, hair, clothing, hands, and feet

away from moving parts. All guards and

safety attachments must be installed

properly before using the unit. Shut off and

disconnect the battery before touching any

parts other than the handles and switch.

• Avoid unintentional starting – Make sure

the safety switch and the switch bar lever

EN - 4

WWW.SENIXTOOLS.COM

are in the off position before inserting the

battery in the unit. Do not carry the snow

blower with the safety switch and the

switch bar lever engaged.

• Do not overreach – Maintain proper

footing and balance at all times. Place heels

firmly on the ground and tightly grasp the

handle bar. Watch for uneven surfaces and

do not overreach. In case you fall or collide

with the snow blower, inspect the unit for

any damages or cracks. When stepping

backwards, be careful to avoid obstacles

beneath your feet or behind you to avoid

falling.

WARNING!

If the snow blower strikes any object, follow

these steps:

1. Stop the snow blower. Remove the battery.

2. Inspect for damage.

3. Repair any damage before restarting and

operating the snow blower.

ADDITIONAL SAFETY

INSTRUCTIONS

Safety Instructions for

Walk-Behind Snow Blowers

• Read the operator’s manual carefully –

Learn your snow blower’s applications and

limitations as well as the specific potential

hazards related to this machine. Do not use

this machine for any purpose other than

the one for which it was designed. Failure

to adhere to these precautions may cause

mechanical defaults, serious damage, or

personal injury.

• Preliminary unit inspection – Thoroughly

inspect the unit before use. Make sure all

the parts are secure and installed correct-

ly. If you notice any abnormalities, do not

use the machine until it has been properly

repaired. Always perform a test run the

first time you use the snow blower or after

replacing parts to ensure that the unit is

functioning properly.

• Preliminary area inspection – Clear the

area to be plowed before each use. Remove

all objects such as rocks, broken glass,

nails, wire, or string, which can be thrown

by or become entangled in the snow blower.

Keep the area of operation clear of all per-

sons, children, and pets.

• Excessive force – The snow blower was

designed to respond at a certain rate for

various snow conditions for optimum safe-

ty and performance. Do not force it; keep

pressure constant.

• Malfunctioning switch – Do not use the

snow blower if the switch does not turn it

on and off. Any equipment that cannot be

controlled by the switch is not safe to use

and must be repaired.

• Hitting an object – If the snow blower ac-

cidentally strikes an object, first stop the

snow blower and unplug the unit; next, in-

spect for damage; finally, repair or replace

any damaged part before restarting and

operating the snow blower.

• Discharge chute safety – Never direct the

snow discharge chute at the operator, at

bystanders, at vehicles, or at windows. The

discharged snow, which may contain for-

eign objects accidentally picked up by the

snow blower, can cause serious damage

and personal injury. Do not use your hands

to unclog the discharge chute. Stop the

motor before removing debris.

• Hand-held operating position – Operation

of the snow blower in the hand-held posi-

tion is unsafe.

• Noise control – When using the snow

blower, respect the local laws and regula-

tions regarding noise control and environ-

mental protection. To avoid noise distur-

bance, you should carefully decide upon an

appropriate operation time and consider

the surrounding conditions.

• When work is completed – Disconnect the

snow blower from the power source when

not in use, when changing accessories, and

before performing any maintenance task.

• Store safely – Store the snow blower

indoors in a dry area between uses. Keep

in a locked area, where children and unau-

thorized users cannot gain access. Do not

store the machine while it is still connected

to the power source. It may cause damage

and injury.

• Maintain for safety and longevity –

Check for misalignment or binding of

moving parts, breakage of parts, and any

other conditions that may affect the unit’s

operation. If damaged, repair or replace the

damaged part before use. Use only those

replacement parts made for your model.

When replacing any parts, you must strictly

observe the instructions and procedures

5 - EN

WWW.SENIXTOOLS.COM

described in this manual. Special care

should be paid to any rubber parts, since

these parts may increase the engine load

and decrease its mechanical power if dam-

aged.

ELECTRICAL SAFETY

• Electrical plugs must match the

• outlet – Never modify the plug in any way.

Do not use any adapter plugs with rounded

appliances. Unmodified plugs and match-

ing outlets will reduce the risk of electric

shock.

• Avoid accidental starting – Make sure

the safety switch and the switch bar lever

is in the OFF position before inserting the

battery pack into the unit. Do not carry the

snow blower with the safety switch and

switch bar lever engaged.

SAVE THESE INSTRUCTIONS

INTENDED USE

This cordless snow blower is intended for

removing and clearing away snow from

pavements, gardens, driveways and other

ground level surfaces. Do not use it for other

purposes.

EN - 6

WWW.SENIXTOOLS.COM

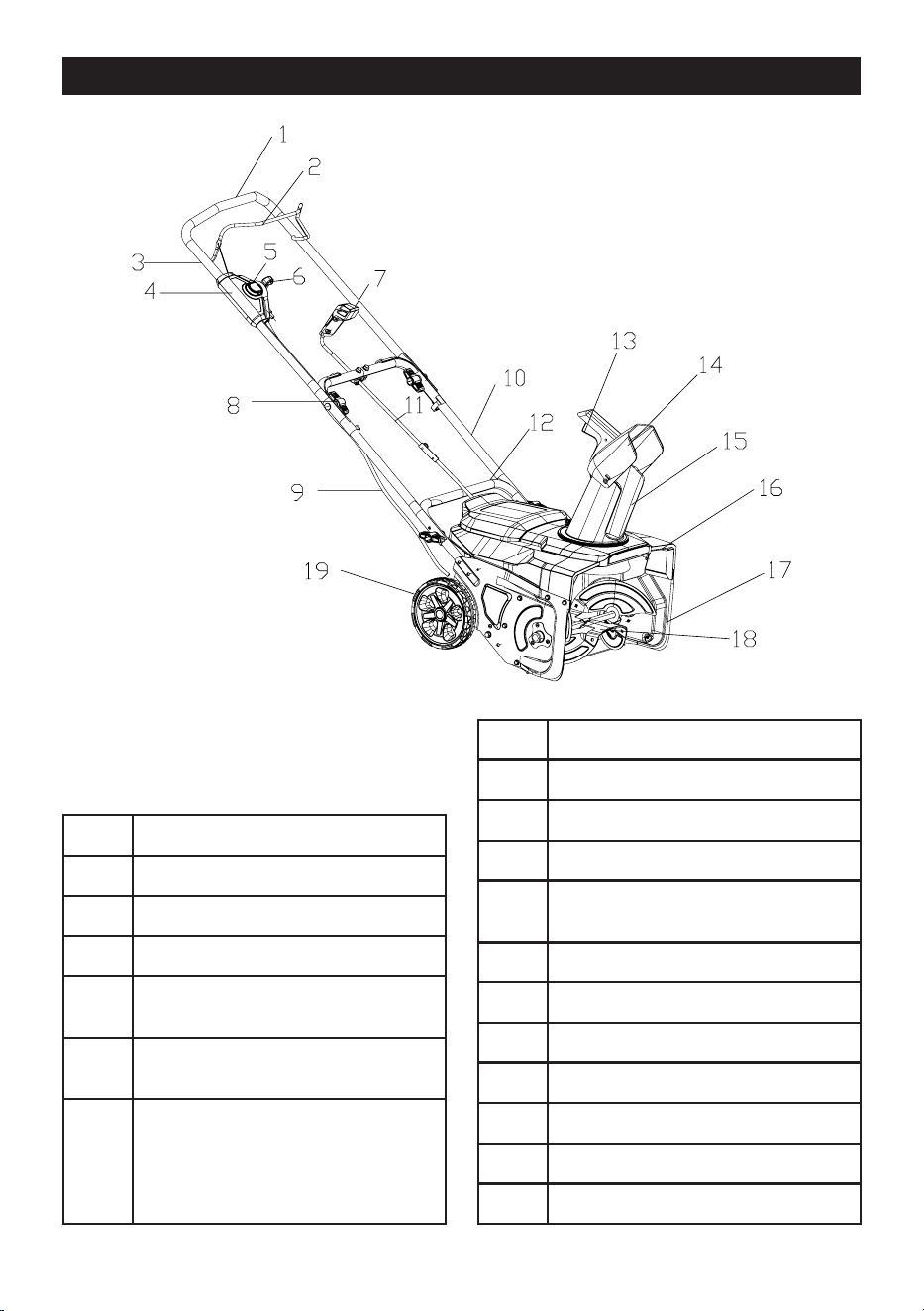

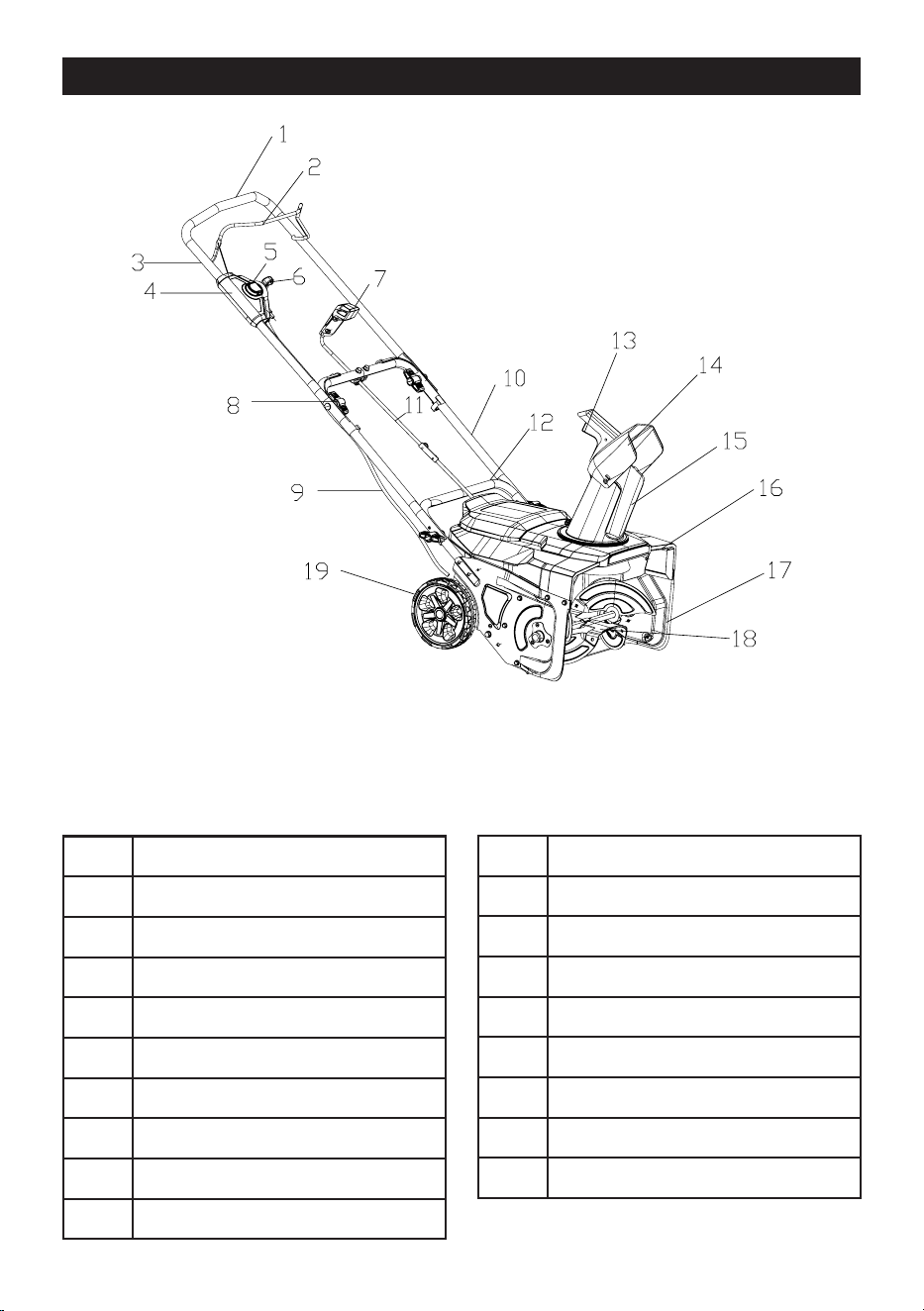

KNOW YOUR UNIT

APPLICATIONS

Model: STX2-M

As a cordless snow blower,

Removing and clearing away snow from

surfaces.

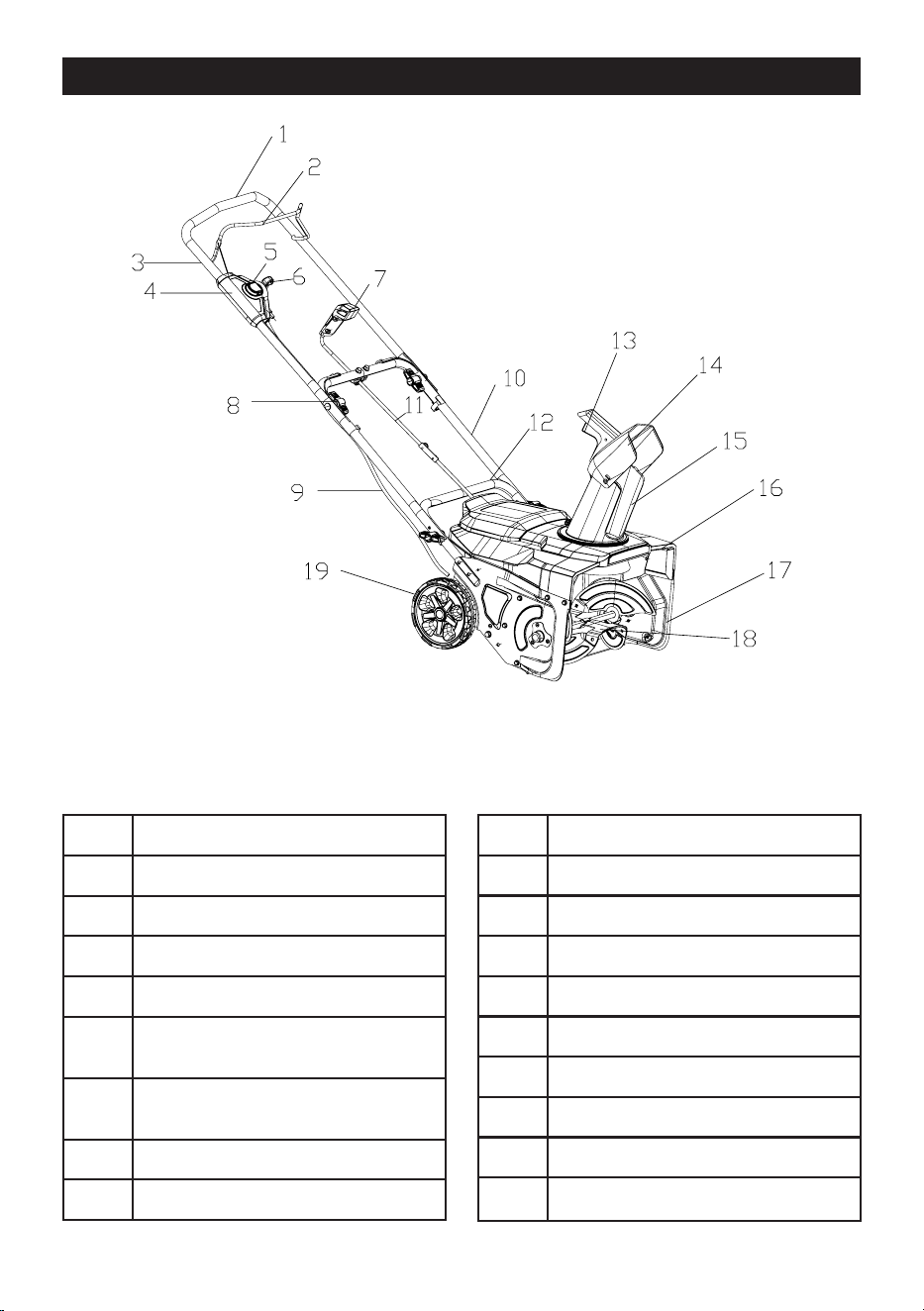

1 Handle bar

2 ON/OFF switch lever

3 Upper handle

4 Switch box

5 Safety switch button

6 Auger Speed Control Lever

7 Chute Control Rod Handle

8 Handle Assembly Knob

9 Power cable

10 Middle handle

11 Chute control rod

12 Lower handle

13 Trigger

14 Chute deector

15 Discharge chute

16 Cover

17 Bracket

18 Auger assembly

19 Wheel

7 - EN

WWW.SENIXTOOLS.COM

SPECIFICATIONS

Model STX2-M

Rated Voltage 36 V ¤ (40 V Max*)

Rated Output 1 500 W

Max. Torque 10.1 ft•lbs

No Load Speed

(RPM)

0-1 400 / 0-1 800 (RPM)

Clearing Width 18”

Depth of Snow Cut 8”

Throw Distance 16’ - 33’

Max. Clearing

Capacity

460 lbs/min

Max. Working

Time

18 min

Weight 31.1 lbs

Battery model B50X2

Rated voltage 18 V ¤ (20 V Max*)

Rated capacity 5.0 Ah

Weight 1.49 lb

Charger model CHDX2-M

Rated input

120V ~ 60Hz

Rated output 21 V, 6A max

Charging time

(with 5.0 Ah

battery)

Charing time:

Two ports: 140min

Single port: 70min

Protection class

(for charger)

/ II

Weight 1.8 lbs

*40V Max battery, maximum initial battery

voltage (measured without a workload) is 40V.

The nominal voltage is 36V.

ASSEMBLY

NOTE:

If the packaging on the box indicates that this

tool doesn't include a battery or charger, this

manual does not guarantee its presence. The

information shown here is merely provided as

a reference for use.

1. Unpack all parts and lay them on a ﬂat,

stable surface:

2. Remove all packing materials and shipping

devices, if applicable.

3. The scope of delivery varies depending on

the country and purchased variant.

• Square neck bolt x4

• Handle Knob x4

• Discharge chute knob X1

• Hexagon socket head cap screw X1

• Hex wrench X1

• Retaining bolt X1

• Wire clip x2

• Middle handle x1

• Upper control rod x1

• Lower control rod x1

• Discharge chute x1

• Snow blower x1

• Battery pack x2

• Charger x1

• Instruction manual x1

4. If you ﬁnd that parts are missing or show

damage do not use the product but contact

your dealer. Using an incomplete or

damaged product represents a hazard to

people and property.

5. Ensure that you have all the accessories

and tools needed for assembly and

operation. This also includes suitable

personal protective equipment.

WARNING:

Wear protective gloves for this

assembly work and always lay the

product on a ﬂat and stable surface

while assembling.

Follow the assembly instructions

step-by-step and use the pictures

provided as a visual guide to easily

assemble the product!

EN - 8

WWW.SENIXTOOLS.COM

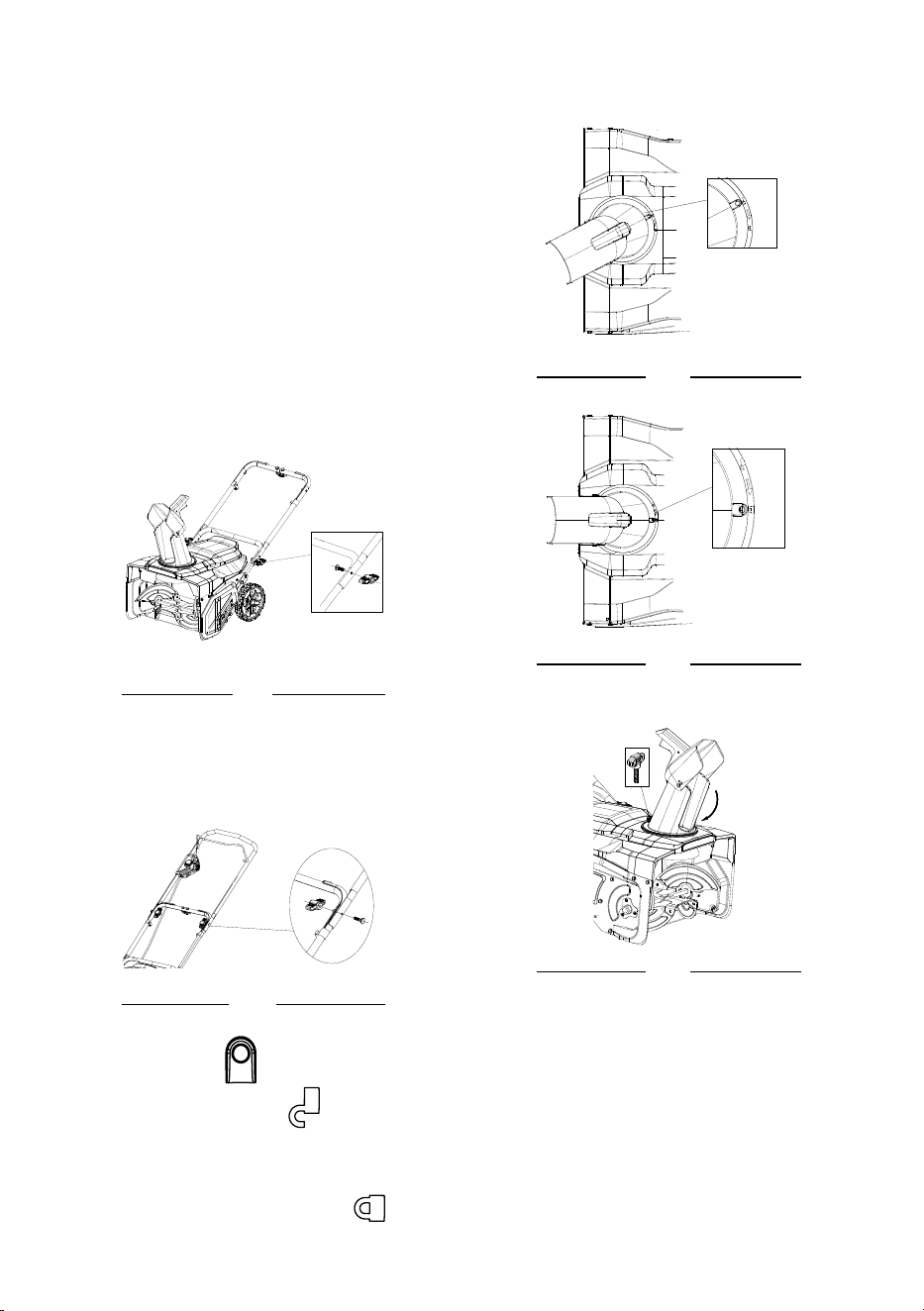

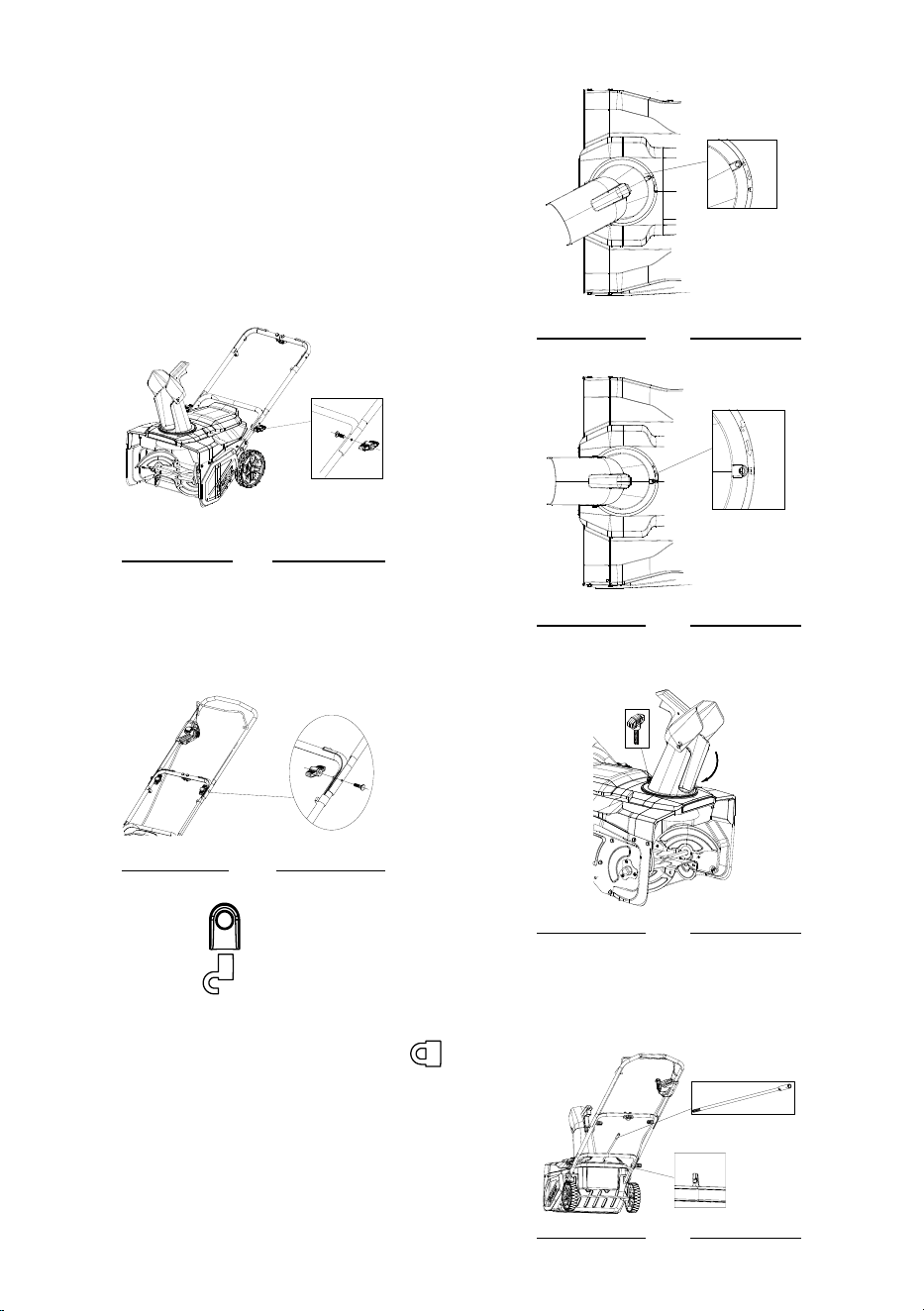

ASSEMBLING

For easy assembly, the snow blower comes

equipped with most of the parts already

connected. In just a few simple steps, your

snow blower will be ready to go.

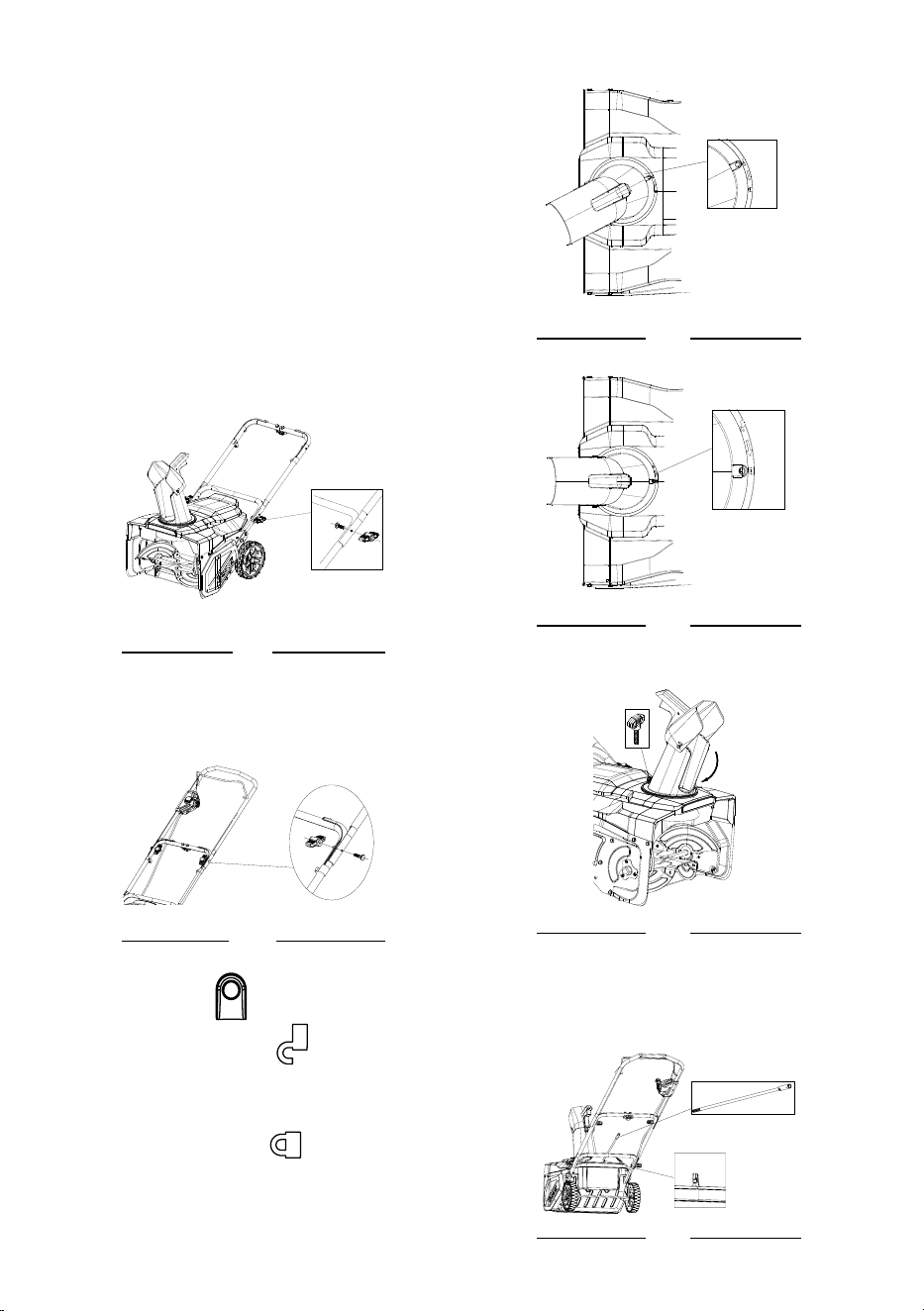

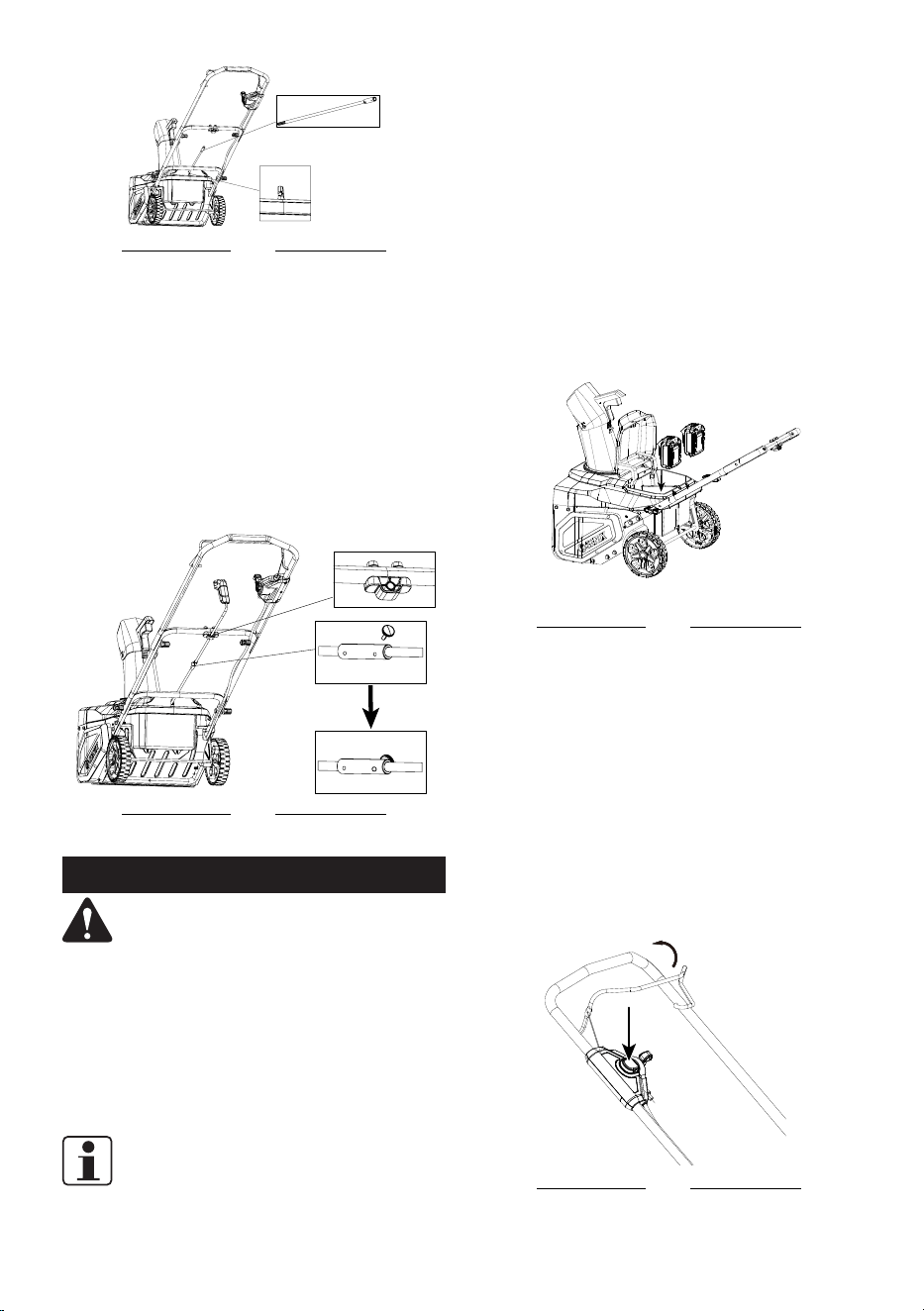

1. Secure the connection of the middle handle

assembly to the lower handle using 2

handle knobs and 2 bolts and tighten them

on each side.

Fig. 1

2. Secure the connection of the middle handle

assembly to the upper handle using 2

handle knobs and 2 bolts and tighten them

on each side.

Fig. 2

3. Align the sign " " on the discharge chute

with the sign " " on the chute housing.

Rotate the discharge chute in the direction

indicated by the arrow on the chute

housing until it is aligned with the sign "

". Push the discharge chute into position

and tighten the discharge chute screws to

lock the discharge chute.

Fig. 3

Fig. 4

Fig. 5

4. Insert the lower control rod into the hole in

the back of the housing firmly until it snaps

into place.

Fig. 6

9 - EN

WWW.SENIXTOOLS.COM

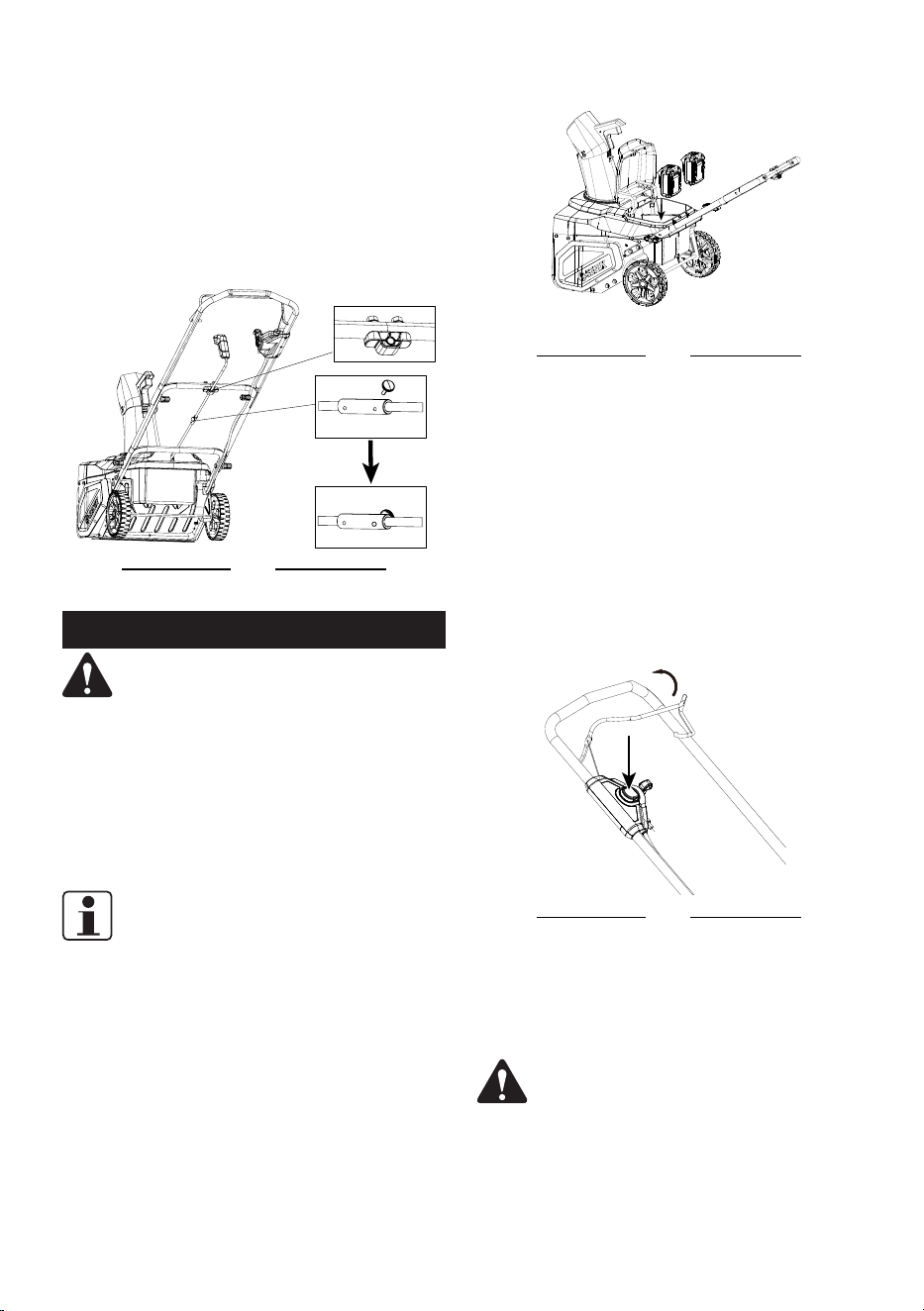

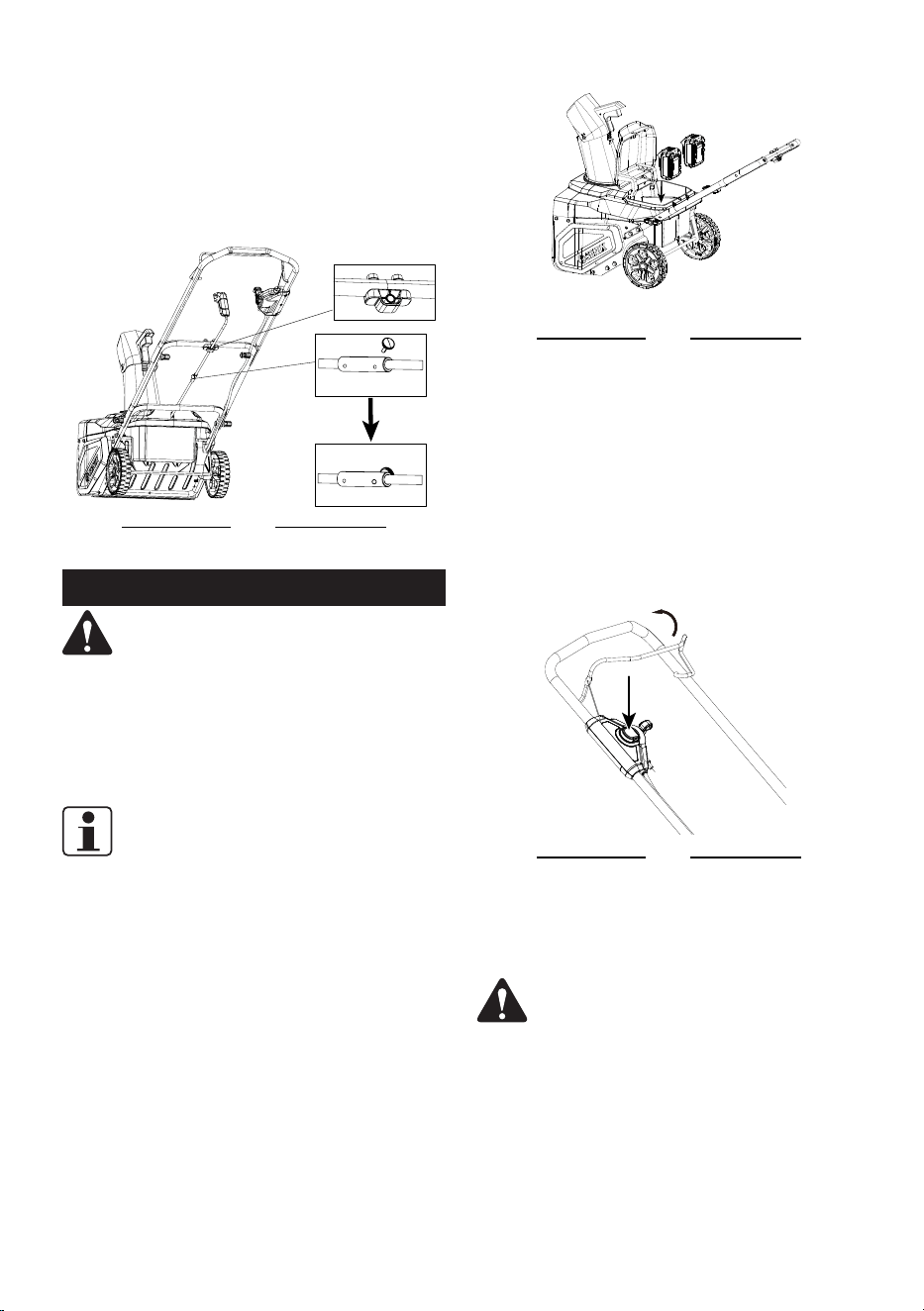

5. Ensure that the handle of the chute

control rod points upward. Insert the upper

control rod through the hole in the bracket

attached to the middle handle and connect

the upper control rod with the lower by

using a retaining bolt. Make sure the bolt is

tightened as shown so that the upper and

the lower control rod are connected firmly.

Fig. 7

OPERATION

WARNING:

Keep the area to be cleared free of stones,

toys or other foreign objects that the rotor

blades might pick up and throw. Such items

could be covered by snow and are easy to

overlook, so be sure to conduct a thorough

inspection of the area before beginning work.

NOTE:

Before using this machine, make sure that the

snow blower’s roll shaft and rubber plates are

rmly secured with screws, and the rubber

plates are facing the correct direction.

Perform a test run to ensure that the rotor

turns freely.

STARTING THE MACHINE

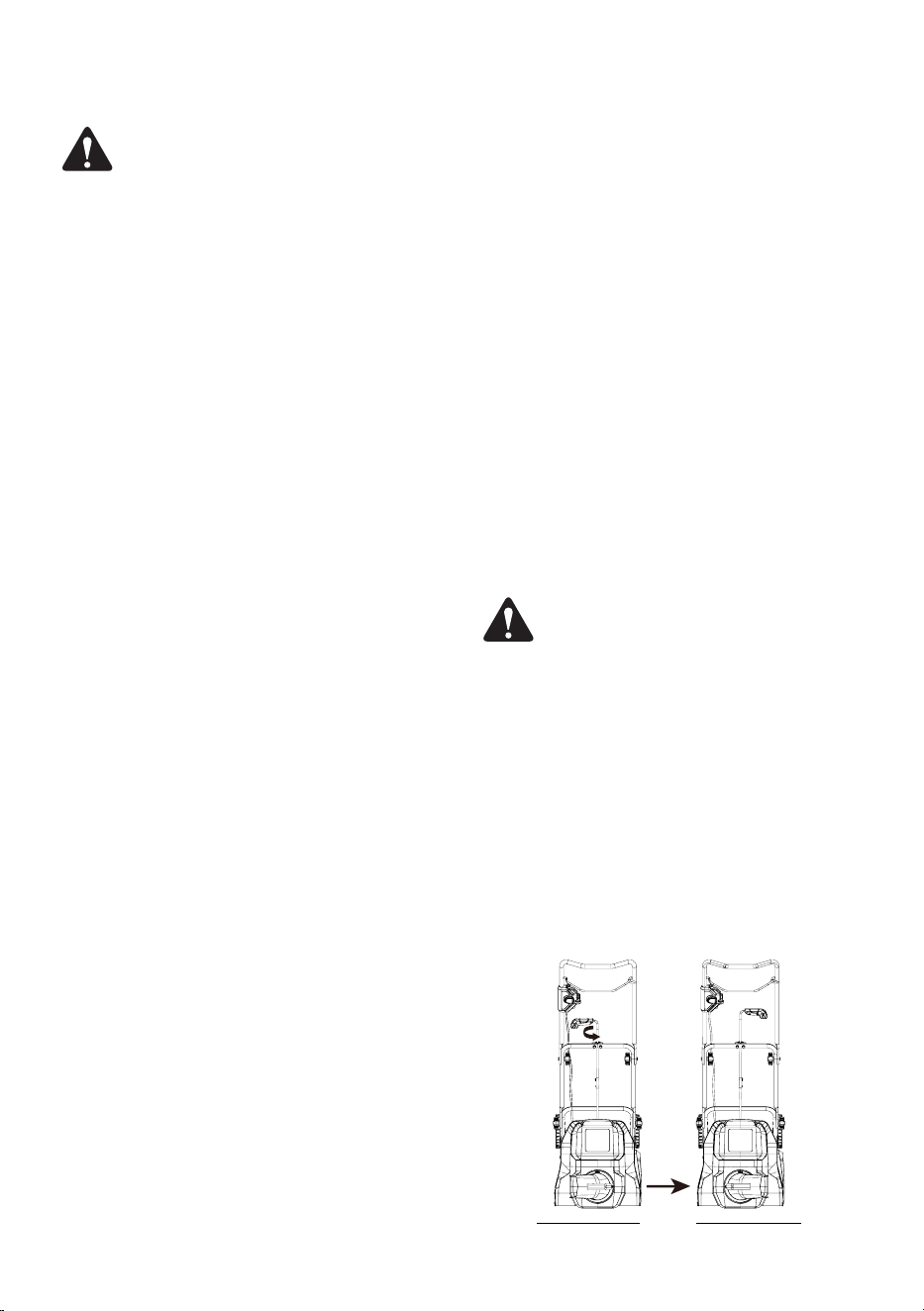

1. Open the battery compartment cover and

slide two batteries down until it clicks to

lock them into position.

Fig. 8

2. While depressing the safety switch button,

pull the ON/OFF switch lever toward you.

Once the machine powers on, release the

safety switch button and begin operation.

The machine can only be started by

depressing the safety switch button first

and then squeezing the ON/OFF switch

lever; reverse operation will not start the

machine.

Fig. 9

3. To power off, release your grip on the ON/

OFF switch bar lever.

OPERATING TIPS

WARNING:

Foreign objects, such as rocks, broken glass,

nails, wire, or string, can be picked up and

thrown by the snow blower, causing serious

personal injury. Remove all foreign objects

from the area to be plowed before operating

the snow blower.

1. Keep the area of operation free of foreign

objects that can become thrown by

the rotor blades. Perform a thorough

inspection of the area since some

EN - 10

WWW.SENIXTOOLS.COM

objects may be hidden from view by

surrounding snow. If the snow blower hits

an obstruction or picks up a foreign object

during use, stop the snow blower, remove

the battery, remove the obstruction, and

inspect the unit for damage. Repair or

replace any damaged part before restarting

and operating the unit.

2. Keep children, pets, and bystanders away

from the area of operation. Be aware that

the normal noise of the machine when

turned on may make it difficult for you to

hear approaching people.

3. When moving the snow blower, use the

wheels on one side as the pivot point.

Slightly tilt the snow blower on this pivot

point to move it forward or backward.

4. Start your clearing path outward, throwing

snow in a back and forth motion. To clear

in the opposite direction, pivot the snow

blower on its wheels. Make sure to overlap

clearing paths.

5. Note the wind direction. If possible, move in

the same direction as the wind so that the

snow is not thrown against the wind (and

thus back into your face and on the just

cleared path).

6. Do not push the snow blower with

excessive force. You should push the

machine gently and evenly in accordance

with the unit’s throw rate.

7. Do not apply additional man-made load

to the motor since this may cause motor

damage.

8. Some parts of the snow blower may freeze

under extreme temperature conditions. Do

not attempt to operate the snow blower

with frozen parts. If the parts freeze while

the snow blower is in use, stop the snow

blower, remove the battery, and inspect for

frozen parts. Free all parts before restarting

or operating the snow blower. Never force

controls that have frozen.

9. When working on pebbles, gravel, or

unpaved surfaces, avoid throwing loose

surface material along with the snow by

pushing down on the handle to raise the

scraper at the base of the unit above the

pebbles or gravel.

10. The LED light will be activated immediately

when the machine is started.

CHANGING THROW

DIRECTION + THROW

HEIGHT + THROW SPEED

WARNING:

Never direct the snow discharge chute at

the operator, at bystanders, at vehicles, or at

nearby windows. The discharged snow and

foreign objects accidentally picked up and

thrown by the snow blower can cause serious

damage and personal injury. Always orient the

discharge chute in the opposite direction from

where the operator, bystanders, surrounding

vehicles, or windows are located.

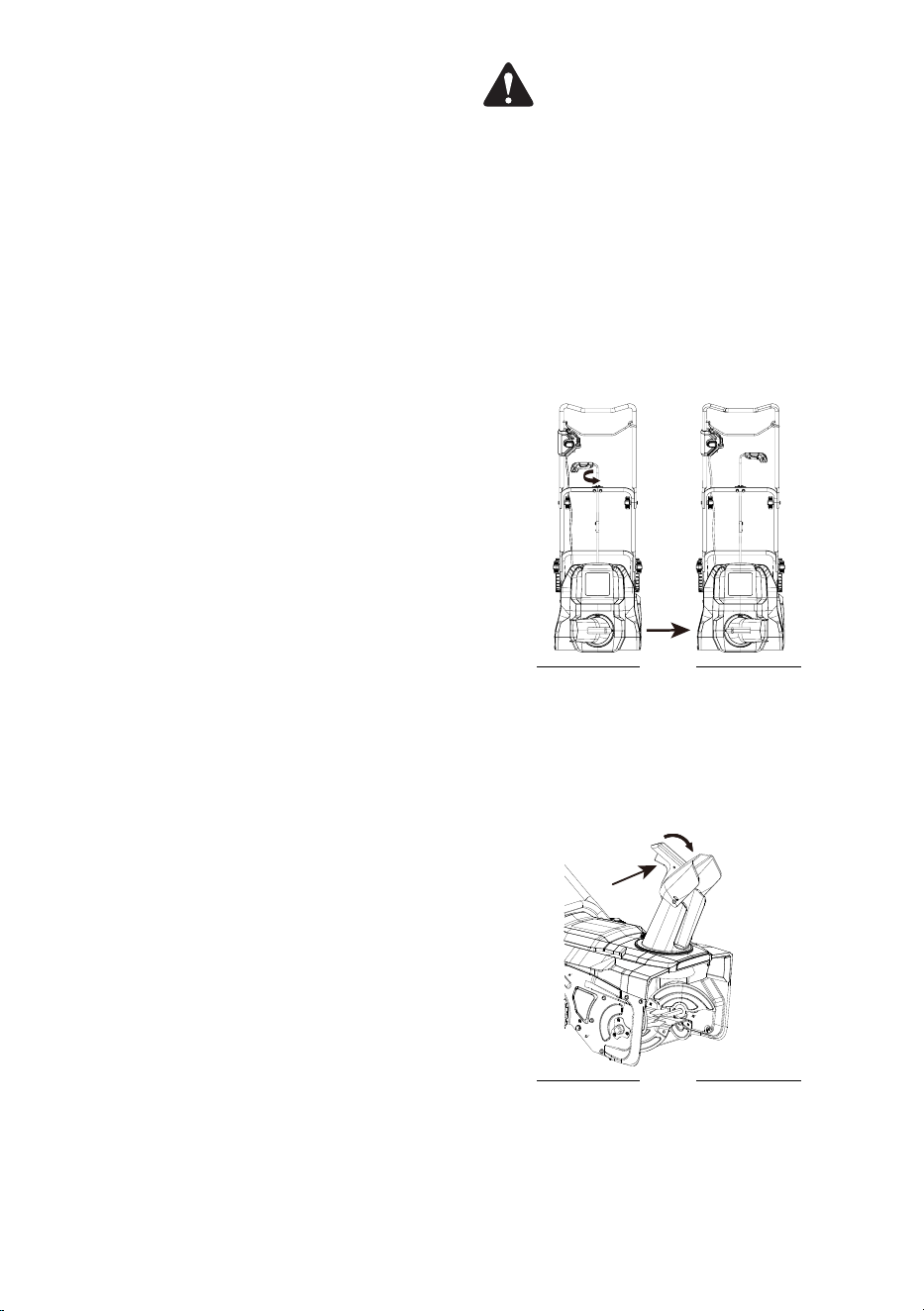

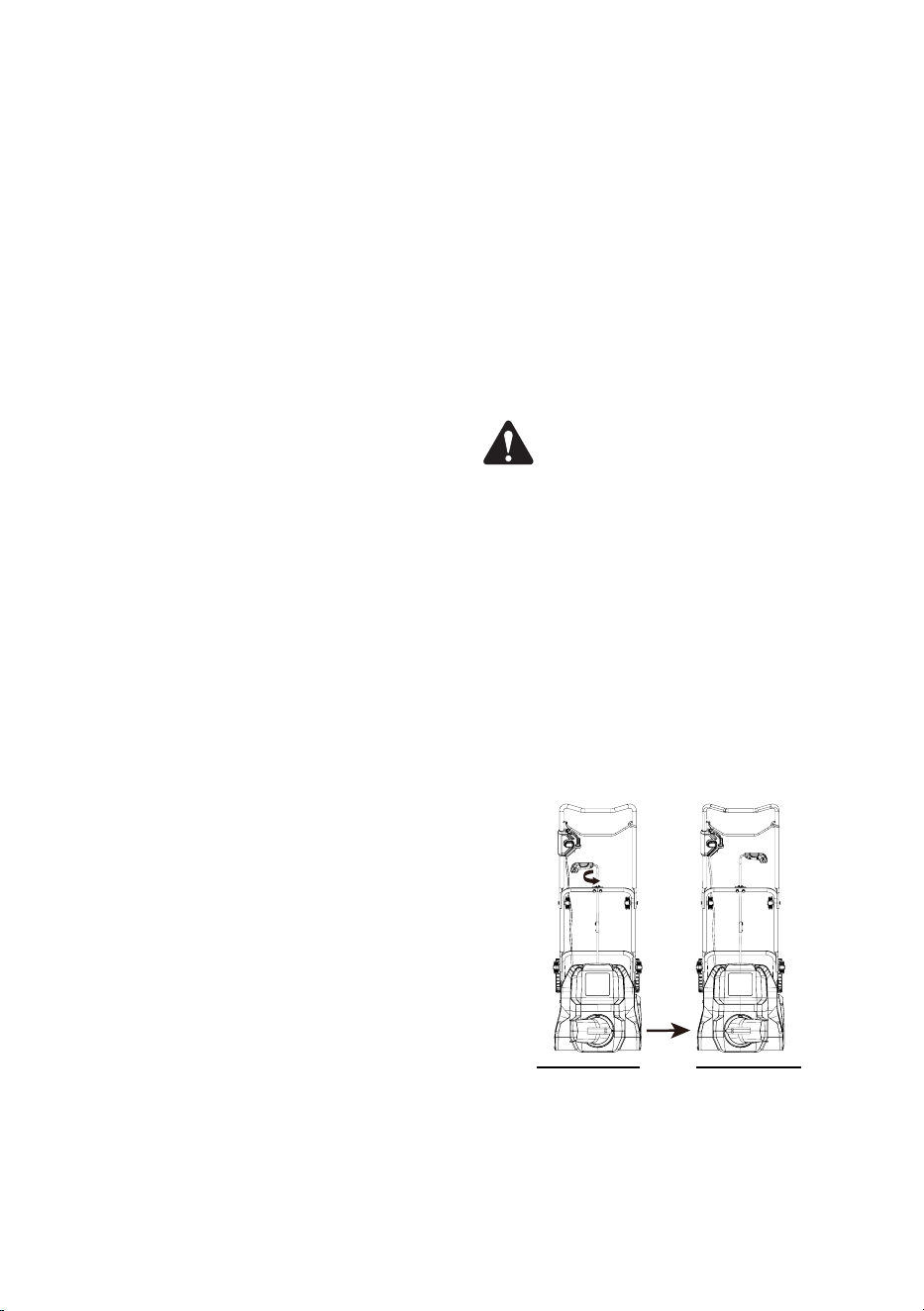

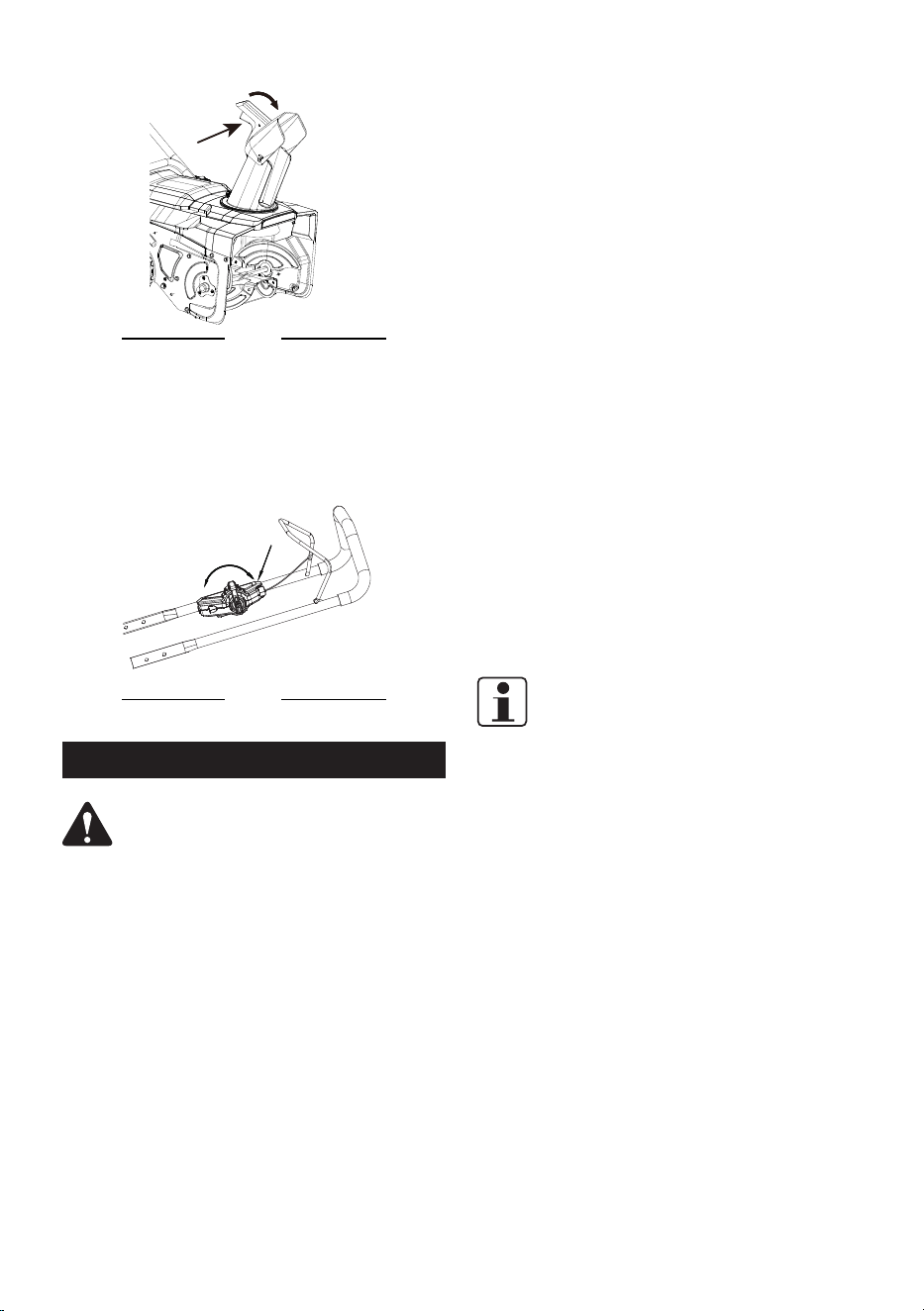

1. The discharge chute can be controlled 180

degrees by rotating the handle of chute

control rod.

Fig. 10

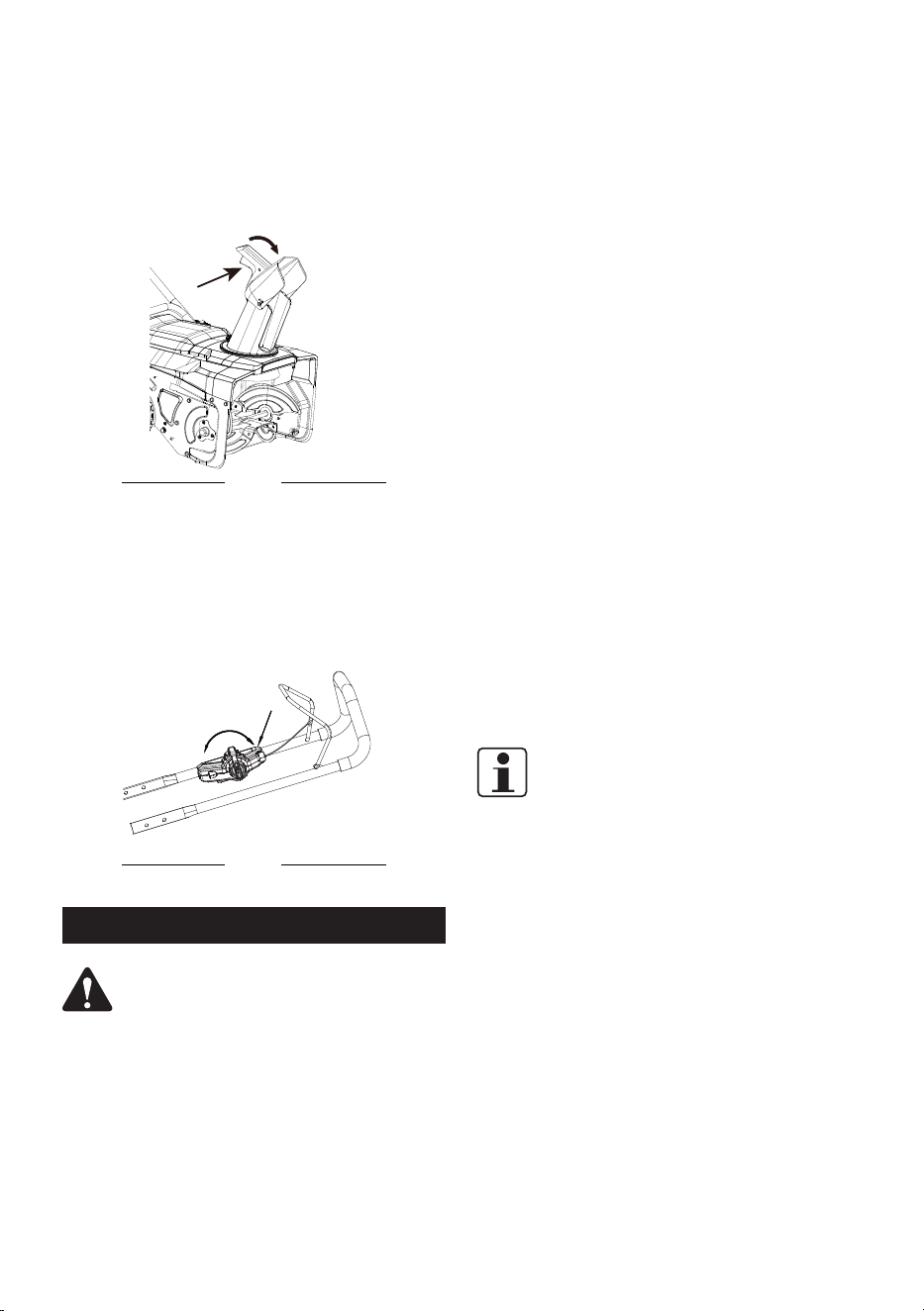

2. The chute deflector on the top of the

discharge chute controls the height of the

snow stream. Squeeze the trigger to raise

or lower the deflector to the desired height

of snow you wish to throw.

Fig. 11

3. The speed control lever controls the snow

removal and throwing speed of the snow

blower. Pull or push the lever to make the

snow blower work at the desired spped.

11 - EN

WWW.SENIXTOOLS.COM

Fig. 12

MAINTENANCE

WARNING:

Make sure to turn o the switch and remove

the battery pack before performing any

maintenance task on your snow blower.

LIFETIME LUBRICATION

(MOTOR + AUGER)

Lubrication is not necessary and may damage

the unit. The snow blower is lubricated for

lifetime use at the factory before shipment.

GENERAL MAINTENANCE

TIPS

1. Do not attempt to repair the machine

unless you have the proper tools and

instructions for disassembly and repair of

the machine.

2. Check bolts and screws at frequent

intervals for proper tightness to ensure

that the equipment is in safe working

condition.

3. After each snow removal session, run the

snow blower for a few minutes to prevent

the collector/ impeller from freezing. Shut

off the motor, wait for all revolving parts

to stop completely, and wipe residual ice

and snow off the unit. Rotate the chute

deflector by the remote switch several

times to remove any excess snow.

CLEANING THE CLOGGED

CHUTE

1. Never use your hand to clean out the chute.

Failure to follow these instructions can

result in serious personal injury.

2. Make 10 seconds to be sure the auger has

stopped rotating.

3. Always use a chute clean tool.

NOTE:

Do not use chemical, alkaline, abrasive or

other aggressive detergents or disinfectants

to clean this product as they might be harmful

to its surfaces.

TRANSPORTATION

1. Only carry by its handle/grip area.

2. Protect from any heavy impact or strong

vibrations which may occur during

transportation.

3. Secure to prevent it from slipping or falling

over.

STORAGE

1. Examine the cordless snow blower

thoroughly for worn, loose or damaged

parts.

2. Clean the snow blower before storing or

transporting. Be sure to secure the unit

while transporting.

3. Remove the battery and the safety key

from the cordless snow blower before

storing.

4. The recommended storage temperature for

tools and the battery pack is 50°F(10°C)-

80°F(26°C).

5. Store the cordless snow blower indoors

in a locked, dry place out of the reach of

children to prevent unauthorized use or

damage.

DISPOSAL

Waste product should not be disposed of with

household waste. Please recycle where facilities

exist. Check with your local authority or retailer

for recycling advice. Users should clean up dust

generated during operation to protect environment.

Electrical products should not be

discarded with household products.

Used electrical products must be

collected separately and disposed

of at collection points provided for

this purpose. Talk with your local

authorities or dealer for advice on

recycling.

EN - 12

WWW.SENIXTOOLS.COM

TROUBLESHOOTING

Suspected malfunctions are often due to causes that the users can x themselves. Therefore,

check the product using this section. In most cases the problem can be solved quickly.

PROBLEM POSSIBLE CAUSE SOLUTION

The handle is not in

position.

The handle is not installed

properly.

Make sure the bolts are correctly

installed through the handle bars.

Check to see if the hand knobs

are tight. Refer to this manual to

assemble the handle.

Product does not start.

Battery pack discharged. Charge the battery pack.

Battery pack is too cold.

Remove the battery pack from

the product. Place the battery

pack on charger and allow it to

charge for 10 minutes. Remove

the battery pack from charger.

and install it in for use.

The battery pack is not attached

to the motor.

Check the connection between

the motor connector and the

battery pack.

Battery pack is damaged. Replace with a new battery pack.

The switch is defective.

[email protected]

The motor is on, but the

auger does not turn.

The belt is damaged.

[email protected]

WARRANTY

SENIX TOOLS LIMITED WARRANTY

FOR FIVE YEARS from the date of original purchase this product is warranted against defects in material or

workmanship. WITH PROOF OF ORIGINAL PURCHASE a defective product will receive free repair. If the product

cannot be repaired it will be replaced free of charge.

For details to obtain warranty coverage, visit www.senixtools.com, email senix.support@yatusa.com

or call 1-800-261-3981.

• This warranty does not cover repairs necessary due to product accident or abuse, or failure to operate or

maintain the product according to all supplied instructions.

• This warranty does not cover an included battery pack or charger, which offer three-year, replacement-only

coverage. See battery pack or charger instruction manuals for complete warranty details.

• This warranty does not cover expendable items that can wear out from normal use within the warranty

period, including but not limited to drill bits, cutting blades and trimmer spool or line.

• This warranty does not apply to damage resulting from repairs to the product made or attempted by other

than SENIX authorized agents.

• This warranty does not cover the cost of mailing or transporting the power tool to receive warranty

coverage.

• The warranty is void if the product has been used for commercial, professional, or rental service purposes.

• The warranty applies to the original retail purchaser and is not transferable.

• Proof of purchase is required to obtain warranty coverage.

THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGE.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental

or consequential damages, so these limitations may not apply to you. This warranty gives you specic legal rights

and you may have other rights which vary in certain states or provinces.

NOTE: Battery pack warranty voided if the battery pack is tampered with in any way. SENIX is not responsible for

any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90-DAY MONEY-BACK GUARANTEE

If for any reason within 90 days from the date of original purchase you are not completely satised with the

performance of this SENIX product, you can return it with the original sales receipt for a full refund.

Latin America: This warranty does not apply to products sold in Latin America. For products sold in Latin America,

see the country-specic warranty information contained in the packaging, call the retailer from which it was

purchased, or visit the website for warranty information.

Free warning label replacement: If your warning labels become illegible or are missing, call 1-800-261-3981 for a

free replacement.

Thank you for your purchase! Register your product now for:

Warranty Service: Registering your product will help you obtain more ecient warranty service in case of a problem

with your product.

Conrmation of Ownership: In case of an insurance loss, such as re, ood, or theft, your ownership registration

will serve as proof of purchase.

For your safety: Registering your product will allow us to contact you in the unlikely event a safety notication is

required under the Federal Consumer Safety Act.

YAT USA INC. 10506 Bryton Corporate Center Dr, #500 Huntersville, NC 28078

For customer support, please call 1-800-261-3981 or email us at senix.support@yatusa.com

13 - EN

WWW.SENIXTOOLS.COM

WARRANTY

SENIX TOOLS LIMITED WARRANTY

FOR FIVE YEARS from the date of original purchase this product is warranted against defects in material or

workmanship. WITH PROOF OF ORIGINAL PURCHASE a defective product will receive free repair. If the product

cannot be repaired it will be replaced free of charge.

For details to obtain warranty coverage, visit www.senixtools.com, email [email protected]
