SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
48-22-8586

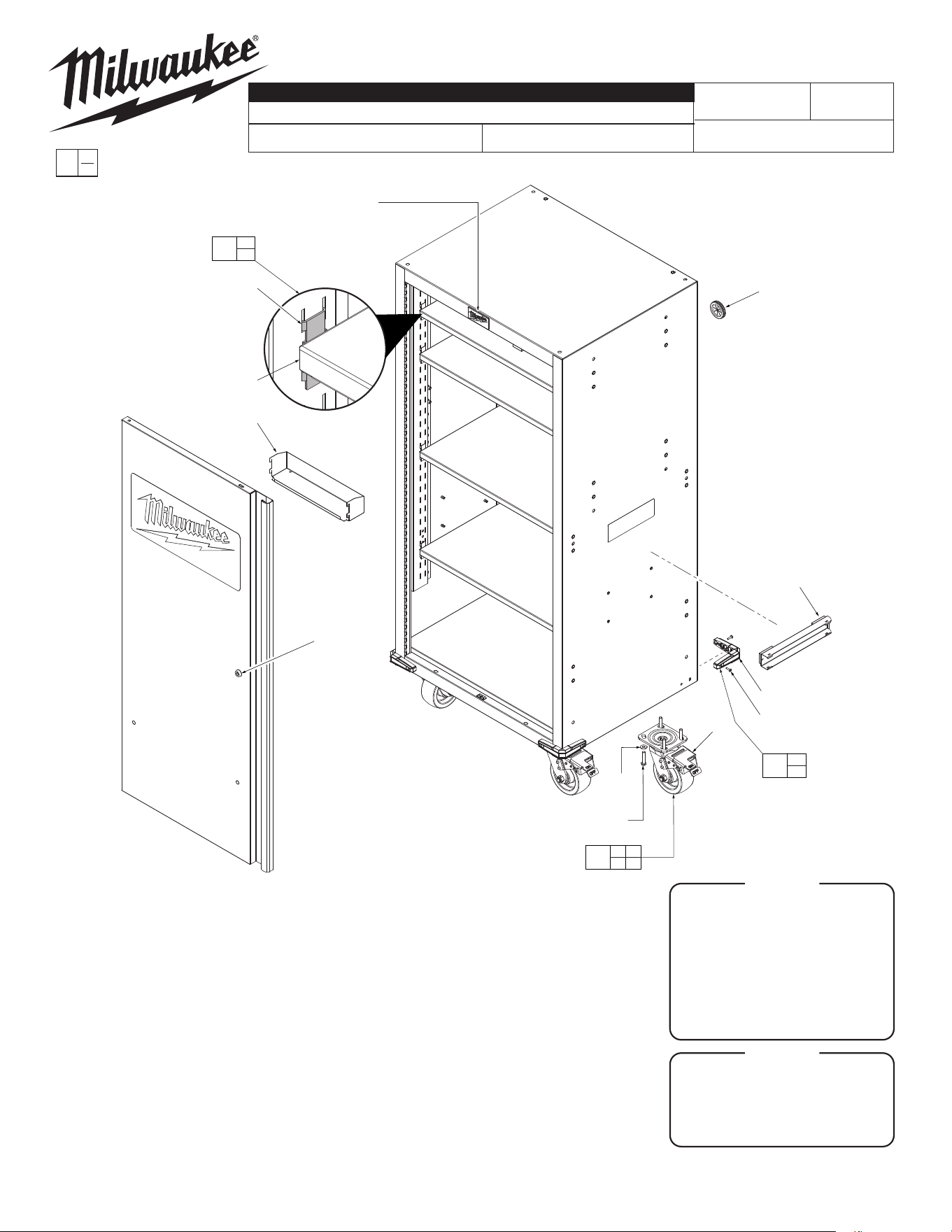

27" HIGH CAPACITY STEEL LOCKER
March 2023
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-1331 Storage Bin (1)
2 14-38-8586 Locker Magnetic Power Strip Holder (1)
3 --------------- Shelf (1)
4 14-46-1339 Shelf Clips (Set of 4) (4)
5 --------------- Caster (4)
6 --------------- Bolt (16)
7 --------------- Washer (16)
8 --------------- Spanner (Not Shown) (1)
9 --------------- Cord Holder (Not Shown) (2)
10 --------------- Bolt (Not Shown) (4)
11 --------------- Rubber Corner Bumper (4)
12 --------------- Bolt (4)
13 --------------- Rubber Grommet (1)
14 14-46-1643 Key / Lock Set (1)
15 14-46-1334 Shelf w/ Hanging Hooks (1)
16 14-46-1335 Caster Kit (Set of 2) (1)
17 14-46-1645 Cord Holder Kit (Set of 2) (Not Shown) (1)
18 42-38-0269 Rubber Bumper Kit (Set of 2) (1)
19 14-46-1342 6 Outlet Power Strip Kit (Not Shown) (1)
20 31-01-8559 Steel Storage Logo Badge (1)
21 14-46-1341 Red Plastic Plug Set (Not Shown) (1)
M15A
l14-46-1337
Hardware Kit
--------------- M4 x 16mm Bolt (8)
---------------
5.5 x 12mm Tapping Screw
(13)
--------------- M4 x 12mm Bolt (4)
--------------- 5.5 Tapping Screw (4)
--------------- M6 x 24mm Bolt (2)
--------------- Washer (4)
--------------- M5 Nut (2)
--------------- Washer (2)
--------------- M6 x 16mm Bolt (8)
--------------- Washer (8)
l14-46-1336
Anti Tip Bracket Kit
--------------- Anti Tip Cable (2)
--------------- M6 x 24mm Bolt (2)
--------------- Washer (4)
--------------- D-Ring (2)
--------------- 5.5 Tapping Screw (4)
4
3
1
2
11
12
x2
13
14
5
7
x4
6
x4
15
3
4
20
16
5 6
7 8
18
11
12
