54-49-8555
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

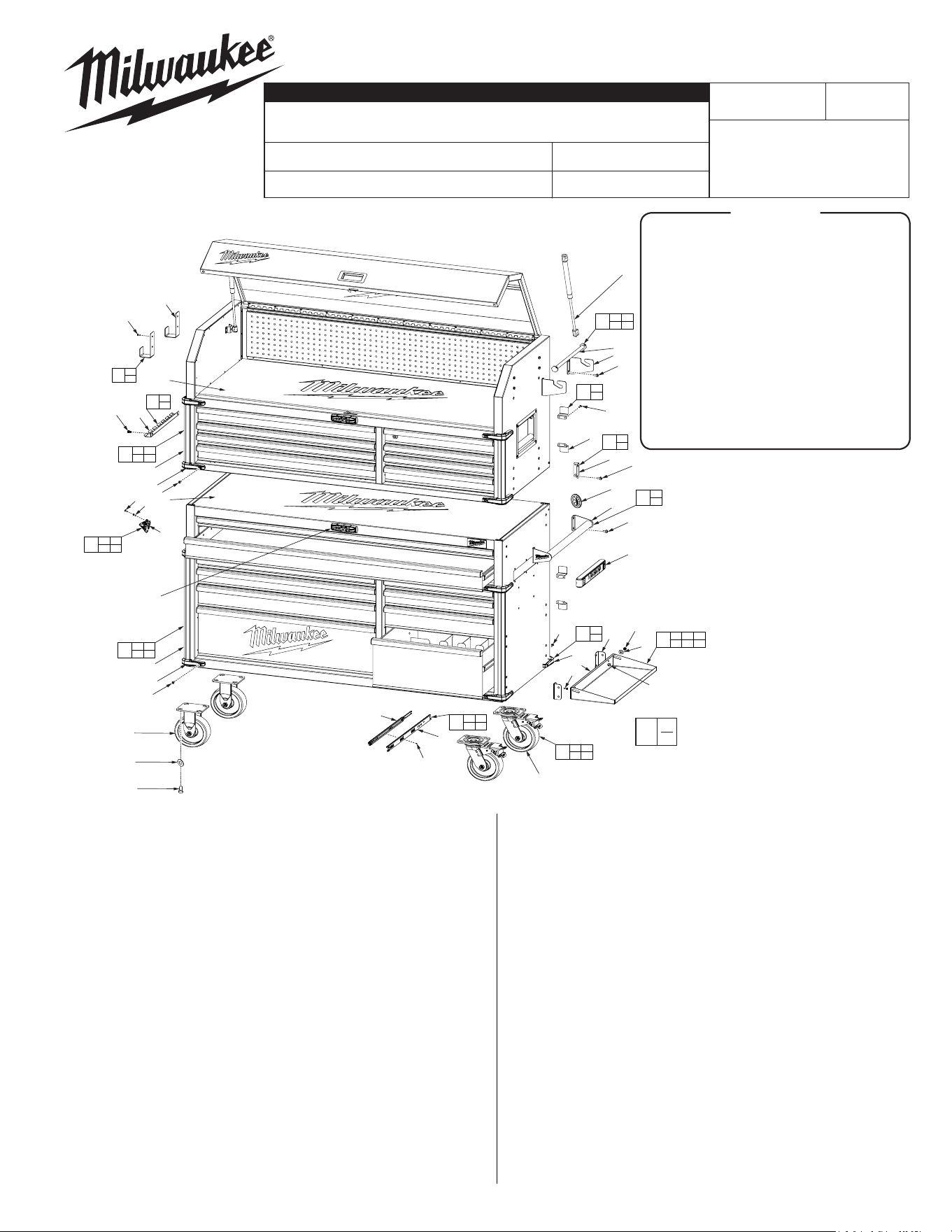

Drwg. 2
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
4x
1
2x
2
3 4
5
4
5
3
4x
6
7
8
7
8
9
10
11
8x
10
11
12
4x
4x
13
14
15
14
15
2x
16
4x
17
18
19
18
19
4x
2x
2x
2x
2x
21
22
23
24
25
26
20
21 22 23
24 25 26
27
28 33
34 35
2x
28
29
30 31
32
30
31
32
33
34
35
16x
16x
2x
36
37 38
39
37
38
39
8x
4x
2x
40
2x
2x
41
42 43
44
42
43
44
46
47 48
49
47
48
49
8x
4x
2x
2x
50
51
52
52
51
45
53
4x
55
56
54
55
56
2x
2x
12x
48-22-8557
56" HIGH CAPACITY STEEL STORAGE
CHEST & CABINET COMBO
Jan. 2019
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CHEST CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-1661 Chest Lid Gas Lift (Set of 2) (1)
2 14-46-1653 Paper Towel Holder Kit (1)
3 --------------- Paper Towel Holder Rod (1)
4 --------------- Paper Towel Holder Bracket (2)
5 --------------- Screw M6 x 12L (4)
6 14-46-1645 Cord Storage Bracket Kit (2)
7 --------------- Screw M4 x 12L (8)
8 --------------- Cord Storage Bracket (4)
9 14-46-1305 Bracket Kit (Set of 2) (1)
10 --------------- Bracket (2)
11 --------------- Screw M4 x 12L (8)
12 22-90-0105 Cord Grommet (Set of 4) (1)
13 14-46-1648 Side Handle Kit (1)
14 --------------- Side Handle (1)
15 --------------- Bolt M6 x 16L (4)
16 14-46-1641 Power Strip (2)
17 42-38-0269 Rear Bumper Kit (Set of 2) (1)
18 --------------- Screw M4 x 16L (4)
19 --------------- Rear Bumper (2)
20 14-46-1651 Storage Shelf Kit (1)
21 --------------- Bolt M6 x 16L (4)
22 --------------- Storage Shelf (1)
23 --------------- Storage Shelf Bracket (2)
24 --------------- Nut M6 (2)
25 --------------- Washer (2)
26 --------------- Bolt M6 x 8.5L (2)
27 14-46-1649 Caster Kit (Set of 4) (1)
28 --------------- Swivel Caster with Brake (2)
29 14-46-1662 Drawer Slide Kit (Set of 2) (1)
30 --------------- Outer Drawer Slide (2)
31 --------------- 5/32" Pop Rivet (12)
32 --------------- Inner Drawer Slide (2)
33 --------------- Bolt M8 x 18L (16)
FIG. NOTES
16 A second Power Strip is located on the inside of the top chest.
CABINET CATALOG NO.
48-22-8558
SERIAL
NUMBER
J83A
J82A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
34 --------------- Washer 19 x 8.5 x 2 (16)
35 --------------- Rigid Caster (2)
36 42-38-0267 Cabinet Corner Bumper/Extrusion Kit (1)
37 --------------- Corner Guard (2)
38 --------------- Corner Bumper (4)
39 --------------- Screw M4 x 16L (8)
40 14-46-1658 Digital Lock Kit (Set of 1) (2)
41 48-22-8599 Bottle Opener Kit (1)
42 --------------- Bottle Opener (1)
43 --------------- Screw M6 x 20L (2)
44 --------------- Screw M6 x 16L (2)
45 42-38-0157 Cabinet Mat (1)
46 42-38-0266 Chest Corner Bumper/Extrusion Kit (1)
47 --------------- Screw M4 x 16L (8)
48 --------------- Corner Bumper (4)
49 --------------- Corner Guard (2)
50 14-46-1625 Tool Storage Hanger Kit (1)
51 --------------- Bolt M6 x 16L (2)
52 --------------- Tool Storage Hanger (1)
53 42-38-0147 Chest Mat (1)
54 14-46-1652 Utility Hook Kit (1)
55 --------------- Screw M6 x 12L (4)
56 --------------- Utility Hook (2)
12-20-0108 Chest Service Nameplate (Not Shown) (1)
12-20-0109 Cabinet Service Nameplate (Not Shown) (1)
12-25-1814 Electrical Label (Not Shown) (1)
58-95-0190 Chest Drawer Liner Kit (Set of 8) (Not Shown) (1)
58-95-0195 Cabinet Drawer Liner Kit (Set of 10) (Not Shown) (1)
NOTE: See page 2
for drawer slide removal
and installation.
l14-46-1659
Hardware Kit
5 --------------- Screw M6 x 12L (4)
7 --------------- Screw M4 x 12L (8)
11 --------------- Screw M4 x 12L (8)
15 --------------- Bolt M6 x 16L (4)
18 --------------- Screw M4 x 16L (4)
21 --------------- Bolt M6 x 16L (4)
24 --------------- Nut M6 (2)
25 --------------- Washer (2)
26 --------------- Bolt M6 x 8.5L (2)
33 --------------- Bolt M8 x 18L (16)
34 --------------- Washer 19 x 8.5 x 2 (16)
39 --------------- Screw M4 x 16L (8)
44 --------------- Screw M6 x 16L (2)
47 --------------- Screw M4 x 16L (8)
51 --------------- Bolt M6 x 16L (2)
55 --------------- Screw M6 x 12L (4)
-- --------------- Charger Mounting
Screw M4 x 12L (4)

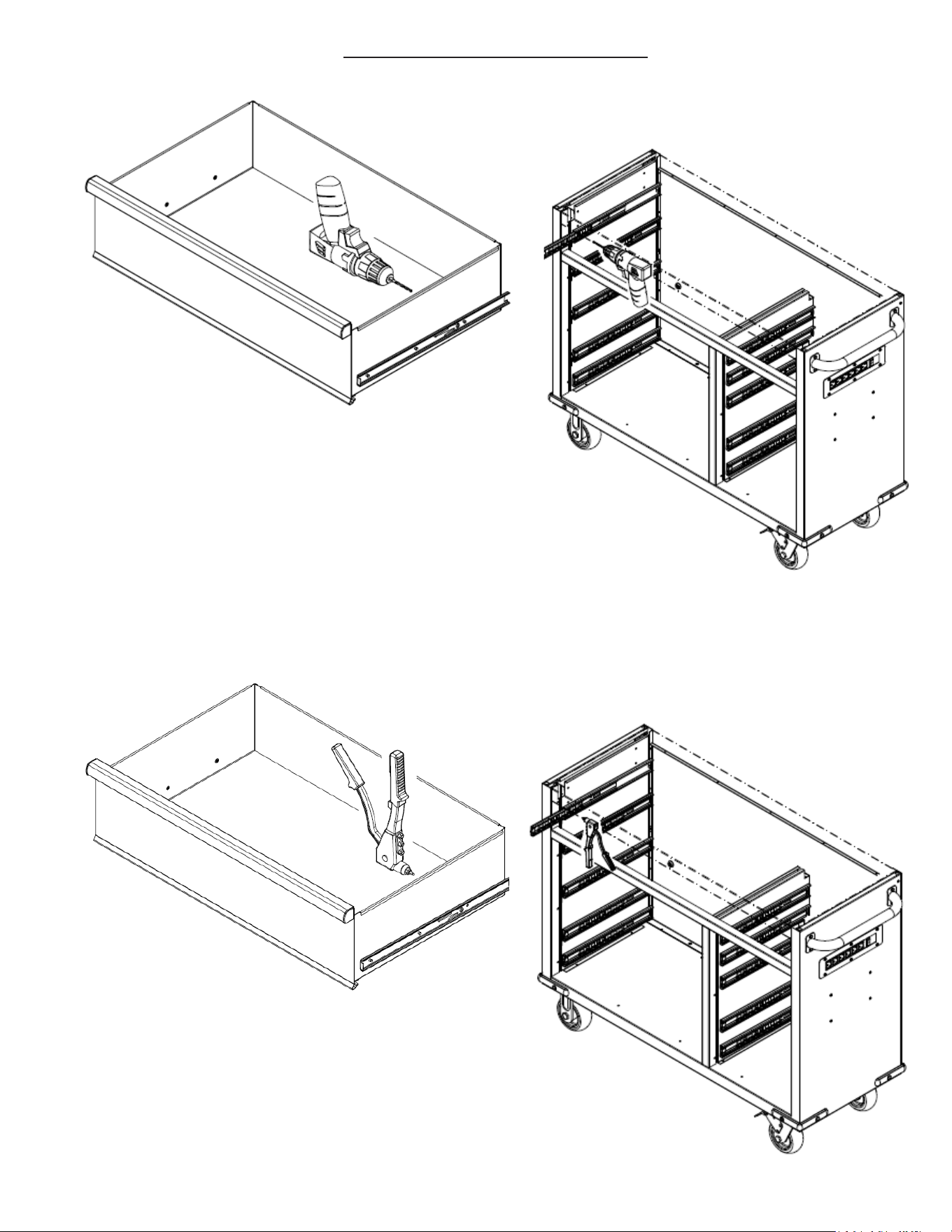

To remove drawer slide, remove rivets (31) from the inner
slide (32) and outer slide (30) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (32) into position and
insert rivets (31) by using a rivet gun. Repeat steps for outer
slide (30).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
