54-49-0295
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

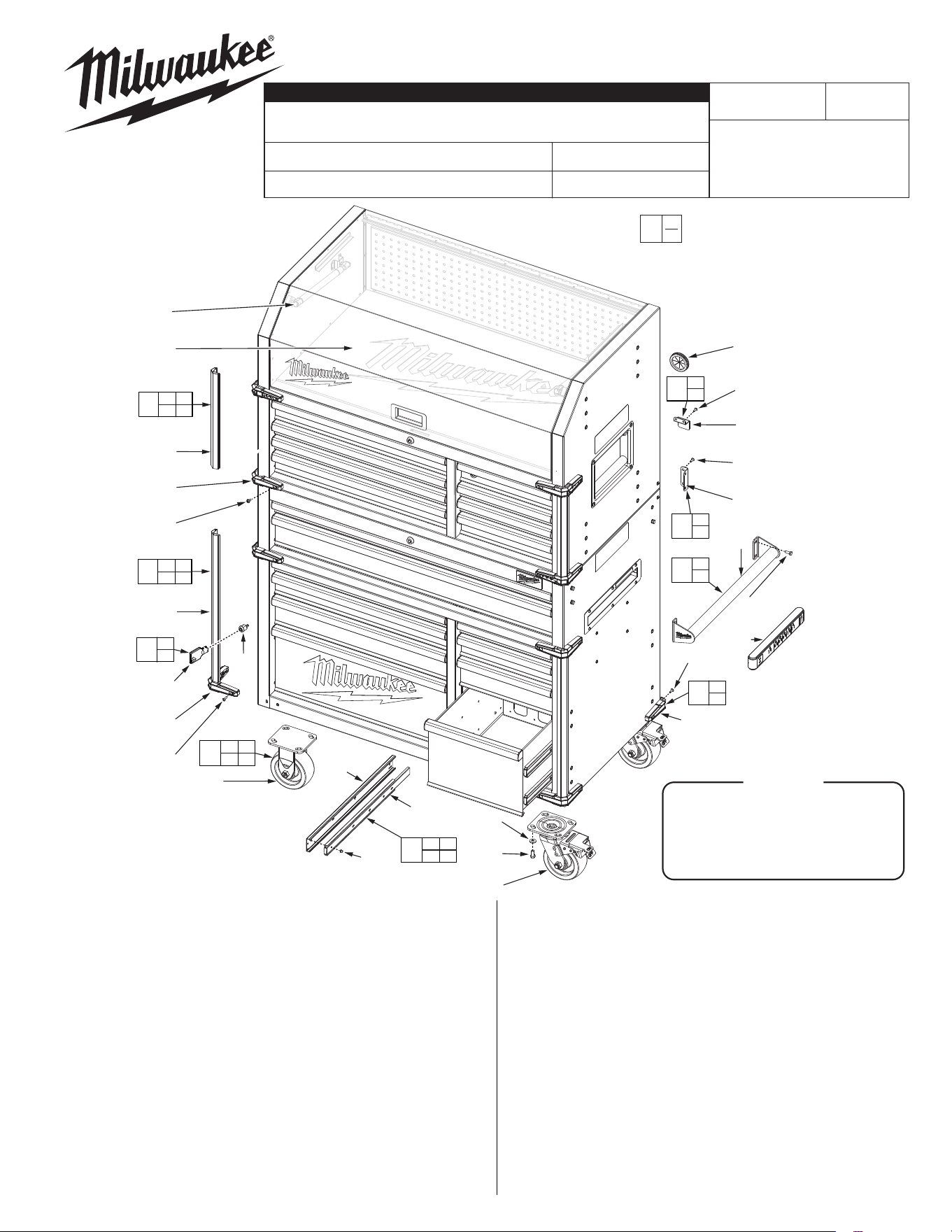

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
48-22-8547
41" HIGH CAPACITY STEEL STORAGE
CHEST & CABINET COMBO
March 2023
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CHEST CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NO.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-8447 Chest Lid Gas Lift (Set of 2) (1)
2 22-90-0105 Cord Grommet (Set of 1) (1)
7 14-46-1645 Cord Storage Bracket Kit (2)
8 --------------- Screw M4 x 12L (4)
9 --------------- Cord Storage Bracket (4)
10 14-46-1305 Bracket Kit (Set of 2) (1)
11 --------------- Bracket (1)
12 --------------- Screw M4 x 12L (8)
13 14-46-1648 Side Handle Kit (1)
14 --------------- Side Handle (1)
15 --------------- Bolt M6 x 16L (4)
16 14-46-1641 Power Strip w/USB (2)
24 14-46-1642 Drawer Slide Kit (Set of 2) (1)
25 --------------- Outer Drawer Slide (2)
26 --------------- 5/32" Pop Rivet (12)
27 --------------- Inner Drawer Slide (2)
28 14-46-1245 Caster Kit (Set of 4) (1)
29 --------------- Rigid Caster (2)
30 --------------- Washer M8 (16)
31 --------------- Bolt M8 x 18L (16)
32 --------------- Swivel Caster with Brake (2)
33 14-46-1255 Key/Lock Kit (Set of 3) (1)
34 --------------- Key (3)
35 --------------- Lock (3)
36 42-38-0271 Corner Bumper/Extrusion Kit (1)
37 --------------- Corner Guard (2)
FIG. NOTES
7 A second Cord Storage Bracket is located on the lower cabinet.
16 A second Power Strip is located on the inside of the top chest.
CABINET CATALOG NO.
48-22-8548
STARTING
SERIAL NO.
M12A
M13A
38 --------------- Corner Bumper (6)
39 --------------- Screw M4 x 16L (12)
45 42-38-0266 Corner Bumper/Extrusion Kit (1)
46 --------------- Corner Guard (2)
47 --------------- Corner Bumper (4)
48 --------------- Screw M4 x 16L (8)
49 42-38-0269 Rear Bumper Kit (1)
50 --------------- Screw M4 x 16L (4)
51 --------------- Rear Bumper (2)
52 42-38-8547 Chest Mat (1)
53 12-20-0108 Chest Service Nameplate (Not Shown) (1)
12-20-0109 Cabinet Service Nameplate (Not Shown) (1)
12-25-1814 Electrical Label (Not Shown) (2)
58-95-8547 Chest Drawer Liner Kit (Set of 8) (Not Shown) (1)
58-95-8548 Cabinet Drawer Liner Kit (Set of 10) (Not Shown) (1)
NOTE: See page 2
for drawer slide removal
and installation.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
l14-46-1675
Hardware Kit
8,12 --------------- Screw M4 x 12L (20)
15 --------------- Bolt M6 x 16L (4)
30 ---------------
Washer 19 x 8.5 x 2
(16)
31 --------------- Bolt M8 x 18L (16)
48,50 --------------- Screw M4 x 16L (20)
1
2x
2x
2
8
9
11
12
50
51
14
15
16
32
30
31
25
26
27
29
34
35
37
38
39
8x
46
47
48
52
4x
2x
7
8
9
10
11
12
13
14
15
49
50
51
8x
4x
2x
2x
12x
2x
24
25 26
27
2x
16x
16x
28
29 30
31 32
3x
3x
3x
33
34
35
6x
12x
36
37 38
39
2x
4x
45
46 47
48
2x
4x

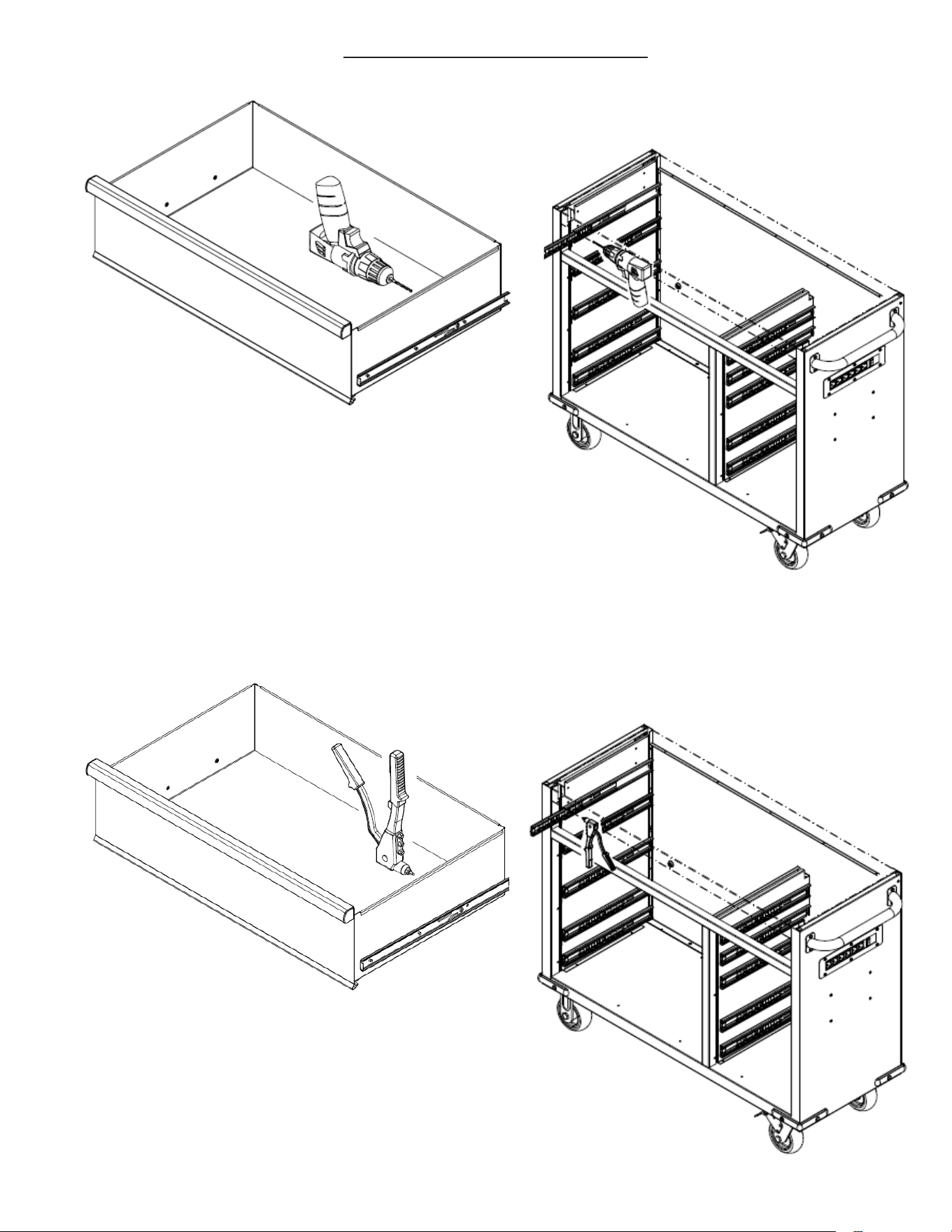

To remove drawer slide, remove rivets (26) from the inner
slide (27) and outer slide (25) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (27) into position and
insert rivets (26) by using a rivet gun. Repeat steps for outer
slide (25).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
