54-49-0290
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

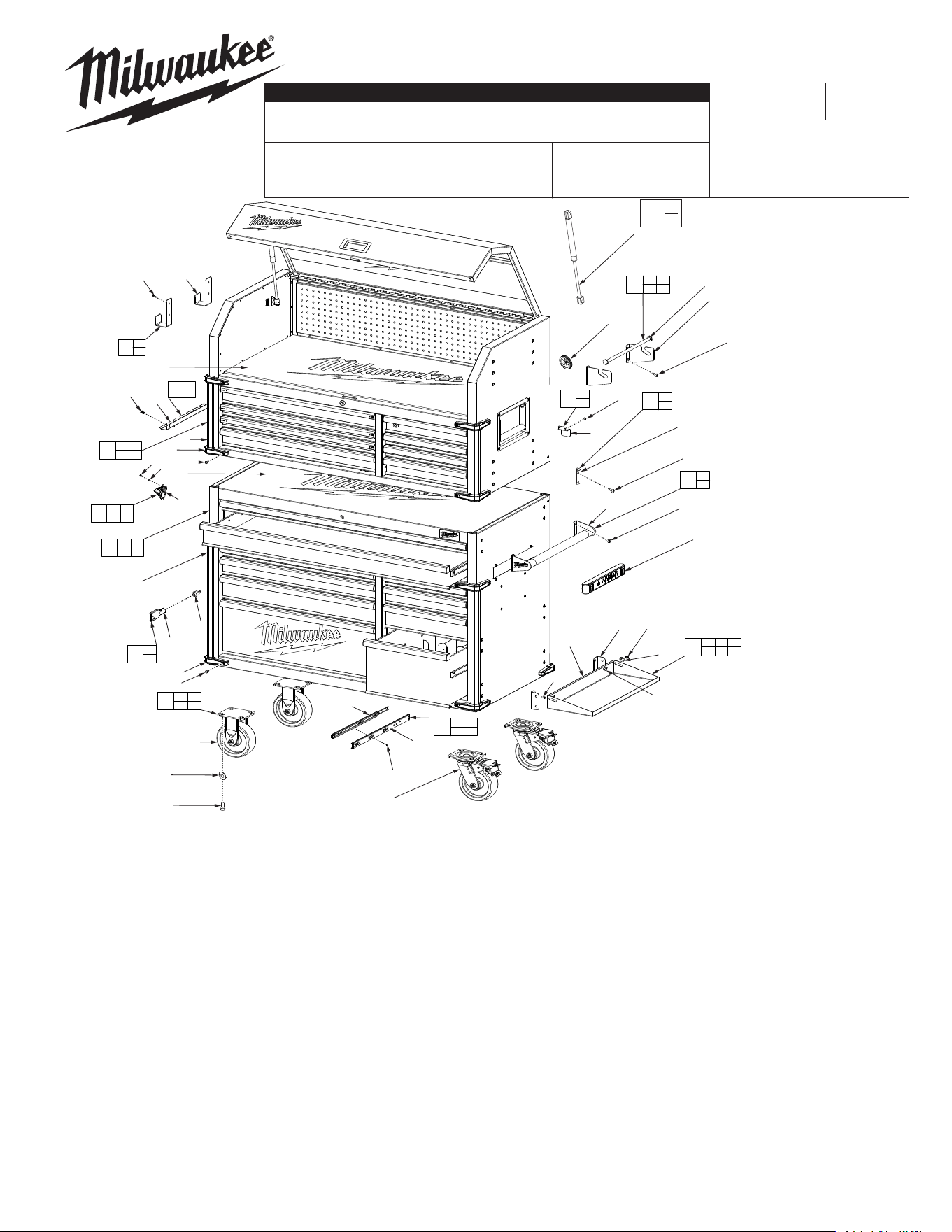

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
3x
3x
4x
2x
16x
16x
2x
12x
2x
4x
3
4 5
6
2x
7
8
9
10
11
12
8x
13
14
15
2x
2x
2x
2x
4x
17
18 19 20
21 22 23
2x
24
25 26
27
28
29 30
31 32
4x
33
34
35
36
37 38
39
6x
12x
2x
2x
2x
40
41 42
43
45
46 47
48
4x
1
2x
8x
2x
2
4
5
6
8
9
11
12
14
15
16
18
19
20
21
22
23
32
25
26
27
31
30
29
34
35
37
38
39
41
42
43
44
8x
46
47
48
2x
49
50
51
50
51
52
54
55
53
54
55
48-22-8541
46" HIGH CAPACITY STEEL STORAGE
CHEST & CABINET COMBO
Nov. 2017
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CHEST CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-1646 Chest Lid Gas Lift (Set of 2) (1)
2 22-90-0105 Cord Grommet (Set of 4) (1)
3 14-46-1653 Paper Towel Holder Kit (1)
4 --------------- Paper Towel Holder Rod (1)
5 --------------- Paper Towel Holder Bracket (2)
6 --------------- Screw M6 x 12L (4)
7 14-46-1645 Cord Storage Bracket Kit (2)
8 --------------- Screw M4 x 12L (8)
9 --------------- Cord Storage Bracket (4)
10 14-46-1305 Bracket Kit (Set of 2) (1)
11 --------------- Bracket (2)
12 --------------- Screw M4 x 12L (8)
13 14-46-1648 Side Handle Kit (1)
14 --------------- Side Handle (1)
15 --------------- Bolt M6 x 16L (4)
16 14-46-1641 Power Strip (2)
17 14-46-1651 Storage Shelf Kit (1)
18 --------------- Storage Shelf (1)
19 --------------- Storage Shelf Bracket (1)
20 --------------- Nut M6 (2)
21 --------------- Washer (2)
22 --------------- Bolt M6 x 8L (2)
23 --------------- Bolt M6 x 16L (4)
24 14-46-1642 Drawer Slide Kit (Set of 2) (1)
25 --------------- Outer Drawer Slide (2)
26 --------------- 5/32" Pop Rivet (12)
27 --------------- Inner Drawer Slide (2)
28 14-46-1649 Caster Kit (1)
29 --------------- Rigid Caster (2)
30 --------------- Washer M8 (16)
31 --------------- Bolt M8 x 12L (16)
32 --------------- Swivel Caster with Brake (2)
33 14-46-1255 Key/Lock Kit (Set of 3) (1)
FIG. NOTES
7 A second Cord Storage Bracket is located on the lower cabinet.
16 A second Power Strip is located on the inside of the top chest.
CABINET CATALOG NO.
48-22-8542
SERIAL
NUMBER
J28A
J29A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
34 --------------- Key (3)
35 --------------- Lock (3)
36 42-38-0267 Corner Bumper/Extrusion Kit (1)
37 --------------- Corner Guard (2)
38 --------------- Corner Bumper (6)
39 --------------- Screw M4 x 16L (12)
40 48-22-8599 Bottle Opener Kit (1)
41 --------------- Screw M6 x 20L (2)
42 --------------- Bolt M6 x 16L (2)
43 --------------- Bottle Opener (1)
44 42-38-0156 Cabinet Mat (1)
45 42-38-0266 Corner Bumper/Extrusion Kit (1)
46 --------------- Corner Guard (2)
47 --------------- Corner Bumper (4)
48 --------------- Screw M4 x 16L (8)
49 14-46-1625 Tool Storage Hanger Kit (1)
50 --------------- Bolt M6 x 16L (2)
51 --------------- Tool Storage Hanger (1)
52 42-38-0146 Chest Mat (1)
53 14-46-1652 Utility Hook Kit (1)
54 --------------- Screw M6 x 12L (4)
55 --------------- Utility Hook (2)
12-25-1814 Electrical Label (Not Shown) (2)
58-95-0086 Chest Drawer Liner Kit (Set of 8) (Not Shown) (1)
58-95-0096 Cabinet Drawer Liner Kit (Set of 10) (Not Shown) (1)
NOTE: See page 2
for drawer slide removal
and installation.

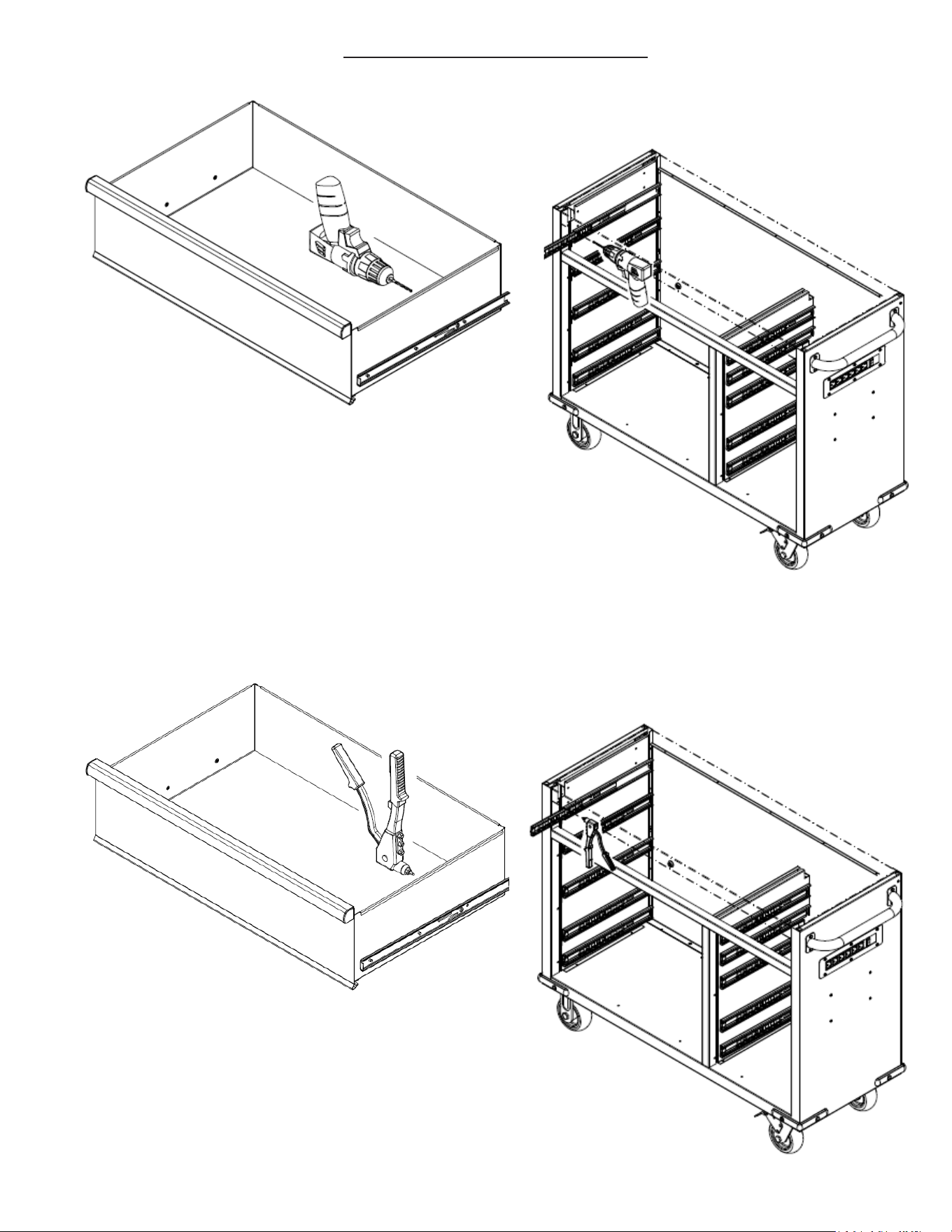

To remove drawer slide, remove rivets (26) from the inner
slide (27) and outer slide (25) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (27) into position and
insert rivets (26) by using a rivet gun. Repeat steps for outer
slide (25).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
