3975-20
M18™ 200' Mid-Sti Pipeline Inspection Reel
Aug. 2024
54-07-2955
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
P89A
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005

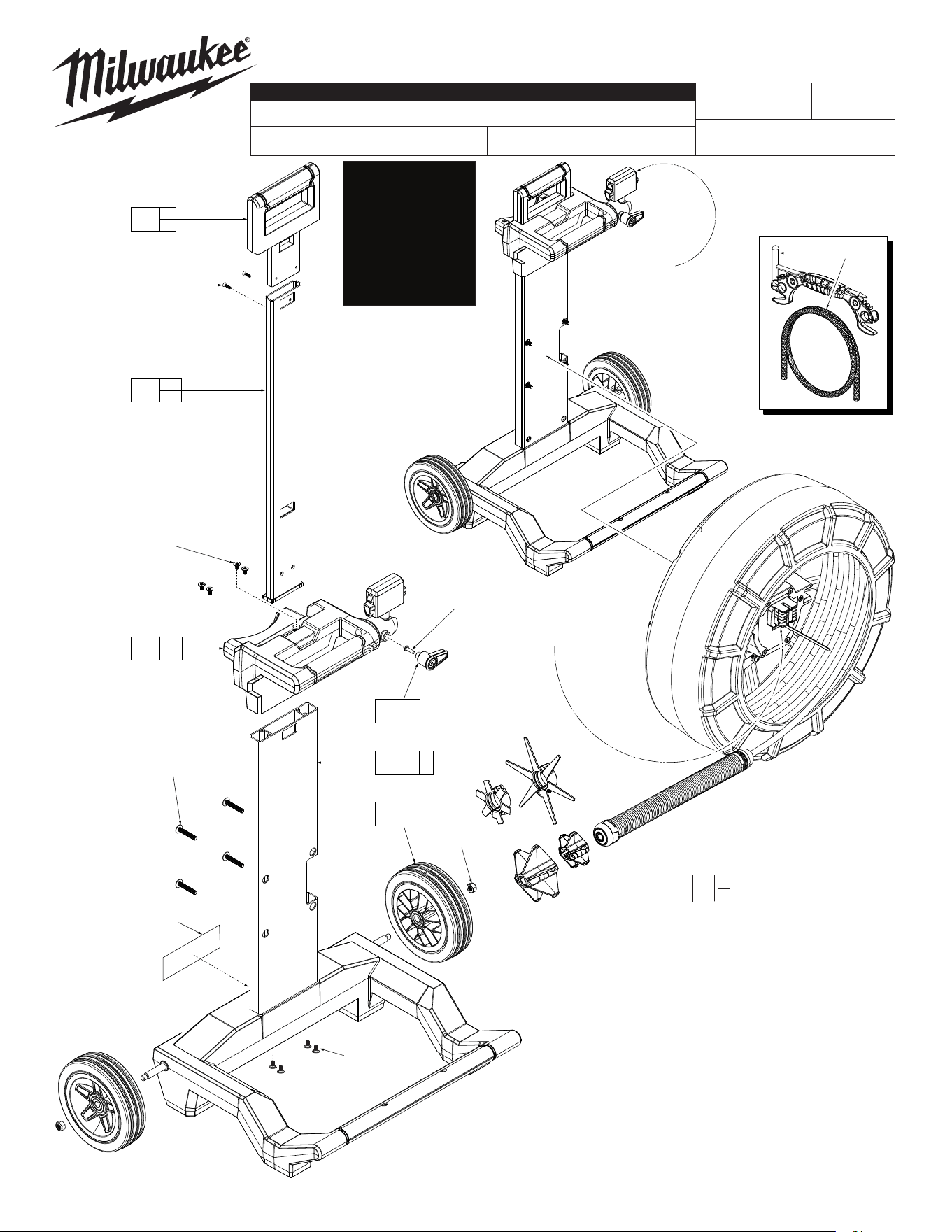

Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-89-0545 M4 x 6mm T-20 Shoulder Screw (8)
4 06-57-0655 M8 Nylock Hex Nut (2)
12 06-82-5583 M3.5 x 13mm Flat Hd. T-15 Screw (2)
17 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
42 05-78-2204 Mount Screw Wedge (1)
99 12-20-0466 Service Nameplate (1)
200 31-44-6061 Large Handle Service Kit (1)
201 14-34-0182 Telescoping Handle Service Kit (1)
202 14-74-0125 Small Reel Base Service Kit (1)
203 31-70-0106 Wheel Svc Kit with Bearings (Set of 1) (2)
208 28-10-0120 Reel Monitor Clamp Knob Service Kit (1)
212 23-94-0052 Ground Wire Stake Service Kit
(1)
213 --------------- Top Handle Service Kit (1)
12
213
213
201
1
208
200
42
208
4
203
12
(2x)
1
(4x)
17
(4x)
99
42
4
1
(4x)
1 17
99
202
212
Monitor
Attaches Here
Smart Hub
Attaches Here

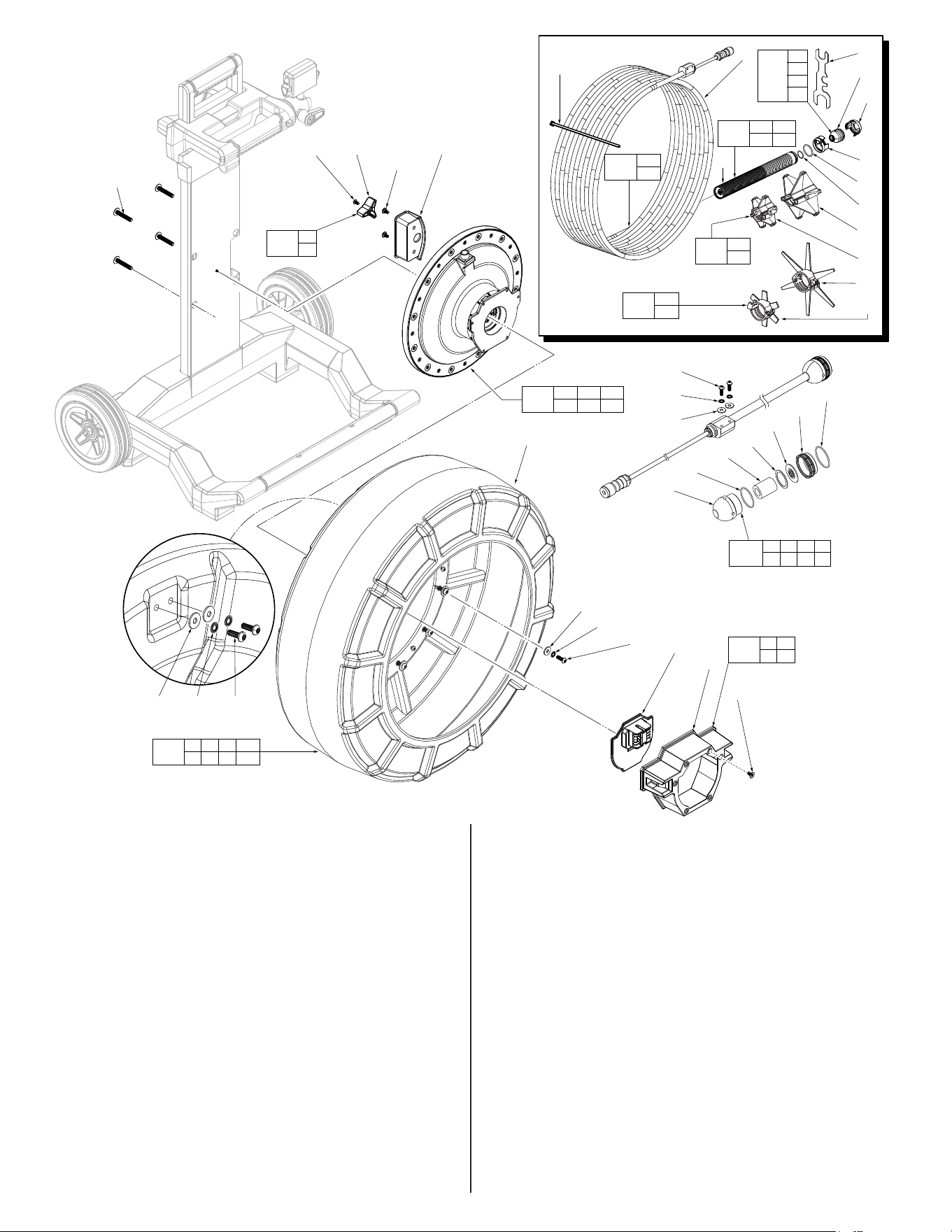

See page two for service parts
breakdown regarding the
Small Reel Drum/Camera
Cable System
For Smart Hub
2970-20:
Refer to Service
Bulletin 54-07-2900
For Monitor
2971-20:
Refer to Service
Bulletin 54-07-2905
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-89-0545 M4 x 6mm T-20 Shoulder Screw (8)
5a 34-40-0221 O-Ring (1)
5b --------------- Spring Body (1)
5c --------------- Circuit Board (1)
5d --------------- Foam (1)
5e --------------- Coil (1)
5f --------------- O-Ring (1)
5g --------------- Housing (1)
17 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
48 31-06-2010 Hub Mount Skirt (1)
49 --------------- Hub Mount Garn Base (1)
51 05-83-0008 M4 x 12mm Pan Hd. T-20 Screw (2)
54 06-97-3703 M4 Flat Washer (2)
55 06-97-3704 M4 Internal Tooth Lock Washer (2)
56 05-83-0008 M4 x 12mm Pan Hd. T-20 Screw (2)
57 --------------- Drum-Small (1)
58 06-97-3703 M4 Flat Washer (2)
59 06-97-3704 M4 Internal Tooth Lock Washer (2)
61 05-83-0006 M5 x 16mm Pan Hd. T-25 Screw (12)
62 06-97-3702 M5 Internal Tooth Lock Washer (12)
63 06-97-3700 M5 Flat Washer (12)
88 --------------- Brake Cover (1)
89 --------------- Brake Knob (1)
90 05-83-0009 M4 x 8mm Pan Hd. T-20 Screw (1)
94 --------------- Cable Camera 200' (1)
95 --------------- Quick Change Spring Attachment (1)
96 --------------- D25 Camera (1)
97 --------------- D25 Rear Sleeve (1)
98 --------------- D25 Front Sleeve (1)
100 23-78-0115 7.5" Cable Tie (3)
101 28-52-0012 Camera Head Wrench (1)
103 --------------- D25 Large Barrel Skid (1)
105 --------------- D25 Large Barrel Skid (1)
115 34-40-0224 O-Ring (1)
116 34-40-0223 O-Ring (1)
118 --------------- D25 Small Star Skid (1)
120 --------------- D25 Large Star Skid (1)
204 43-48-0021 D25 Skid and Sleeve Service Kit (1)
205 28-06-0031 Small Reel Counter Service Kit (1)
206 28-06-0029 Small Reel Hub Mount Service Kit (1)
207 43-11-0038 Small Drum Service Kit (1)
209 14-47-0043 Brake Knob Service Kit (1)
210 14-46-0795 200' Cable Camera/Drum Service Kit (1)
211 48-53-3973 D25 HDR Camera Service Kit (1)
215 14-46-0775 D25 Retermination Service Kit (1)
217 40-50-0271 Quick Change Spring Attachment Assy. (1)
218 42-96-0023 D25 Star Skid Service Kit (1)
63
(12x)
62
(12x)
61
(12x)
49
48
1
(6x)
57
17
(4x)
58
(2x)
59
(2x)
56
(2x)
95
88
90 89 1
(2)
89
90
209
96
97
98
101
211
1 48
49
206
56 57 58 59
61 62 63 100
207
1 17
85
206 209
205
5a 5b 5c 5d
5e 5f 5g
215
51(2x)
55(2x)
54(2x)
94100
(3x)
101
96
98
97
116
115
105
103
120
118
94
207
210
95 115
116
217
103
105
204
118
120
218
5a
5b
5c
5d
5e
5f
5g
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
