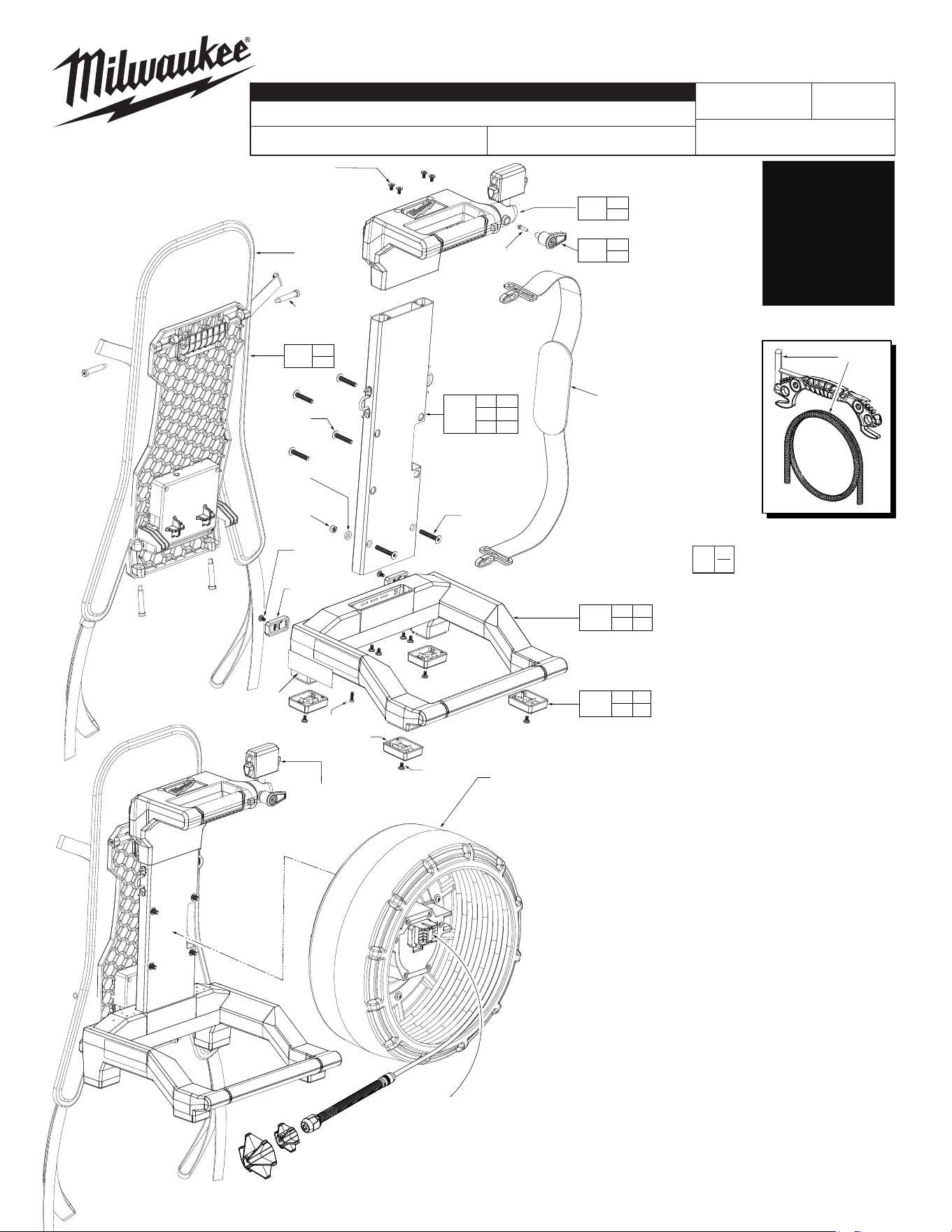

3972-20
M18™ 100' Flexible Pipeline Inspection Reel
Aug. 2024
54-07-2940
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
P86A
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-56-0021 Backpack Strap (1)
2 05-89-0545 M4 x 6mm T-20 Shoulder Screw (14)
3 05-88-0008 M5 x 0.8 T-25 Torx Screw (4)
10 05-78-2200 M4 x 14mm Tapping Screw (15)
14 06-57-0650 M8 Nylock Hex Nut (2)
15 06-97-3701 M6 Washer (2)
16 05-80-0531 M6 x 40mm T30 Torx Flat Hd Screw (2)
18 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
38 05-78-2204 Mount Screw Wedge (1)
109 12-20-0706 Service Nameplate (1)
111 31-15-0247 Bottom Base Foot (4)
112 31-15-0248 Back Base Foot (2)
116 48-08-0555 Carry Strap (1)
125 28-10-0120 Reel Monitor Clamp Knob Service Kit (1)
127 23-94-0052 Ground Wire Stake Service Kit
(1)
133 31-44-0248 Mini Reel Small Handle Service Kit (1)
134 14-46-0616 Mini Reel Base Service Kit (1)
137 14-46-0356 Base Feet Service Kit (1)
141 43-24-0129 Mini Frame Extrusion Service Kit (1)
142 43-11-0024 Mini Reel Backpack Service Assy. (1)
127
2
(8x)
18
(4x)
15
(2x)
3
(4x)
1
14
(2x)
112
(2x)
16
(2x)
2
(2x)
109
111
(4x)
10
(15x)
2
(4x)
2
125
133
38
116
38
125
1
3
142
Smart Hub
Attaches Here
Monitor
Attaches
Here
the Mini Reel Drum/Camera Cable System
2 10
14 15
16 18
141
2 111
112
137
109137
141
134

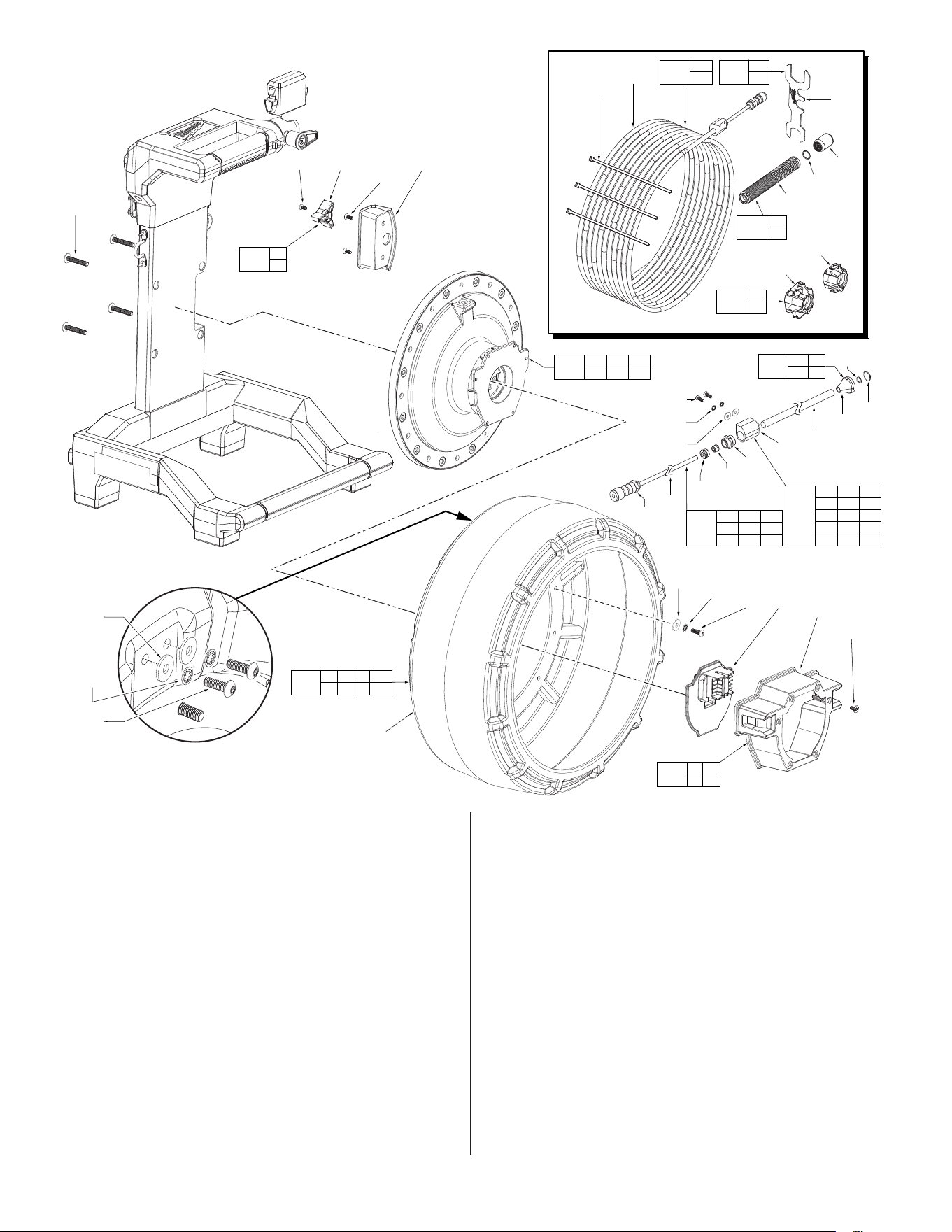

See page two for service parts breakdown regarding
For Smart Hub
2970-20:
Refer to Service
Bulletin 54-07-2900
For Monitor
2971-20:
Refer to Service
Bulletin 54-07-2905
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
2 05-89-0545 M4 x 6mm T-20 Shoulder Screw (8)
11a --------------- Connector (1)
11b --------------- D34/D25 cable (1)
11c --------------- Retainer Nut (1)
11d --------------- Cable Retainer (1)
11e --------------- Cable Outlet (1)
11f --------------- Terminal Block (1)
11g --------------- Pushrod (1)
11h --------------- Termination Housing (1)
11j --------------- O-ring (1)
11k --------------- Circuit Board (1)
18 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
44 --------------- Hub Mount Skirt (1)
45 --------------- Hub Mount Garn Base (1)
51 05-83-0008 M4 x 12mm Round Hd. T-20 Screw (2)
53 --------------- Mini Drum (1)
54 06-97-3703 M4 Flat Washer (2)
55 06-97-3704 M4 Internal Tooth Lock Washer (2)
57 05-83-0006 M5 x 16mm Round Hd. T-25 Screw (12)
58 06-97-3704 M5 Internal Tooth Lock Washer (12)
59 06-97-3700 M5 Flat Washer (12)
85 --------------- Brake Cover (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
86 --------------- Brake Knob (1)
87 05-83-0009 M4 x 8mm Round Hd. Screw (1)
90 --------------- Cable Camera 100' (1)
91 --------------- Quick Change Spring Attachment (1)
92 --------------- D25 Camera (1)
95 23-78-0115 7.5" Cable Tie (3)
96 28-52-0012 Camera Head Wrench (1)
98 --------------- Large Mini Camera Skid (1)
99 --------------- Small Mini Camera Skid (1)
110 34-40-0224 O-Ring (1)
126 14-47-0043 Brake Knob Service Kit (1)
128 14-46-0609 D25 Flex Skid Service Kit (1)
129 14-46-0610 Mini Reel Drum Service Kit (1)
130 14-46-0611 Mini Reel Counter Service Kit (1)
131 14-46-0612 Mini Reel Hub Mount Service Kit (1)
132 14-46-0453 D25 Dry End Retermination Service Kit (1)
135 14-46-0613 100' Cable Camera/Drum Service Kit (1)
136 48-53-3973 D25 HDR Camera Service Kit (1)
138 14-46-0606 D25 Flex Retermination Service Kit (1)
139 14-46-0607 D25 Flex Spring Attachment Service Kit (1)
140 14-46-0608 D25 Flex Test Cable Service Kit (1)
18
(4x)
85
87 86 2
86
87
126
54
(2x)
55
(2x)
51
(2x)
51 53 54 55
57 58 59
95
129
91
95
(3x)
90
90
129
135
92
96
136
91
110
139
98
99
128
51(2x)
55(2x)
54(2x)
(2x)
2 18
85
126 131
130
57
(12x)
58
(12x)
59
(12x)
45
11a
11b
11c
11d
11e
11k
11h
11g
11f
11j
44
2
(6x)
2 44
45
131
11h 11j
11k
138
53
110
98
99
92
96
11a 11b 11c
11d 11e
11f
51
54 55
132
11a 11b 11c
11d 11e
11f
11g 11h
11j
11k
51 54
55
140
