3974-20
M18™ 200' Sti Pipeline Inspection Reel
Aug. 2024
54-07-2950
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
P88A
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005

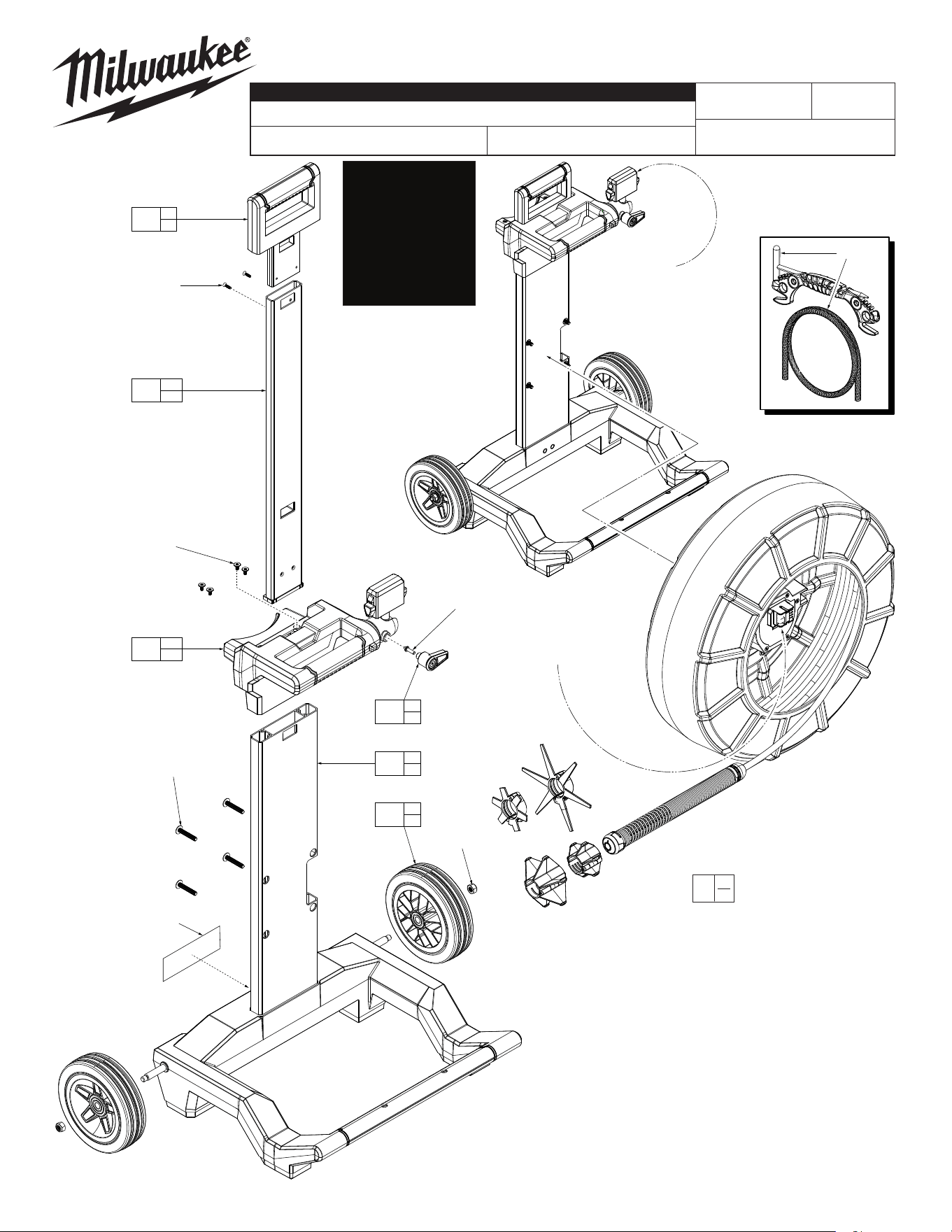

Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-89-0545 M4 x 6mm T-20 Shoulder Screw (9)
4 06-57-0655 M8 Nylock Hex Nut (2)
12 06-82-5583 M3.5 x 13mm Flat Hd. T-15 Screw (3)
17 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
42 05-78-2204 Mount Screw Wedge (1)
99 12-20-0282 Service Nameplate (1)
200 31-44-6061 Large Handle Service Kit (1)
201 31-44-6062 Telescoping Handle Service Kit (1)
202 28-06-0013 Large Reel Base Service Kit (1)
203 31-70-0106 Wheel Svc Kit with Bearings (Set of 1) (2)
208 28-10-0120 Reel Monitor Clamp Knob Service Kit (1)
212 23-94-0052 Ground Wire Stake Service Kit
(1)
213 --------------- Top Handle Service Kit (1)
12
213
213
201
1
208
200
17
99
202
42
208
4
203
12
(2x)
1
(4x)
17
(4x)
99
42
4
212
Monitor
Attaches Here
Smart Hub
Attaches Here

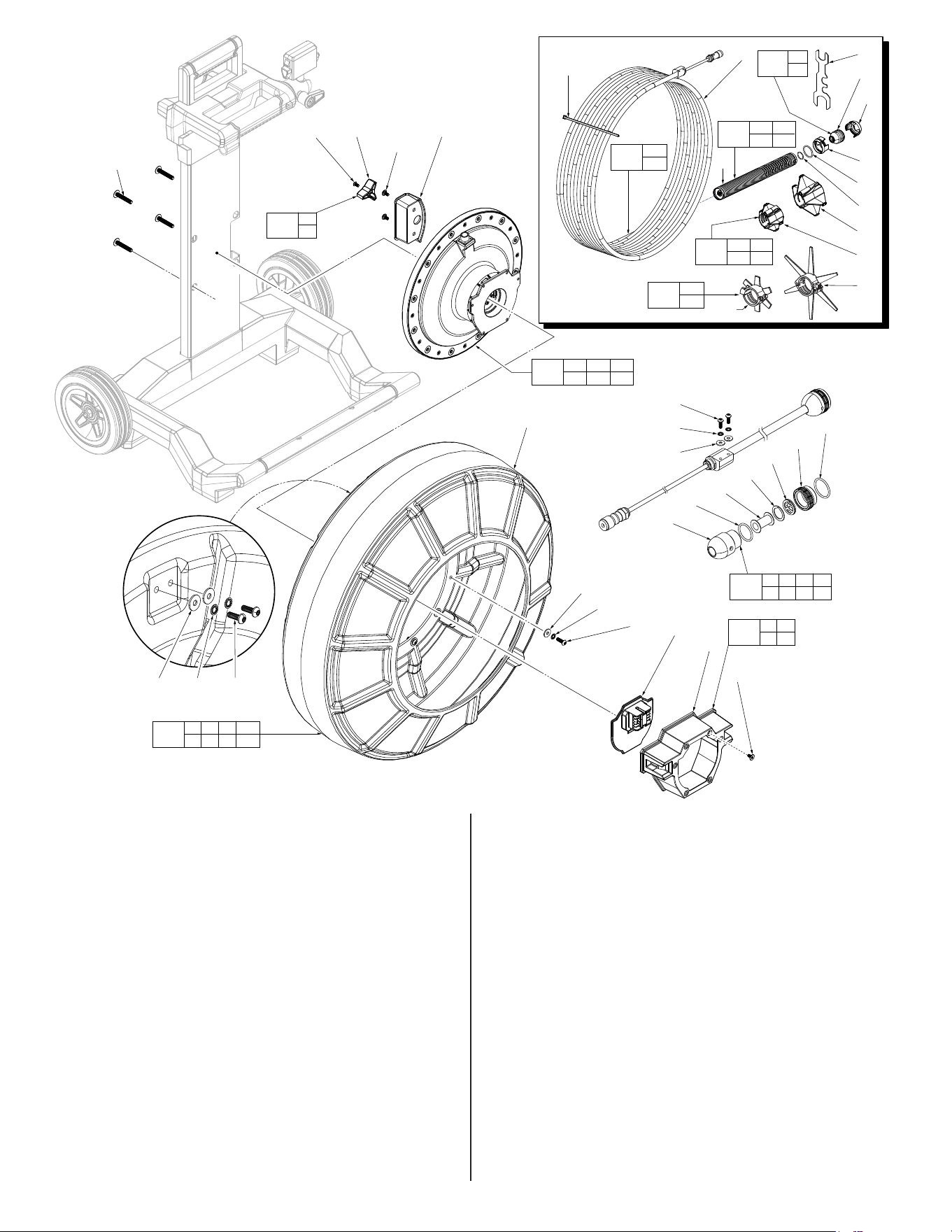

See page two for service parts
breakdown regarding the
Large Reel Drum/Camera
Cable System
For Smart Hub
2970-20:
Refer to Service
Bulletin 54-07-2900
For Monitor
2971-20:
Refer to Service
Bulletin 54-07-2905
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-89-0545 M4 x 6mm T-20 Shoulder Screw (8)
5a 34-40-0222 O-Ring (1)
5b --------------- Spring Body (1)
5c --------------- Circuit Board (1)
5d --------------- Foam (1)
5e --------------- Coil (1)
5f --------------- O-Ring (1)
5g --------------- Housing (1)
17 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
48 --------------- Hub Mount Skirt (1)
49 --------------- Hub Mount Garn Base (1)
51 05-83-0008 M4 x 12mm Pan Hd. T-20 Screw (2)
54 06-97-3703 M4 Flat Washer (2)
55 06-97-3704 M4 Internal Tooth Lock Washer (2)
56 05-83-0008 M4 x 12mm Pan Hd. T-20 Screw (2)
57 --------------- Drum-Large (1)
58 06-97-3703 M4 Flat Washer (2)
59 06-97-3704 M4 Internal Tooth Lock Washer (2)
61 05-83-0006 M5 x 16mm Pan Hd. T-25 Screw (12)
62 06-97-3702 M5 Internal Tooth Lock Washer (12)
63 06-97-3700 M5 Flat Washer (12)
88 42-92-1650 Brake Cover (1)
89 --------------- Brake Knob (1)
90 05-83-0009 M4 x 8mm Pan Hd. T-20 Screw (1)
94 --------------- Cable Camera 200' (1)
95 --------------- Quick Change Spring Attachment (1)
96 --------------- D34 Camera (1)
97 --------------- D34 Rear Sleeve (1)
98 --------------- D34 Front Sleeve (1)
100 23-78-0115 7.5" Cable Tie (3)
101 28-52-0012 Camera Head Wrench (1)
103 --------------- D34 Skid for 4" Pipe (1)
105 --------------- D34 Skid for 6" Pipe (1)
115 34-40-0224 O-Ring (1)
116 34-40-0223 O-Ring (1)
118 --------------- D34 Small Star Skid (1)
120 --------------- D34 Large Star Skid (1)
204 23-48-0016 D34 Skid and Sleeve Service Kit (1)
205 28-06-0012 Large Reel Counter Service Kit (1)
206 28-06-0014 Large Reel Hub Mount Service Kit (1)
207 31-50-0069 Large Drum Service Kit (1)
209 14-47-0043 Brake Knob Service Kit (1)
210 14-46-0188 200' Cable Camera/Drum Service Kit (1)
211 48-53-3974 D34 HDR Camera Service Kit (1)
215 14-46-0211 D34 Retermination Service Kit (1)
217 40-50-0272 Quick Change Spring Attachment Assy. (1)
218 42-96-0021 D34 Star Skid Service Kit (1)
63
(12x)
62
(12x)
61
(12x)
49
48
1
(6x)
57
17
(4x)
58
(2x)
59
(2x)
56
(2x)
94
95
100
(3x)
88
90 89 1
(2)
89
90
209
97 98
103 105
204
96
101
211
94
207
210
1 48
49
206
56 57 58 59
61 62 63 100
207
5a 5b 5c 5d
5e 5f 5g
215
5a
5b
5c
5d
5e
5f
5g
51(2x)
55(2x)
54(2x)
101
96
98
97
116
115
105
103
95 115
116
217
118
120
118
120
218
1 17 88
206 209
205
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
