2315-20
M12™ M-SPECTOR FLEX™ INSPECTION CAMERA
Jan. 2016
54-07-2315
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

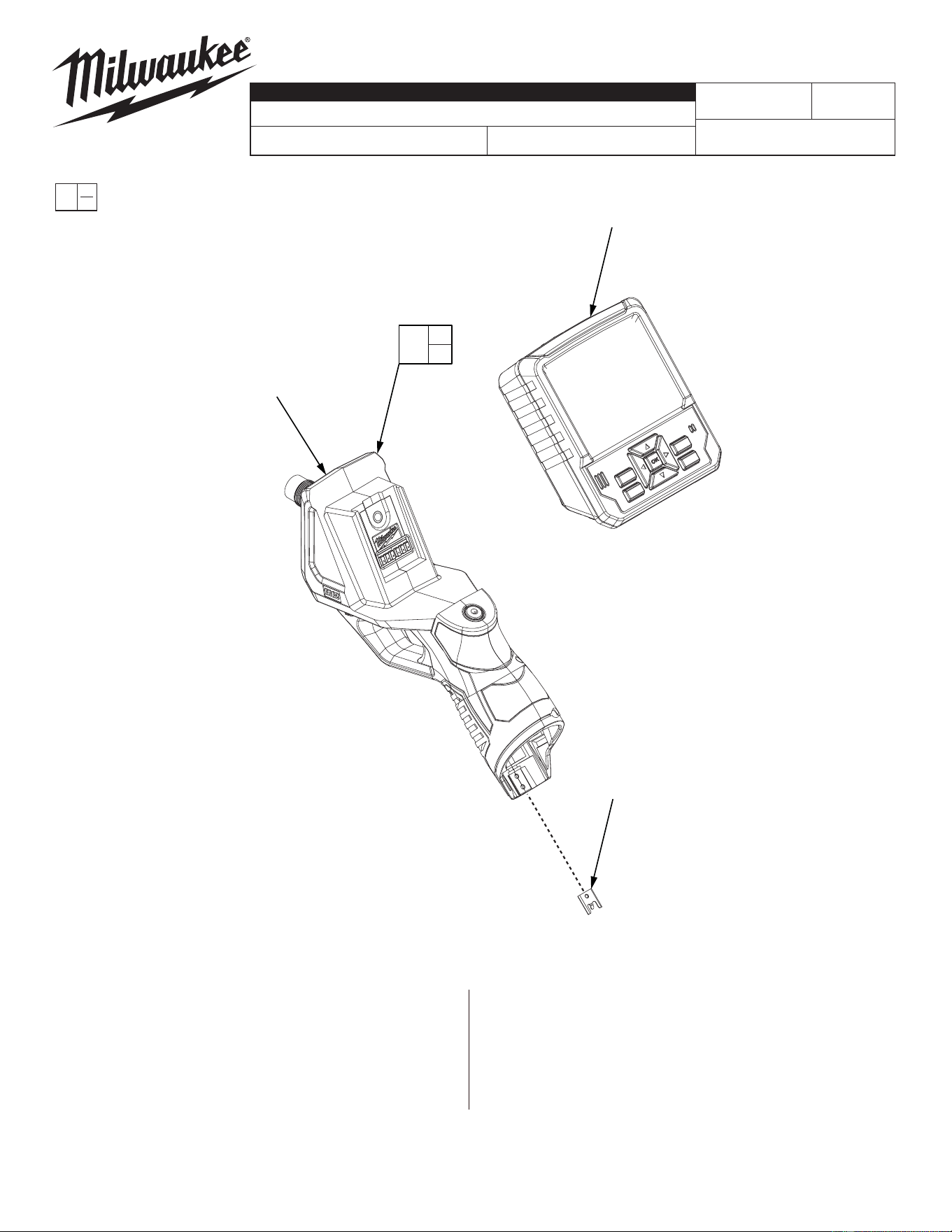

Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
H22A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-38-0025 LCD Assembly (1)
2 14-38-0030 Console Assembly (1)
3 --------------- Console (1)
4 42-70-0058 Housing Clip (1)
5 12-20-2315 Service Nameplate (Not Shown) (1)
6 48-53-0150 3' Accessory Cable (Not Shown) (1)
7 48-53-0151 9' Accessory Cable (Not Shown) (1)
1
3
2
4
3
4
FIG. NOTES
5 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
