M-SPECTOR™ 4' INSPECTION CAMERA
Apr. 2025
PN0008138
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
N37B

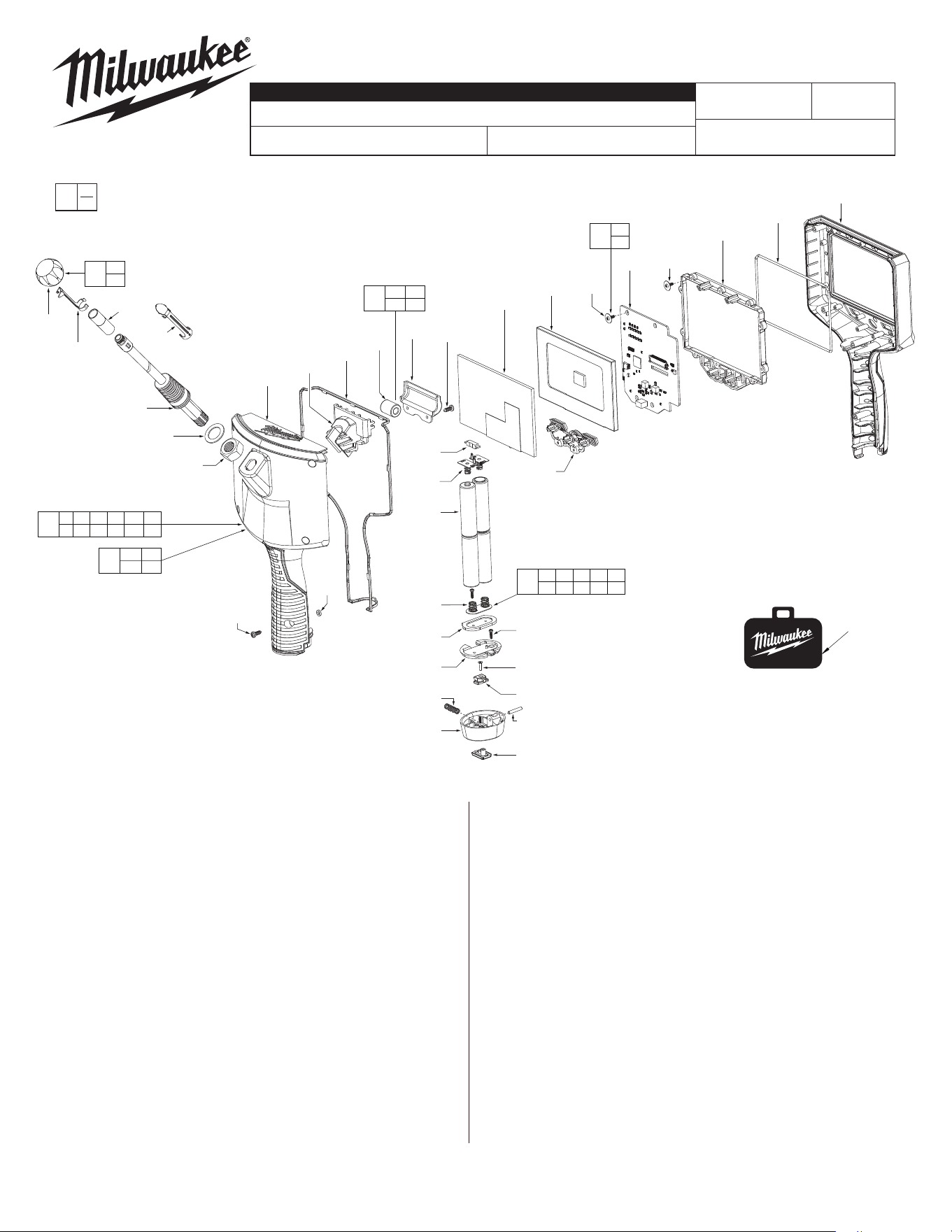

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-44-1018 Front Housing (1)
2 43-44-0097 Display Gasket (1)
3 44-06-0016 Lens (1)
4 --------------- Screw 2 x 6.5 (14)
5 22-80-0128 PCBA (1)
6 43-44-0104 Display Silicone Sleeve (1)
7 23-28-2319 LCD Display (1)
8 --------------- Screw 2.6 x 8 (2)
9 --------------- Ferrite Ring Cover (1)
10 --------------- Ferrite Ring (1)
11 14-46-2032 Housing Sealing Ring (1)
12 --------------- Cable Bracket (1)
13 --------------- Back Housing (1)
14 --------------- Screw 3 x 8 (7)
15 --------------- Ball Hook (1)
16 --------------- Plumbing Ball (1)
17 23-52-0280 Battery Terminals Spring (2)
18 45-36-0006 Spacer (1)
19 42-42-0304 Button Connector (1)
20 --------------- AA battery (4)
21 --------------- Screw 2 x 6 (2)
22 --------------- Screw 2 x 8 (1)
23 --------------- Plastic Hook (1)
24 --------------- Button Cover (1)
25 --------------- Battery Cover (1)
26 --------------- Shaft (1)
27 --------------- Spring (1)
28 --------------- Lock Bracket (1)
29 --------------- Battery Door Silicone (1)
30 --------------- Battery Door (1)
31 --------------- Rubber Washer (7)
32 --------------- Nut (1)
33 --------------- Metal Pad (1)
35 --------------- Cable Assembly (1)
36 14-38-0054 Accessory Mirror (1)
37 --------------- Camera Module Assembly (1)
46 42-55-2319 Carrying Case (1)
50 14-46-8691 Handle Screw & Gasket Service Kit (1)
51 14-46-8692 Ferrite Clamp Service Kit (1)
52 14-46-2031 Internal Fastener Service Kit (1)
53 14-46-8693 Back Housing Service Kit (1)
54 14-38-0056 Battery Door Service Kit (1)
55 14-38-0051 Plumbing Ball Assembly (1)
60 12-20-2307 Service Nameplate (Not Shown) (1)
