58
4
(2x)
12
(8x)
4 35 36
37 38
55
10
(7x)
29
28
40
50
12
(4x)
13
14
24
25
26
27
9
4
(4x)
35
36
37
38
12
(9x)
11
46
(9x)
8
(6x)
7
6
5
(2x)
4
(9x)
3
2
1
1 2 3 4
5 6 7 8
9 11 12 46
51
1
2
52
3
4
53
5 6 7
8 9
54
4 12 13 14
24 25 26
57
10 12 27
28 29 40
56
2323-20
2324-20
12 VOLT M-SPECTOR 360™
(Digital Inspection Camera)
Nov. 2022
54-07-2380
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Front Housing (1)
2 --------------- Silicone Pad (1)
3 --------------- LCD Lens (1)
4 14-46-1017 Screw 2 x 5 (15)
5 --------------- LCD Cushion (2)
6 --------------- LCD (1)
7 --------------- PCB Holder (1)
8 14-46-1018 Screw 2 x 8 (6)
9 --------------- Electronics Assembly (1)
10 --------------- Washer (7)
11 --------------- Head Cover (1)
12 14-46-1022 Screw 2.6 x 8 (21)
13 --------------- Stopper (1)
14 --------------- O-ring (1)
24 --------------- Slider (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
25 --------------- Spring (1)
26 --------------- Slider Holder (1)
27 --------------- Left Handle Cover (1)
28 --------------- Gasket (1)
29 --------------- Right Handle Cover (1)
35 14-38-0452 Button Faceplate (1)
36 --------------- Button Holder (1)
37 --------------- PCB (1)
38 --------------- Button PCB (1)
46 14-46-1021 Rubber Washer (9)
48 42-55-2315 Carrying Case (1)
50 14-05-0004 4' Camera Cable (2323-20) (1)
14-05-0005 10' Camera Cable (2324-20) (1)
N49A
N50A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
51 14-46-1016 Display Assembly (1)
52 14-38-2003 Front Housing Kit (1)
53 14-38-2004 Display Lens Kit (1)
54 14-20-0331 Electronics Kit (1)
55 14-46-1014 Button Assembly (1)
56 14-38-0453 Handle Assembly (1)
57 14-14-0190 Rotation Mechanism Assembly (1)
58 14-38-0454 Accessory Kit (1)
59 12-20-2323 Service Nameplate (Not Shown) (1)
48
STARTING
SERIAL NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

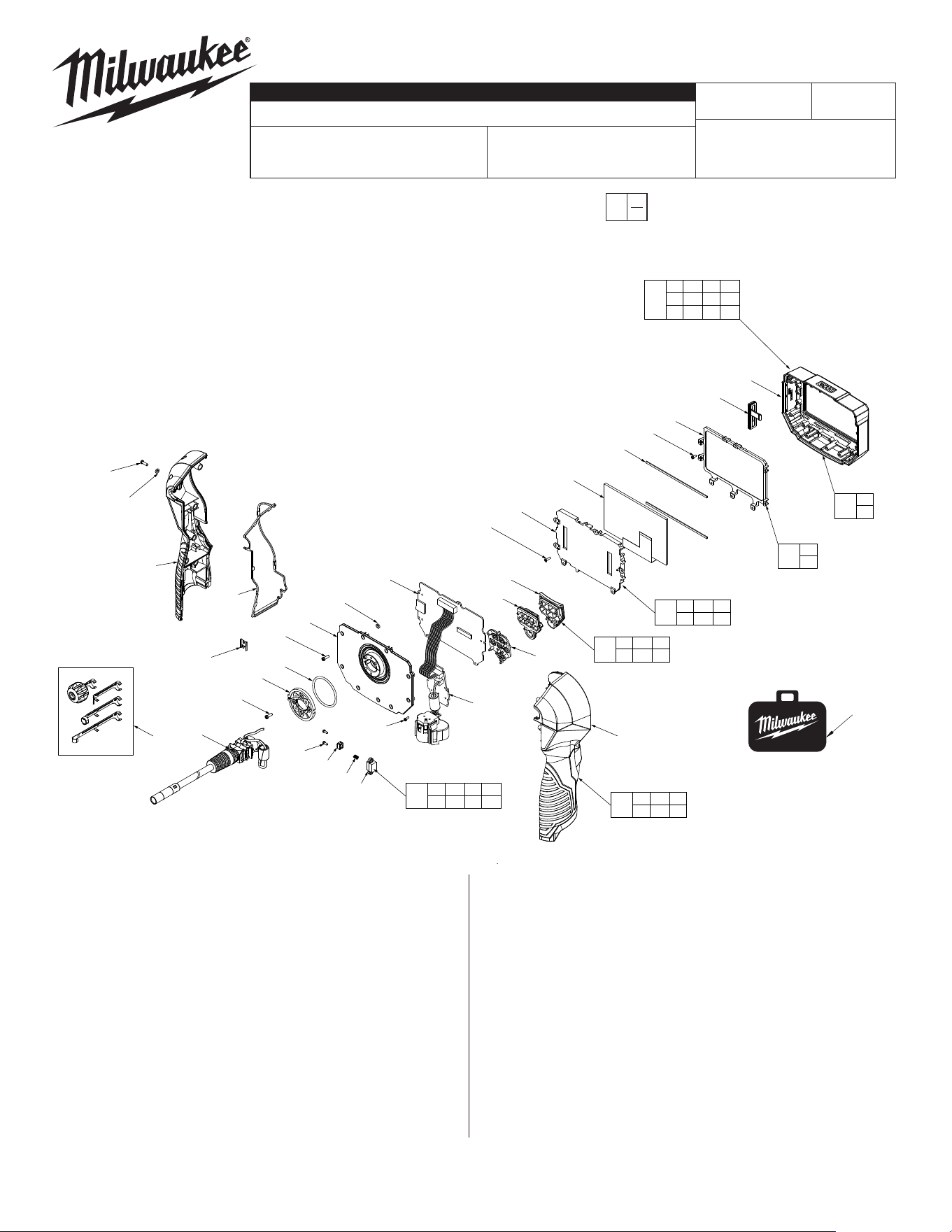

Drwg. 1
