54-49-8540
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

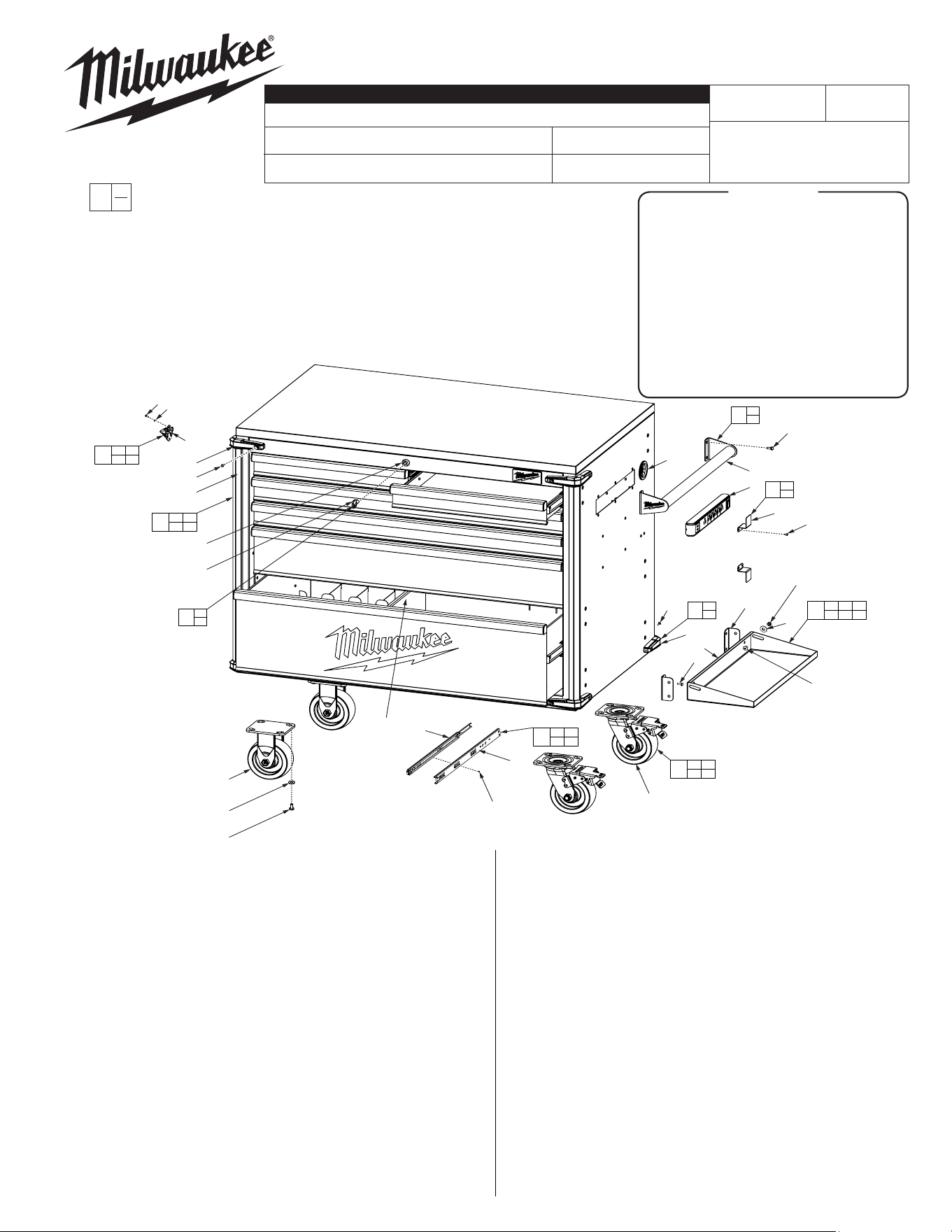

Drwg. 1
1
4x
2
3
4
3
4
5
6
7
8
4x
2x
7
8
2x
4x
2x
4x
9
10
11
10
11
2x
2x
13
14
15
16
17
18
19
12
13 14 15
16 17 18
20
2x
21
20 26
27 28
22
23
24
2x
12x
2x
22 23
24
26
27
28
2x
25
16x
16x
29
30
31
30
31
4x
8x
32
33 34
35
33
34
35
2x
2x
2x
36
37 38
39
39
38
37
2x
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 22-90-0105 Cord Grommet (1)
2 14-46-1648 Side Handle Kit (1)
3 --------------- Bolt M6 x 15L (4)
4 --------------- Side Handle (1)
5 14-46-1641 Power Strip (1)
6 14-46-1645 Cord Storage Bracket Kit (1)
7 --------------- Cord Storage Bracket (2)
8 --------------- Screw M4 x 10L (4)
9 42-38-0269 Rear Bumper Kit (1)
10 --------------- Screw M4 x 16L (4)
11 --------------- Rear Bumper (2)
12 14-46-1651 Storage Shelft Kit (1)
13 --------------- Bolt M6 x 16L (4)
14 --------------- Storage Shelf (1)
15 --------------- Storage Shelf Bracket (2)
16 --------------- Nut M6 (2)
17 --------------- Washer (2)
18 --------------- Bolt M6 x 8L (2)
19 14-46-1245 Caster Kit (Set of 4) (1)
20 --------------- Swivel Caster with Brake (2)
21 14-46-1642 Drawer Slide Kit (Set of 2) (1)
22 --------------- Outer Drawer Slide (2)
23 --------------- 5/32" Pop Rivet (12)
24 --------------- Inner Drawer Slide (2)
25 31-21-0110 Center Divider (1)
26 --------------- Rigid Caster (2)
27 --------------- Washer M8 (16)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
28 --------------- Bolt M8 x 12L (16)
29 14-46-1643 Key/Lock Kit (1)
30 --------------- Key (1)
31 --------------- Lock (1)
32 42-38-0268 Corner Bumper/Extrusion Kit (Set of 2) (1)
33 --------------- Corner Guard (2)
34 --------------- Screw M4 x 16L (8)
35 --------------- Corner Bumper (4)
36 48-22-8599 Bottle Opener Kit (1)
37 --------------- Bottle Opener (1)
38 --------------- Bolt M6 x 16L (2)
39 --------------- Screw M6 x 20L (2)
40 58-95-0185 Drawer Liner Kit (Set of 6)(Not Shown) (1)
41 12-20-0109 Service Nameplate (Not Shown) (1)
42 12-25-1814 Electrical Label (Not Shown) (1)
NOTE: See page 2
for drawer slide removal
and installation.
l14-46-1657
Hardware Kit
3 --------------- Bolt M6 x 15L (4)
8 --------------- Screw M4 x 10L (4)
10 --------------- Screw M4 x 16L (4)
13 --------------- Bolt M6 x 16L (4)
16 --------------- Nut M6 (2)
17 --------------- Washer (2)
18 --------------- Bolt M6 x 8L (2)
27 --------------- Washer M8 (16)
28 --------------- Bolt M8 x 12L (16)
34 --------------- Screw M4 x 16L (8)
38 --------------- Bolt M6 x 16L (2)
39 --------------- Screw M6 x 20L (2)
-- --------------- Charger Mounting
Screw M4 x 10L (4)
FIG. NOTES
41,42 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any
adhesive label or nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a clean, lint
free applicator and the surface allowed to dry before applying the
label or nameplate.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
48-22-8539
40" MOBILE WORK STATION
Aug. 2018
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CHEST CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
CABINET CATALOG NO.
48-22-8540
SERIAL
NUMBER
K19A
J92A

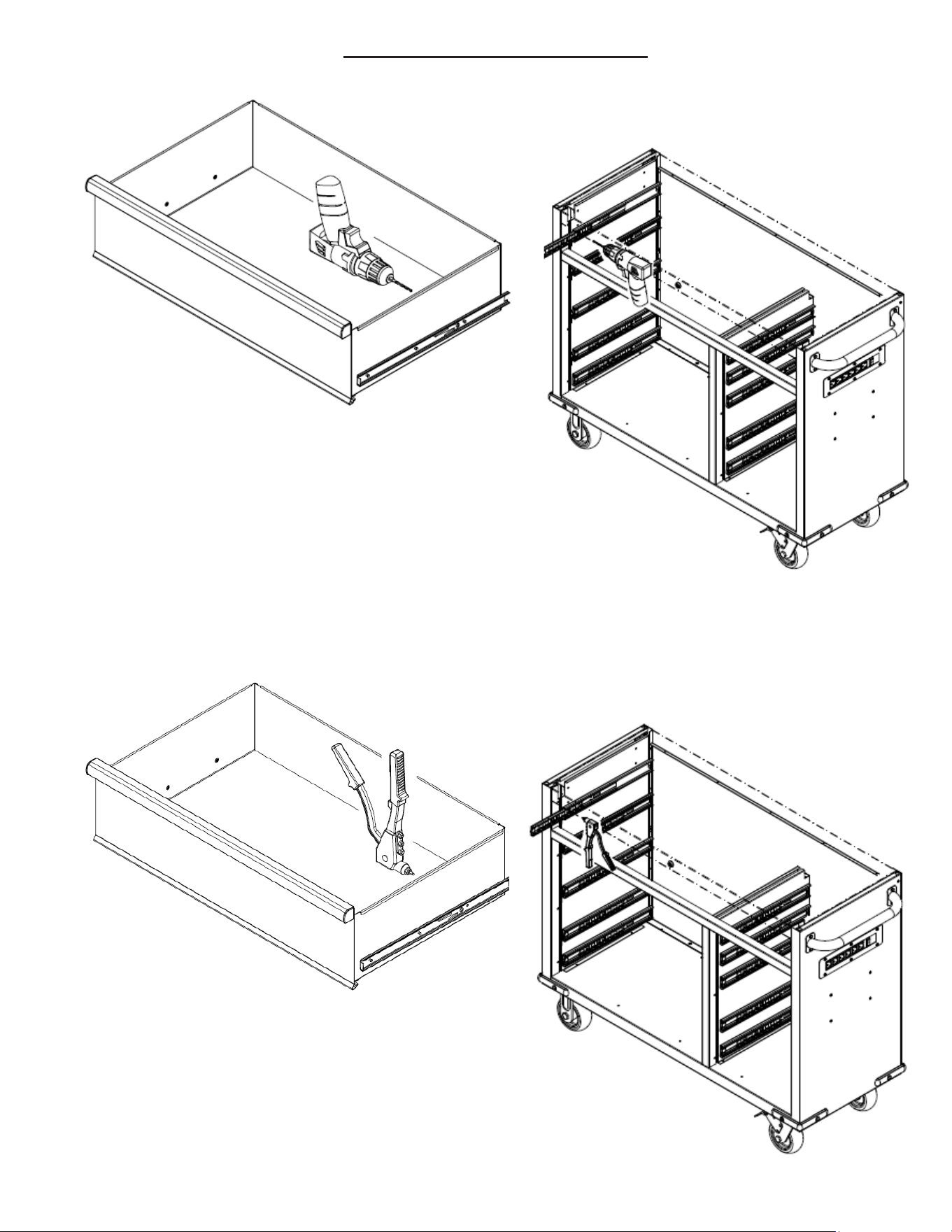

To remove drawer slide, remove rivets (23) from the inner
slide (24) and outer slide (22) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (24) into position and
insert rivets (23) by using a rivet gun. Repeat steps for outer
slide (22).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
