54-49-0270
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
23
24
24x
24x
4x
9
10
2x
2x
4x
4x
4x
2x
2
3
4
5
6
5
6
7
8
9
8
11
12
13
12
13
2x
16x
16
17
18
19
20
20
19
22
21
22
24
23
25
25
29
26
27
28
28
27
30
31
32
32
31
33
34
35
36
37
36
37
38
1
40
39
41
39
40
41
2x
4x
3x
3x
2x
2x
8x
4x
4x
1
14
15
17
16
2x
15

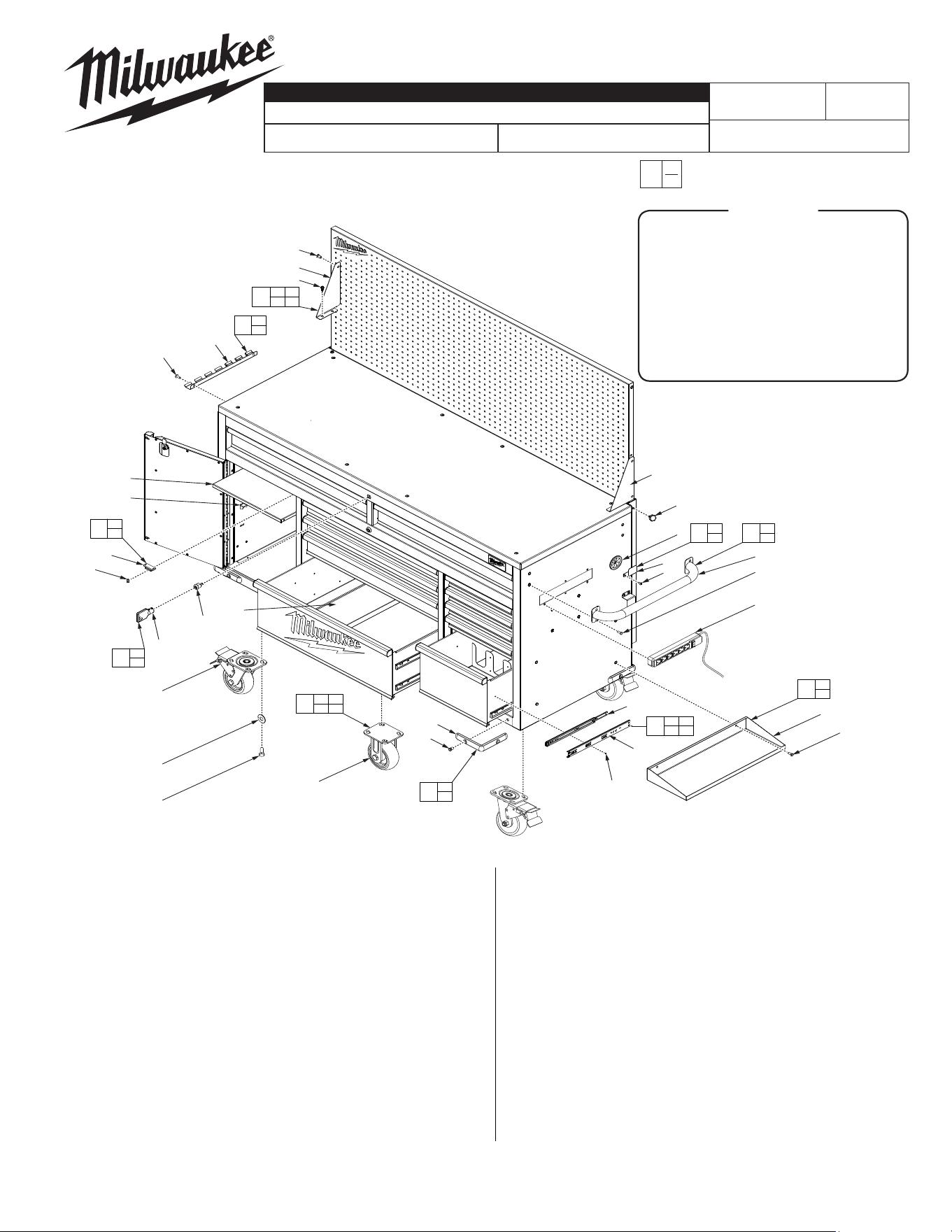

48-22-8560
60" MOBILE WORK BENCH
Sep. 2016
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Right Peg Wall Support (1)
2 06-87-0125 Peg Wall Thumb Screw (Set of 2) (1)
3 22-90-0105 Cord Grommet (1)
4 14-46-1645 Cord Storage Bracket Kit (1)
5 --------------- Cord Storage Bracket (2)
6 --------------- Screw M4 x 10L (4)
7 14-46-1615 Side Handle Kit (1)
8 --------------- Side Handle (1)
9 --------------- Bolt M6 x 15L (4)
10 14-46-1235 Power Strip (1)
11 14-46-1620 Side Shelf Kit (1)
12 --------------- Side Shelf (1)
13 --------------- Bolt M6 x 15L (2)
14 14-46-1635 Drawer Slide Kit (Set of 2) (1)
15 --------------- Inner Drawer Slide (2)
16 --------------- Outer Drawer Slide (2)
17 --------------- 5/32" Pop Rivet (16)
18 42-38-0265 Corner Bumper Kit (Set of 4) (1)
19 --------------- Bolt M6 x 15L (8)
20 --------------- Corner Bumper (4)
21 14-46-1610 Caster Kit (Set of 6) (1)
H25A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
22 --------------- Rigid Caster (2)
23 --------------- Bolt M8 x 15L (24)
24 --------------- Washer M8 (24)
25 --------------- Swivel Caster w/ Brake (4)
26 14-46-1255 Key/Lock Kit (Set of 3) (1)
27 --------------- Key (3)
28 --------------- Lock (3)
29 31-21-0110 Center Divider (1)
30 14-46-1640 Magnetic Door Stay Kit (1)
31 --------------- Screw 3/16" x 3/8"L (2)
32 --------------- Magnetic Door Stay (1)
33 42-70-0115 Cabinet Shelf Clips (Set of 4) (1)
34 31-10-0430 Cabinet Shelf (1)
35 14-46-1625 Tool Storage Hanger Kit (1)
36 --------------- Bolt M6 x 15L (2)
37 --------------- Tool Storage Hanger (1)
38 14-46-1630 Peg Wall Support Kit (Set of 2) (1)
39 --------------- Screw 1/4" x 3/4"L (4)
40 --------------- Left Peg Wall Support (1)
41 --------------- Bolt M6 x 15L (4)
58-95-0175 Drawer Liner Kit (Set of 11) (Not Shown) (1)
NOTE: See page 2
for drawer slide removal
and installation.
l14-46-1608
Hardware Kit
6 --------------- Screw M4 x 10L (4)
9 --------------- Bolt M6 x 15L (4)
13 --------------- Bolt M6 x 15L (2)
19 --------------- Bolt M6 x 15L (8)
23 --------------- Bolt M8 x 15L (24)
24 --------------- Washer M8 (24)
36 --------------- Bolt M6 x 15L (2)
39 --------------- Screw 1/4" x 3/4"L (4)
41 --------------- Bolt M6 x 15L (4)
-- --------------- Charger Mounting
Screw M4 x 10L (4)

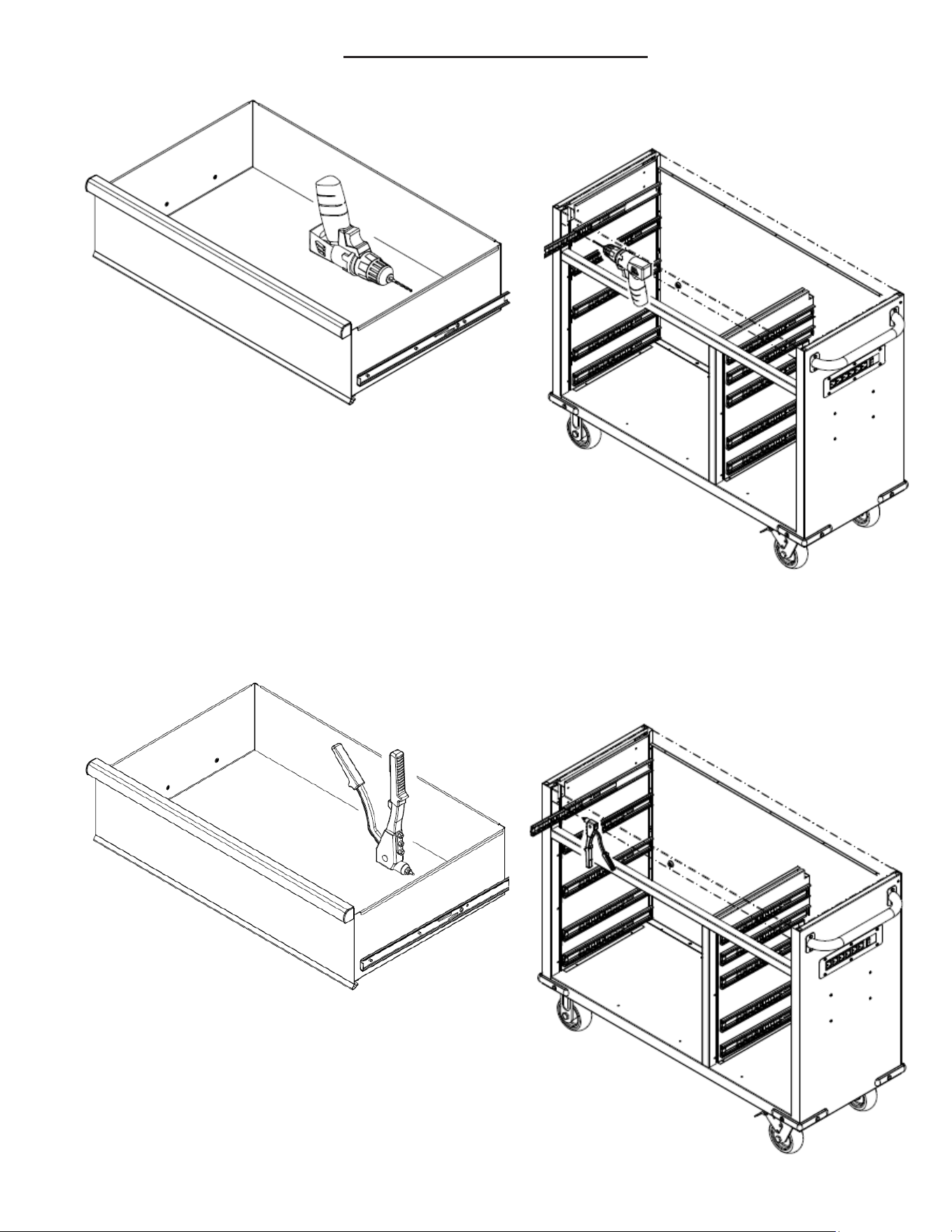

To remove drawer slide, remove rivets (17) from the inner
slide (15) and outer slide (16) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (15) into position and
insert rivets (17) by using a rivet gun. Repeat steps for outer
slide (16).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
