54-49-8590
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

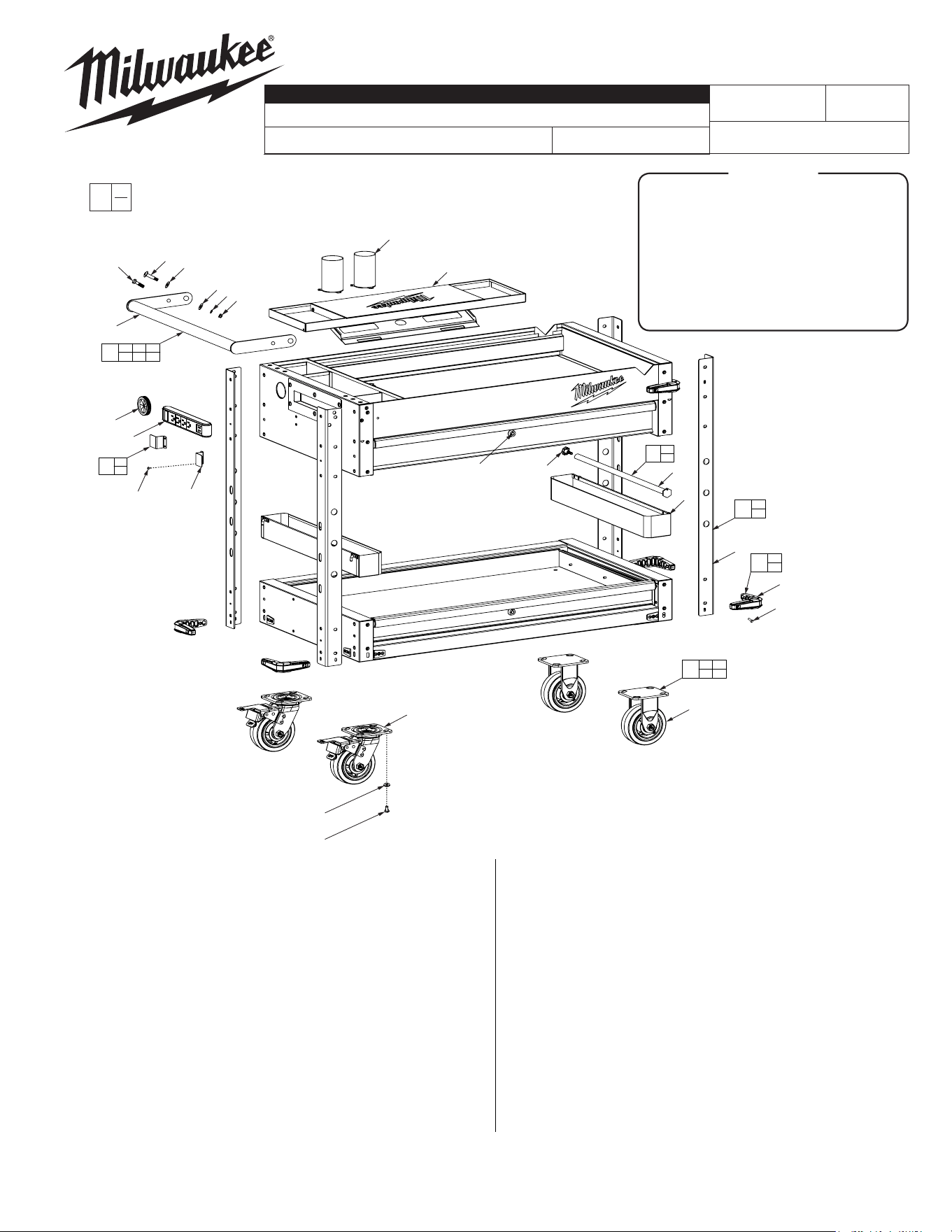

Drwg. 1
23
24 25 26
27 28 29
1
2
6
7
12x
9
4x
8
9
12
11
6x
12
13
14 15
16 17
16
17
16x
16x
14
15
4x
19
18
19
20
20
2x
21
5
4
5
6
28
29
30
27
26
25
3
2x
2x
2x
2x
2x
2x
10
11
12
22
24
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 42-96-0450 Tooling Cup (2)
2 43-72-1050 Work Tray (1)
3 14-46-1669 Key/Lock Kit (1)
4 43-72-1052 Storage Bar Kit (1)
5 --------------- Bolt M6 (1)
6 --------------- Storage Bar (1)
7 43-72-1051 Storage Tray (2)
8 14-46-1672 Post Kit (Set of 4) (1)
9 --------------- Post (4)
10 42-38-0264 Bumper Kit (Set of 6) (1)
11 --------------- Bumper (6)
12 --------------- Screw M4 x 16L (12)
13 14-46-1666 Caster Kit (Set of 4) (1)
14 --------------- Rigid Caster (2)
15 --------------- Swivel Caster with Brake (2)
16 --------------- Screw M8 x 18L (16)
17 --------------- Washer M19 x 8.5 x 2 (16)
18 14-46-1645 Cord Storage Bracket Kit (1)
19 --------------- Screw M4 x 12L (4)
20 --------------- Cord Storage Bracket (2)
21 14-46-1673 Power Strip (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
22 22-90-0105 Grommet (1)
23 14-46-1665 Side Handle Kit (1)
24 --------------- Side Handle (1)
25 --------------- Hexagonal Head Bolt M6 x 25L (2)
26 --------------- Screw M6 x 25L (2)
27 --------------- Nylon Washer M18 x 8.5 x 1.5 (4)
28 --------------- Washer M12 x 6 x 0.8 (2)
29 --------------- Nut M6 (2)
30 14-46-1667 Top Drawer Slide Kit (Not Shown) (1)
31 58-95-0181 Drawer Liner Kit (Set of 8)(Not Shown) (1)
32 14-46-1668 Bottom Drawer Slide Kit (Not Shown) (1)
33 12-20-8590 Service Nameplate (Not Shown) (1)
34 12-25-1814 Electrical Label (Not Shown) (1)
l14-46-1671
Hardware Kit
5 --------------- Bolt M6 (1)
11 --------------- Screw M4 x 16L (12)
15 --------------- Screw M8 x 18L (16)
16 --------------- Washer M19 x 8.5 x 2 (16)
18 --------------- Screw M4 x 12L (4)
24 --------------- Head Bolt M6 x 25L (2)
25 --------------- Screw M6 x 25L (2)
26 --------------- Washer M18 x 8.5 x 1.5 (4)
27 --------------- Washer M12 x 6 x 0.8 (2)
28 --------------- Nut M6 (2)
FIG. NOTES
33,34 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any
adhesive label or nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a clean, lint
free applicator and the surface allowed to dry before applying the
label or nameplate.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
48-22-8590
40" STEEL WORK CART
Mar. 2019
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
K55A

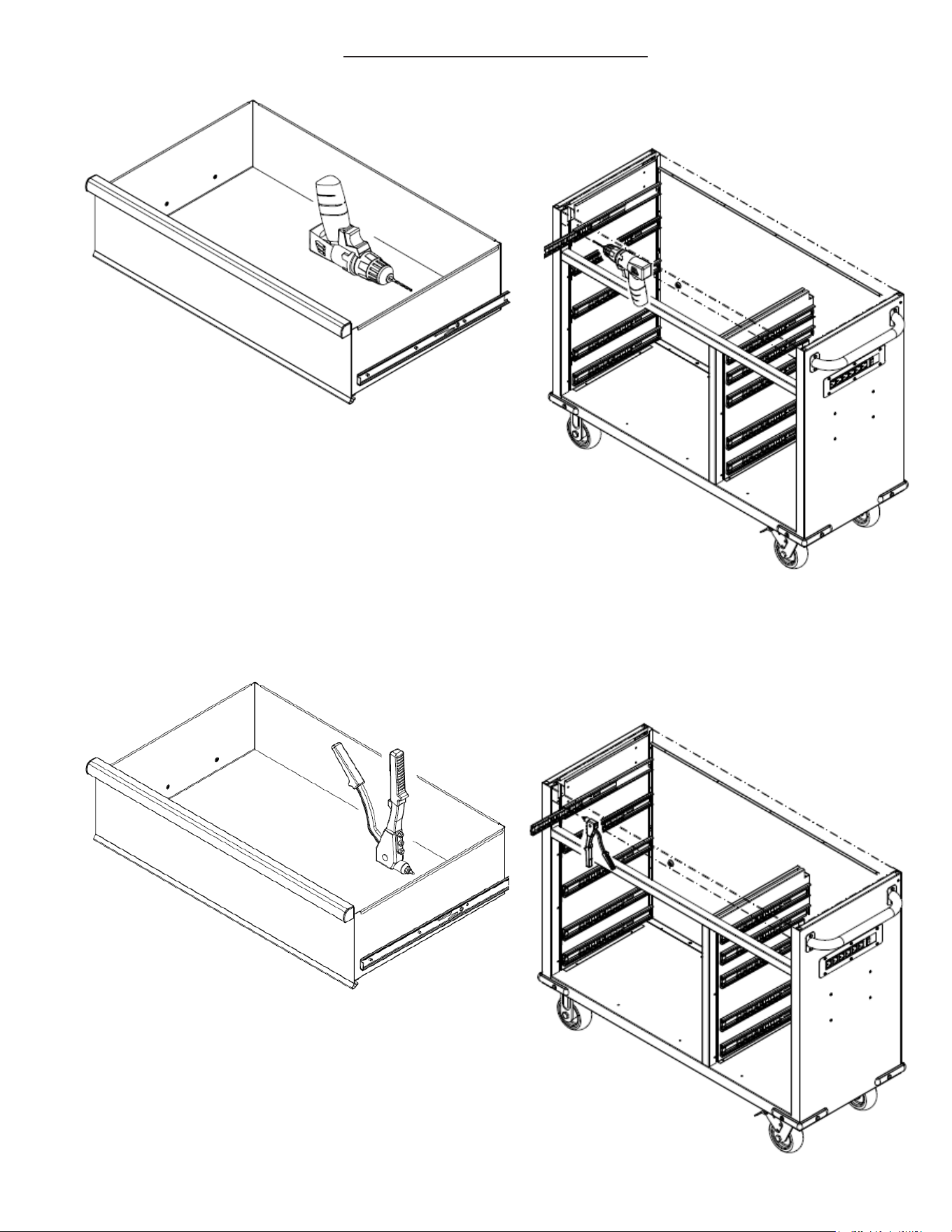

To remove drawer slide, remove rivets from the inner slide
and outer slide by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide into position and
insert rivets by using a rivet gun. Repeat steps for outer slide.
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
