Two-Wire Bundle
User Manual
Legal Informaon
About this Document
●
This Document includes instrucons for using and managing the Product. Pictures, charts,
images and all other
informaon hereinaer are for descripon and explanaon only.
●
The
informaon contained in the Document is subject to change, without noce, due to
rmware updates or other reasons. Please nd the latest version of the Document at the
Hikvision website ( hps://w ww.hikvision.com ). Unless otherwise agreed, Hangzhou Hikvision
Digital Technology Co., Ltd. or its aliates (hereinaer referred to as "Hikvision") makes no
warranes, express or implied.
●
Please use the Document with the guidance and assistance of professionals trained in
supporng the Product.
About this Product
This product can only enjoy the aer-sales service support in the country or region where the
purchase is made.
Acknowledgment of Intellectual Property Rights
●
Hikvision owns the copyrights and/or patents related to the technology embodied in the
Products described in this Document, which may include licenses obtained from third pares.
●
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part
of this Document may be excerpted, copied, translated, or modied in whole or in part by any
means without
wrien permission.
●
and other Hikvision's trademarks and logos are the properes of Hikvision in
various
jurisdicons.
●
Other trademarks and logos menoned are the properes of their respecve owners.
LEGAL DISCLAIMER
●
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS
IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK.
IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE
Two-Wire Bundle User Manual
i
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
●
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
●
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
●
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
Two-Wire Bundle User Manual
ii
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
Two-Wire Bundle User Manual
iii
Safety Instrucon
Warning
●
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
●
Please use the power adapter, which is provided by normal company. The power consumpon
cannot be less than the required value.
●
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or re hazard.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
●
When the product is installed on wall or ceiling, the device shall be
rmly xed.
●
If smoke, odors or noise rise from the device, turn
o the power at once and unplug the power
cable, and then please contact the service center.
●
If the product does not work properly, please contact your dealer or the nearest service center.
Never aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cauon
●
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
●
Do not place the device in extremely hot (refer to the
specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
●
The device cover for indoor use shall be kept from rain and moisture.
●
Exposing the equipment to direct sun light, low
venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause
re danger).
●
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
●
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
●
Please use a so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
●
Please keep all wrappers
aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper. Transportaon without the
original wrapper may result in damage on the device and lead to
addional costs.
Two-Wire Bundle User Manual
iv
●
Improper use or replacement of the baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the baery manufacturer.
●
Input voltage should meet both the SELV and the Limited Power Source according to 60950-1
standard.
●
If a power adapter is provided in the device package, use the provided adapter only. If no power
adapter is provided, ensure the power adapter or other power supply complies with Limited
Power Source. Refer to the product label for the power supply output parameters.
Two-Wire Bundle User Manual
v
Regulatory Informaon
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the EMC Direcve 2014/30/EU, RE Direcve 2014/53/EU,the RoHS Direcve
2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated
collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include
leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the
baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operaon is subject to
the following two
condions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired
operaon of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence.
L'exploitaon est autorisée aux deux condions suivantes :
1. l'appareil ne doit pas produire de brouillage, et
2.
l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est suscepble d'en compromere le fonconnement.
Under Industry Canada regulaons, this radio transmier may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmier by Industry Canada. To reduce
potenal radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communicaon.
Two-Wire Bundle User Manual
vi
Conformément à la réglementaon d'Industrie Canada, le présent émeeur radio peut fonconner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émeeur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intenon des
autres
ulisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communicaon sasfaisante.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
Cet équipement doit être installé et
ulisé à une distance minimale de 20 cm entre le radiateur et
votre corps.
Two-Wire Bundle User Manual
vii
Contents
Chapter 1 About this Manual ...................................................................................................... 1
Chapter 2 Conguraon and Operaon of Indoor Staon ........................................................... 2
2.1 Acvaon ............................................................................................................................... 2
2.1.1 Acvate Indoor Staon ................................................................................................. 2
2.2 Conguraon Guide ............................................................................................................... 3
2.2.1 Typical Applicaon ........................................................................................................ 3
2.2.2 Local Operaon ............................................................................................................. 3
2.3 Operaon Guide .................................................................................................................. 13
2.3.1 Local
Operaon ........................................................................................................... 13
Chapter 3 Conguraon and Operaon of Door Staon ............................................................ 17
3.1 Appearance .......................................................................................................................... 17
3.2 Restore to Factory
Sengs .................................................................................................. 18
3.3 Terminal Descripon ............................................................................................................ 19
3.4 Installaon ........................................................................................................................... 19
3.4.1 Accessory
Introducon ............................................................................................... 20
3.4.2 Surface Mounng with Protecve Shield .................................................................... 21
3.4.3 Flush Mounng with Mounng Box ........................................................................... 22
3.5 Typical
Applicaon ............................................................................................................... 23
3.6 Video Intercom Operaon ................................................................................................... 24
3.7 Dimension ............................................................................................................................ 24
Two-Wire Bundle User Manual
viii
Chapter 1 About this Manual
Get the manual and related soware from or the ocial website (hp://www.hikvision.com).
Product Model
Two-Wire Door Staon DS-KV8103Y-IMPE2
Two-Wire Indoor Staon DS-KH6320Y-WTPE2
Two-Wire Bundle User Manual
1
Chapter 2 Conguraon and Operaon of Indoor
Staon
Enter a short descripon of your concept here (oponal).
This is the start of your concept.
2.1 Acvaon
2.1.1 Acvate Indoor Staon
You can congure and operate the indoor staon aer acvang the device.
Steps
1.
Power on the device. It will enter the page of Language.

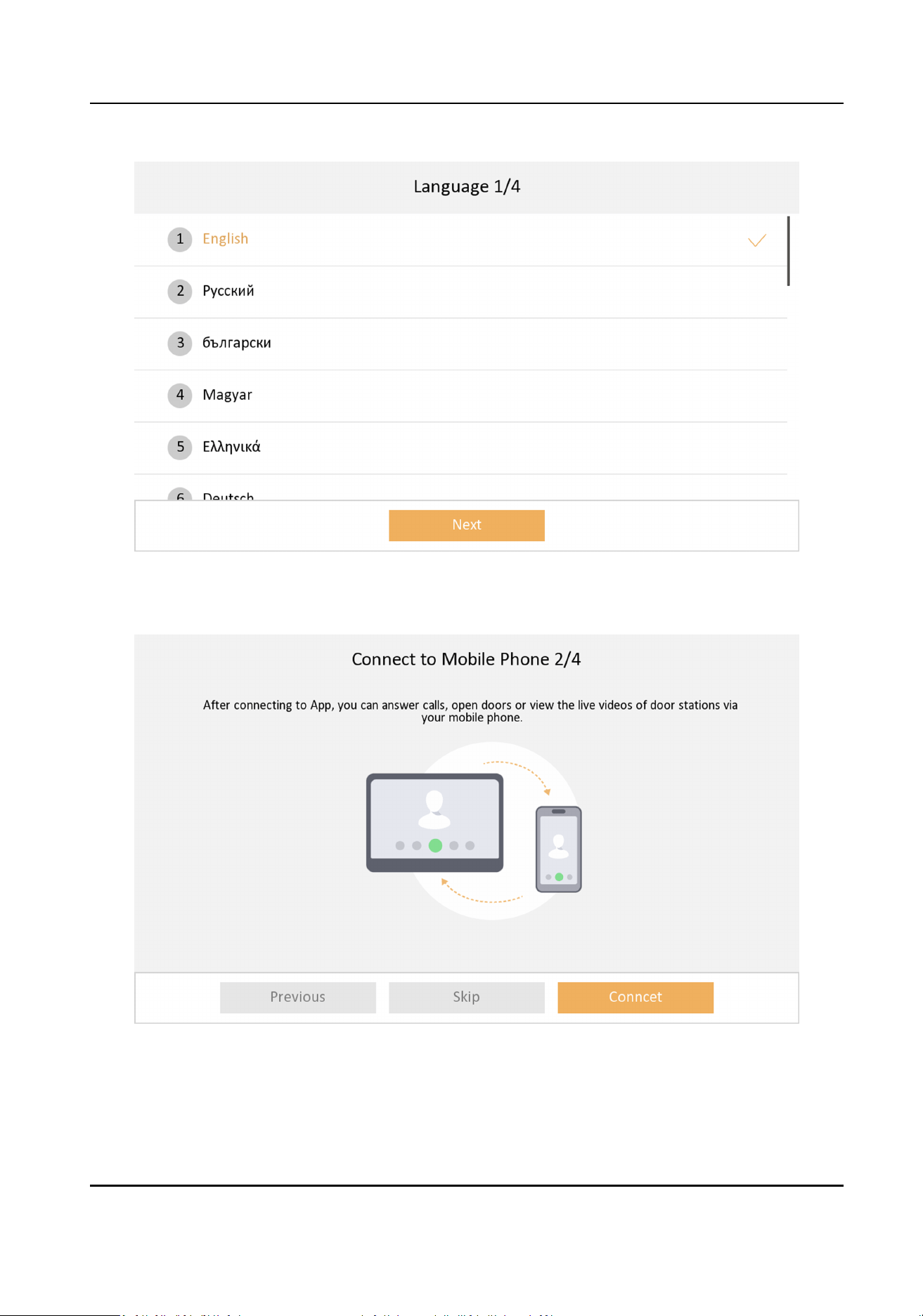

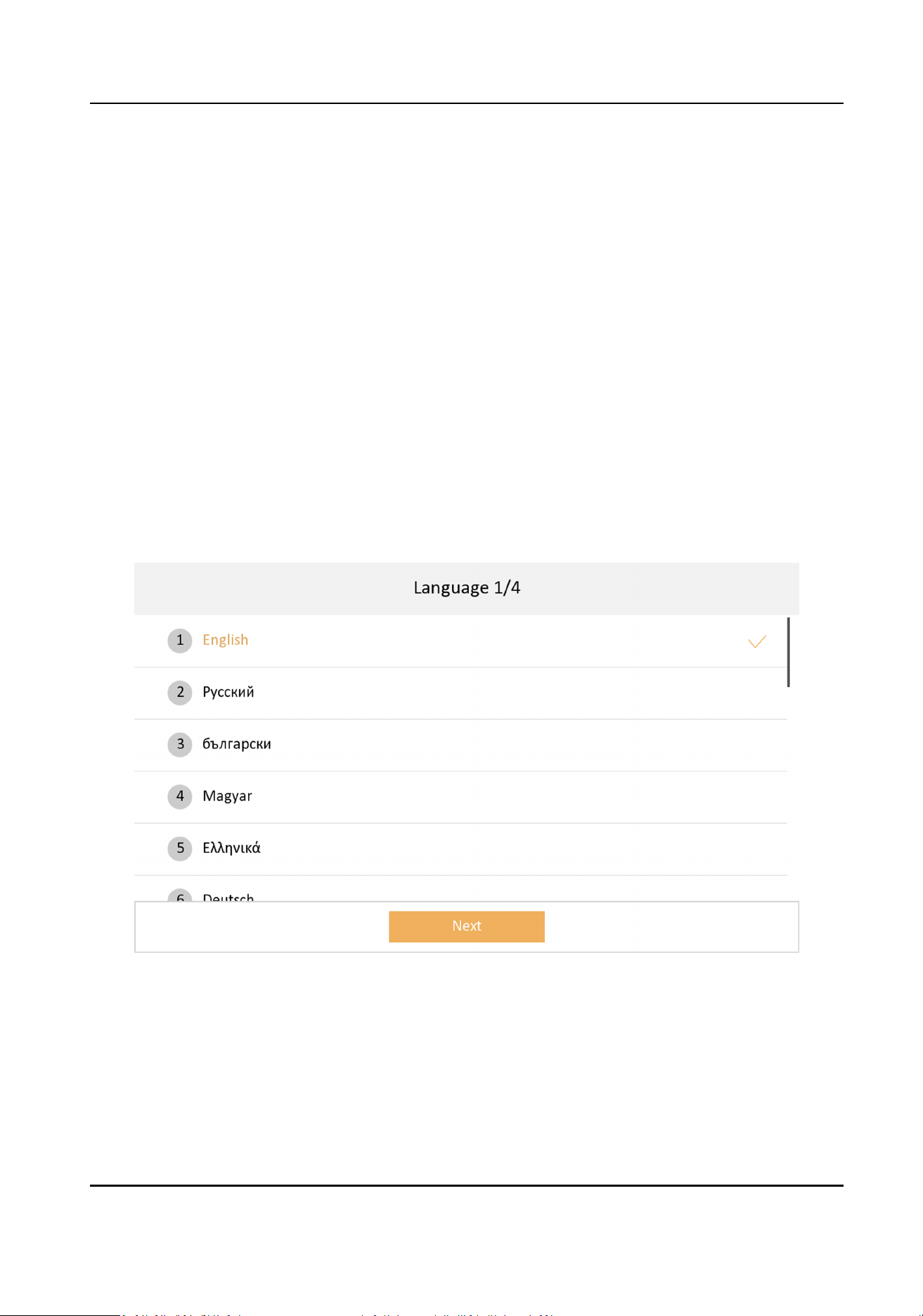

Figure 2-1 Language
2.
Tap Next, and the device will be automacally acvated.
Two-Wire Bundle User Manual
2
2.2 Conguraon Guide
2.2.1 Typical Applicaon
The typical applicaon of the device is shown as below.
Figure 2-2 Typical Applicaon
Wire the door staon to the indoor staon with 2-wire cables.
You can acvate door staon by indoor staon.
Set the open duraon and other parameters by indoor staon.
Refers to the Indoor Staon Conguraon Guide for details.
2.2.2 Local
Operaon
Quick Operaon
Aer device acvaon, the wizard page will pop up. The descripon is for other indoor staons.
Steps
1.
Select language and tap Next.
Two-Wire Bundle User Manual
3
Figure 2-3 Select Language
2.
Connect to Mobile Phone.
Figure 2-4 Connect to Mobile Phone
-
If you would like to connect your device to your mobile phone, tap Connect. You will then set
Wi-Fi parameters.
Two-Wire Bundle User Manual
4
-
Or you can tap Skip to skip this step and connect later. The device will then automacally
check the connecon between the door staon and indoor staon. If the two devices are
successfully paired, the indoor staon will then enter the menu page.
Note
If you skip this step, you will receive a noce of Connecng to App every day the device lights
up for the rst me. On the noce page, you can check the box of Do Not Show Again and tap
Skip if you do not like to receive this noce anymore.
3.
Select a Wi-Fi from the list and enter the Wi-Fi's password to get connected. Tap Next.
Figure 2-5 Connect to Wi-Fi
4.
Add your device to your mobile phone and tap Next. Scan the rst QR code to download the
App of Hik-Connect and scan the second QR code to add your device to the App.
Two-Wire Bundle User Manual
5
Figure 2-6 Add Device to Mobile Phone
5.
Aer adding your device to your mobile phone, the device will check the connecon with the
door
staon.
●
If two devices pair successfully, the indoor staon will then enter the menu page.
●
If pairing failed, the device will inform you to reset the indoor
staon or to check the wiring.
Basic
Sengs
Basic sengs is required before starng using the indoor staon. It is necessary to set the indoor
staon network, room No., linked devices, device me display, and so on.
Connect to Wi-Fi
Set Wi-Fi connecon.
Tap Sengs → . Enable Wi-Fi, and the indoor staon will search available Wi-Fi automacally.
Note
The Wi-Fi IP can be changed.
Two-Wire Bundle User Manual
6
Figure 2-7 Wi-Fi Sengs
Select an Wi-Fi and connect.
Sound
Sengs
Call Sengs
You can set the ringtone, ring duraon, call forwarding me on call sengs page.
Steps
1.
Tap Sengs → to enter the call sengs page.
Two-Wire Bundle User Manual
7
Figure 2-8 Call Sengs
2.
Set corresponding parameters.
Ringtone
There are 3 ringtones by default, and you can custom and import at most 4 ringtones via
Batch
Conguraon Tool or iVMS-4200 Client Soware.
Ringtone Duraon: The maximum duraon of indoor staon when it is called without being
accepted. Ringtone duraon ranges from 30 s to 60 s.
Calling Duraon
The call will end automacally when the actual calling duraon is longer than the congured
one. Calling duraon ranges from 30 s to 60 s.
Call Forwarding Duraon
The ring duraon limit beyond which the call is automacally forwarded to the mobile phone
designated by the resident. Call forwarding ranges from 0 s to 20 s.
Other Sengs
You can set the Do Not Disturb and Auto-answer funcons.
Auto-answer
Enable Auto-answer. Aer enabling, the call from door staon/villa door staon will be
answered by the indoor staon automacally. The caller from door staon/villa door
staon can leave voice messages. Aer the message is le, you can check it from Message
on the main page of the device.
Two-Wire Bundle User Manual
8
Figure 2-9 Main Page
Note
Before enabling Auto-answer, the funcon of Leave Message needs to be enabled. Tap
Sengs → → to enter the shortcut sengs page. Eanble Leave Message and go back to
calling sengs page to enable Auto-answer.
Do Not Disturb Device
Select All and all devices will not disturb this device. Select Indoor Staon and all indoor
staon will not disturb this device.
Do Not Disturb
Set the do not disturb schedule. Select Close and the do not disturb funcon will not be
enabled. Select All Day and this device will not be disturbed all day. Select Schedule and
you can set the do not disturb me duraon. Within the congured me, this device will
not be disturbed.
Shortcut Sengs
You can enable leave message or snapshot funcon according to your actual needs.
You can set the leave message me and snapshot me if these two funcons are enabled.
Volume Sengs
Set the microphone volume, prompt sound volume and call volume.
Two-Wire Bundle User Manual
9
Steps
1.
Tap Sengs → → Volume Sengs to enter the volume sengs page.
2.
Set the microphone volume, prompt sound volume, and the call volume of the indoor staon.
3.
Oponal: Enable Touch Sound to turn on the sound when you touch device screen.
General Sengs
You can set me and date, format, system language and adjust the screen brightness on this page.
Tap Sengs → to enter the general sengs page.
Figure 2-10 General Sengs
Time and Date
Set the displayed me and date format, current me. Tap Sync Time to synchronize the device
me. Tap to enable Synchronize Time to Door Staon to synchronize the device me to the
linked door
staon. You can also enable DST and set the DST start me, end me and bias.
Note
For details, see Synchronize Time .
System Language
Tap System Language to change the system language.
Brightness Adjustment
Tap + or - to adjust the screen brightness.
Two-Wire Bundle User Manual
10
Clean Screen
Enable Clear Screen and the screen will be locked for 30s. And you can clear the screen within
the
me duraon.
Note
●
Aer enabling Clear Screen funcon, press and hold the Unlock key to exit the clear screen
mode.
●
The device without unlock key will exit the clear screen mode automacally when the me is
out.
Live View Duraon
You can set the duraon of live view.
Synchronize Time
Steps
1.
Tap Sengs → → Time and Date to enter the me synchronizaon page.
2.
Tap Date Format and Time Format to set the me format.
3.
Oponal: Tap Time to set me manually.
4.
Tap Sync Time.
Figure 2-11 Time Synchronizaon
1) Select the Time Zone.
2) Enable Enable NTP.
Two-Wire Bundle User Manual
11
3) Set the synchronizing interval, enter the IP address/domain of NTP server and port No.
Note
●
The default unit of synchronizing interval is minute.
●
The me zone can be congured as well if the NTP is not enabled.
5.
Tap to enable Synchronize Time to Door Staon to synchronize the device me to the linked
door
staon.
6.
Enable DST and set the DST start me, end me and bias.
Advanced Sengs
Device Informaon
View the device informaon, including the version, model, serial No. and open source disclaimer.
Steps
1.
Tap Sengs → → Device Informaon to enter the Device Informaon page.
2.
View the device version, model, and serial No.
3.
Oponal: Tap Open Source Disclaimer to view the OSS statement.
Reboot Device
You can reboot the device.
Steps
1.
Tap Sengs → → Reboot Device to reboot the indoor staon.
2.
Tap OK and the device will be rebooted.
Door
Staon Sengs
The indoor staon can pair with the main door staon.
Steps
1.
Tap
Sengs → → Main Door Staon (D Series) to enter the door staon sengs page.
2.
Select the device to link. Edit the network parameters by tapping .
System Maintenance
You can restore the device, upgrade system, unlink app account, set wizard, and congure security
sengs on the system maintenance page.
Tap
Sengs → → System Maintenance to enter the system maintenance page.
Two-Wire Bundle User Manual
12
Restore Default Sengs
Tap Restore Default Sengs to restore the default sengs and reboot the system.
Restore All
Tap Restore All to restore all parameters and reboot the system.
Upgrade
Tap Upgrade to get the upgrade package online.
Wizard
Tap Wizard and set the language, password reset method, network parameters, indoor
staon
parameters, plaorm service, and related device. For details, refer to Quick Operaon .
Hik-Connect Service Sengs
For more details, please refer to .
2.3
Operaon Guide
2.3.1 Local Operaon
Menu
You can also check the status of on the menu page.
You can view the status of the Hik-Connect, Wi-Fi, door staon and remote operaon of APP.
Two-Wire Bundle User Manual
13
Figure 2-12 Menu
Note
When the App is remotely operang, it will be prompted on the menu page.
Call Sengs
Receive Call
The indoor staon and indoor extension can receive calls from the linked door staon.
On the call from door staon page, there are 2 unlock buons: Unlock 1, and Unlock 2. When you
tap Unlock 1, the building gate will open by default, and when you tap Unlock 2, the door
connected to the door
staon with the secure control door unit will open.
Tap the capture buon to capture and save the live view picture when speaking with the door
staon.
View Call Logs
Steps
1.
Tap Call →
to enter the call log page.
Two-Wire Bundle User Manual
14
Figure 2-13 Call Logs
2.
Tap a piece of call logs in the list to call back.
Note
●
The indoor staon saves call logs from the door staons.
●
Hold a piece of call logs to open the call logs handling menu. Tap Delete to delete the piece of
call logs. Tap Clear to delete all pieces of call logs.
Leave Message
You can set leave message, and view the messages.
Tap Sengs → → Shortcut Sengs to enter the shortcut sengs page. Enable Leave Message.
Tap Message on the main page to view the messages.
Live View
On the live view page, you can view the live video of added door staon.
Steps
Note
Make sure the door staon is well-connected.
1.
Tap Live View to enter the live view page.
Two-Wire Bundle User Manual
15
Figure 2-14 Live View
2.
Tap to enter the live view page of door staon.
Note
●
On the Call from Door Staon page, there are 2 unlock buons: Unlock 1, and Unlock 2. When
you tap Unlock 1, the building gate will open by default. When you tap Unlock 2, the door
staon connected door will open.
●
On the Call from Door
Staon page, there are 1 capture buon. You can tap the buon to
capture the picture via door
staon.
Informaon Management
You can view public noce, visitor message, and capture log on informaon management page.
Tap Message to enter the
informaon management page.
Delete a Log: Hold the item, you can delete it.
Clear Logs: Hold the item, you can clear all logs.
Note
Indoor extension only supports capture log.
Two-Wire Bundle User Manual
16
Chapter 3 Conguraon and Operaon of Door
Staon
3.1 Appearance
Figure 3-1 Appearance
Table 3-1
Descripon
No. Descripon
1 Microphone
2 Calling Indicator
3 Speaking Indicator
4 Open Door Indicator
Two-Wire Bundle User Manual
17
No. Descripon
5 Built-in Camera
6 Supplement Light
7 Loudspeaker
8 TAMPER
9 Call Buon
3.2 Restore to Factory Sengs
You can restore the device to factory sengs by long pressing the call buon (No.9) and pressing
the tamper
buon (No.8) for 5 mes.
Two-Wire Bundle User Manual
18
3.3 Terminal Descripon
Figure 3-2 Terminal Descripon
Table 3-2 Terminal Descripon
No. Interface Descripon
A1 NC1 Normally Close
A2 NO1 Normally Open
A3 COM Common Interface
A4 NC2 Normally Close
A5 NO2 Normally Open
A6 GND Grounding
A7 AIN1 Alarm Input 1
A8 AIN2 Alarm Input 2
A9 12V OUT Power Supply Output
A10 GND Grounding
A11 2-WIRE Two-Wire Interface
A12 2-WIRE Two-Wire Interface
3.4 Installaon
Note
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Make sure your power supply matches your door staon.
Two-Wire Bundle User Manual
19
●
Make sure all the related equipment is power-o during the installaon.
●
Check the product specicaon for the installaon environment.
3.4.1 Accessory Introducon
The dimension of mounng box and protecve shield are shown below.
Figure 3-3 Dimension of Gang Box
The dimension of the moung box is 105 mm × 164 mm × 39 mm.
Two-Wire Bundle User Manual
20
Figure 3-4 Dimension of Protecve Shield
The dimension of the protecve shield is 115 mm × 174 mm × 59.5 mm.
3.4.2 Surface
Mounng with Protecve Shield
Steps
1.
Secure the protecve shield to the wall with 4 screws (KA-4X22-SUS) .
2.
Use the wrench to secure the door
staon to the protecve shield with 4 screws (KM3X37) .
Two-Wire Bundle User Manual
21
Figure 3-5 Surface Mounng with Protecve Shield
3.4.3 Flush
Mounng with Mounng Box
Steps
1.
Cave the
installaon hole, and pull the cable out.
Note
The suggested dimension of the installaon hole is 103.5 mm × 162.5 mm × 40.5 mm.
2.
Insert the mounng box into the hole with 4 screws.
3.
Install the door staon into the mounng box, and x it with 4 screws.
Two-Wire Bundle User Manual
22
Figure 3-6 Flush Mounng with Mounng Box
3.5 Typical
Applicaon
The typical applicaon of the device is shown as below.
Figure 3-7 Typical Applicaon
Wire the door staon to the indoor staon with 2-wire cables.
You can acvate door staon by indoor staon.
Set the open duraon and other parameters by indoor staon.
Refers to the Indoor Staon Conguraon Guide for details.
Two-Wire Bundle User Manual
23
3.6 Video Intercom Operaon
You can call the resident by pressing the call buon.
Press the call buon of the door staon. The resident can receive/decline the video call, unlock the
door, etc.
Note
●
When the video intercom between you and the resident is realized, you can speak to the
resident, and the live view of door staon will be displayed on the connected indoor staon.
●
When the door staon is calling the resident, the door staon will detect the brightness of video
automacally. When the brightness is lower than the expected threshold, the supplement light
will be enabled.
●
When the supplement light is enabled, the backlight of key will be auto-enabled, otherwise, the
door
staon will detect the brightness of live view and enable the backlight of key when the
brightness of live view is lower than expected threshold.
3.7 Dimension
The dimension of the villa door staon is shown below.
Two-Wire Bundle User Manual
24
Figure 3-8 Dimension
Two-Wire Bundle User Manual
25
UD34873B
