DS-KIS212 Four-Wire Bundle
User Manual
Legal Informaon
About this Document
●
This Document includes instrucons for using and managing the Product. Pictures, charts,
images and all other
informaon hereinaer are for descripon and explanaon only.
●
The
informaon contained in the Document is subject to change, without noce, due to
rmware updates or other reasons. Please nd the latest version of the Document at the
Hikvision website ( hps://www.hikvision.com ). Unless otherwise agreed, Hangzhou Hikvision
Digital Technology Co., Ltd. or its aliates (hereinaer referred to as "Hikvision") makes no
warranes, express or implied.
●
Please use the Document with the guidance and assistance of professionals trained in
supporng the Product.
About this Product
This product can only enjoy the aer-sales service support in the country or region where the
purchase is made.
Acknowledgment of Intellectual Property Rights
●
Hikvision owns the copyrights and/or patents related to the technology embodied in the
Products described in this Document, which may include licenses obtained from third pares.
●
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part
of this Document may be excerpted, copied, translated, or modied in whole or in part by any
means without
wrien permission.
●
and other Hikvision's trademarks and logos are the properes of Hikvision in
various
jurisdicons.
●
Other trademarks and logos menoned are the properes of their respecve owners.
LEGAL DISCLAIMER
●
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS
IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK.
IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE
DS-KIS212 Four-Wire Bundle User Manual
i
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
●
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
●
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
●
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
DS-KIS212 Four-Wire Bundle User Manual
ii
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
DS-KIS212 Four-Wire Bundle User Manual
iii
Safety Instrucon
Warning
●
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
●
Please use the power adapter, which is provided by normal company. The power consumpon
cannot be less than the required value.
●
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or re hazard.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
●
When the product is installed on wall or ceiling, the device shall be
rmly xed.
●
If smoke, odors or noise rise from the device, turn
o the power at once and unplug the power
cable, and then please contact the service center.
●
If the product does not work properly, please contact your dealer or the nearest service center.
Never aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cauon
●
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
●
Do not place the device in extremely hot (refer to the
specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
●
The device cover for indoor use shall be kept from rain and moisture.
●
Exposing the equipment to direct sun light, low
venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause
re danger).
●
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
●
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
●
Please use a so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
●
Please keep all wrappers
aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper. Transportaon without the
original wrapper may result in damage on the device and lead to
addional costs.
DS-KIS212 Four-Wire Bundle User Manual
iv
●
Improper use or replacement of the baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the baery manufacturer.
●
Input voltage should meet both the SELV and the Limited Power Source according to 60950-1
standard.
●
If a power adapter is provided in the device package, use the provided adapter only. If no power
adapter is provided, ensure the power adapter or other power supply complies with Limited
Power Source. Refer to the product label for the power supply output parameters.
DS-KIS212 Four-Wire Bundle User Manual
v
Regulatory Informaon
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the EMC Direcve 2014/30/EU, RE Direcve 2014/53/EU,the RoHS Direcve
2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated
collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include
leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the
baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operaon is subject to
the following two
condions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired
operaon of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence.
L'exploitaon est autorisée aux deux condions suivantes :
1. l'appareil ne doit pas produire de brouillage, et
2.
l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est suscepble d'en compromere le fonconnement.
Under Industry Canada regulaons, this radio transmier may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmier by Industry Canada. To reduce
potenal radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communicaon.
DS-KIS212 Four-Wire Bundle User Manual
vi
Conformément à la réglementaon d'Industrie Canada, le présent émeeur radio peut fonconner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émeeur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intenon des
autres
ulisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communicaon sasfaisante.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
Cet équipement doit être installé et
ulisé à une distance minimale de 20 cm entre le radiateur et
votre corps.
DS-KIS212 Four-Wire Bundle User Manual
vii
About this Manual
Get the manual and related soware from or the ocial website (hp://www.hikvision.com).
Product Model
Four-Wire Door Staon DS-KB2412T-IM
Four-Wire Indoor Staon DS-KH2230T
DS-KIS212 Four-Wire Bundle User Manual
viii
Contents
Chapter 1 Wiring Descripon of the Bundle ................................................................................ 1
Chapter 2 Introducon of Indoor Staon .................................................................................... 5
2.1 Appearance ............................................................................................................................ 5

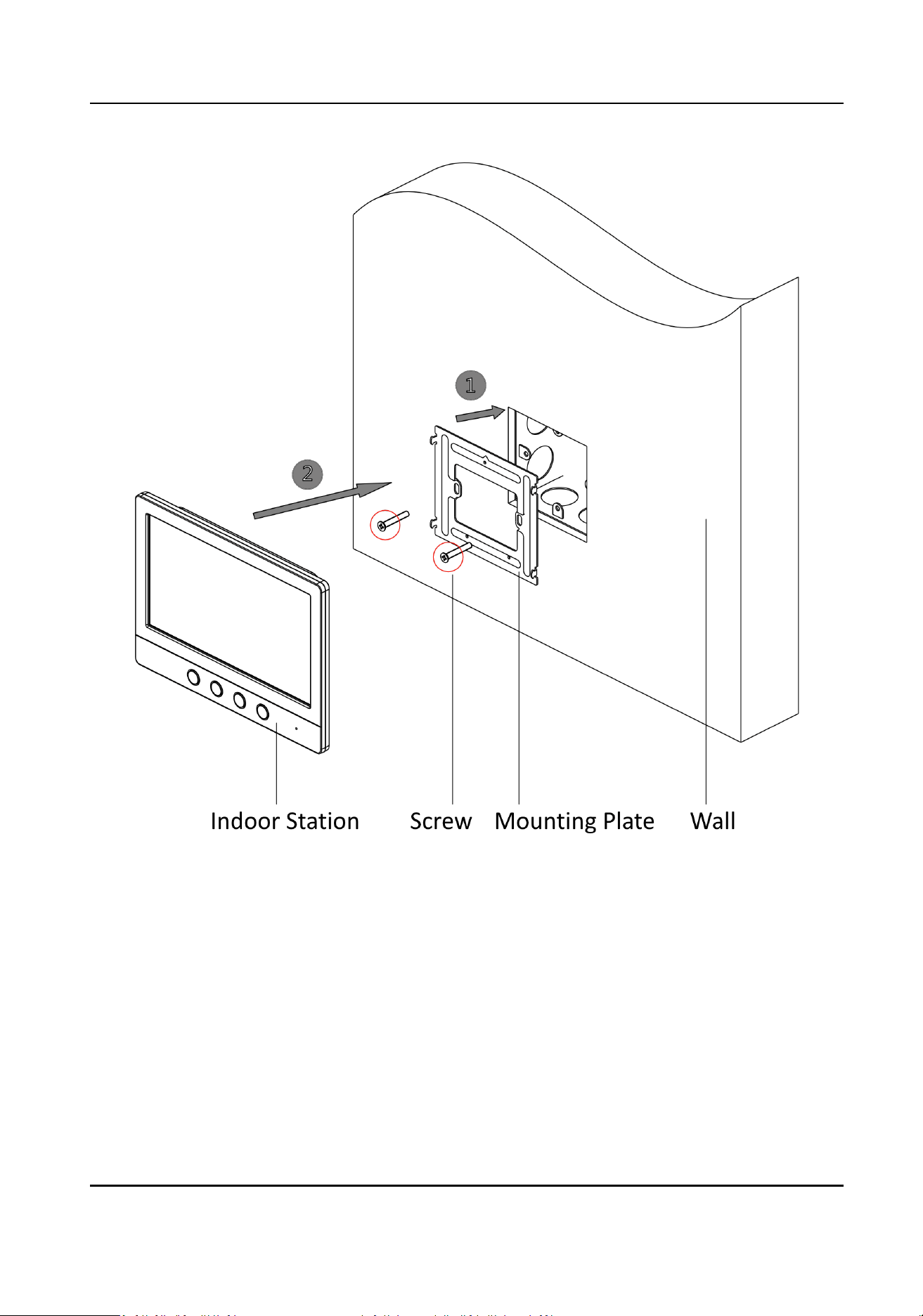

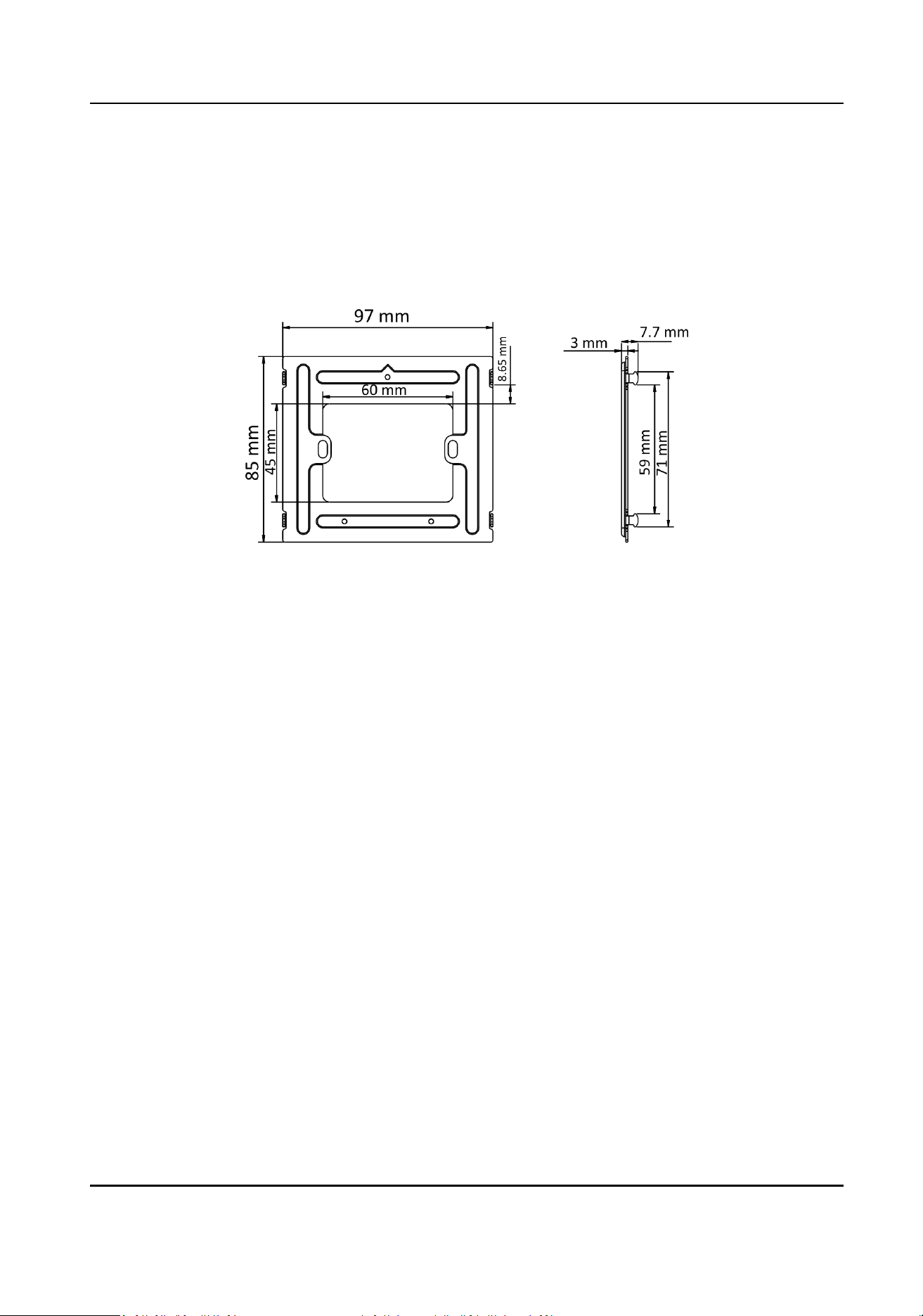

2.2 Wall Mounng ....................................................................................................................... 5
2.3 Introducon of Buons .......................................................................................................... 7
2.4 Parameter Conguraon ........................................................................................................ 8
Chapter 3 Introducon of Door Staon ..................................................................................... 10
3.1 Appearance .......................................................................................................................... 10

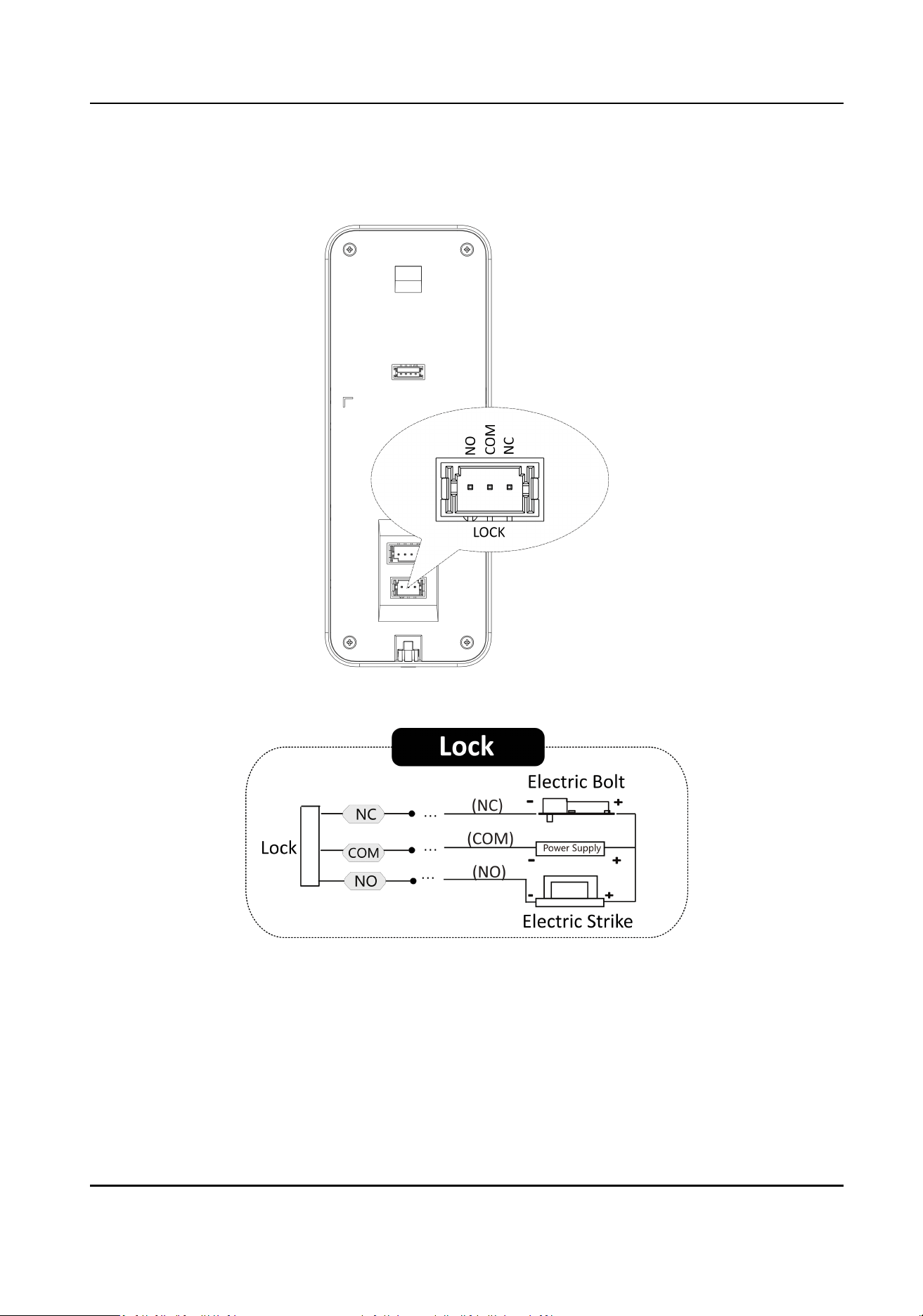

3.2 Wiring of Lock ...................................................................................................................... 11
3.3
Installaon ........................................................................................................................... 12
3.3.1 Accessory Introducon ............................................................................................... 12
3.3.2 Wall
Mounng with Protecve Shield ........................................................................ 13
3.3.3 Wall Mounng ............................................................................................................ 15
Chapter 4 Local Operaon ........................................................................................................ 17
Appendix A. Cables ................................................................................................................... 18
DS-KIS212 Four-Wire Bundle User Manual
ix
Chapter 1 Wiring Descripon of the Bundle
The system supports 3 typical applicaons. The pictures are shown as below.
Cauon
Make sure all the related equipment is power-o during the wiring and installaon.
Note
●
Up to 2 door staons and 3 indoor staons can be used in one video intercom system.
●
Only 1 indoor staon can be set as the main indoor staon. If there are more than 1 indoor
staon in the system, the other 1 or 2 indoor staons will be set as extensions.
●
The door
staon and indoor staon connect via the four-wire interface. Interface A and C are for
channel 2 and B and D for channel 1.
Figure 1-1 Four-Wire Interface of Indoor Staon
DS-KIS212 Four-Wire Bundle User Manual
1
Typical Applicaon 1: 1 Door Staon and 1 Indoor Staon
Figure 1-2 Typical Applicaon 1
DS-KIS212 Four-Wire Bundle User Manual
2
Typical Applicaon 2: 1 Door Staon and 3 Indoor Staon
Figure 1-3 Typical Applicaon 2
DS-KIS212 Four-Wire Bundle User Manual
3
Typical Applicaon 3: 2 Door Staons and 3 Indoor Staons
Figure 1-4 Typical Applicaon 3
DS-KIS212 Four-Wire Bundle User Manual
4
Chapter 2 Introducon of Indoor Staon
2.1 Appearance
Figure 2-1 Appearance
Table 2-1 Descripon
No. Descripon
1 Display Screen
2 Buons (Call/Unlock/Live View/Switch Camera)
3 Microphone
4 Loudspeaker
5 Four-Wire Interface
6 DIP Switch
7 Camera Interface
8 Power Interface
9 Debugging Port (for debugging use only)
2.2 Wall Mounng
The device supports wall mounng.
DS-KIS212 Four-Wire Bundle User Manual
5
Before You Start
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Please make sure your power supply matches your indoor staon.
●
Make sure all related equipments are
power-o during the installaon.
●
Check the product
specicaon for the installaon environment.
The dimension of
mounng plate is shown as below.
Figure 2-2 Mounng Plate
Steps
1.
Chisel a hole in the wall. Insert the juncon box to the hole.
2.
Fix the wall
mounng plate to the juncon box with 2 SC-KM4X25 screws.
3.
Hook the indoor staon to the wall mounng plate ghtly by inserng the plate hooks into slots
on the rear panel of the indoor
staon, during which the lock catch will be locked automacally.
DS-KIS212 Four-Wire Bundle User Manual
6
Figure 2-3 Wall Mounng
2.3
Introducon of Buons
The introducon of buons are as follows.
DS-KIS212 Four-Wire Bundle User Manual
7
Figure 2-4 Buons
Call Buon
You can press to receive or hang up the call.
Unlock Buon
You can press to unlock the door.
Live View Buon
You can press to view the live videos of door staons or analog camera.
Switch Camera Buon
You can press to switch between door staon 1 or 2 or analog camera when viewing live
videos.
Long press
for 3 s to enter the page of conguraon.
2.4 Parameter
Conguraon
You can set parameters of indoor staon and door staon via the indoor staon.
Long press the buon for 3 s to enter the page of conguraon.
DS-KIS212 Four-Wire Bundle User Manual
8
Figure 2-5 Local Conguraon
You can select ringtone, adjust volume, set duraon of remaining open, set volume of door
staons, adjust the brightness and check the informaon of the device.
Select the ringtone of the device.
Adjust the volume of the device.
/
Adjust the open duraon of door staon 1 and door staon 2.
/
Adjust the volume of door staon 1 and door staon 2.
Adjust the brightness of the device.
Check the informaon of the device.
DS-KIS212 Four-Wire Bundle User Manual
9
Chapter 3 Introducon of Door Staon
3.1 Appearance
Figure 3-1 Appearance
Table 3-1
Descripon
No. Descripon
1 Camera
2 Microphone
3 Loudspeaker
4 Call Buon
5 Debugging Port (for debugging use only)
6 Four-Wire Interface
7 Lock Interface
DS-KIS212 Four-Wire Bundle User Manual
10
3.2 Wiring of Lock
Figure 3-2 Lock Interface
Figure 3-3 Lock Wiring
DS-KIS212 Four-Wire Bundle User Manual
11
3.3 Installaon
Note
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Make sure your power supply matches your door staon.
●
Make sure all the related equipment is power-o during the installaon.
●
Check the product
specicaon for the installaon environment.
3.3.1 Accessory Introducon
The dimension of mounng plate is shown below.
Figure 3-4 Dimension of Mounng Plate
The dimension of the mounng plate is 47.54 mm × 132.54 mm × 11.5 mm.
DS-KIS212 Four-Wire Bundle User Manual
12
Figure 3-5 Dimension of Protecve Shield
The dimension of the protecve shield is 79.57 mm × 149.8 mm × 48.64 mm.
3.3.2 Wall
Mounng with Protecve Shield
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the mounng template.
Remove the template from the wall.
2.
Secure the
mounng plate, the silicone and the protecve shield on the wall with 4 SC-KA4X25
screws according to the screw holes.
DS-KIS212 Four-Wire Bundle User Manual
13
Figure 3-6 Secure Accessories to the Wall
3.
Wire the device and x the device to the mounng plate.
4.
Fix the device on the
mounng plate with 1 SC-KM3X8-T10-SUS-NL set screw.
DS-KIS212 Four-Wire Bundle User Manual
14

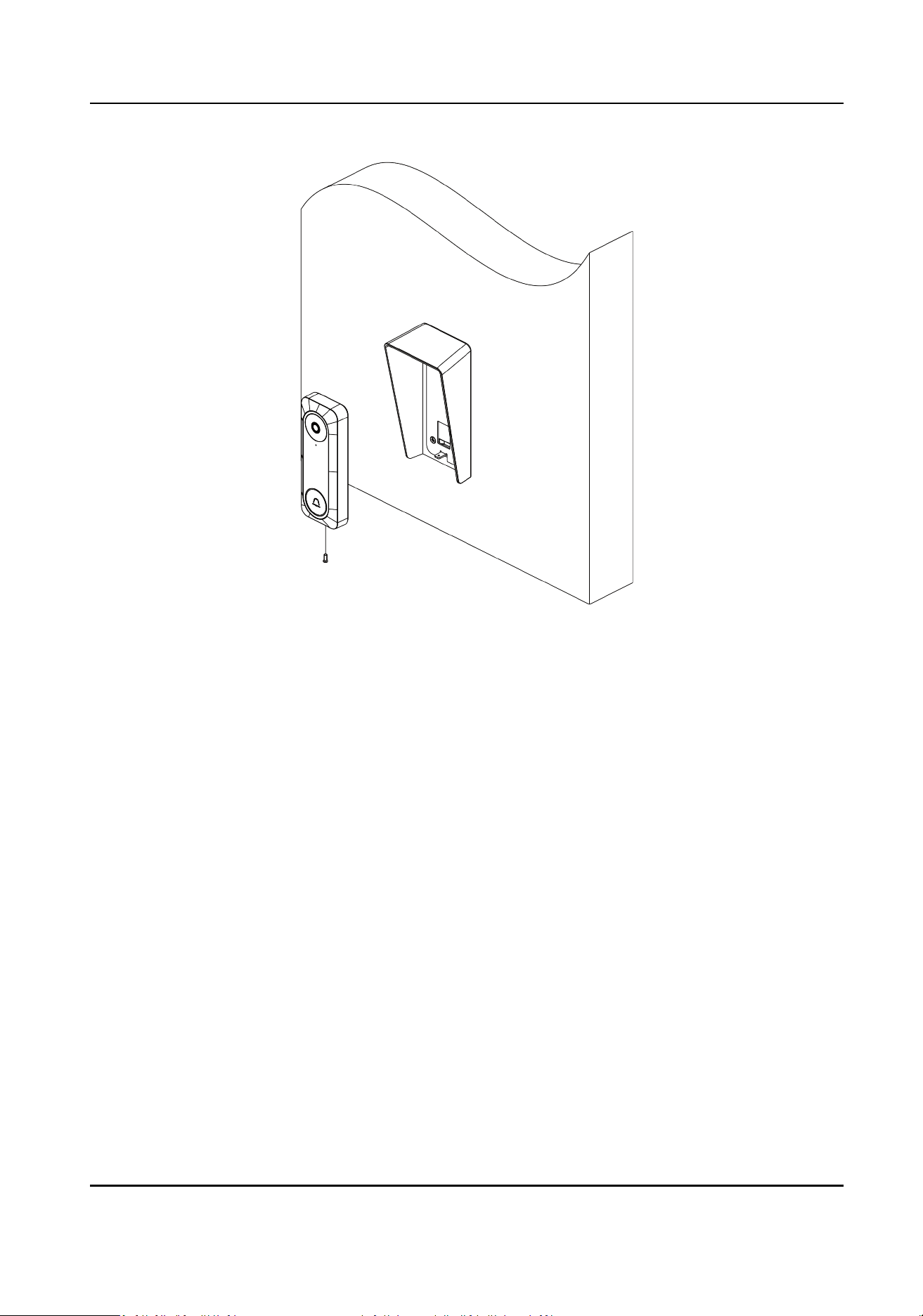

Figure 3-7 Secure Device to the Wall
3.3.3 Wall
Mounng
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the mounng template.
Remove the template from the wall.
2.
Secure the
mounng plate on the wall with 4 SC-KA4X25 screws according to the screw holes.
3.
Wire the device and x the device to the mounng plate.
4.
Fix the device on the
mounng plate with 1 SC-KM3X8-T10-SUS-NL set screw.
DS-KIS212 Four-Wire Bundle User Manual
15
Figure 3-8 Wall Mounng
DS-KIS212 Four-Wire Bundle User Manual
16
Chapter 4 Local Operaon
Before you start, you need to connect the indoor staon and door staon via the four-wire
interface and then wire the indoor
staon with DC 12 V power adapter via the power interface.
The indoor staon and door staon will be powered on.
Buons on Indoor Staon
You can receive or hang up calls, unlock doors, view live views of linked devices and switching
channels when viewing live videos via buons on indoor staon. For more details, please refer to
Introducon of Buons .
Call Indoor
Staon from Door Staon
Press the call buon on the door staon to call indoor staon. The indoor staon can receive the
call by pressing the call
buon on the indoor staon or hang up the call by long pressing the call
buon.
Note
●
The door staon can cancel the call by pressing the call buon only aer placing the call for 5
seconds.
●
Aer receiving the call, the indoor staon can press the call buon to hang up the call.
DS-KIS212 Four-Wire Bundle User Manual
17
Appendix A. Cables
Cables and Wiring
If you use two groups of parallel cables or twisted pairs instead of the supplied white four-wire
cables for wiring, you should put the blue cable (video) and black cable (ground) in the same group
of parallel cables or twisted pairs and put the yellow cable (audio) and red cable (power) in the
same group. The distance between indoor
staons should be more than 5 m.
Figure A-1 Cables
Cables Specicaon
All the cables used need to follow the restricon in the following table.
Table A-1 Wiring Cable
Specicaon
Roung Path Cable Specicaon
Door Staon-
Indoor Staon
AWG 24 AWG 20 AWG 18 AWG 16
Transmission
Distance ≤ 10 m
10 m <
Transmission
Distance ≤ 30 m
30 m <
Transmission
Distance ≤ 50 m
50 m <
Transmission
Distance ≤ 100 m
DS-KIS212 Four-Wire Bundle User Manual
18
UD34980B
